  1. Softwalls: Preventing Aircraft from Entering Unauthorized Airspace Adam Cataldo Prof. Edward Lee Ian Mitchell Prof. Shankar Sastry CHESS Review May 8, 2003 Oakland, CA

  2. Outline • Introduction to Softwalls • Objections • Control system progress • Future challenges • Conclusions

  3. Introduction—Avionics Application • On-board database with “no-fly-zones” • Enforce no-fly zones using on-board avionics • Non-networked, non-hackable

  4. Autonomous control Pilot Aircraft Autonomous controller

  5. Softwalls is not autonomous control Pilot Aircraft + bias pilot control Softwalls

  6. Relation to Unmanned Aircraft • Not an unmanned strategy • pilot authority • Collision avoidance

  7. A deadly weapon? • Project started September 11, 2001

  8. Design Objectives Maximize Pilot Authority!

  9. Unsaturated Control Pilot lets off controls Pilot tries to fly into no-fly zone Pilot turns away from no-fly zone No-fly zone Control applied

  10. Objections • Reducing pilot control is dangerous • reduces ability to respond to emergencies

  11. There is No Emergency That Justifies Landing Here

  12. Objections • Reducing pilot control is dangerous • reduces ability to respond to emergencies • There is no override • switch in the cockpit

  13. Hardwall

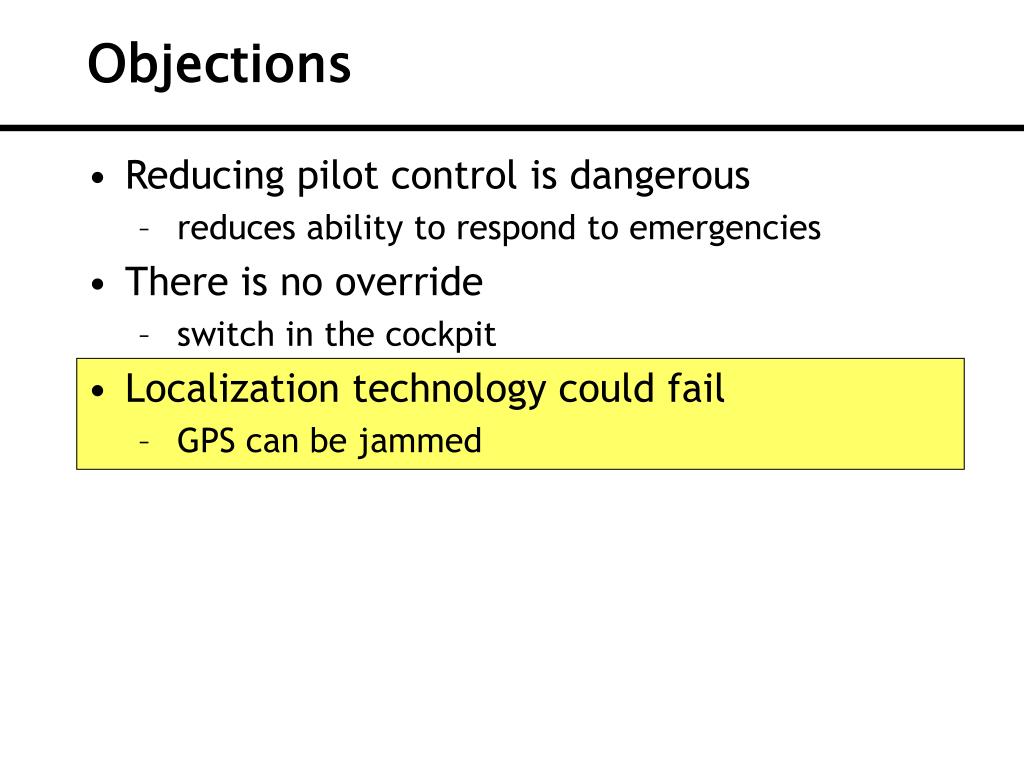

  14. Objections • Reducing pilot control is dangerous • reduces ability to respond to emergencies • There is no override • switch in the cockpit • Localization technology could fail • GPS can be jammed

  15. Localization Backup • Inertial navigation • Integrator drift limits accuracy range

  16. Objections • Reducing pilot control is dangerous • reduces ability to respond to emergencies • There is no override • switch in the cockpit • Localization technology could fail • GPS can be jammed • Deployment could be costly • Software certification? Retrofit older aircraft?

  17. Deployment • Fly-by-wire aircraft • a software change • Older aircraft • autopilot level • Phase in • prioritize airports

  18. Objections • Reducing pilot control is dangerous • reduces ability to respond to emergencies • There is no override • switch in the cockpit • Localization technology could fail • GPS can be jammed • Deployment could be costly • how to retrofit older aircraft? • Complexity • software certification

  19. Not Like Air Traffic Control • Much Simpler • No need for air traffic controller certification

  20. Objections • Reducing pilot control is dangerous • reduces ability to respond to emergencies • There is no override • switch in the cockpit • Localization technology could fail • GPS can be jammed • Deployment could be costly • how to retrofit older aircraft? • Deployment could take too long • software certification • Fully automatic flight control is possible • throw a switch on the ground, take over plane

  21. Potential Problems with Ground Control • Human-in-the-loop delay on the ground • authorization for takeover • delay recognizing the threat • Security problem on the ground • hijacking from the ground? • takeover of entire fleet at once? • coup d’etat? • Requires radio communication • hackable • jammable

  22. Here’s How It Works

  23. Reachable Set set of all points reachable with some control input reachable set starting at a point in the state space

  24. Backwards Reachable Set set of all states that can reach the final point for some control input backwards reachable set given a final point in the state space

  25. Backwards Reachable Set Backwards reachable set No-fly zone States that can reach the no-fly zone when control is applied Can prevent aircraft from entering no-fly zone Safe States

  26. Implicit Surface Functions implicit surface function for no-fly zone implicit surface function for backwards reachable set No-fly zone Backwards Reachable Set

  27. Analytic Solution • Hamilton-Jacobi-Isaacs PDE backwards reachable set implicit surface function no-fly zone implicit surface function • Evans & Souganidis--1984 v dynamics

  28. Control from Implicit Surface Function Control decreases to zero Safe States Safe States Control at boundary Backwards Reachable Set

  29. Numerical Solution • Mitchell--2001 computations & storage 1 2 3 4 states

  30. Get Real • Control algorithm • model predictive control Richard Murray DARPA SEC Program Software Enabled Control

  31. Conclusions • Embedded control system challenge • Control theory identified • Future implementation challenges identified

  32. Acknowledgements • Iman Ahmadi • Zhongning Chen • Xiaojun Liu • Steve Neuendorffer • Claire Tomlin
