  1. Viking TotalPac2FireFlex Dual / 1230 Technical Presentation ASPE Cleveland, OH March 10th, 2010 Systems Inc. www.fireflex.com

  2. INTEGRATED SPRINKLER SYSTEMS History: 1990Power Plants Unit 1991Light & Ordinary Hazard 2002Second Generation

  3. INTEGRATED SPRINKLER SYSTEMS Expanding the concept: Extended range of configurations: Skid unit Remote controlled unit Self-contained unit

  4. ICAF SYSTEM Description: Typical System Layout Air Cylinders Piping Network Distribution Nozzles Integrated Cabinet Foam Tank (water tank also available)

  5. CAF TECHNOLOGY Description:Compressed Air Foam (CAF) • Uniform & stable • High momentum • Excellent quality • 10:1 expansion

  6. Integrated Clean Agent Systems • Clean Agent Integrated Fire Suppression Systemsusing 3M™ Novec™ 1230 Fire Protection Fluid • Combined Automatic Sprinkler and Clean Agent Integrated Fire Suppression Systems using 3M™ Novec™ 1230 Fire Protection Fluid

  7. CLEAN AGENT 3M Novec 1230:

  8. Integrated Clean Agent Systems FireFlex 1230

  9. chainreaction heat fuel oxygen Extinguishing Mechanism The Fire Tetrahedron Removing one of the required components for fire or disrupting the balance between them can cause a fire to extinguish Novec 1230 Fluid extinguishes primarily via cooling – removing heat from the fire

  10. Compatible with fire system materials • Non-corrosive • Long term testing of compatibility with materials of construction (system hardware) • Compatability with plastics confirmed • 30 year shelf life in properly maintained and installed systems

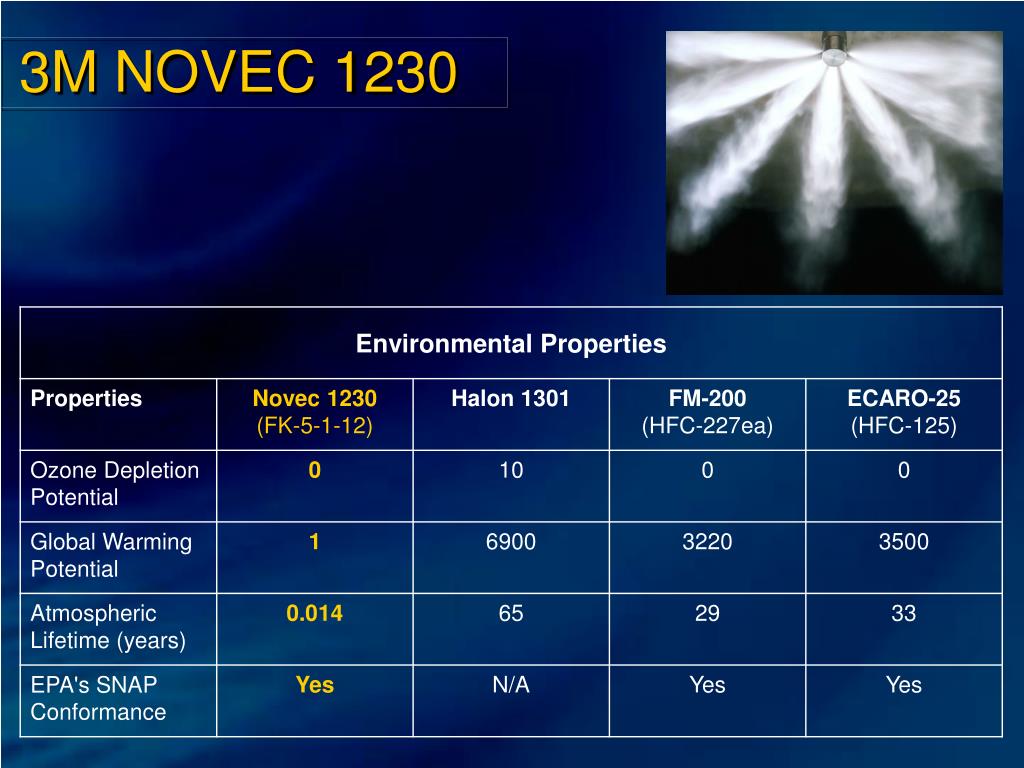

  11. 3M NOVEC 1230

  12. 3M NOVEC 1230 (NOAEL) No Observable Adverse Effects Level for acute toxicity, including cardiac senisitization

  13. 3M NOVEC 1230 • Site refilling option

  14. 3M NOVEC 1230 If Novec 1230 fluid is banned from or restricted in use as a fire protection agent due to ozone depletion potential or global warming potential, 3M will refund the purchase price of the fluid.

  15. CLEAN AGENT 3M Novec 1230: • Pre-Engineered Discharge Nozzles: • Available: 1", 1½" & 2" dia. • 180° or 360° discharge pattern • 32' x 32' spacing – 16'-4" max. height • No piping below 8,500 cu.ft. !

  16. FIREFLEX 1230 • Engineered Systems: • Larger or multiple room hazards or volumes • Need some calculations/software required • Re-use existing Halon 1301 piping at 500psi

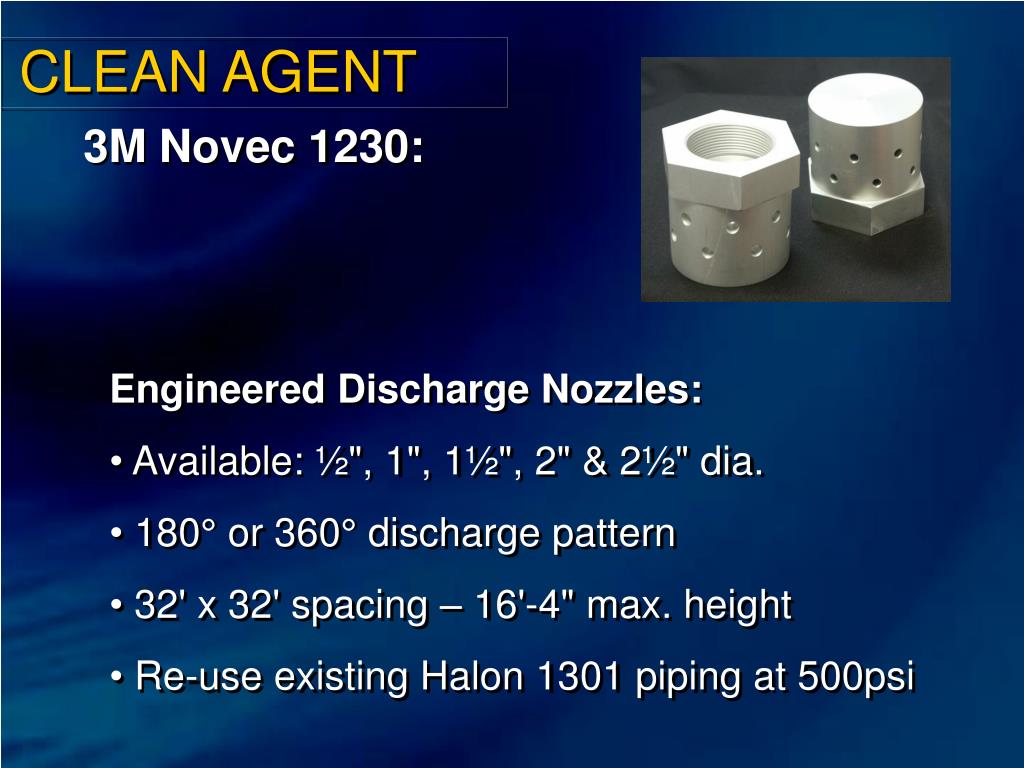

  17. CLEAN AGENT 3M Novec 1230: • Engineered Discharge Nozzles: • Available: ½", 1", 1½", 2" & 2½" dia. • 180° or 360° discharge pattern • 32' x 32' spacing – 16'-4" max. height • Re-use existing Halon 1301 piping at 500psi

  18. FIREFLEX 1230 Product Description: • Fully Integrated • Clean Agent System Only • Factory Built & Tested

  19. FIREFLEX 1230 Product Description: • Sturdy Cabinet with Lock • Competitively Priced • Eliminates Site Coordination Issues

  20. FIREFLEX 1230 Product Description: Integrated Potter PFC-4410 RC Releasing panel Detailed Instructions & Unit Serial Number Clean Agent Cylinder from 40 to 601 lbs cap. Sturdy Cabinet

  21. FIREFLEX 1230 Available Configurations: • Clean Agent Only – No Sprinklers • Self-contained or Remote Controlled (no panel) • Master-Salve Cylinders Available • Main-Reserve Arrangement Available • Pre-Engineered or Engineered Piping System

  22. FIREFLEX 1230 System dimensions and Capacity Table:

  23. Integrated Clean Agent Systems FireFlex DUAL

  24. FIREFLEX DUAL Product Description: • Fully Integrated System • Combines Preaction & Clean Agent • Factory Built & Tested • Serialized

  25. FIREFLEX DUAL Product Description: • Sturdy Cabinet with Lock • Competitively Priced • Eliminates Site Coordination Issues

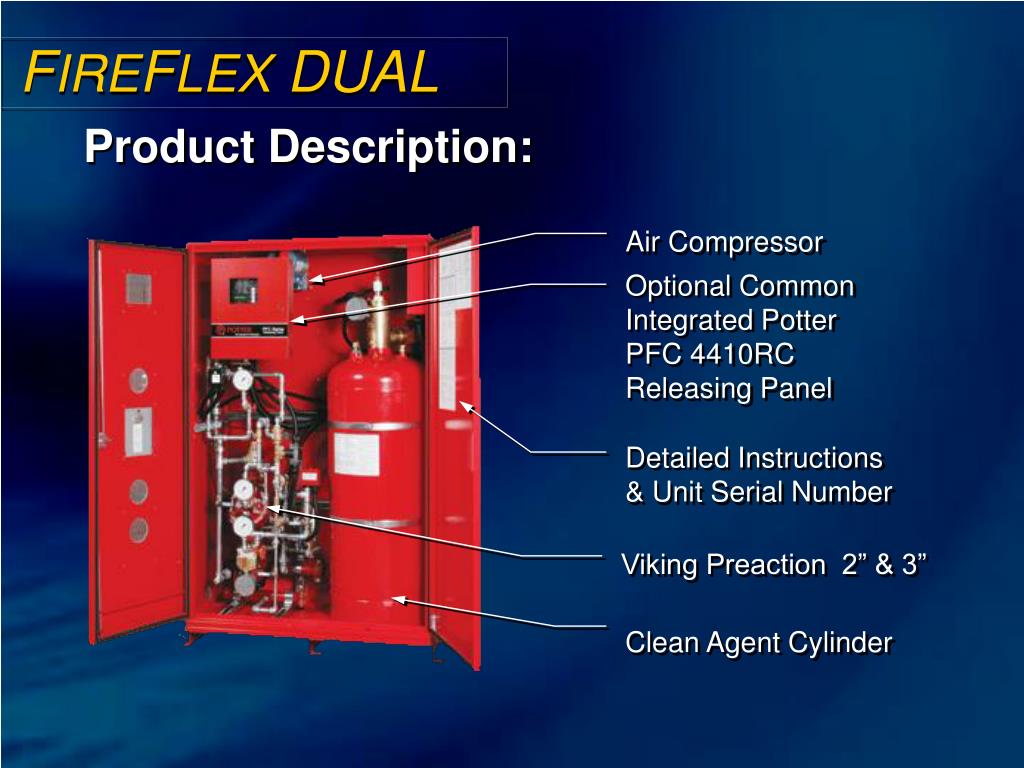

  26. FIREFLEX DUAL Product Description: Air Compressor Optional Common Integrated Potter PFC 4410RC Releasing Panel Detailed Instructions & Unit Serial Number Viking Preaction 2” & 3” Clean Agent Cylinder

  27. FIREFLEX DUAL Available Configurations: • Preaction Single or Double Interlock • 2" or 3" dia. Sprinkler Valve • Self-contained or Remote Controlled (no panel) • Pre-engineered or Engineered Piping System

  28. FIREFLEX DUAL System dimensions and Capacity Table:

  29. U.S EPA SNAP approved as alternative to halon in occupied spaces NFPA 2001 Standard on Clean Agent Fire Protection Systems ISO 14520 Standard on Gaseous Media Fire Extinguishing Systems FM Approved UL Listed IMO Recognized VdS Approved LPCB Approved DNV Approved Bureau Veritas Approved CNPP Approved Lloyds Approved Standards, Approvals and Listings for Novec 1230 Fluid

  30. LISTINGS & APPROVALS Clean Agent(Sevo Equipment): • UL & ULC Listed: • 360 psi Pre-engineered Systems • Engineered Systems by Mid-2010 • FM Approved: • 500 psi Pre-Engineered Systems • Engineered Systems early 2010

  31. LISTINGS & APPROVALS Potter Releasing Panel & Viking Preaction System: • UL & ULC Listed • FM Approved • CSFM Approved • NYC Accepted

  32. LISTINGS & APPROVALS FIREFLEX DUAL & 1230 (Assembled Units): • Pre-engineered System: c-UL-us(early 2010) • FM Approved 500 psi • Engineered System: c-UL-us & FM(early 2010) • CSFM & NYC (early 2010)

  33. APPLICATIONS • IT Systems • Mix rooms • Pump Stations • Switch Rooms & UPS • Telecommunications • Testing / Imaging equipment • Transformer Vaults • Etc… • Cable racks • Clean Rooms • Clinical / Diagnostic equipment • Control Rooms • Data Centers • Electric Utility facilities • Generator & turbine enclosures

  34. Information required for design • Obtain specifications • Approvals required, AHJ • Determine if a reserve is required • Identify hazard normal ambient temperature • Obtain location altitude • Obtain drawings, sketches of dimensions • Qualify room size when quoting a job • Obtain hazard areas, length, width, ceiling height • Determine system location

  35. Thank you ! Systems Inc. FIREFLEX DUAL&FIREFLEX 1230by the same people who first brought you integrated fire protection systems www.fireflex.com
