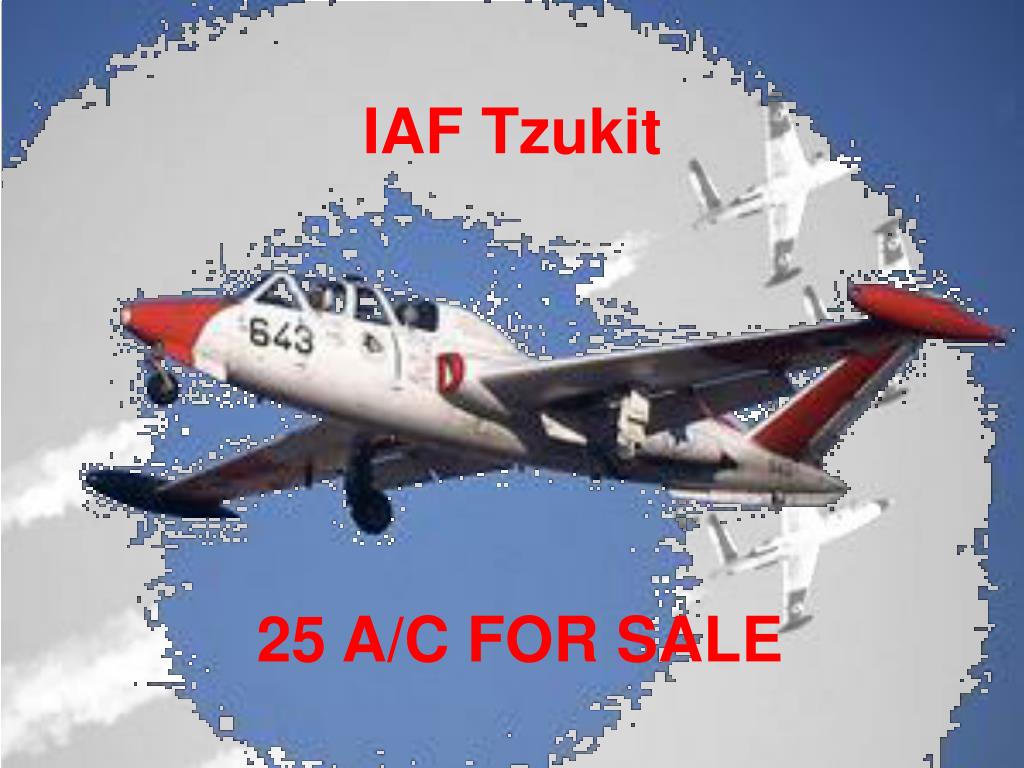

  1. IAF Tzukit 25 A/C FOR SALE

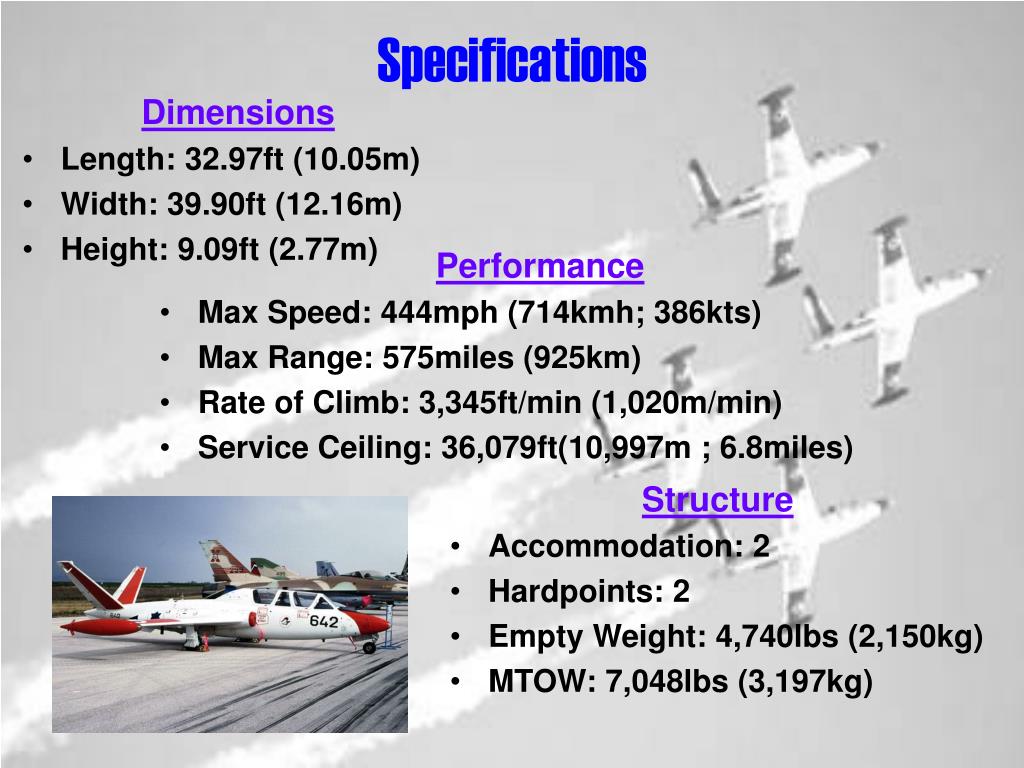

  2. Dimensions Length: 32.97ft (10.05m) Width: 39.90ft (12.16m) Height: 9.09ft (2.77m) Specifications • Performance • Max Speed: 444mph (714kmh; 386kts) • Max Range: 575miles (925km) • Rate of Climb: 3,345ft/min (1,020m/min) • Service Ceiling: 36,079ft(10,997m ; 6.8miles) • Structure • Accommodation: 2 • Hardpoints: 2 • Empty Weight: 4,740lbs (2,150kg) • MTOW: 7,048lbs (3,197kg)

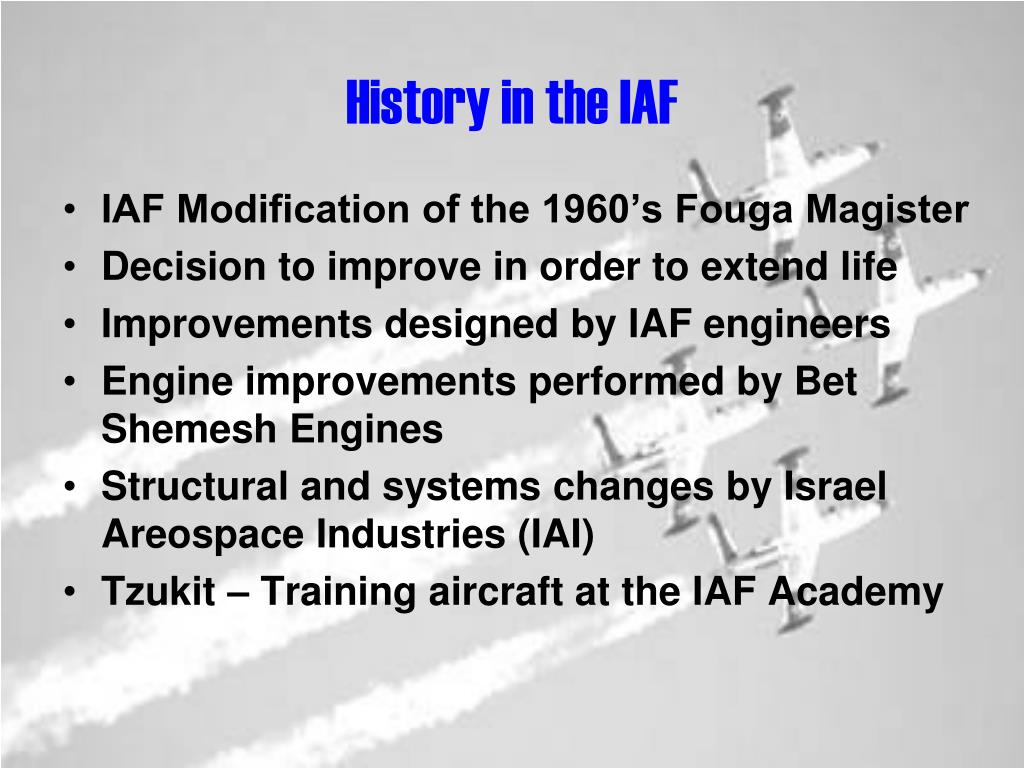

  3. History in the IAF • IAF Modification of the 1960’s Fouga Magister • Decision to improve in order to extend life • Improvements designed by IAF engineers • Engine improvements performed by Bet Shemesh Engines • Structural and systems changes by Israel Areospace Industries (IAI) • Tzukit – Training aircraft at the IAF Academy

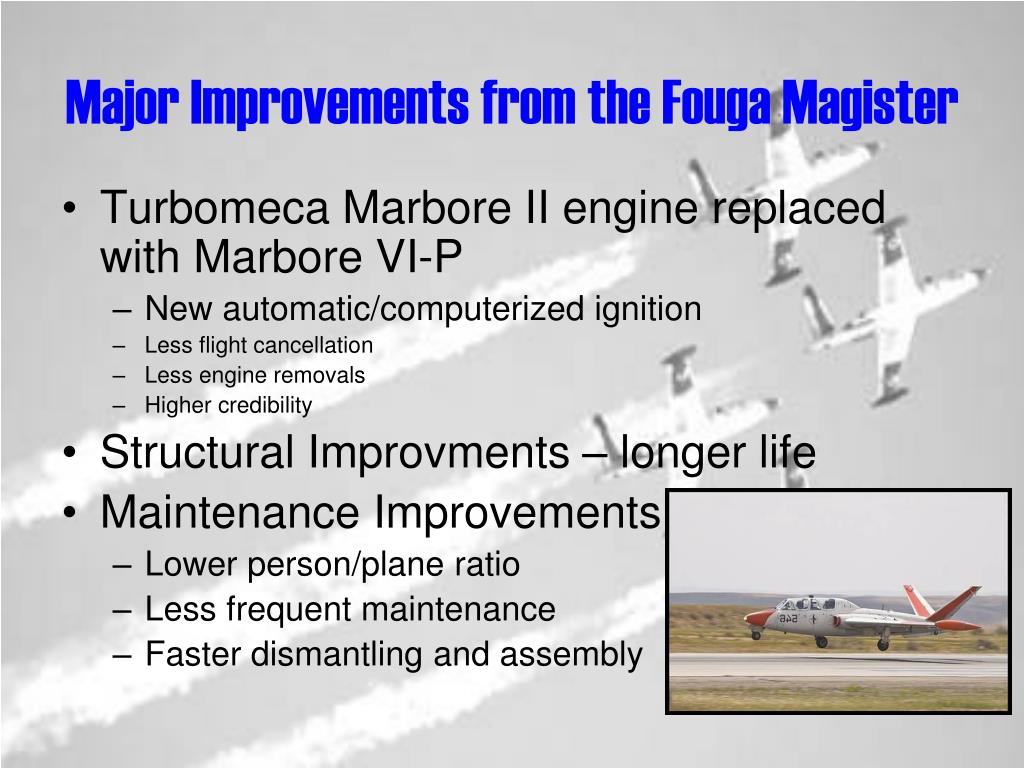

  4. Major Improvements from the Fouga Magister • Turbomeca Marbore II engine replaced with Marbore VI-P • New automatic/computerized ignition • Less flight cancellation • Less engine removals • Higher credibility • Structural Improvments – longer life • Maintenance Improvements • Lower person/plane ratio • Less frequent maintenance • Faster dismantling and assembly

  5. More Improvements from the Fouga Magister • Gas oxygen replace with liquid • Air conditioning system improvements • Acoustic isolation installed • New instruments and gauges installed • Internal illumination installed • Comfort improvements to seats • Wing improvements (anti-corrosion treatments) • Landing gear and fuel tank panels strengthened • New approach/access openings added • Cockpit improvements and canopy strengthening • Fuel system improvements (new pump, filter, valves, faucets, pipes) • Smoke systems installed • Braking system improvements (sensitivity, reliability) • Landing gear improvements • Steering control improvements • Hydraulic systems improved (pump, emergency pump, pressure filters)

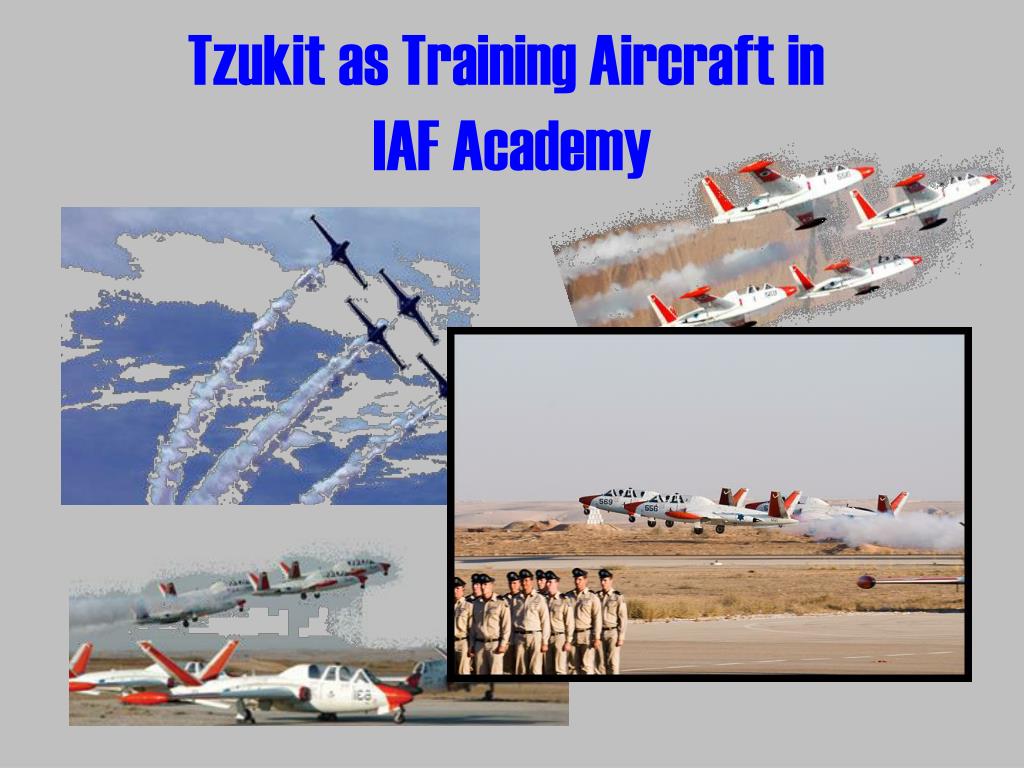

  6. Tzukit as Training Aircraft in IAF Academy

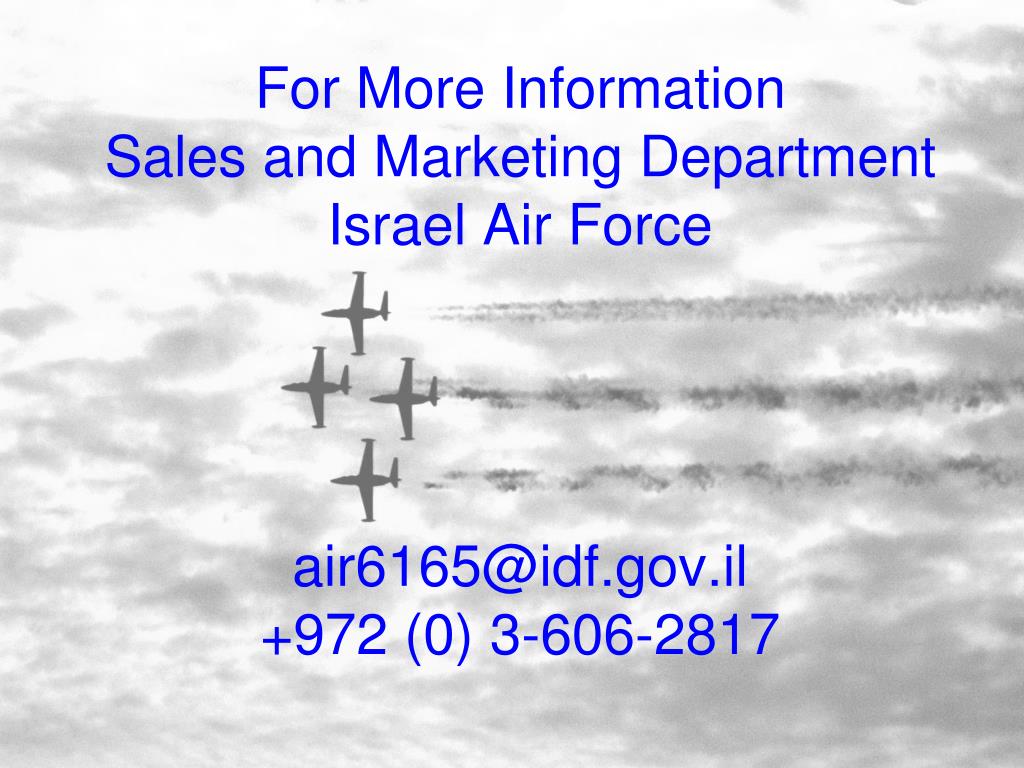

  7. For More InformationSales and Marketing Department Israel Air Force air6165@idf.gov.il+972 (0) 3-606-2817
