  1. Ignition System Diagnostics Reading A Scope Pattern

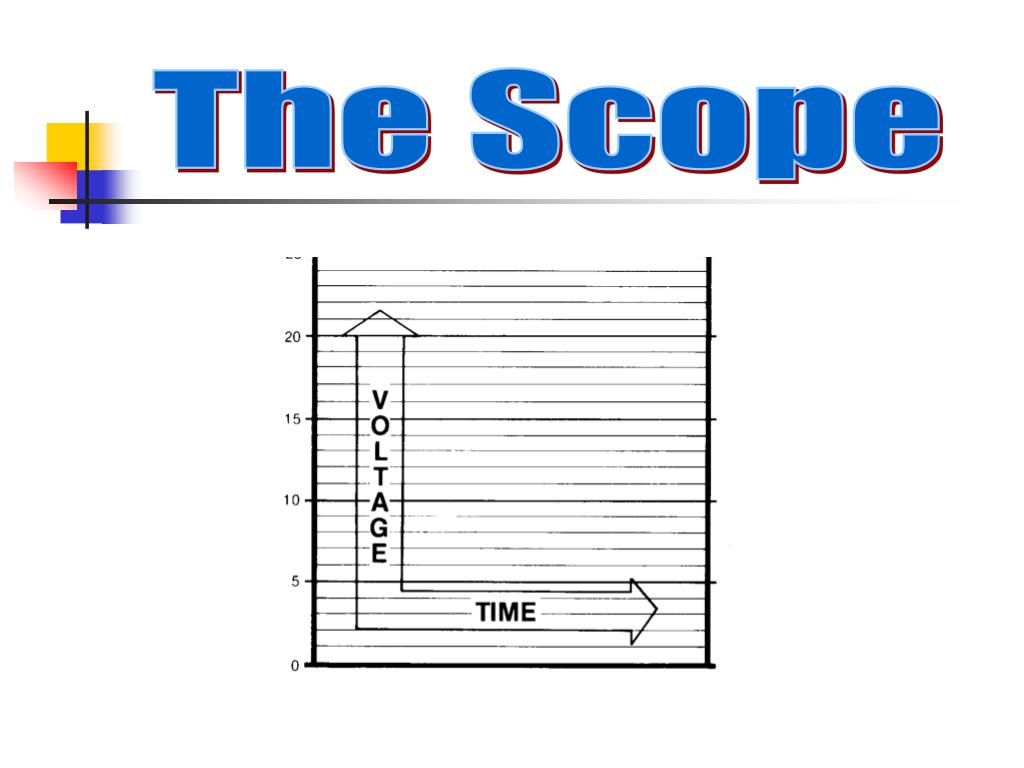

  2. The Scope

  3. FIRING ORDER

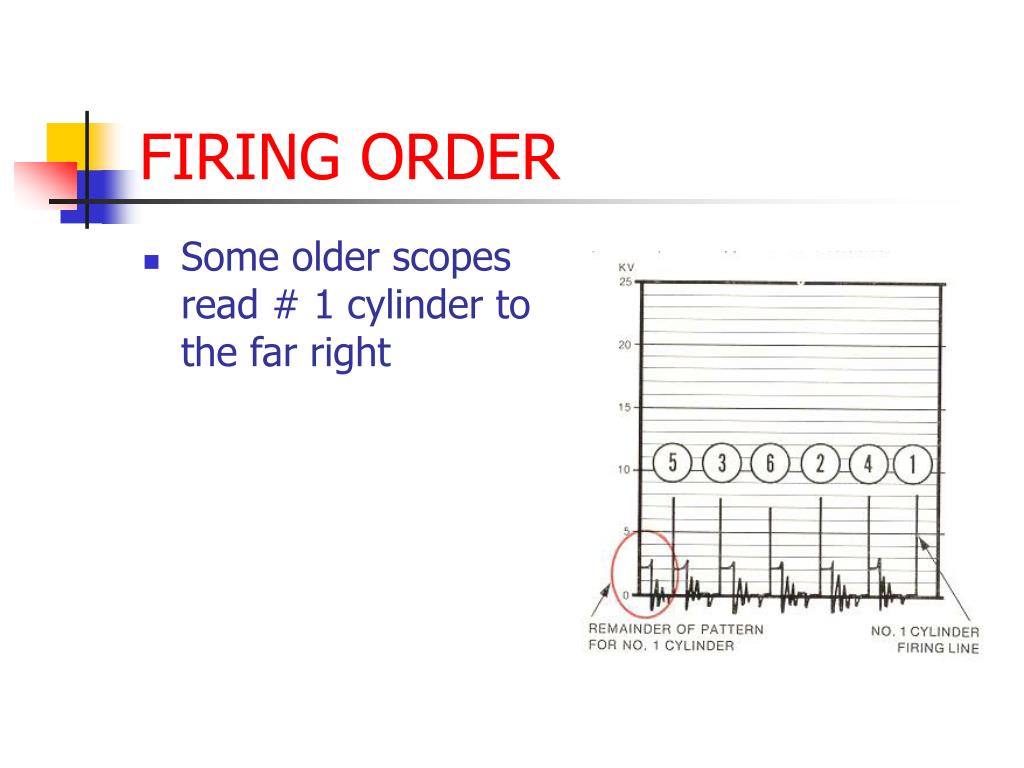

  4. FIRING ORDER • Some older scopes read # 1 cylinder to the far right

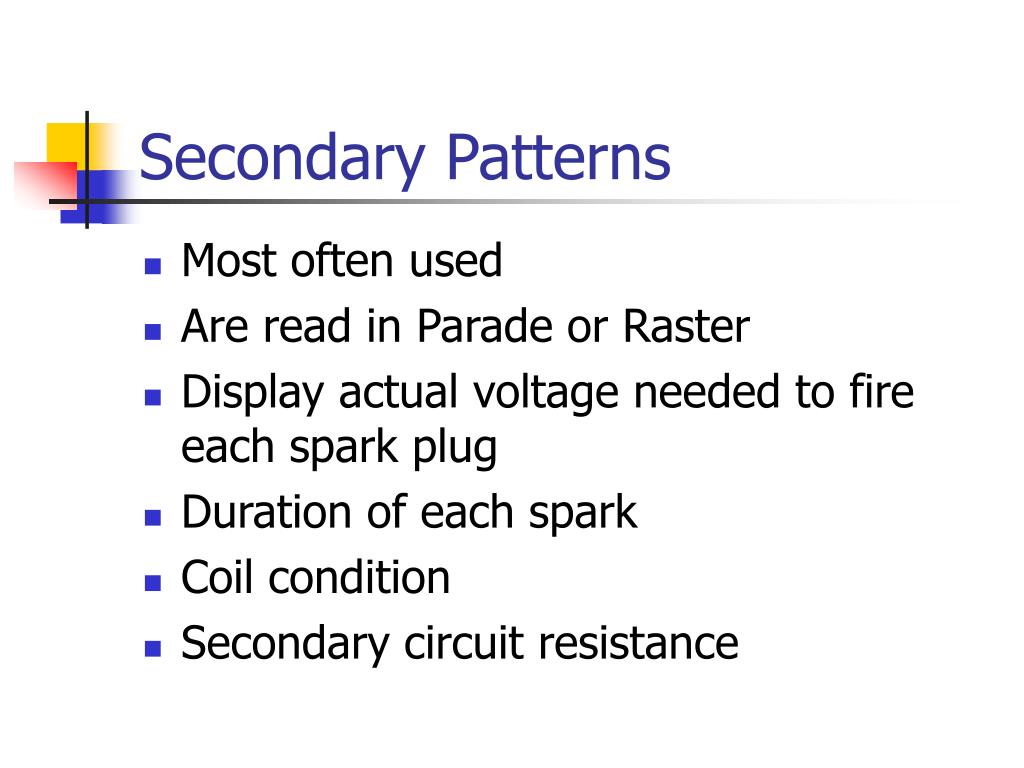

  5. Secondary Patterns • Most often used • Are read in Parade or Raster • Display actual voltage needed to fire each spark plug • Duration of each spark • Coil condition • Secondary circuit resistance

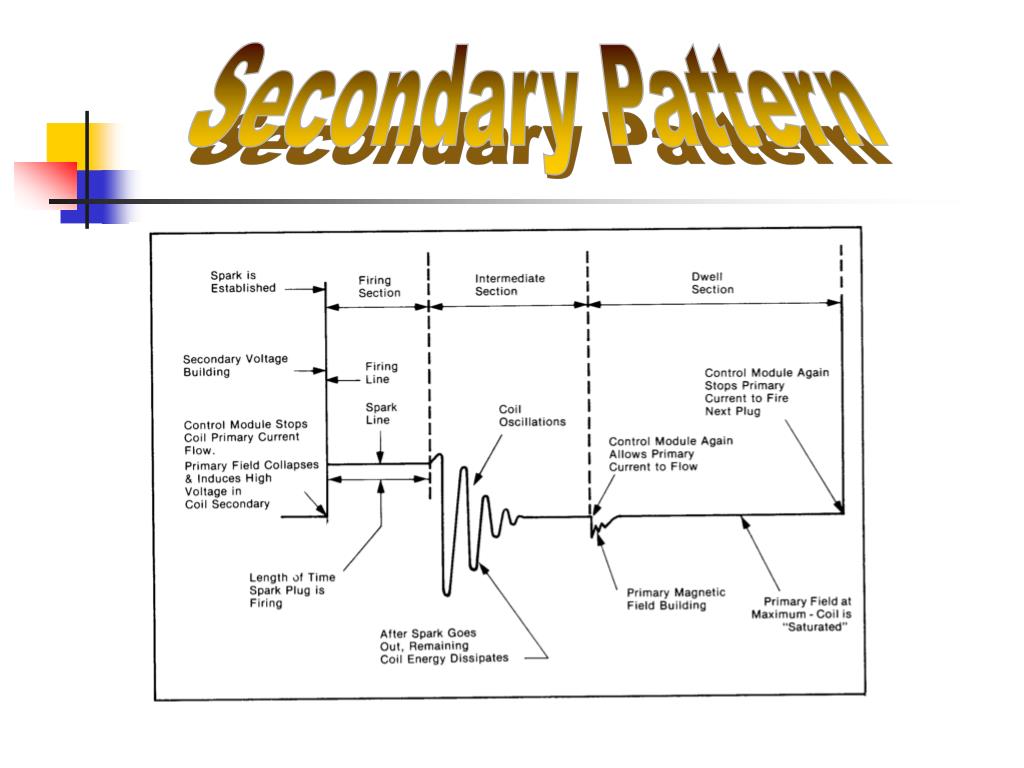

  6. Secondary Pattern

  7. NORMAL PATTERNS

  8. NORMAL PATTERNS • FIRING LINES HAVE 7 THOUSAND TO 10 THOUSAND VOLT RANGE • NO MORE THAN 3,000 VOLT DIFFERENCE BETWEEN CYLINDERS • KV IS AN ABBREVIATION FOR THOUSAND VOLTS

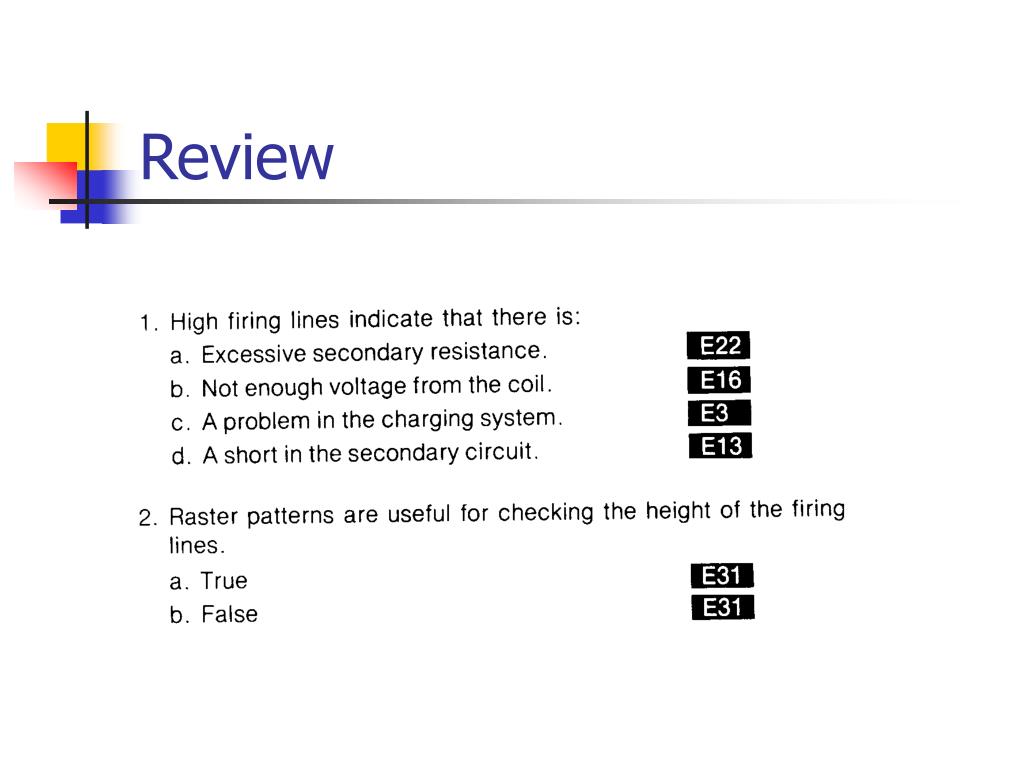

  9. Review

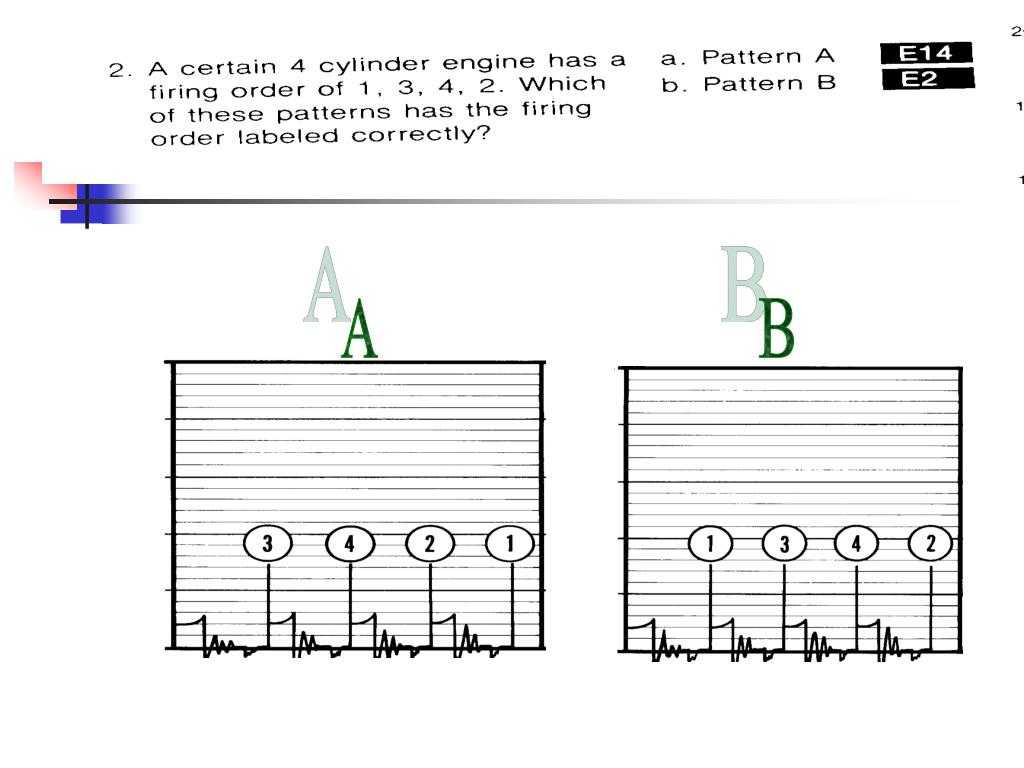

  10. A B

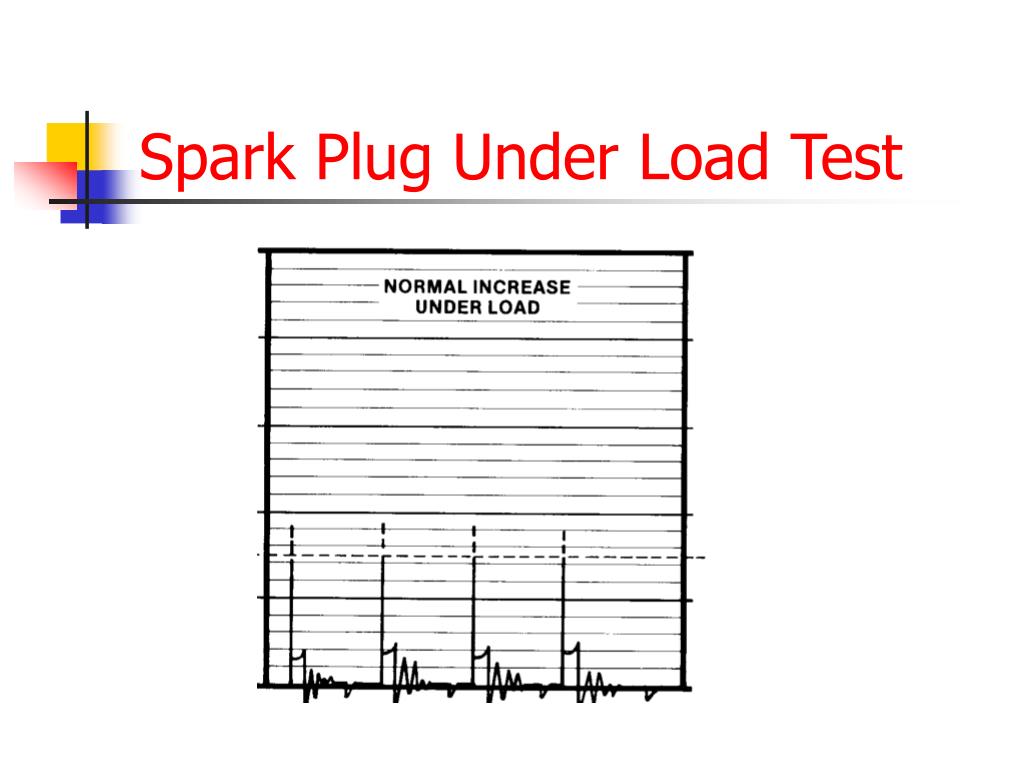

  11. Spark Plug Under Load Test

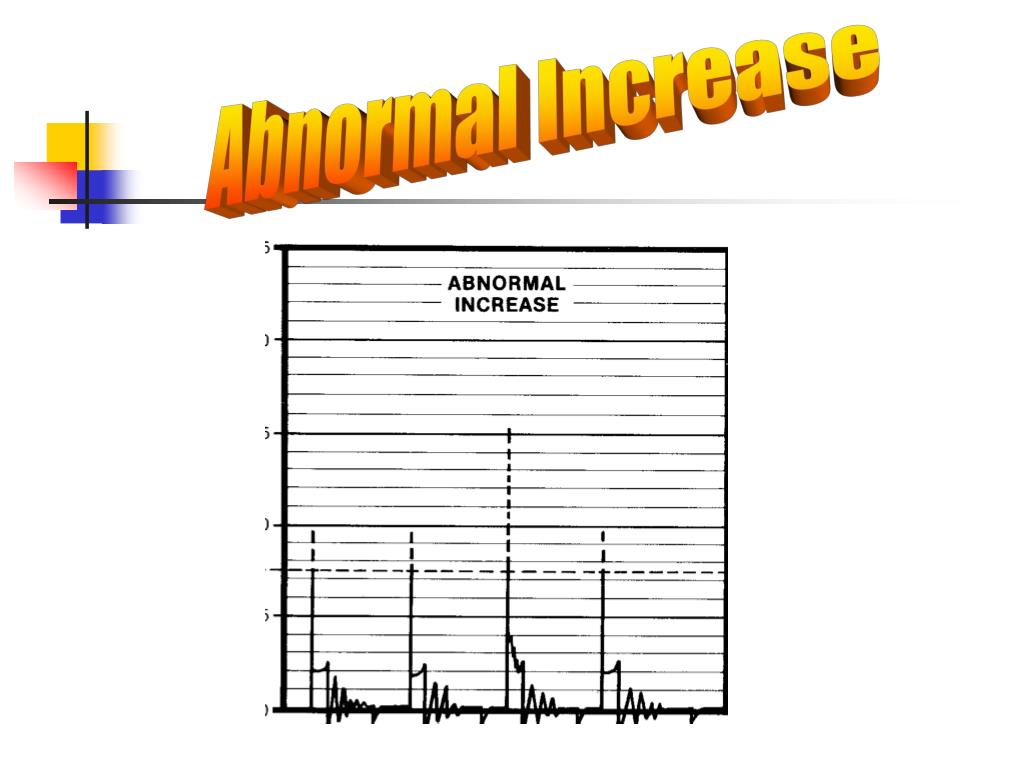

  12. Abnormal Increase

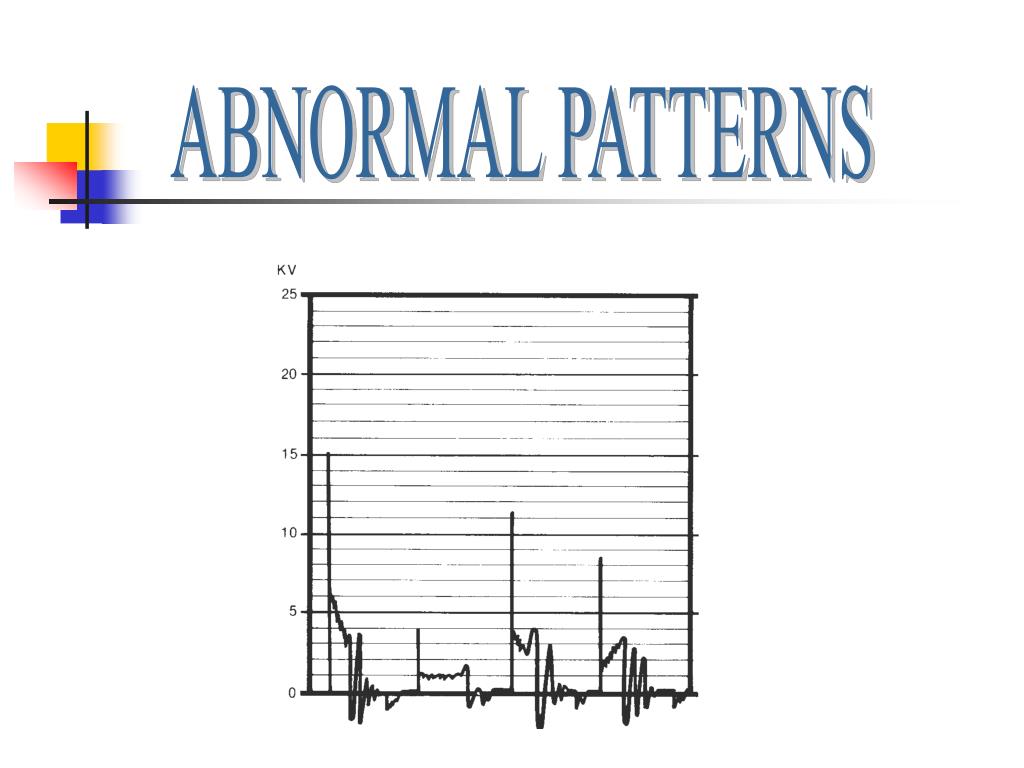

  13. ABNORMAL PATTERNS

  14. Can Be Caused By • Spark Plugs • Coil • Cap/Rotor • Fuel Air Mixture • Timing • Compression

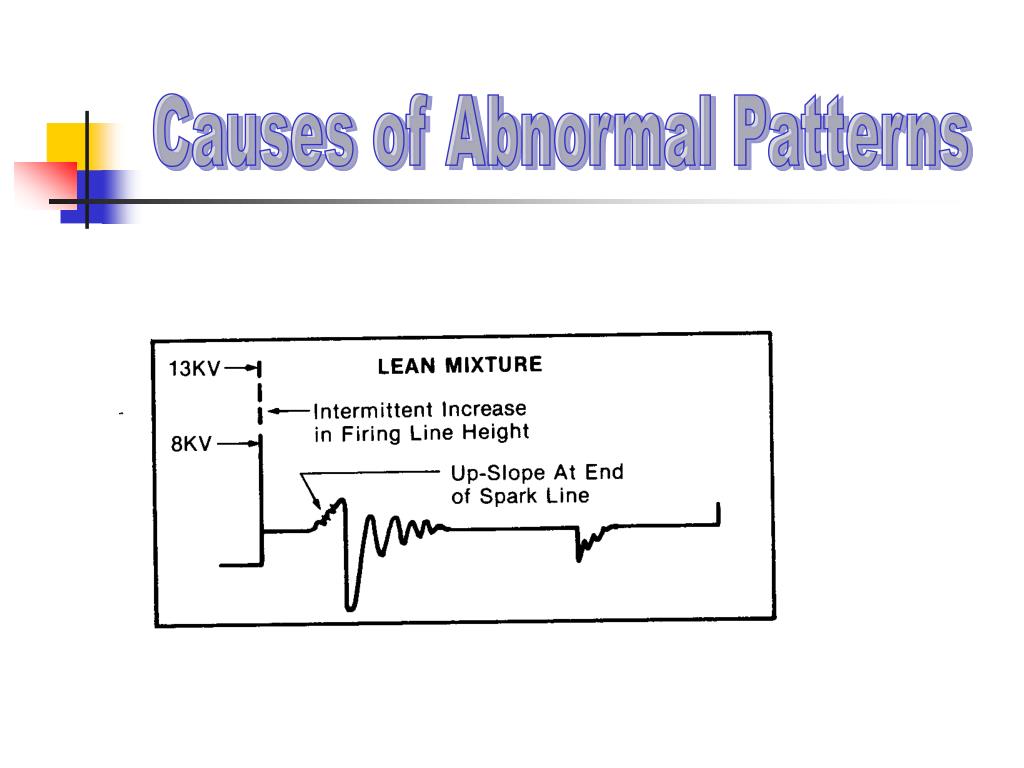

  15. Causes of Abnormal Patterns

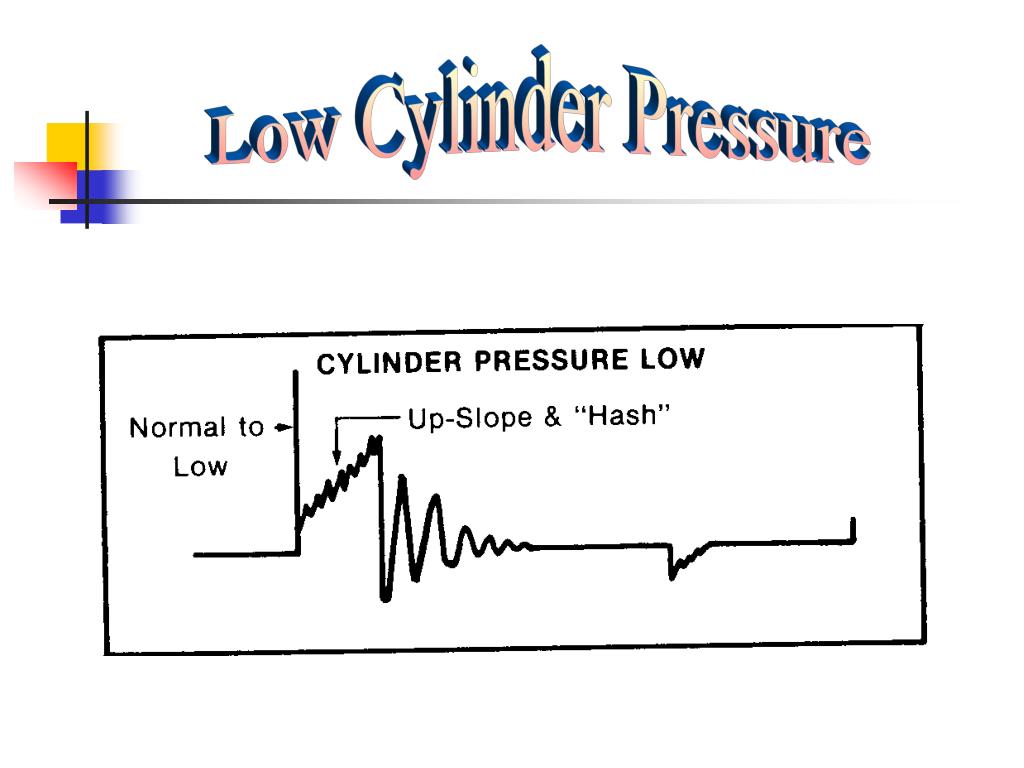

  16. Low Cylinder Pressure

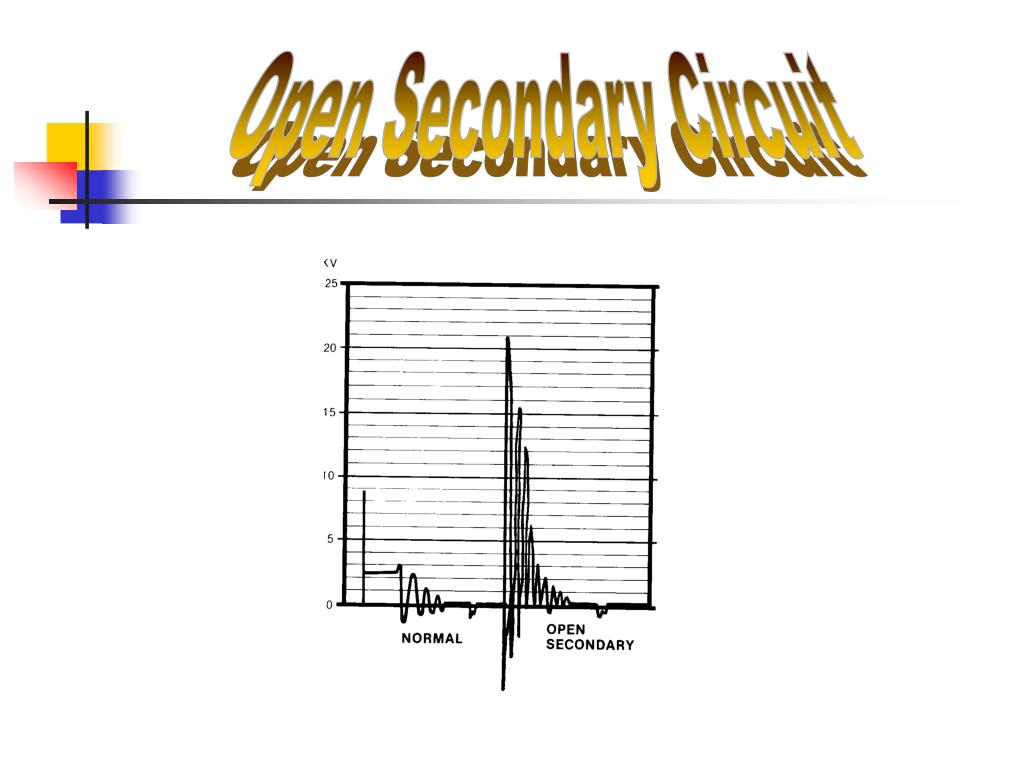

  17. Open Secondary Circuit

  18. Distributor & Rotor Problems

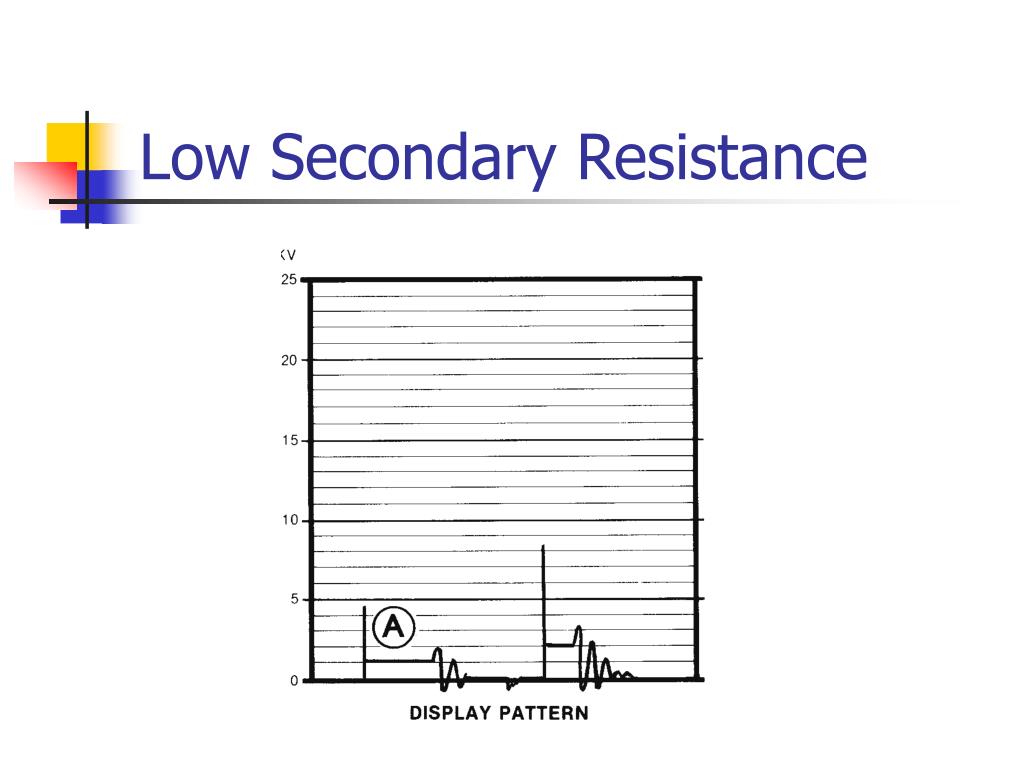

  19. Low Secondary Resistance

  20. Raster Pattern

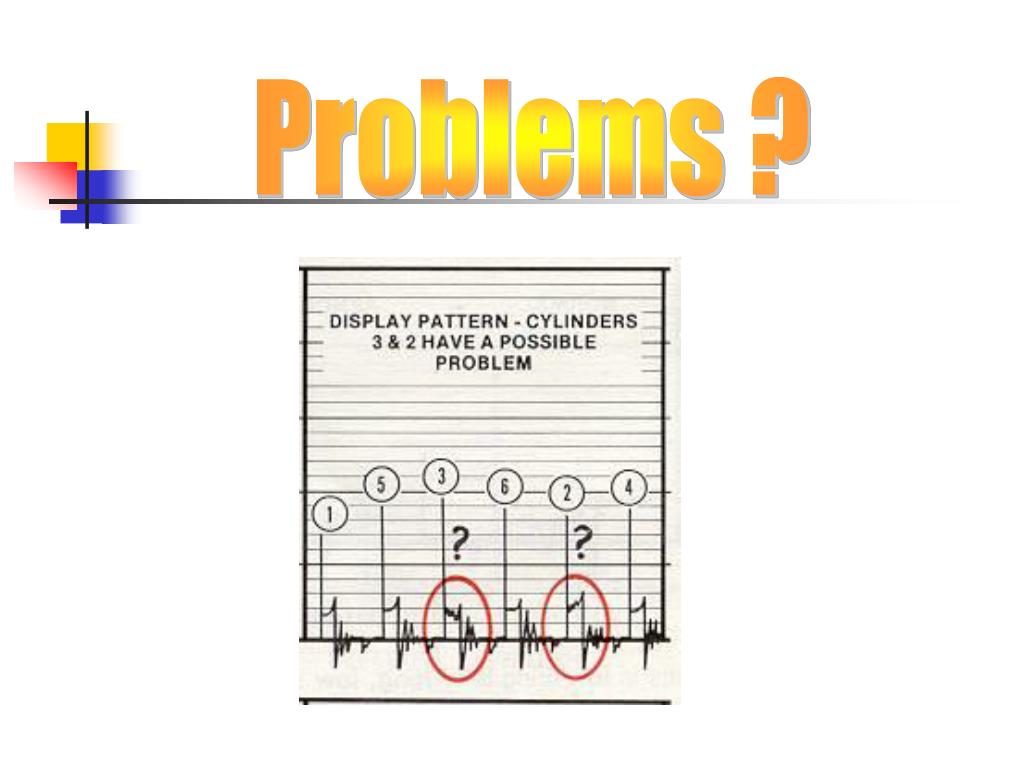

  21. Problems ?

  22. Cylinders # 2 & # 3

  23. Review

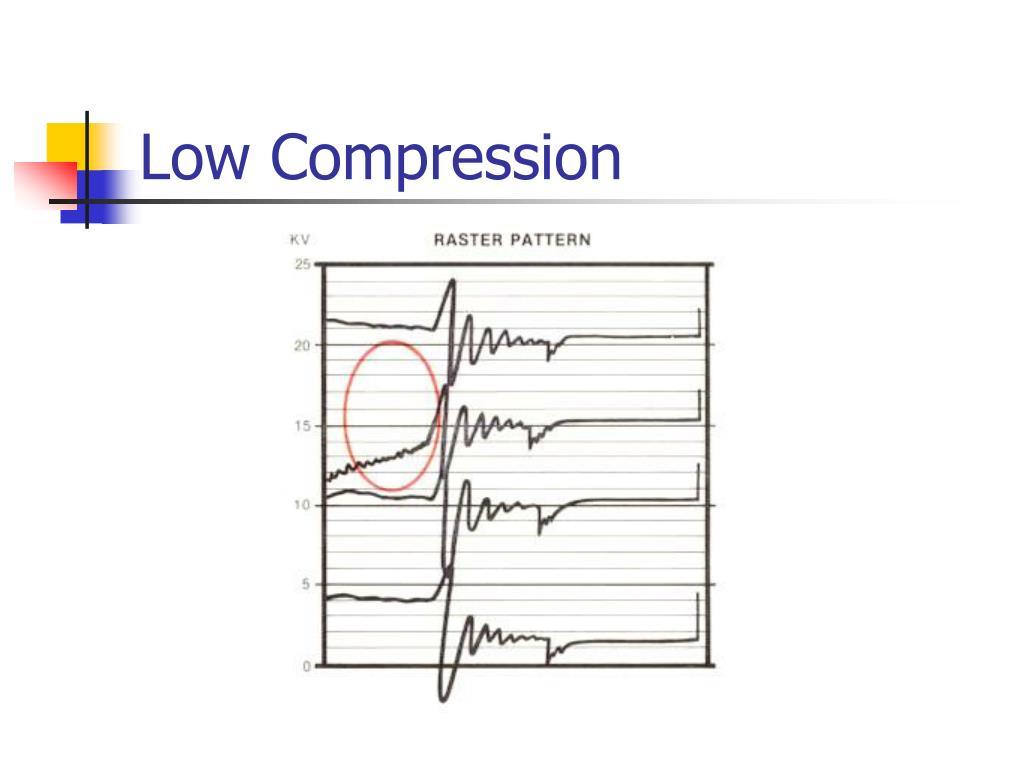

  24. Low Compression

  25. Low Compression

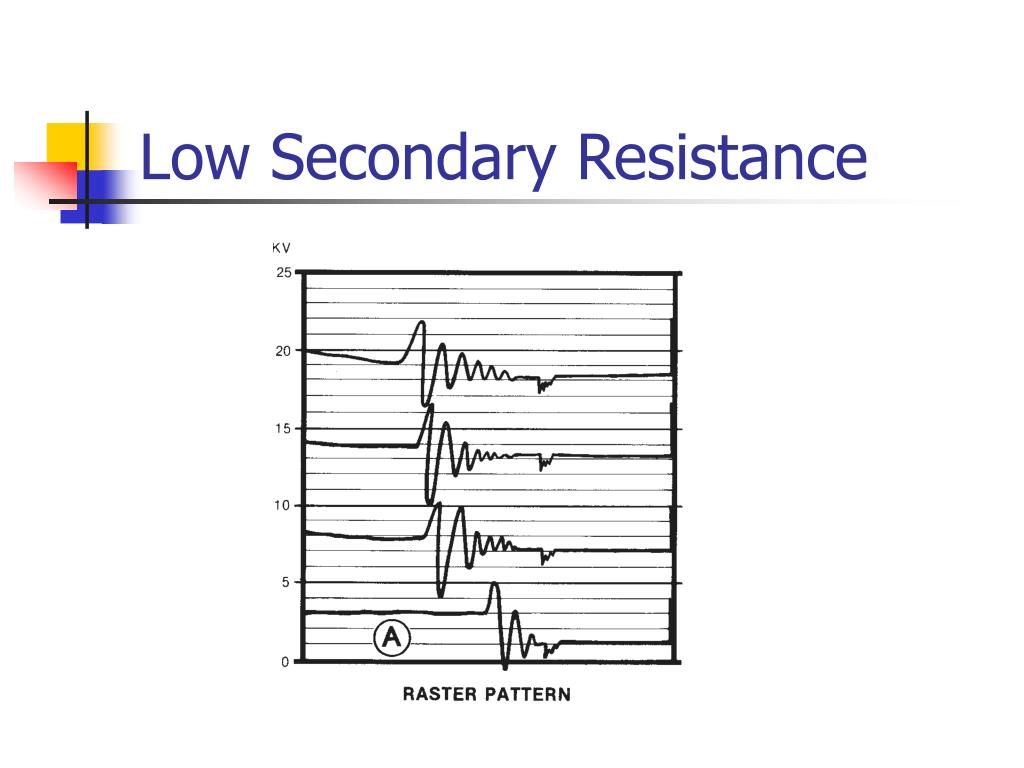

  26. Low Secondary Resistance

  27. Low Secondary Resistance

  28. Defective Coil

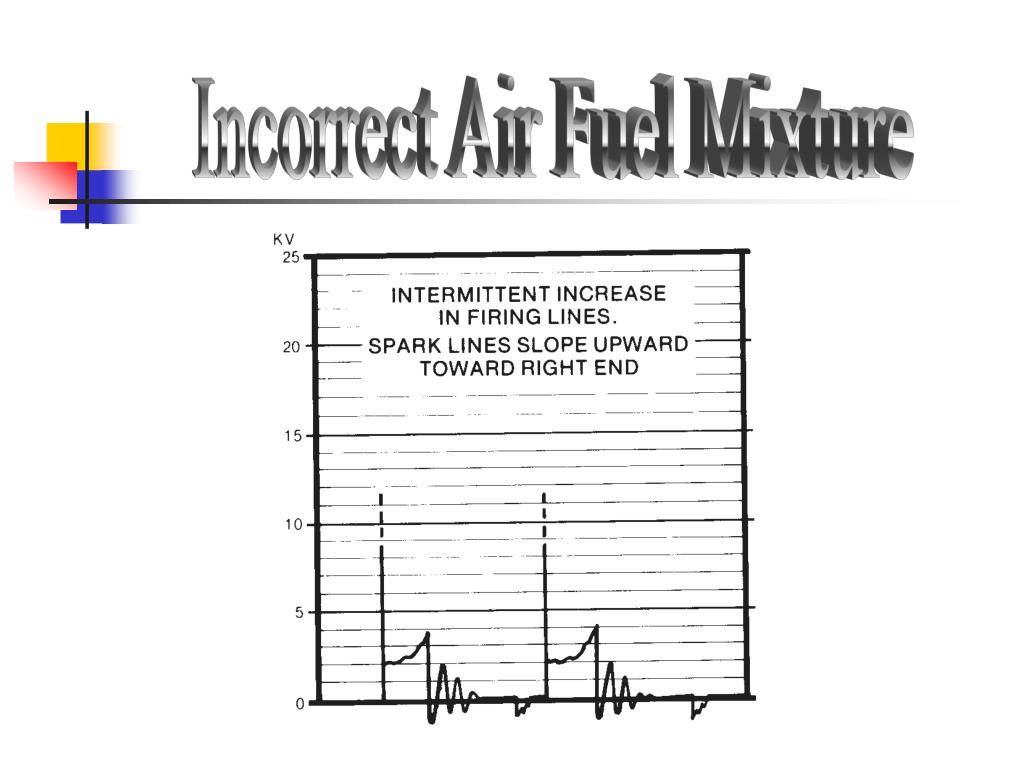

  29. Incorrect Air Fuel Mixture
