  1. Internet Technologies Xml Namespaces Internet Technologies

  2. Notes on XML Namespaces Namespace notes taken and adapted from “XML in a Nutshell” By Harold and Means Java examples adapted from “XML and Java” Namespace specification is at: http://www.w3.org/TR/REC-xml-names/ Internet Technologies

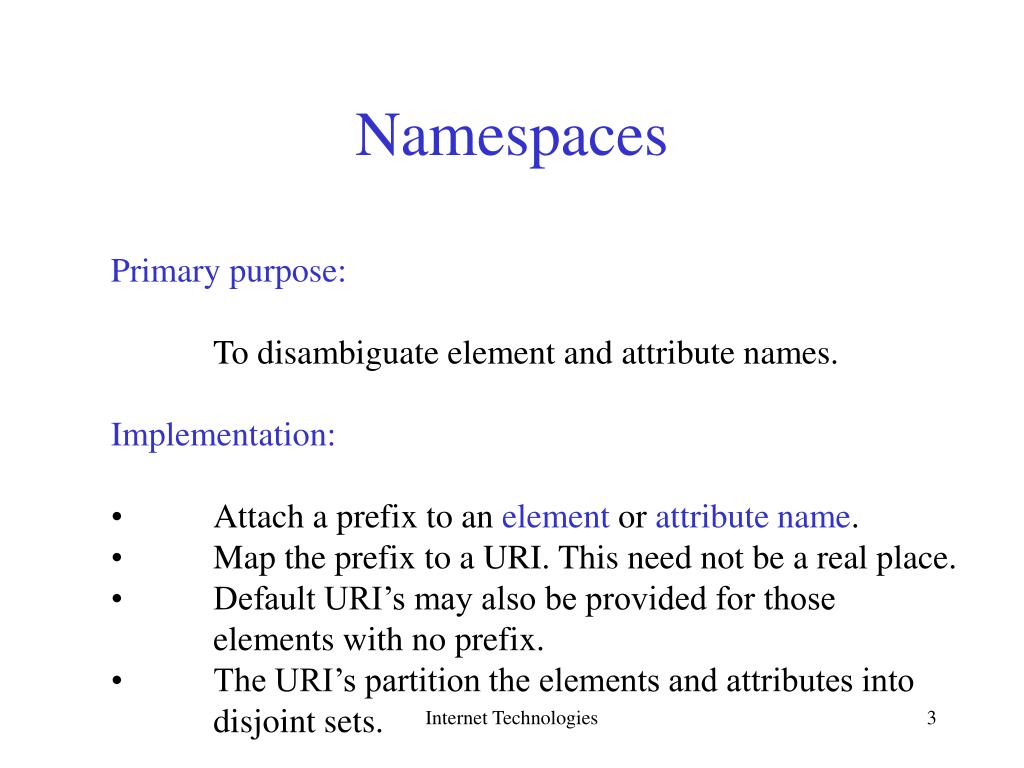

  3. Namespaces • Primary purpose: • To disambiguate element and attribute names. • Implementation: • Attach a prefix to an element or attribute name. • Map the prefix to a URI. This need not be a real place. • Default URI’s may also be provided for those • elements with no prefix. • The URI’s partition the elements and attributes into • disjoint sets. Internet Technologies

  4. Namespaces • Each prefix is associated with one URI. • Names with prefixes associated with the same URI are • in the same namespace. • Elements and attributes in namespaces have names with • exactly one colon. • The text before the colon is called the prefix. • The text after the colon is called the local part. • The complete name, including the colon, is called the • qualified name. Internet Technologies

  5. Namespaces • Prefixes are bound to namespace URI’s by attaching • an xmlns:prefix attribute to the the prefixed element • or one of its ancestors • For example: • <rdf:RDF xmlns:rdf=http://www.w3.org/TR/REC-rdf-syntax#> • associates the prefix rdf with the namespace URI shown. The • name RDF is therefore an element from this namespace. Internet Technologies

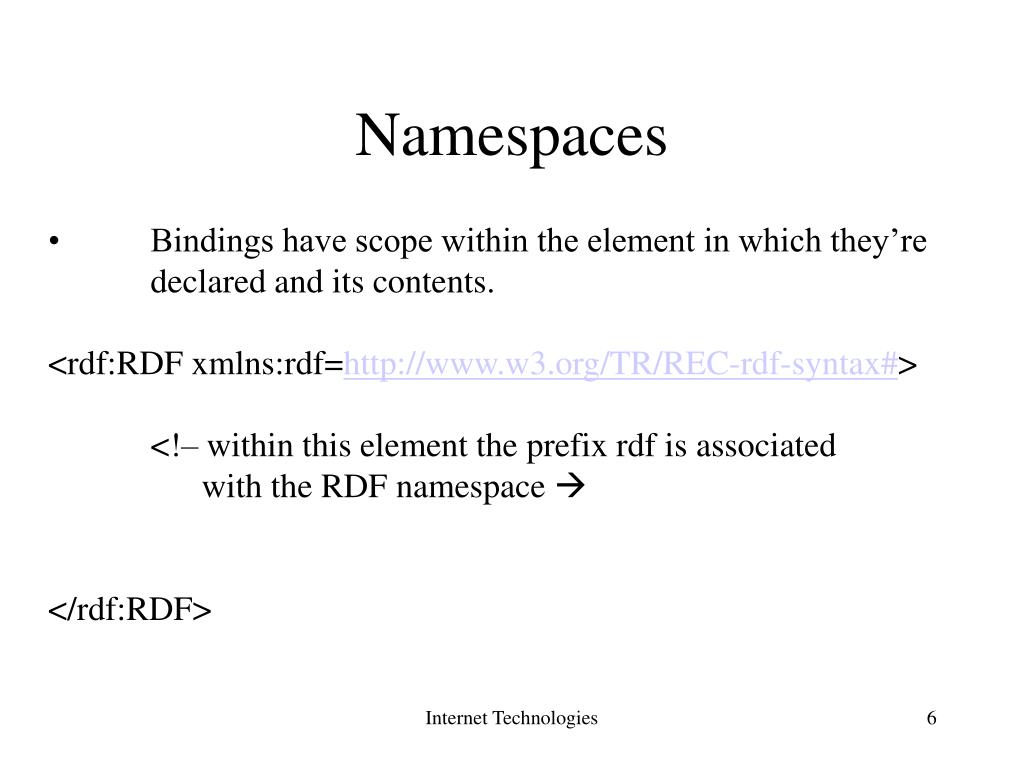

  6. Namespaces • Bindings have scope within the element in which they’re • declared and its contents. • <rdf:RDF xmlns:rdf=http://www.w3.org/TR/REC-rdf-syntax#> • <!– within this element the prefix rdf is associated • with the RDF namespace  • </rdf:RDF> Internet Technologies

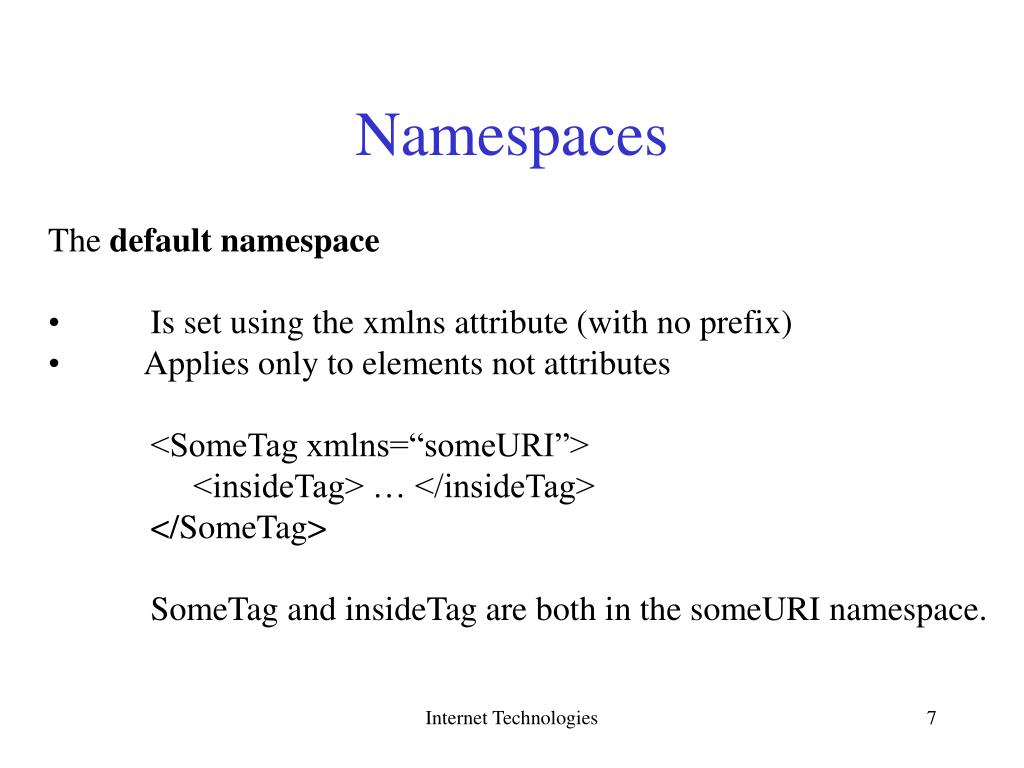

  7. Namespaces • The default namespace • Is set using the xmlns attribute (with no prefix) • Applies only to elements not attributes • <SomeTag xmlns=“someURI”> • <insideTag> … </insideTag> • </SomeTag> • SomeTag and insideTag are both in the someURI namespace. Internet Technologies

  8. Namespaces If there is no default namespace is declared then tags without Prefixes are in no namespace at all. Not even the default one. The only way an attribute belongs to a namespace is if it has a declared prefix. <rdf:RDF xmlns:rdf=“http://www.w3.org/TR/REC-rdf-syntax#> <rdf:Description about=“someValue”> : </rdf:Description> </rdf:RDF> The about attribute is in no namespace. Internet Technologies

  9. Declaring Namespaces xmlns:pre=“someURN” is fine xmlns:pre=“” is illegal xmlns=“someURN” is fine xmlns=“” legal and same as no namespace Internet Technologies

  10. Some Examples From The W3C Specification <x xmlns:edi='http://ecommerce.org/schema'>  <!-- the 'price' element's namespace is  http://ecommerce.org/schema -->  <edi:price units='Euro'>32.18</edi:price></x> Internet Technologies

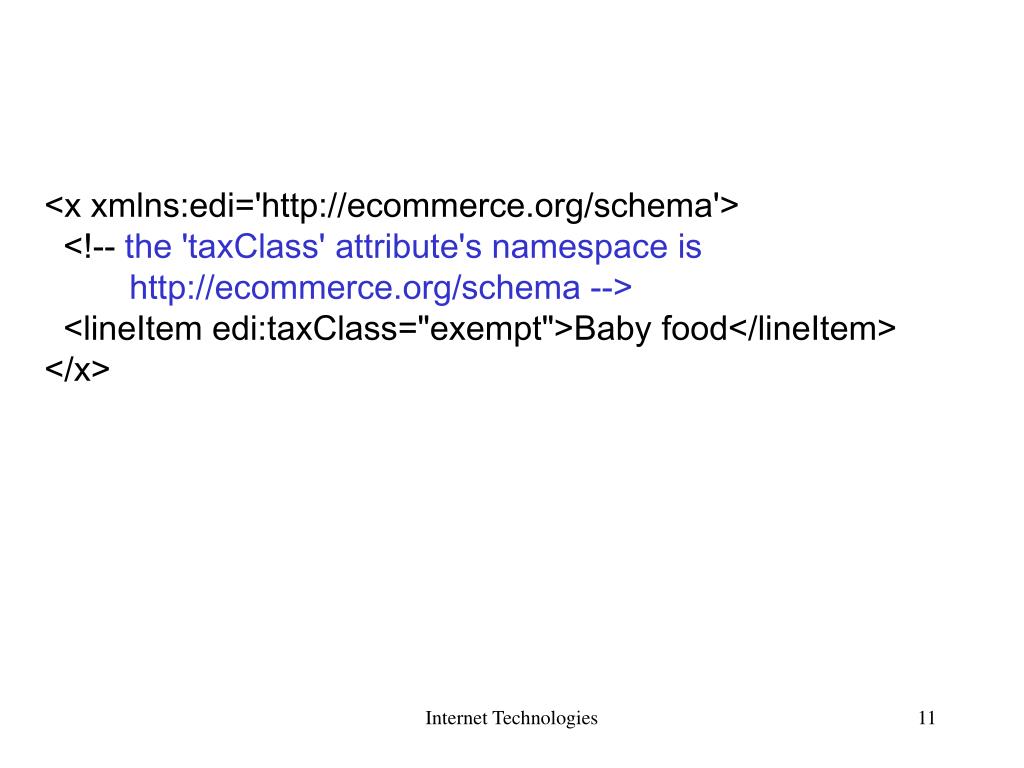

  11. <x xmlns:edi='http://ecommerce.org/schema'>  <!-- the 'taxClass' attribute's namespace is <x xmlns:edi='http://ecommerce.org/schema'>  <!-- the 'taxClass' attribute's namespace is  http://ecommerce.org/schema -->  <lineItem edi:taxClass="exempt">Baby food</lineItem></x> Internet Technologies

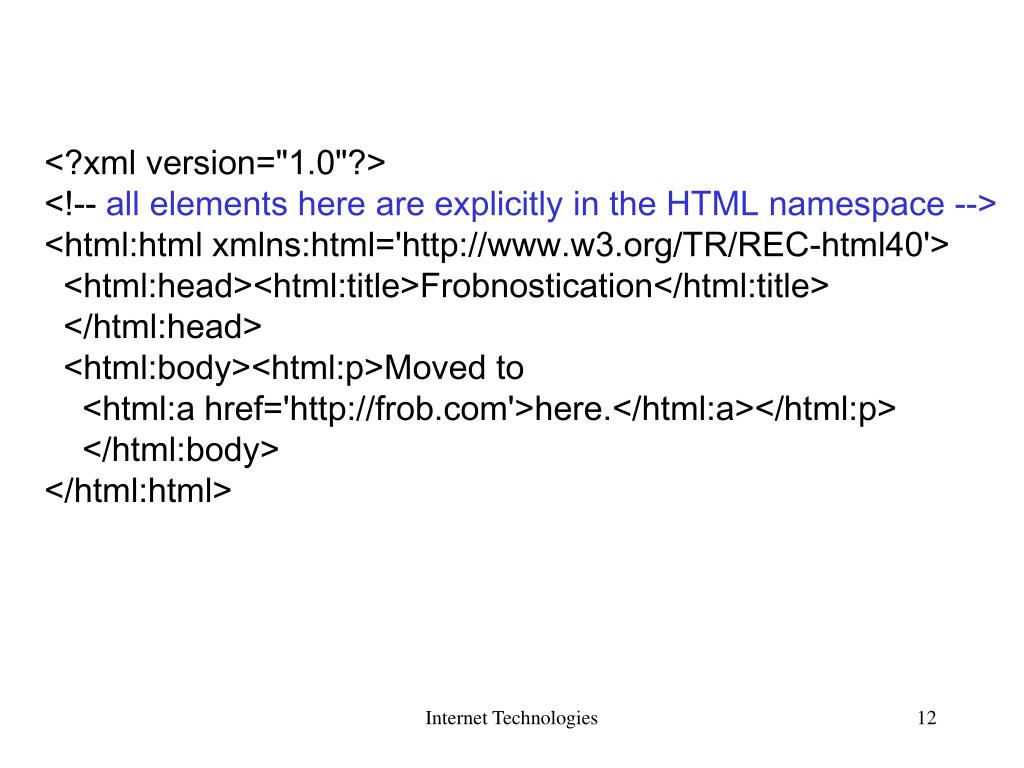

  12. <?xml version="1.0"?><!-- all elements here are explicitly in the HTML namespace --><html:html xmlns:html='http://www.w3.org/TR/REC-html40'>  <html:head><html:title>Frobnostication</html:title><?xml version="1.0"?><!-- all elements here are explicitly in the HTML namespace --><html:html xmlns:html='http://www.w3.org/TR/REC-html40'>  <html:head><html:title>Frobnostication</html:title> </html:head>  <html:body><html:p>Moved to     <html:a href='http://frob.com'>here.</html:a></html:p> </html:body></html:html> Internet Technologies

  13. <?xml version="1.0"?><!-- both namespace prefixes are available throughout --><bk:book xmlns:bk='urn:loc.gov:books'          xmlns:isbn='urn:ISBN:0-395-36341-6'>    <bk:title>Cheaper by the Dozen</bk:title>    <isbn:number>1568491379</isbn:number></bk:book> Internet Technologies

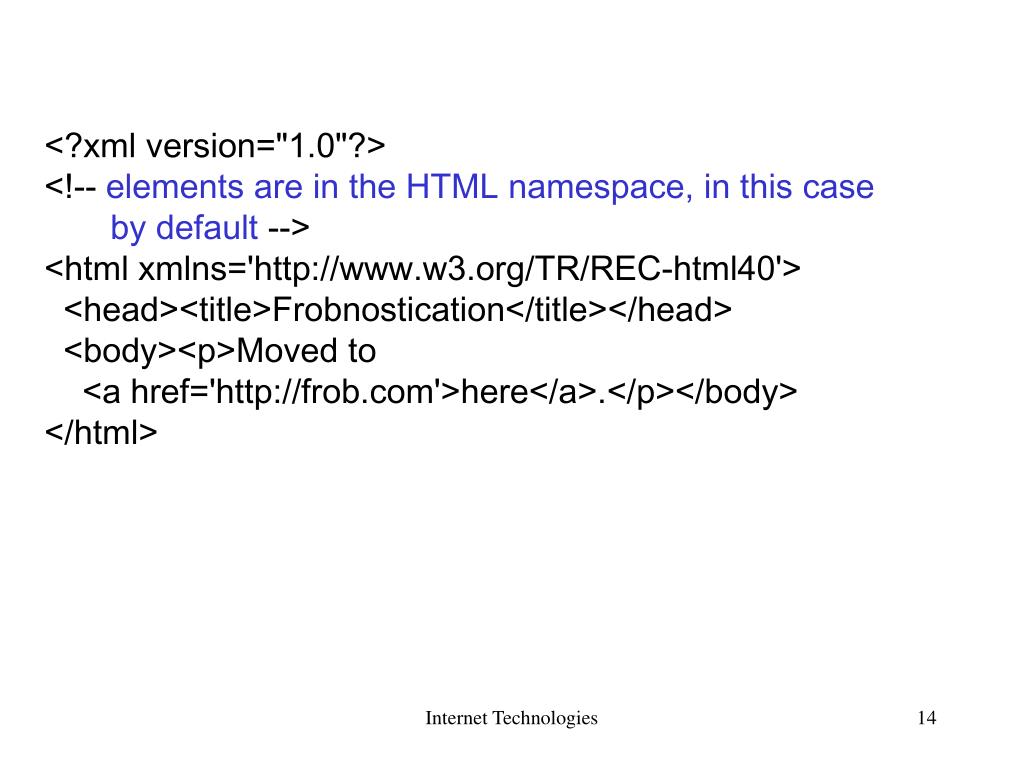

  14. <?xml version="1.0"?><!-- elements are in the HTML namespace, in this case <?xml version="1.0"?><!-- elements are in the HTML namespace, in this case  by default --><html xmlns='http://www.w3.org/TR/REC-html40'>  <head><title>Frobnostication</title></head>  <body><p>Moved to     <a href='http://frob.com'>here</a>.</p></body></html> Internet Technologies

  15. <?xml version="1.0"?><!-- unprefixed element types are from "books" --><book xmlns='urn:loc.gov:books'      xmlns:isbn='urn:ISBN:0-395-36341-6'>    <title>Cheaper by the Dozen</title>    <isbn:number>1568491379</isbn:number></book><?xml version="1.0"?><!-- unprefixed element types are from "books" --><book xmlns='urn:loc.gov:books'      xmlns:isbn='urn:ISBN:0-395-36341-6'>    <title>Cheaper by the Dozen</title>    <isbn:number>1568491379</isbn:number></book> Internet Technologies

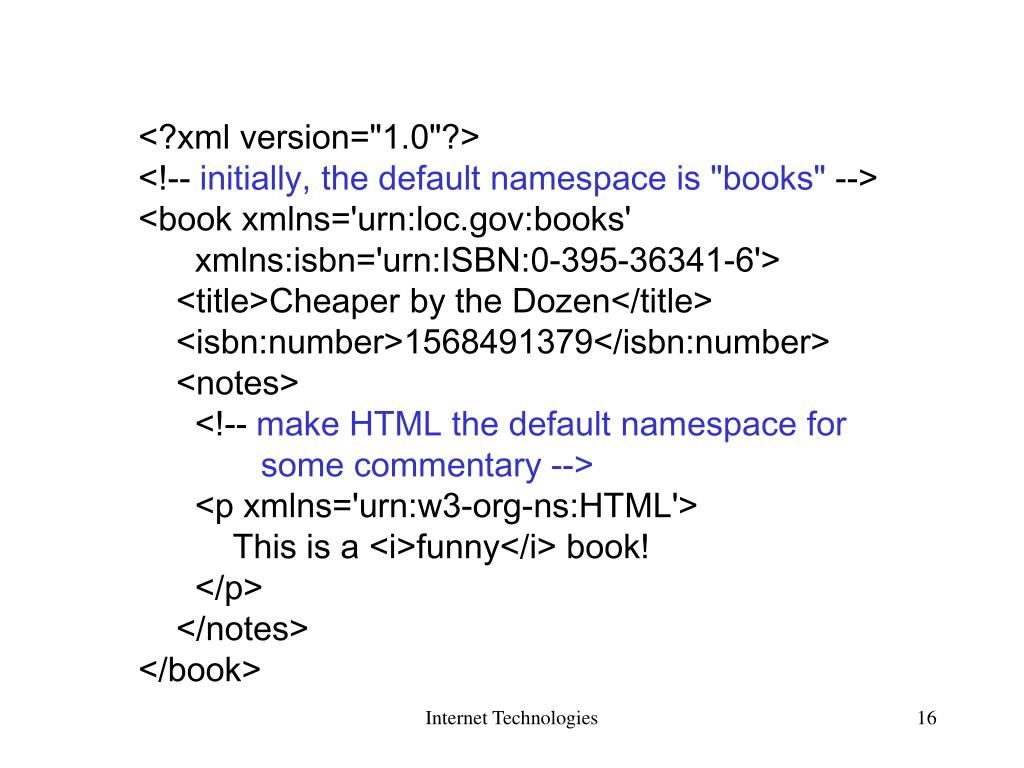

  16. <?xml version="1.0"?><!-- initially, the default namespace is "books" --><book xmlns='urn:loc.gov:books'      xmlns:isbn='urn:ISBN:0-395-36341-6'>    <title>Cheaper by the Dozen</title>    <isbn:number>1568491379</isbn:number>    <notes>      <!-- make HTML the default namespace for <?xml version="1.0"?><!-- initially, the default namespace is "books" --><book xmlns='urn:loc.gov:books'      xmlns:isbn='urn:ISBN:0-395-36341-6'>    <title>Cheaper by the Dozen</title>    <isbn:number>1568491379</isbn:number>    <notes>      <!-- make HTML the default namespace for  some commentary -->      <p xmlns='urn:w3-org-ns:HTML'>          This is a <i>funny</i> book!      </p>    </notes></book> Internet Technologies

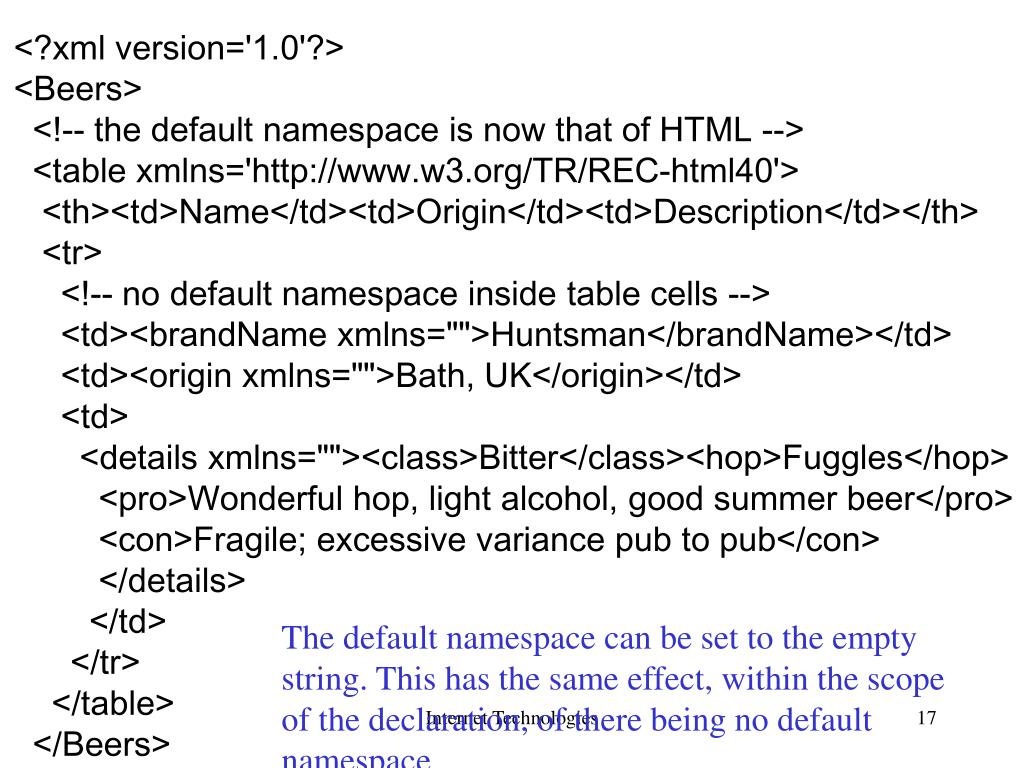

  17. <?xml version='1.0'?><Beers>  <!-- the default namespace is now that of HTML -->  <table xmlns='http://www.w3.org/TR/REC-html40'>   <th><td>Name</td><td>Origin</td><td>Description</td></th>   <tr>      <!-- no default namespace inside table cells -->     <td><brandName xmlns="">Huntsman</brandName></td>     <td><origin xmlns="">Bath, UK</origin></td>     <td>       <details xmlns=""><class>Bitter</class><hop>Fuggles</hop>         <pro>Wonderful hop, light alcohol, good summer beer</pro>         <con>Fragile; excessive variance pub to pub</con>         </details>        </td>      </tr>    </table>  </Beers><?xml version='1.0'?><Beers>  <!-- the default namespace is now that of HTML -->  <table xmlns='http://www.w3.org/TR/REC-html40'>   <th><td>Name</td><td>Origin</td><td>Description</td></th>   <tr>      <!-- no default namespace inside table cells -->     <td><brandName xmlns="">Huntsman</brandName></td>     <td><origin xmlns="">Bath, UK</origin></td>     <td>       <details xmlns=""><class>Bitter</class><hop>Fuggles</hop>         <pro>Wonderful hop, light alcohol, good summer beer</pro>         <con>Fragile; excessive variance pub to pub</con>         </details>        </td>      </tr>    </table>  </Beers> The default namespace can be set to the empty string. This has the same effect, within the scope of the declaration, of there being no default namespace. Internet Technologies

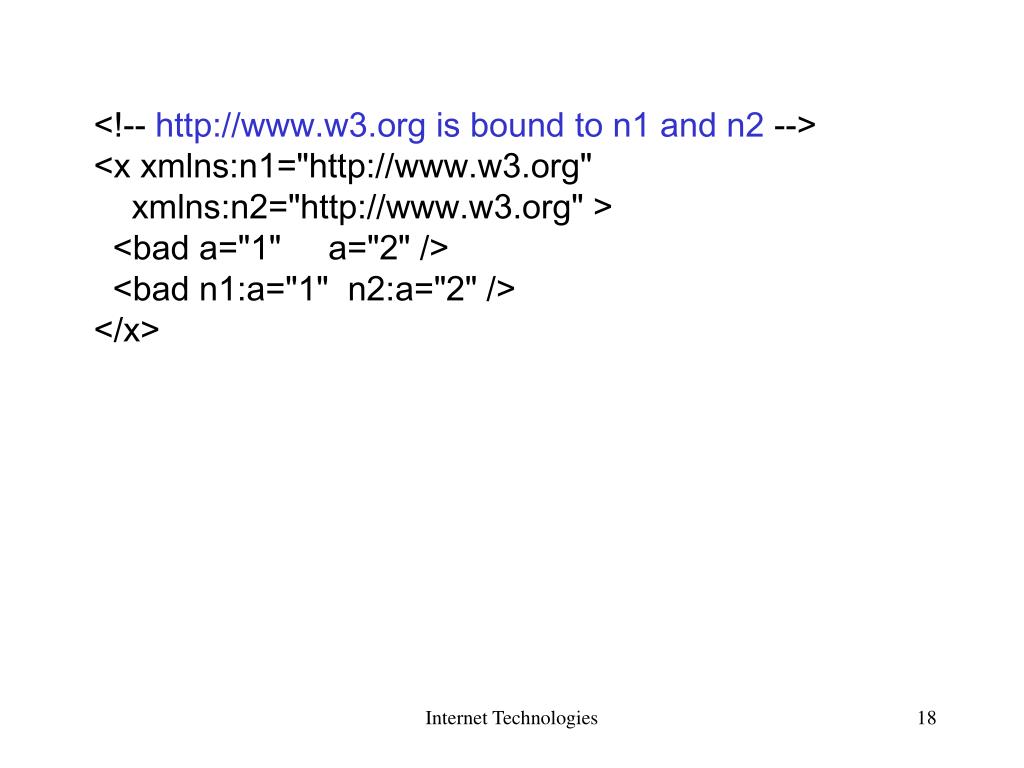

  18. <!-- http://www.w3.org is bound to n1 and n2 --><x xmlns:n1="http://www.w3.org"     xmlns:n2="http://www.w3.org" >  <bad a="1"     a="2" />  <bad n1:a="1"  n2:a="2" /></x> Internet Technologies

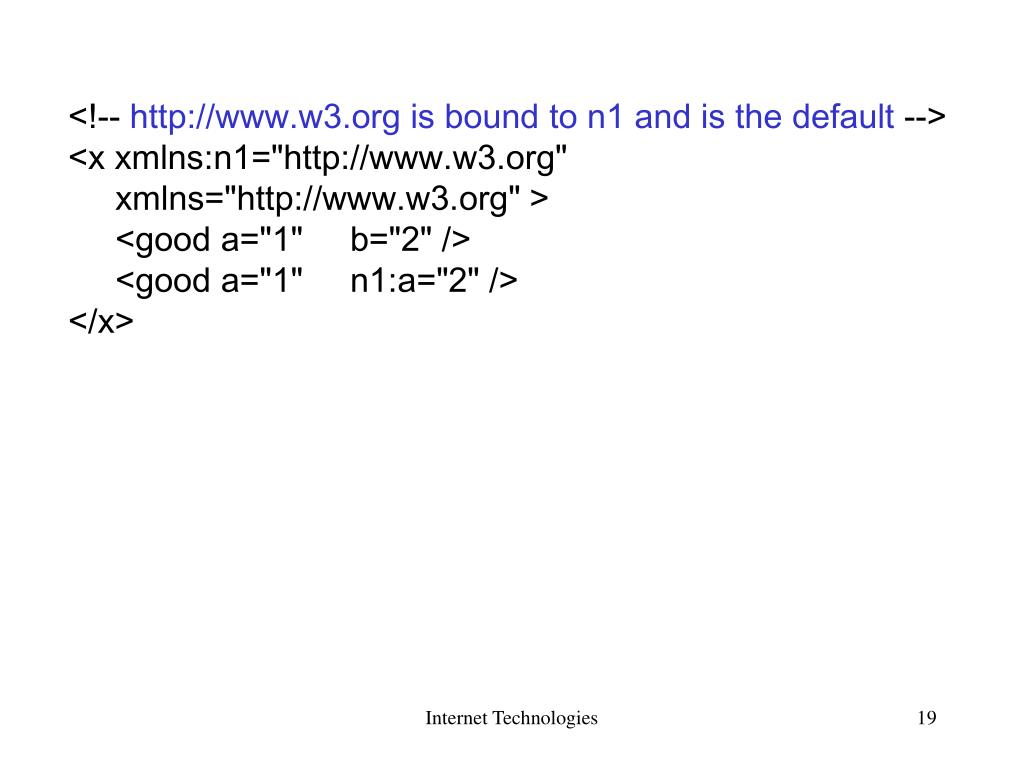

  19. <!-- http://www.w3.org is bound to n1 and is the default --><x xmlns:n1="http://www.w3.org"     xmlns="http://www.w3.org" >   <good a="1"     b="2" />   <good a="1"     n1:a="2" /></x> Internet Technologies

  20. Namespaces and Java // Exploring the NamespaceCorrector class in Chapter 4 of // XML and Java // Example 1 import javax.xml.parsers.DocumentBuilder; import javax.xml.parsers.DocumentBuilderFactory; import org.apache.xml.serialize.OutputFormat; import org.apache.xml.serialize.XMLSerializer; import org.w3c.dom.Document; import org.w3c.dom.Element; import org.w3c.dom.Text; Internet Technologies

  21. public class NamespaceExplore { static final String NS = "http://www.andrew.cmu.edu/~mm6"; // the assigned namespace to the xml:lang attribute static final String XML_NS = "http://www.w3.org/XML/1998/namespace"; // the assigned namespace of the xmlns attribute static final String XMLNS_NS = "http://www.w3.org/2000/xmlns/"; Internet Technologies

  22. public static void main(String[] argv) throws Exception { DocumentBuilderFactory dbfactory = DocumentBuilderFactory.newInstance(); dbfactory.setNamespaceAware(true); DocumentBuilder builder = dbfactory.newDocumentBuilder(); Document factory = builder.newDocument(); OutputFormat format = new OutputFormat("xml", "UTF-8", true); XMLSerializer serializer = new XMLSerializer(System.out, format); // build a top element within a namespace Element top = factory.createElementNS(NS, "mm6:GradeBook"); Internet Technologies

  23. // define an xmlns attribute within this top element top.setAttributeNS(XMLNS_NS, "xmlns:mm6", NS); // define an xml:lang attribute within this top element top.setAttributeNS(XML_NS, "xml:lang", "en"); Element student = factory.createElementNS(NS,"mm6:Student"); top.appendChild(student); Text t = factory.createTextNode("87.5"); student.appendChild(t); serializer.serialize(top); System.out.println(""); } } Internet Technologies

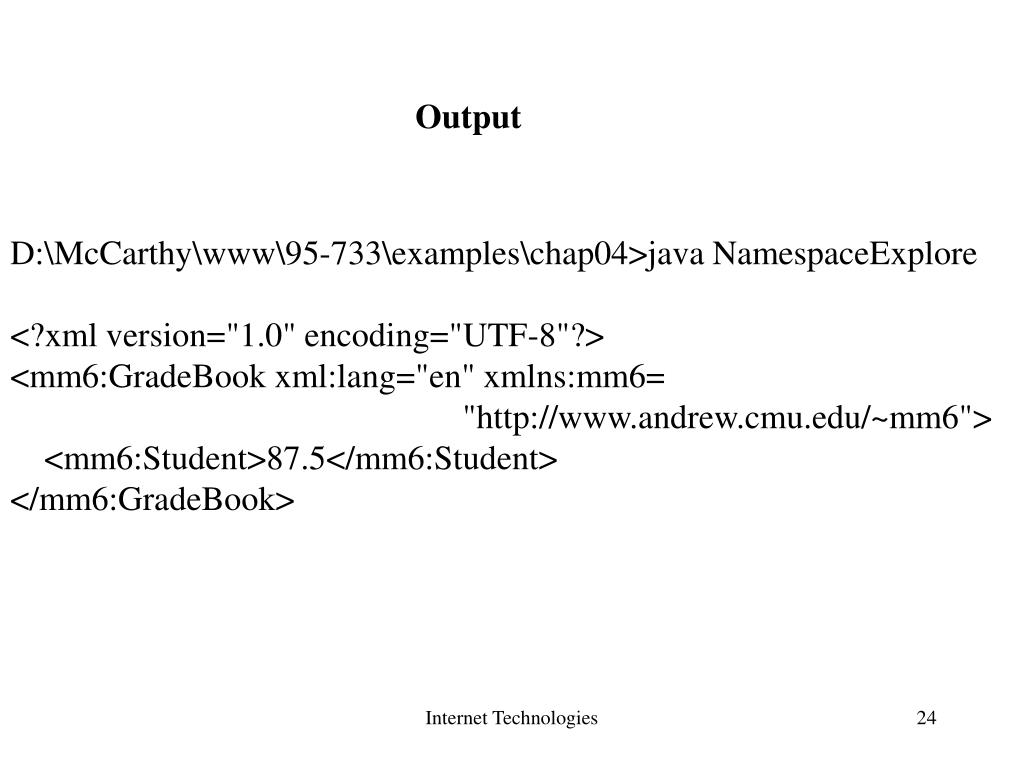

  24. Output D:\McCarthy\www\95-733\examples\chap04>java NamespaceExplore <?xml version="1.0" encoding="UTF-8"?> <mm6:GradeBook xml:lang="en" xmlns:mm6= "http://www.andrew.cmu.edu/~mm6"> <mm6:Student>87.5</mm6:Student> </mm6:GradeBook> Internet Technologies
