  1. MUR-System Wewant with this PowerPoint show how easy it is to install the MUR-Systems hardware. The display of this Power Point take 10 minutes We show how easy it is to install MUR program, and which modules are included. You can try the full version of the software from our website, either with a MUR-Bag or demo machines. Demo machines generate stop causes automatically. Next

  2. Installation MUR-System Company Ltd Next

  3. Machine Production premises Install a MUR-Box at each machine Next

  4. Connection to machine Machine The advantage of getting impulses from the machine is that the signal provides information about: Only one signal from the machine is needed A closed contact when the machine is in operation Machine is active or Number of producedunites a contact that gives impulses Production rate Next Numberproduced meters

  5. Communications The advantage of MUR-Box is that it is connected to your local network. Your staff dealing with your ordinary computers can handle it. Connect an antenna or connect a cable. Wireless communications You use your standard Wifinetworking. Connect an antenna to the MUR-Box. Cabel connections If your LAN network is installed in the premises, you can connect the MUR-Box directly with cable. Next

  6. Set stop cause You can set stop cause via Keybord Push button Mobile phone or tablet Terminal Machine Automatically from machine Next

  7. Do you have long machines can multiple keyboards or push buttons can be placed on the machine (they are parallel connected). 20 meters Keybords Push buttons Next

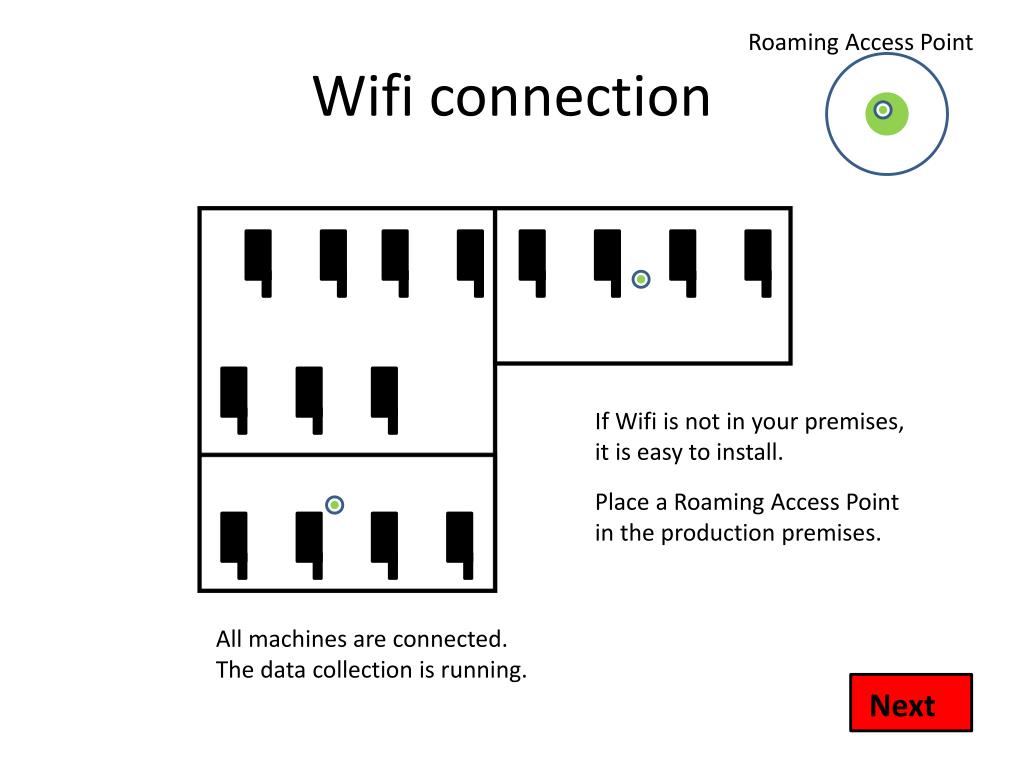

  8. Roaming Access Point Wificonnection If Wifi is not in your premises, it is easy to install. Place a Roaming Access Point in the production premises. All machines are connected. The data collection is running. Next

  9. MUR-Terminal Severalmachines A cost effective way of measuring machines is to use MUR-EXP-10-IN. A MUR-Box with MUR-EXP-10-IN can you measure 11 machines in a cost effective manner. 44 machines Tablet and cell phone Place 4 MUR-Box with MUR-EXP-10-IN. With MUR-EXP-10-IN measure if the machine is active, the number of produced parts and machine speed. Connecting machines to MUR-EXP-IN-10 (single cable from a closing or pulsed contact) Next Stop Causes specified from MUR-Terminal or tablets and cell phone

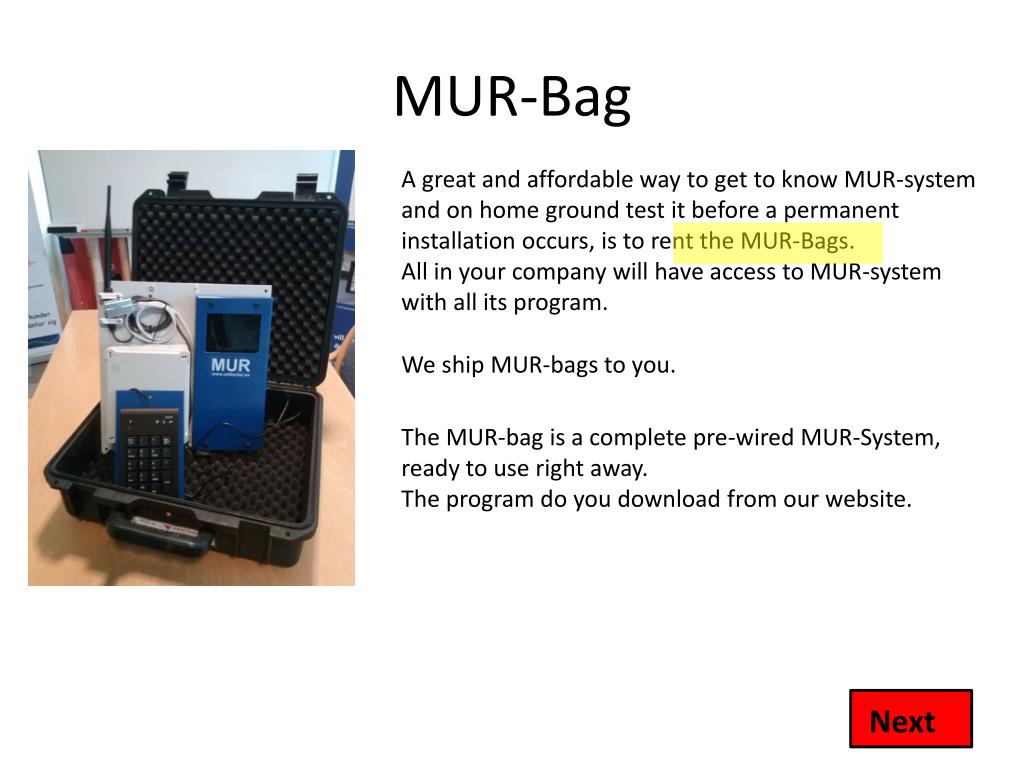

  10. MUR-Bag A great and affordable way to get to know MUR-system and on home ground test it before a permanent installation occurs, is to rent the MUR-Bags. All in your company will have access to MUR-system with all its program. We ship MUR-bags to you. The MUR-bag is a complete pre-wired MUR-System, ready to use right away. The program do you download from our website. Next

  11. MUR Programes Install Adductor Client on your computer and you have full control of the MUR System from there Next

  12. Adductor Client is installed for free on any number of computers What you can do in the Adductor Client depends on what authority you have been assigned Next

  13. MUR-View MUR Viewshowes Machines status Machinecomments Machines status Next Machinecomments

  14. MUR-Terminal MUR Terminal can be installed on Any computer Tablet Cellularphone Mobile Tablet Next

  15. MUR-Respons MUR Response gives information when The machine stopped (at eg unmanned driving) When the operator needs help, eg in crash Once production has not reached a certain target When production reaches a certain target Next etc. ......

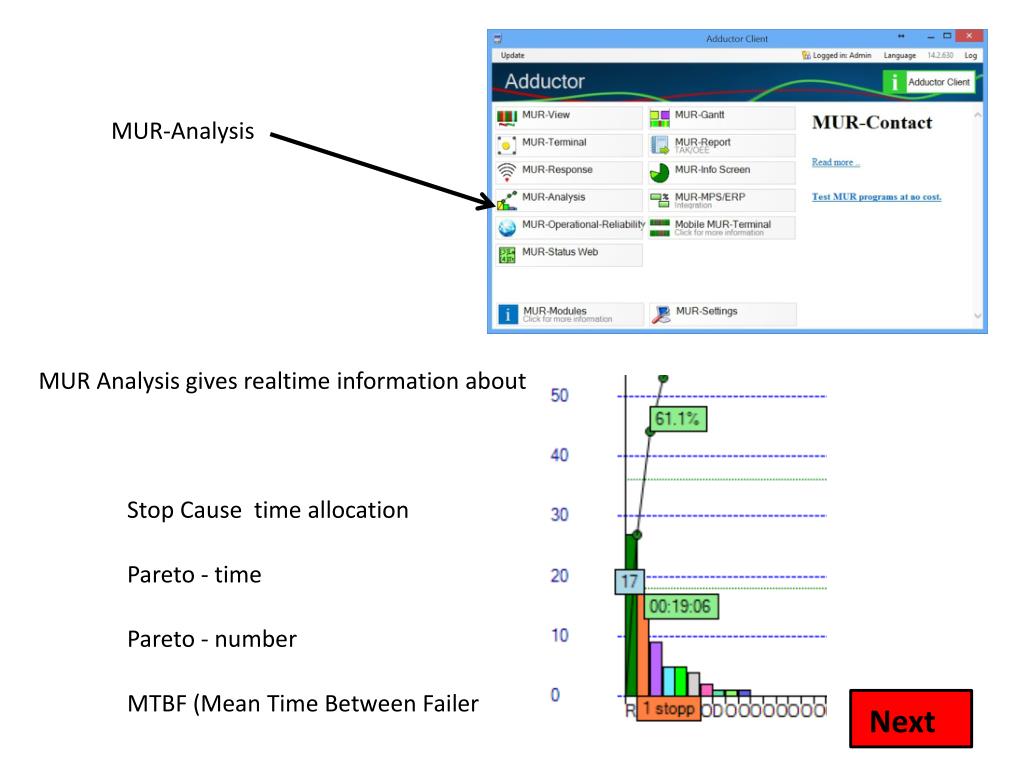

  16. MUR-Analysis MUR Analysis gives realtime information about Stop Cause time allocation Pareto - time Pareto - number Next MTBF (Mean Time BetweenFailer

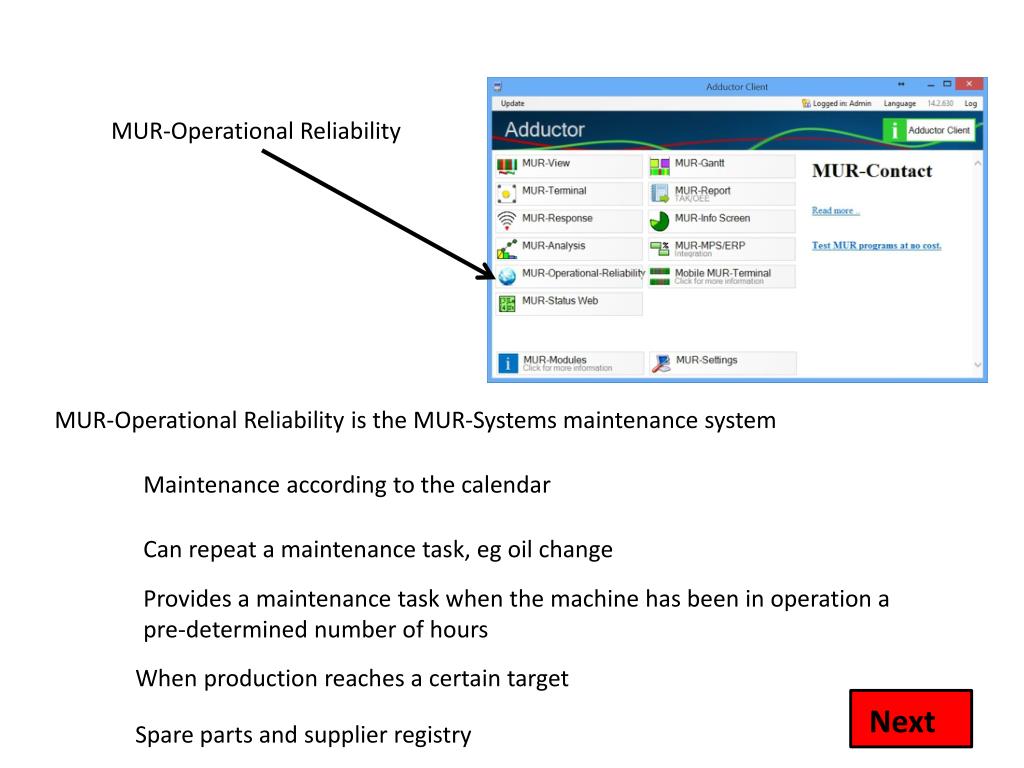

  17. MUR-OperationalReliability MUR-OperationalReliability is the MUR-Systemsmaintenance system Maintenance according to the calendar Can repeat a maintenance task, eg oil change Provides a maintenance task when the machine has been in operation a pre-determined number of hours When production reaches a certain target Next Spare parts and supplier registry

  18. Status Web MUR Staus Web gives you the machine status in real-time directly in your Computer Next Cellular phone Tablet

  19. MUR-Gantt MUR Gantt creates a basis for dat in real-time programs and reports Adding up the work shifts Optional report length (day, week, month, year ..) User-created report templates, unlimited templates Templates for exporting data to egExce Next Quick Reports, eg weekly report in a few seconds

  20. MUR-Report MUR Report is a report program and OEE calculator Reports in the same way as in MUR Gantt Calculating OEE values ​​(tool for you as not have MUR - ERP connector) Next

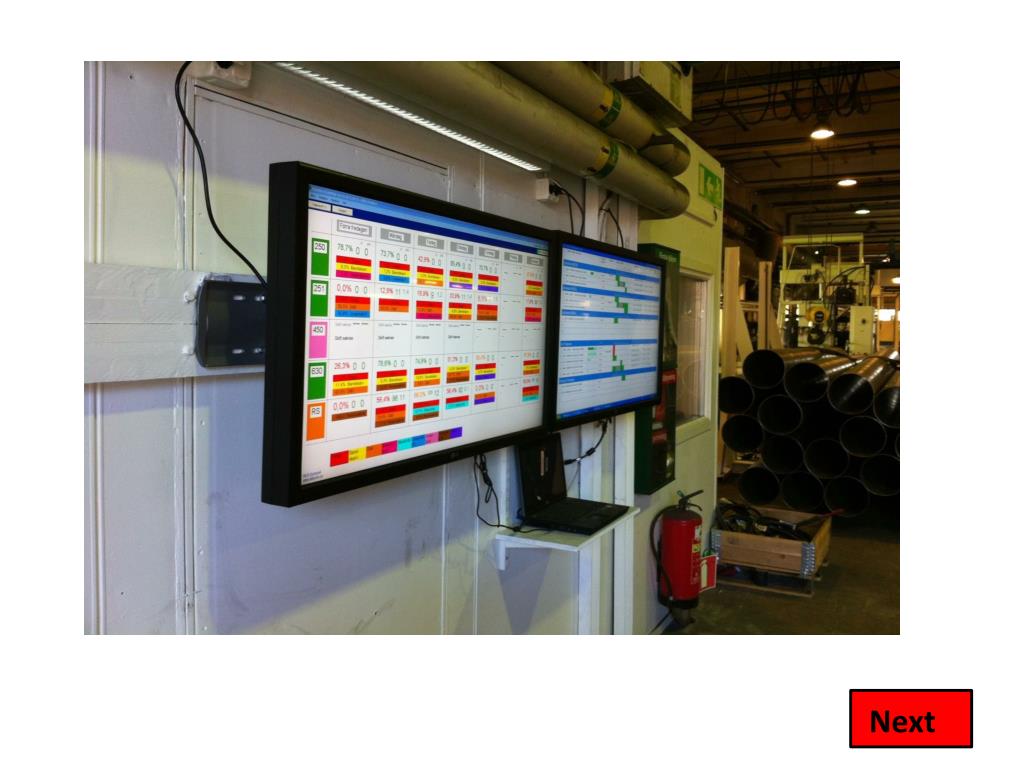

  21. MUR-Info Screen MUR-Info Screen is one of the most important tools in the improvement process The information is displayed in real time You edit yourself MUR-Info Screen, that your ideas are realized directly You can use MUR-Info Screen as a real-time report on your office computer Do MUR-Info Screen templates and distribute to your colleagues Next The following pages show some MUR-Info Screen which MUR users themselves have made

  22. Next

  23. Next

  24. Next

  25. Next

  26. Next

  27. Next

  28. Next

  29. Next

  30. Connections to MUR-Box Input Machine status External I/O bus USB Push button to enter stop cause Counter LAN Speed measurement Digital Input Analog input Etc. ……. Next

  31. Connections to MUR-Box Output External I/O bus HDMI (Screen connection) USB LAN Digital output Next

  32. Machines utilization rate is usuallyaccording to the companies MRP system 80-90%. Whenwe start measuring with MUR-system on the machinesutilization are rate rather 45-55%. After installing the MUR-Box, increases the utilization 10-15% without you having to doanything. If you want to get up to 65-80% you need to activelytakeadvantage of the MUR-Box'smeasurements, the reports MUR-system provides and work continuously with small resources. Example 1: Machinecost 700 SEK/ hour. Weincrease the utilization rate with 15%. Profit: 101 640 SEK/ year and machine Example 2: Machinecost in 1200 SEK/ hour. Weincrease the utilization rate with 10%. Profit: 116 160 SEK/ year and machine Howmuchcan you earn onincreasing the utilization? Example 3: Machinecost in 1200 :-/ hour. Weincrease the utilization rate with 20%. Profit: 232 320 SEK/ year and machine • Example 4: Machine not used all day, 60% • Machinecost in 1200 :-/ hour. • Weincrease the utilization rate with 20%. • Profit: 139 392 SEK/ year and machine Next

  33. Thank you for showing interest
