  1. Computer Modelling of Gas and Liquid Tracers in Geothermal Reservoirs Mark Trew Colin Harvey Michael O’Sullivan Errol Anderson Karsten Pruess

  2. Introduction • Scope and aim of research • Gas and liquid tracers • Partitioning models • Gas tracers: Henry’s Law and the Harvey (1996) correlation for Henry’s constants • Liquid tracers: Wilson’s model of the molar excess Gibbs energy • Implementation in TOUGH2 • Test problem

  3. A partitioning model for gas tracers Liquid mass fraction (Henry’s Law): independent variable Harvey empirical correlation of Henry’s constant Vapor mass fraction: calculated assuming ideal gas behavior: calculated from a standard empirical correlation

  4. A partitioning model for gas tracers - Harvey correlation Harvey (1996) empirical correlation of Henry’s constant for the entire temperature range: Sample data from gas distribution coefficient: regression of gas distribution coefficient

  5. A partitioning model for gas tracers - application Linear least-squares fit of Harvey function to gas distribution coefficient regression data SF6 R-12 R-123

  6. A partitioning model for liquid tracers Liquid mass fraction: independent variable mass fractionmole fraction Vapor mole fraction: calculated from a standard empirical correlation activity coefficient; calculated from the Wilson model

  7. A partitioning model for liquid tracers - Wilson’s model Molar excess Gibbs free energy: Wilson’s binary mixture two-parameter model: binary interaction parameters

  8. A partitioning model for liquid tracers - Wilson’s model Activity coefficients for a multi-component mixture (using binary interaction parameters):

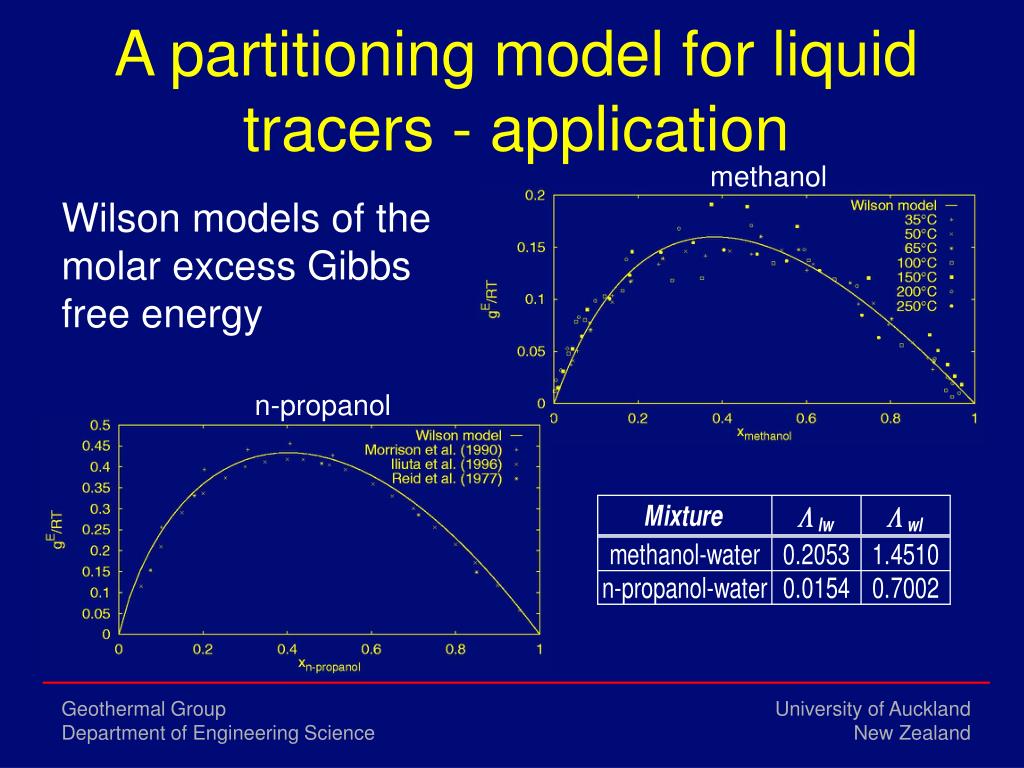

  9. A partitioning model for liquid tracers - application methanol Wilson models of the molar excess Gibbs free energy n-propanol

  10. Compressed liquid Superheated vapor Two-phase mixture Implementing partitioning models in TOUGH2 Sequence of calculations in the TOUGH2 equation of state (EOS): Mass fraction calculations: (1) gas tracers in liquid phase (2) gas tracers in vapor phase (3) water in liquid phase (4) water/liquid tracers in vapor phase Calculate thermodynamic properties of components Determine phase state Independent variables for each phase state:

  11. 200ºC Qualitative results - test problem • Isotropic reservoir: 1 km3, f = 0.1, k = 10-14 m2 • Two-phase convective fluid flow • 3374 computational blocks • 100 kg of each tracer injected for 20 minutes into central region Steady-state solution 10% vapor saturation

  12. Qualitative results - gas tracers SF6 R-12 R-123 Following injection 100 days

  13. Qualitative results - liquid tracers Tritiated water Methanol n-Propanol Following injection 100 days

  14. Summary and conclusions • Partitioning models have been developed for gas and liquid tracers • The models have been implemented in a TOUGH2 equation of state • Qualitative test results show the predictive and interpretative value of the models • Further work: • determine mixture values for more tracers • continue to test models by matching recorded tracer returns
