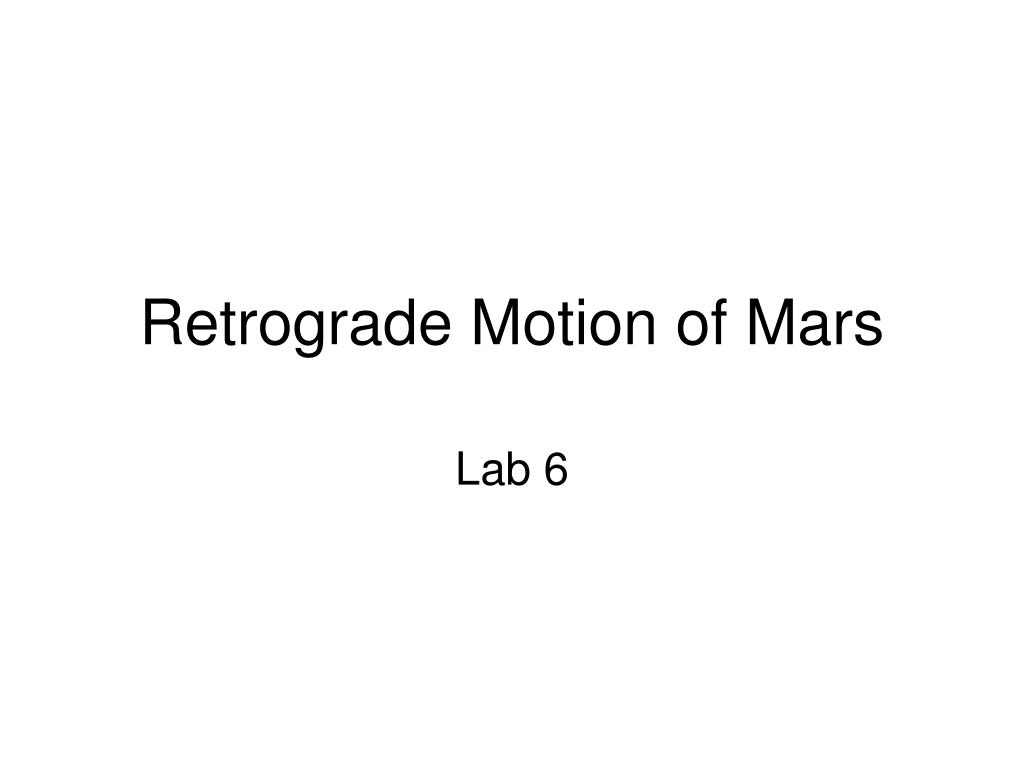

  1. Retrograde Motion of Mars Lab 6

  2. Brief Overview of Mars • Best views of Mars are at opposition and when it is at perihelion – a favorable opposition – when it is about the size of a head at 1 mile (every 15 years) • About 1.5 AU from the Sun • Orbital period ~2 years (1.88 yrs) • Rotation period ~1 day (24 hrs 37 mins) • Obliquity ~ 25.1˚ • Diameter ~ ½ earth • Pressure ~ 0.0063 bar (same as being 35 km up in the air)

  3. Definitions • Superior planets – the 7 planets that have have orbits > Earth orbit (Mars, Jupiter, Saturn, Uranus, Neptune, Pluto) • Inferior planets – have orbits < Earth orbit (Mercury, Venus)

  4. Superior Planet Configurations • Opposition – when superior planet is opposite the Earth • Conjunction – when superior planet is behind the Sun • Eastern quadrature – after opposition, 90˚E of Sun • Western quadrature – before opposition, 90˚W of Sun

  5. Different Kinds of Movement of Planets • All 9 planets orbit Sun in counterclockwise direction (W to E) – orbital revolution • All planets also rotate counterclockwise on their axes – axial rotation, except Venus and technically Uranus • All the planets exhibit apparent retrograde motion when they are nearest the earth

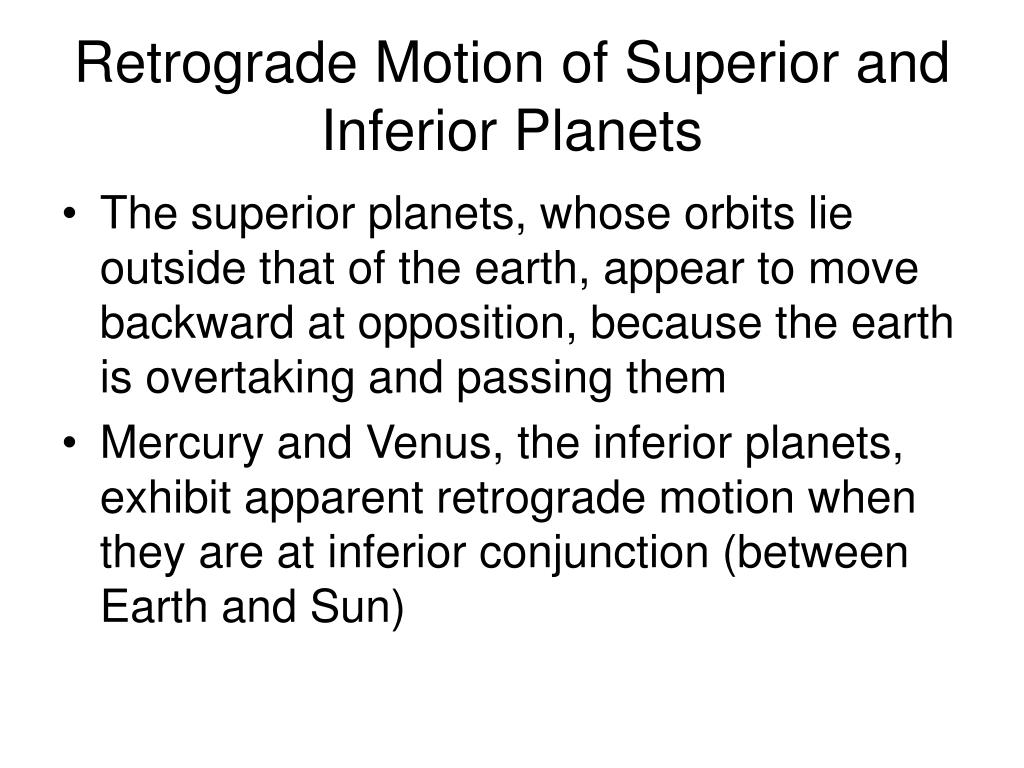

  6. Retrograde Motion of Superior and Inferior Planets • The superior planets, whose orbits lie outside that of the earth, appear to move backward at opposition, because the earth is overtaking and passing them • Mercury and Venus, the inferior planets, exhibit apparent retrograde motion when they are at inferior conjunction (between Earth and Sun)

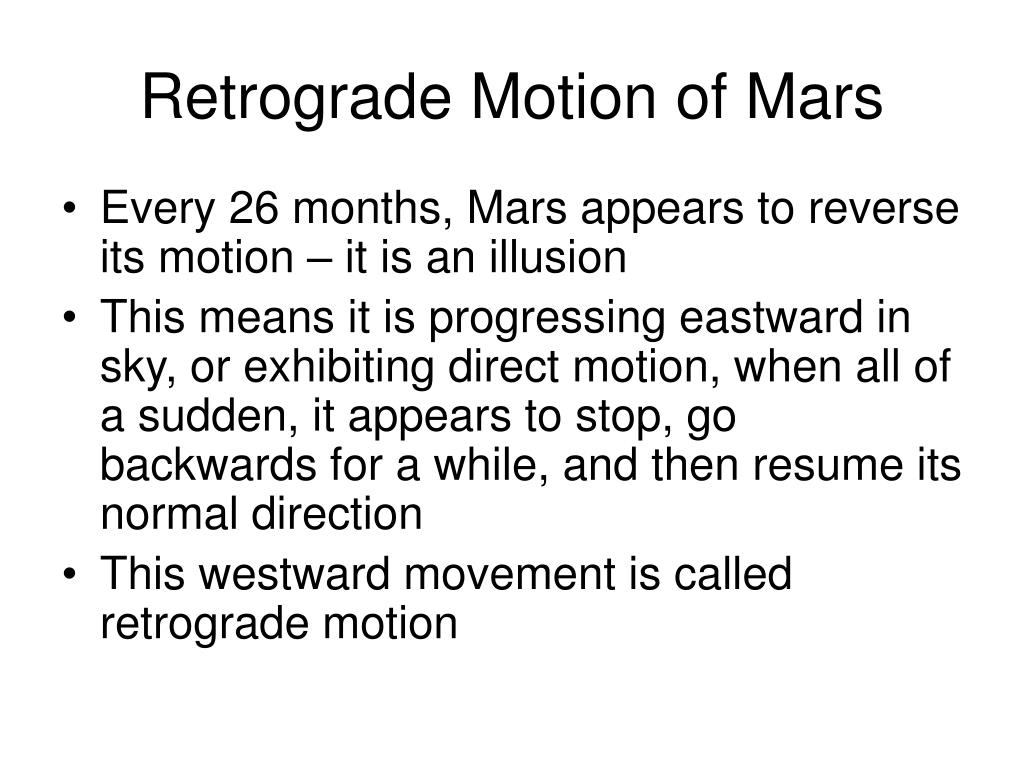

  7. Retrograde Motion of Mars • Every 26 months, Mars appears to reverse its motion – it is an illusion • This means it is progressing eastward in sky, or exhibiting direct motion, when all of a sudden, it appears to stop, go backwards for a while, and then resume its normal direction • This westward movement is called retrograde motion

  8. Explanation of the illusion • Since the Earth travels faster in its orbit that do the superior planets, it overtakes and passes them at times during their mutual orbits around the Sun • As the Earth begins to overtake Mars, Mars will appear to slow its eastward motion among the stars • Then just as the Earth overtakes it, Mars will appear to loop slightly westward for a short time. • Once the Earth is well past Mars, that planet will resume its eastward motion among the stars

  9. Retrograde motion of Mars animation • http://alpha.lasalle.edu/~smithsc/Astronomy/retrograd.html • http://www.astro.uiuc.edu/projects/data/Retrograde/ • http://www.flex.com/~jai/astrology/retrograde.html • http://mars.jpl.nasa.gov/allabout/nightsky/nightsky04.html

  10. analogy • The retrograde motion effect is similar to passing an automobile on a highway - observers in the faster car see the slower car apparently moving backwards as they overtake it
