  1. Fast and easy metal change Product information 2014

  2. Knock-on, easy and fast • Full range of shares from 80 to 320mm, and wing shares equipment of 360 and 470mm, matching with the CLC leg only • Will match with tine spacing from 200 up to 420mm • Available for the full range of 2-3-4 rows cultivator models CLC Evo & CLC pro mounted, and trailed CTC • For working depth from 3 to 35 cm deep • Large variants of deflectors and tine protection to make more or less boiling and match with various depth to optimise fuel consumption

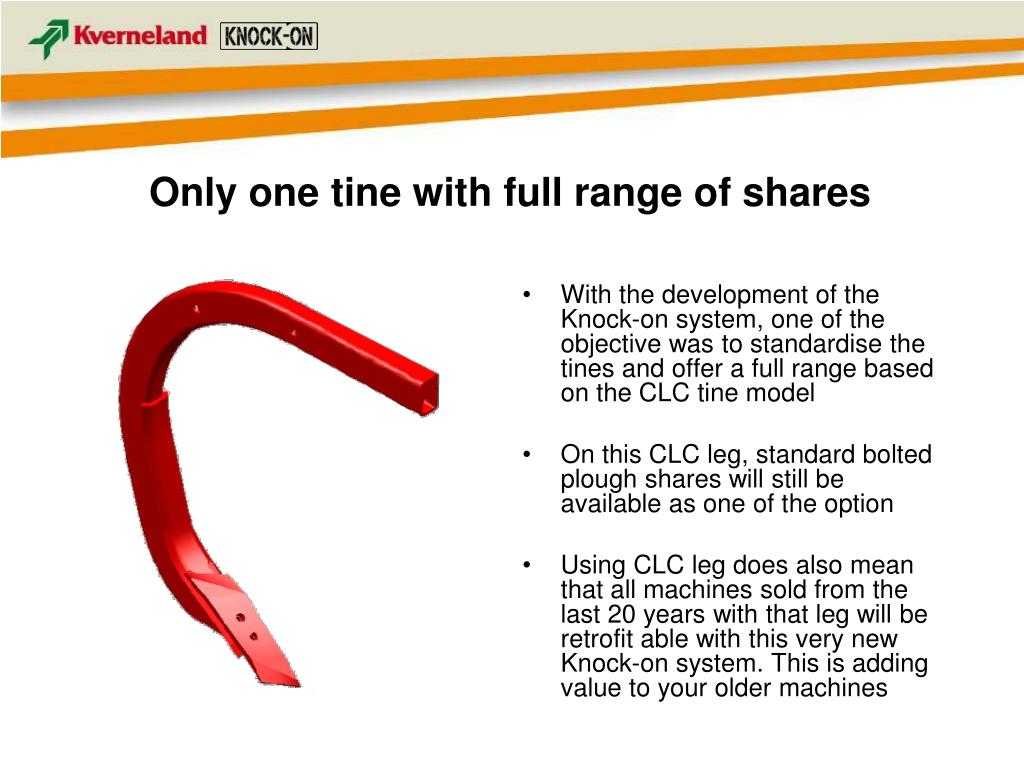

  3. Only one tine with full range of shares • With the development of the Knock-on system, one of the objective was to standardise the tines and offer a full range based on the CLC tine model • On this CLC leg, standard bolted plough shares will still be available as one of the option • Using CLC leg does also mean that all machines sold from the last 20 years with that leg will be retrofit able with this very new Knock-on system. This is adding value to your older machines

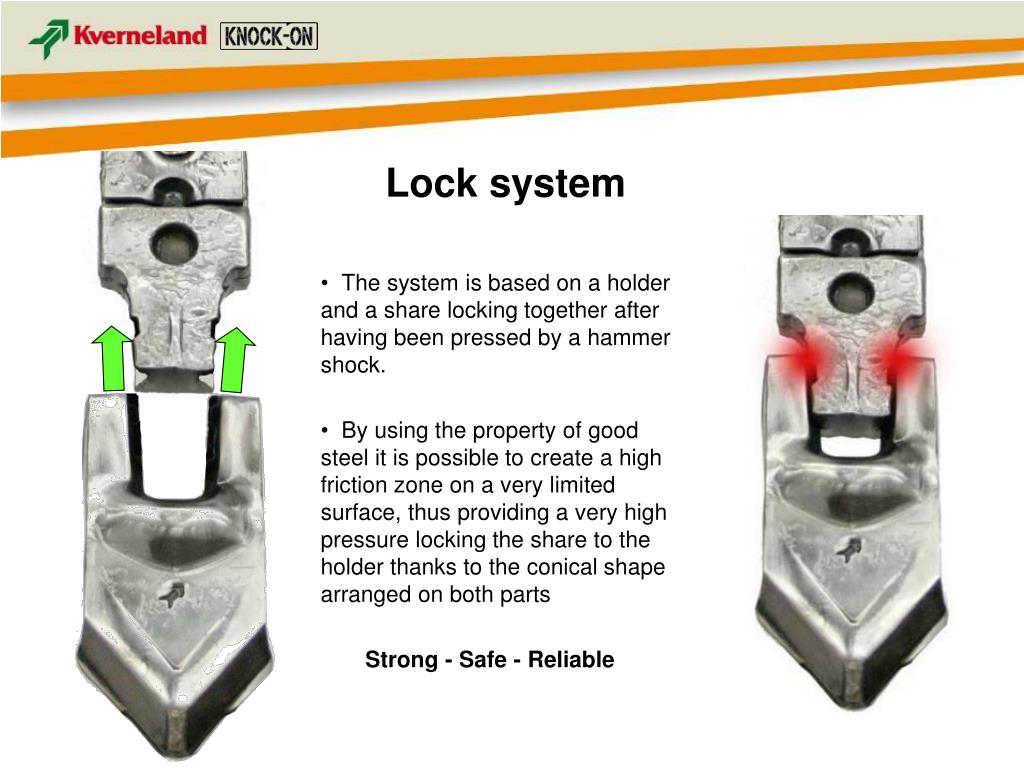

  4. Lock system • The system is based on a holder and a share locking together after having been pressed by a hammer shock. • By using the property of good steel it is possible to create a high friction zone on a very limited surface, thus providing a very high pressure locking the share to the holder thanks to the conical shape arranged on both parts Strong - Safe - Reliable

  5. Knock-on, easy and fast

  6. Knock-on Tools Easy Fast Solid A good hammer and the special tool delivered with the Knock-on shares to knock-on and unlock the parts is only what is needed to work in a safe and easy way

  7. 90% Down Time Saving • To engage a share or disengage it from the holder, it takes only few hammer knock and few seconds. • to change 10 shares on a CLC pro 3,00 will be taking less than 1.30 minutes while 20 minutes are necessary with bolted reversible shares. 10’’ When minutes become per share

  8. Bulb and role • All shares are shaped with a high bulb in the centre • This zone is making the soil pressure lower onto the holder, so that the groove locking the share is protected from abnormal and fast wear. • Therefore it is possible to be using several shares for one holder during the season and operate quick change anywhere in the field

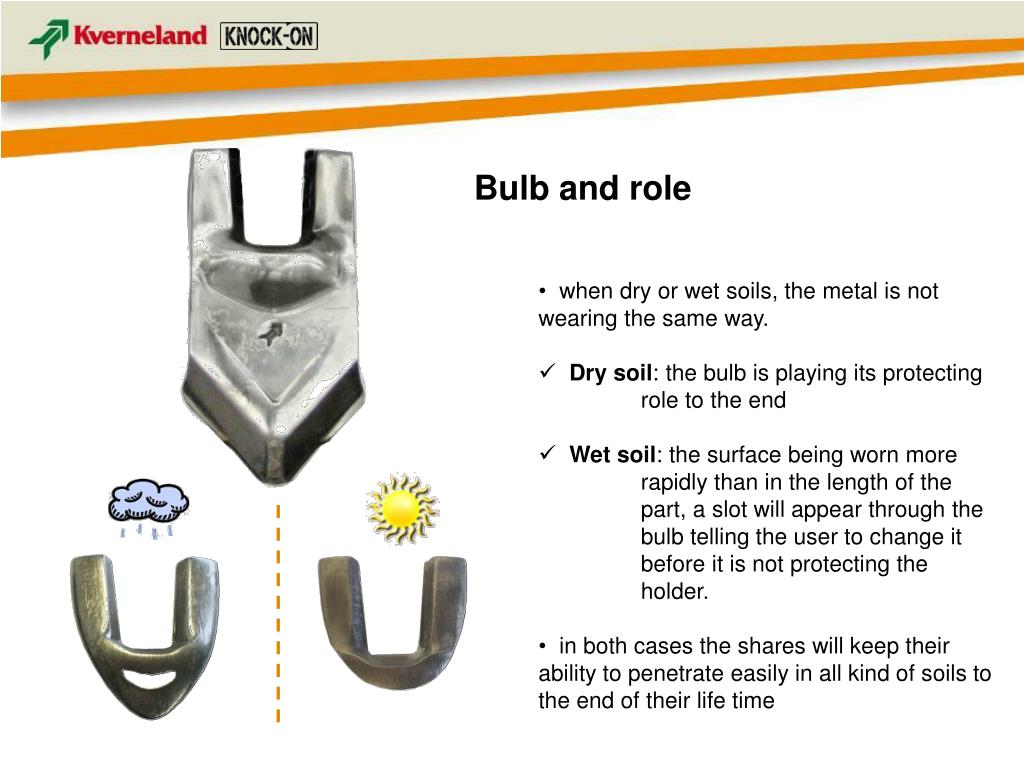

  9. Bulb and role • when dry or wet soils, the metal is not wearing the same way. • Dry soil: the bulb is playing its protecting role to the end • Wet soil: the surface being worn more rapidly than in the length of the part, a slot will appear through the bulb telling the user to change it before it is not protecting the holder. • in both cases the shares will keep their ability to penetrate easily in all kind of soils to the end of their life time

  10. Range of shares From full cut or true depth, using the right share at the right depth will contribute to save a lot of fuel and money Width (mm) 470 360 320 250 150 80 3-18 3-18 3-15 3-15 Depth (cm) 8-25 10-35 370 to 420 270 to 330 270 to 300 200 to 270 Spacing (mm) All All FCS Full Cut System CLC Evo Wings CLC pro CLC Evo Wings CTC CLC pro/Evo CTC CLC pro/Evo CTC All All Models

  11. Range of Deflectors The upper part of a share system is playing a big role in the work done in terms of incorporation, power requirement and top layer profile. Humidity of the soil can also be determinant. 1 bolt = quick change 100 Width (mm) 80 65 Twist RH/Straight/Twist LH Twist RH/Straight/Twist LH Protection Models available 3-15 3-30 10-35 Depth (cm) hp requirement Clod’s sizes +++ ++ + Mixing effect

  12. Point KO 80 55 HRC thickness:12mm weight:1000 g

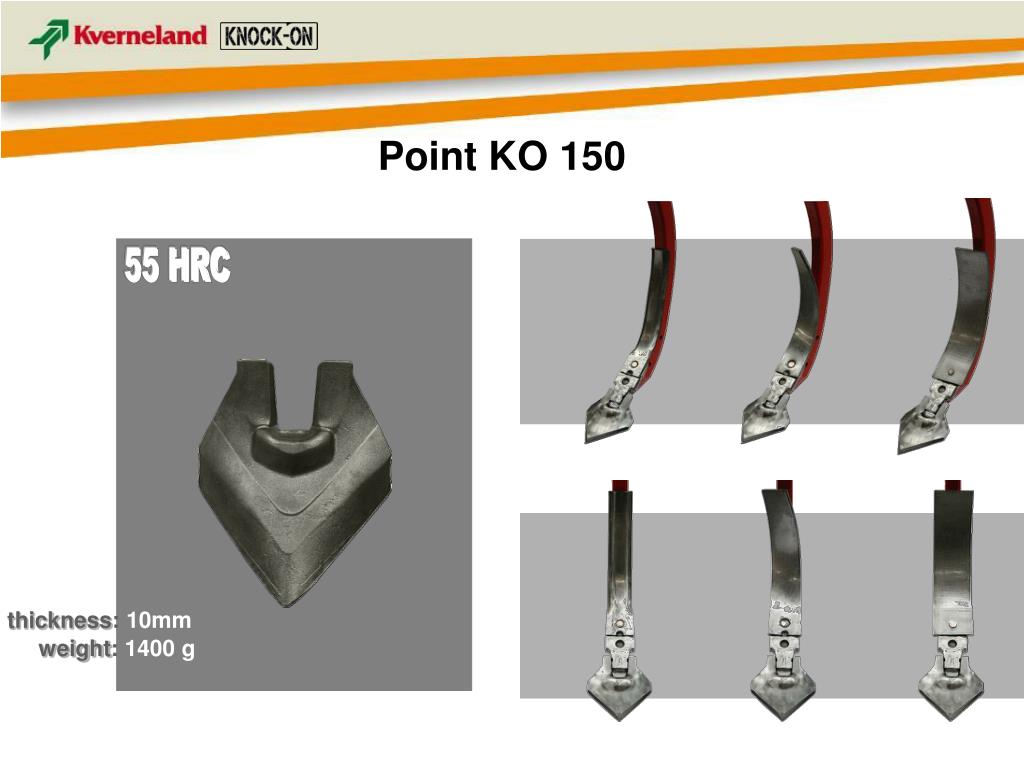

  13. Point KO 150 55 HRC thickness:10mm weight:1400 g

  14. A-blade KO 250 & 320 55 HRC thickness:10mm weight:2200 g thickness:10mm weight:2900 g FCS : Full Cut System

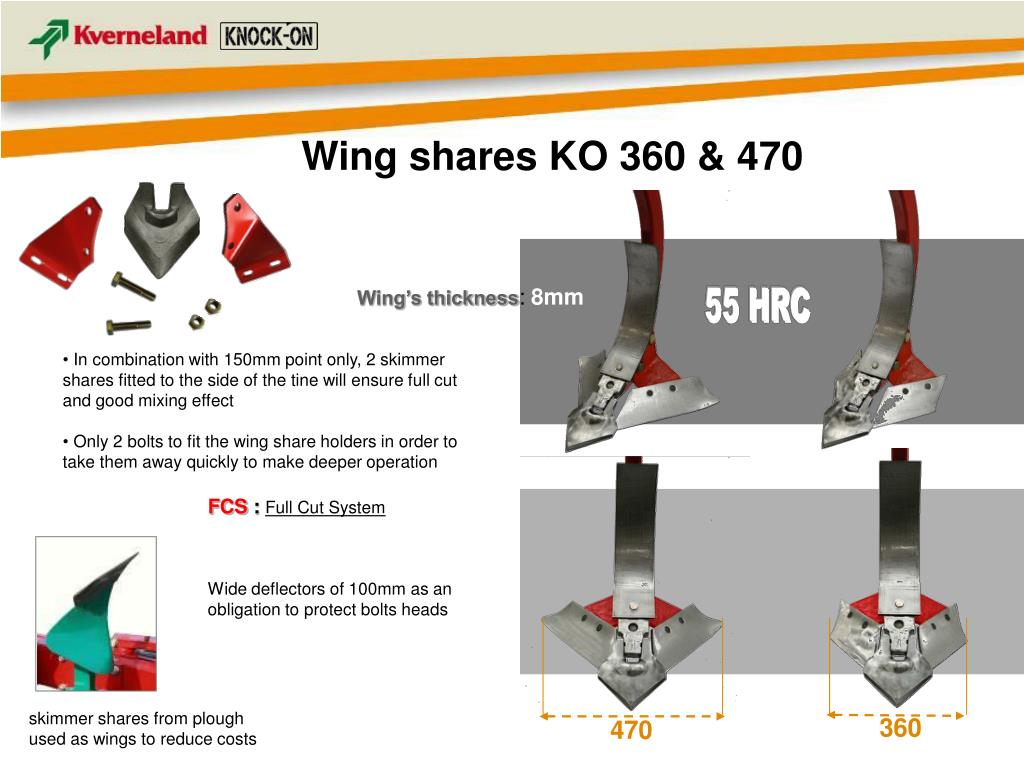

  15. Wing shares KO 360 & 470 Wing’s thickness: 8mm 55 HRC • In combination with 150mm point only, 2 skimmer shares fitted to the side of the tine will ensure full cut and good mixing effect • Only 2 bolts to fit the wing share holders in order to take them away quickly to make deeper operation FCS : Full Cut System Wide deflectors of 100mm as an obligation to protect bolts heads skimmer shares from plough used as wings to reduce costs 360 470

  16. Agronomic & economic performances • To test the Knock-on system efficiency in work, the concourse of the renown DLG in Germany was requested • This partnership allowed to test a CLC pro Classic equipped with various Knock-on shares and an Actipack as rear roller. • The test protocol was including: • Mixing and levelling efficiency • Crumbling effect • Power requirement and fuel consumption • There after some general info about the test you can find the full report from the DLG under N°6029F which was published for Agritechnica 2011

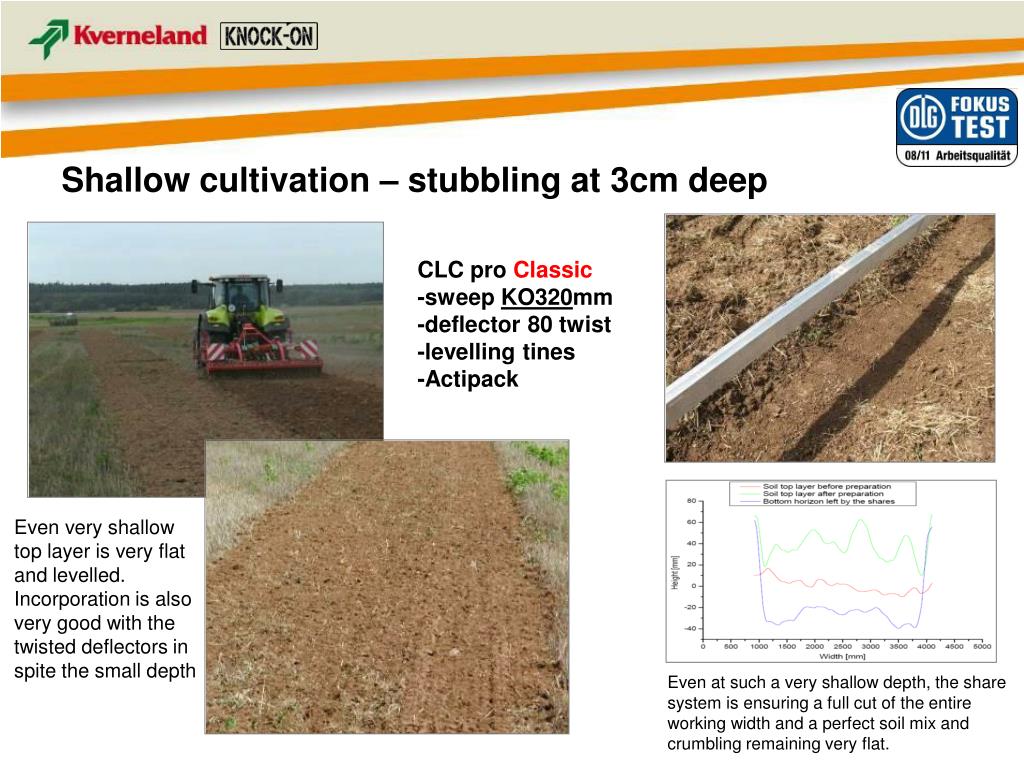

  17. Shallow cultivation – stubbling at 3cm deep CLC pro Classic-sweep KO320mm-deflector 80 twist-levelling tines-Actipack Even very shallow top layer is very flat and levelled. Incorporation is also very good with the twisted deflectors in spite the small depth Even at such a very shallow depth, the share system is ensuring a full cut of the entire working width and a perfect soil mix and crumbling remaining very flat.

  18. Deep cultivation – at 15cm deep CLC pro Classic-point KO80mm-deflector 80 twist-levelling tines-Actipack Perfect top layer after one pass. Deeper cultivation with smaller share still ensuring a complete loose profile. Very regular profile at bottom and a very small difference between before and after

  19. Second pass – at 15cm deep CLC pro Classic-point 80mm-deflector 80 twist-levelling tines-Actipack The bottom soil profile is regular at 15cm average, and the small difference between before and after (green) is remarkable. It does also mean that the Actipack is doing the job! Few weeks after stubbling, second pass is leaving a nice and ready seedbed with no pan! The straw incorporation is very good and well dispersed over the full width and working depth.

  20. Technical performances • The pulling requirement of the Knock-on system is very low • Average power requirement: • per tine is 6,4 kW or 8,7 Hp • per m is 21,3 kW or 29 Hp • Fuel consumption for this 3,00m CLC pro Classic is in a good average of 10.l/ha

  21. kN Low pulling requirement • The pulling requirement of the Knock-on system is also very positive • We compared with various equipment and the plough point as well as some competitors • Knock-on is the easiest to pull when equipped with a protection, proving that this equipment is well adapted to deeper soil preparation

  22. DLG Certificate and report This is the original DLG Fokus Test certificate of the CLC pro Classic which was tested with the Knock-on shares, and here below the front page of the report N°6029F

  23. Eco-friendly = To produce 1 ton of steel, 5600.kWh* are necessary 5600.kWh* is the average power consumption of a household for 18 month. • There are 2 possible ways for saving energy when using steel: • Save power when producing steel, manufacturers are developing heating systems using less energy • Using less steel, as been the Kverneland philosophy for many years and Knock-on is an innovation using less steel *source Siemens

  24. Eco-friendly 250.g • Due to better design and higher heat treatment (55 HRC), the new point 80mm will do about the same number of hectares as the standard bolted plough point, this using average 200g less steel. • 75% of the original part is used against average 60% on the standard point • Therefore Kverneland and its customers can be proud of contributing saving energy by reducing the use of steel for the same performance. Knock-on point 450.g Standard point

  25. Knock-on – Main arguments • 10” quick change system per share = 90% down time savings • Easy, fast and solid design using only basic tools like a hammer • User-friendly weight of parts between 1 and 2,5kg easy to handle • Change of wearing metals can be made in the field in few minutes • Adaptation to desired working depth can be done in the field in few minutes • Fuel consumption will be optimised • Breaks up soil compaction and plough pans to depths of 35cm • Points designed to guarantee penetration and effective work to the end of their life time • Eco-friendly, over 75% of the material will be consumed and about 200g of steel saved compared to bolted design for same performance • Effective incorporation of organic matter can be fine tuned with a large choice of deflectors depending on depth, soil type, soil humidity and residues • Low running costs wearing parts system • Low power requirement

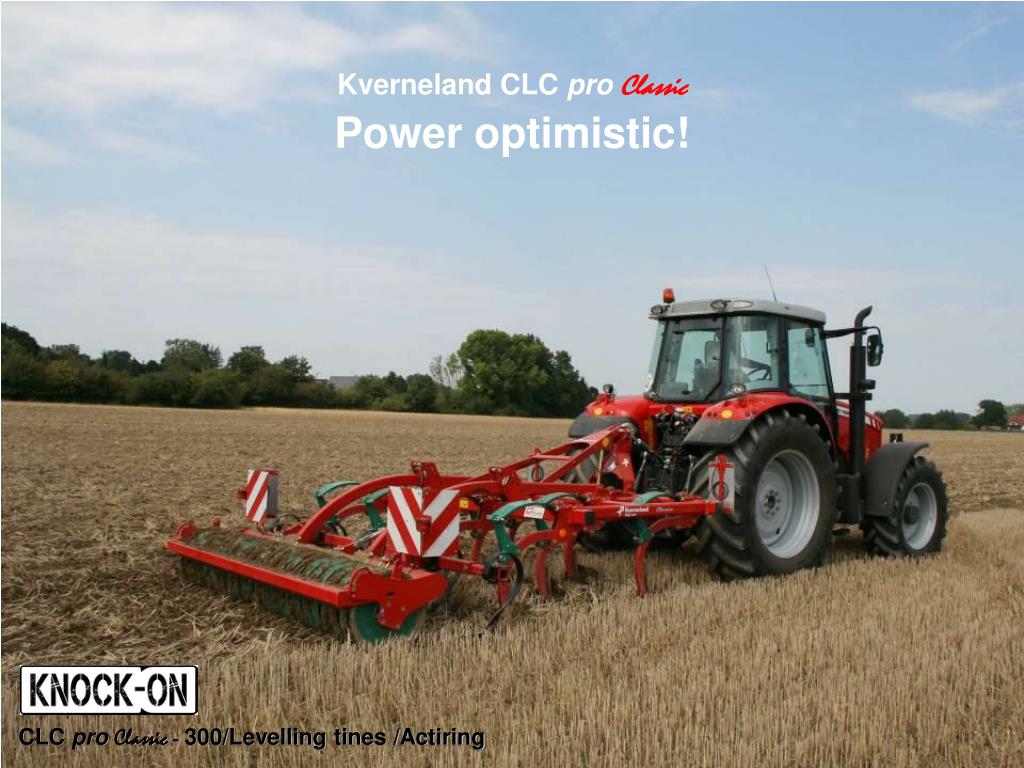

  26. Kverneland CLC proClassic Power optimistic! CLC proClassic - 300/Levelling tines /Actiring
