  1. Introduction to Socket Programming

  2. CONTENTS • SOCKETS • SOCKET ADDRESS • SOCKET SYSTEM CALLS • CONNECTIONLESS ITERATIVE SERVER • UDP CLIENT-SERVER PROGRAMS • CONNECTION-ORIENTED CONCURRENT SERVER • TCP CLIENT-SERVER PROGRAMS

  3. CONTENTS (continued) • BYTE ORDERING • ADDRESS TRANSFORMATION • BYTE MANIPULATION FUNCTIONS • INFORMATION ABOUT REMOTE HOST

  4. SOCKETS

  5. Unix programs do any sort of I/O by reading or writing to a file descriptor. This logical file can be a network connection, a FIFO, a pipe, a terminal, a real on-the-disk file, or just about anything else. When a program wants to communicate with another program over the Internet, also do it through a file descriptor-- socket descriptor. What is socket

  6. Declaration for socket function

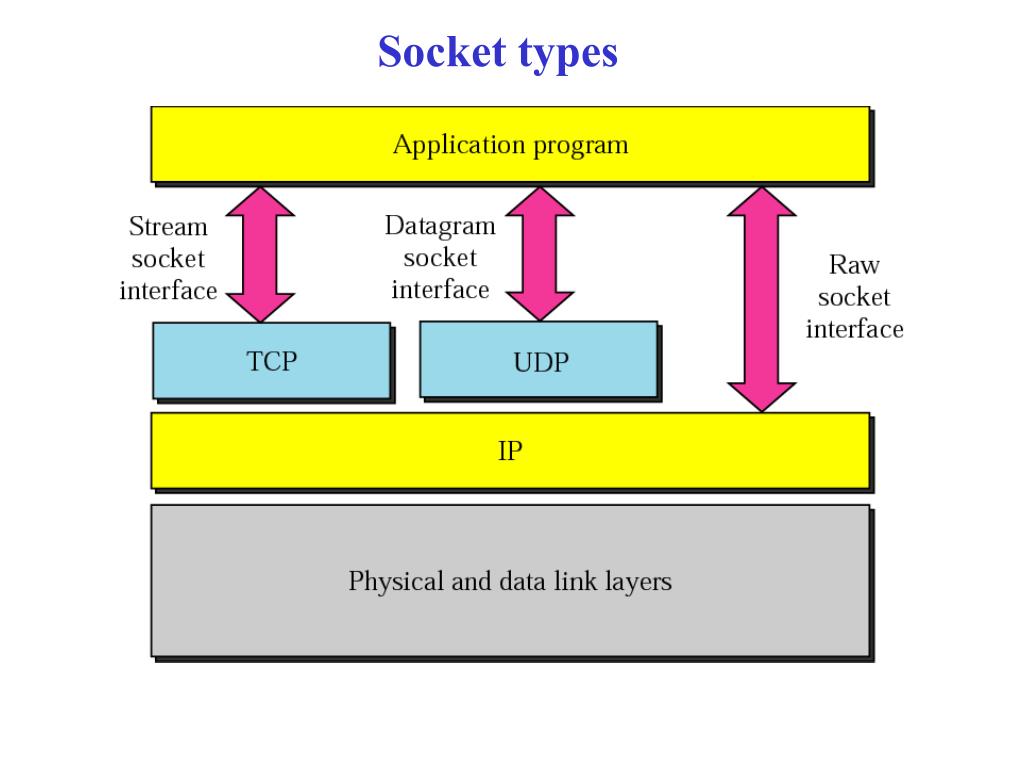

  7. Socket types

  8. SOCKETS ADDRESS

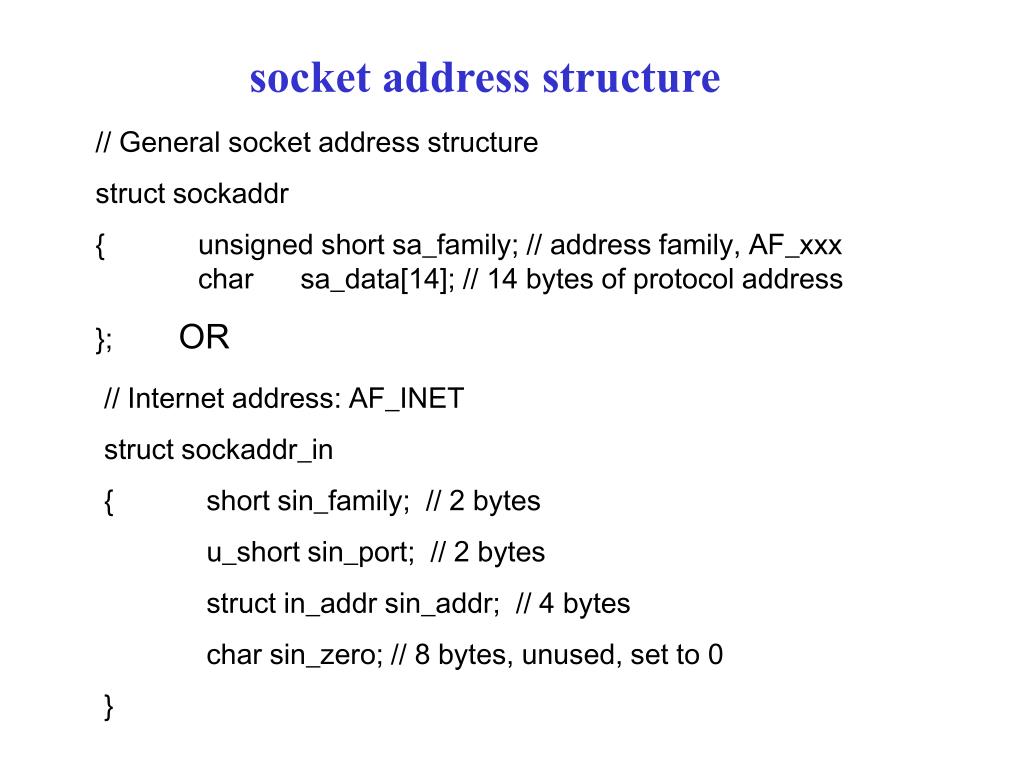

  9. socket address structure // General socket address structure struct sockaddr { unsigned short sa_family; // address family, AF_xxx char sa_data[14]; // 14 bytes of protocol address }; OR // Internet address: AF_INET struct sockaddr_in { short sin_family; // 2 bytes u_short sin_port; // 2 bytes struct in_addr sin_addr; // 4 bytes char sin_zero; // 8 bytes, unused, set to 0 }

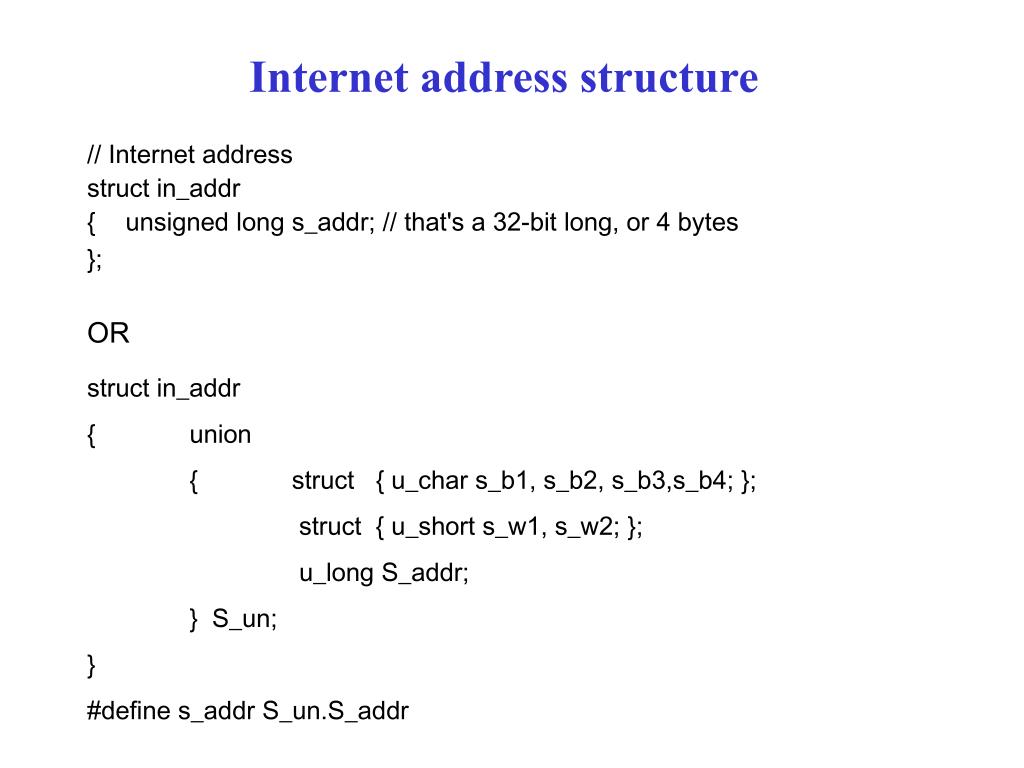

  10. // Internet address struct in_addr { unsigned long s_addr; // that's a 32-bit long, or 4 bytes }; OR Internet address structure struct in_addr { union { struct { u_char s_b1, s_b2, s_b3,s_b4; }; struct { u_short s_w1, s_w2; }; u_long S_addr; } S_un; } #define s_addr S_un.S_addr

  11. struct sockaddr_in my_addr; my_addr.sin_addr.s_addr = INADDR_ANY; // use my IP address By setting my_addr.sin_addr.s_addr to INADDR_ANY, you are telling it to automatically fill in the IP address of the machine the process is running on. Internet address structure

  12. SOCKET SYSTEM CALLS

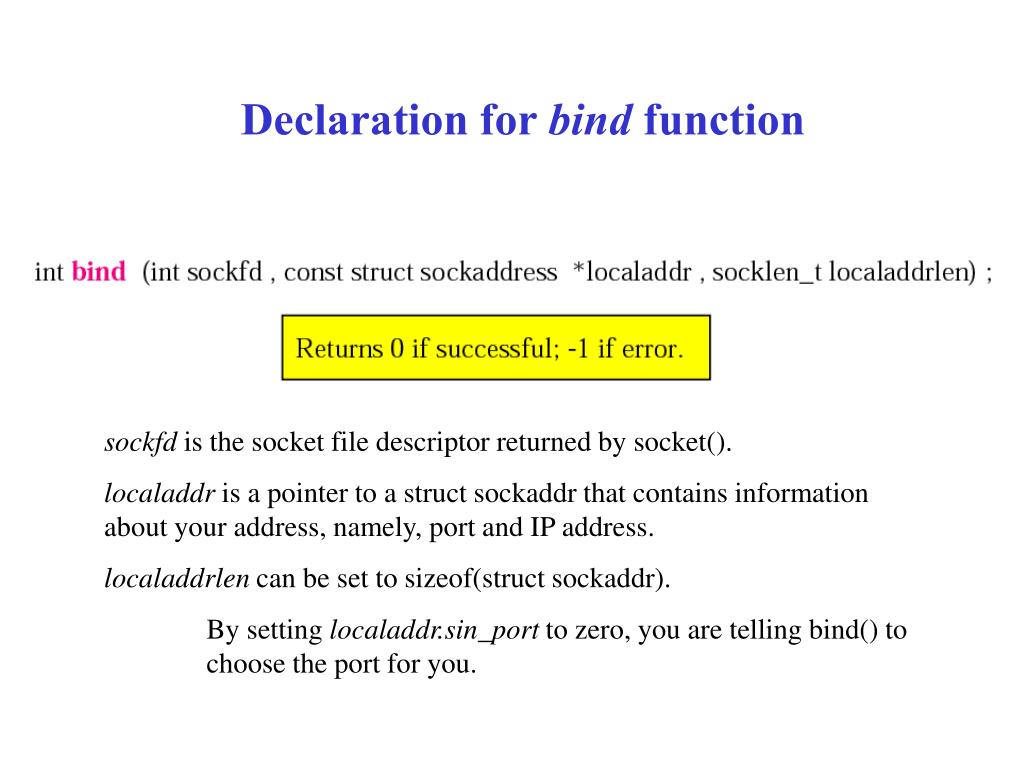

  13. Declaration for bind function sockfd is the socket file descriptor returned by socket(). localaddr is a pointer to a struct sockaddr that contains information about your address, namely, port and IP address. localaddrlen can be set to sizeof(struct sockaddr). By setting localaddr.sin_port to zero, you are telling bind() to choose the port for you.

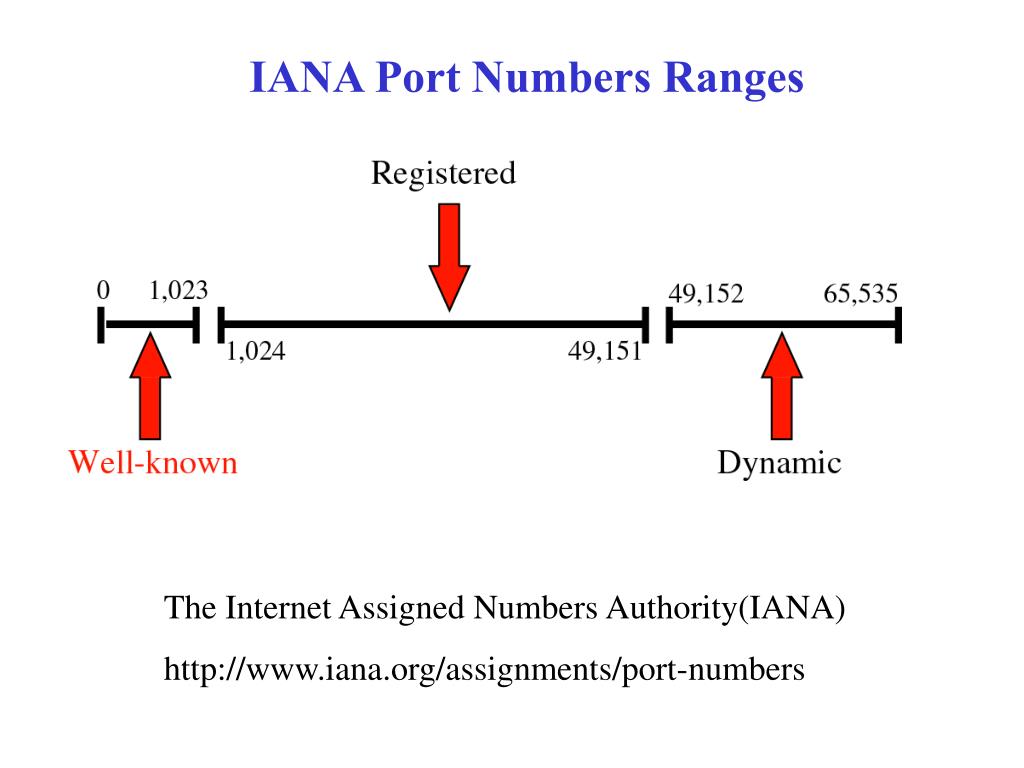

  14. IANA Port Numbers Ranges The Internet Assigned Numbers Authority(IANA) http://www.iana.org/assignments/port-numbers

  15. Declaration for listen function sockfd is the usual socket file descriptor from the socket() system call. backlog is the number of connections allowed on the incoming queue.

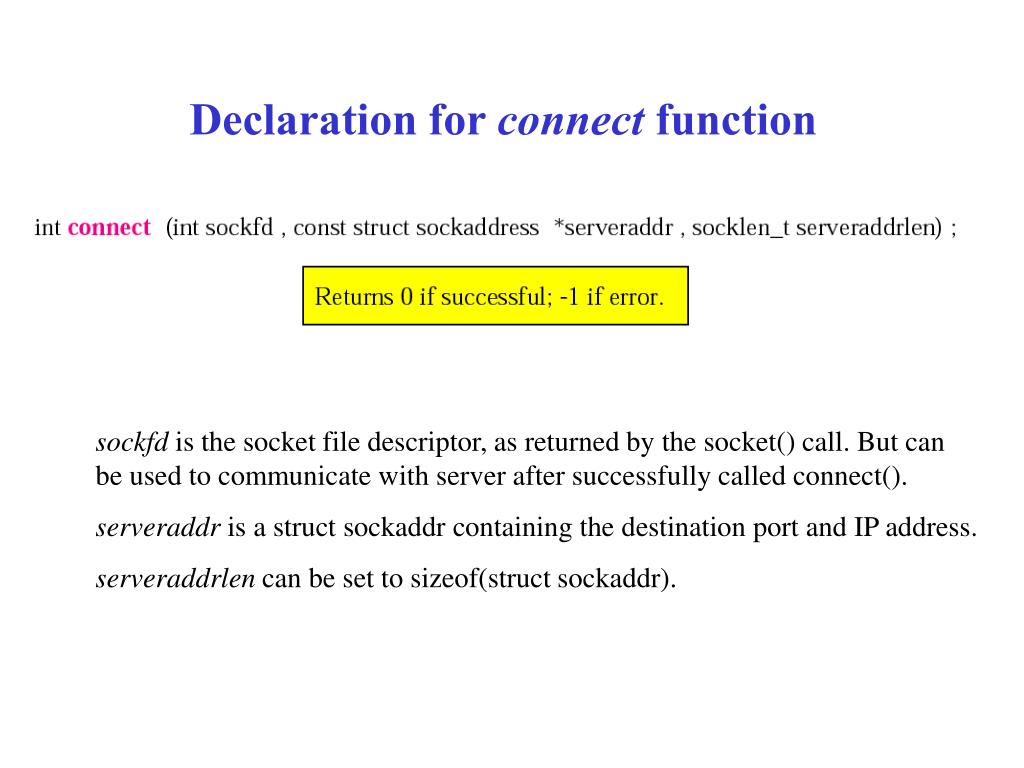

  16. Declaration for connect function sockfd is the socket file descriptor, as returned by the socket() call. But can be used to communicate with server after successfully called connect(). serveraddr is a struct sockaddr containing the destination port and IP address. serveraddrlen can be set to sizeof(struct sockaddr).

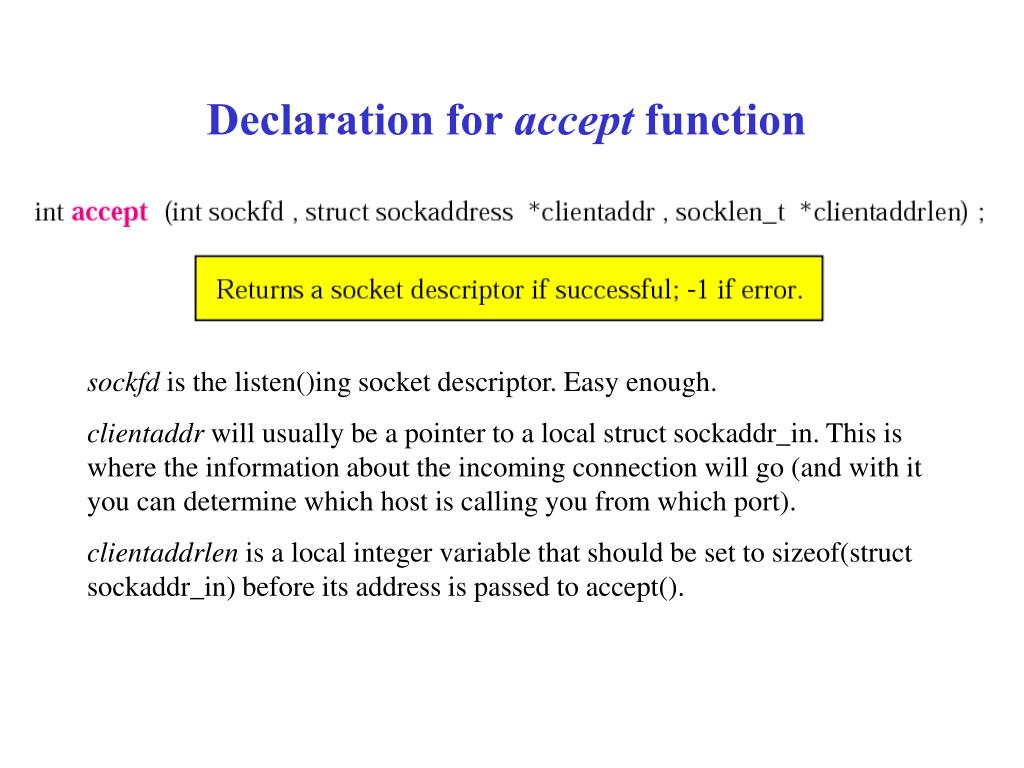

  17. Declaration for accept function sockfd is the listen()ing socket descriptor. Easy enough. clientaddr will usually be a pointer to a local struct sockaddr_in. This is where the information about the incoming connection will go (and with it you can determine which host is calling you from which port). clientaddrlen is a local integer variable that should be set to sizeof(struct sockaddr_in) before its address is passed to accept().

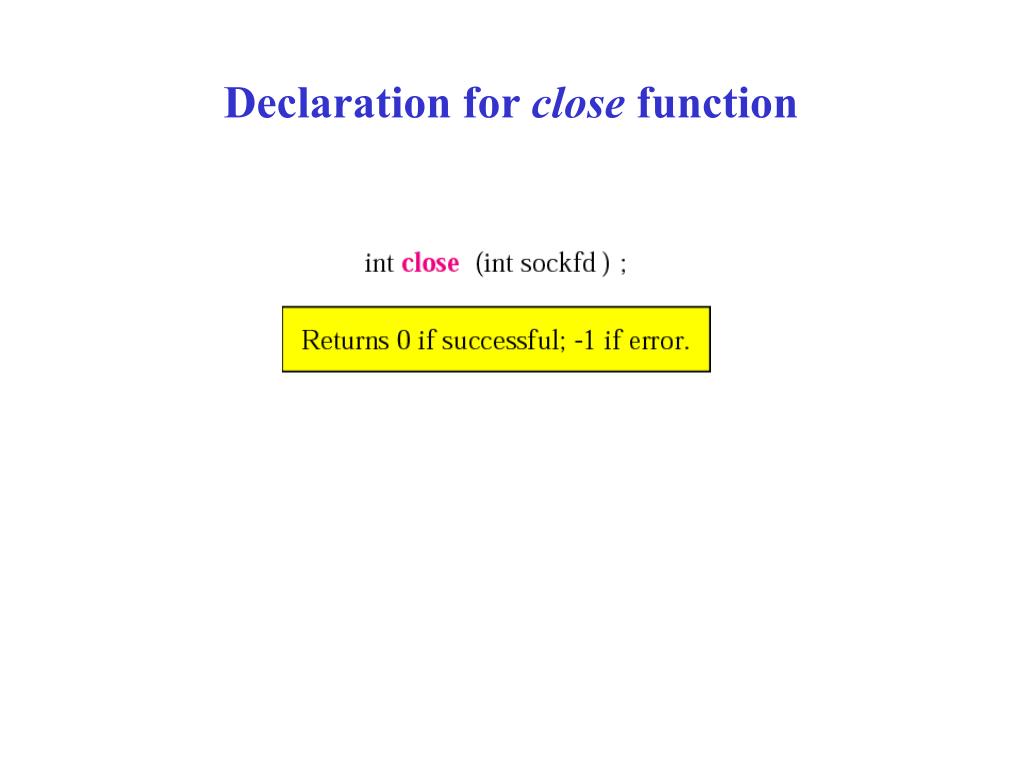

  18. Declaration for close function

  19. Declaration for write function Used in connection-oriented (TCP) program. sockfd is the socket descriptor you want to send data to (whether it's the one returned by socket() or the one you got with accept().) buf is a pointer to the data you want to send, and buflen is the length of that data in bytes. If the value returned by write() doesn't match the value in buflen, it's up to you to send the rest of the string. Ssize_t send(int sockfd, const void *buf, int buflen, int flags); Just set flags to 0. Set flag=MSG_OOB to send out-of-band data.

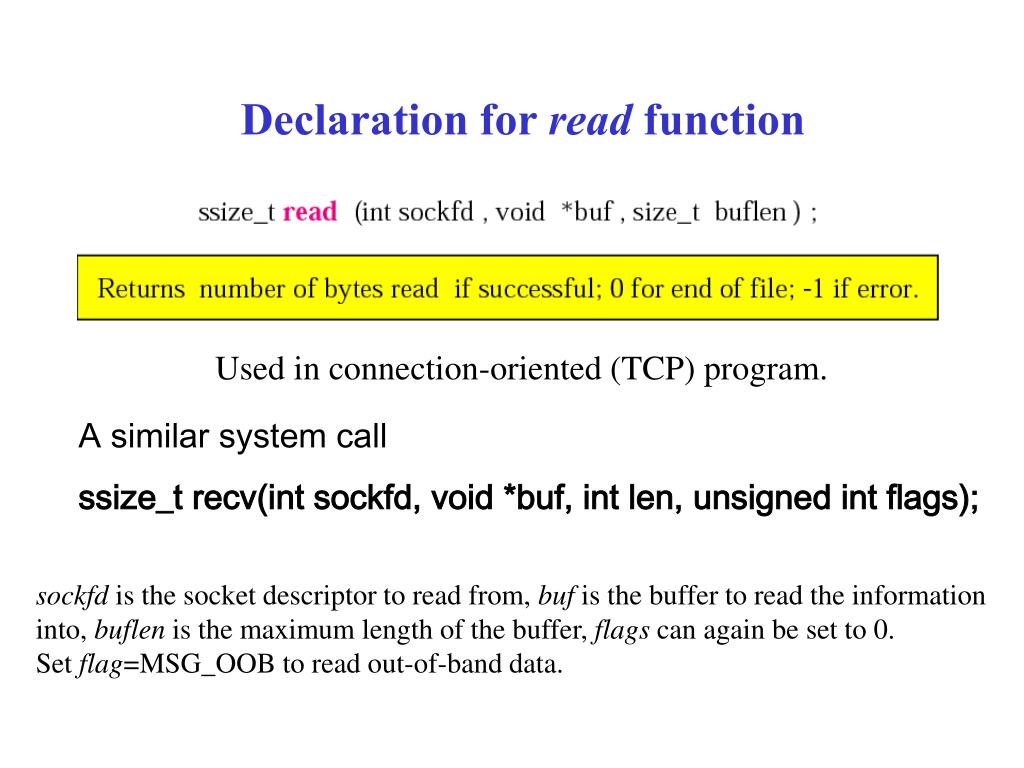

  20. Declaration for read function Used in connection-oriented (TCP) program. A similar system call ssize_t recv(int sockfd, void *buf, int len, unsigned int flags); sockfd is the socket descriptor to read from, buf is the buffer to read the information into, buflen is the maximum length of the buffer, flags can again be set to 0. Set flag=MSG_OOB to read out-of-band data.

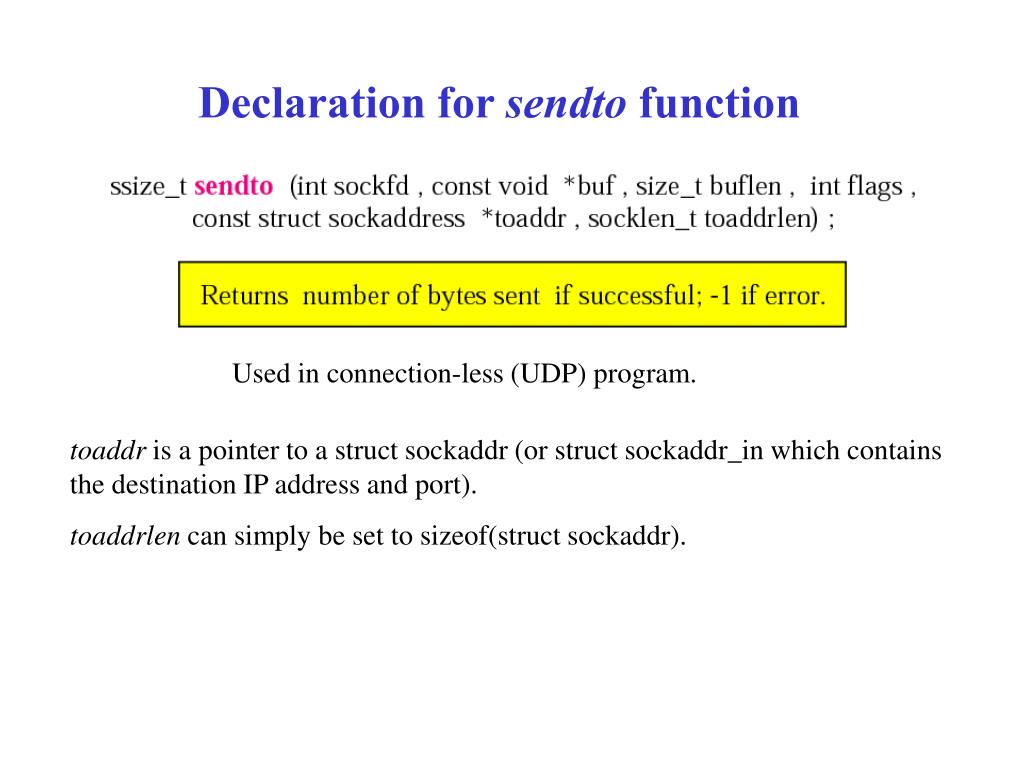

  21. Declaration for sendto function Used in connection-less (UDP) program. toaddr is a pointer to a struct sockaddr (or struct sockaddr_in which contains the destination IP address and port). toaddrlen can simply be set to sizeof(struct sockaddr).

  22. Declaration for recvfrom function Used in connection-less (UDP) program. fromaddr is a pointer to a struct sockaddr (or struct sockaddr_in which contains the IP address and port of the sender). fromaddrlen can simply be set to sizeof(struct sockaddr).

  23. CONNECTIONLESSITERATIVE SERVER & UDP CLIENT-SERVER PROGRAMS

  24. Socket interface for connectionless iterative server

  25. CONNECTION-ORIENTED CONCURRENT SERVER

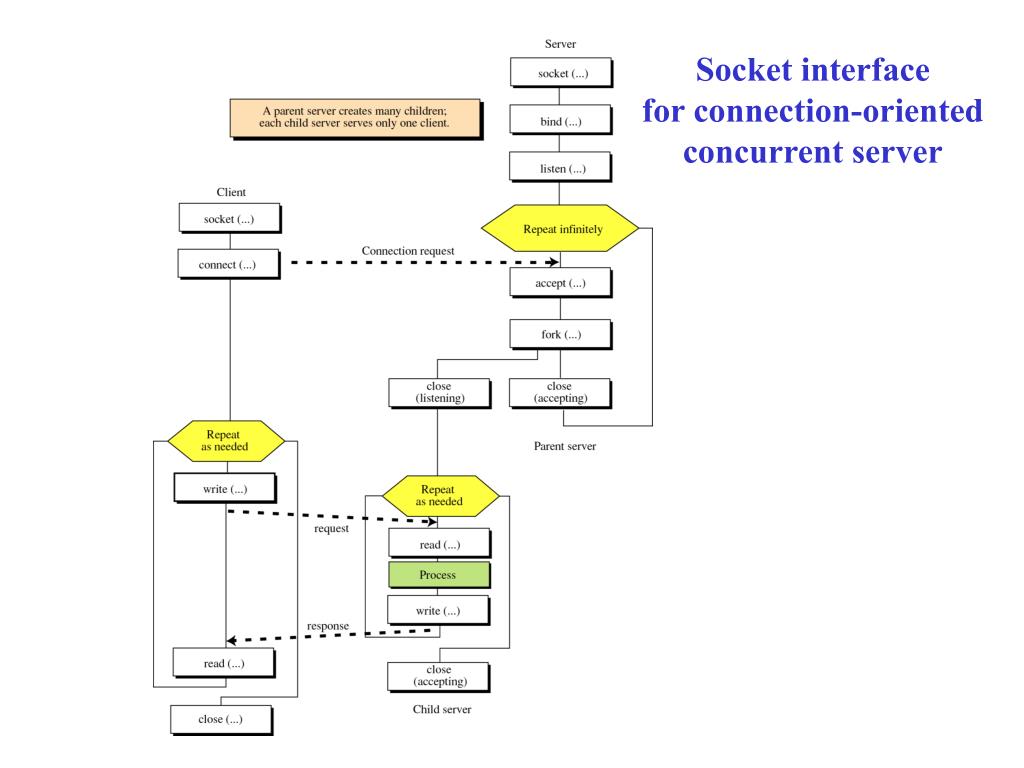

  26. Socket interface for connection-oriented concurrent server

  27. Part I

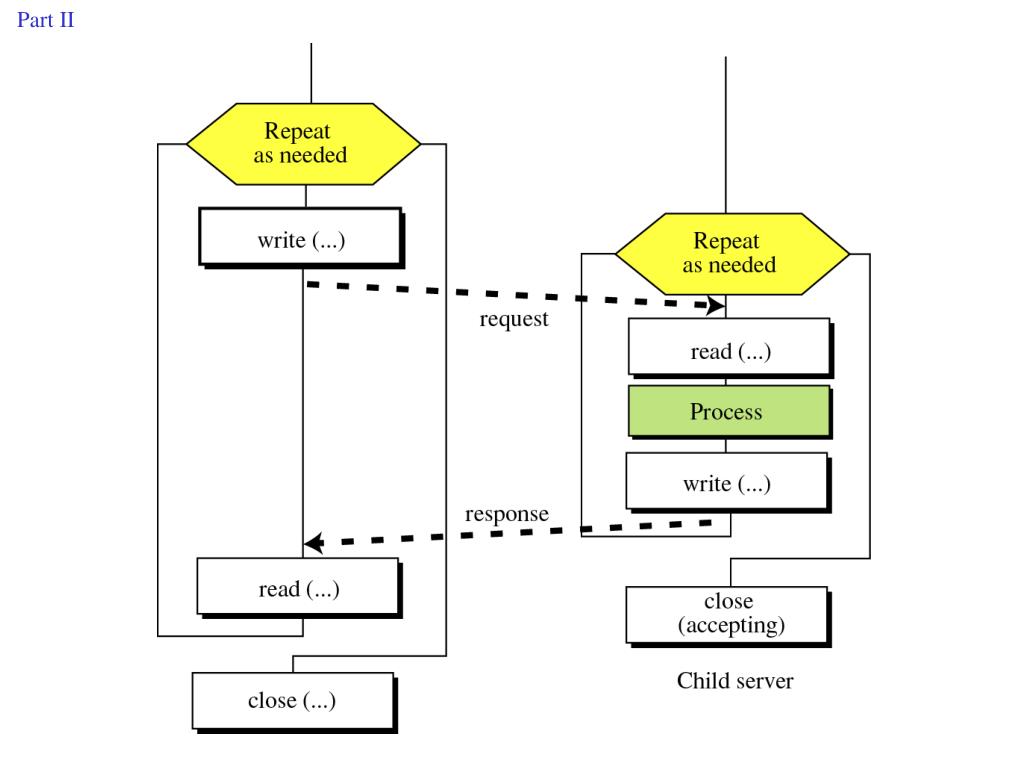

  28. Part II

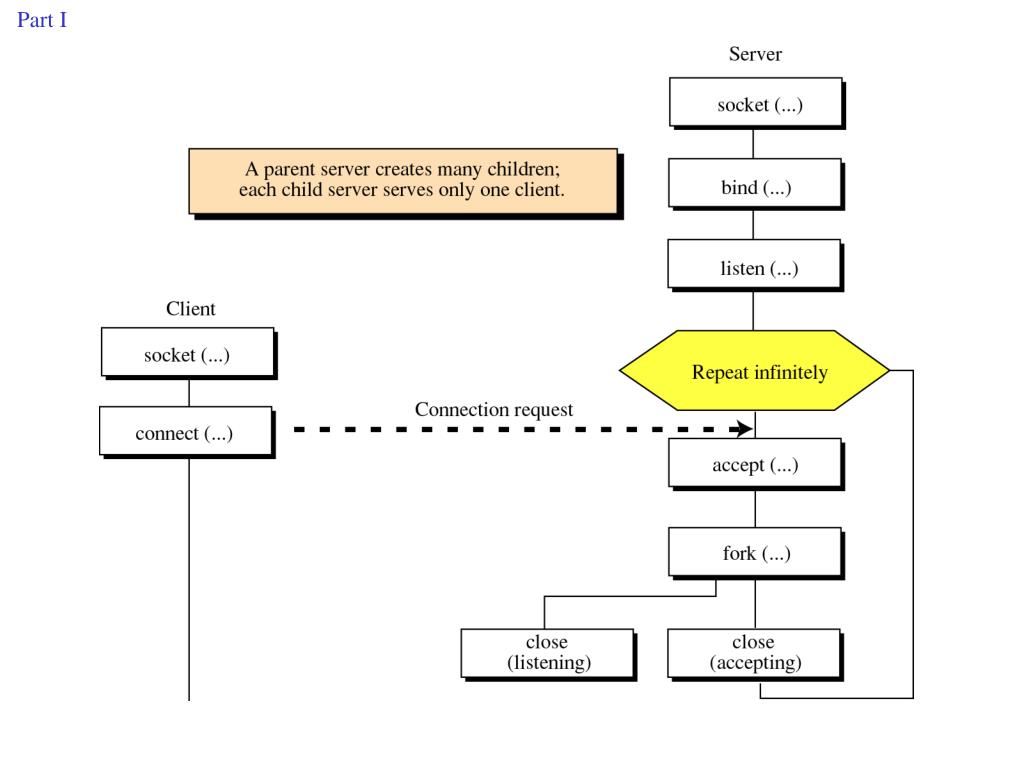

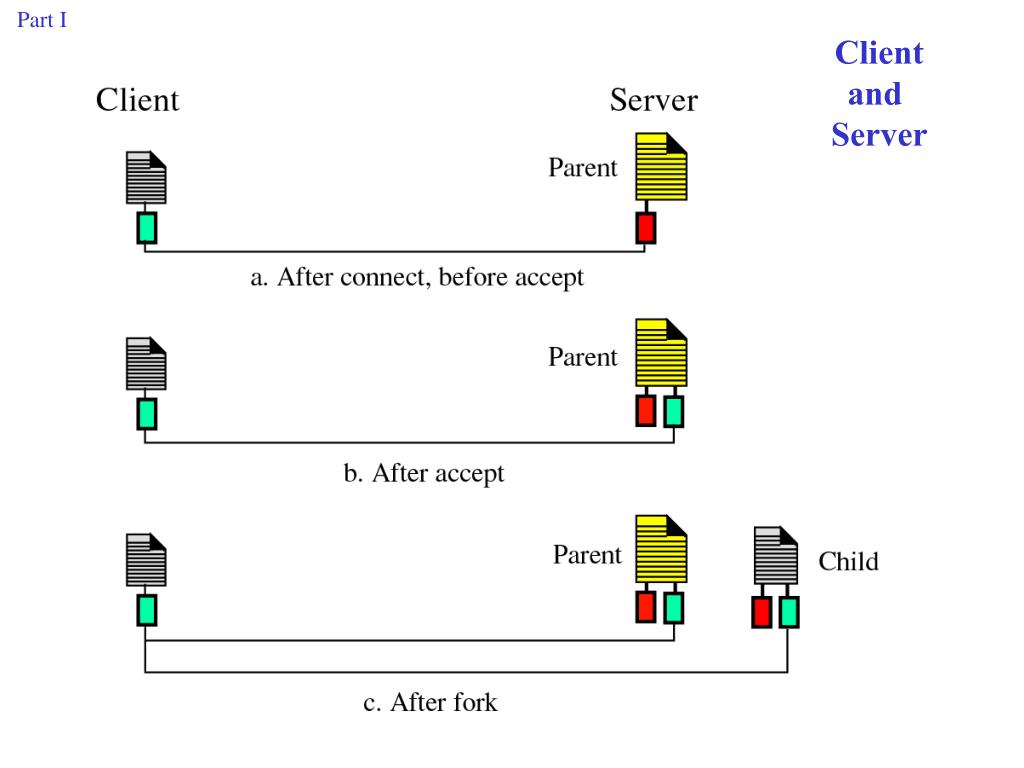

  29. Part I Client and Server

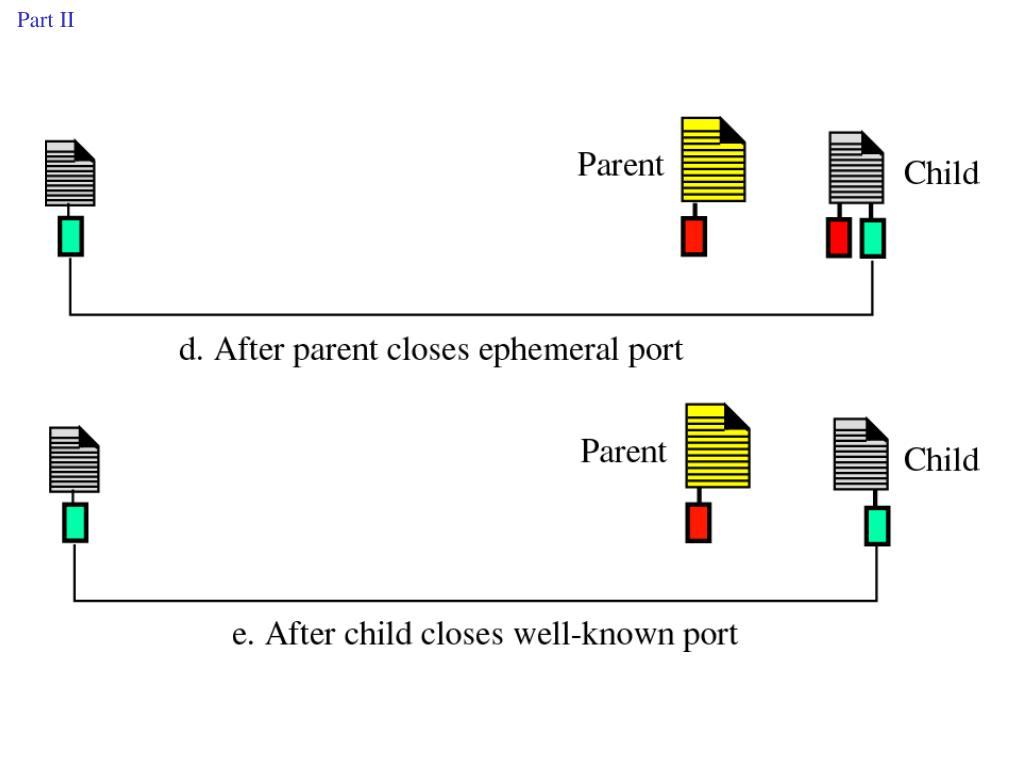

  30. Part II

  31. BYTE ORDERING

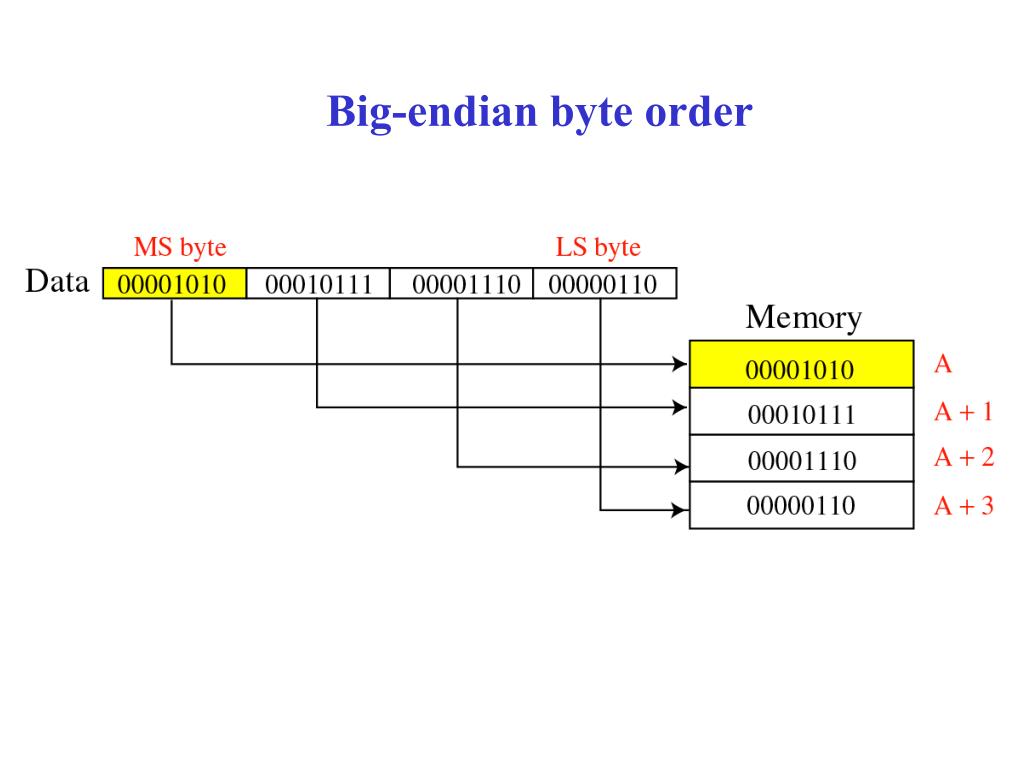

  32. Big-endian byte order

  33. Little-endian byte order

  34. The byte order for the TCP/IPprotocol suite is big endian.

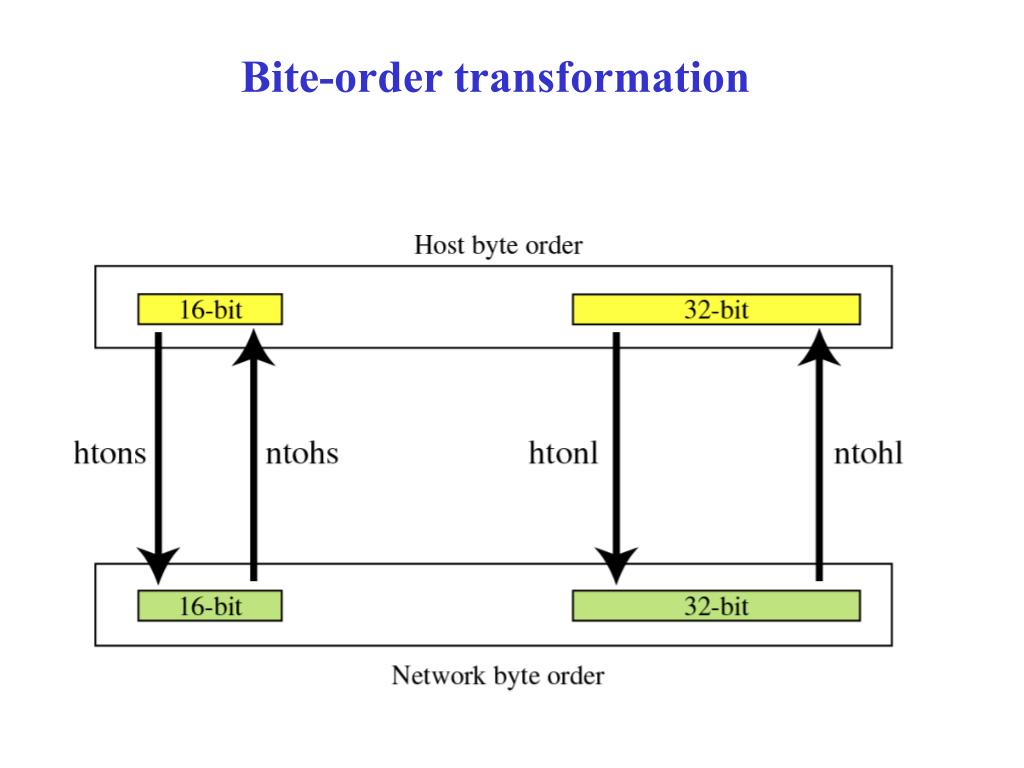

  35. Bite-order transformation

  36. Declarations for byte-order transformation Examples: my_addr.sin_port = htons(0); // choose an unused port at random my_addr.sin_addr.s_addr = htonl(INADDR_ANY); // use my IP address

  37. ADDRESSTRANSFORMATION

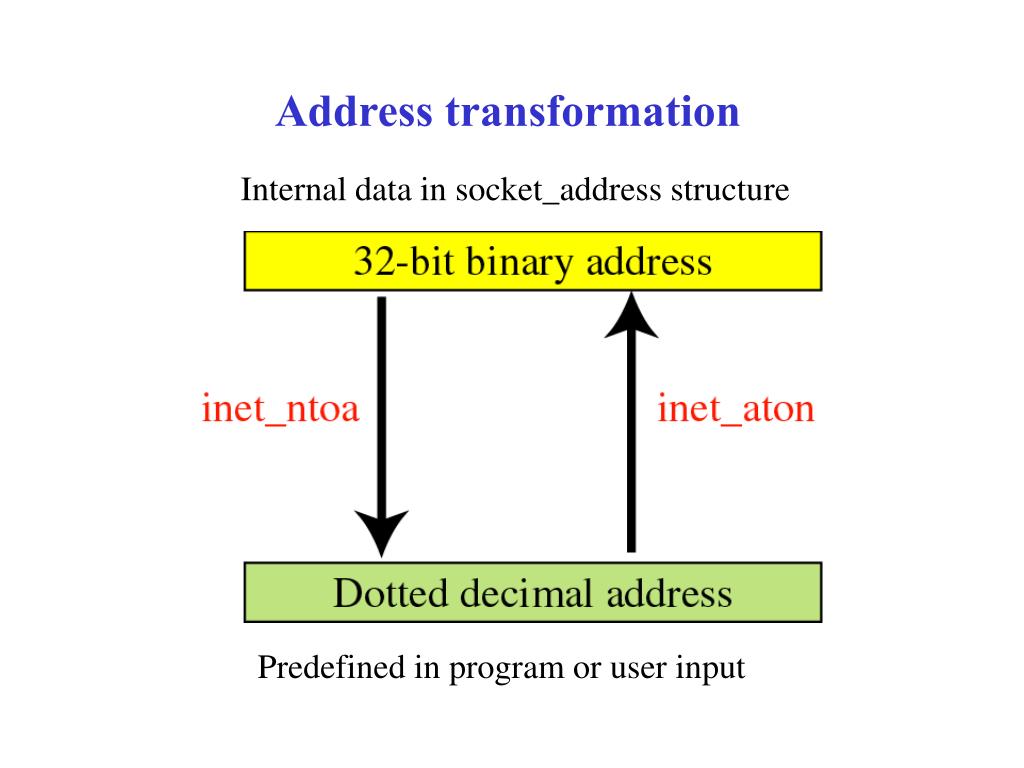

  38. Address transformation Internal data in socket_address structure Predefined in program or user input

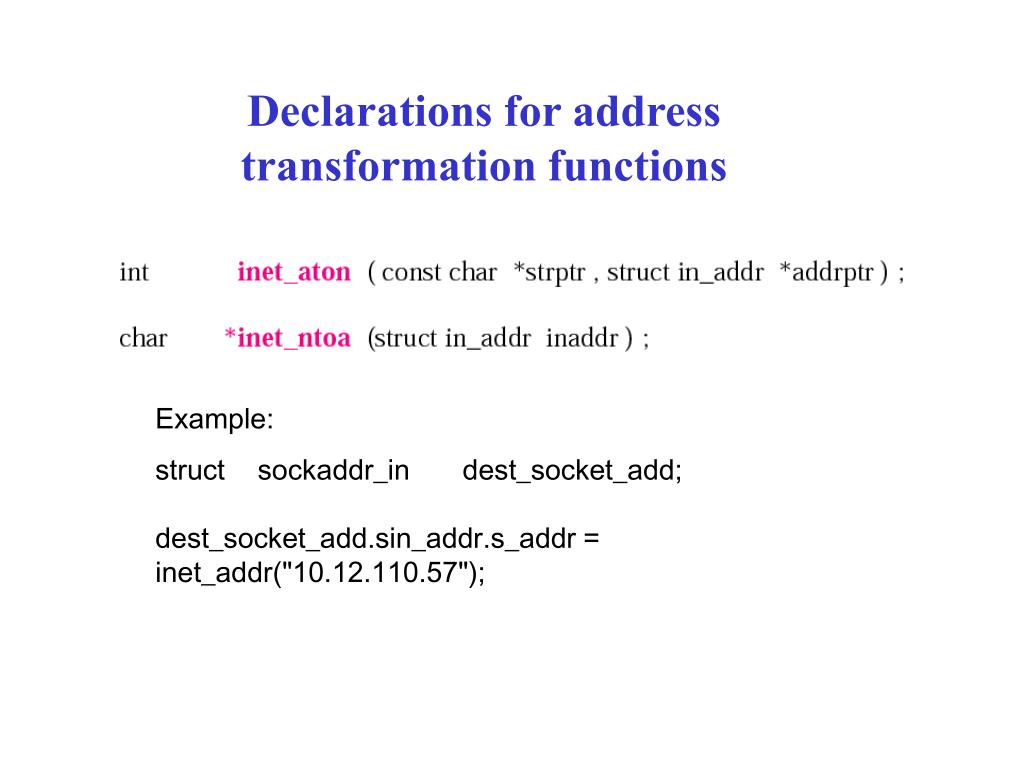

  39. Declarations for address transformation functions Example: struct sockaddr_in dest_socket_add; dest_socket_add.sin_addr.s_addr = inet_addr("10.12.110.57");

  40. INFORMATIONABOUT REMOTE HOST

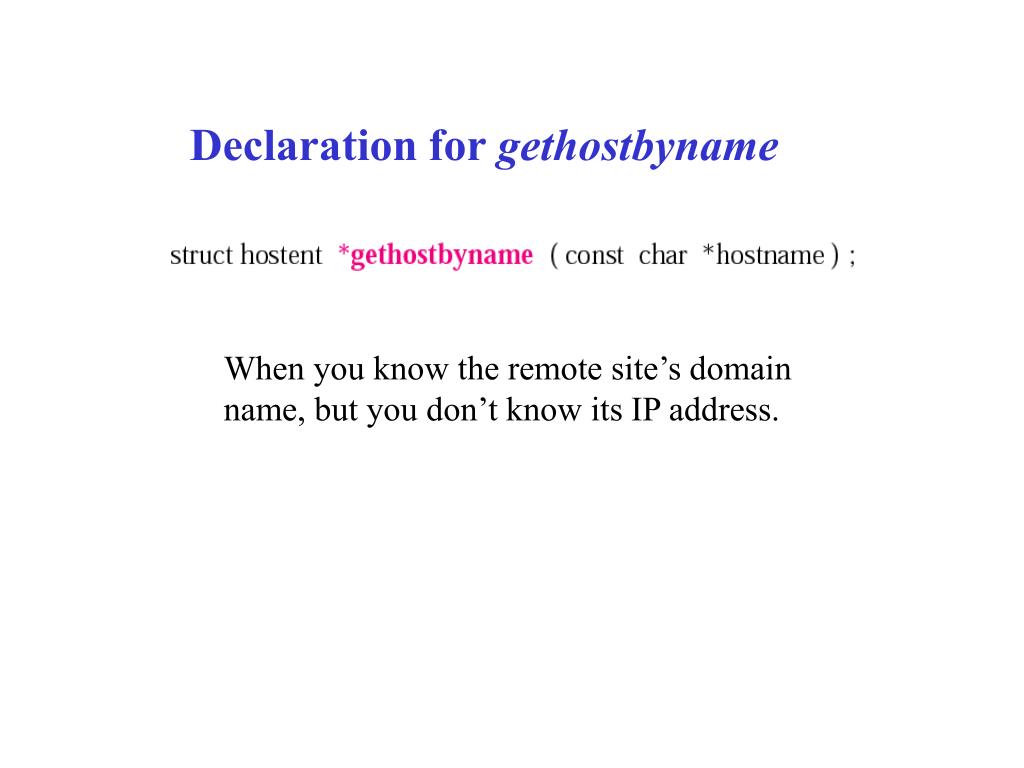

  41. Declaration for gethostbyname When you know the remote site’s domain name, but you don’t know its IP address.

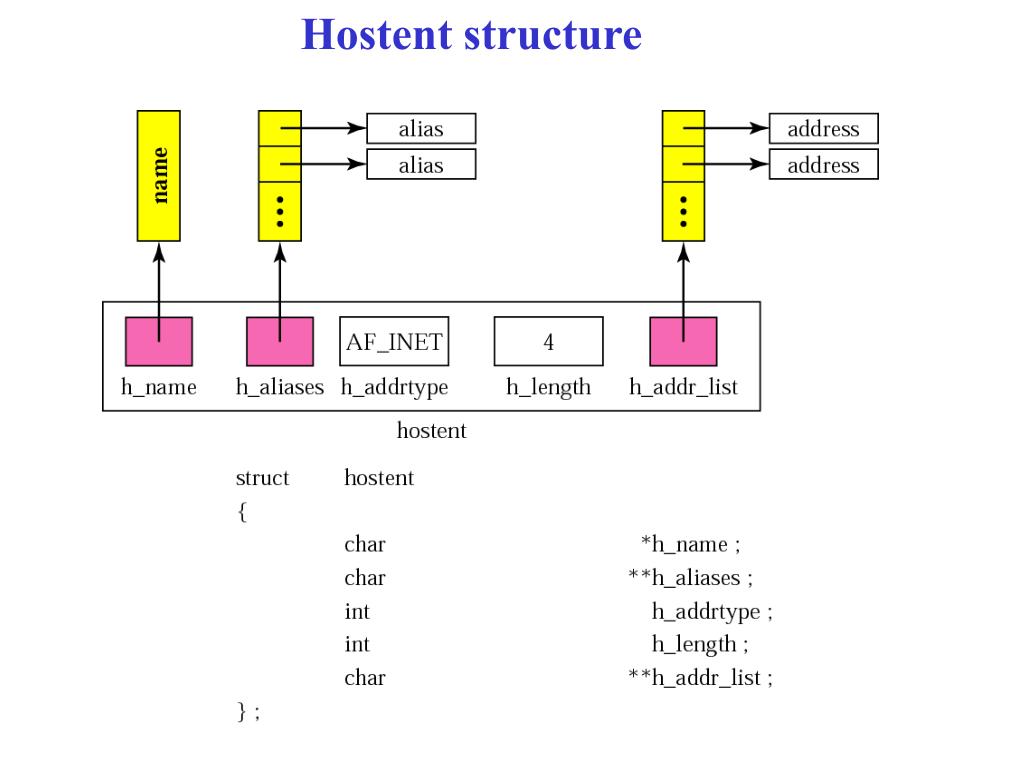

  42. Hostent structure
