  1. Setting up a VPN Creating a small-scale virtual private network

  2. Setting Up a VPN • Configure firewall on router • Register for dynamic IP forwarding service • Set up server • Set up client • Test connection

  3. On router open port 1723 and IP protocol 47 to allow pptp for our VPN Router

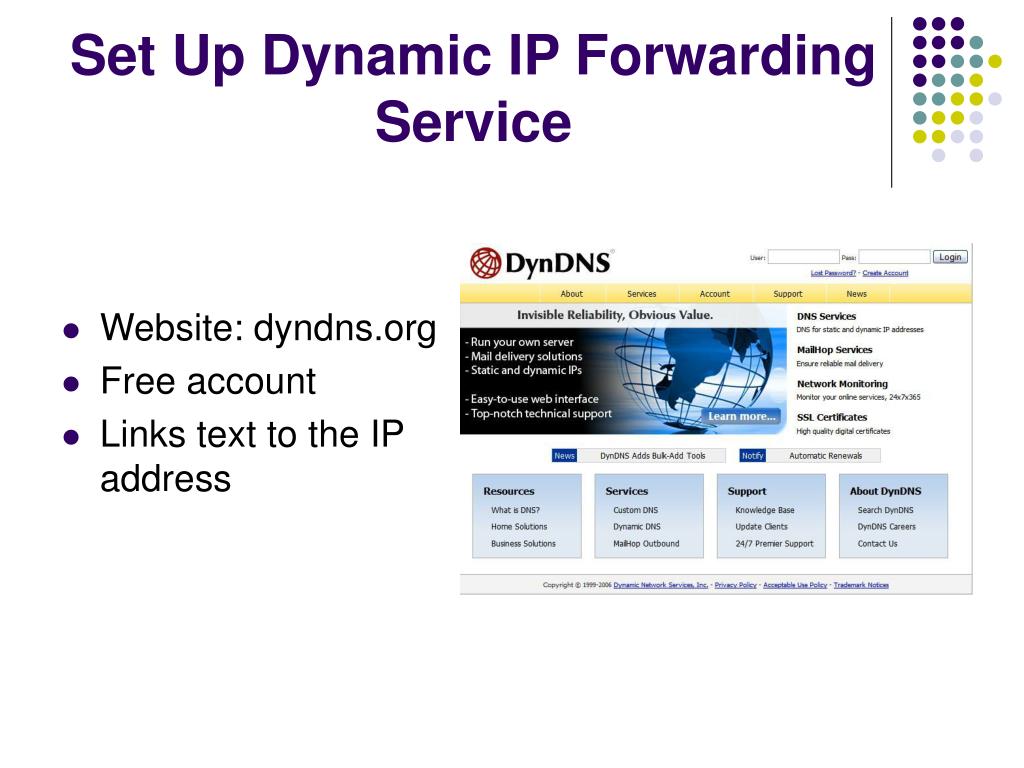

  4. Set Up Dynamic IP Forwarding Service • Website: dyndns.org • Free account • Links text to the IP address

  5. Server Set Up • Start Menu, Administrative Tools • Click on Routing and Remote Access • Configure and Enable Remote Access Server (RRAS) • Wizard is started • Set up for VPN • Finish Wizard

  6. Server Set Up • Routing and Remote Access • Properties (of server KLUSSVPN) • Security, IP, PPP, Logging settings as follows:

  7. Server Set Up

  8. Server Set Up

  9. Server Set Up • Once Server created, edit: • Ports • Properties • Set number of ports

  10. Server Set Up • Remote Access Policies • Select New Remote Access Policy • Wizard starts

  11. Client Set Up • Start • Control Panel • Net Connections • Create New Connection • Wizard starts

  12. Client Set Up

  13. Client Set Up

  14. Client Set Up

  15. Test Connection • Click on the client desk icon • Enter username and password • Connection will remain active until user disconnects.
