  1. Save 50% or more off your heating bill by releasing sequestered energy stored in waste biomass The GREEN Energy Solution º Renewable energy º Carbon positive º Carbon credits º Local energy º Sustainable º Economical

  2. Raymond & Martha DueckOwners Carbon Positive – earn carbon credits

  3. This bale has enough heat to heat 100 Winnipeg homes for one hour during the coldest night in January

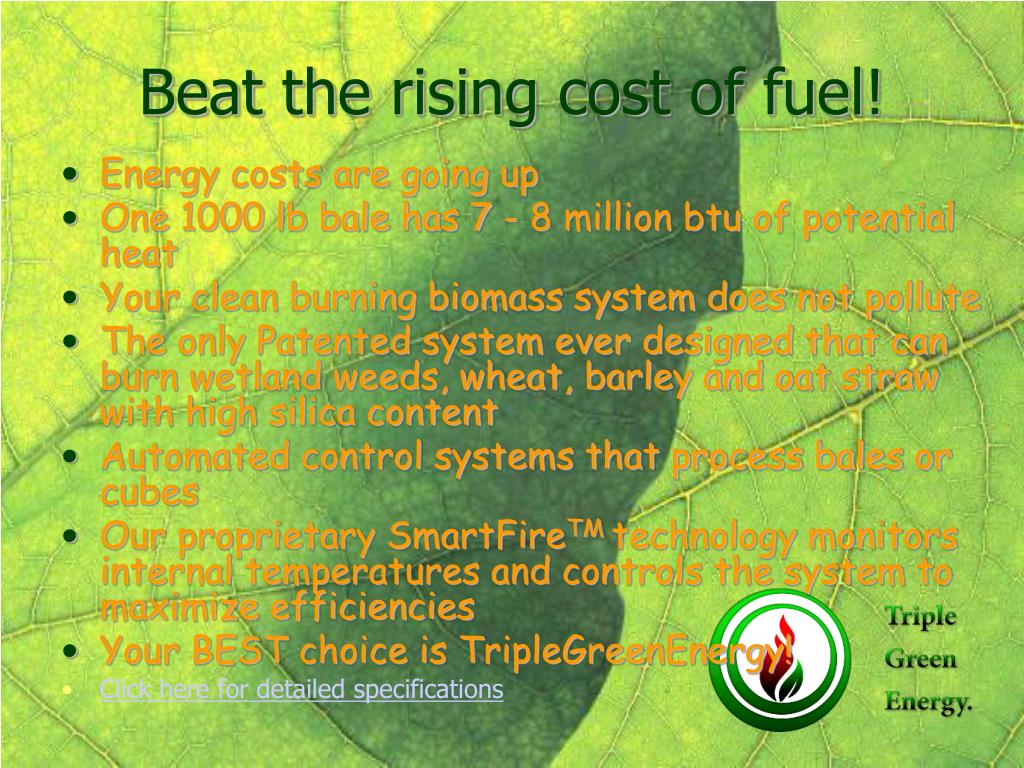

  4. Beat the rising cost of fuel! • Energy costs are going up • One 1000 lb bale has 7 - 8 million btu of potential heat • Your clean burning biomass system does not pollute • The only Patented system ever designed that can burn wetland weeds, wheat, barley and oat straw with high silica content • Automated control systems that process bales or cubes • Our proprietary SmartFireTM technology monitors internal temperatures and controls the system to maximize efficiencies • Your BEST choice is TripleGreenEnergy! • Click here for detailed specifications

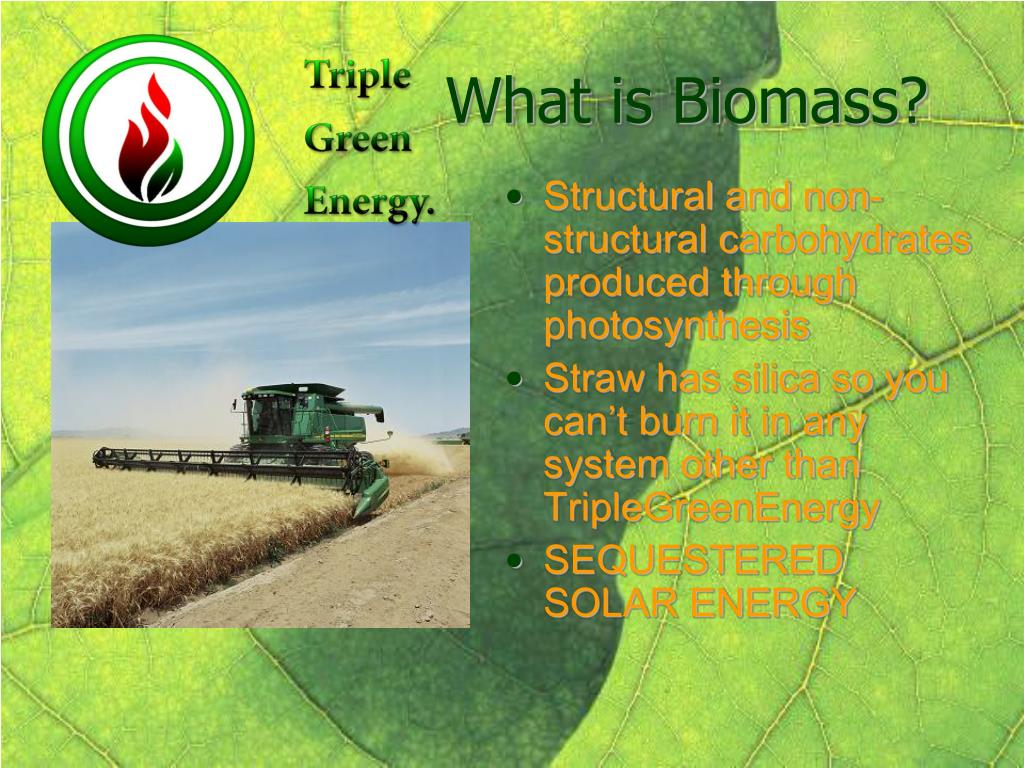

  5. What is Biomass? • Structural and non-structural carbohydrates produced through photosynthesis • Straw has silica so you can’t burn it in any system other than TripleGreenEnergy • SEQUESTERED SOLAR ENERGY

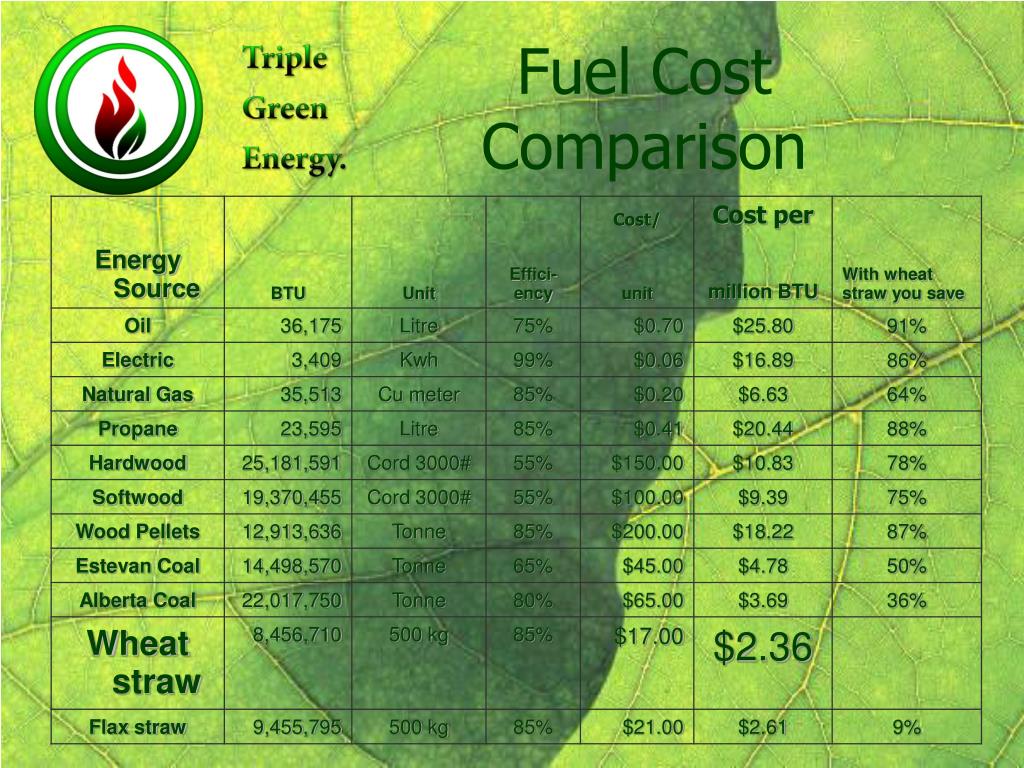

  6. Fuel Cost Comparison

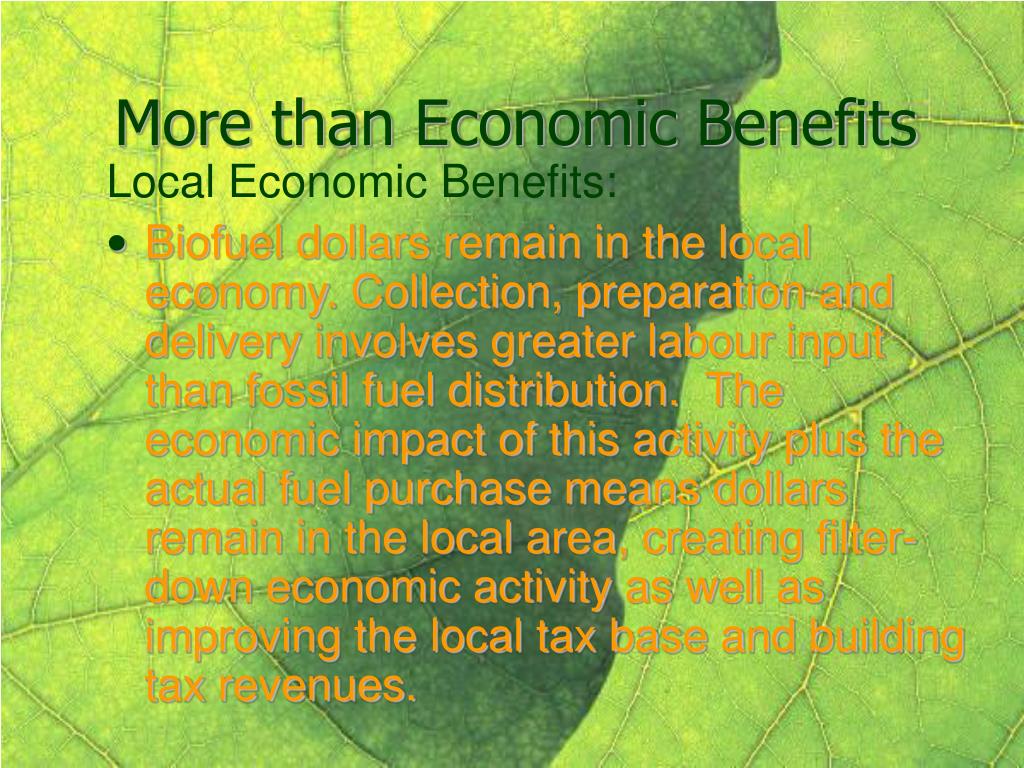

  7. More than Economic Benefits Local Economic Benefits: • Biofuel dollars remain in the local economy. Collection, preparation and delivery involves greater labour input than fossil fuel distribution. The economic impact of this activity plus the actual fuel purchase means dollars remain in the local area, creating filter-down economic activity as well as improving the local tax base and building tax revenues.

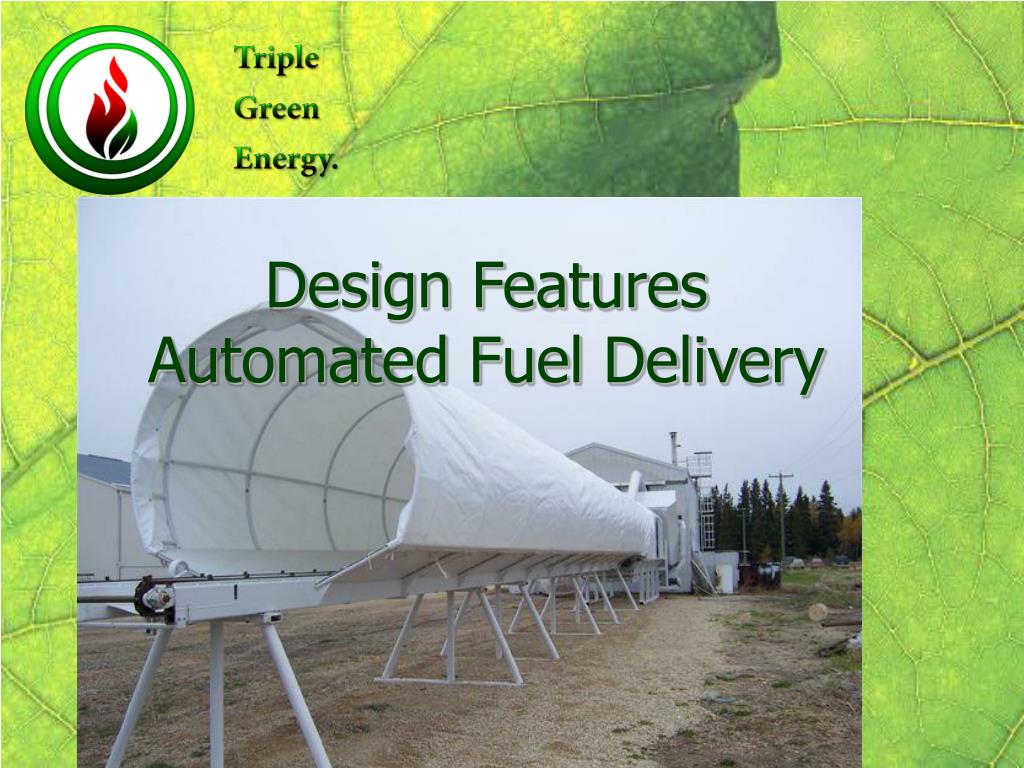

  8. Design FeaturesAutomated Fuel Delivery

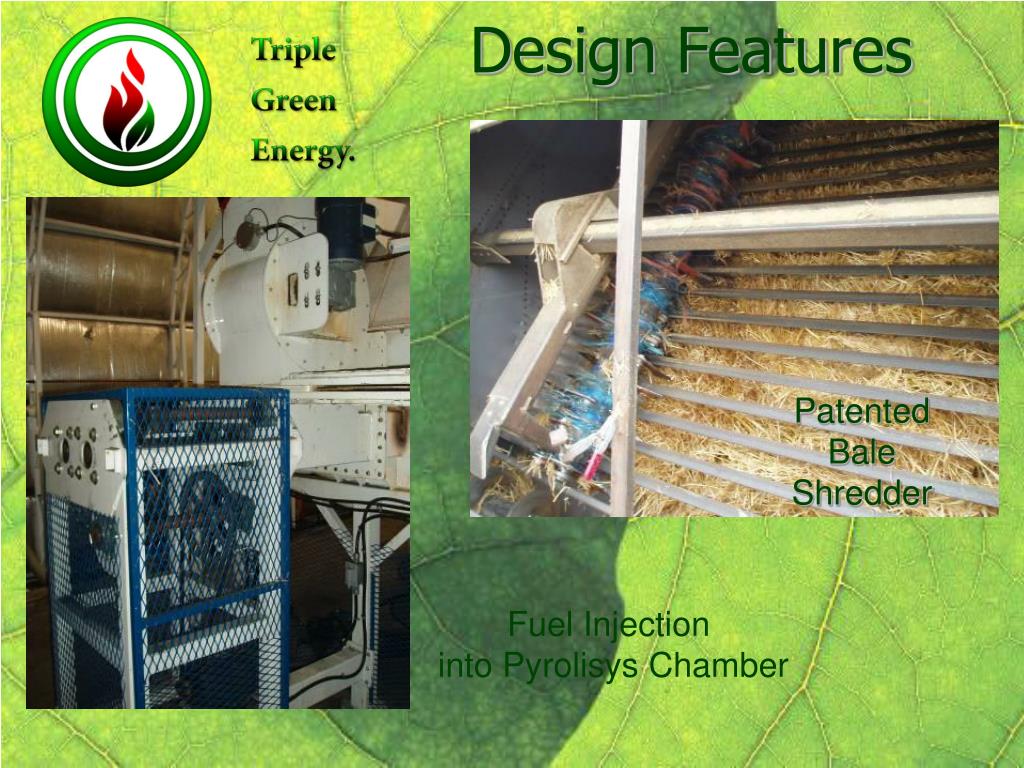

  9. Design Features Patented Bale Shredder Fuel Injection into Pyrolisys Chamber

  10. Design Features • Fuel Delivery System • Baled straw storage • Bale magazine • Bale Shredder

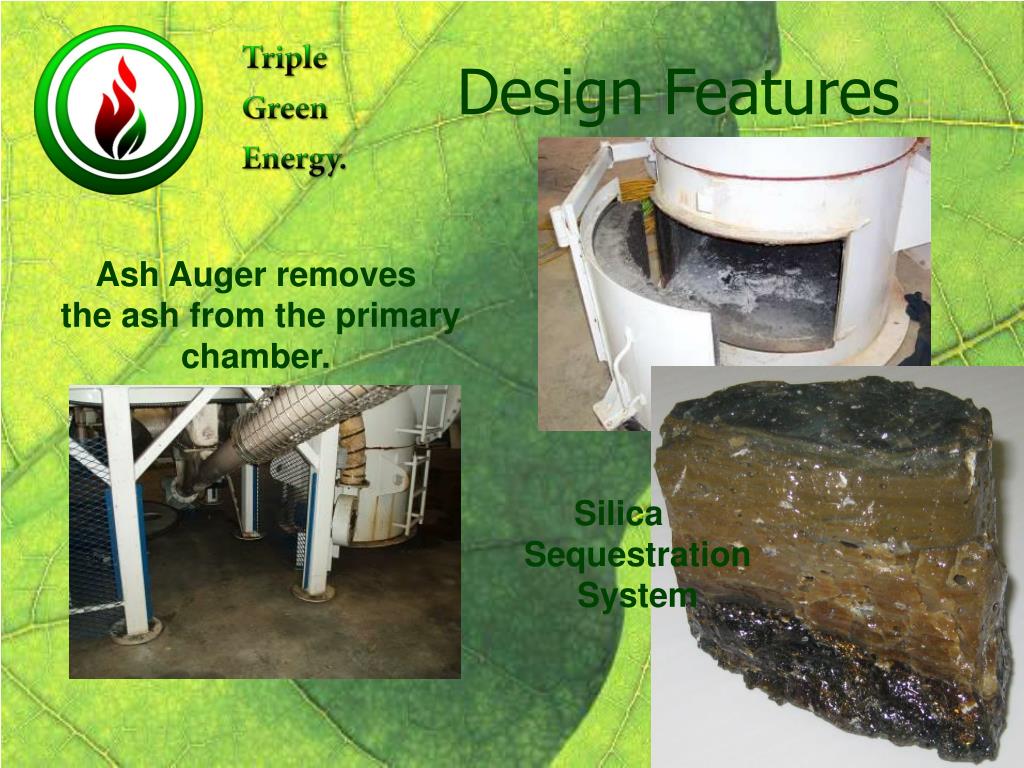

  11. Design Features Silica Sequestration System Ash Auger removes the ash from the primary chamber.

  12. Design FeaturesAfter Burner High temperature secondary combustion = CLEAN exhaust Note the silica flow

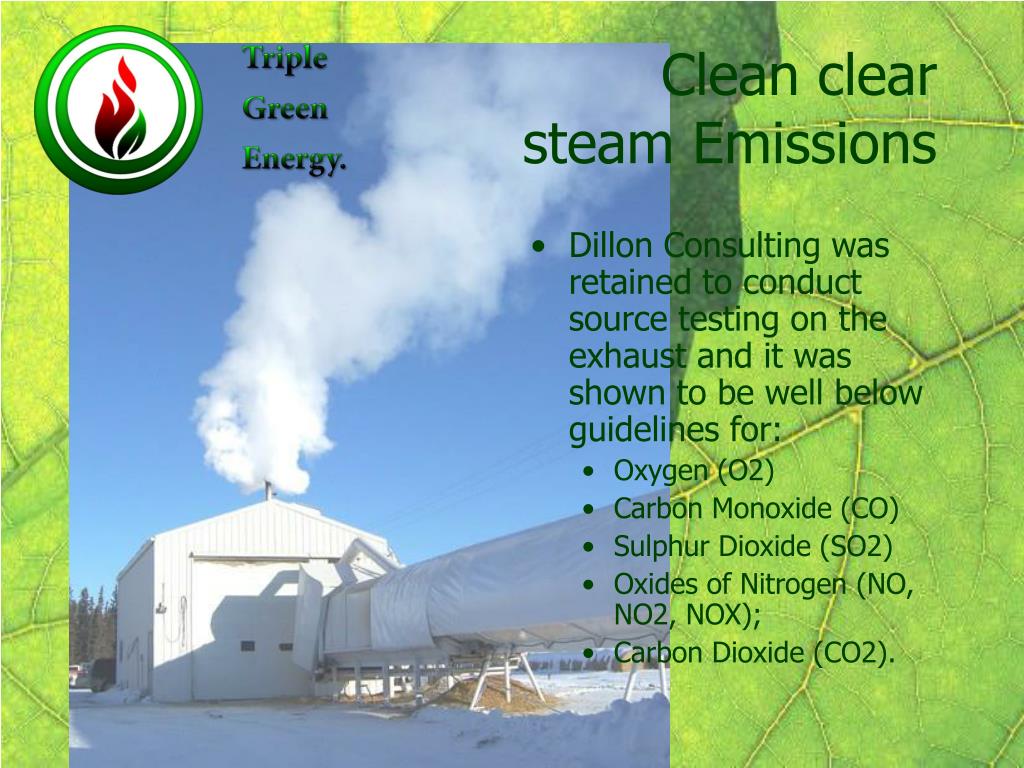

  13. Clean clear steam Emissions • Dillon Consulting was retained to conduct source testing on the exhaust and it was shown to be well below guidelines for: • Oxygen (O2) • Carbon Monoxide (CO) • Sulphur Dioxide (SO2) • Oxides of Nitrogen (NO, NO2, NOX); • Carbon Dioxide (CO2).

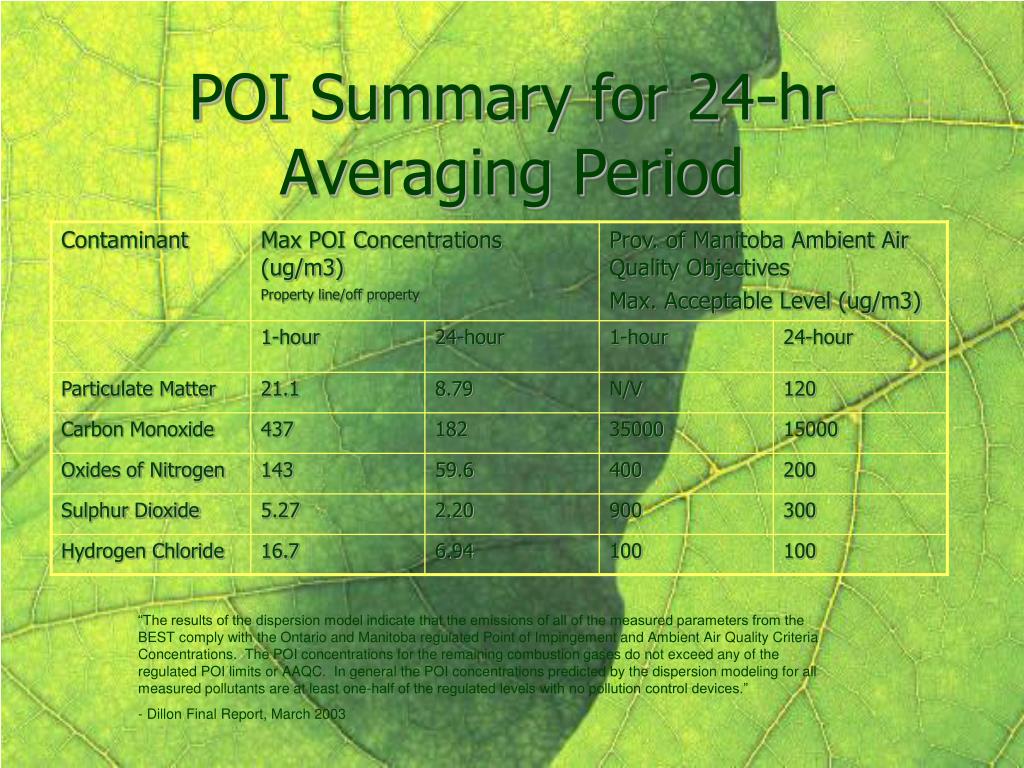

  14. POI Summary for 24-hr Averaging Period “The results of the dispersion model indicate that the emissions of all of the measured parameters from the BEST comply with the Ontario and Manitoba regulated Point of Impingement and Ambient Air Quality Criteria Concentrations. The POI concentrations for the remaining combustion gases do not exceed any of the regulated POI limits or AAQC. In general the POI concentrations predicted by the dispersion modeling for all measured pollutants are at least one-half of the regulated levels with no pollution control devices.” - Dillon Final Report, March 2003

  15. Vidir Machine Arborg • System Installed in 1999 • Operated 24/7 • Annual heat cost savings (Hydro) approximately $50,000 • Heat 80,000 sq ft manufacturing facility

  16. Community CHP • Combined heat and power generation can • Heat and displace $120,000 NG annually • Generate and inject power into the Hydro Grid worth $100,000 annually • Serve as a standby emergency power generating system for the hospital, retirement home, and the community center - Value $100,000 annually • Displace $200,000 worth of heat with public facilities heating and district heating annually • NEGATIVE POLLUTION!

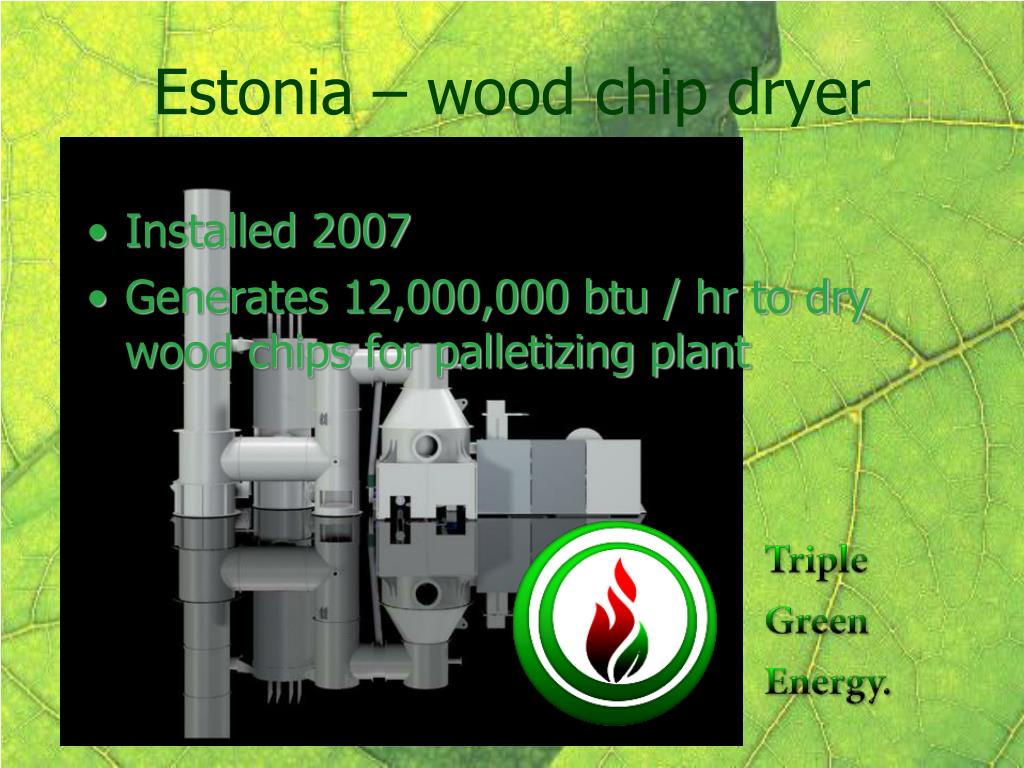

  17. Estonia – wood chip dryer • Installed 2007 • Generates 12,000,000 btu / hr to dry wood chips for palletizing plant

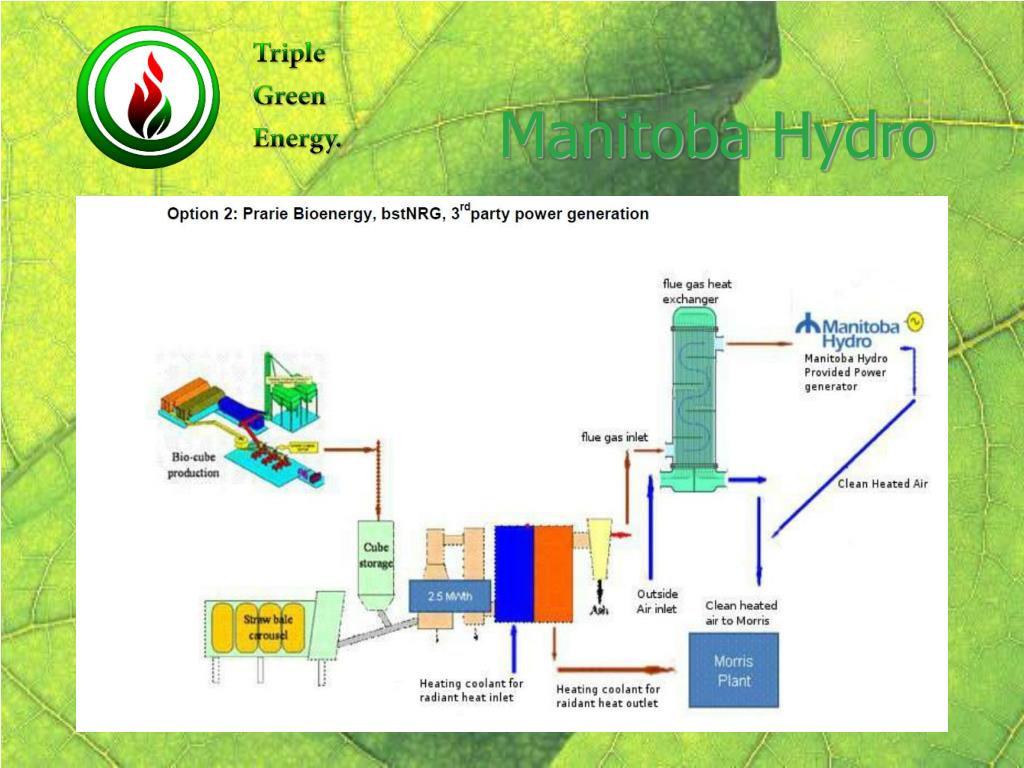

  18. Manitoba Hydro

  19. Manitoba Hydro • Fuel for this system is fed from either the straw bale magazine / shredder or the bio-cube storage bin. • Biomass fuel is then gasified in the bstNRG combustor and burned in the close coupled secondary combustion afterburner chamber. • Heat produced by the afterburner combustion chamber is used in a liquid to air heat exchanger for radiant heating. • The heat from the flue gas will be passed through the Manitoba Hydro provided power generation system to produce 100 kWe of electricity and clean hot air.

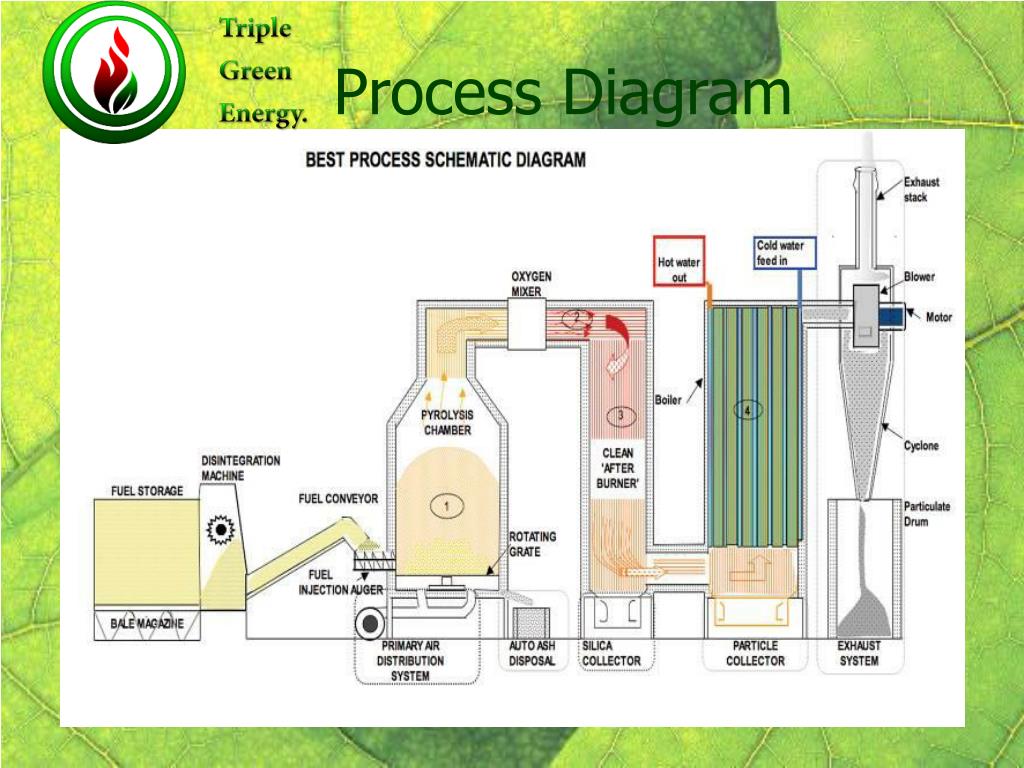

  20. Process Diagram

  21. Our 6 million BTU system heats 60 gpm of boiling hot water

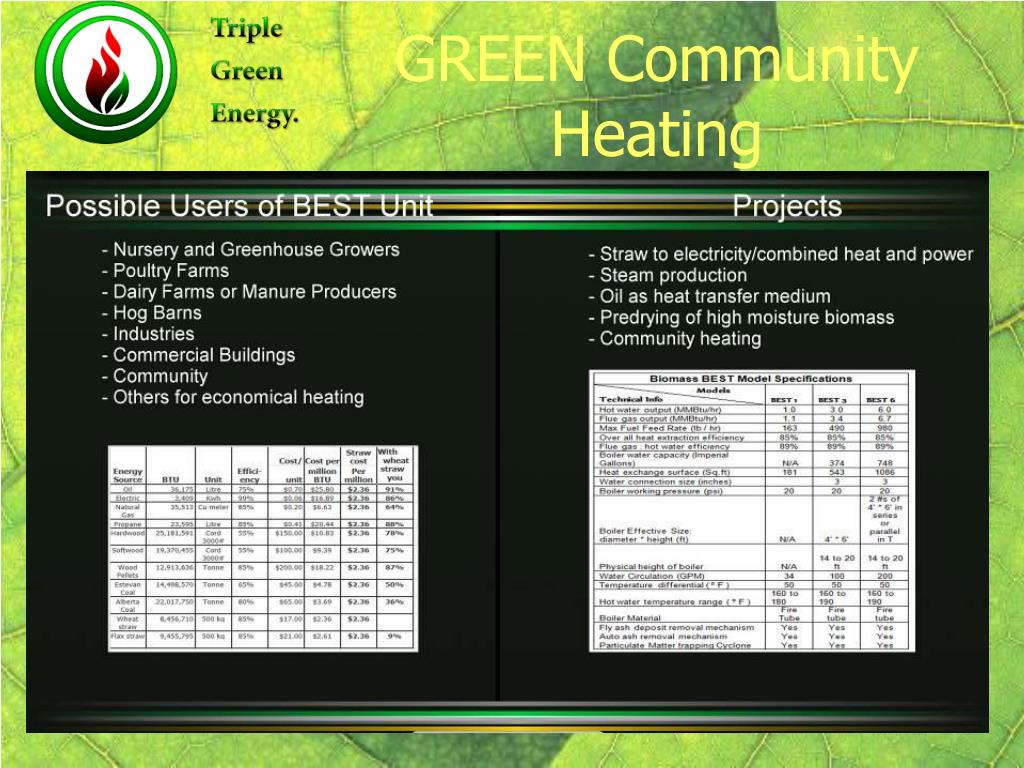

  22. GREEN Community Heating

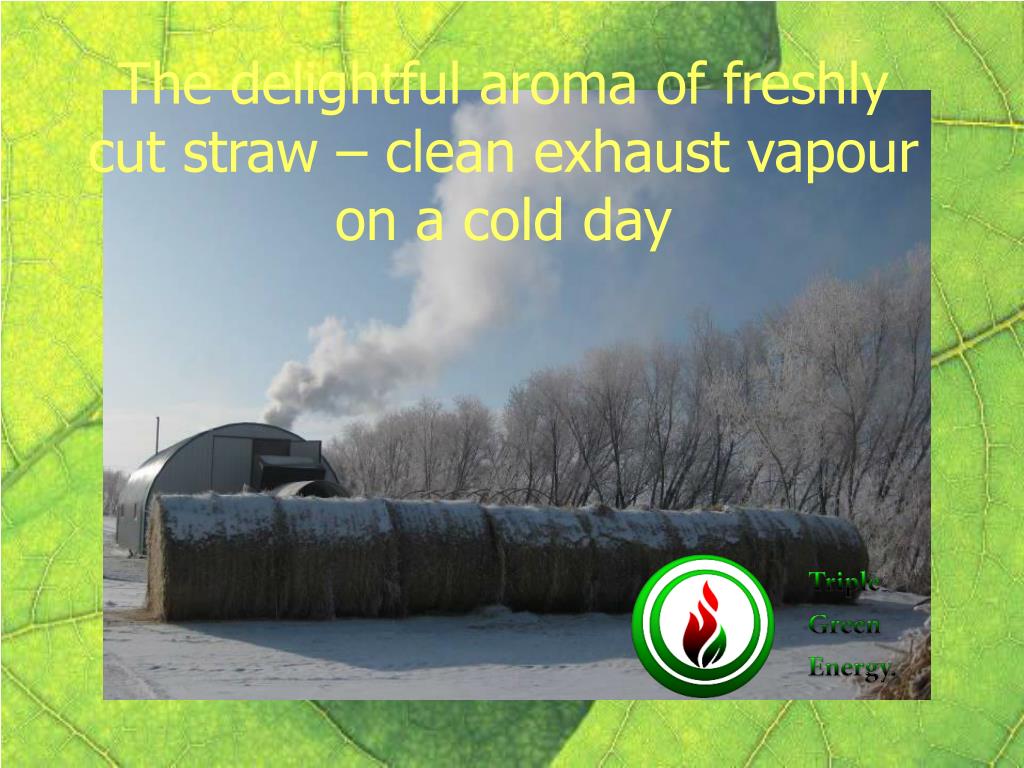

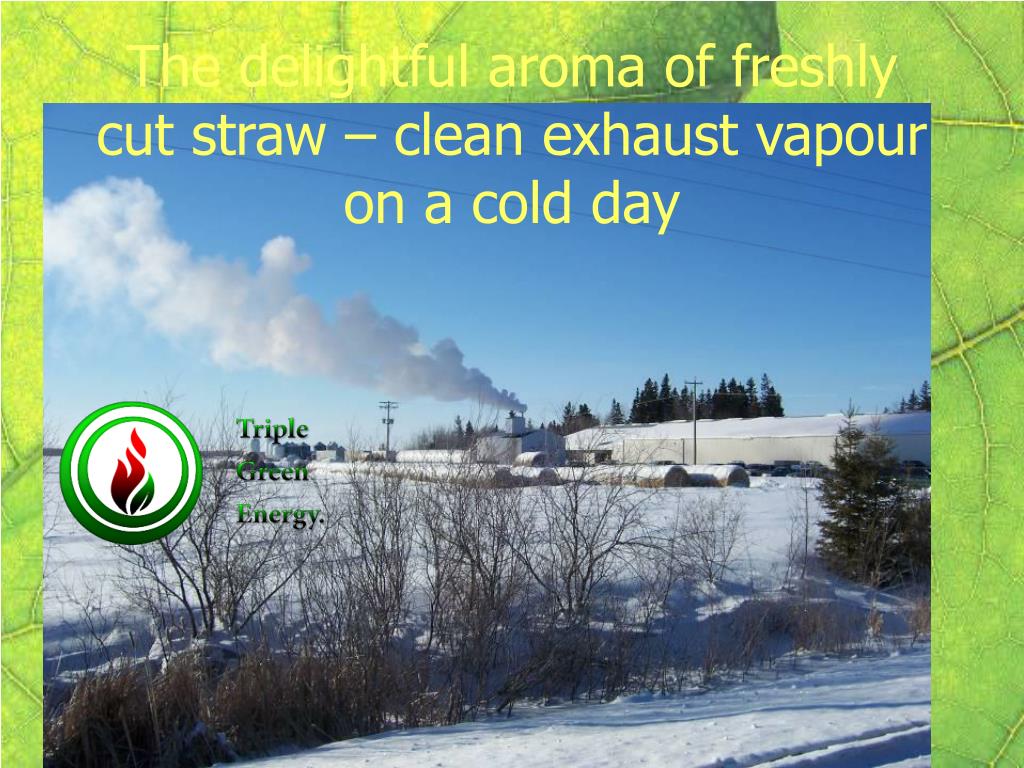

  23. The delightful aroma of freshly cut straw – clean exhaust vapour on a cold day

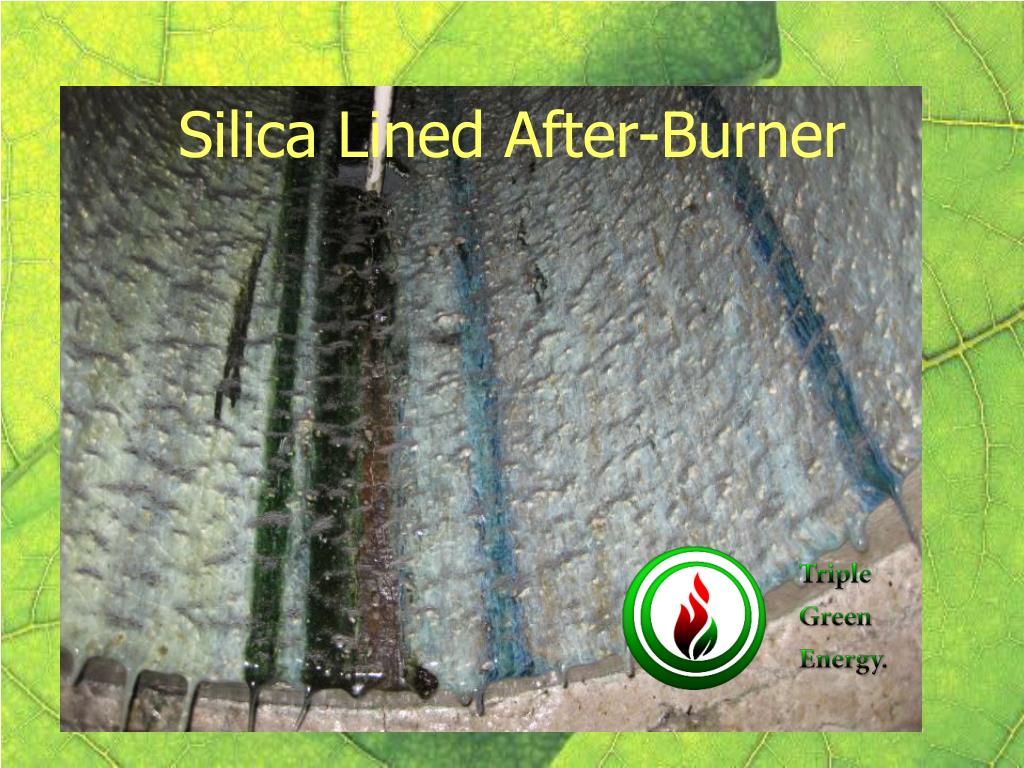

  24. Silica Lined After-Burner

  25. The delightful aroma of freshly cut straw – clean exhaust vapour on a cold day

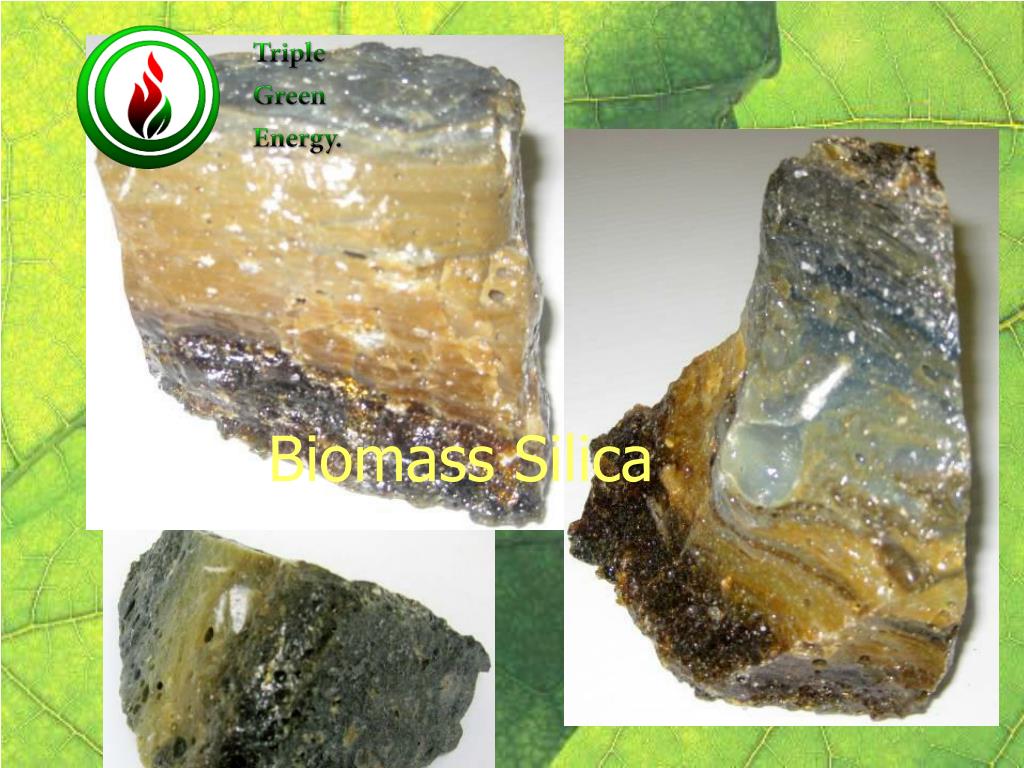

  26. Biomass Silica

  27. Biomass Silica

  28. Biomass Silica

  29. Biomass Silica

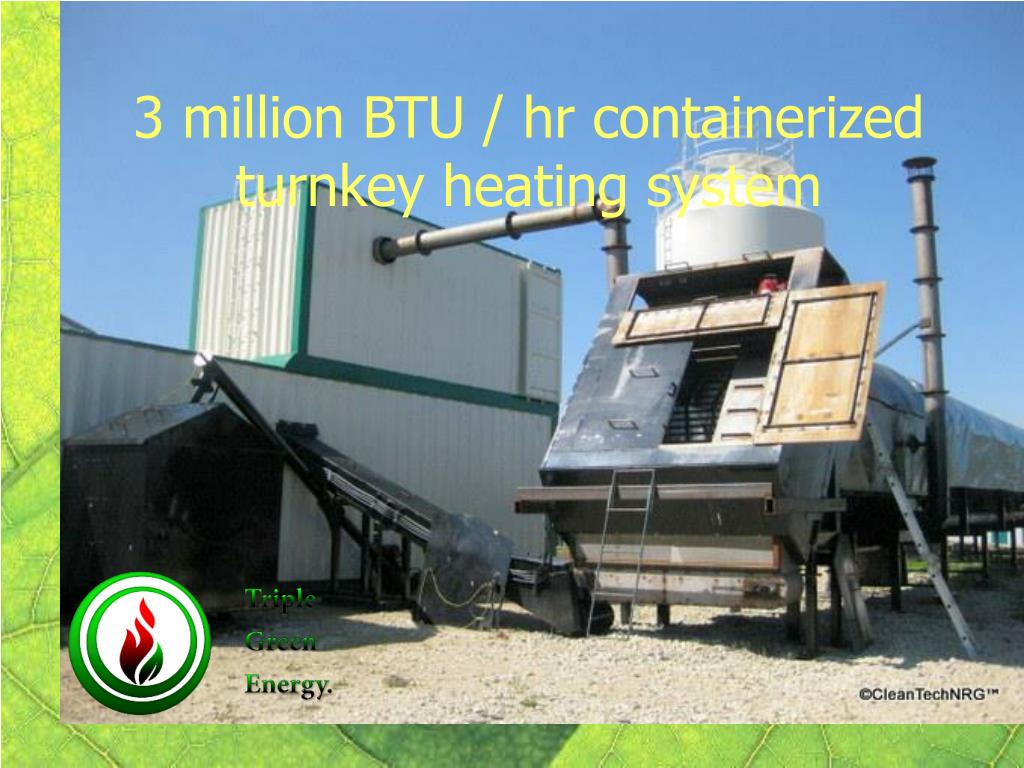

  30. 3 million BTU / hr containerized turnkey heating system

  31. 3 million BTU / hr containerized turnkey heating system

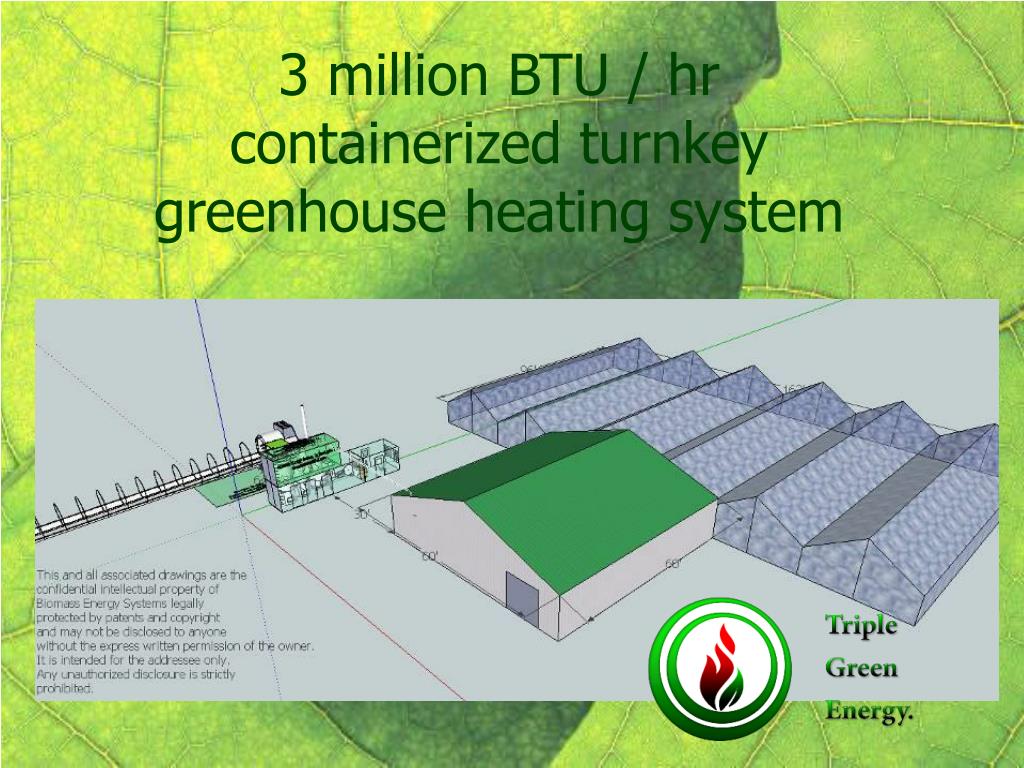

  32. 3 million BTU / hr containerized turnkey greenhouse heating system

  33. Whizdom "Most people grow old within a small circle of ideas they have not discovered themselves" - Marquis De Vauvenargues Achievement "Remember - Nothing will ever be accomplished if you wait for everyone's approval or for the plan to be perfect.“ - John Maxwell "Success is the result of perfection. hard work, learning from failures, loyalty and persistence." - Colin Powell “What concerns me is not how things are, but how people think things are.” - Epictetus "With creativity and tenacity you can do almost anything. Honesty and Integrity still count in today's world." - David C. Bentall "There is only one failure in life possible, and that is not to be true to the best one knows.“ - George Eliot "There is no expedient to which a man will not go to avoid the real labor of thinking." – Edison “What we are is God's gift to us. What we become is our gift to God.”  Eleanor Powell

  34. Wisdom “You can buy education, but wisdom is a gift from God.”       “Live as if you were to die tomorrow. Learn as if you were to live forever.” - Mahatma Gandhi Respect for the Creator is the beginning of wisdom - The Bible My Gift to You!
