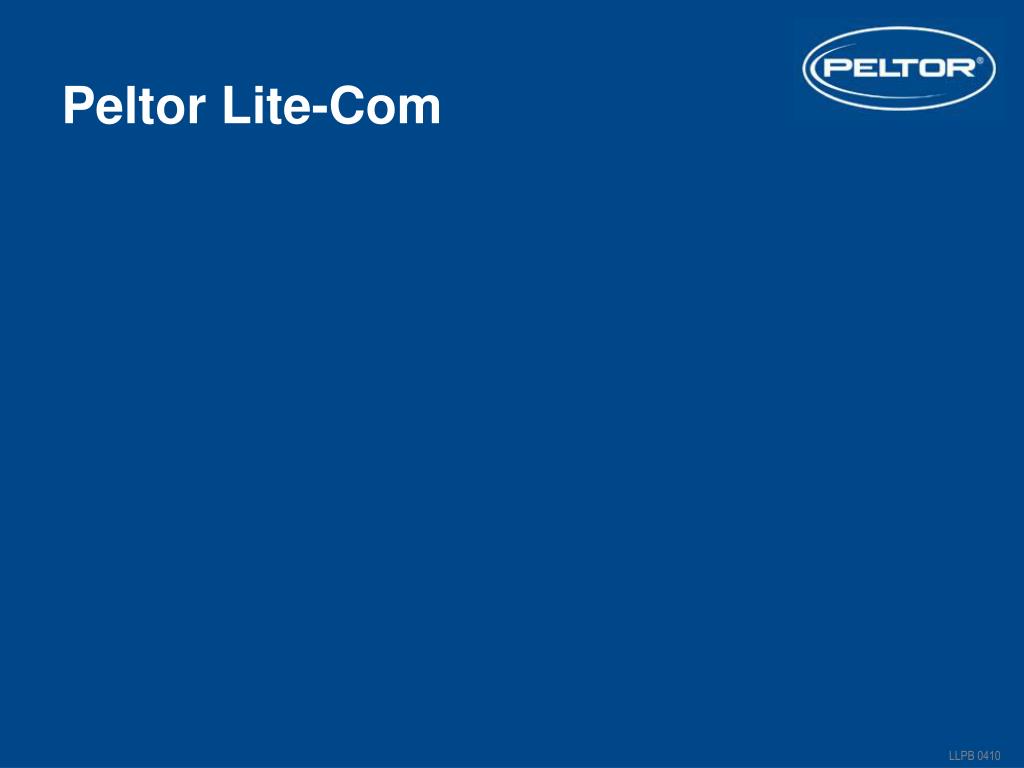

  1. Peltor Lite-Com LLPB 0410

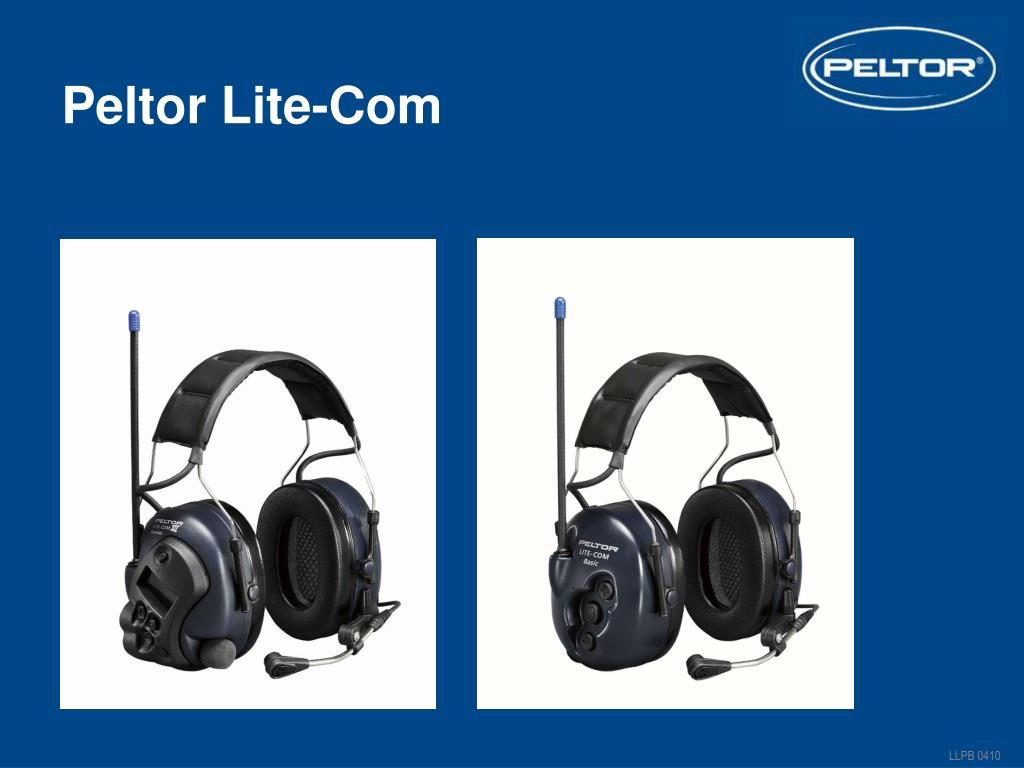

  2. Peltor Lite-Com LLPB 0410

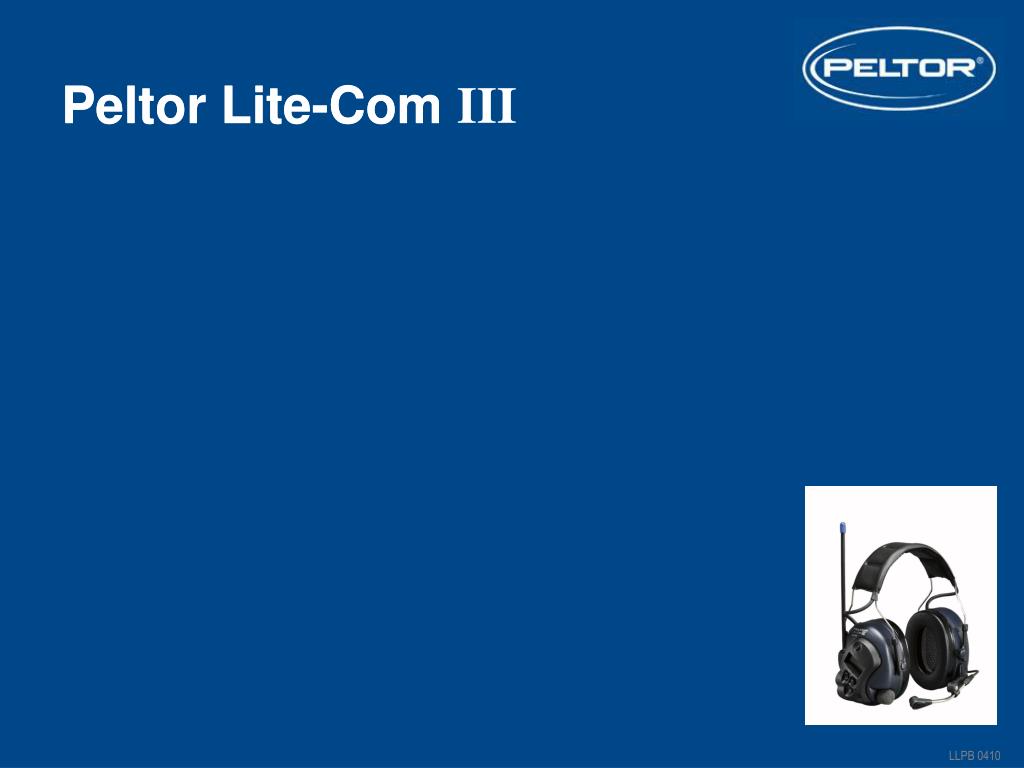

  3. Peltor Lite-Com Peltor Lite-Com III Lite-Com III LLPB 0410

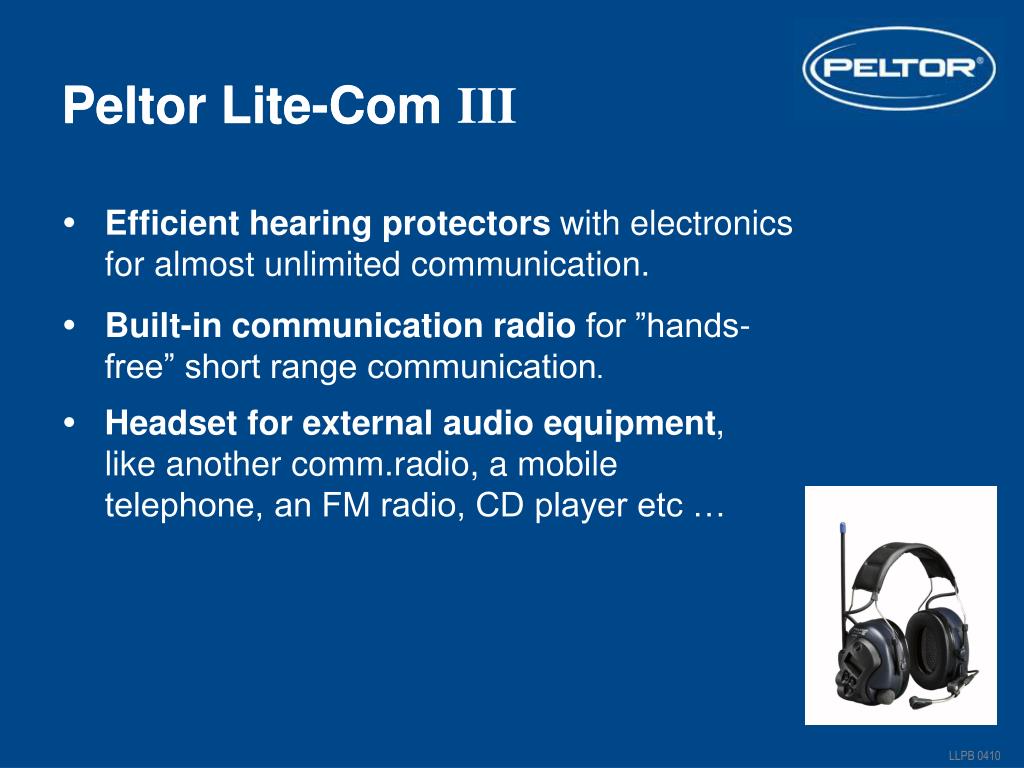

  4. Peltor Lite-Com Peltor Lite-Com III • Efficient hearing protectors with electronics for almost unlimited communication. • Built-in communication radio for ”hands-free” short range communication. • Headset for external audio equipment, like another comm.radio, a mobile telephone, an FM radio, CD player etc … LLPB 0410

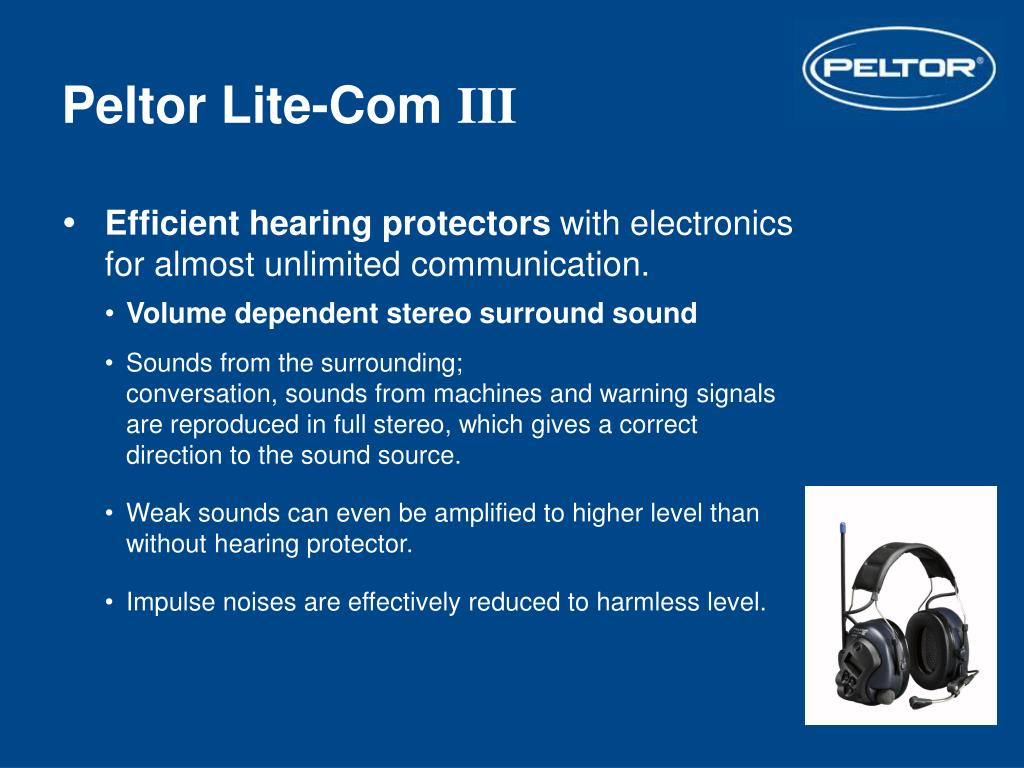

  5. Peltor Lite-Com III • Efficient hearing protectors with electronics for almost unlimited communication. • Volume dependent stereo surround sound • Sounds from the surrounding; conversation, sounds from machines and warning signals are reproduced in full stereo, which gives a correct direction to the sound source. • Weak sounds can even be amplified to higher level than without hearing protector. • Impulse noises are effectively reduced to harmless level.

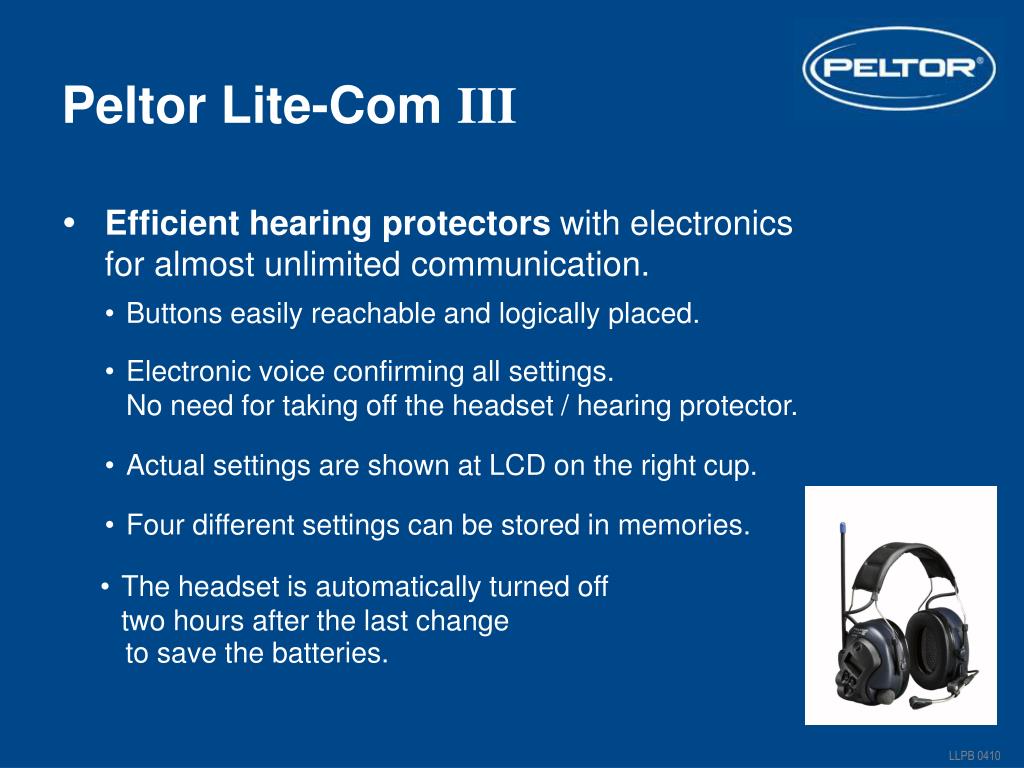

  6. Peltor Lite-Com III • Efficient hearing protectors with electronics for almost unlimited communication. • Buttons easily reachable and logically placed. • Electronic voice confirming all settings. No need for taking off the headset / hearing protector. • Actual settings are shown at LCD on the right cup. • Four different settings can be stored in memories. • The headset is automatically turned off two hours after the last change to save the batteries. LLPB 0410

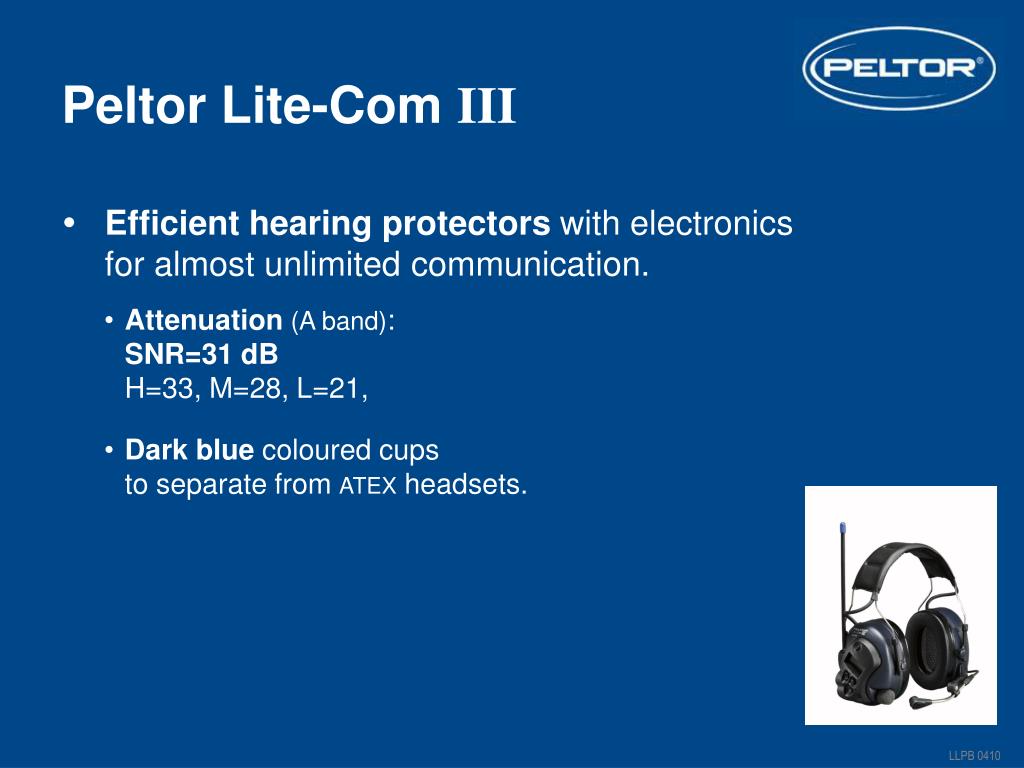

  7. Peltor Lite-Com III • Efficient hearing protectors with electronics for almost unlimited communication. • Attenuation(A band): SNR=31 dB H=33, M=28, L=21, • Dark blue coloured cups to separate from ATEX headsets. LLPB 0410

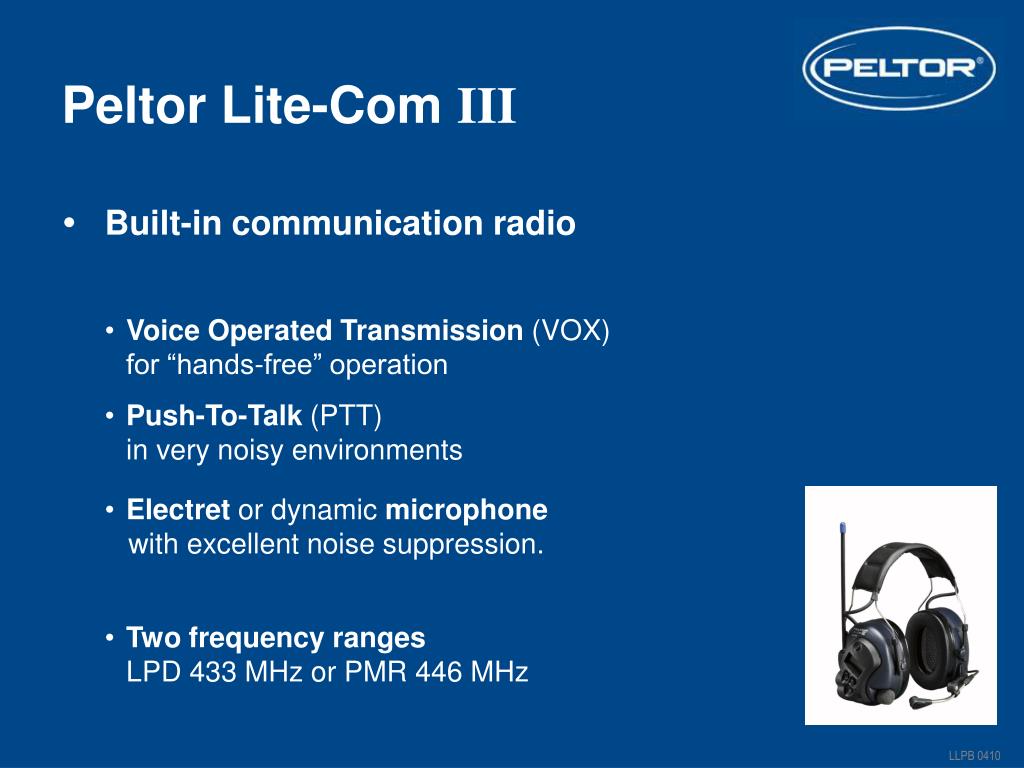

  8. Peltor Lite-Com III • Built-in communication radio • Voice Operated Transmission (VOX) for “hands-free” operation • Push-To-Talk (PTT) in very noisy environments • Electret or dynamic microphone with excellent noise suppression. • Two frequency ranges LPD 433 MHz or PMR 446 MHz LLPB 0410

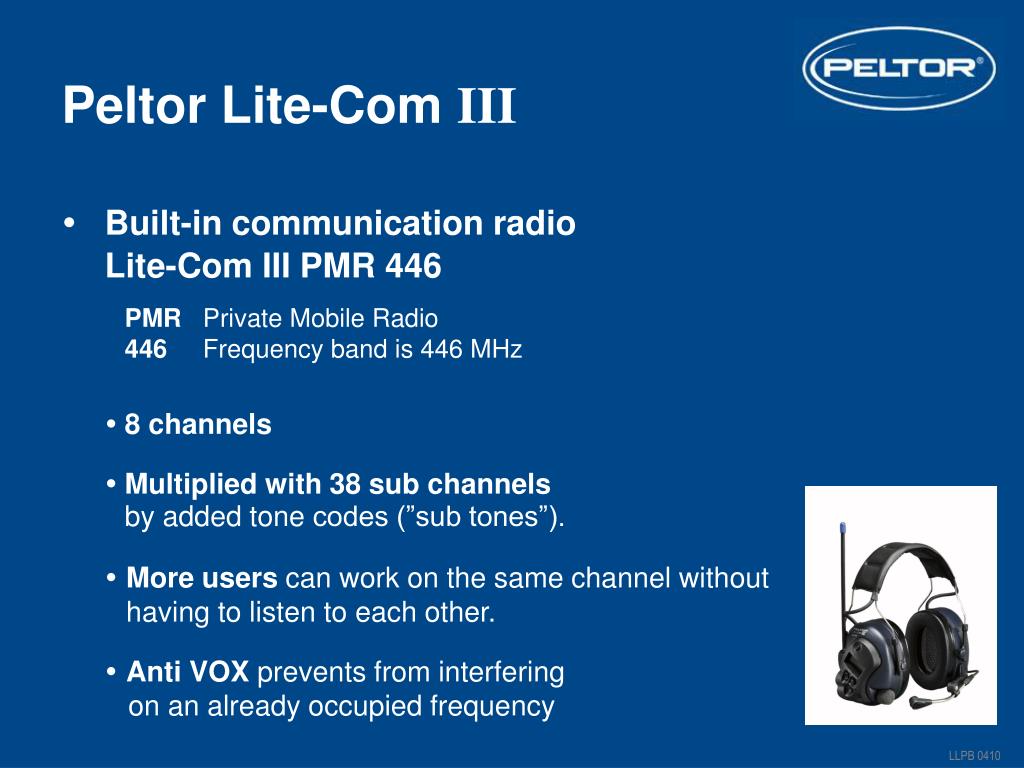

  9. Peltor Lite-Com III • Built-in communication radio Lite-Com III PMR 446 PMR Private Mobile Radio 446 Frequency band is 446 MHz • 8 channels • Multiplied with 38 sub channels by added tone codes (”sub tones”). • More users can work on the same channel without having to listen to each other. • Anti VOX prevents from interfering on an already occupied frequency LLPB 0410

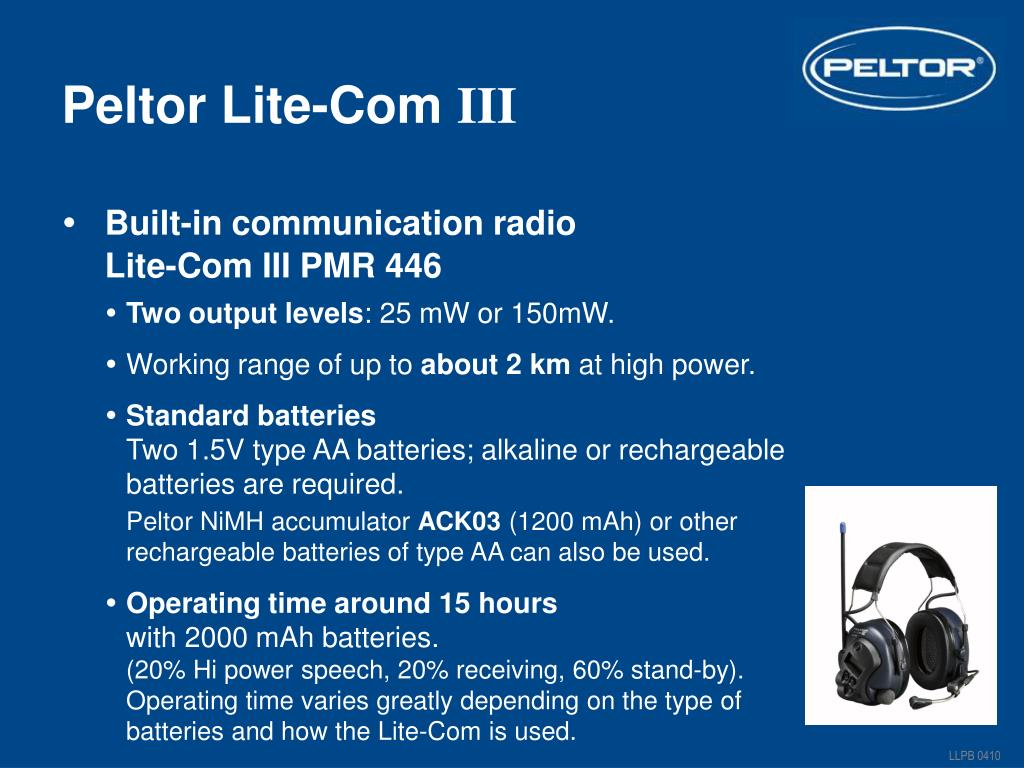

  10. Peltor Lite-Com III • Built-in communication radio Lite-Com III PMR 446 • Two output levels: 25 mW or 150mW. • Working range of up to about 2 km at high power. • Standard batteries Two 1.5V type AA batteries; alkaline or rechargeable batteries are required. Peltor NiMH accumulator ACK03 (1200 mAh) or other rechargeable batteries of type AA can also be used. • Operating timearound 15 hours with 2000 mAh batteries. (20% Hi power speech, 20% receiving, 60% stand-by). Operating time varies greatly depending on the type of batteries and how the Lite-Com is used. LLPB 0410

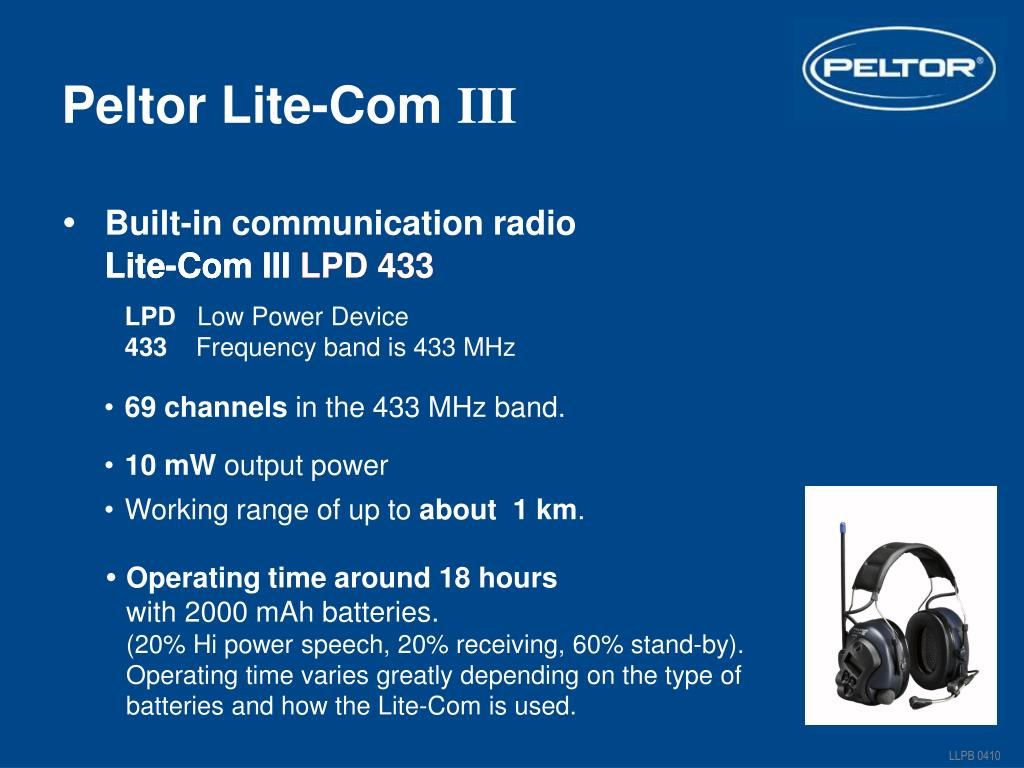

  11. Peltor Lite-Com III • Built-in communication radio Lite-Com III LPD 433 Lite-Com III LPD433 Lite-Com III LPD 433 LPD Low Power Device 433 Frequency band is 433 MHz • 69 channels in the 433 MHz band. • 10 mW output power • Working range of up to about 1 km. • Operating timearound 18 hours with 2000 mAh batteries. (20% Hi power speech, 20% receiving, 60% stand-by). Operating time varies greatly depending on the type of batteries and how the Lite-Com is used. LLPB 0410

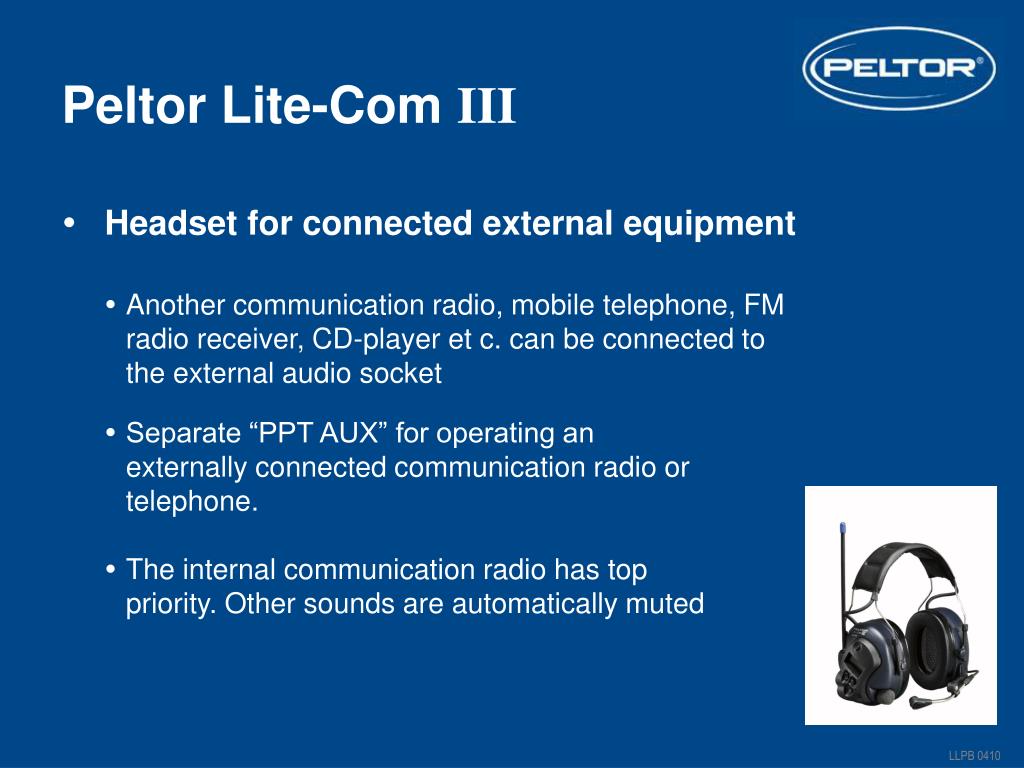

  12. Peltor Lite-Com III • Headset for connected external equipment • Another communication radio, mobile telephone, FM radio receiver, CD-player et c. can be connected to the external audio socket • Separate “PPT AUX” for operating an externally connected communication radio or telephone. • The internal communication radio has top priority. Other sounds are automatically muted LLPB 0410

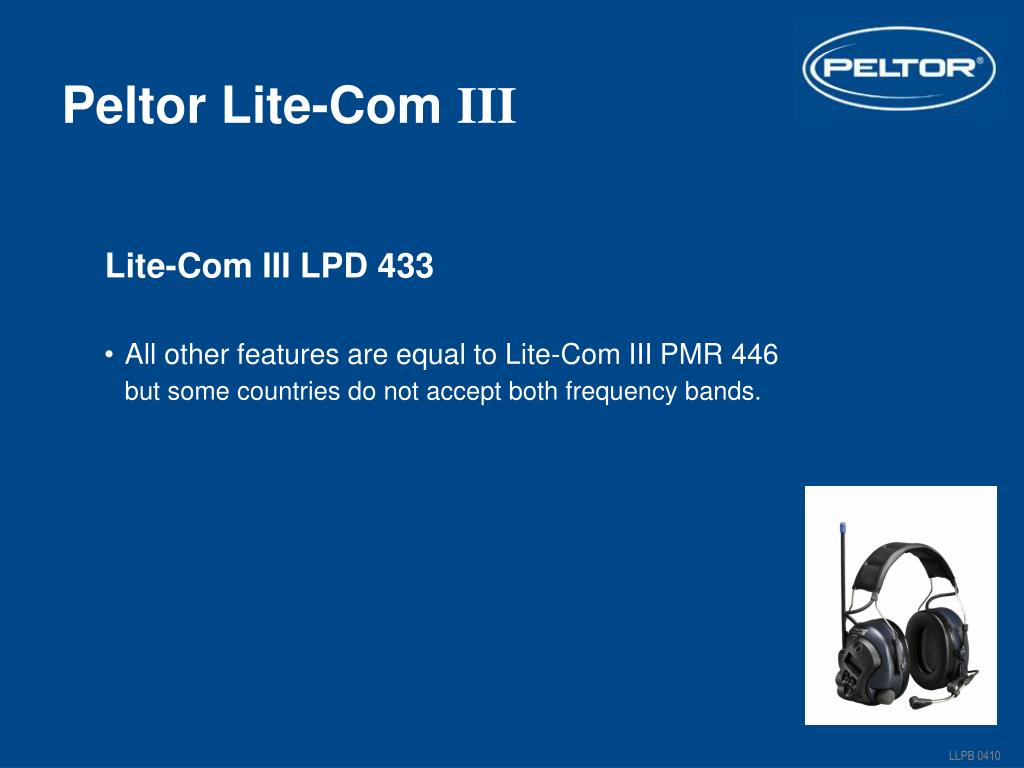

  13. Peltor Lite-Com III Lite-Com III LPD 433 • All other features are equal to Lite-Com III PMR 446 but some countries do not accept both frequency bands. LLPB 0410

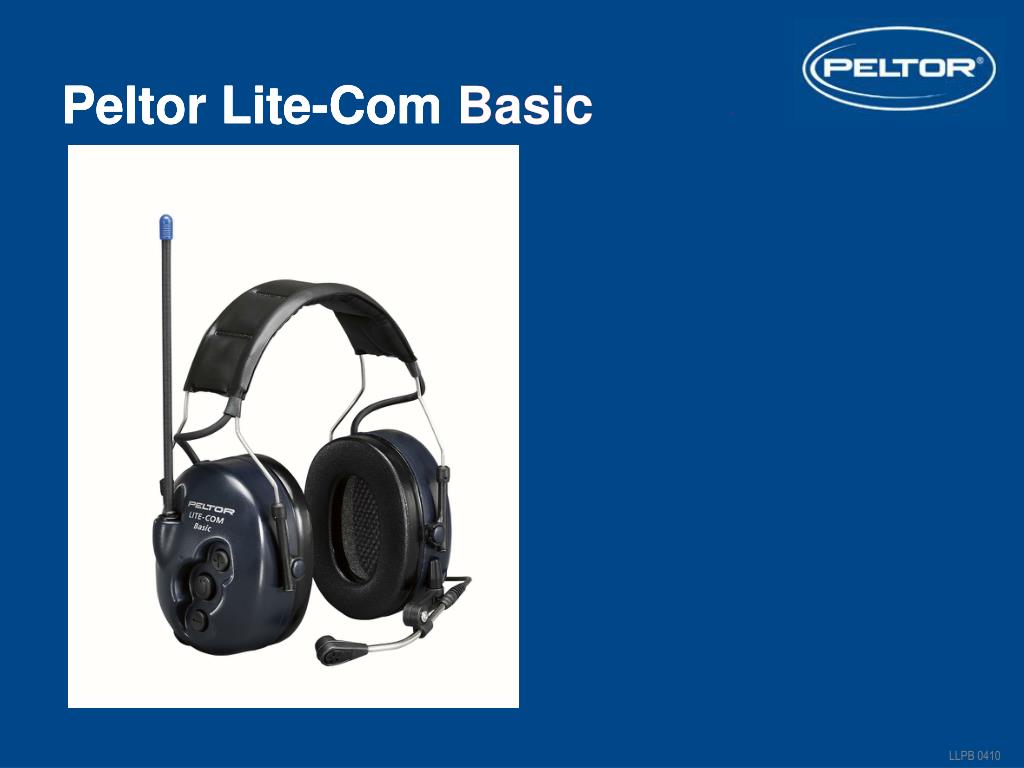

  14. Peltor Lite-Com III Peltor Lite-Com Basic Peltor Lite-Com Basic Peltor Lite-Com Basic . LLPB 0410

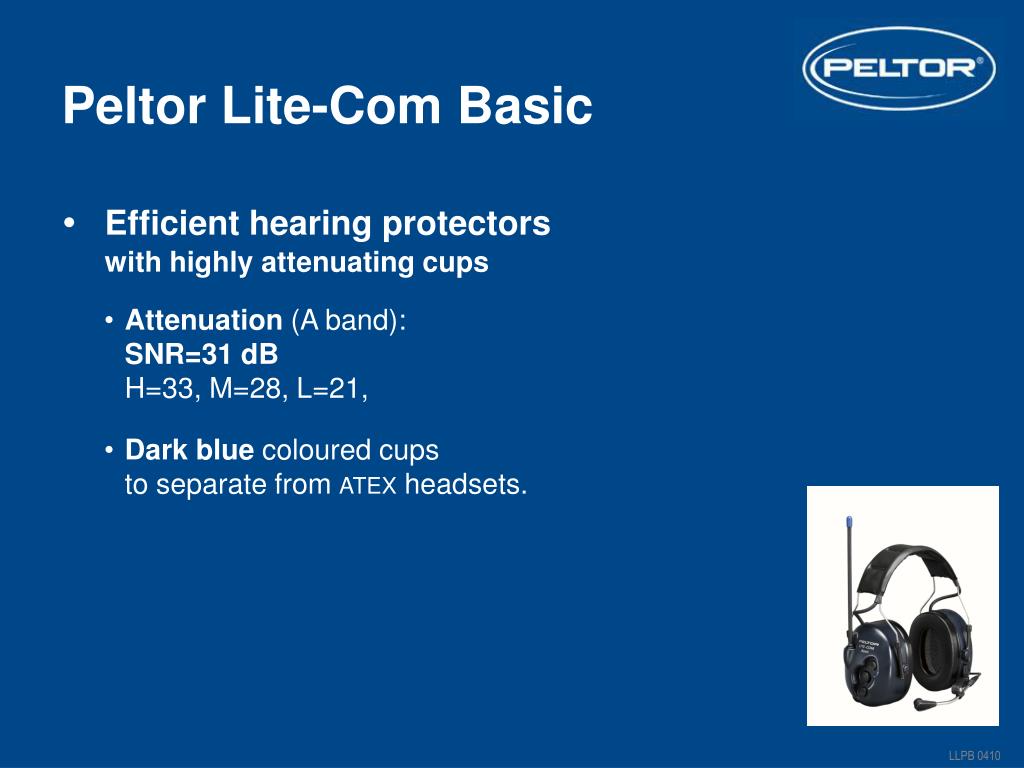

  15. Peltor Lite-Com Basic . • Efficient hearing protectors with highly attenuating cups • Attenuation (A band): SNR=31 dB H=33, M=28, L=21, • Dark blue coloured cups to separate from ATEX headsets. LLPB 0410

  16. Peltor Lite-Com Basic • Built-in communication radio Lite-Com Basic PMR 446 • Only available for the 446 MHz band • 8 channels • 38 sub channels with tone call. • More users can work on the same channel without having to listen to each other. • Anti VOX prevents from interfering on an already occupied frequency LLPB 0410

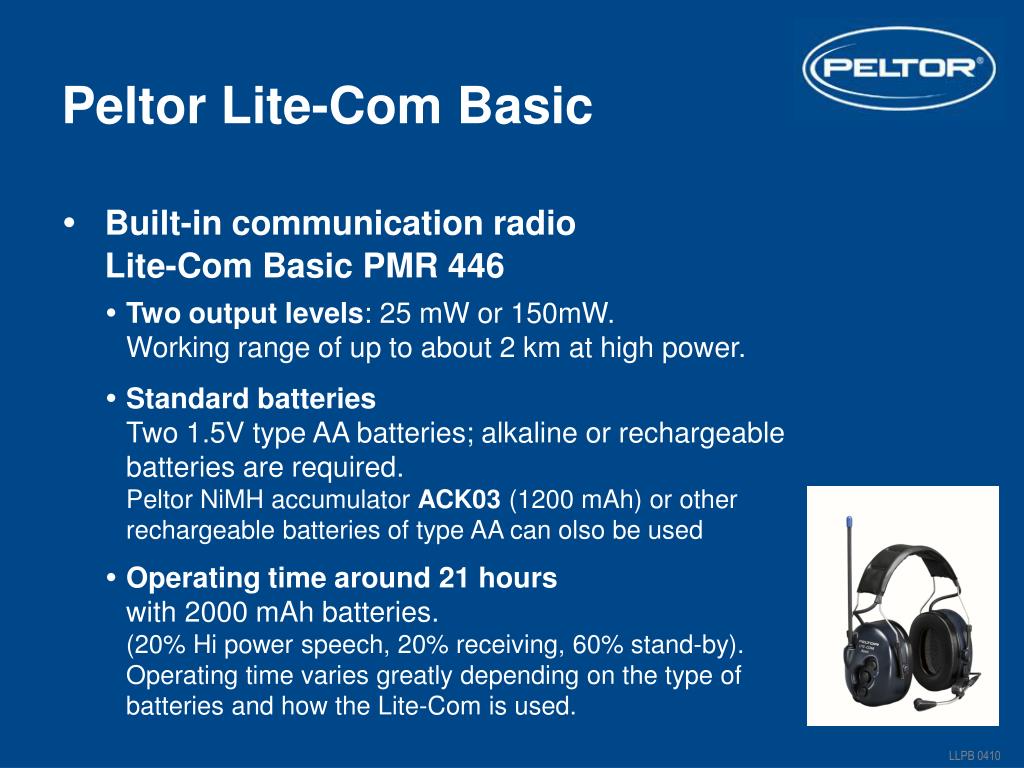

  17. Peltor Lite-Com Basic • Built-in communication radio Lite-Com Basic PMR 446 • Two output levels: 25 mW or 150mW. Working range of up to about 2 km at high power. • Standard batteries Two 1.5V type AA batteries; alkaline or rechargeable batteries are required. Peltor NiMH accumulator ACK03 (1200 mAh) or other rechargeable batteries of type AA can olso be used • Operating timearound 21 hours with 2000 mAh batteries. (20% Hi power speech, 20% receiving, 60% stand-by). Operating time varies greatly depending on the type of batteries and how the Lite-Com is used. LLPB 0410

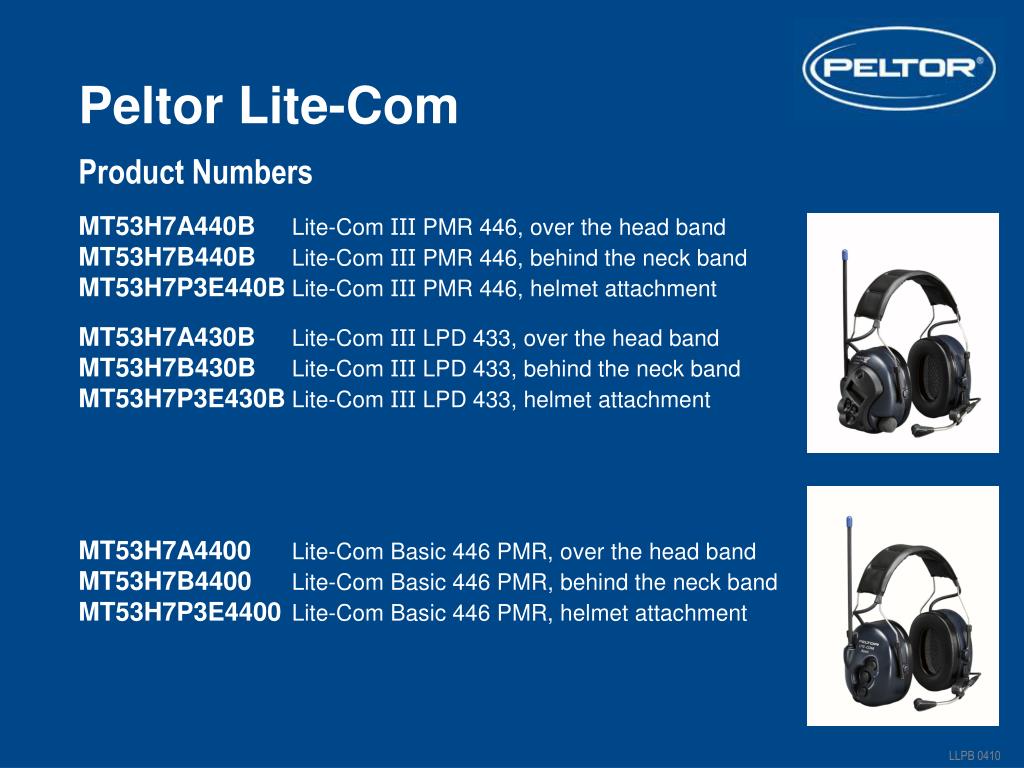

  18. Peltor Lite-Com Product Numbers MT53H7A440B Lite-Com III PMR 446, over the head band MT53H7B440BLite-Com III PMR 446, behind the neck band MT53H7P3E440B Lite-Com III PMR 446, helmet attachment MT53H7A430B Lite-Com III LPD 433, over the head band MT53H7B430BLite-Com III LPD 433, behind the neck band MT53H7P3E430B Lite-Com III LPD 433, helmet attachment MT53H7A4400 Lite-Com Basic 446 PMR, over the head band MT53H7B4400Lite-Com Basic 446 PMR, behind the neck band MT53H7P3E4400 Lite-Com Basic 446 PMR, helmet attachment LLPB 0410

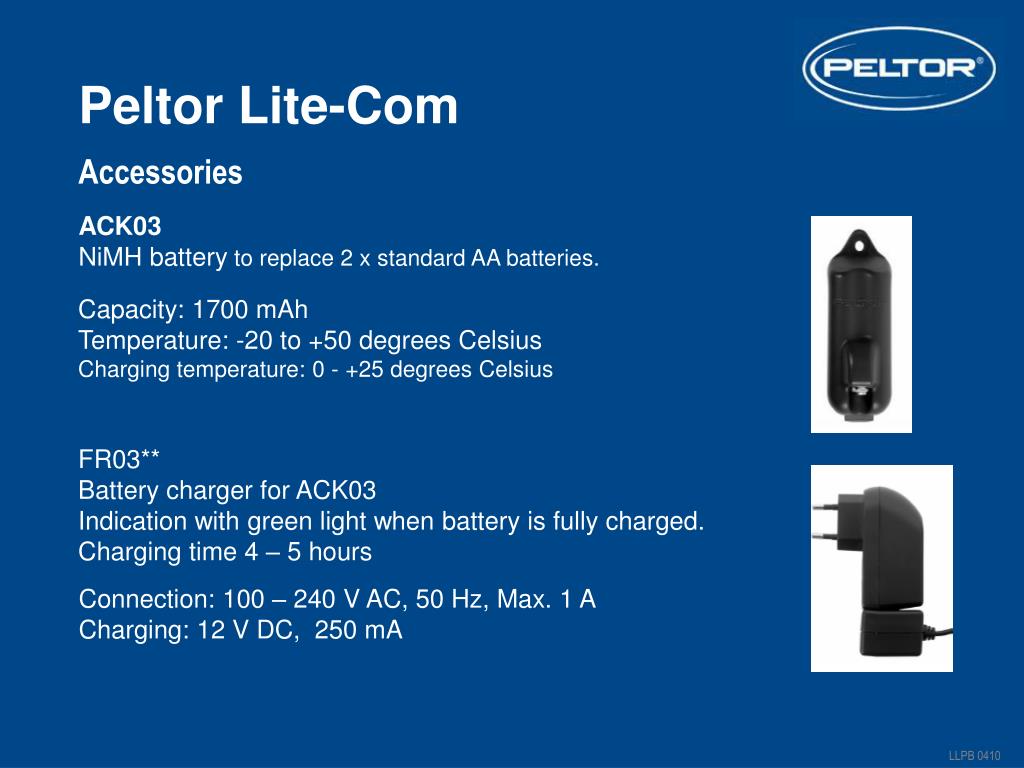

  19. Peltor Lite-Com Accessories ACK03 NiMH battery to replace 2 x standard AA batteries. Capacity: 1700 mAh Temperature: -20 to +50 degrees Celsius Charging temperature: 0 - +25 degrees Celsius FR03** Battery charger for ACK03 Indication with green light when battery is fully charged. Charging time 4 – 5 hours Connection: 100 – 240 V AC, 50 Hz, Max. 1 A Charging: 12 V DC, 250 mA LLPB 0410

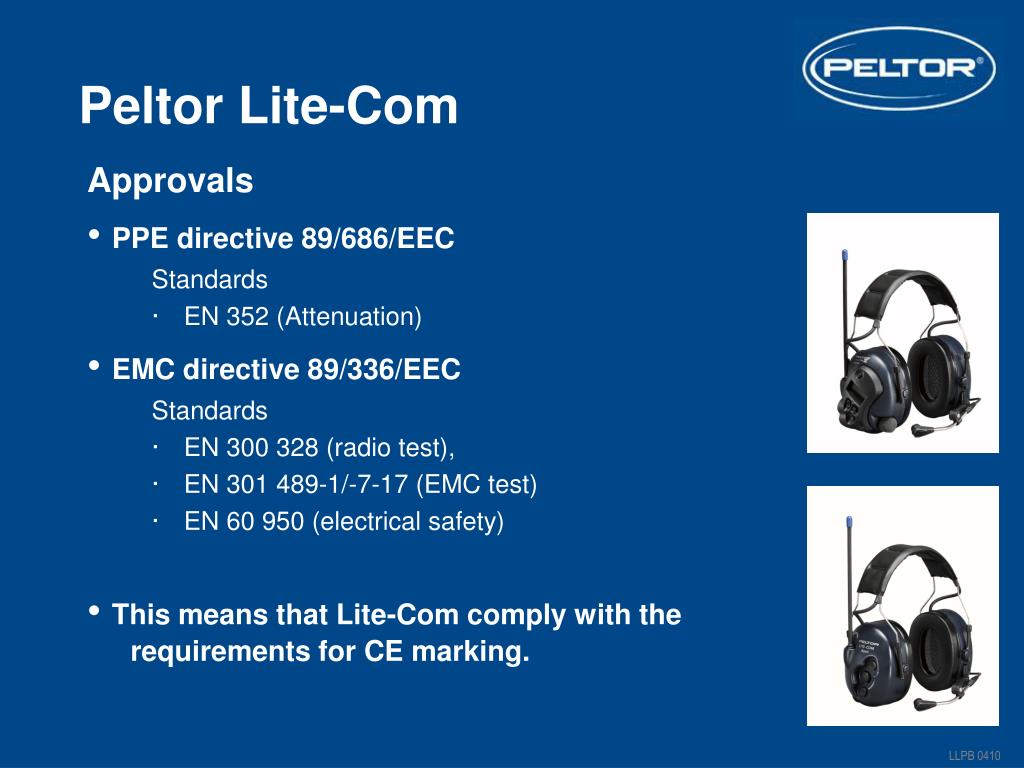

  20. Peltor Lite-Com Approvals • PPE directive 89/686/EEC Standards • EN 352 (Attenuation) • EMC directive 89/336/EEC Standards • EN 300 328 (radio test), • EN 301 489-1/-7-17 (EMC test) • EN 60 950 (electrical safety) • This means that Lite-Com comply with the requirements for CE marking. LLPB 0410

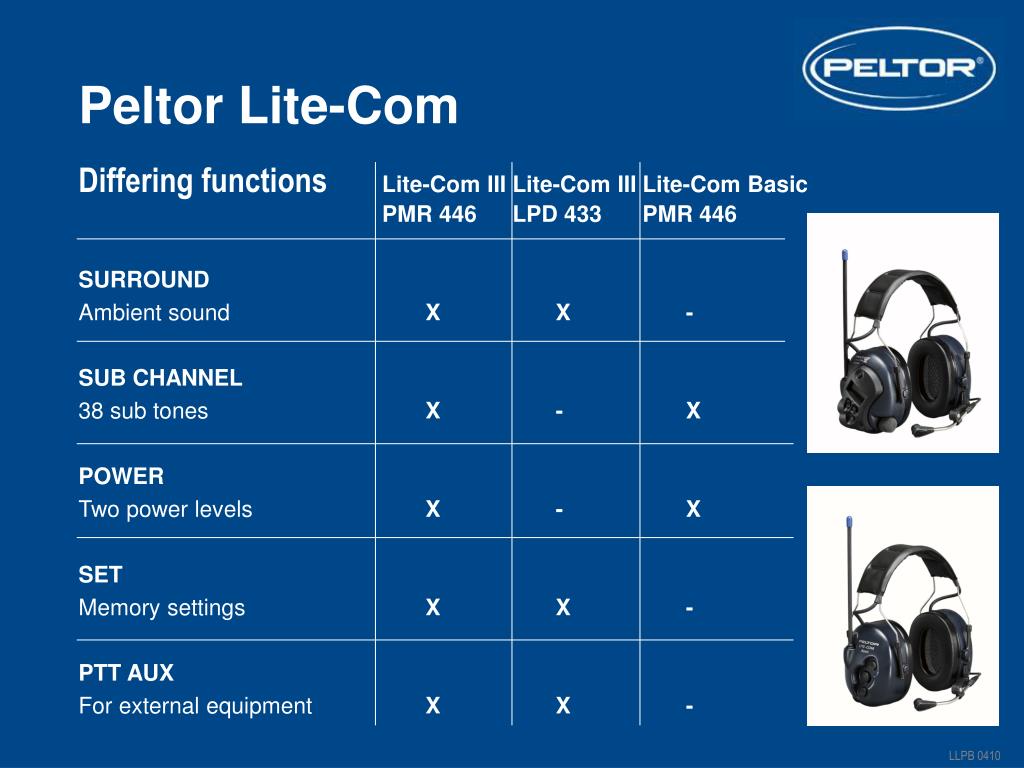

  21. Peltor Lite-Com Differing functionsLite-ComIII Lite-Com III Lite-Com BasicPMR 446 LPD 433 PMR 446 SURROUND Ambient sound X X - SUB CHANNEL 38 sub tones X - X POWER Two power levels X - X SET Memory settings X X - PTT AUX For external equipment X X - LLPB 0410

  22. Peltor Lite-Com Technical data Lite-Com III PMR 446 Lite-Com III LPD 433 Lite-Com Basic MT53H7*440B MT53H7*430B MT53H7*4400 -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Frequency range: 446.00625 – 446.09375 MHz 433.075 – 433.775 MHz 446.00625 – 446.09375 MHz Communication mode: Simplex Simplex Simplex Channels: 8 (x38 sub channels) 69 8 (x38sub channels) Channel steps: 12.5 kHz 25 kHz 12.5 kHz Deviation: Max. ± 2.5 kHz ± 6 kHz ± 2.5 kHz Output power ERP: 25/150 mW 10 mW 25/150 mW Max. range approx. 2 km 1 km 2 km Current consumption: Stand-by or receiving: 80 – 100 mA 80 – 100 mA 60 – 70 mA Transmission approx.: 160 / 250 mA 160 mA 110 / 200mA Operating temperature: -20 ºC – +55 ºC -20 ºC – +55 ºC -20 ºC – +55 ºC Storage temperature: -40 ºC – +55 ºC -40 ºC – +55 ºC -40 ºC – +55 ºC Weight, over-head band (incl. AA alkaline batt.): 436 g 436 g 418 g LLPB 0410

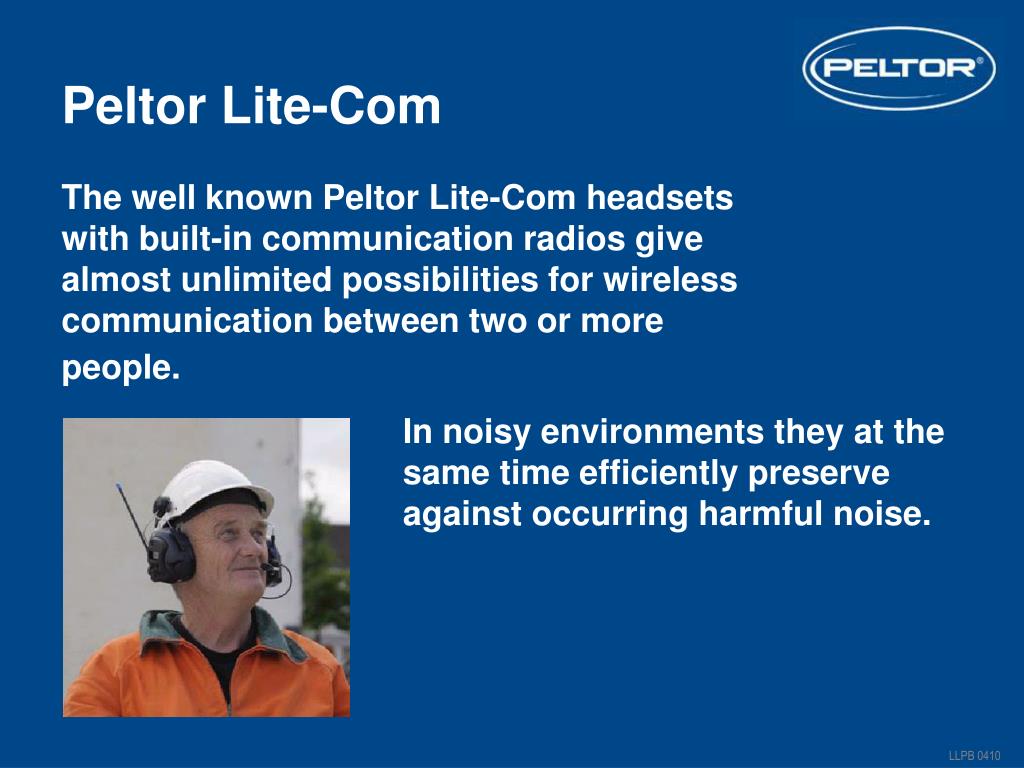

  23. Peltor Lite-Com The well known Peltor Lite-Com headsets with built-in communication radios give almost unlimited possibilities for wireless communication between two or more people. In noisy environments they at the same time efficiently preserve against occurring harmful noise. LLPB 0410

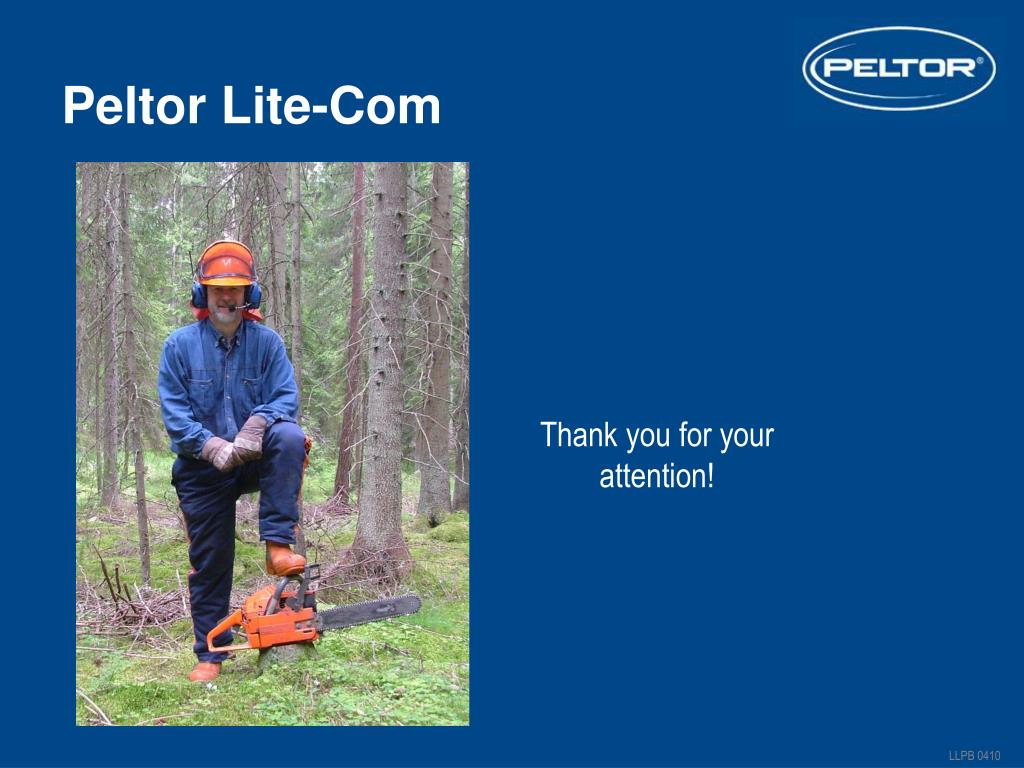

  24. Peltor Lite-Com Thank you for your attention! LLPB 0410
