  1. BcN : A Future Networking Vision from Korea September. 2006. Broadband Convergence Network Research Division

  2. Background of BcN project • Vision of BcN • Overview of BcN Architecture • Concluding Remark Contents

  3. Background of BcN project • Vision of BcN • Overview of BcN Architecture • Concluding Remark

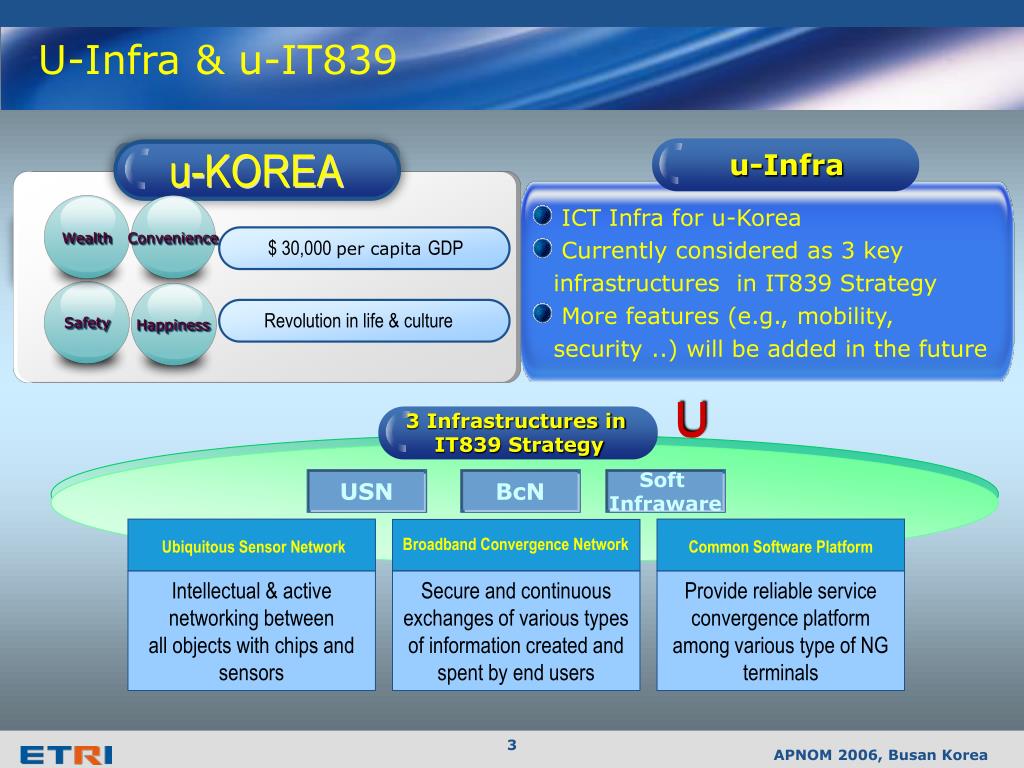

  4. u-Infra 3 Infrastructures in IT839 Strategy u-KOREA • ICT Infra for u-Korea • Currently considered as 3 key infrastructures in IT839 Strategy • More features (e.g., mobility, security ..) will be added in the future $ 30,000 per capita GDP Convenience Wealth Revolution in life & culture BcN Soft Infraware USN Safety Happiness Broadband Convergence Network Ubiquitous Sensor Network Common Software Platform Intellectual & active networking between all objects with chips and sensors Secure and continuous exchanges of various types of information created and spent by end users Provide reliable service convergence platform among various type of NG terminals U-Infra & u-IT839 ⊂

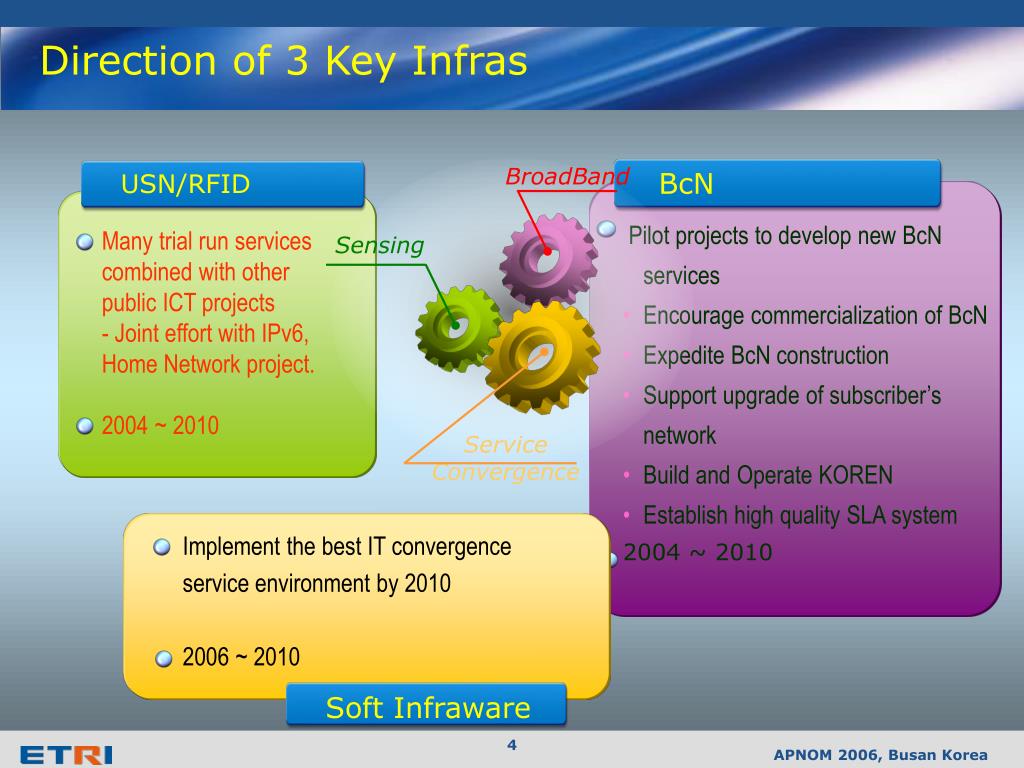

  5. Pilot projects to develop new BcN services • Encourage commercialization of BcN • Expedite BcN construction • Support upgrade of subscriber’s network • Build and Operate KOREN • Establish high quality SLA system • 2004 ~ 2010 BroadBand USN/RFID BcN Soft Infraware Many trial run services combined with other public ICT projects - Joint effort with IPv6, Home Network project. 2004 ~ 2010 Sensing Service Convergence Implement the best IT convergence service environment by 2010 2006 ~ 2010 Direction of 3 Key Infras

  6. Background of BcN project • Vision of BcN • Overview of BcN Architecture • Concluding Remark

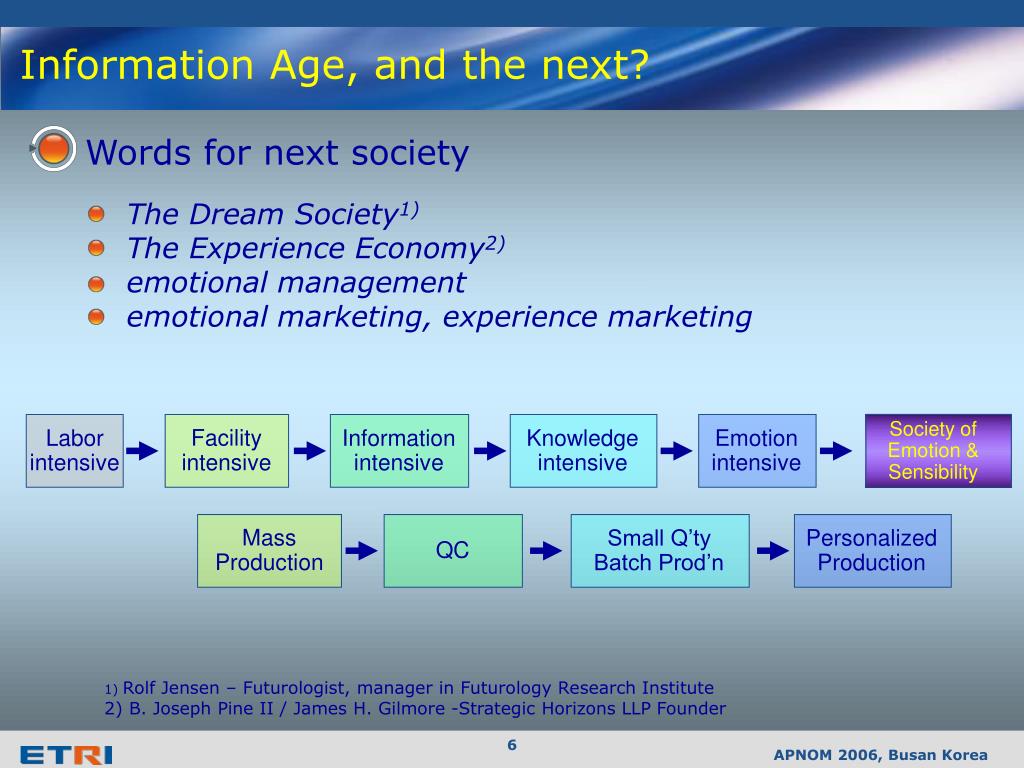

  7. Society of Emotion & Sensibility Facility intensive Mass Production Labor intensive Information intensive Knowledge intensive Small Q’ty Batch Prod’n Emotion intensive Personalized Production QC Information Age, and the next? Words for next society The Dream Society1) The Experience Economy2) emotional management emotional marketing, experience marketing 1) Rolf Jensen – Futurologist, manager in Futurology Research Institute 2) B. Joseph Pine II / James H. Gilmore -Strategic Horizons LLP Founder

  8. $ 6.0 • Brewed coffee- ¢10~25 a cup • Brand package- ¢25 ~50 a cup • Coffee shop, Take-Out – $ 1~2 • Starbucks - $ 5 a cup $ 5.0 $ 4.0 $ 3.0 Variety of tasty coffees, comfortable music, pleasant atmosphere, pretty mugs… $ 2.0 $ 1.0 commodity goods service experience Experience Economy Emotional needs create new VALUE ! Dramatic increase in value

  9. 1 Taste to 10 persons • price competition • brand competition • reasonable consumer • clever consumer 10 Tastes to 1 person • value competition • personality competition • emotional consumer • profit-making prosumer Customers Want What ? Consumer behaviors in Ubiquitous Emotional Society Tailored consumption that increases the value of individuals! - Personalization & individualization - Self-Customization

  10. Increasing demand for • High-quality multimedia • Mobile • Interactive peer-to-peer • Distribution of self-generating content • Monthly communication expenditure; $130/household; • (average expenditure of America, England, German, $65/household) • Portion of total expenditure; 6.5% • (3 times of OECD countries) • 12 million of Internet users • 38 million of mobile phone users • Communication that enables • to increase productivity • to make a variety of cultural exchange • to express oneself • to make self-customized service Then, Next Communication is? New Communication Needs in U-society New trend of communication Communication demand saturated in Korea New needs for value communication Communication of Emotion & Sensibility

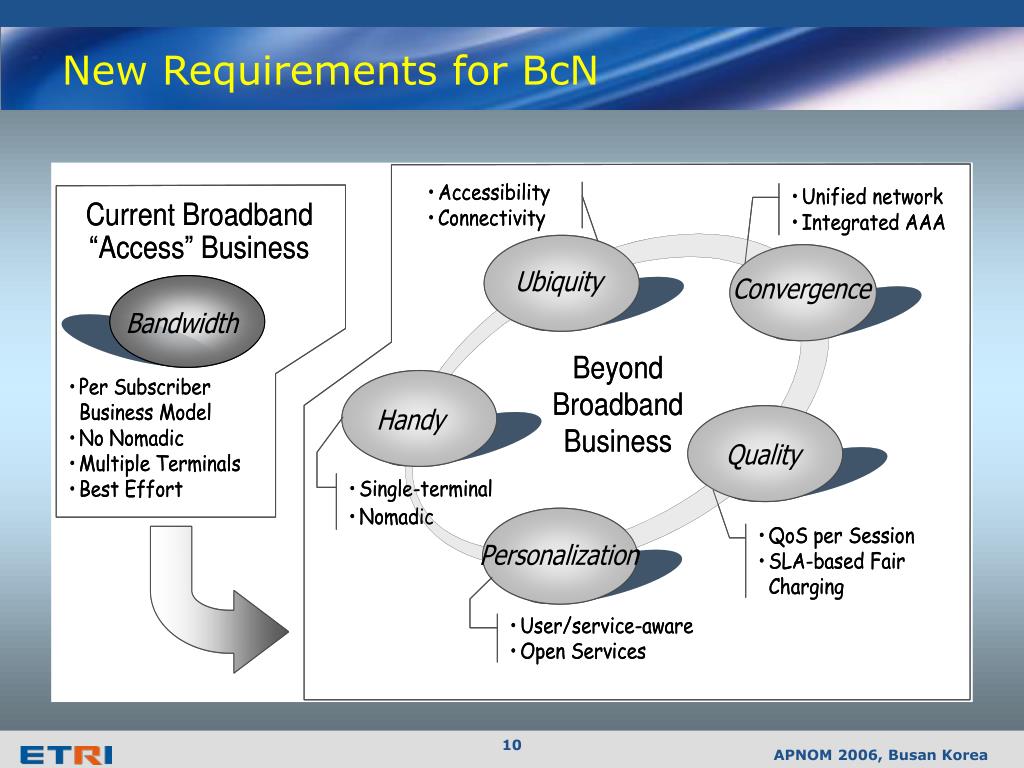

  11. New Requirements for BcN

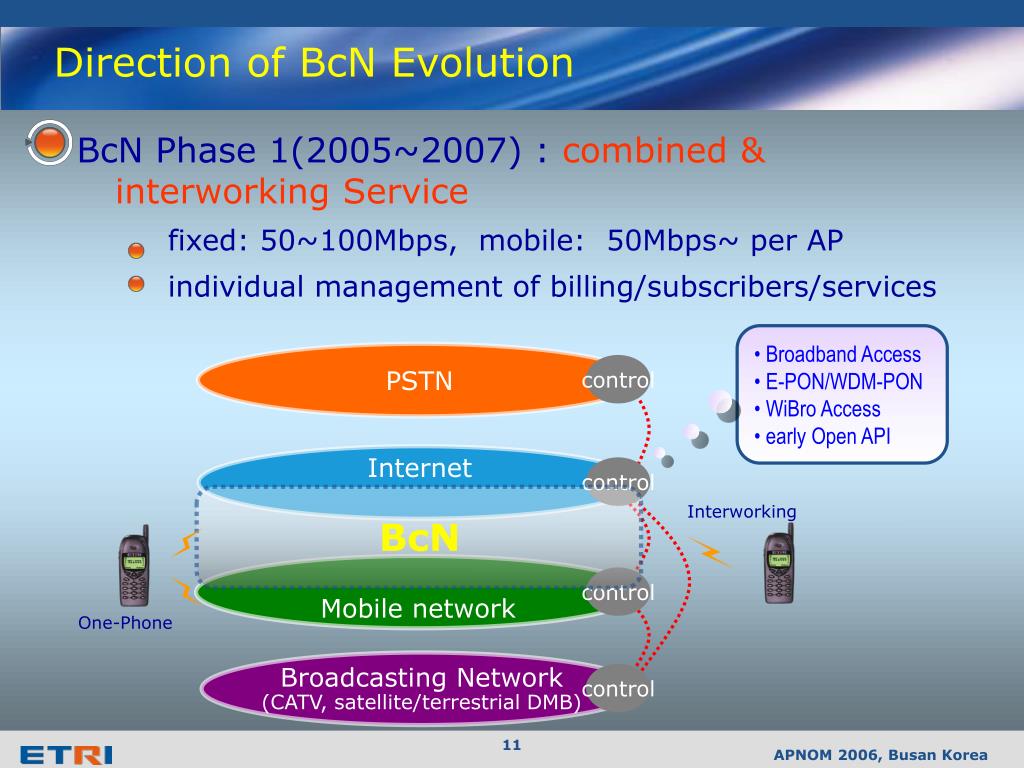

  12. PSTN control Internet control Interworking BcN Mobile network control One-Phone Broadcasting Network (CATV, satellite/terrestrial DMB) control Direction of BcN Evolution BcN Phase 1(2005~2007) :combined & interworking Service fixed: 50~100Mbps, mobile: 50Mbps~ per AP individual management of billing/subscribers/services • Broadband Access • E-PON/WDM-PON • WiBro Access • early Open API

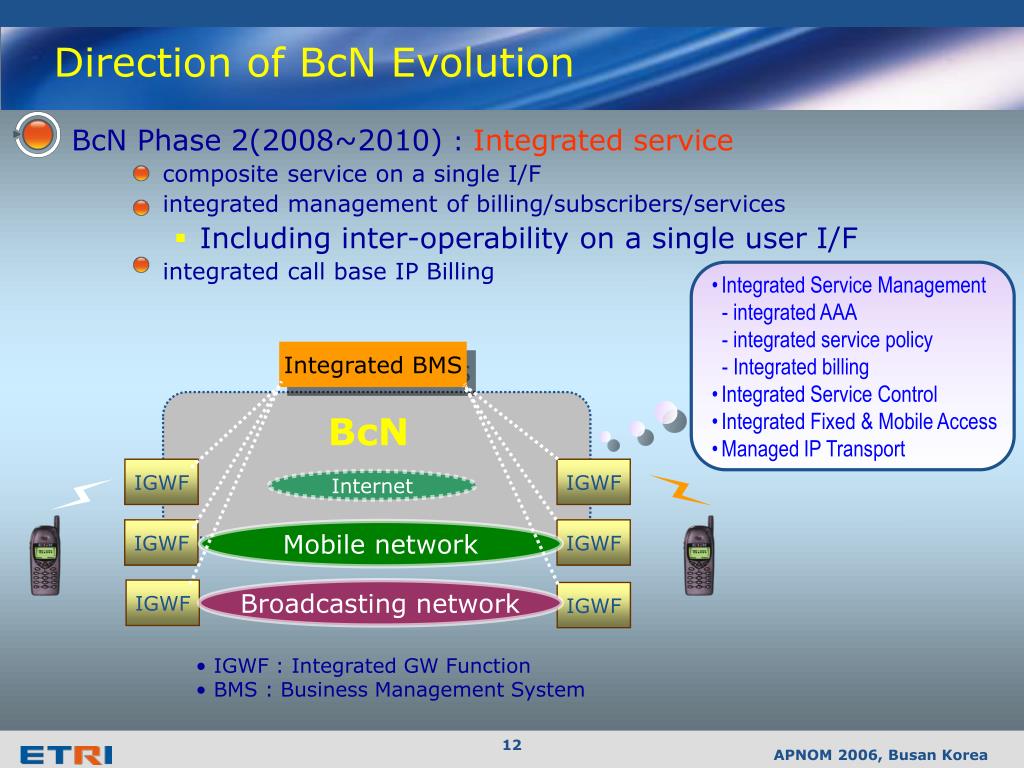

  13. Integrated BMS BcN IGWF IGWF Internet IGWF IGWF Mobile network IGWF Broadcasting network IGWF • IGWF : Integrated GW Function • BMS : Business Management System Direction of BcN Evolution BcN Phase 2(2008~2010) :Integrated service composite service on a single I/F integrated management of billing/subscribers/services • Including inter-operability on a single user I/F integrated call base IP Billing • Integrated Service Management - integrated AAA - integrated service policy - Integrated billing • Integrated Service Control • Integrated Fixed & Mobile Access • Managed IP Transport

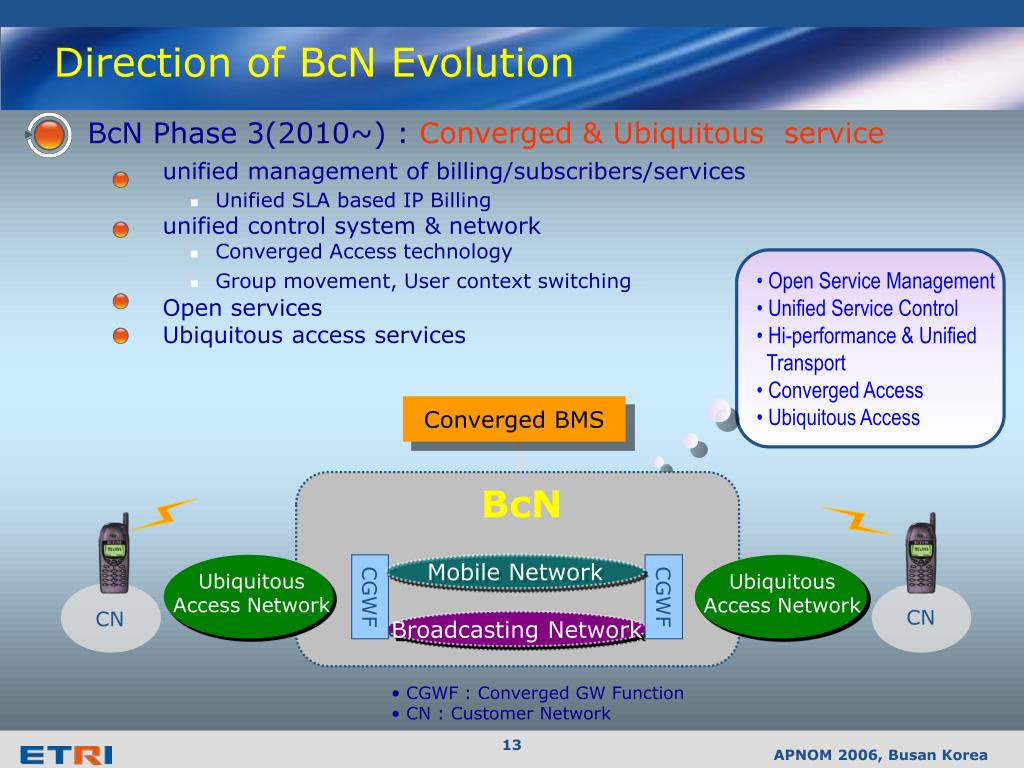

  14. Converged BMS BcN Mobile Network Ubiquitous Access Network Ubiquitous Access Network CGWF CGWF CN CN Broadcasting Network • CGWF : Converged GW Function • CN : Customer Network Direction of BcN Evolution BcN Phase 3(2010~) :Converged & Ubiquitous service unified management of billing/subscribers/services • Unified SLA based IP Billing unified control system & network • Converged Access technology • Group movement, User context switching Open services Ubiquitous access services • Open Service Management • Unified Service Control • Hi-performance & Unified Transport • Converged Access • Ubiquitous Access

  15. Background of BcN project • Vision of BcN • Overview of BcN Architecture • Concluding Remark

  16. Open API Open service Access authentication, Service authorization Service Mediation • Recognize me ! • tailored services for me ! • unique service for me ! Service & Control SLA based unified billing SLA management Service policy management Real-time mobility control Broadband Access Next-generation Access • pay for only that I use ! • pay only when guaranteed ! Converged Access Ubiquitous Access User/service recognition Individual user/service-level QoS • Protect me ! • Let me trust you ! • Be simple enough for me ! Real-time usage monitoring High performance Unified transport Real-time QoS monitoring Network security Network protection/ Reliability Direction of developing BcN Unlimited expression of users’ personalities Reasonable pricing scheme Preventing from negative effects

  17. Service and Control Convergence New IP Transport Access Network • network independent open services • convergence services through single unified platform • seamless service in anytime, anywhere • Low-cost but high-speed technologies • 100Mbps to 1Gbps per subscriber • OPEX reduction through PON based subscriber network • Differentiated & personalized premium services • E2E QoS incorporating legacy aggregation devices (IP-DSLAM, …) • Fast handover between different IP networks Three Major Challenges and Goals

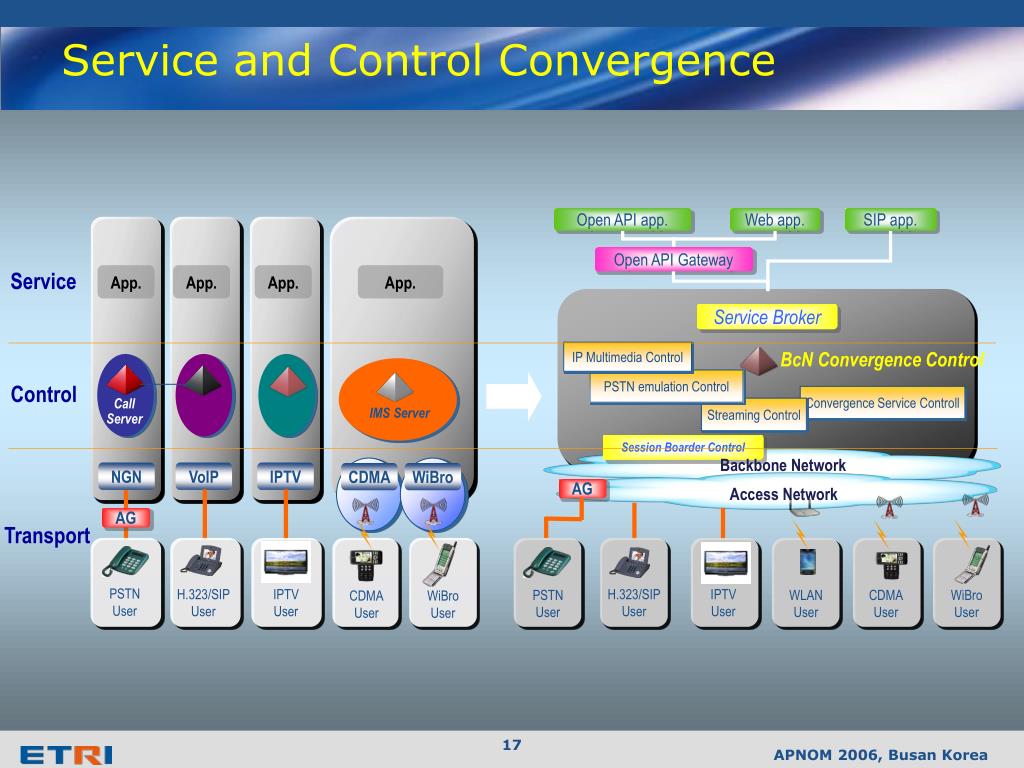

  18. Open API app. Web app. SIP app. Open API Gateway Service App. App. App. App. Service Broker IP Multimedia Control BcN Convergence Control PSTN emulation Control Control Convergence Service Controll Call Server Streaming Control IMS Server Session Boarder Control Backbone Network NGN VoIP IPTV CDMA WiBro AG Access Network AG Transport PSTN User H.323/SIP User IPTV User H.323/SIP User IPTV User PSTN User WLAN User CDMA User WiBro User CDMA User WiBro User Service and Control Convergence

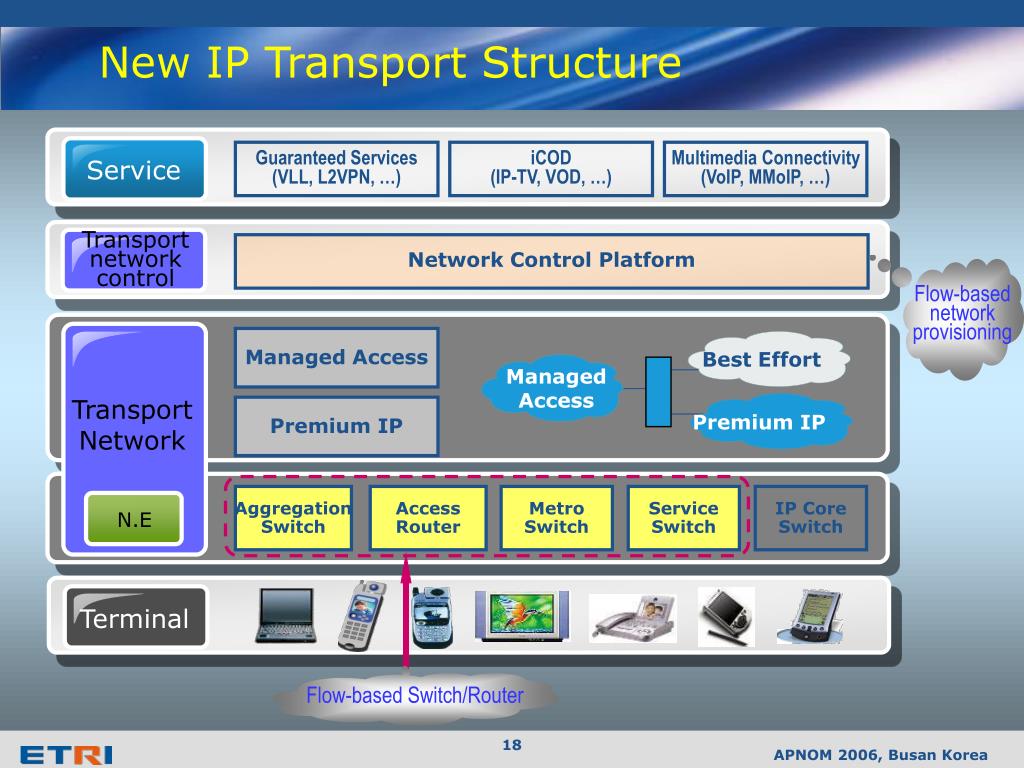

  19. Guaranteed Services(VLL, L2VPN, …) iCOD(IP-TV, VOD, …) Multimedia Connectivity(VoIP, MMoIP, …) Service Network Control Platform Flow-based network provisioning Managed Access Best Effort Managed Access Premium IP Premium IP AggregationSwitch Access Router MetroSwitch ServiceSwitch IP CoreSwitch N.E Terminal Flow-based Switch/Router New IP Transport Structure Transport network control Transport Network

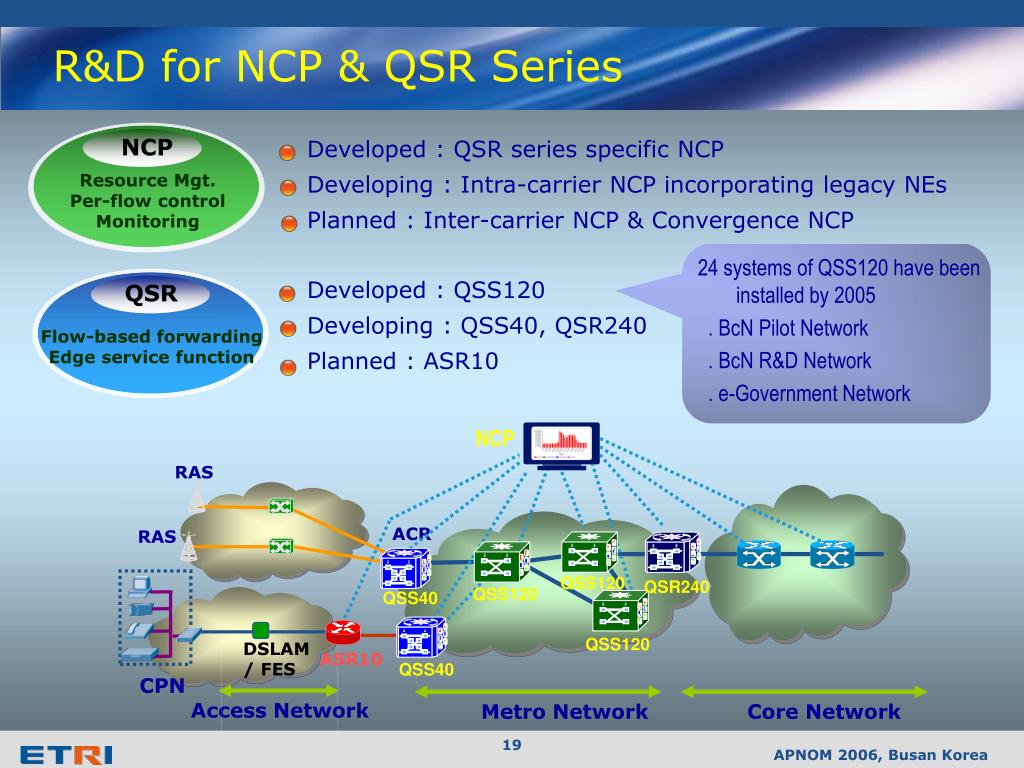

  20. NCP Developed : QSR series specific NCP Developing : Intra-carrier NCP incorporating legacy NEs Planned : Inter-carrier NCP & Convergence NCP Resource Mgt. Per-flow control Monitoring Developed : QSS120 Developing : QSS40, QSR240 Planned : ASR10 QSR Flow-based forwarding Edge service function NCP RAS ACR RAS QSS120 QSR240 QSS120 QSS40 QSS120 DSLAM / FES ASR10 QSS40 CPN Access Network Metro Network Core Network R&D for NCP & QSR Series 24 systems of QSS120 have been installed by 2005 . BcN Pilot Network . BcN R&D Network . e-Government Network

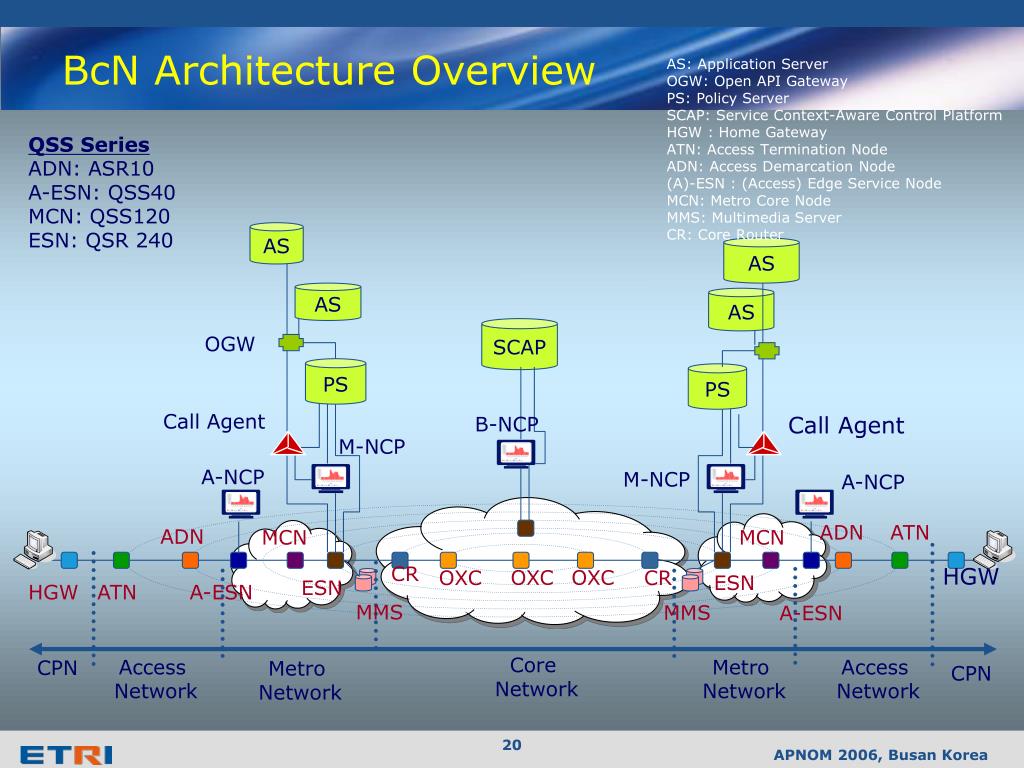

  21. BcN Architecture Overview AS: Application Server OGW: Open API Gateway PS: Policy Server SCAP: Service Context-Aware Control Platform HGW : Home Gateway ATN: Access Termination Node ADN: Access Demarcation Node (A)-ESN : (Access) Edge Service Node MCN: Metro Core Node MMS: Multimedia Server CR: Core Router QSS Series ADN: ASR10 A-ESN: QSS40 MCN: QSS120 ESN: QSR 240 AS AS AS AS SCAP OGW PS PS Call Agent Call Agent B-NCP M-NCP A-NCP M-NCP A-NCP ADN ATN ADN MCN MCN CR HGW OXC OXC OXC CR ESN ESN HGW ATN A-ESN MMS MMS A-ESN Core Network Access Network Metro Network Access Network CPN Metro Network CPN

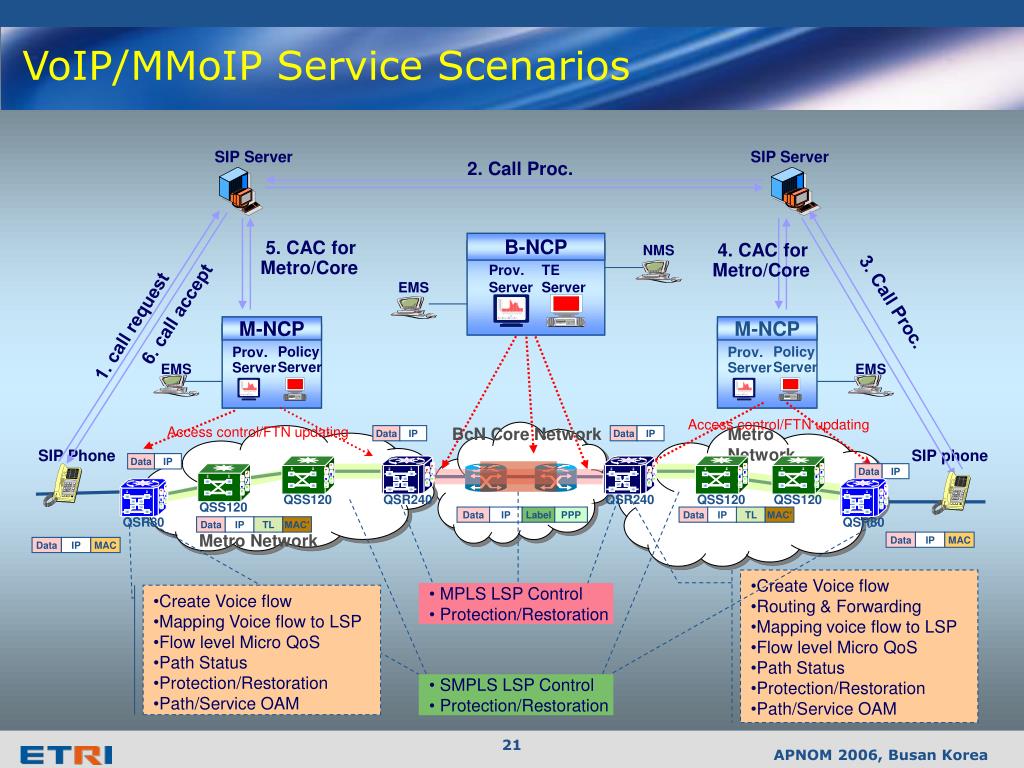

  22. Data Data Data Data IP IP IP IP SIP Server SIP Server 2. Call Proc. Data Data IP IP MAC MAC M-NCP 5. CAC for Metro/Core 4. CAC for Metro/Core B-NCP NMS Policy Server Prov. Server Prov. Server TE Server EMS Data Data IP IP TL TL MAC’ MAC’ EMS 3. Call Proc. 6. call accept 1. call request Data IP Label PPP M-NCP Policy Server Prov. Server EMS Access control/FTN updating Access control/FTN updating BcN Core Network Metro Network SIP Phone SIP phone QSS120 QSS120 QSS120 QSS120 QSR240 QSR240 QSR80 QSR80 Metro Network • Create Voice flow • Routing & Forwarding • Mapping voice flow to LSP • Flow level Micro QoS • Path Status • Protection/Restoration • Path/Service OAM • MPLS LSP Control • Protection/Restoration • Create Voice flow • Mapping Voice flow to LSP • Flow level Micro QoS • Path Status • Protection/Restoration • Path/Service OAM • SMPLS LSP Control • Protection/Restoration VoIP/MMoIP Service Scenarios

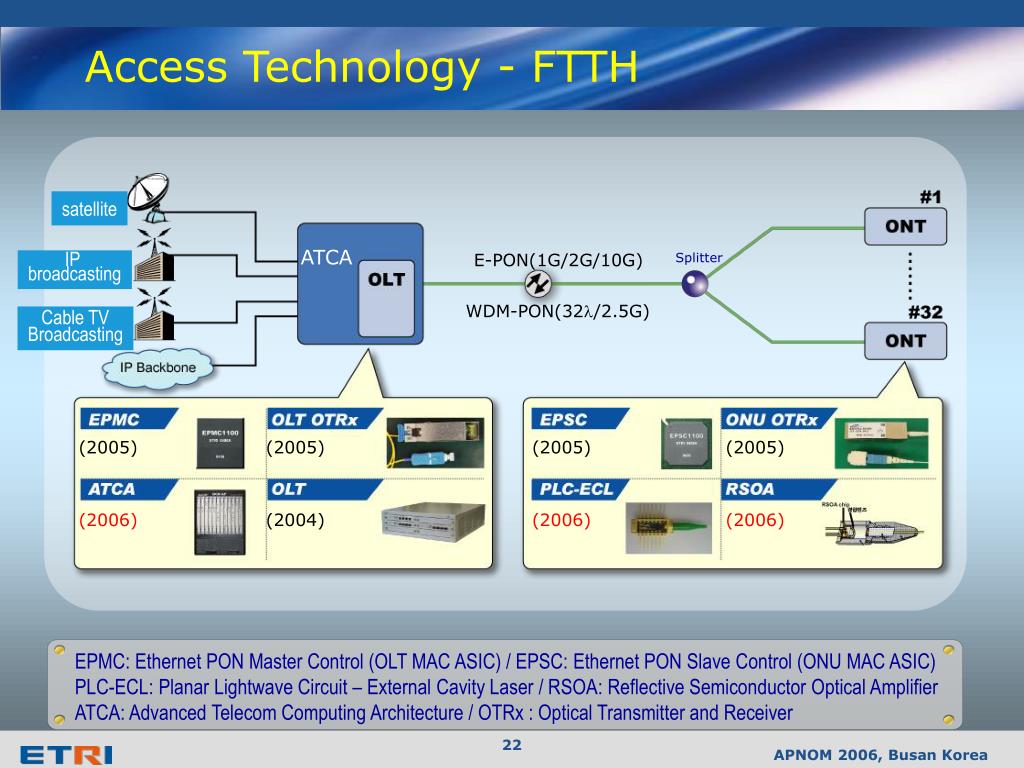

  23. Access Technology - FTTH EPMC: Ethernet PON Master Control (OLT MAC ASIC) / EPSC: Ethernet PON Slave Control (ONU MAC ASIC) PLC-ECL: Planar Lightwave Circuit – External Cavity Laser / RSOA: Reflective Semiconductor Optical Amplifier ATCA: Advanced Telecom Computing Architecture / OTRx : Optical Transmitter and Receiver satellite ATCA E-PON(1G/2G/10G) Splitter IP broadcasting WDM-PON(32/2.5G) Cable TV Broadcasting (2005) (2005) (2005) (2005) (2006) (2004) (2006) (2006)

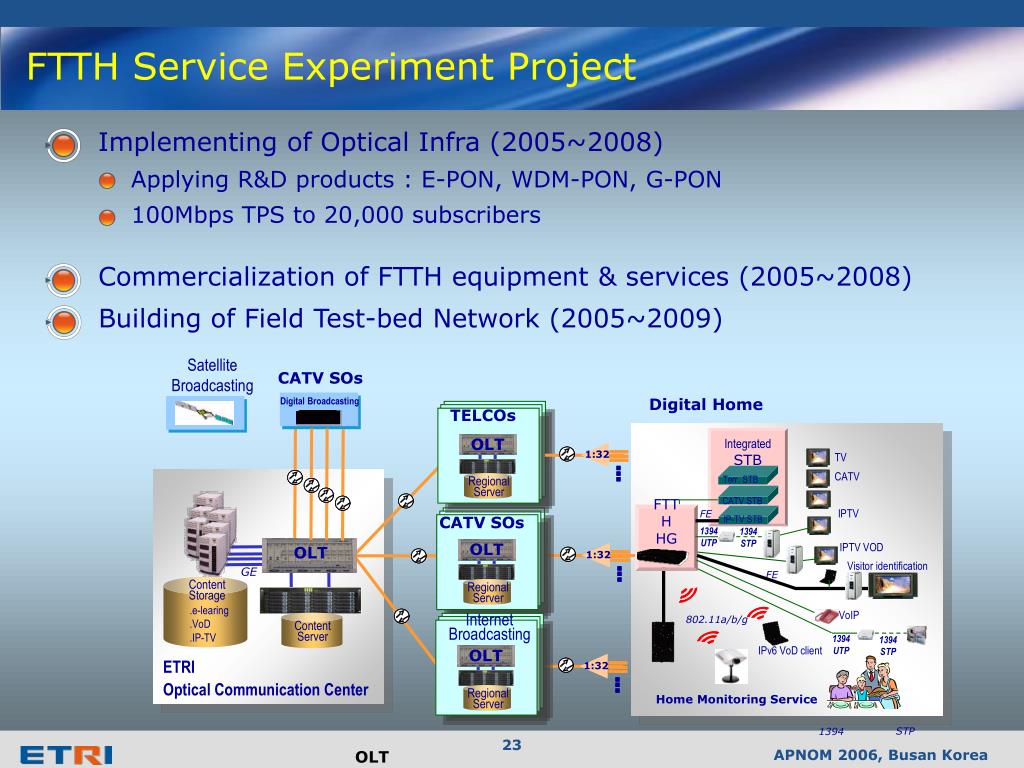

  24. Commercialization of FTTH equipment & services (2005~2008) Building of Field Test-bed Network (2005~2009) Satellite Broadcasting CATV SOs Digital Home TELCOs Integrated STB Digital Broadcasting OLT TV Terr. STB CATV CATV STB FTTH HGW IPTV FE IP-TV STB CATV SOs . . . . . . 1394 UTP 1394 STP . . . . . . . . . . . . OLT OLT IPTV VOD OLT Visitor identification GE FE 1:32 1:32 1:32 Content Storage .e-learing .VoD .IP-TV VoIP Internet Broadcasting 802.11a/b/g 1394 UTP 1394 STP IPv6 VoD client OLT ETRI Optical Communication Center Home Monitoring Service Content Server Regional Server Regional Server Regional Server STP 1394 FTTH Service Experiment Project Implementing of Optical Infra (2005~2008) Applying R&D products : E-PON, WDM-PON, G-PON 100Mbps TPS to 20,000 subscribers OLT

  25. Background of BcN project • Vision of BcN • Overview of BcN Architecture • Concluding Remark

  26. BcN R&D Vision Service and Network Control • Unified AAA & Open Service • Seamless Session Mobility Control • Unified Service & Control Platform Ubiquitous & Seamless Mobile Multimedia New IP Transport Network • Flow-based QoS/Billing • Fast Handover b/t Networks • NCP + QSR series Broadband Access Network • Low-cost but High-performance access • Converged Access with Seamless Mobility • PON-based FTTH

  27. BcN as a New Paradigm A driving force creating rich market of A value innovative infrastructure for Ubiquitous Emotional Society Mobile Multimedia Communication A gear for new communication paradigm prompting Global Collaboration

  28. Thank You ! Broadband Convergence Network Research Division
