Game Client Architecture

1. Game Client Architecture

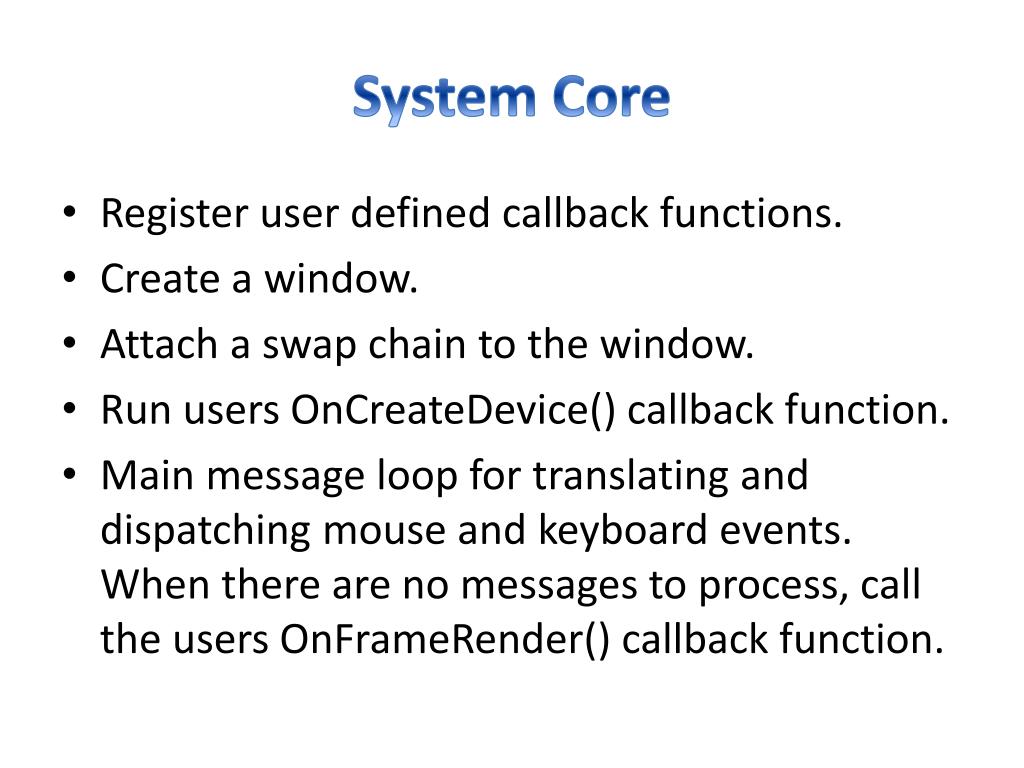

5. System Core • Register user defined callback functions. • Create a window. • Attach a swap chain to the window. • Run users OnCreateDevice() callback function. • Main message loop for translating and dispatching mouse and keyboard events. When there are no messages to process, call the users OnFrameRender() callback function.

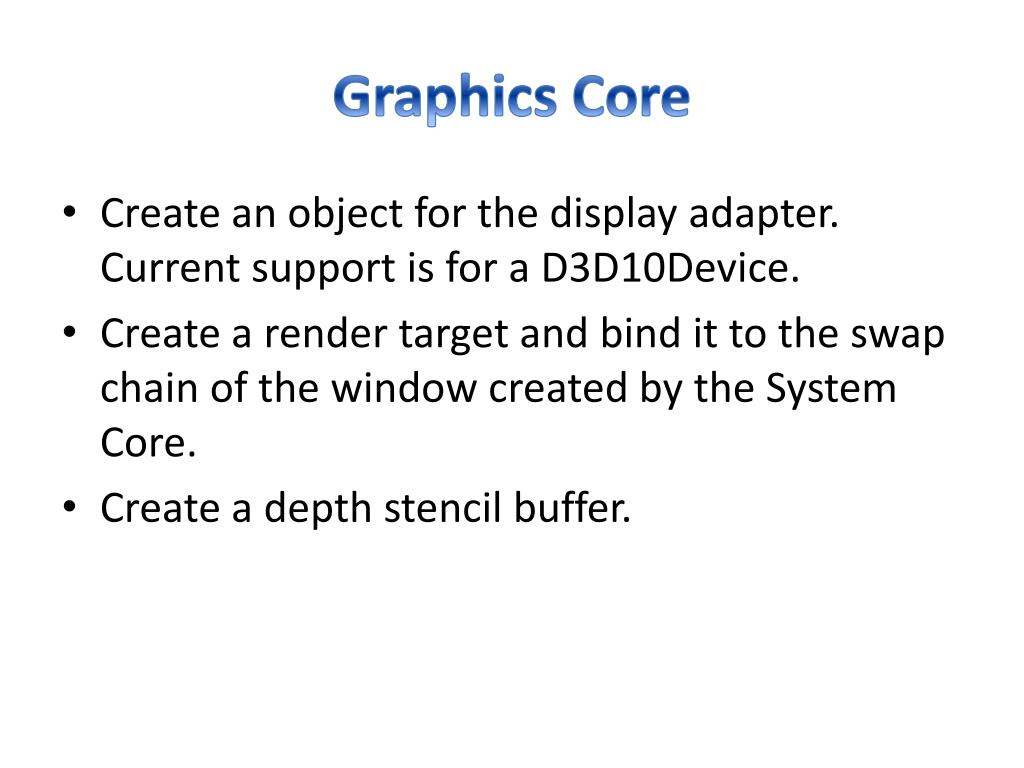

8. Graphics Core • Create an object for the display adapter. Current support is for a D3D10Device. • Create a render target and bind it to the swap chain of the window created by the System Core. • Create a depth stencil buffer.

11. Game Core • Create a scene graph for objects that are instanced multiple times. monsters, trees, etc. • INode class: Basic component for the scene graph. • Public virtual destructor: Allows derived classes to specify cleanup operations appropriate for their object. • Private std::vector<INode*> m_children: Creates a list of child nodes for the current node.

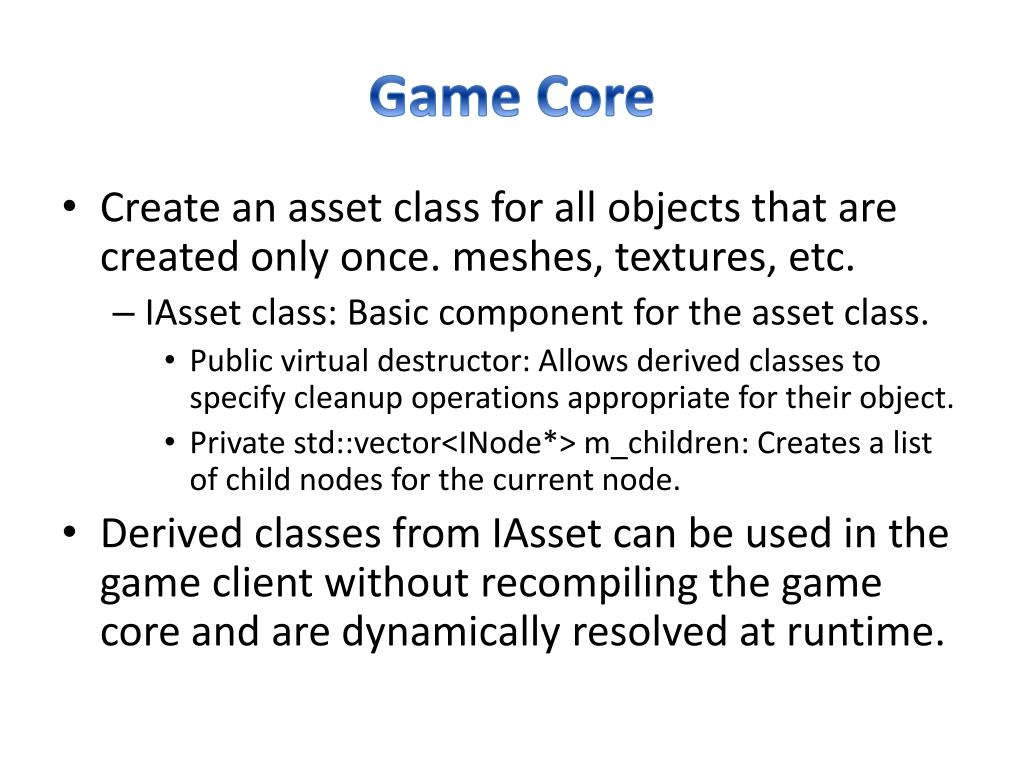

12. Game Core • Create an asset class for all objects that are created only once. meshes, textures, etc. • IAsset class: Basic component for the asset class. • Public virtual destructor: Allows derived classes to specify cleanup operations appropriate for their object. • Private std::vector<INode*> m_children: Creates a list of child nodes for the current node. • Derived classes from IAsset can be used in the game client without recompiling the game core and are dynamically resolved at runtime.

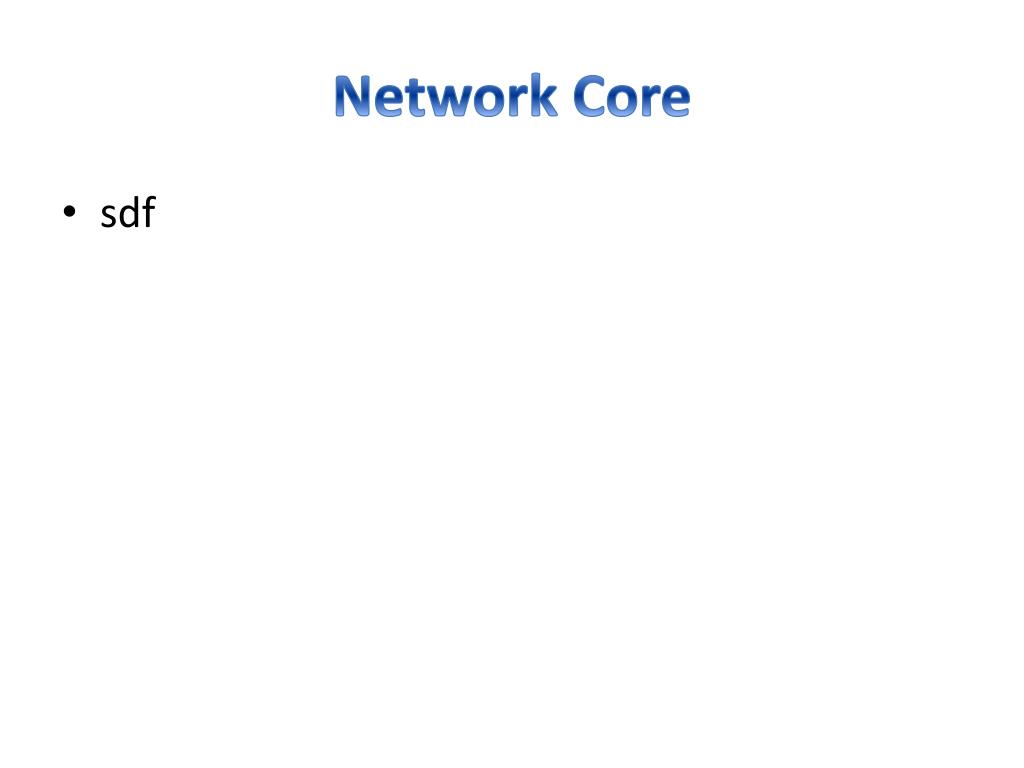

15. Network Core • sdf

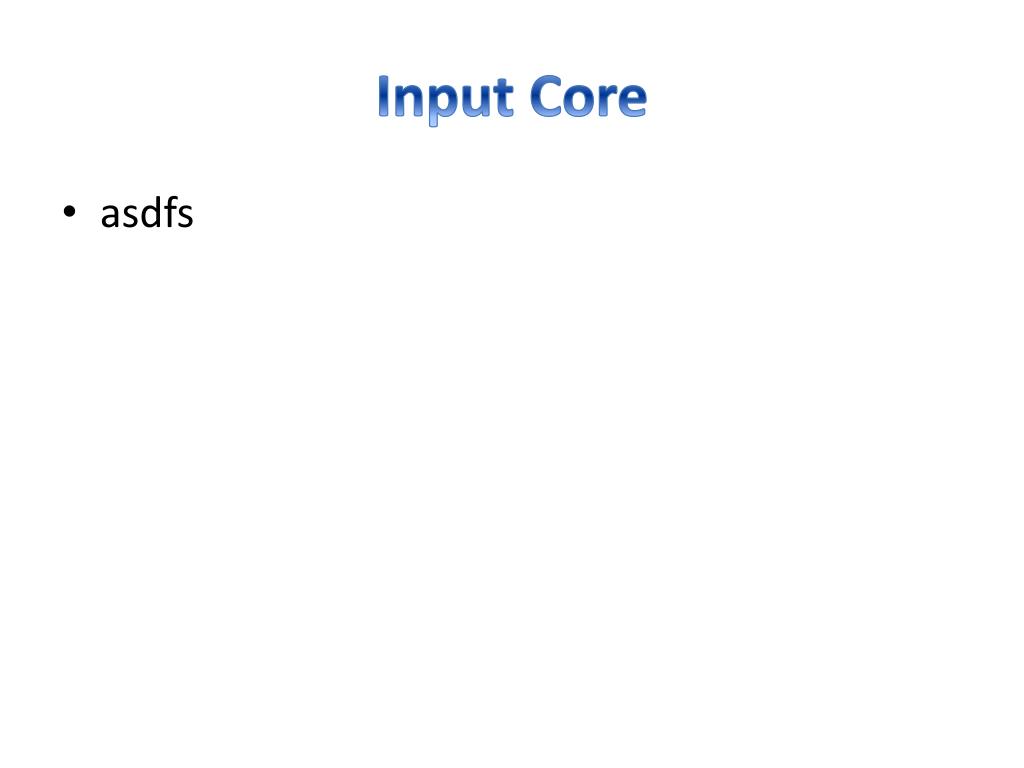

18. Input Core • asdfs

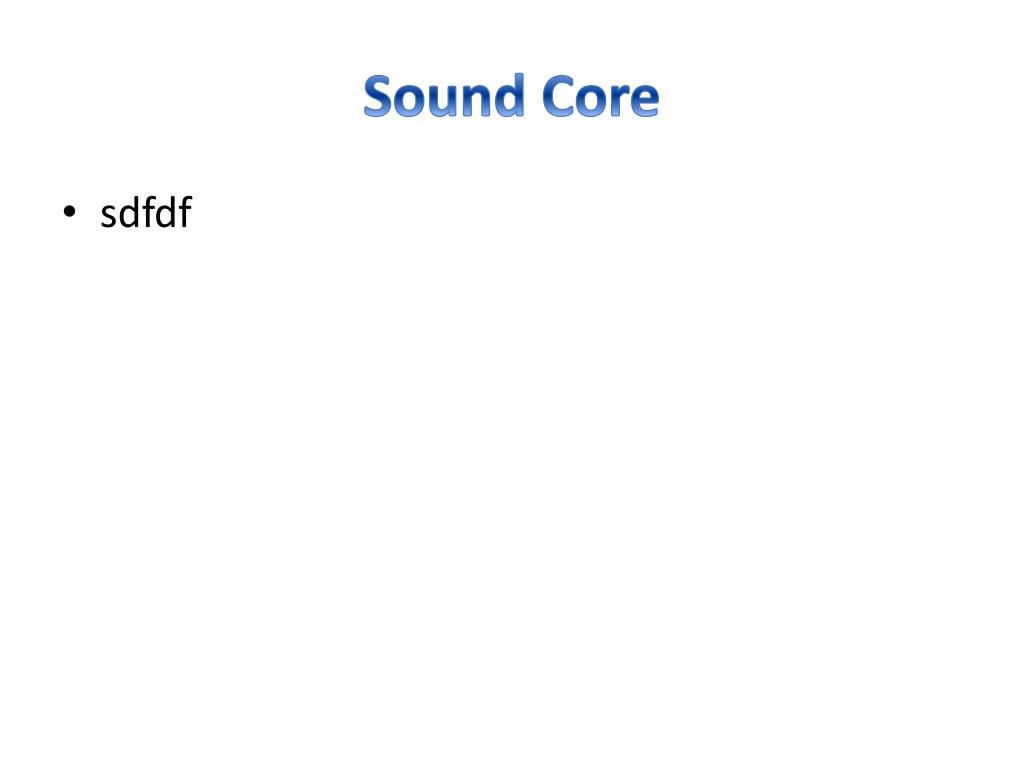

21. Sound Core • sdfdf

24. Scripting Core • sdfad

27. GUI Core • sdfads
