  1. Chipset www.ustudy.in

  2. Chipset www.ustudy.in

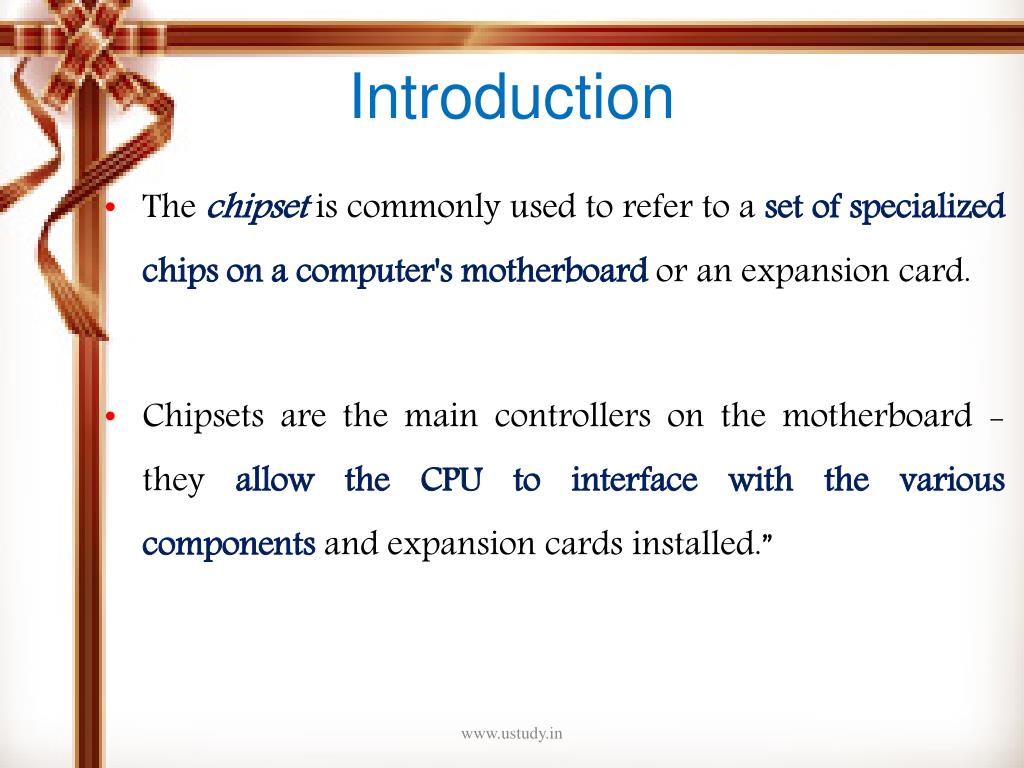

  3. Introduction • The chipset is commonly used to refer to a set of specialized chips on a computer's motherboard or an expansion card. • Chipsets are the main controllers on the motherboard - they allow the CPU to interface with the various components and expansion cards installed.” www.ustudy.in

  4. Capabilities of Chipset • Controls all I/O operation • Multiplexing • Data transfer • Memory controller • EIDE controller • PCI bridge www.ustudy.in

  5. Capabilities of Chipset • DMA controller • Keyboard controller • PS/2 mouse controller • Secondary cache controller • Low-power CMOS SRAM www.ustudy.in

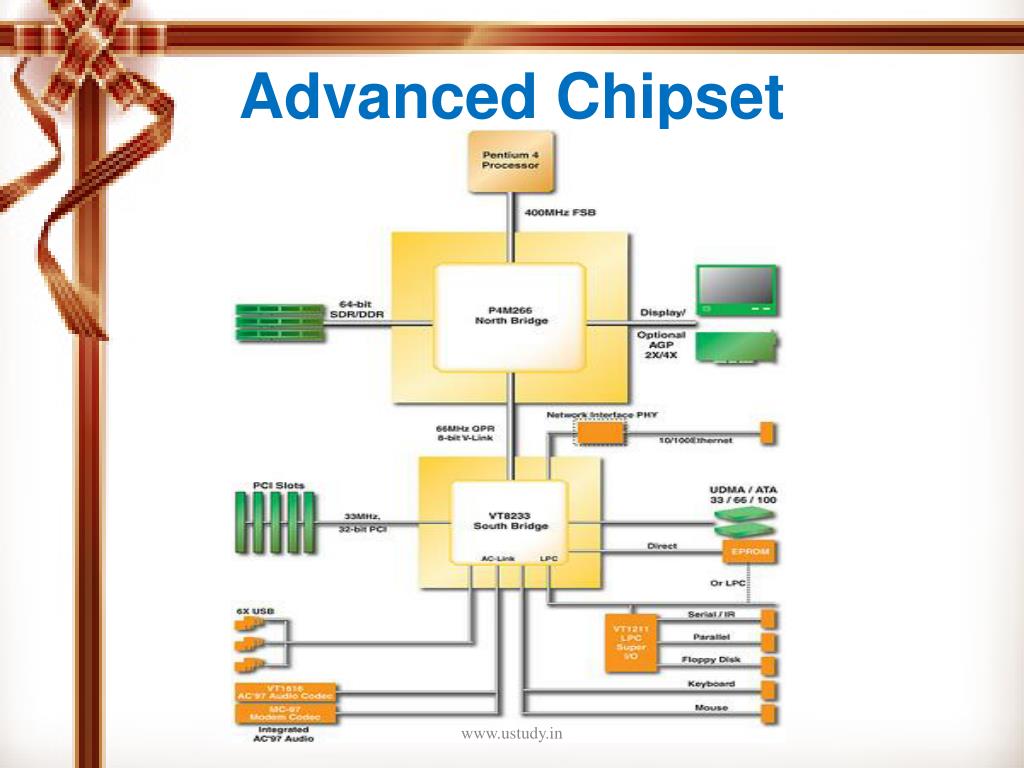

  6. Advanced Chipset www.ustudy.in

  7. Northbridge • The Northbridge of the chipset handles the heavy traffic from one bus to another. • Northbridge chip is responsible for interfacing the CPU, main memory, local bus and the main system bus. • Northbridge supported for Memory Technologies (64Mbit or 128Mbit SDRAM). www.ustudy.in

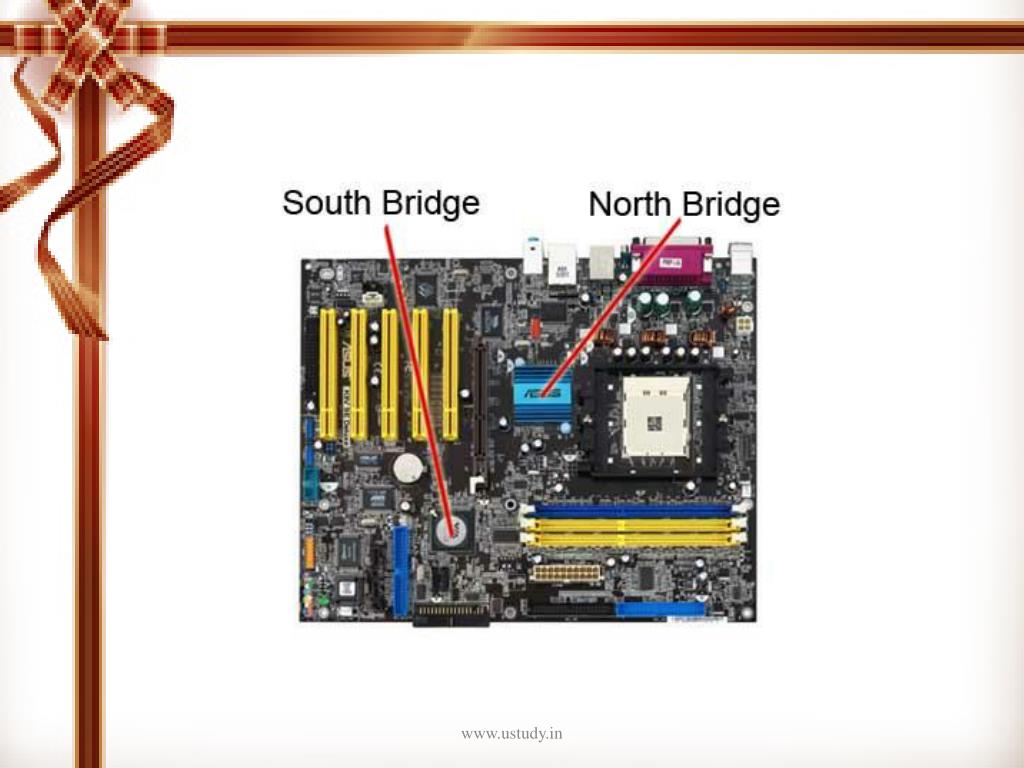

  8. www.ustudy.in

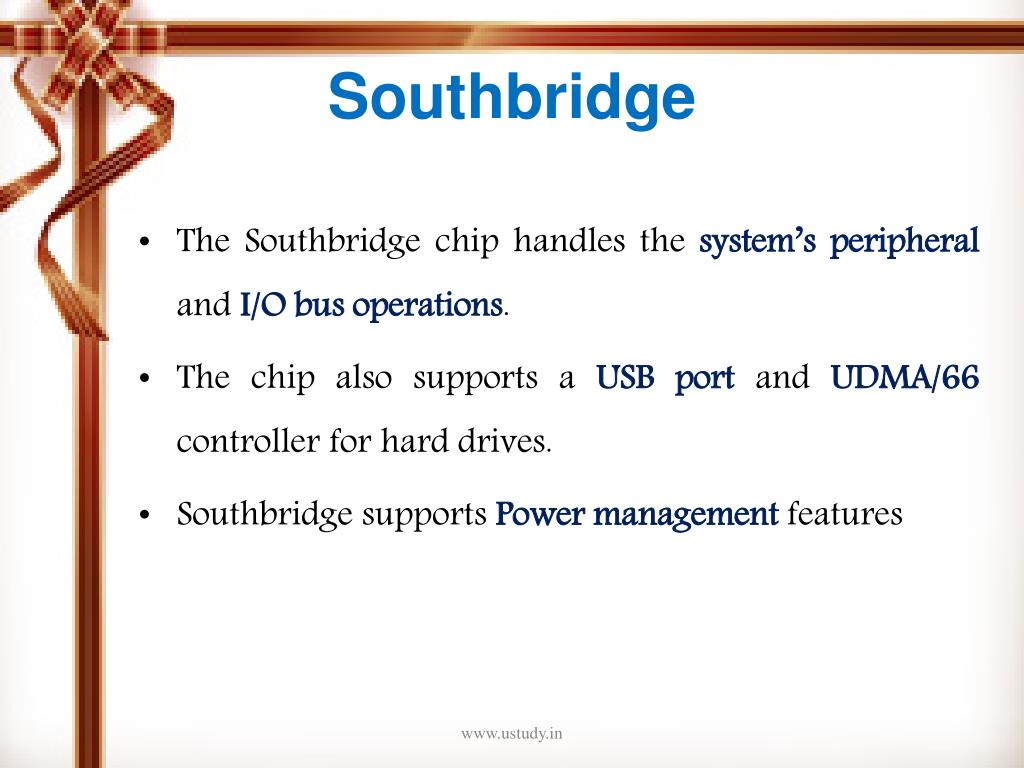

  9. Southbridge • The Southbridge chip handles the system’s peripheral and I/O bus operations. • The chip also supports a USB port and UDMA/66 controller for hard drives. • Southbridge supports Power management features www.ustudy.in

  10. 945 Chipset www.ustudy.in

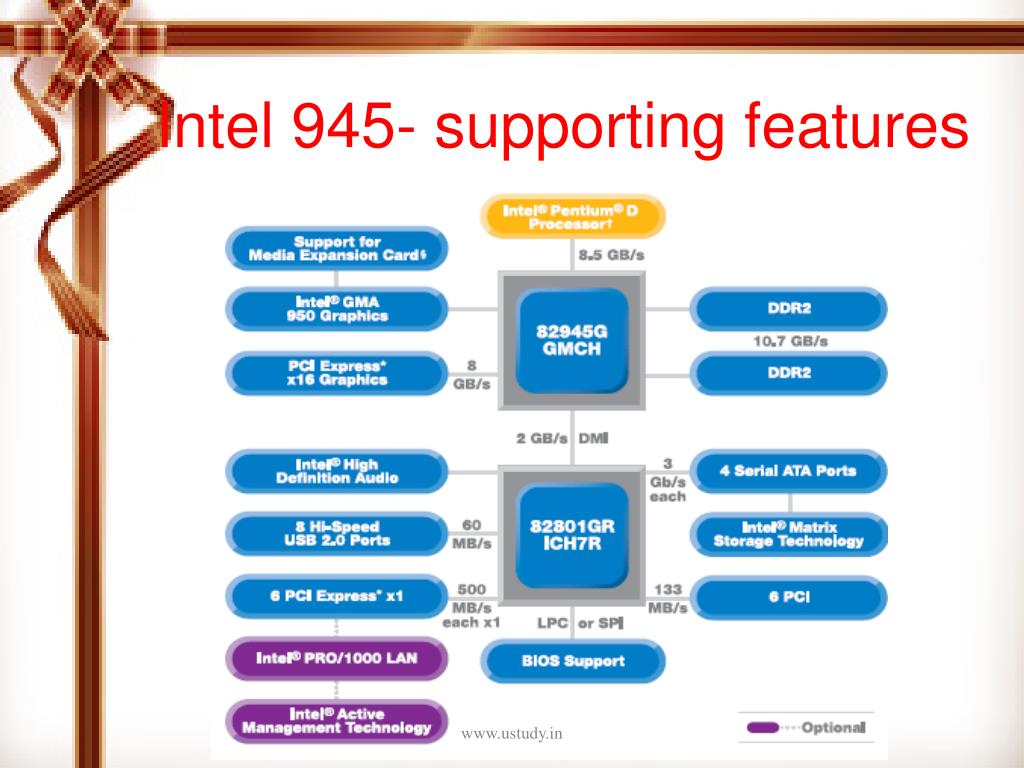

  11. Intel 945- supporting features www.ustudy.in

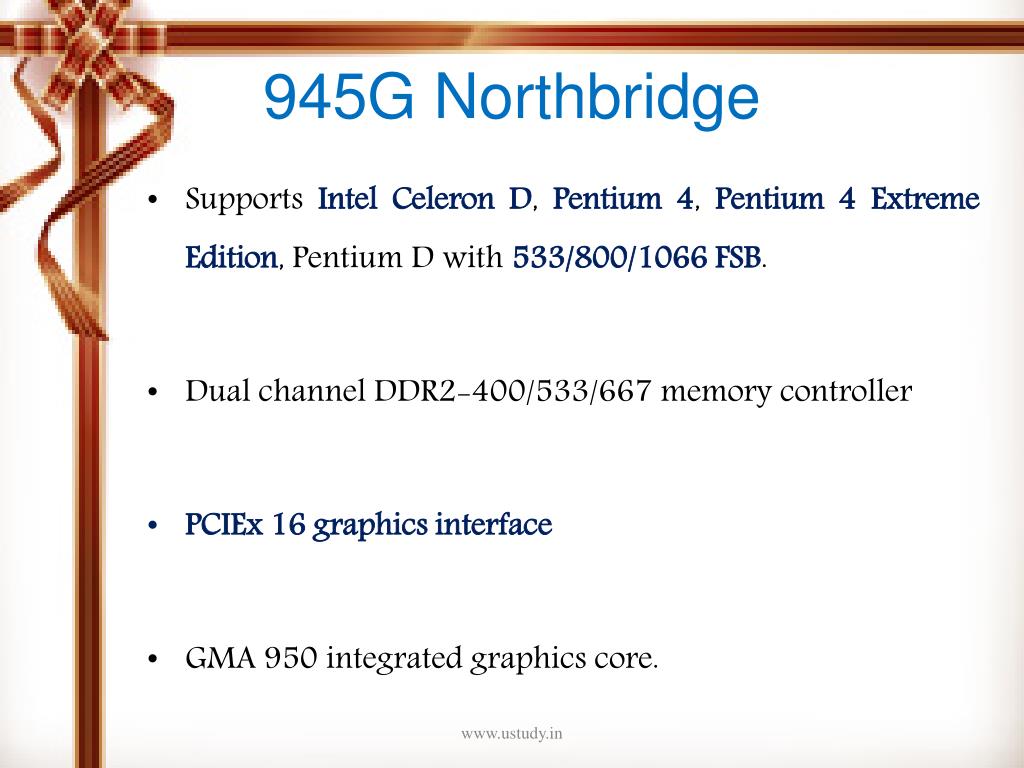

  12. 945G Northbridge • Supports Intel Celeron D, Pentium 4, Pentium 4 Extreme Edition, Pentium D with 533/800/1066 FSB. • Dual channel DDR2-400/533/667 memory controller • PCIEx 16 graphics interface • GMA 950 integrated graphics core. www.ustudy.in

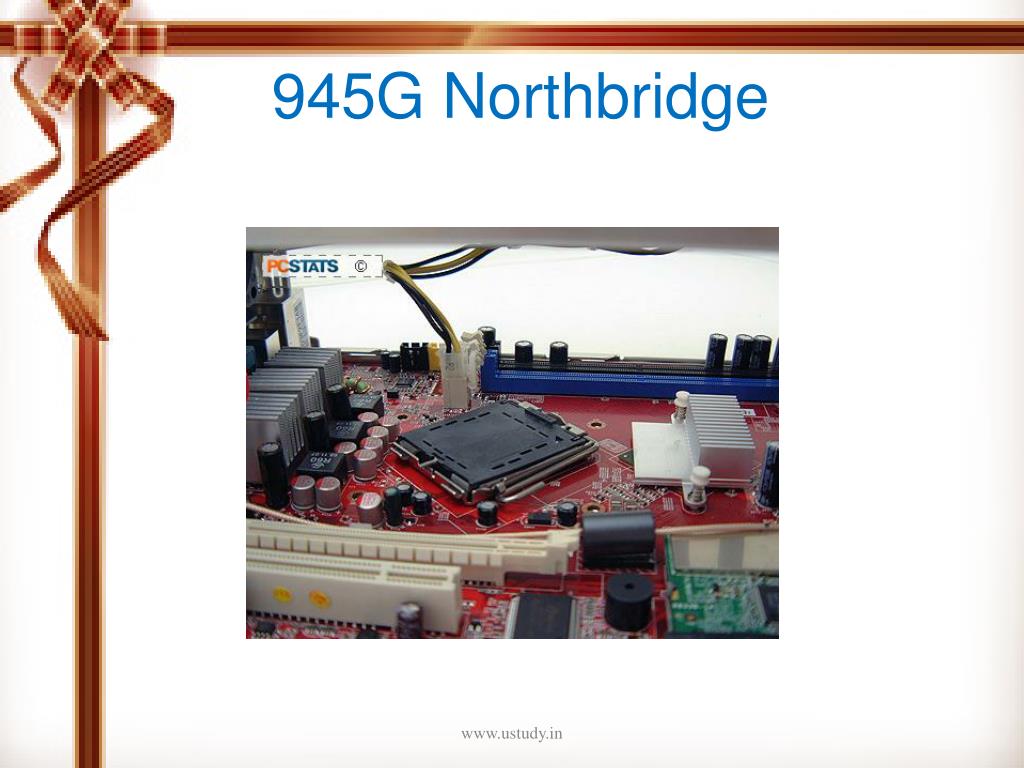

  13. 945G Northbridge www.ustudy.in

  14. 945P Northbridge • Supports Intel Celeron D, Pentium 4, Pentium 4 Extreme Edition, and Pentium Extreme Edition with 533/800/1066 MHz FSB • Dual channel DDR2-400/533/667 memory controller • Supporting up to four DIMM modules up to 4 GB • PCIEx 16 graphics interface www.ustudy.in

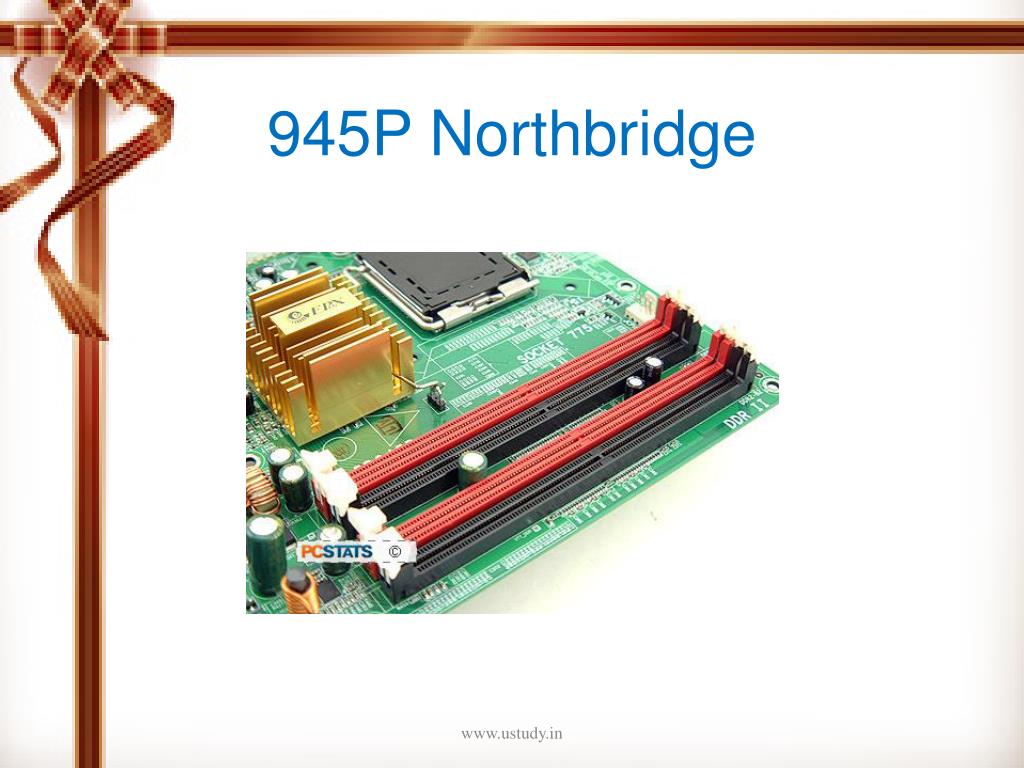

  15. 945P Northbridge www.ustudy.in

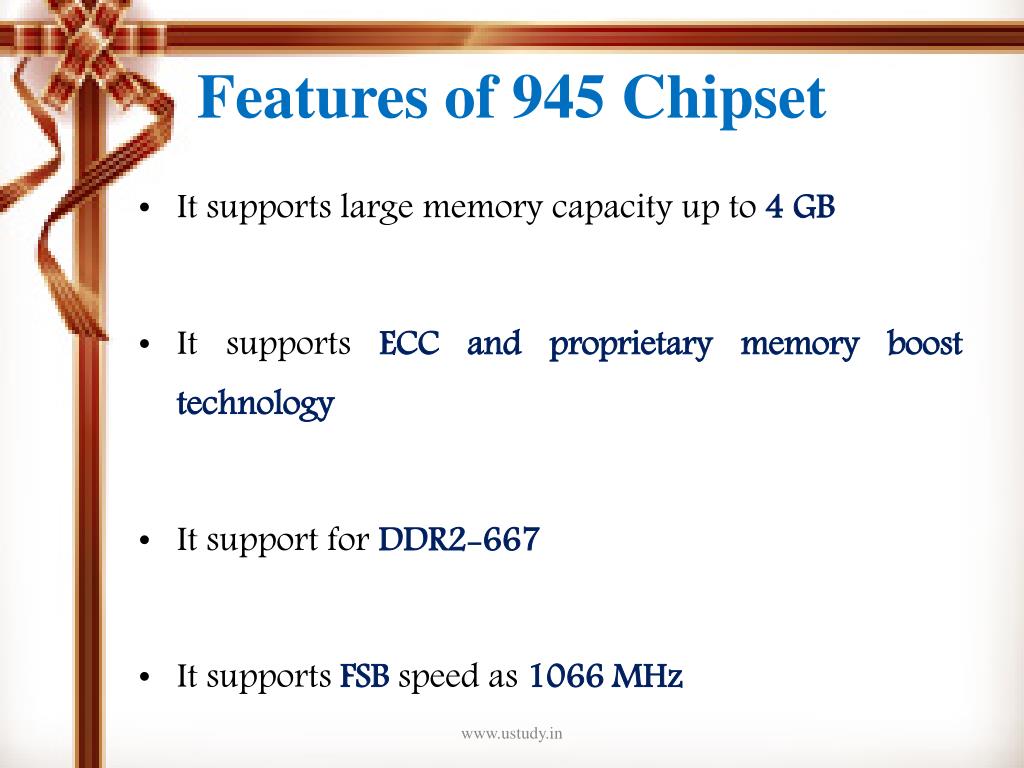

  16. Features of 945 Chipset • It supports large memory capacity up to 4 GB • It supports ECC and proprietary memory boost technology • It support for DDR2-667 • It supports FSB speed as 1066 MHz www.ustudy.in

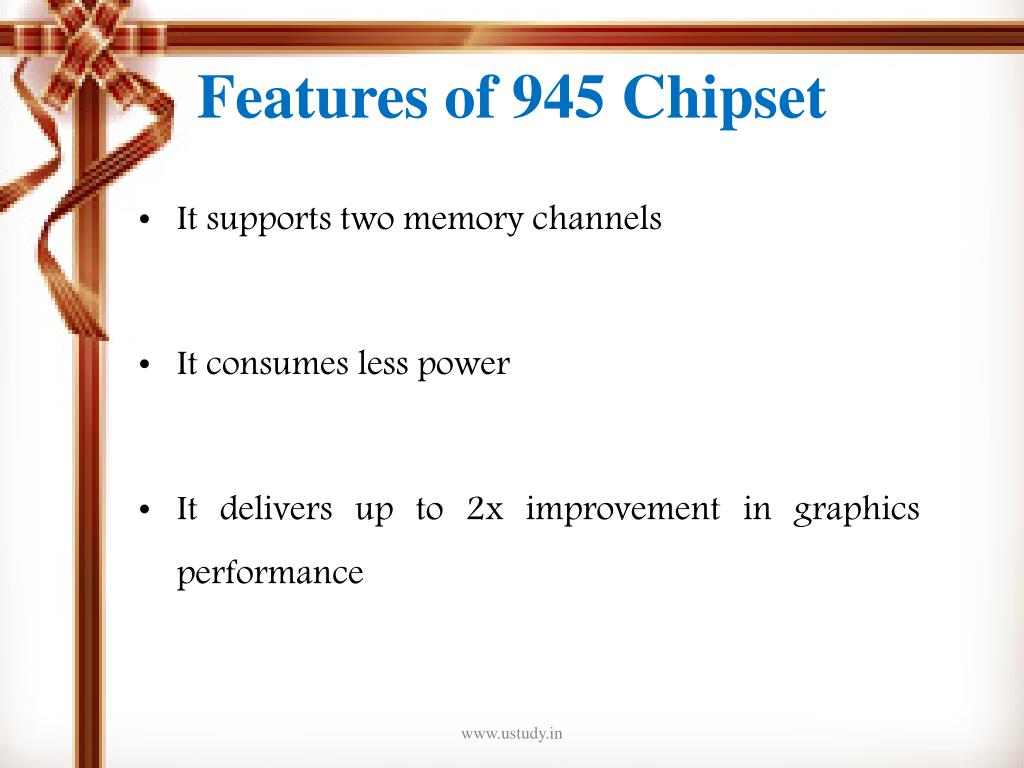

  17. Features of 945 Chipset • It supports two memory channels • It consumes less power • It delivers up to 2x improvement in graphics performance www.ustudy.in

  18. The End … Thank You… www.ustudy.in
