Covariant form of the Dirac equation

Covariant form of the Dirac equation. A μ = ( A , i φ ) , x μ = ( r , ict) and p μ = -i ħ∂/∂x μ = (-iħ ▼, -( ħ/c) ∂ /∂t) = ( p , iE/c). and γ μ = (-i β α , β ) Definition of the Dirac Matrices. Then H Ψ = i ħ∂ Ψ /∂t Equation (1)

hachi
Download Presentation

Covariant form of the Dirac equation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Covariant form of the Dirac equation Aμ = (A, iφ) , xμ = (r, ict) and pμ = -iħ∂/∂xμ = (-iħ▼, -(ħ/c) ∂ /∂t) = (p, iE/c) and γμ = (-iβα, β) Definition of the Dirac Matrices Then H Ψ = i ħ∂Ψ/∂t Equation (1) where H = βmc2 + α∙ (cp + e A) By substitution: [ (pμ + e Aμ/c)∙γμ - imc] Ψ = 0 let πμ = pμ +(e/c) AμDefinition of “Dirac Momentum” then [πμ γμ - imc] Ψ = 0 Equation (2) This is covariant! It can be reduced to the Klein-Gordon form by multiplying by [πμ γμ + imc]

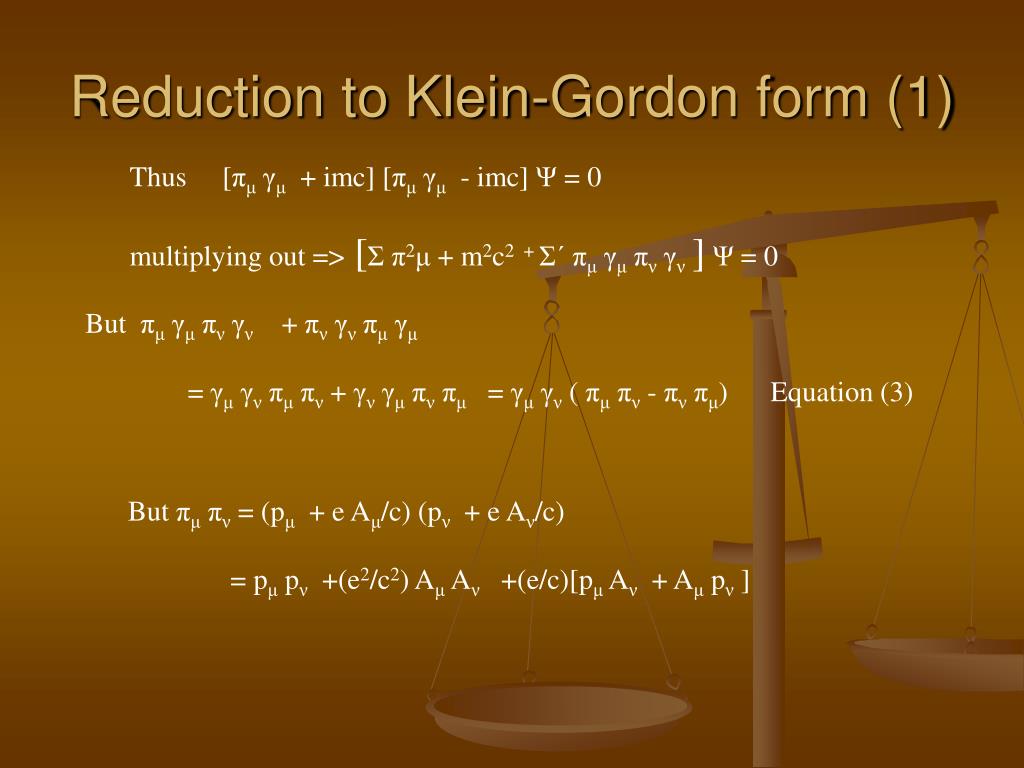

  2. Reduction to Klein-Gordon form (1) Thus [πμ γμ + imc] [πμ γμ - imc] Ψ = 0 multiplying out => [Σ π2μ + m2c2 + Σ´ πμ γμπν γν]Ψ = 0 But πμ γμπν γν + πν γνπμ γμ = γμγνπμπν+ γνγμπν πμ = γμγν ( πμ πν- πν πμ) Equation (3) But πμπν = (pμ + e Aμ/c) (pν + e Aν/c) = pμ pν +(e2/c2) AμAν +(e/c)[pμ Aν + Aμpν ]

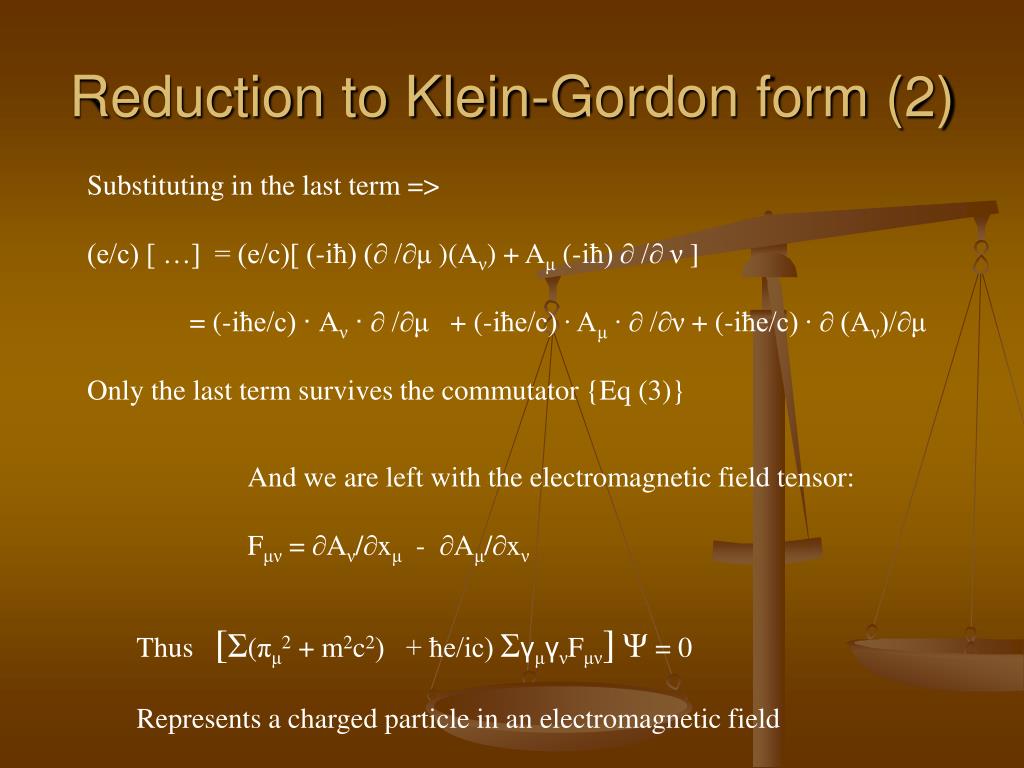

  3. Reduction to Klein-Gordon form (2) Substituting in the last term => (e/c) [ …] = (e/c)[ (-iħ) (∂ /∂μ )(Aν) + Aμ (-iħ) ∂ /∂ ν ] = (-iħe/c) ∙ Aν∙ ∂ /∂μ + (-iħe/c) ∙ Aμ ∙ ∂ /∂ν + (-iħe/c) ∙ ∂ (Aν)/∂μ Only the last term survives the commutator {Eq (3)} And we are left with the electromagnetic field tensor: Fμν = ∂Aν/∂xμ - ∂Aμ/∂xν Thus [Σ(πμ2 + m2c2) + ħe/ic) ΣγμγνFμν]Ψ = 0 Represents a charged particle in an electromagnetic field

  4. Reduction to an exact non-covariant equation • First term • πμ2 = {(pμ + (e/c) Aμ}2 • = pμ2 + (e2/c2)Aμ2 + (e/c) (Aμpμ + pμAμ) • =p2 – (E2/c2) + e2 A2/c2 + (e2/c2)(-φ2) + (2e/c) A∙ p + (2e/c)(iE/c)(i φ) Substituting operators into the first term and dividing by -2m, & including m2 term, & collecting terms, gives => (E-mc2) + eφ + (ħ2/2m)∙▼2 + 1/(2mc2) (E-mc2 + e φ )2 +ieħ/(mc) ∙ A∙▼- e2A2/(2mc2)

  5. (b) 2nd term ΣγμγνFμν∙{ħe/(2ic)} Spacelike terms: γjγj = iσi Space-time terms: γkγ4 = iαk The 4-component Pauli terms are σi = (τi 0 ) and α k = (0τk ) ( 0 τi) (τk 0 ) Note: the electromagnetic tensor terms are: spacelike Hi = Fjk ; and the time-like Fi4 = (1/i) Ei Substituting, and dividing by (-2m) => (-eħ/2mc) σ∙H + ieħ/(2mc) ∙α∙E Noting that the Bohr magneton is μ0 = eħ/(2mc), and W= (E-mc2) the whole equation becomes: [W + eφ + {ħ2/(2m)}▼2 + {1/(2mc2)}(W + eφ)2 +{ieħ/(mc)}∙A∙▼ -e2A2/(2mc2) -μ0∙σ∙H + iμ0∙α∙E]Ψ = 0

  6. Pauli Approximation The Pauli approximation leads to a similar non-covariant equation, but with only reduced 2-component matrices… Assume that W= E – mc2 is << mc2 define E0 = mc2 or | E – E0 | ≤ E0 then <v> << c and <p> <<mc Letting α = ( 0 τ ) and β = ( 1 0 ) and ( UA ) = ( ψ1 ) ( τ 0 ) ( 0 1 ) ( UB ) ( ψ2 ) ( ψ3 ) ( ψ4 ) UA & UB are each 2 component wavefunctions We can write the Dirac equation [α∙(cp + eA) + βE0 - eφ] Ψ = EΨ which becomes the 4-component equation: [ ( 0 τ) ∙ (cp + eA) + ( 1 0 ) E0 -e φ ] ( UA ) = E ( UA) [ ( τ 0 ) ( 0 -1) ] ( UB ) = ( UB) giving 2 coupled Equations for UA & UB τ·(cp +eA) UB + (E0 – eφ) UA =EUA τ·(cp +eA) UA - (E0 + eφ) UB = EUB

  7. In the second equation, we can make another approximation: E0 + E >> eφ Hence, E0 + E + e φ≈ 2E0 = 2mc2 Then UB ≈ {τ /(2mc)} ∙ ( p +eA/c) UA Now substitute in the first equation to give: [ E-E0 + e φ -(1/2m) (p + eA/c)2 ] UA = 0 This is exactly the Schrodinger equation for hydrogen – Hence Ψ1 = Ψ2, (same equation), no cross terms) and UA is the hydrogen wavefunction. Then do an iterative process…. calculate a new UB and substitute again for a new UB equation, solve etc… BUT, there is an easier way… Go back to the exact non-covariant solutions – the only term which couples the first 2 components (UA) with the second 2 components is the last term (ieħ/2mc) ( α• E ) Ψ

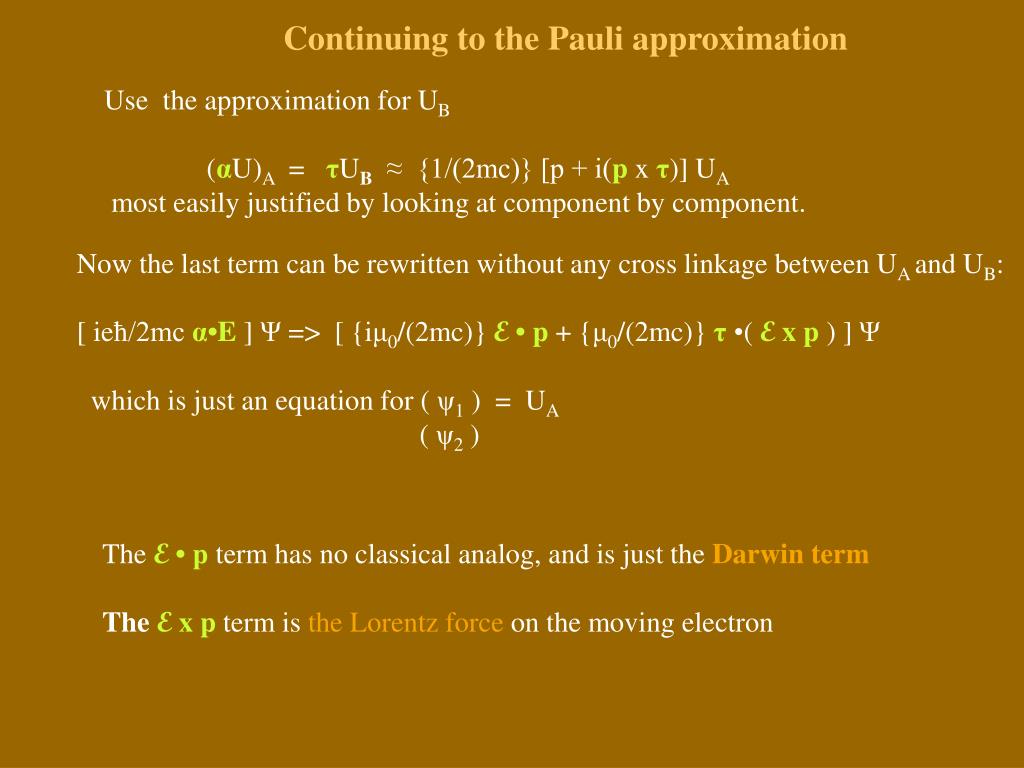

  8. Continuing to the Pauli approximation Use the approximation for UB (αU)A = τUB≈ {1/(2mc)} [p + i(p x τ)] UA most easily justified by looking at component by component. Ψ Now the last term can be rewritten without any cross linkage between UA and UB: [ ieħ/2mc α•E ] Ψ => [ {iμ0/(2mc)} E• p + {μ0/(2mc)} τ•( E x p ) ]Ψ which is just an equation for ( ψ1 ) = UA ( ψ2 ) The E • p term has no classical analog, and is just the Darwin term The E x pterm is the Lorentz force on the moving electron

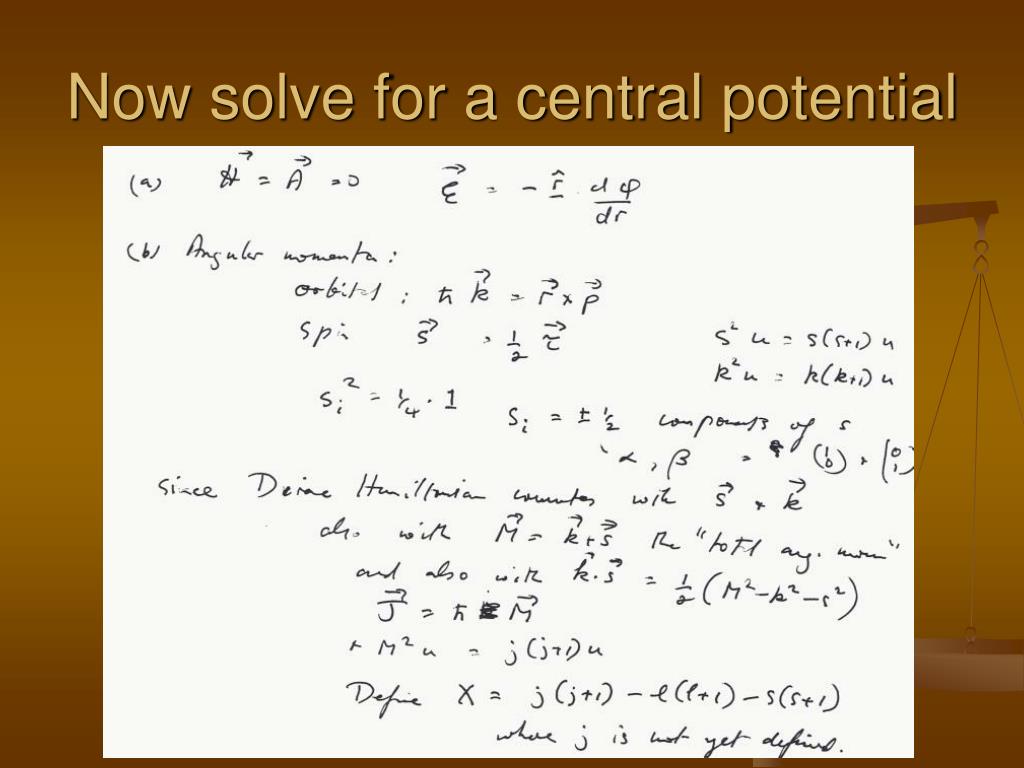

  9. Now solve for a central potential

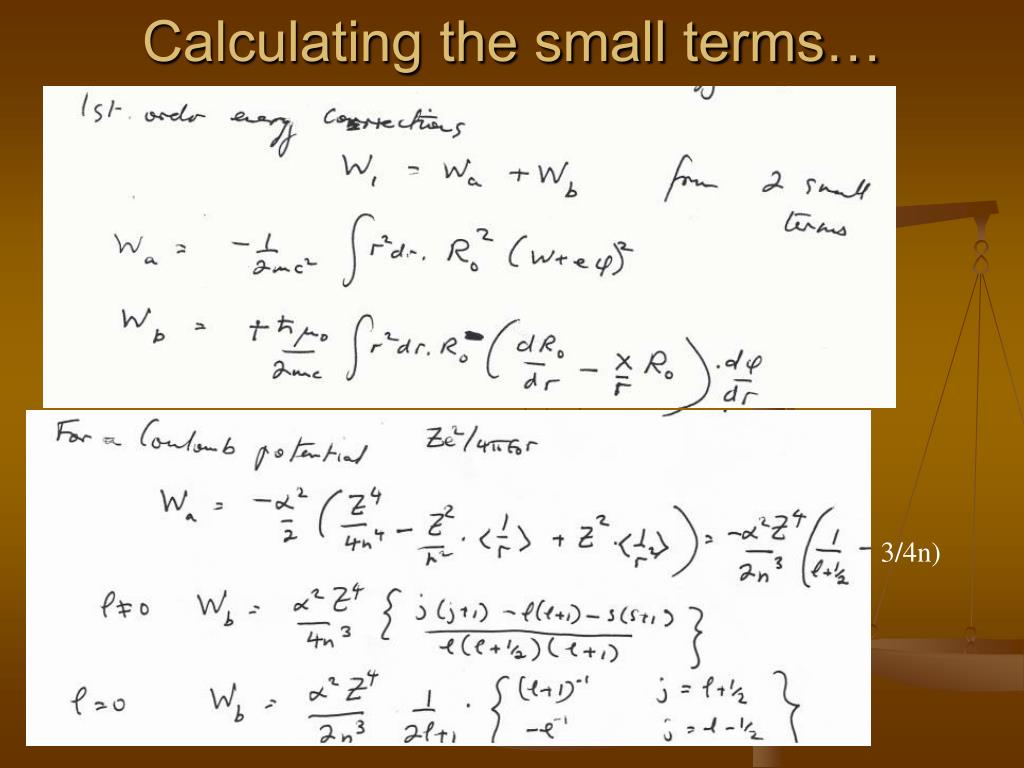

  10. Calculating the small terms… 3/4n)

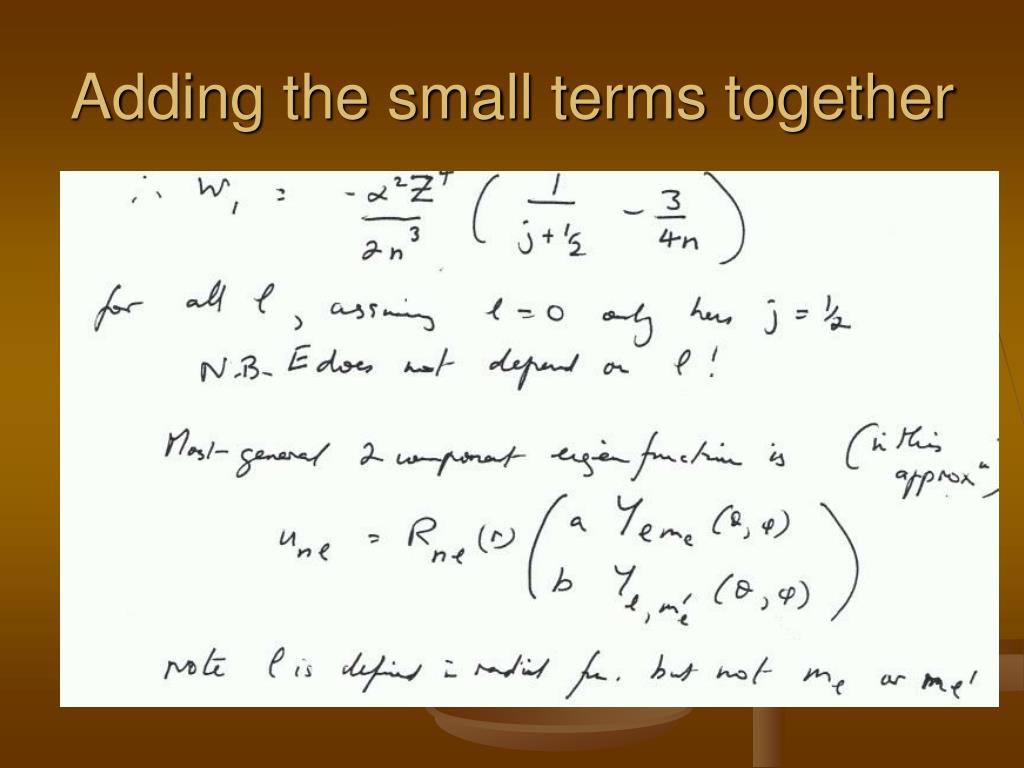

  11. Adding the small terms together

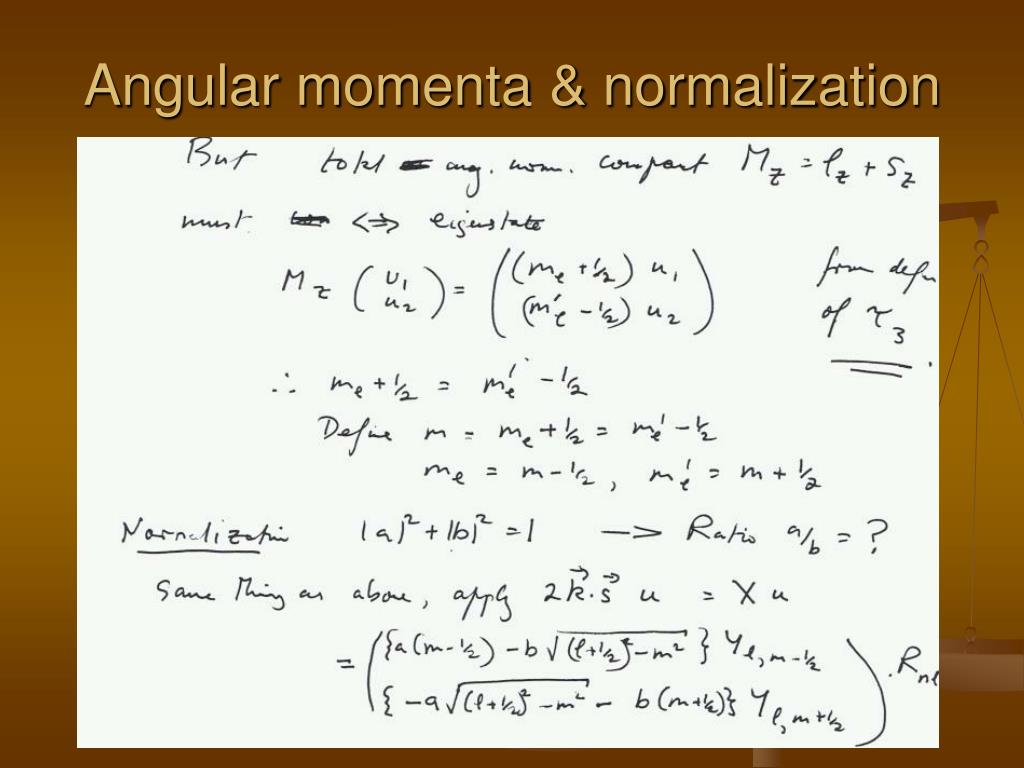

  12. Angular momenta & normalization

  13. Exact solution for the Coulomb potential case

  14. The Dirac energy Expanding this equation in powers of (αZ)2 yields the Pauli energy as the first 2 terms….

  15. On the aZ expansion for the Dirac energy of a one-electron atom L J Curtis, Department of Physics, University of Lund, S-223 62 Lund, Sweden J. Phys. B10, L641 (1977) Abstract. A procedure for directly prescribing a term of arbitrary order in an CLZ-expansion of the Dirac energy of a one-electron atom is presented, and utilised to obtain higher-order corrections to the Dirac fine-structure formula. These can then be combined with terms not included in the Dirac formalism and applied, for example, to semi-empirical charge-screening parametrisations of multi-electron atoms.

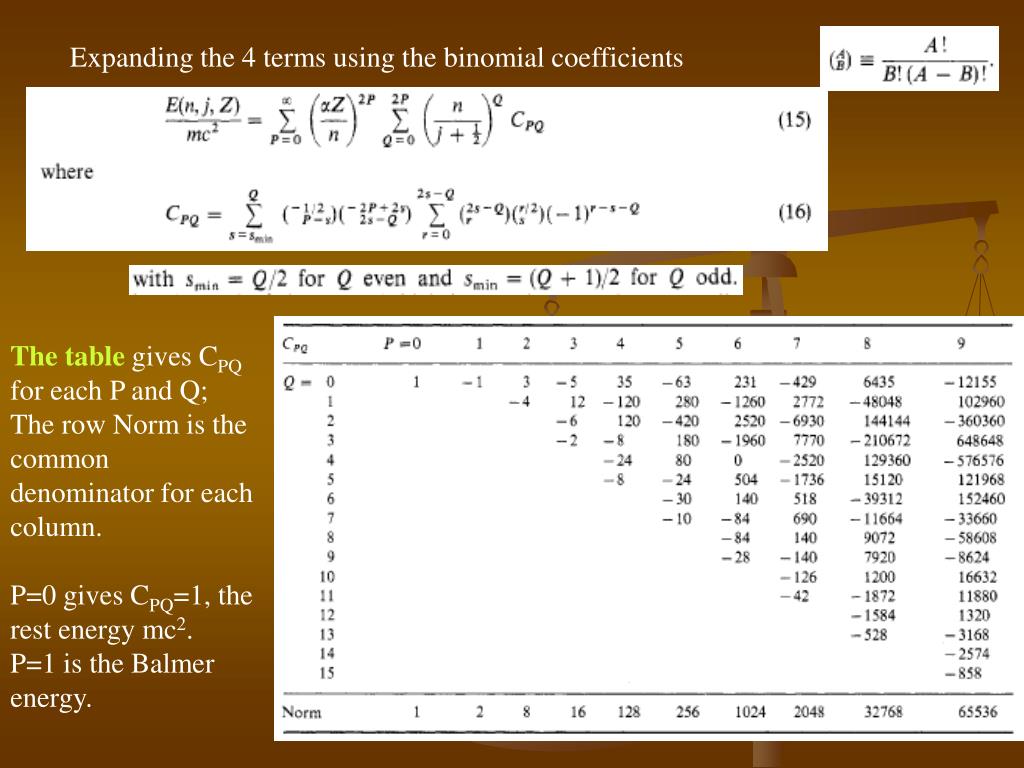

  16. Expanding the 4 terms using the binomial coefficients The table gives CPQ for each P and Q; The row Norm is the common denominator for each column. P=0 gives CPQ=1, the rest energy mc2. P=1 is the Balmer energy.

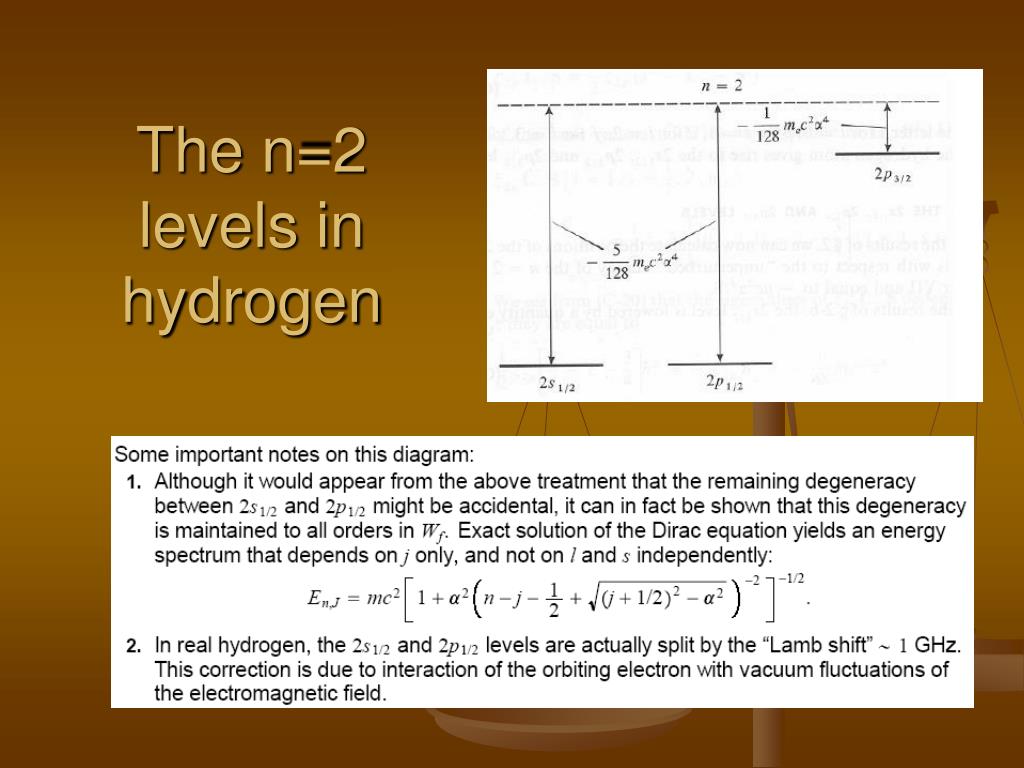

  17. The n=2 levels in hydrogen

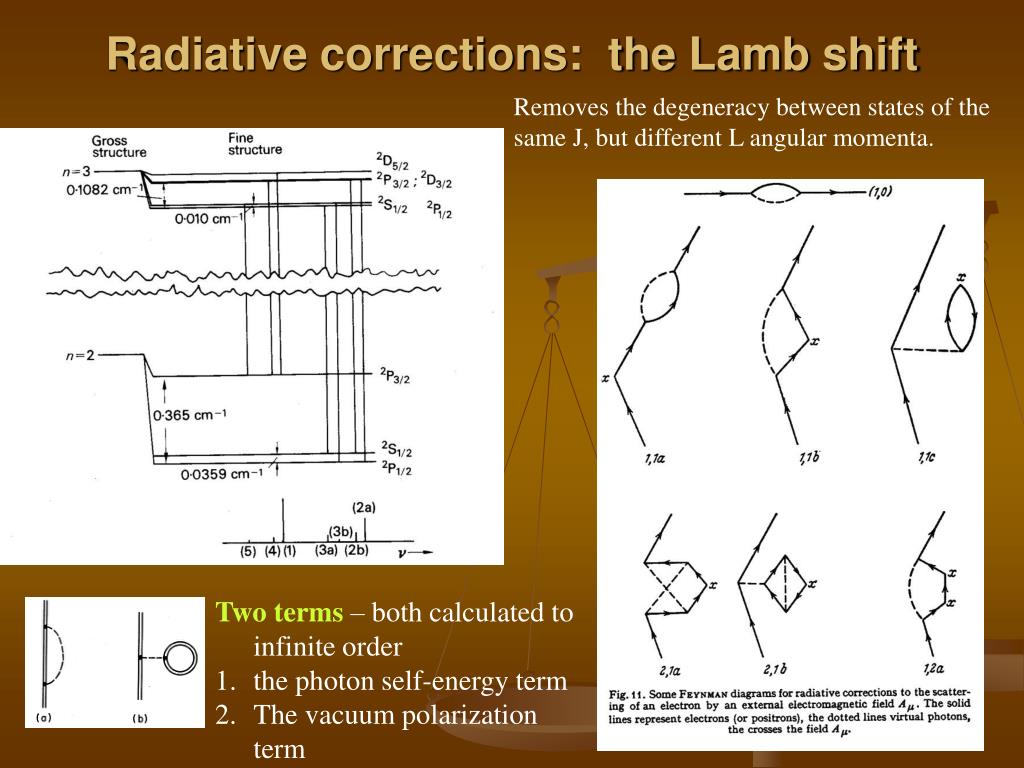

  18. Radiative corrections: the Lamb shift Removes the degeneracy between states of the same J, but different L angular momenta. • Two terms – both calculated to infinite order • the photon self-energy term • The vacuum polarization term

  19. QED - theory - short history See your QM field theory text for more details…. First calculation – 1947 - Bethe - 1 photon emission & absorption within a few percent of experiment. Precision… Feynman, Schwinger, Tomonaga – 1950s – developed calculational techniques for the higher-order diagrams – often by numerical integration Mohr - developed analytical theories to include all order diagrams of the 1-photon exchange and the pair production, plus parts of multiphoton exchange and multiple pair production… Sapirstein – continuing calculations in muonic systems, and higher-order terms – an active program. ΔE(Lamb) ~ Z4α5mc2. F(Zα)/π where F(Zα) = A40 + A41 ln(Zα)-2 + A50 + A60(Zα)2 +…{higher powers of Zα}

  20. QED - Experimental work – short history Late 1930’s – spectroscopy: Several measurements of Balmer-α suggested that the 2s1/2 and 2p1/2 levels had a different energies (10-30% precision) 1947 – microwaves – Lamb & Retherford – measured the 2s-2p difference directly to a few parts in 10,000 – ΔE=1058 MHz 1950-60s–gradual improvement in H(2s-2p), other measurements in higher Z 1-electron ions – e.g. in hydrogen: Lundeen & students (at Harvard & Notre Dame) - in hi-Z ions –use of accelerators – up to chlorine (Z=17) 1970s onwards – lasers – measurements of Lyman α – 1s-2p, later 1s-2s

  21. The Munich group’s precision measurements http://www.mpq.mpg.de/mpq.html The Hydrogen Spectrometer Hydrogen atoms are excited by longitudinal Doppler-free two photon excitation at 243 nm from a frequency doubled ultrastable dye laser at 486 nm. The UV radiation is then resonantly enhanced in a linear cavity inside a vacuum chamber . A small electric field that mixes the metastable 2S state (lifetime 1/7 sec) with the fast decaying 2P state is applied. We set an upper limit on the second order Doppler-shift below 1 kHz. Setup for exciting the 1s-2s transition • Results: • Test of QED • proton radius • Variation of fundamental constants • Phys. Rev. Lett. 92, 230802 (2004)
