  1. Motori Lineari Packaging Machines Motion Architecture • Motion Architectures Examples

  2. Motion Control System

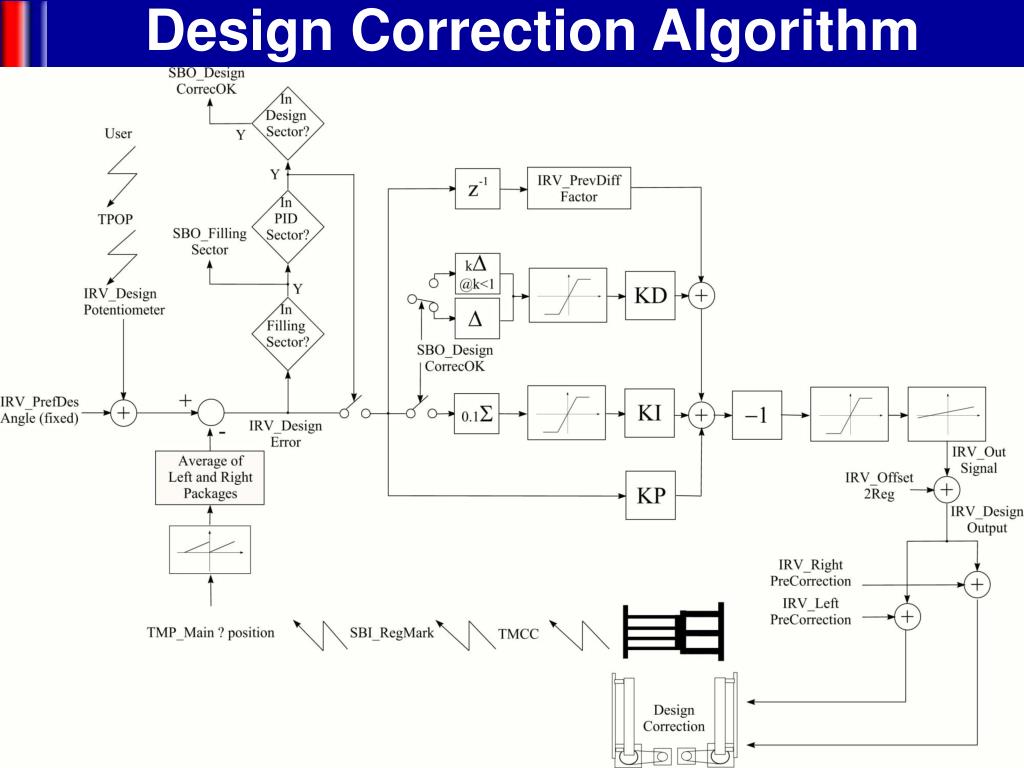

  3. Design Correction Algorithm

  4. Motion Control System Rockwell Kinetix6000

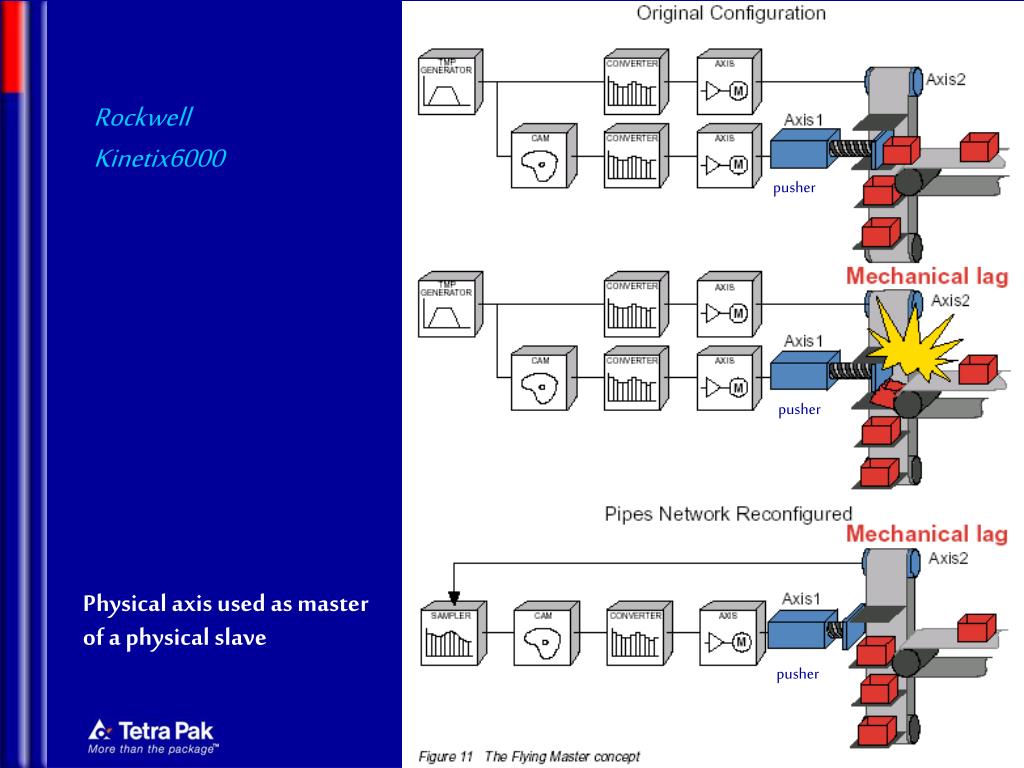

  5. pusher pusher pusher Rockwell Kinetix6000 • Physical axis used as masterof a physical slave

  6. Event • Driven • Task

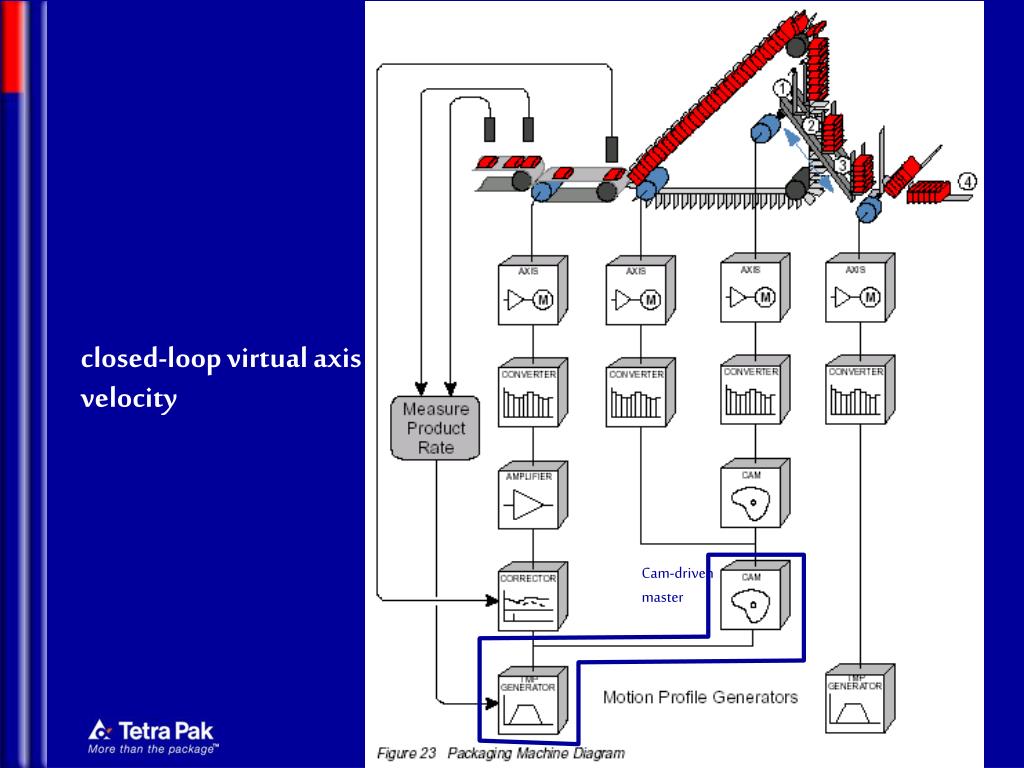

  7. Cam-driven master • closed-loop virtual axis velocity

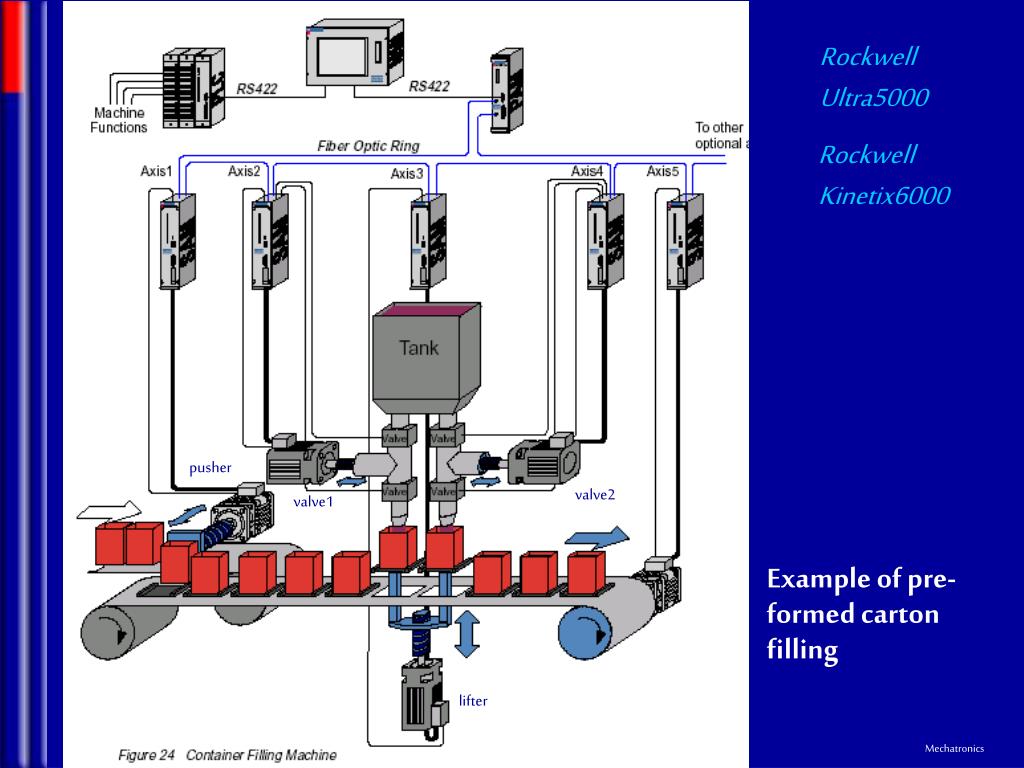

  8. pusher valve2 valve1 lifter Rockwell Ultra5000 Rockwell Kinetix6000 • Example of pre-formed carton filling

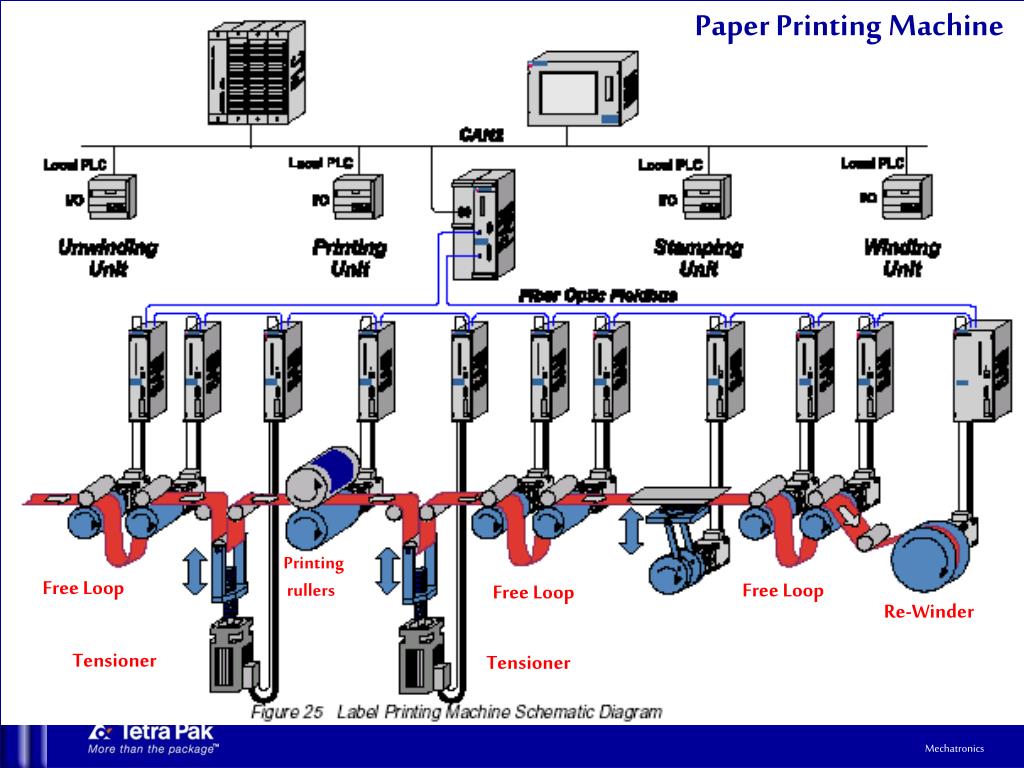

  9. Paper Printing Machine • Free Loop Printing rullers Free Loop Free Loop Re-Winder Tensioner Tensioner

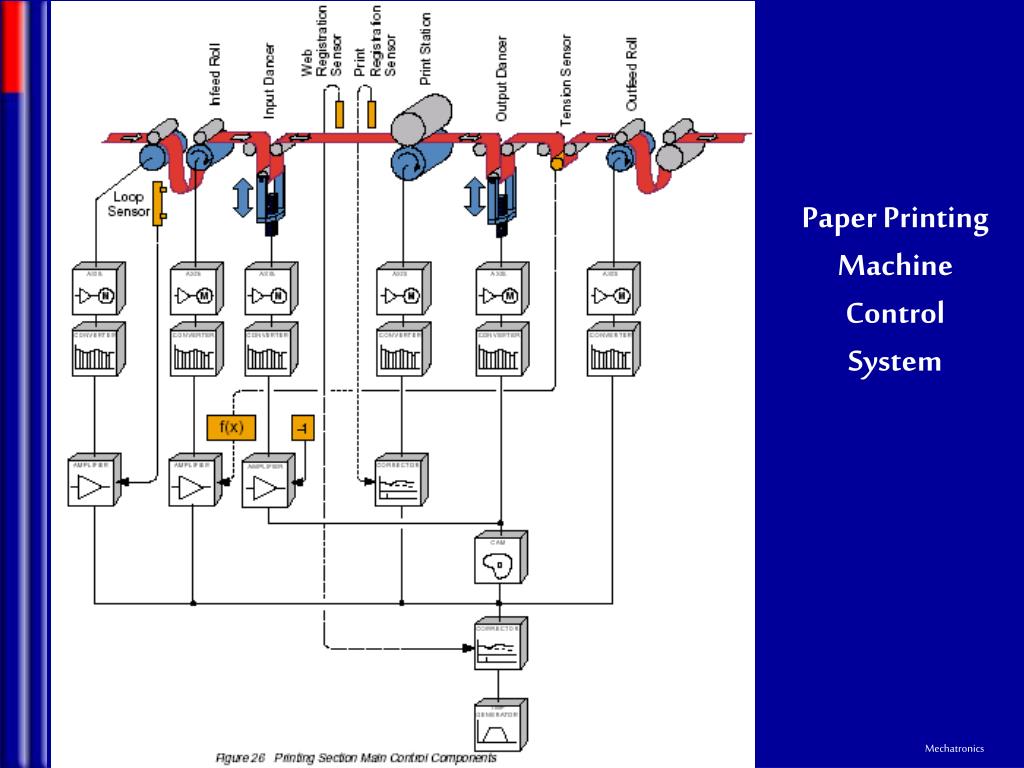

  10. Paper Printing Machine Control System
