  1. Welcome Herzlich Willkommen Bienvenue JUMO cTRON Compact Microprocessor Controller data sheet 70.2070 Klaus-Peter Müller

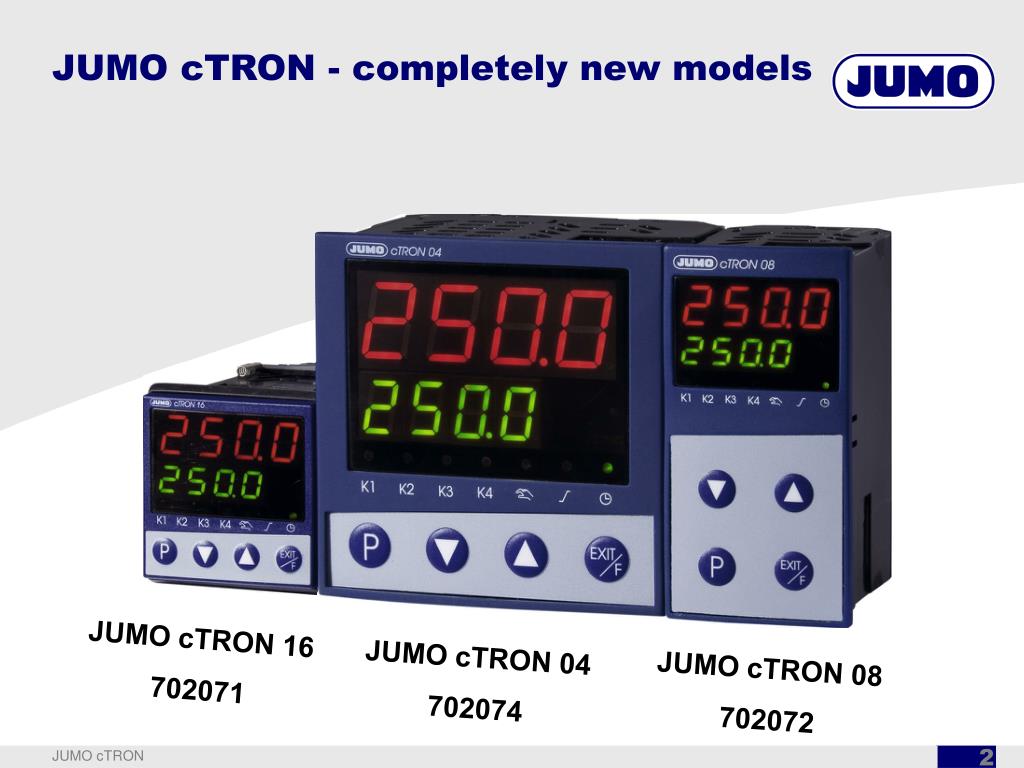

  2. JUMO cTRON - completely new models JUMO cTRON 16 702071 JUMO cTRON 04 702074 JUMO cTRON 08 702072 JUMO cTRON

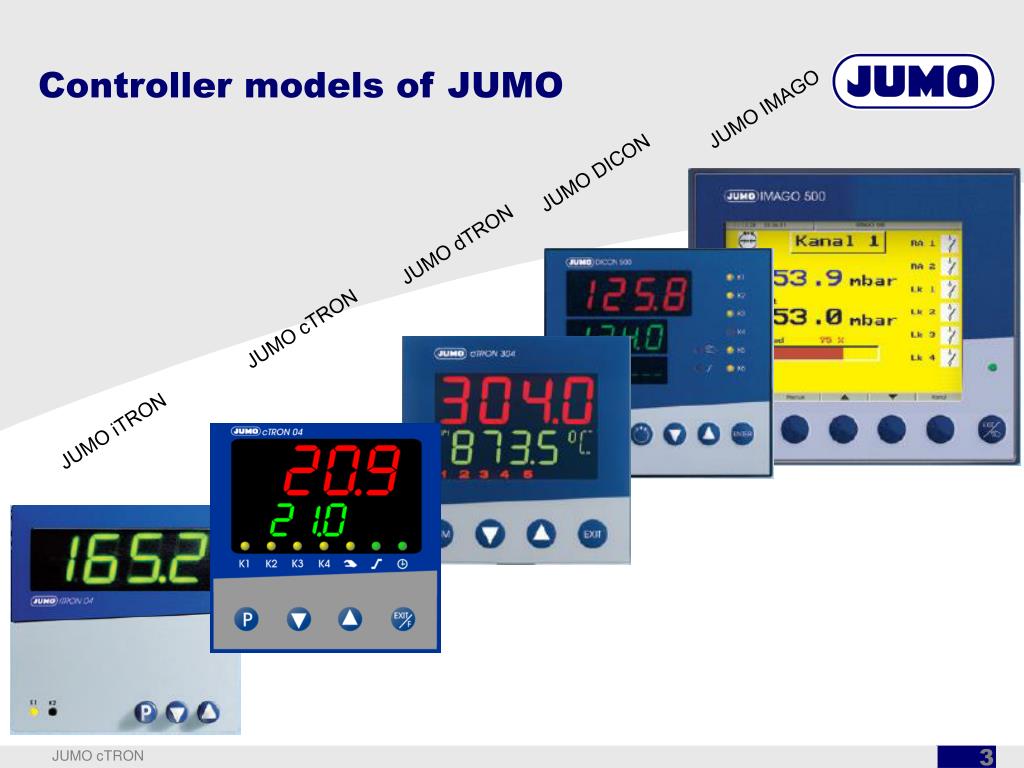

  3. JUMO cTRON Controller models of JUMO JUMO IMAGO JUMO DICON JUMO dTRON JUMO iTRON JUMO cTRON

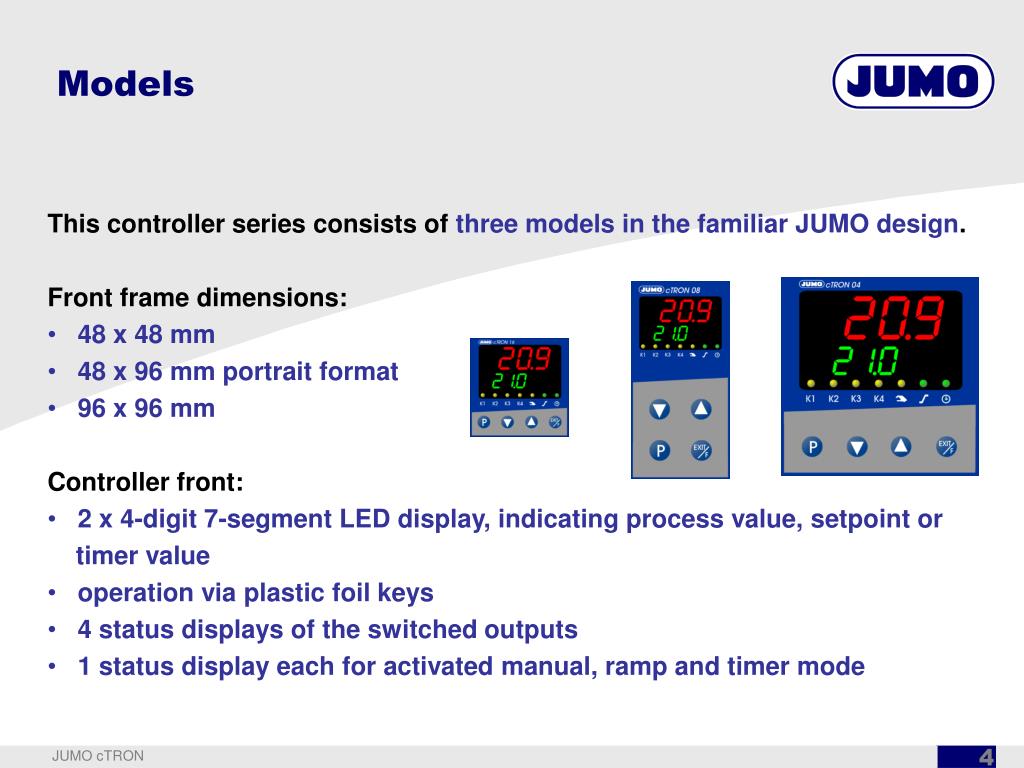

  4. Models • This controller series consists of three models in the familiar JUMO design. • Front frame dimensions: • 48 x 48 mm • 48 x 96 mm portrait format • 96 x 96 mm • Controller front: • 2 x 4-digit 7-segment LED display, indicating process value, setpoint or • timer value • operation via plastic foil keys • 4 status displays of the switched outputs • 1 status display each for activated manual, ramp and timer mode JUMO cTRON

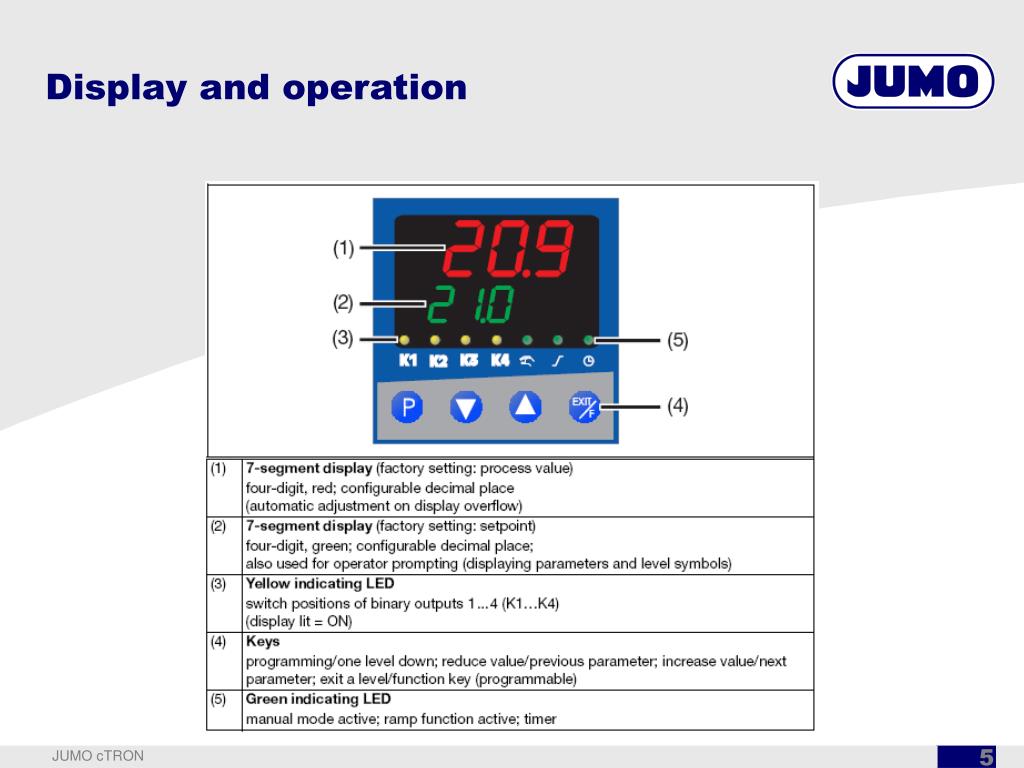

  5. Display and operation JUMO cTRON

  6. Display • The functions of both displays are freely configurable. • process value • current setpoint • ramp setpoint • output level • timer period or remaining period • Display of these measurement values with one or two decimal places. • Automatic display switching in the event of timer start. • Manual display switching via control key. JUMO cTRON

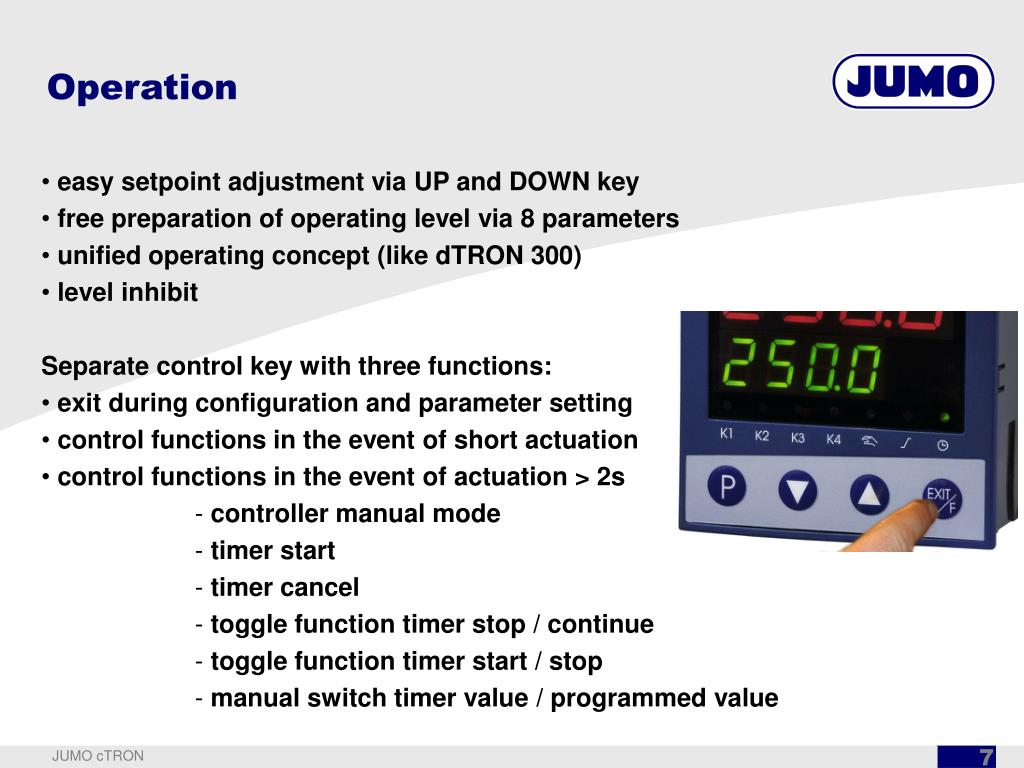

  7. Operation • easy setpoint adjustment via UP and DOWN key • free preparation of operating level via 8 parameters • unified operating concept (like dTRON 300) • level inhibit • Separate control key with three functions: • exit during configuration and parameter setting • control functions in the event of short actuation • control functions in the event of actuation > 2s • controller manual mode • timer start • timer cancel • toggle function timer stop / continue • toggle function timer start / stop • manual switch timer value / programmed value JUMO cTRON

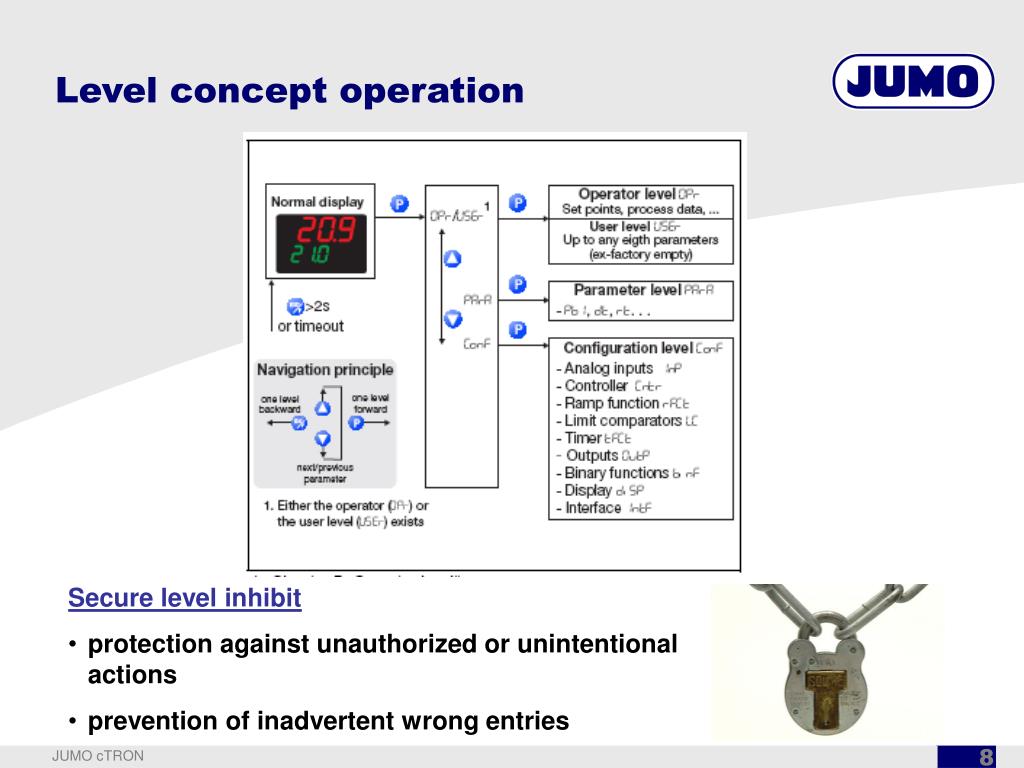

  8. Level concept operation • Secure level inhibit • protection against unauthorized or unintentional actions • prevention of inadvertent wrong entries JUMO cTRON

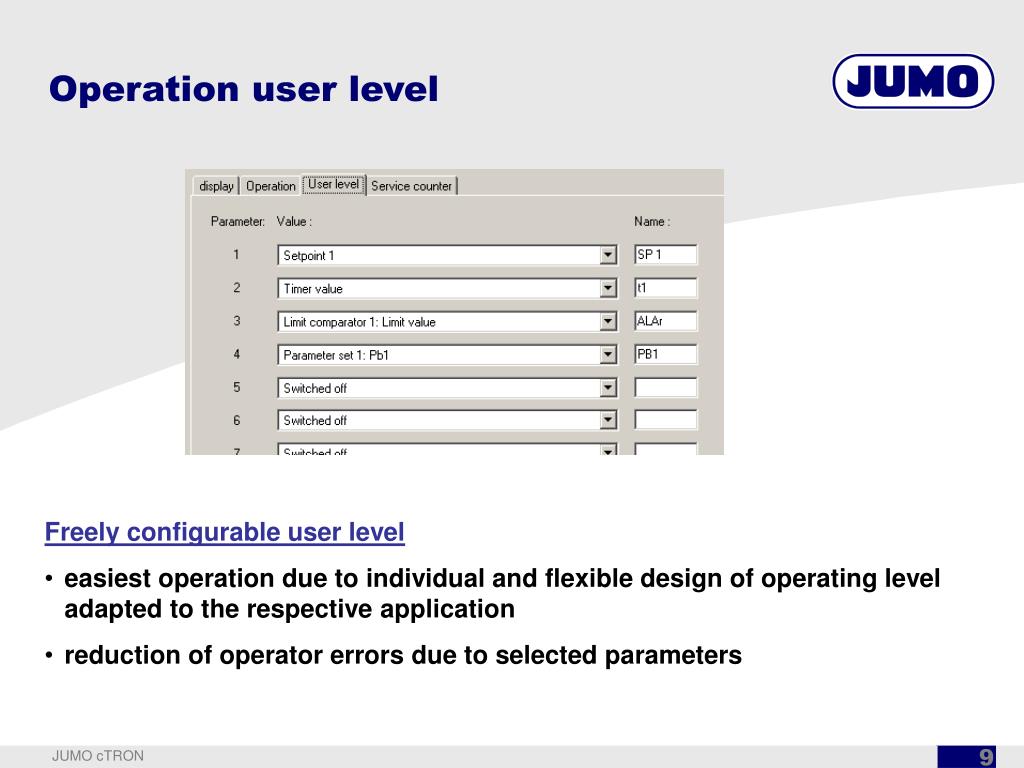

  9. Operation user level • Freely configurable user level • easiest operation due to individual and flexible design of operating level adapted to the respective application • reduction of operator errors due to selected parameters JUMO cTRON

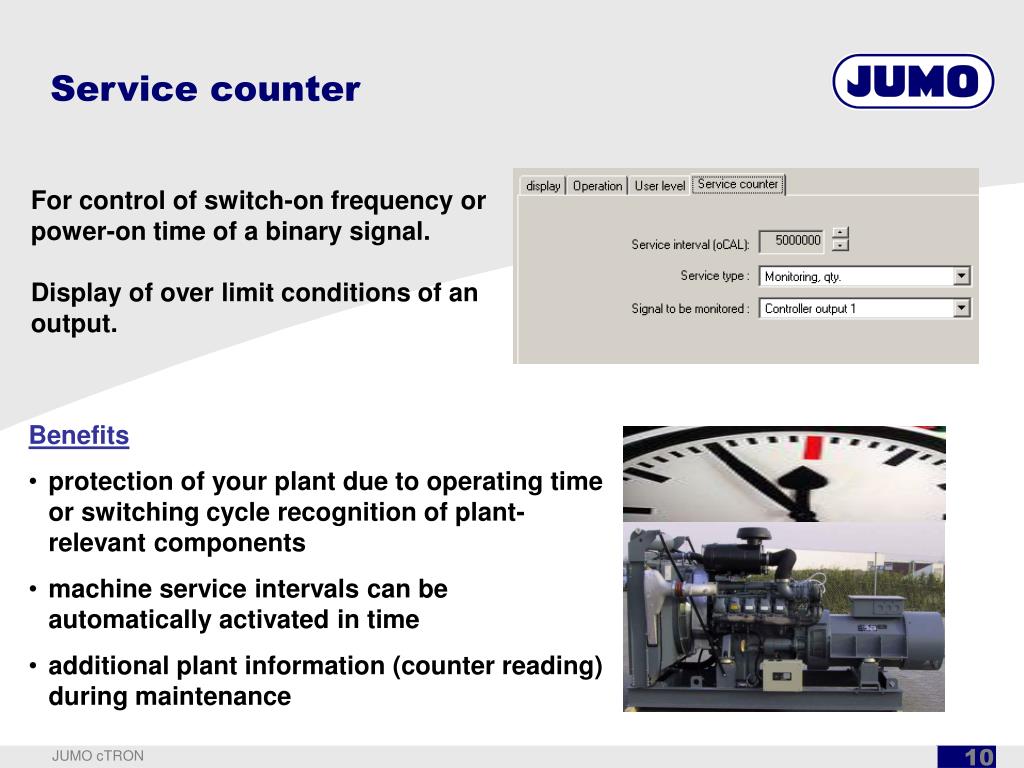

  10. Service counter For control of switch-on frequency or power-on time of a binary signal. Display of over limit conditions of an output. • Benefits • protection of your plant due to operating time or switching cycle recognition of plant-relevant components • machine service intervals can be automatically activated in time • additional plant information (counter reading) during maintenance JUMO cTRON

  11. Analog input • Inputs: • One analog input, free programming of common linearization. • display in °C or °F • free scaling of standard signals • measurement value correction • selectable filter time constant JUMO cTRON

  12. Controller Controller types Self-optimization The proven and reliable self-optimization makes it possible for the controller to be matched to the control loop by a user who is not a control technology expert. JUMO cTRON

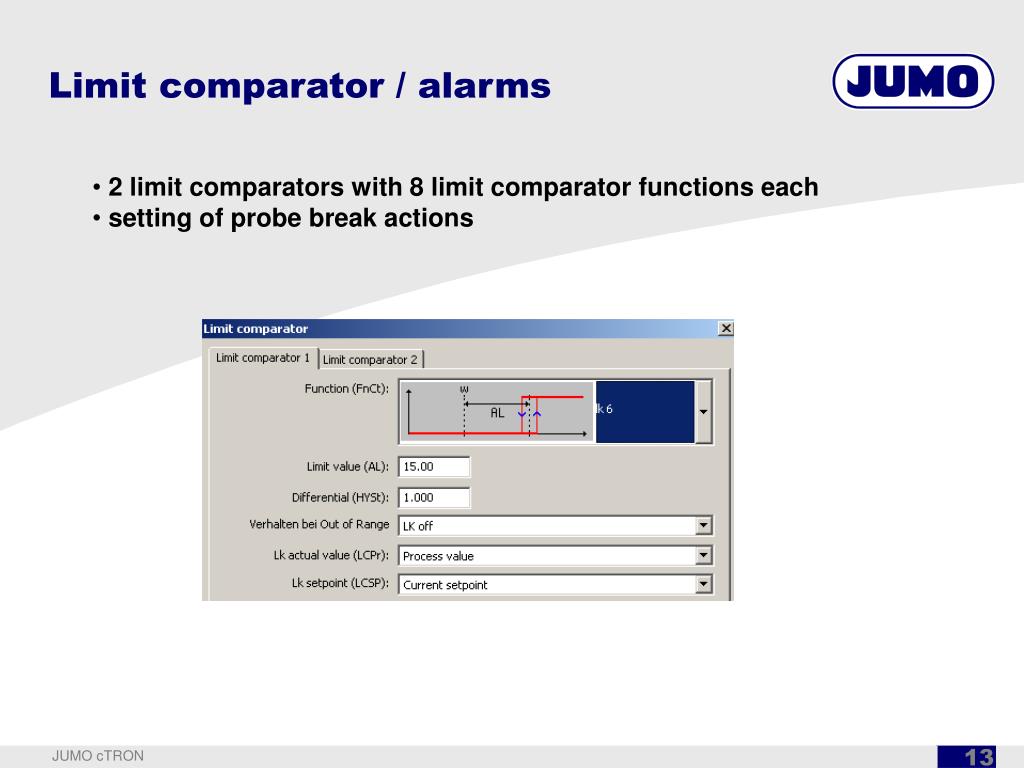

  13. Limit comparator / alarms • 2 limit comparators with 8 limit comparator functions each • setting of probe break actions JUMO cTRON

  14. Binary functions • Binary signals: • 1 binary input • 2 limit comparators • 1 timer • ramp end • tolerance band JUMO cTRON

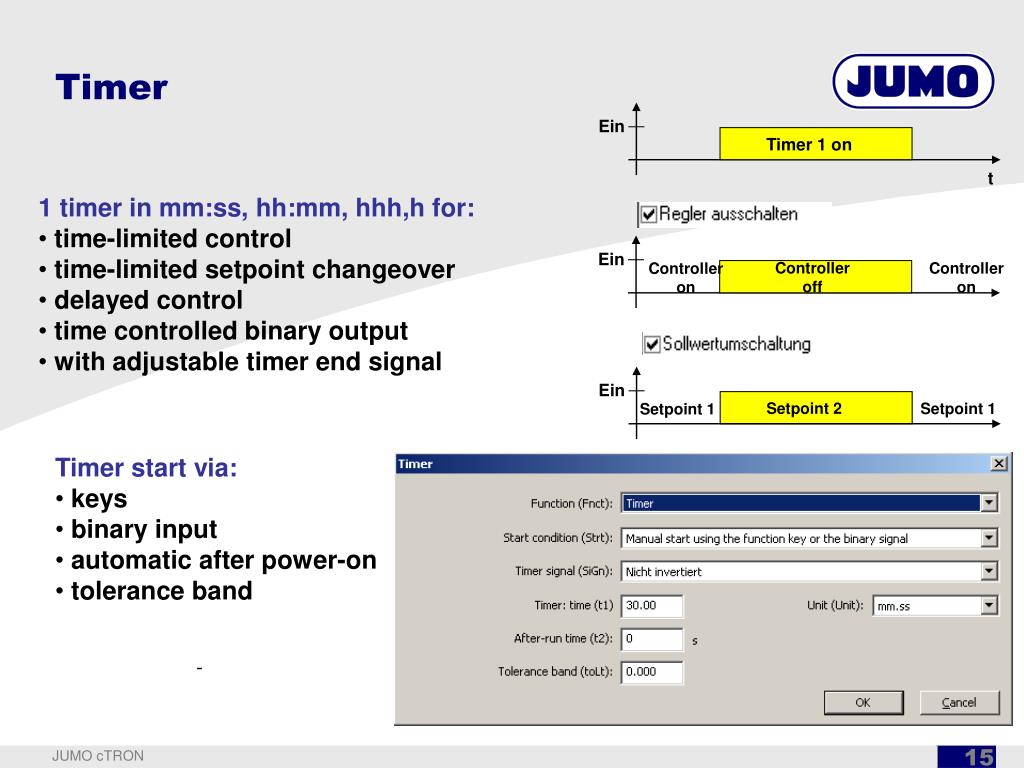

  15. Ein Controller off Controller on Controller on Ein Setpoint 2 Setpoint 1 Setpoint 1 Timer Ein Timer 1 on t • 1 timer in mm:ss, hh:mm, hhh,h for: • time-limited control • time-limited setpoint changeover • delayed control • time controlled binary output • with adjustable timer end signal • Timer start via: • keys • binary input • automatic after power-on • tolerance band JUMO cTRON

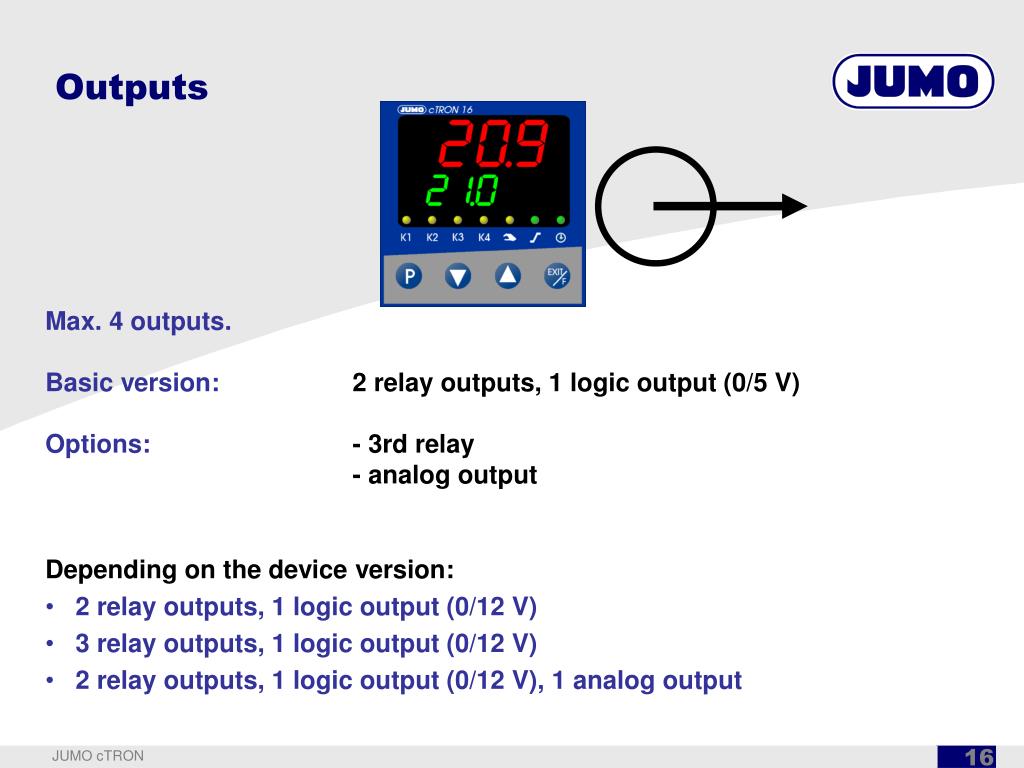

  16. Outputs • Max. 4 outputs. • Basic version: 2 relay outputs, 1 logic output (0/5 V) • Options: - 3rd relay • - analog output • Depending on the device version: • 2 relay outputs, 1 logic output (0/12 V) • 3 relay outputs, 1 logic output (0/12 V) • 2 relay outputs, 1 logic output (0/12 V), 1 analog output JUMO cTRON

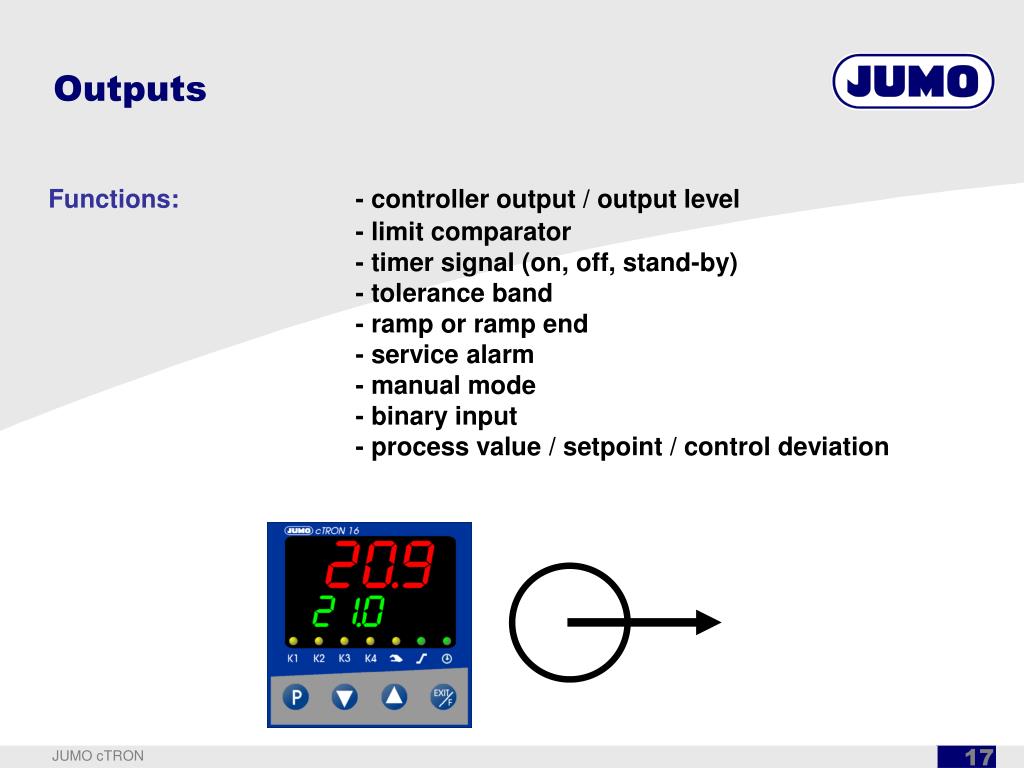

  17. Outputs Functions:- controller output / output level - limit comparator - timer signal (on, off, stand-by) - tolerance band - ramp or ramp end - service alarm - manual mode - binary input - process value / setpoint / control deviation JUMO cTRON

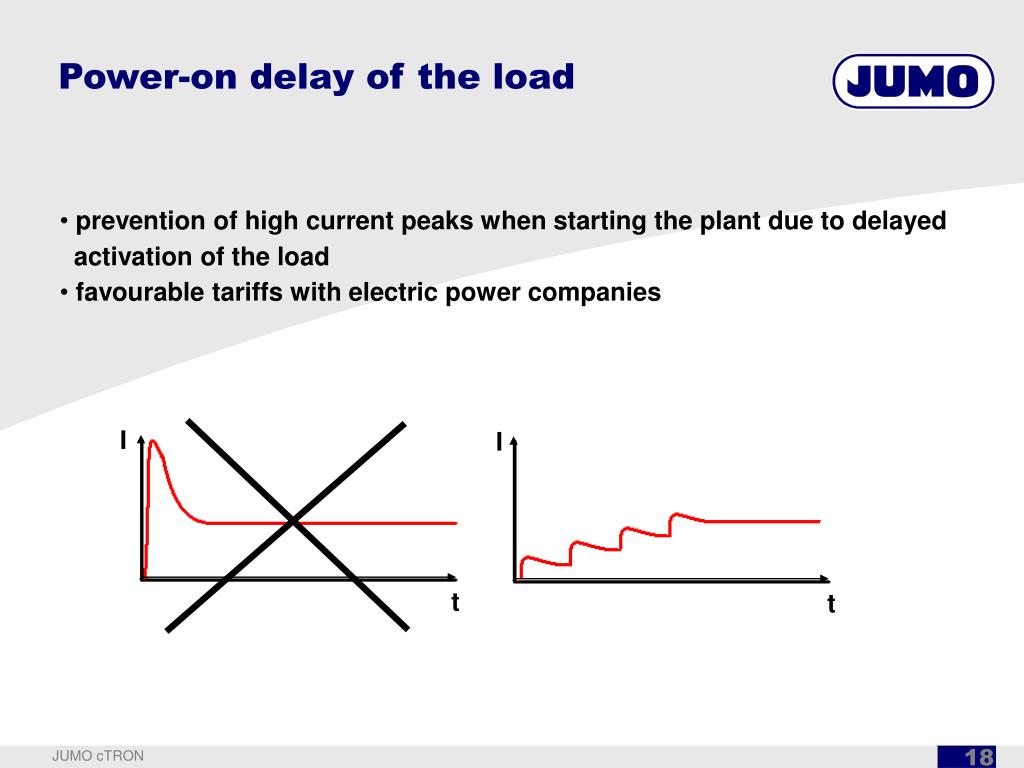

  18. I I t t Power-on delay of the load • prevention of high current peaks when starting the plant due to delayed • activation of the load • favourable tariffs with electric power companies JUMO cTRON

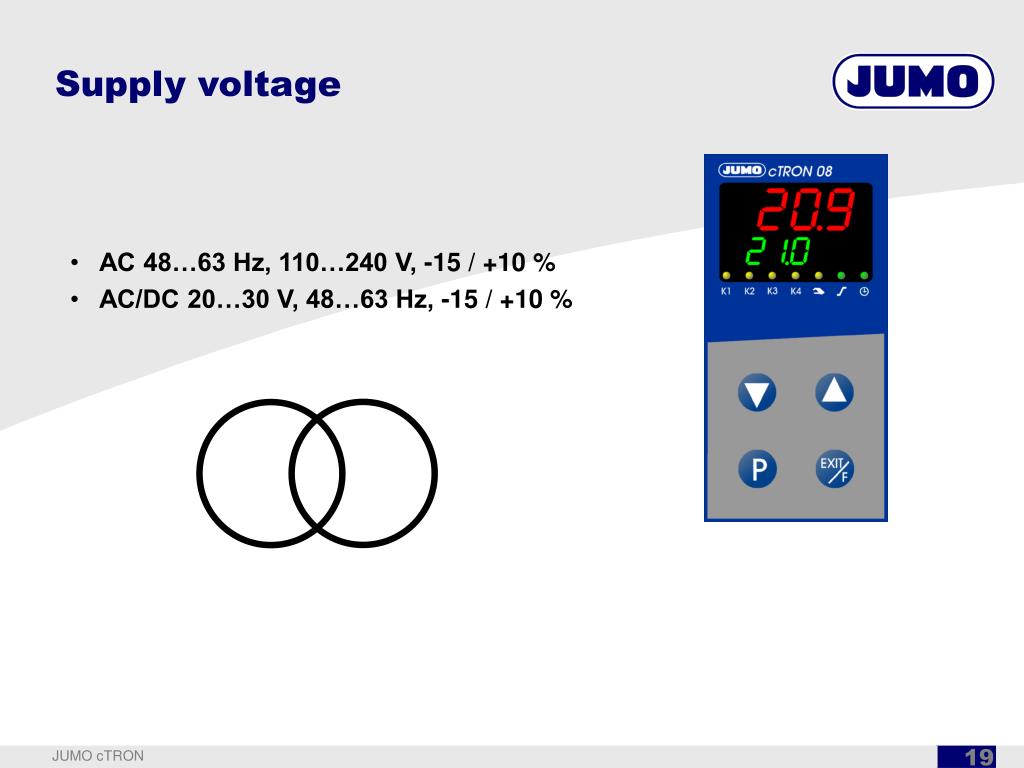

  19. Supply voltage • AC 48…63 Hz, 110…240 V, -15 / +10 % • AC/DC 20…30 V, 48…63 Hz, -15 / +10 % JUMO cTRON

  20. Interface Interface RS 485 Modbus protocol Option basic type extension 053 Interface RS 485 Modbus protocol JUMO cTRON

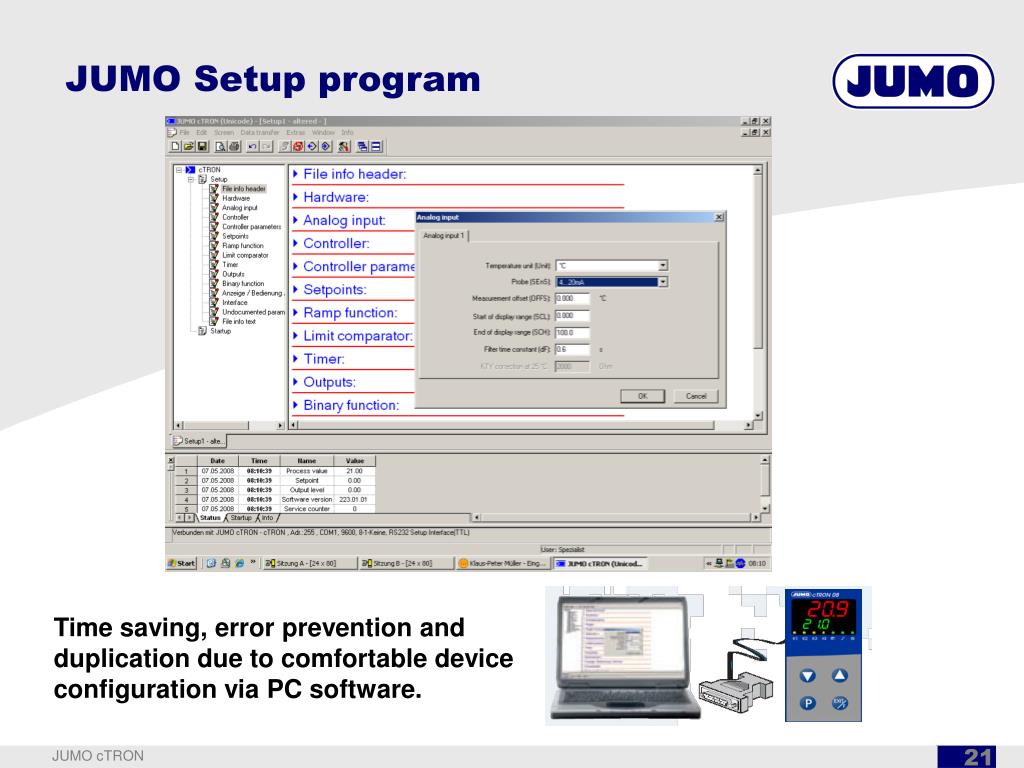

  21. JUMO Setup program Time saving, error prevention and duplication due to comfortable device configuration via PC software. JUMO cTRON

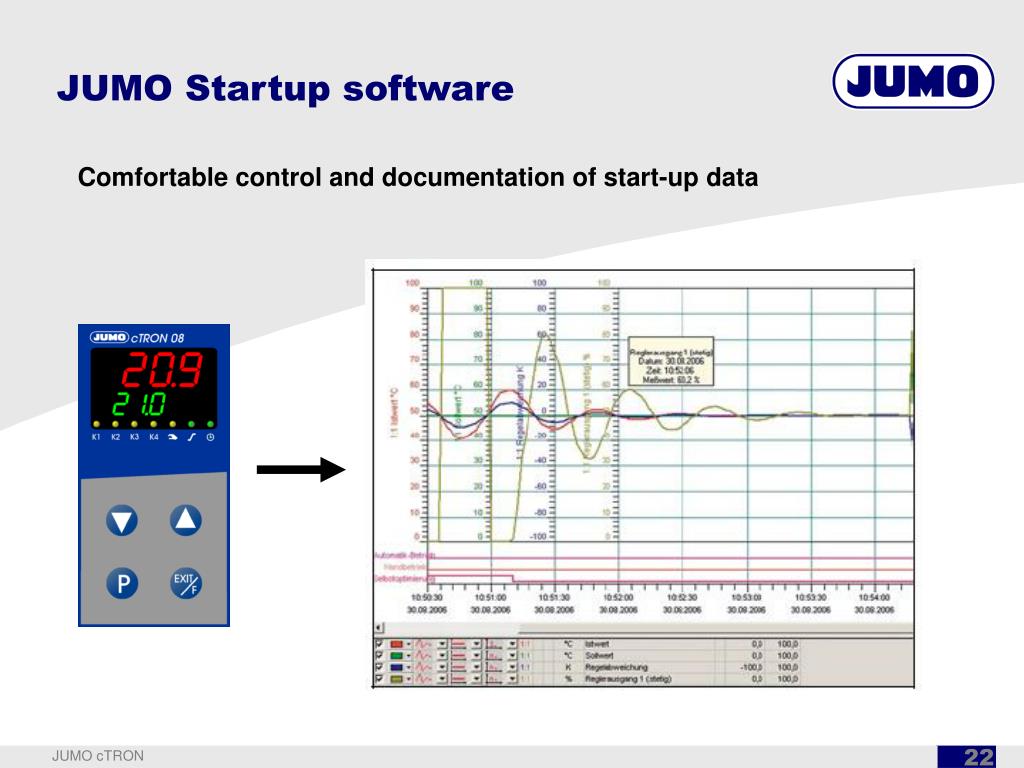

  22. JUMO Startup software Comfortable control and documentation of start-up data JUMO cTRON

  23. Features • free configuration of measurement input • programmable user level • setpoint changeover • ramp function • power-on delay of load • 2 limit comparators • timer function • configurable function key • proven self-optimization • service counter • Setup program with JUMO Startup • interface RS 485 • flashing text display as binary signal (4-digit editable) JUMO cTRON

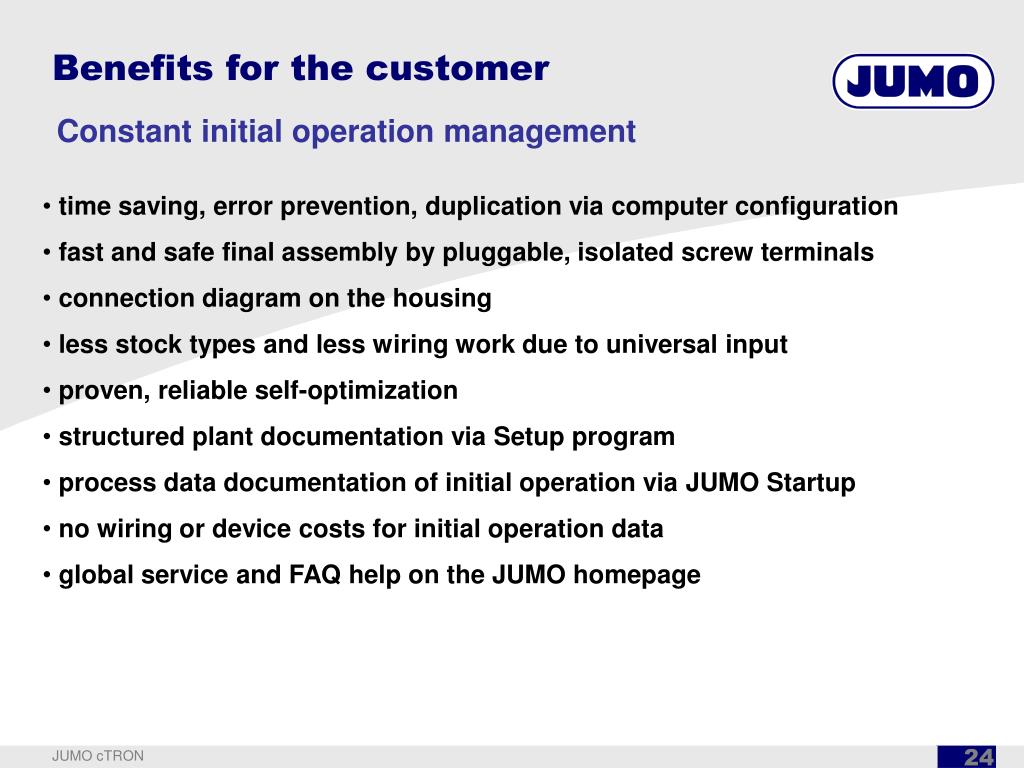

  24. Benefits for the customer Constant initial operation management • time saving, error prevention, duplication via computer configuration • fast and safe final assembly by pluggable, isolated screw terminals • connection diagram on the housing • less stock types and less wiring work due to universal input • proven, reliable self-optimization • structured plant documentation via Setup program • process data documentation of initial operation via JUMO Startup • no wiring or device costs for initial operation data • global service and FAQ help on the JUMO homepage JUMO cTRON

  25. Benefits for the customer Individual and safe process operation • freely configurable user level • -reduced parameter diversity and better flexibility • - minimization of operating errors • - universal application due to flexible customization • - less further questions due to individual text layout of parameters • - less training efforts for the end users • integrated function key • - individual and fast access to specific functions • - time and cost saving due to lacking external wiring • individual timer operation • - timer control via function key or binary input • - savings due to lacking external time relay • - less assembly efforts JUMO cTRON

  26. Benefits for the customer Individual and safe process operation • easy and well structured JUMO operation structure • - short training period for JUMO staffs and customers • - programming without precognition and without programming languages • highly luminous LED display • - reduction of reading mistakes and high clearness of display • - blinking text messages for events • - automatic switch from setpoint to timer value when starting JUMO cTRON

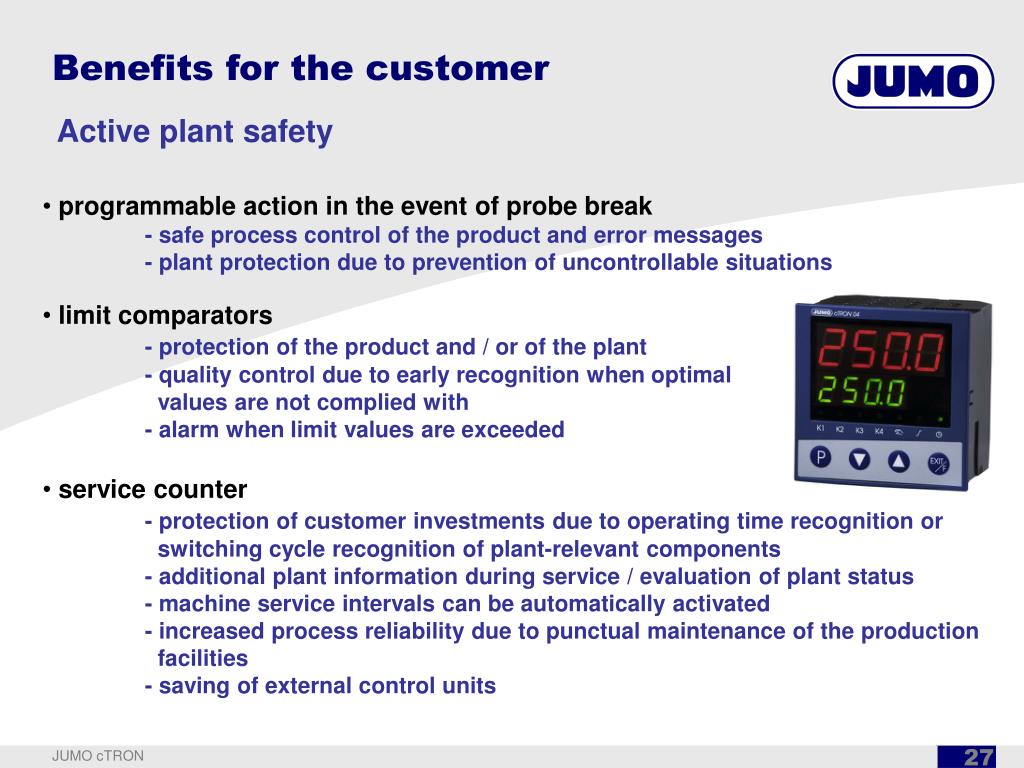

  27. Benefits for the customer Active plant safety • programmable action in the event of probe break • - safe process control of the product and error messages • - plant protection due to prevention of uncontrollable situations • limit comparators • - protection of the product and / or of the plant • - quality control due to early recognition when optimal values are not complied with • - alarm when limit values are exceeded • service counter • - protection of customer investments due to operating time recognition or switching cycle recognition of plant-relevant components • - additional plant information during service / evaluation of plant status • - machine service intervals can be automatically activated • - increased process reliability due to punctual maintenance of the production facilities • - saving of external control units JUMO cTRON

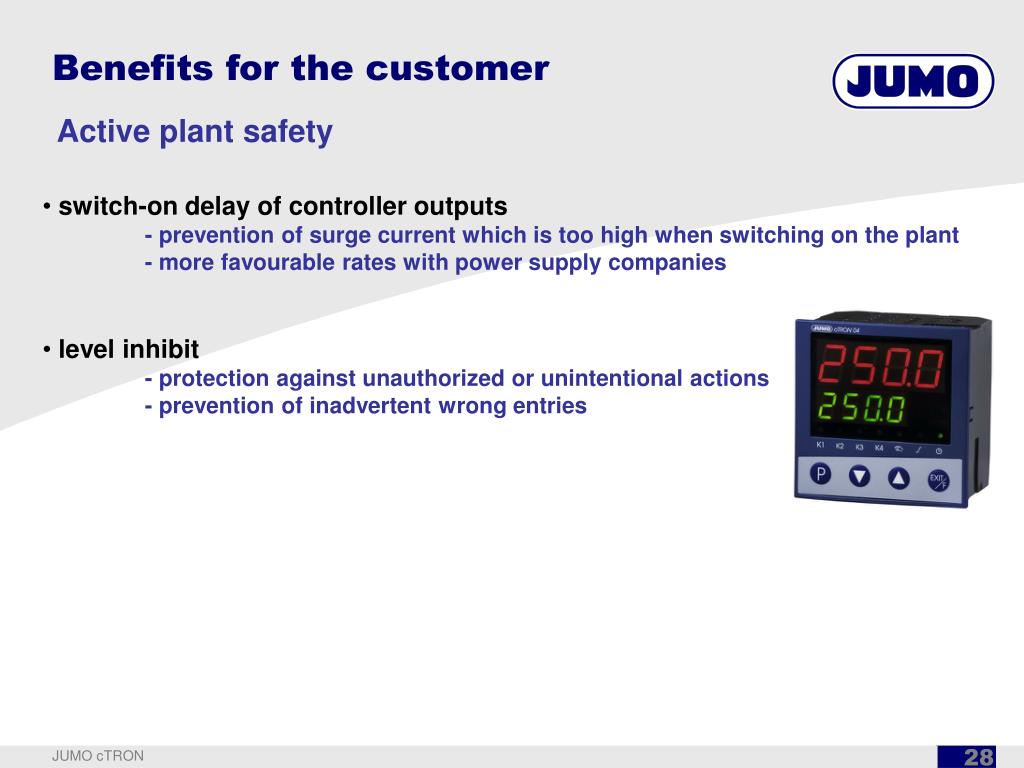

  28. Benefits for the customer Active plant safety • switch-on delay of controller outputs • - prevention of surge current which is too high when switching on the plant • - more favourable rates with power supply companies • level inhibit • - protection against unauthorized or unintentional actions • - prevention of inadvertent wrong entries JUMO cTRON

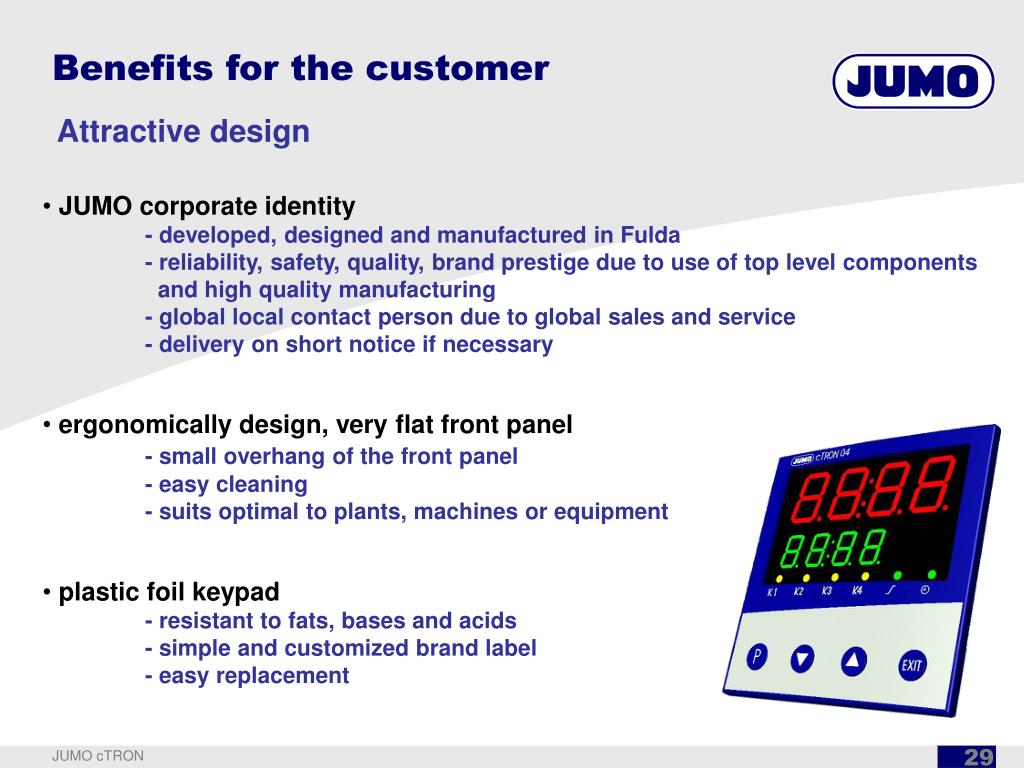

  29. Benefits for the customer Attractive design • JUMO corporate identity • - developed, designed and manufactured in Fulda • - reliability, safety, quality, brand prestige due to use of top level components • and high quality manufacturing • - global local contact person due to global sales and service • - delivery on short notice if necessary • ergonomically design, very flat front panel • - small overhang of the front panel • - easy cleaning • - suits optimal to plants, machines or equipment • plastic foil keypad • - resistant to fats, bases and acids • - simple and customized brand label • - easy replacement JUMO cTRON

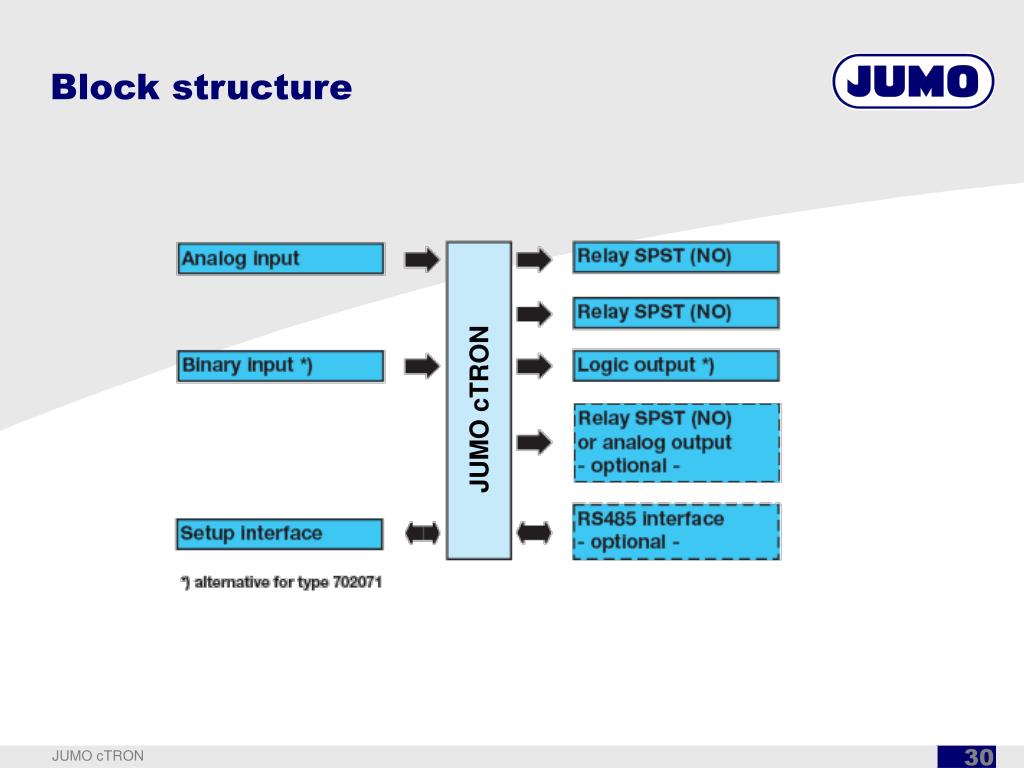

  30. Block structure JUMO cTRON JUMO cTRON

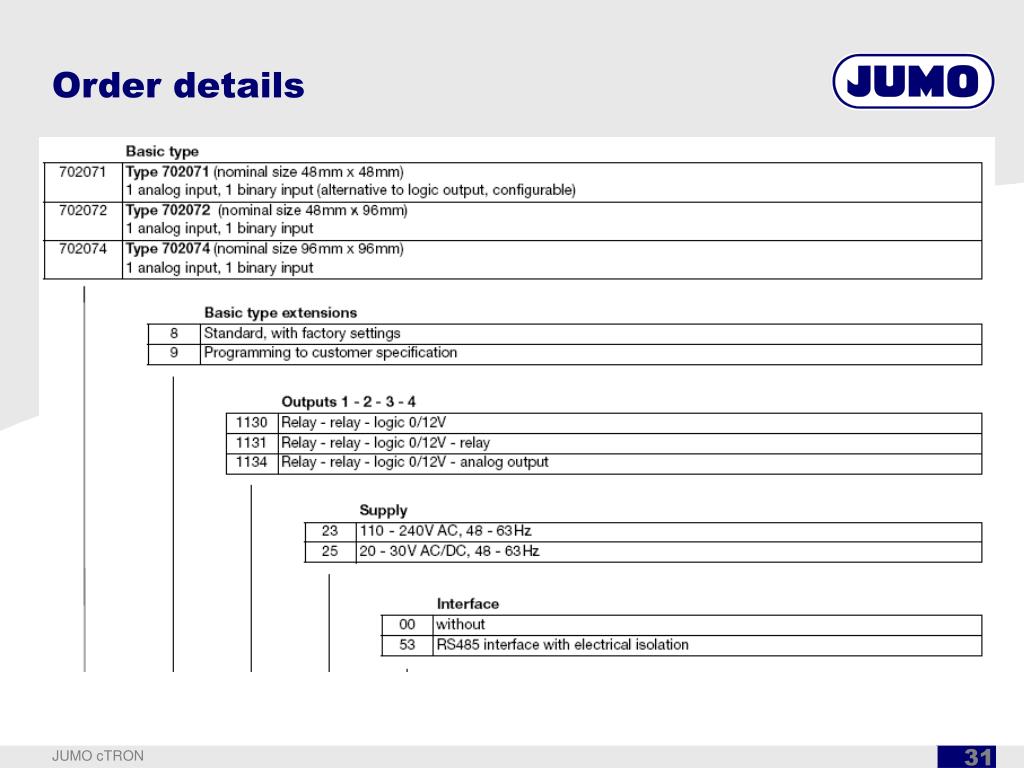

  31. Order details JUMO cTRON

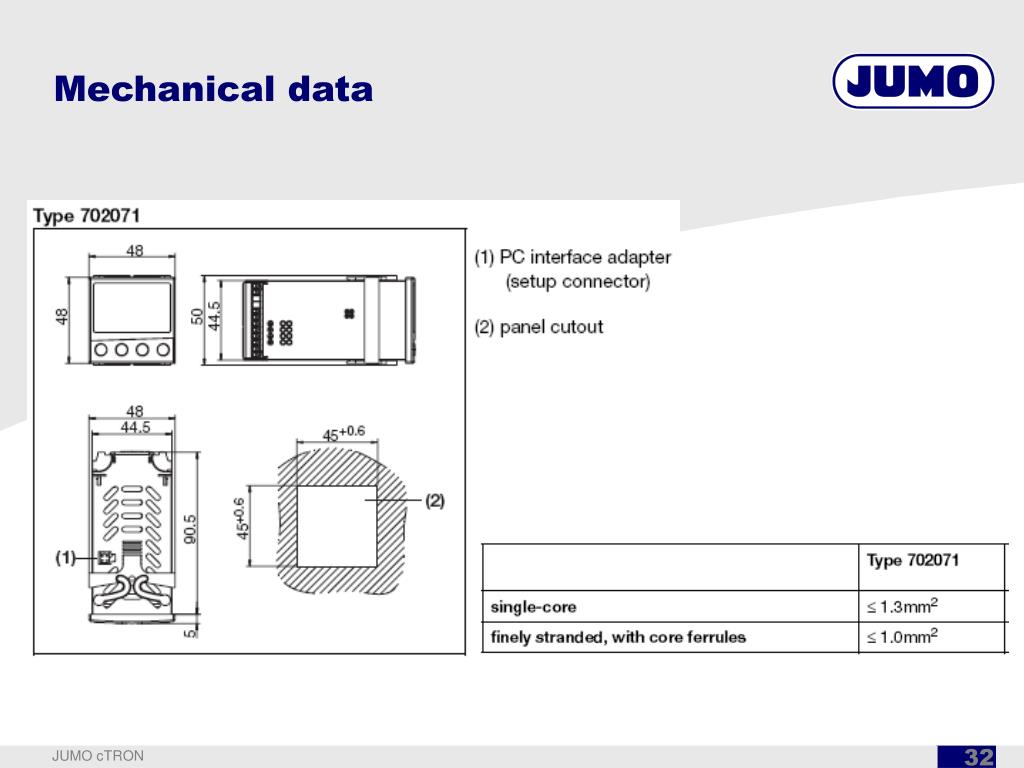

  32. Mechanical data JUMO cTRON

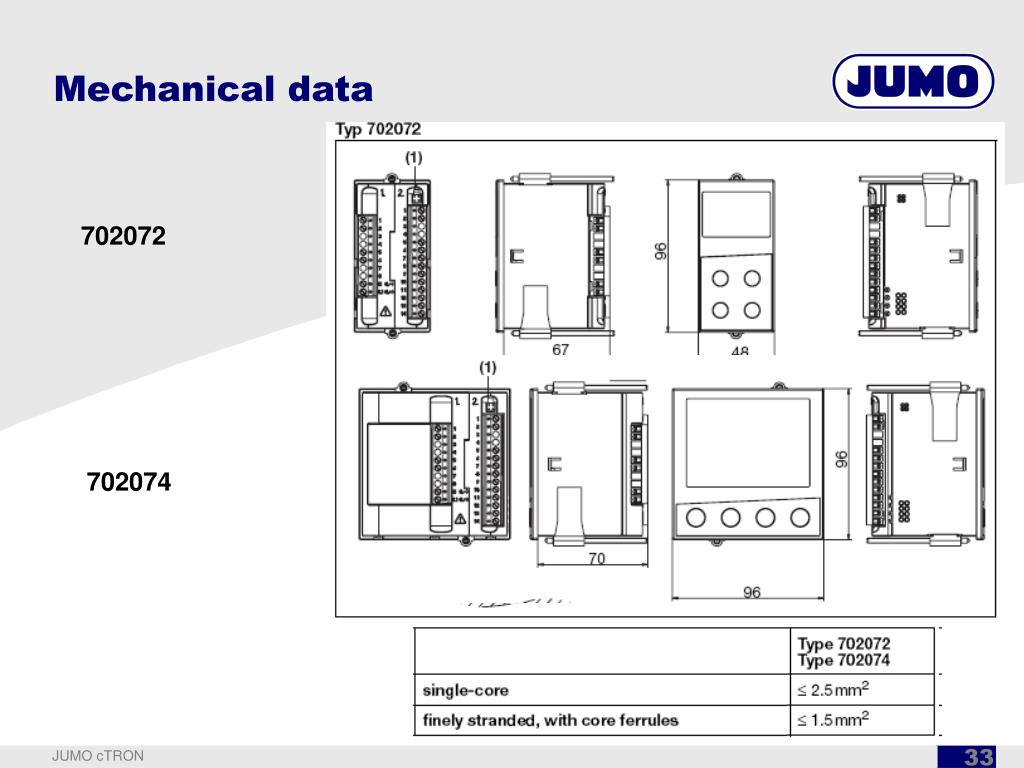

  33. Mechanical data 702072 702074 JUMO cTRON

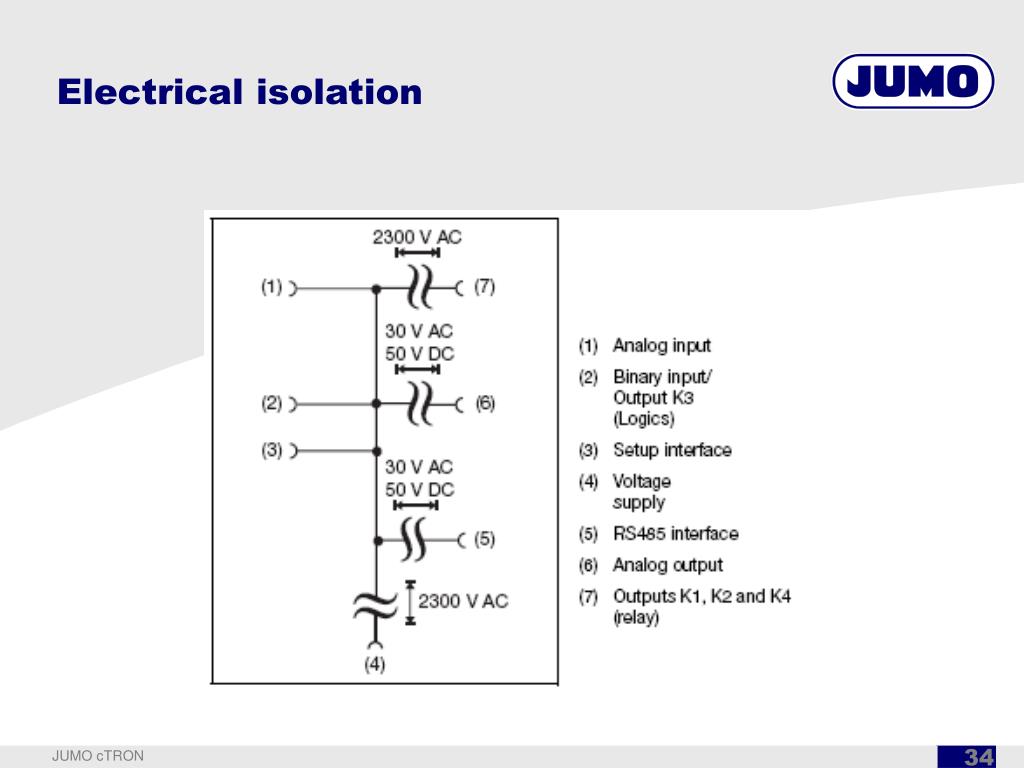

  34. Electrical isolation JUMO cTRON

  35. Connection diagram 702071 JUMO cTRON

  36. Connection diagram 702072 / 74 JUMO cTRON

  37. Thank you very much for your attention!
