CEE 3224: TRANSPORTATION DESIGN;. A SHOPPING MALL DEVELOPMENT. Project Description. For CEE 3224, Transportation Facilities Design, our students spent six weeks creating designs for functional areas of driveways and the adjoining intersection for an anonymous shopping mall development.

hamish
Download Presentation

CEE 3224: TRANSPORTATION DESIGN;

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. CEE 3224: TRANSPORTATIONDESIGN;

  2. A SHOPPING MALLDEVELOPMENT

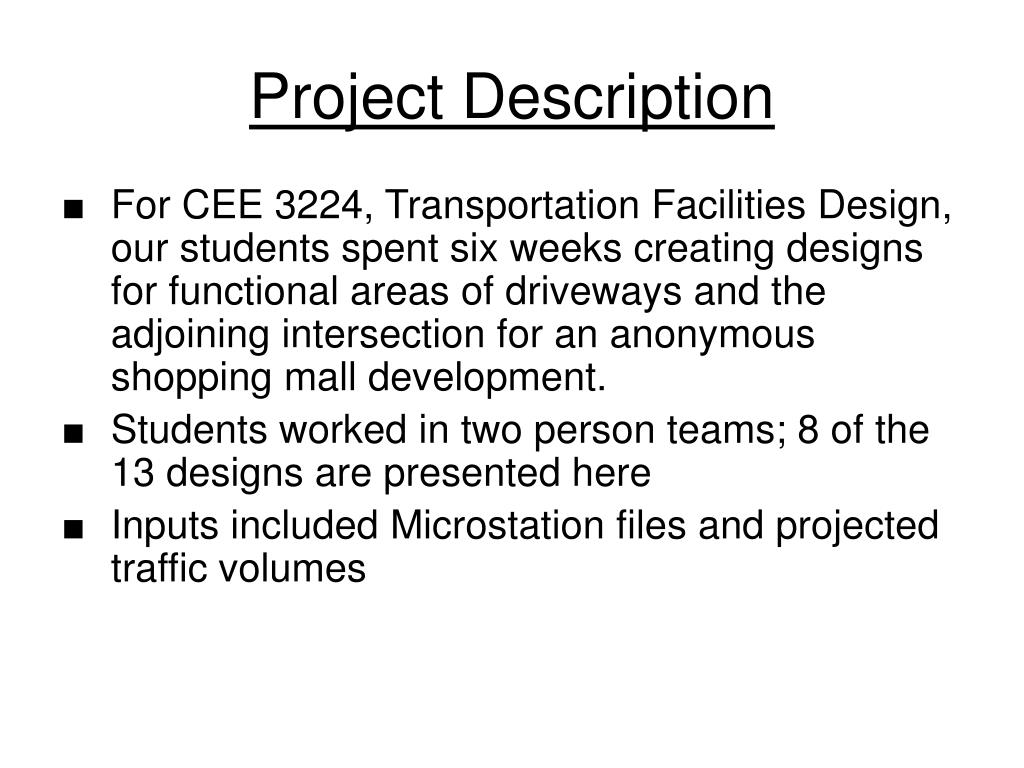

  3. Project Description • For CEE 3224, Transportation Facilities Design, our students spent six weeks creating designs for functional areas of driveways and the adjoining intersection for an anonymous shopping mall development. • Students worked in two person teams; 8 of the 13 designs are presented here • Inputs included Microstation files and projected traffic volumes

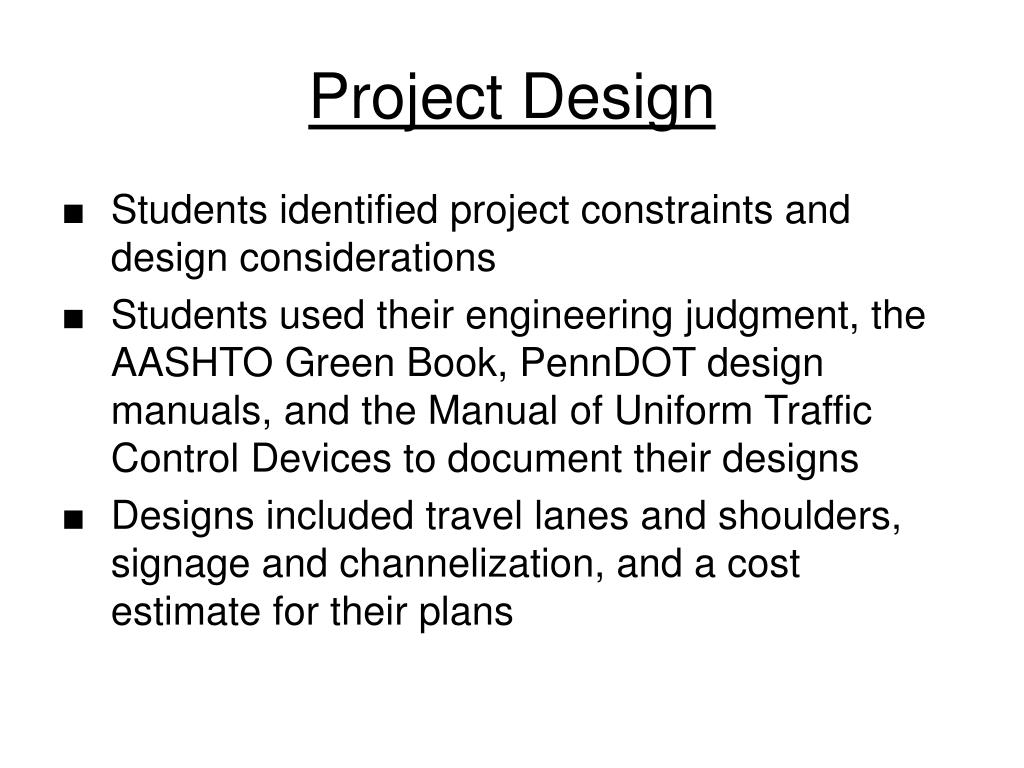

  4. Project Design • Students identified project constraints and design considerations • Students used their engineering judgment, the AASHTO Green Book, PennDOT design manuals, and the Manual of Uniform Traffic Control Devices to document their designs • Designs included travel lanes and shoulders, signage and channelization, and a cost estimate for their plans

  5. THANK YOU: TRAFFIC PLANNING AND DESIGN, Inc.

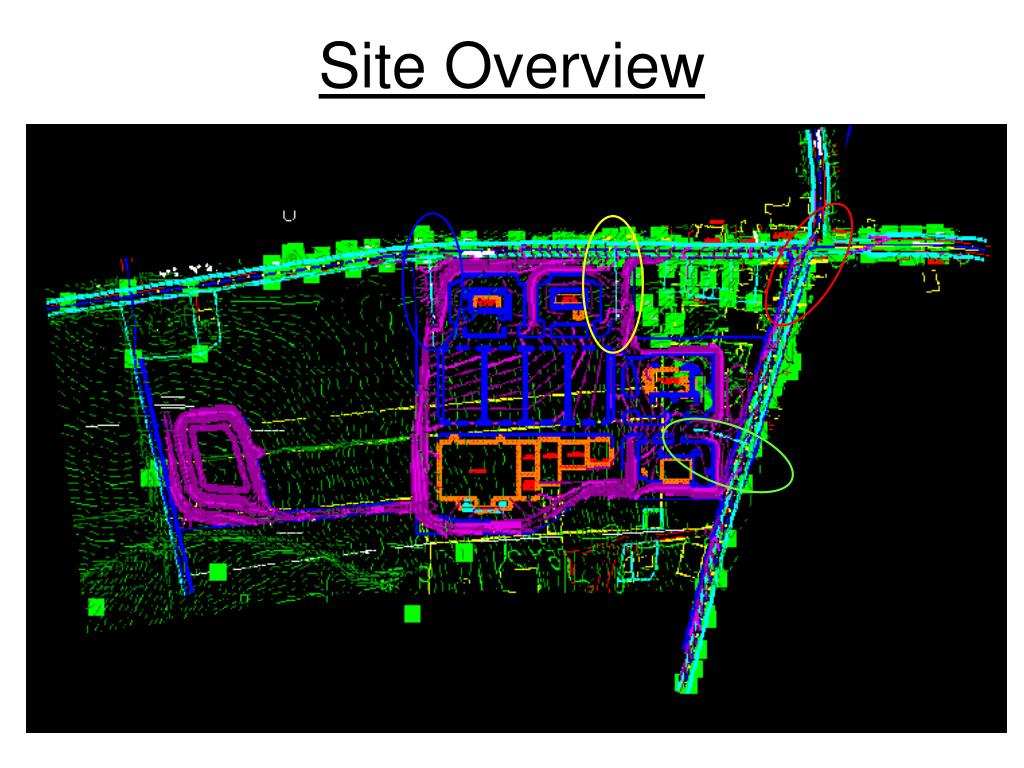

  6. Site Overview

  7. Northwest Driveway

  8. Northeast Driveway

  9. Northeast Driveway

  10. Southeast Driveway

  11. Southeast Driveway

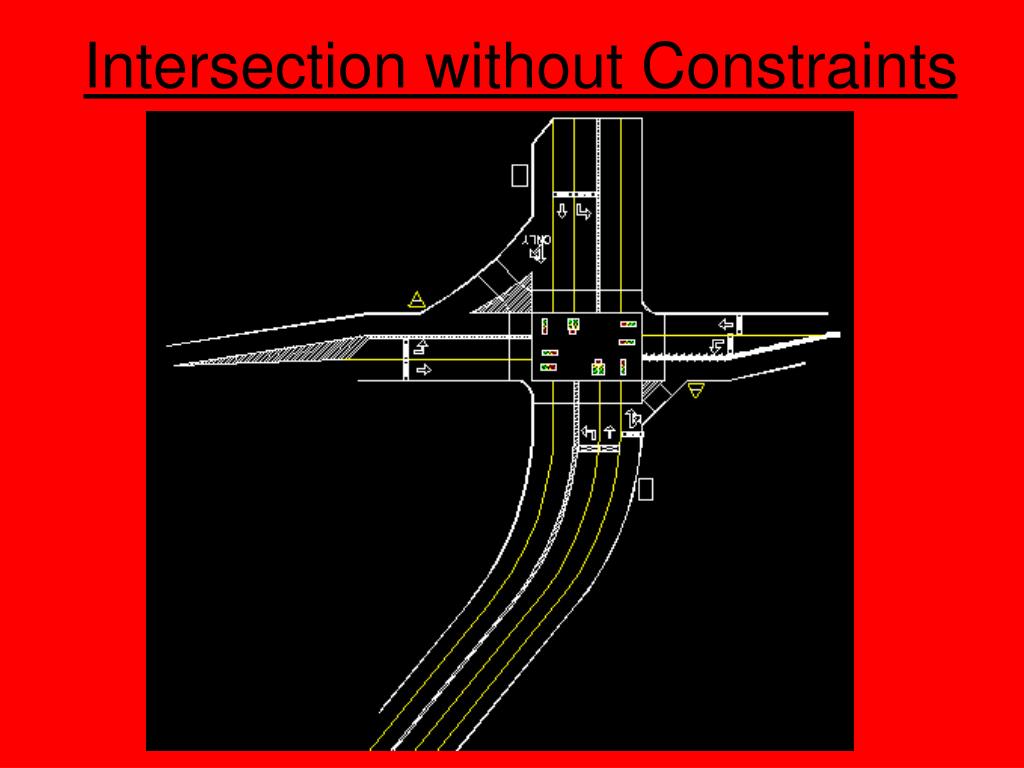

  12. Intersection without Constraints

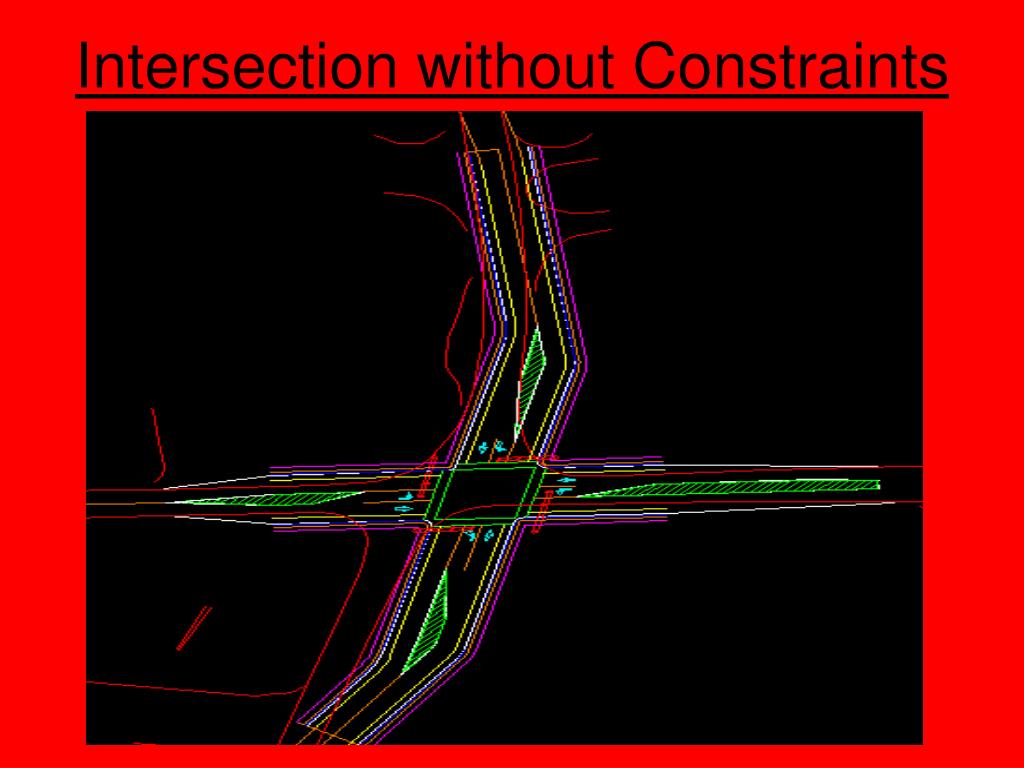

  13. Intersection without Constraints

  14. Intersection with Constraints
