  1. Permits to Take Water: What you need to know. Janis Pechinger PTTW Coordinator MOE Southwestern Region London, ON

  2. Today’s Presentation • Purpose of Permit To Take Water (PTTW) Program • Legislation • What’s new? • What could go wrong by taking water? • Obligations • Application Process • Next Steps and Summary • Questions

  3. Purpose of PTTW Program • The Ministry’s water quantity management policy is to ensure the fair sharing, conservation and sustainable use of the waters of the Province. • Prevent water takings from causing unacceptable impacts to natural environment and existing water users. • Most water takings >50,000 litres per day (L/d) require Permit • Permit shows that the MOE is satisfied that there is a low risk for the taking to cause unacceptable impacts

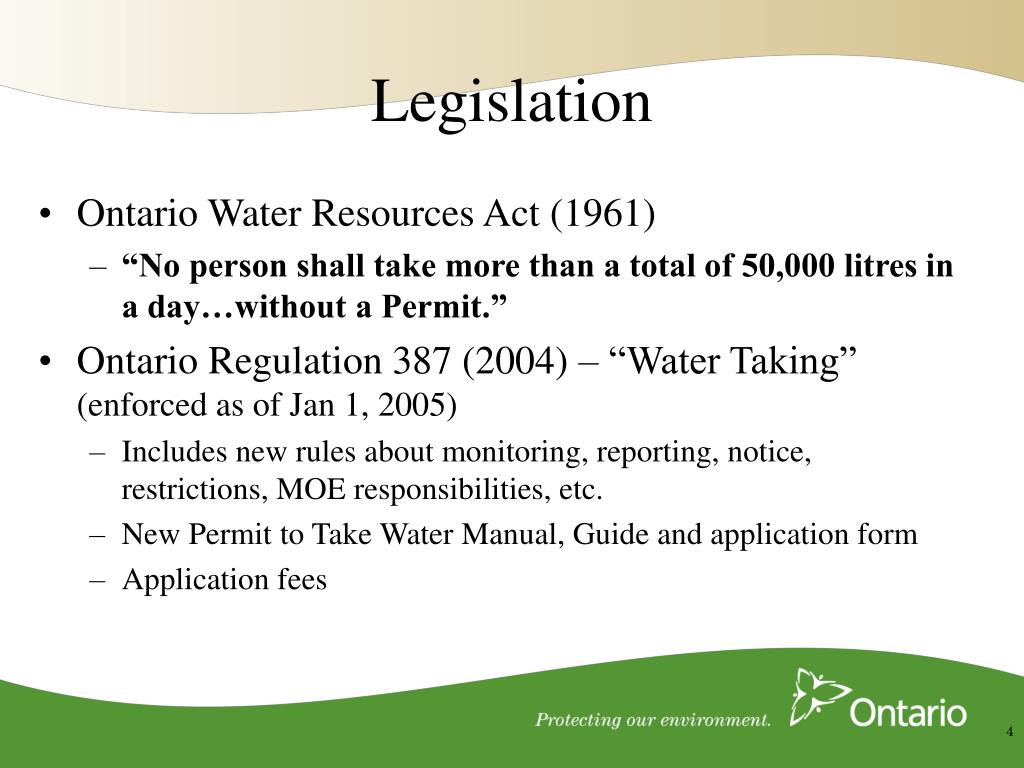

  4. Legislation • Ontario Water Resources Act (1961) • “No person shall take more than a total of 50,000 litres in a day…without a Permit.” • Ontario Regulation 387 (2004) – “Water Taking” (enforced as of Jan 1, 2005) • Includes new rules about monitoring, reporting, notice, restrictions, MOE responsibilities, etc. • New Permit to Take Water Manual, Guide and application form • Application fees

  5. NEW Stronger language surrounding: minimum stream flow flow variability habitat protection High & Medium Use watershed Consumptive uses restricted Notification of Conservation Authorities (CA’s) and municipalities Annual reporting requirements New classification system O.Reg 387/04 (Water Taking)

  6. Monitoring & Reporting Requirements • Section 9 – Duties of a Permit Holder • All Permitees shall collect & record daily water use using flow meter or other acceptable method • Before March 31 in every year, all Permit Holders shall submit this info to the Director • Phased Implementation • Phase 1 • Large & small municipal residential systems and MISA sector • Start recording on July 1/05, Submit data by March 31/06 • Phase 2 • industrial, commercial and wildlife and conservation (Jan. 2006/Mar. 2007) • Phase 3 • All other drinking water systems, agriculture and all other Permit Holders (Jan. 2007/Mar. 2008)

  7. Classification System • Why Classify? • Risk management based • Allows both applicants and MOE to focus technical effort appropriate to complexity and risk associated with a proposed water taking.

  8. Classification System * 7 day period with the lowest flow over 20 years

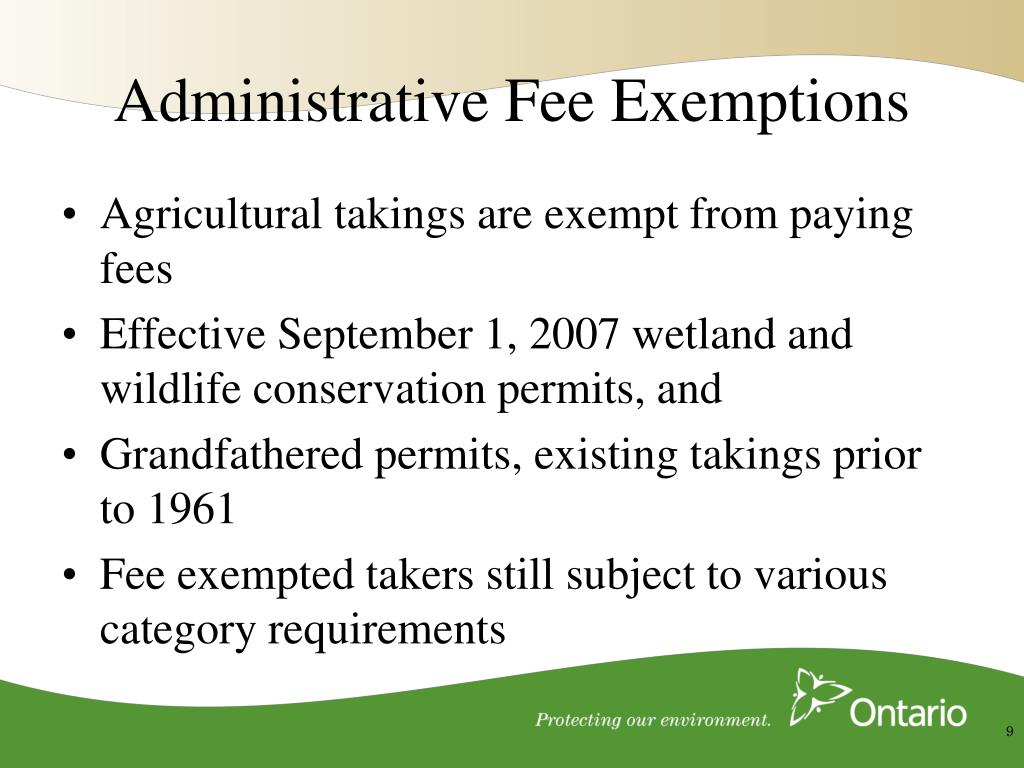

  9. Administrative Fee Exemptions • Agricultural takings are exempt from paying fees • Effective September 1, 2007 wetland and wildlife conservation permits, and • Grandfathered permits, existing takings prior to 1961 • Fee exempted takers still subject to various category requirements

  10. Principle #1 – The Ministry will use an ecosystem approach that considers both water takers’ reasonable needs for the water and the natural functions of the ecosystem.

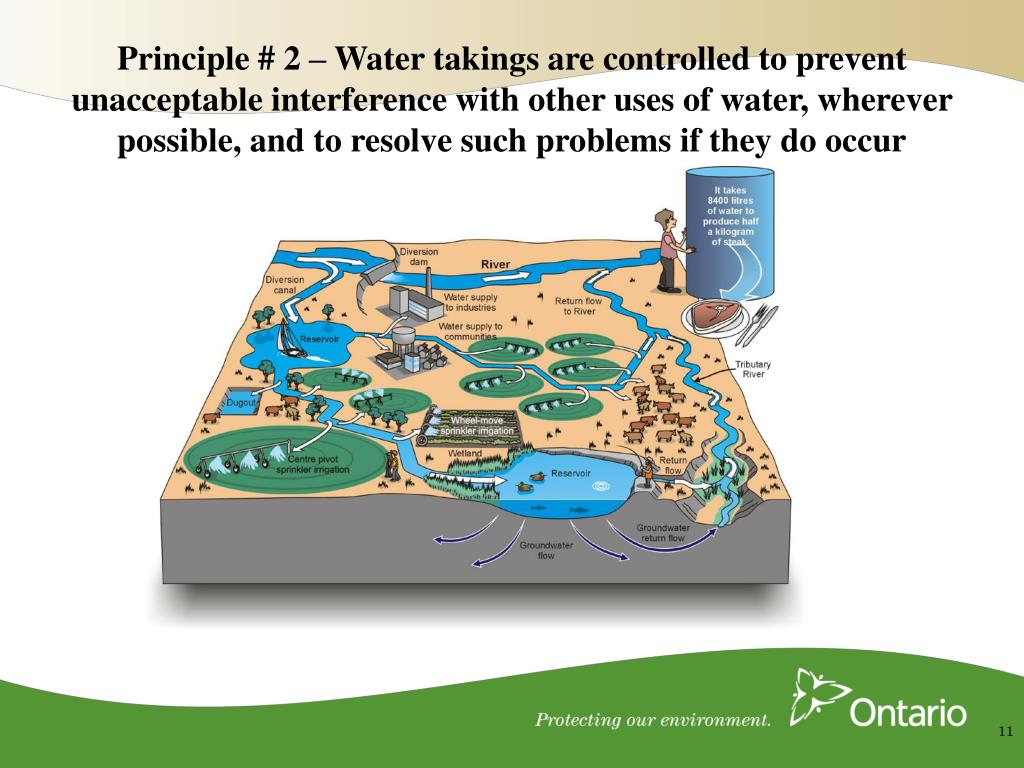

  11. Principle # 2 – Water takings are controlled to prevent unacceptable interference with other uses of water, wherever possible, and to resolve such problems if they do occur

  12. Principle # 3 – The Ministry will employ adaptive management to better respond to evolving environmental conditions

  13. Principle # 4 – The Ministry will consider the cumulative impacts of water takings

  14. Principle # 5 – The Ministry will incorporate risk management principles into the permit application/review process

  15. Principle #6 – The Ministry will promote public and local agency involvement

  16. What could go wrong by taking water? • Water needs to be shared by natural environment and increasing population • Conflicts arise when a water taking is unsuitable for its environment • A few examples: • Eg.1 - 10 million LPD from L. Ontario • Eg.2 – 100,000 LPD from well in a village • Eg.3 – pumping from a stream during spring flood vs. summer low flow

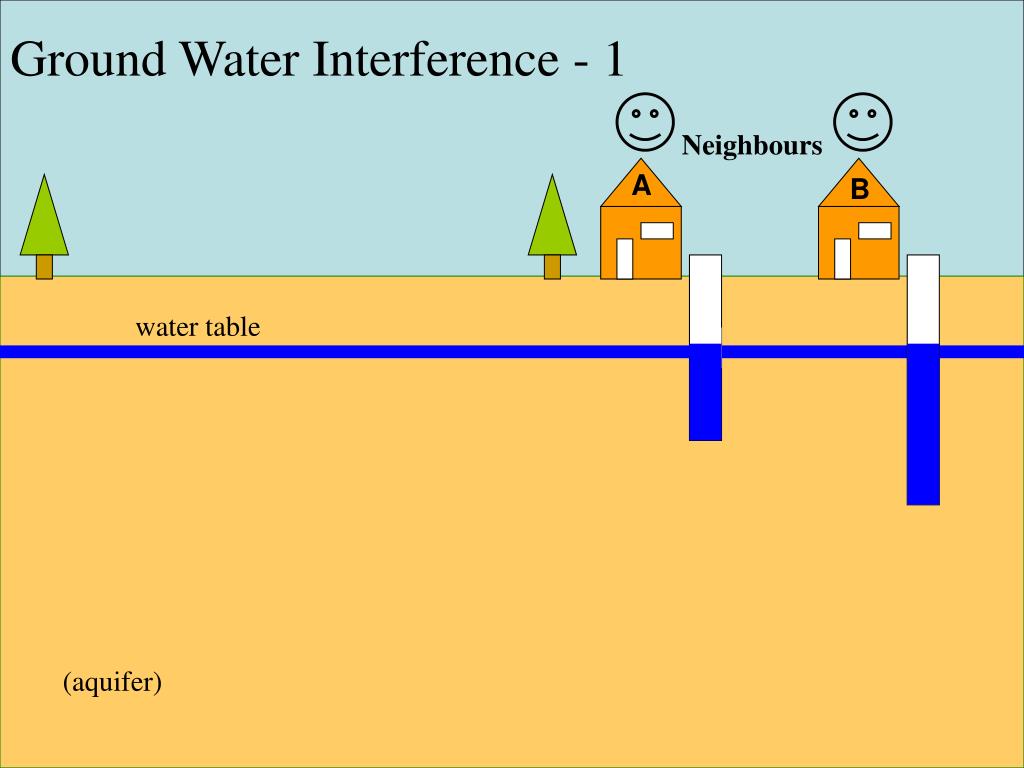

  17. Ground Water Interference - 1 Neighbours A B water table (aquifer)

  18. Ground Water Interference-2 Neighbours A New High- Capacity Well B water table (aquifer)

  19. Ground Water Interference-3 Neighbours A Turn on Well B (original water table) pumping water table/ “drawdown cone” Loss of supply No Loss of supply (aquifer)

  20. Surface Water Interference-1 Reasonable withdrawal (no unacceptable impact to existing users or natural environment)

  21. Surface Water Interference-2 Reasonable withdrawal (no unacceptable impact to existing users or natural environment) Pump 1

  22. Surface Water Interference-3 Established withdrawal can’t be met, because of interference Unreasonable withdrawal (impacts existing users and natural environment) Pump 2 Pump 1

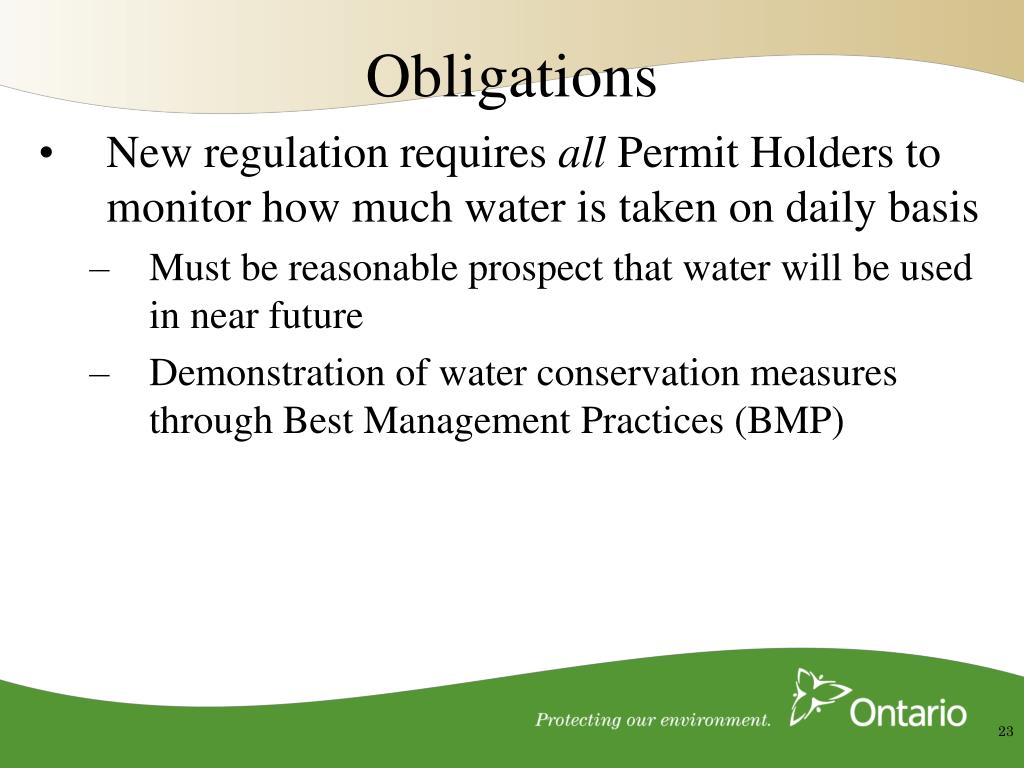

  23. Obligations • New regulation requires all Permit Holders to monitor how much water is taken on daily basis • Must be reasonable prospect that water will be used in near future • Demonstration of water conservation measures through Best Management Practices (BMP)

  24. Application Process (new, renew, amend) • New application form • Greater emphasis on pre-submission consultation • Apply to EAAB office in Toronto • New classification system • Cat. 2 or 3 and will require Qualified Professional (QP) • QP provides study to confirm that taking won’t cause unacceptable impacts • Fee now required for application ($750-$3000) • Conservation Schedule

  25. Average Annual Flow Map(taking may be refused)

  26. Summer Low Flow Map(taking may be excluded August 1 to September 11)

  27. What’s New? • Water Taking Charges for Industrial & Commercial Water Users (O. Reg. 450/07) • Interactive Water Use Mapping Tool • Surface Water & Hydrogeological (Groundwater) Studies Guidance Documents • Water Taking Reporting System • PTTW fee exemption for ‘conservation’ water taking (wetland & wildlife habitat projects)

  28. Interactive Mapping Tool • Access via the Ministry’s PTTW site • Helps you determine the Tertiary Watershed and the Water Use Classification of a proposed Water Taking Permit location. • Can also be used to prepare a map to be submitted with a Permit application.

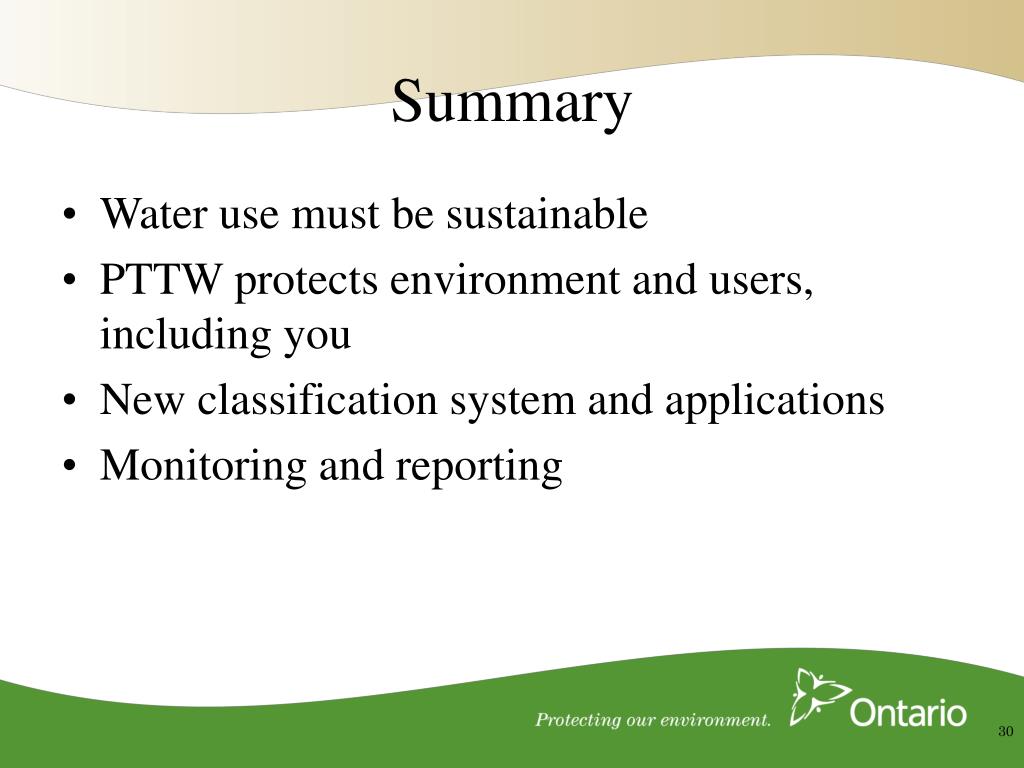

  29. Summary • Water use must be sustainable • PTTW protects environment and users, including you • New classification system and applications • Monitoring and reporting

  30. Need Help? You can contact the PTTW Coordinator’s for each Region by calling the following numbers: • Eastern Region West Central Region 613-549-4000 905-521-7640 1-800-267-0974 1-800-668-4557 • Central Region Southwestern Region 416-326-6700 519-873-5000 1-800-810-8048 1-800-265-7672 • Northern Region 807-475-1205 1-800-875-7772

  31. Questions? http://www.ene.gov.on.ca/envision/water/pttw.htm
