  1. Kaplan School of Information Systems and Technology Unit 4 SeminarIT375 Window Enterprise Administration Course Name – IT375-01 Introduction to Network Security Instructor – Jan McDanolds, MS, Security+ Contact Information: AIM – JMcDanolds Email: jmcdanolds@kaplan.edu Phone: 641-649-2980 Office Hours: Tuesday, 7:00 PM ET or Thursday, 7:00 PM ET

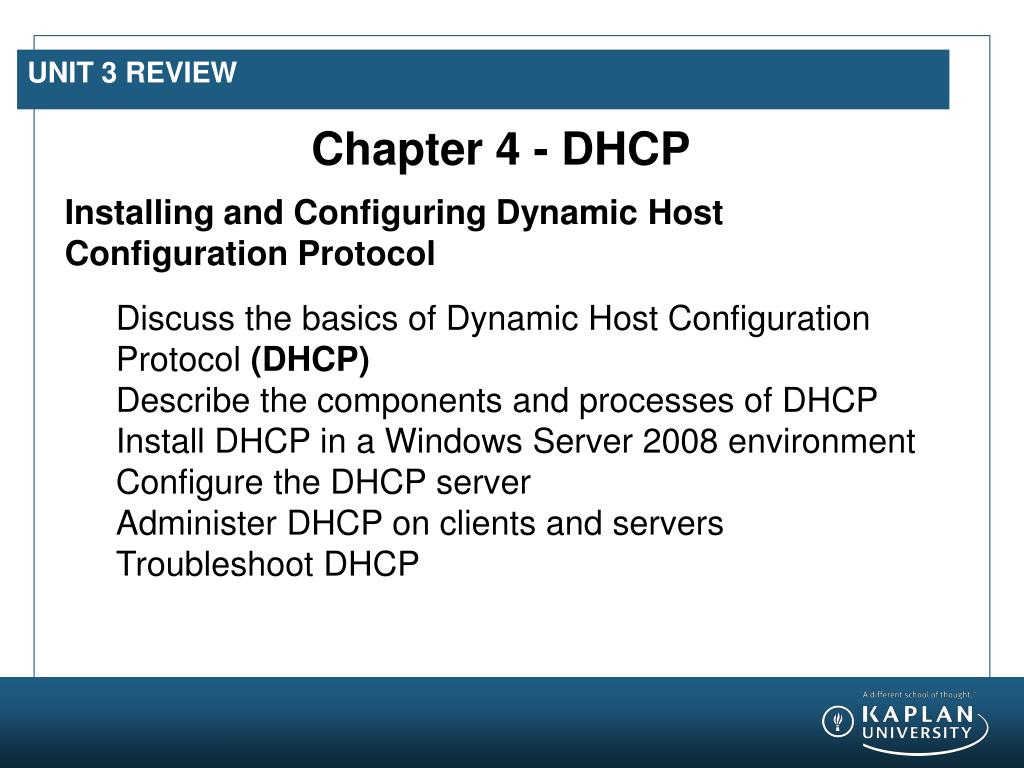

  2. UNIT 3 Review Chapter 4 - DHCP • Installing and Configuring Dynamic Host Configuration Protocol • Discuss the basics of Dynamic Host Configuration Protocol (DHCP) • Describe the components and processes of DHCP • Install DHCP in a Windows Server 2008 environment • Configure the DHCP server • Administer DHCP on clients and servers • Troubleshoot DHCP

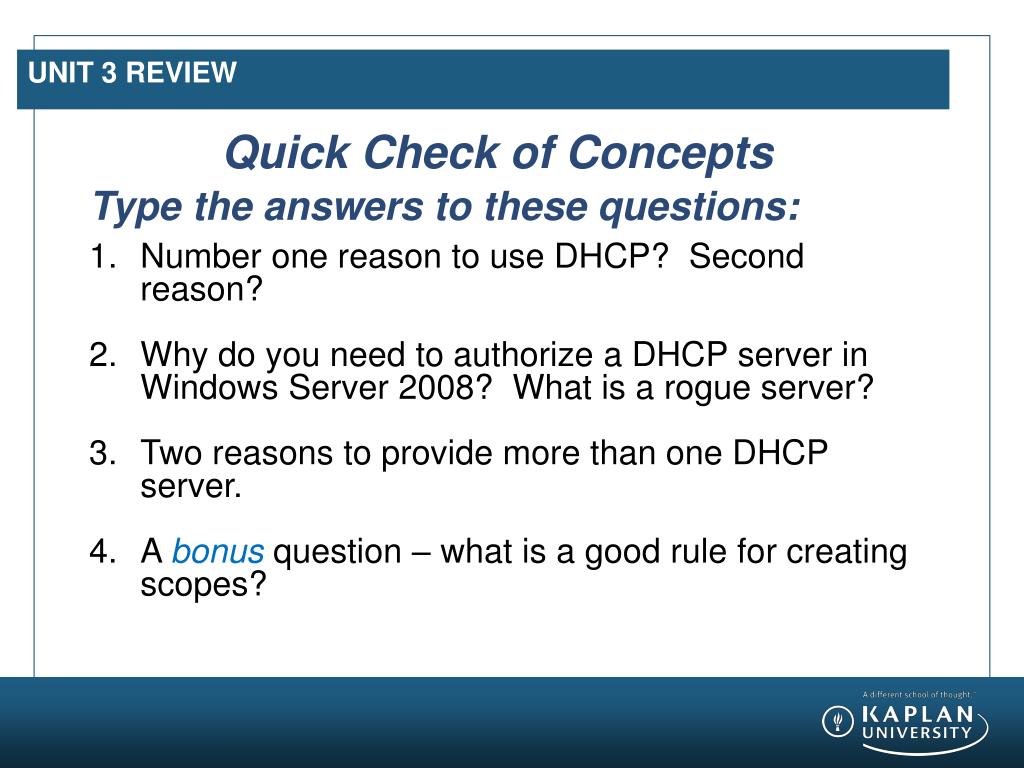

  3. Unit 3 Review Quick Check of Concepts • Type the answers to these questions: • Number one reason to use DHCP? Second reason? • Why do you need to authorize a DHCP server in Windows Server 2008? What is a rogue server? • Two reasons to provide more than one DHCP server. • A bonus question – what is a good rule for creating scopes?

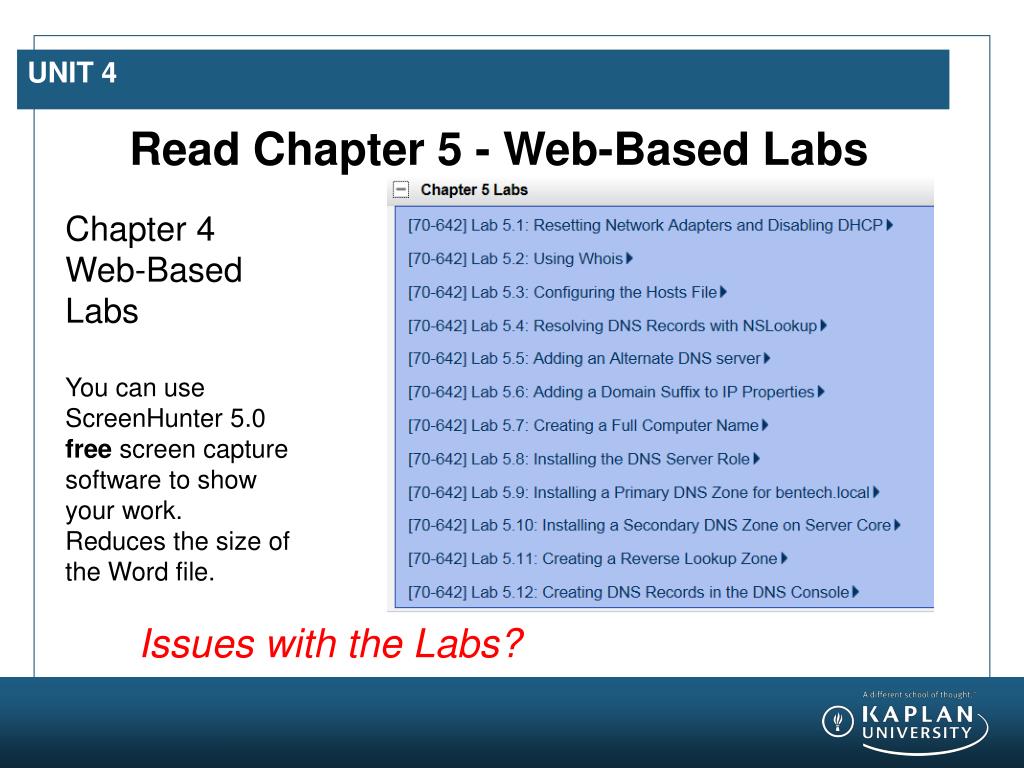

  4. UNIT 4 Read Chapter 5 - Web-Based Labs Chapter 4 Web-Based Labs You can use ScreenHunter 5.0 free screen capture software to show your work. Reduces the size of the Word file. Issues with the Labs?

  5. UNIT 4 Introduction to DNS in Windows Server 2008 • Chapter 5 – Objectives • Discuss the basics of the Domain Name System (DNS) and its terminology • Configure DNS clients • Install standard DNS server on Windows Server 2008 • Create standard DNS zones

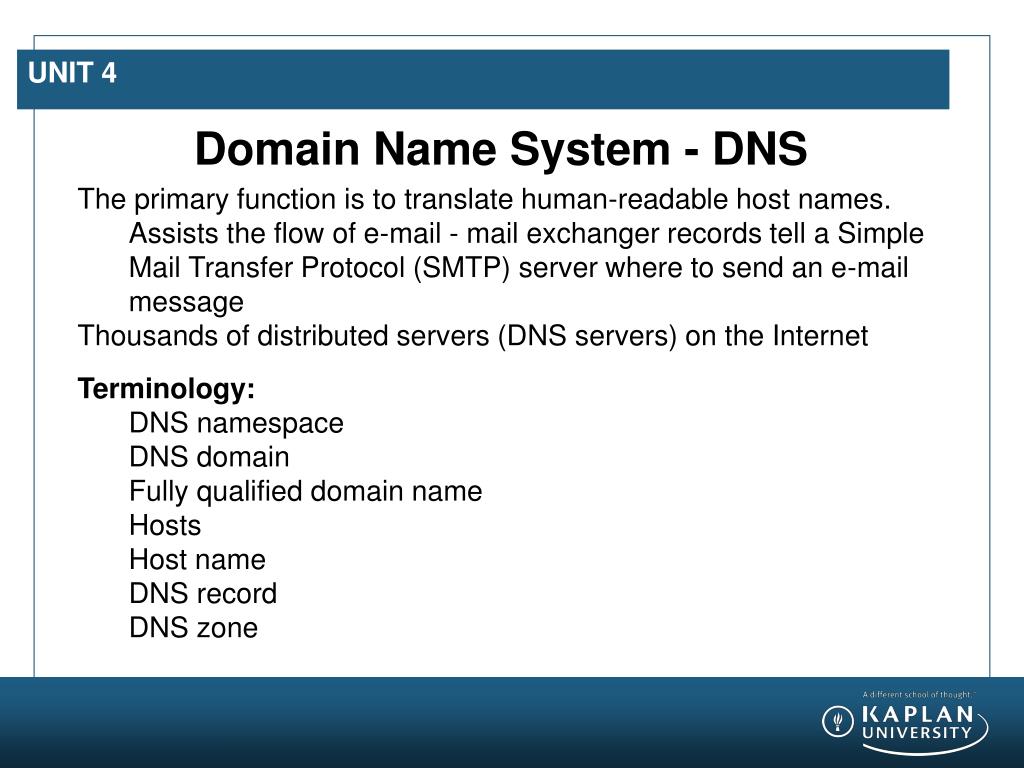

  6. UNIT 4 Domain Name System - DNS • The primary function is to translate human-readable host names. • Assists the flow of e-mail - mail exchanger records tell a Simple Mail Transfer Protocol (SMTP) server where to send an e-mail message • Thousands of distributed servers (DNS servers) on the Internet • Terminology: • DNS namespace • DNS domain • Fully qualified domain name • Hosts • Host name • DNS record • DNS zone

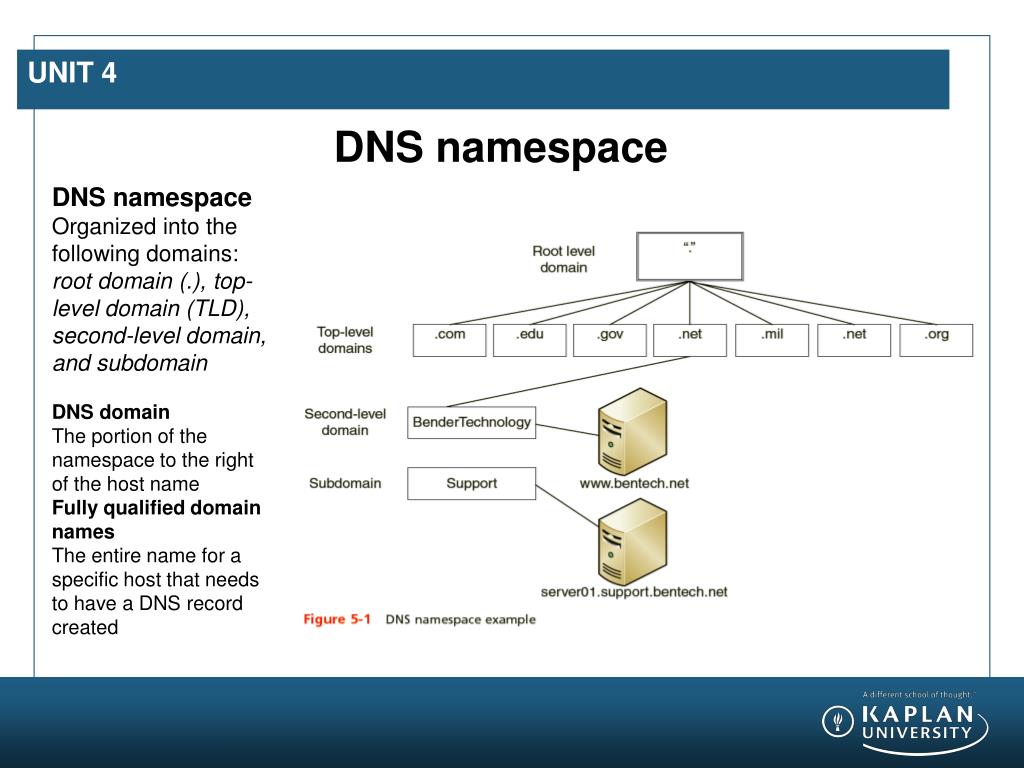

  7. UNIT 4 DNS namespace DNS namespace Organized into the following domains: root domain (.), top-level domain (TLD), second-level domain, and subdomain DNS domain The portion of the namespace to the right of the host name Fully qualified domain names The entire name for a specific host that needs to have a DNS record created

  8. UNIT 4 DNS zone • Host - A computer on the Internet that provides a specific resource • Host name - Name given to a computer, or host, to make connecting to it easier • DNS zone • Collection of connected nodes served by an authoritative DNS name server • DNS records • DNS uses records to provide the information it stores in its database

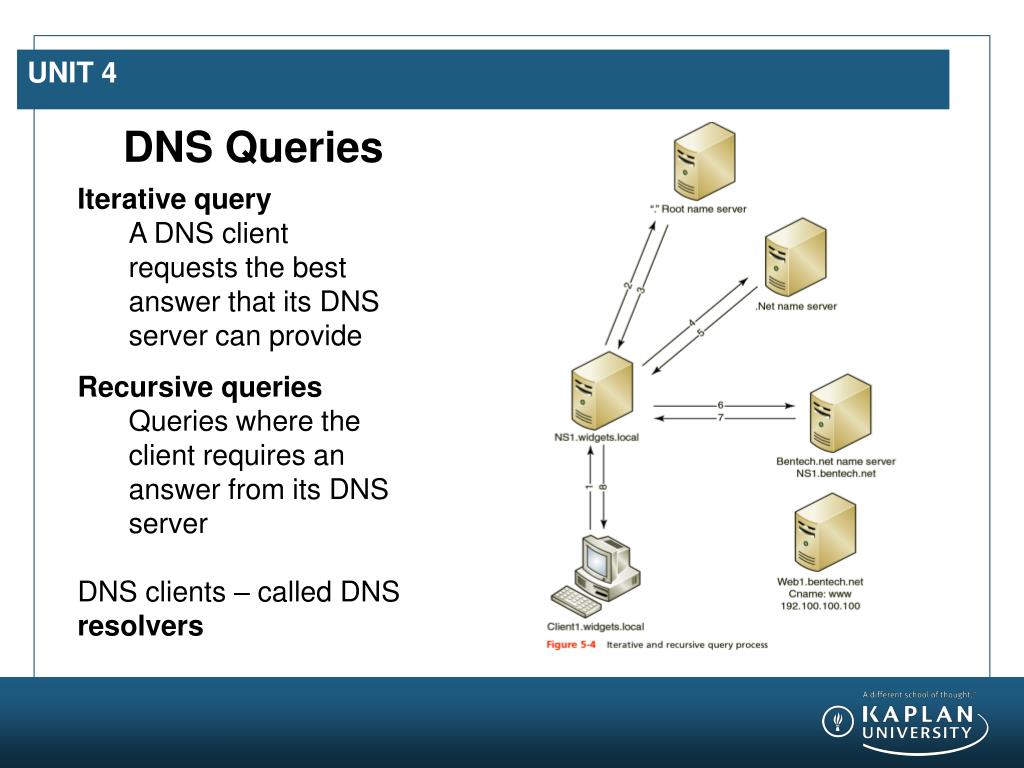

  9. UNIT 4 DNS Queries • Iterative query • A DNS client requests the best answer that its DNS server can provide • Recursive queries • Queries where the client requires an answer from its DNS server • DNS clients – called DNS resolvers

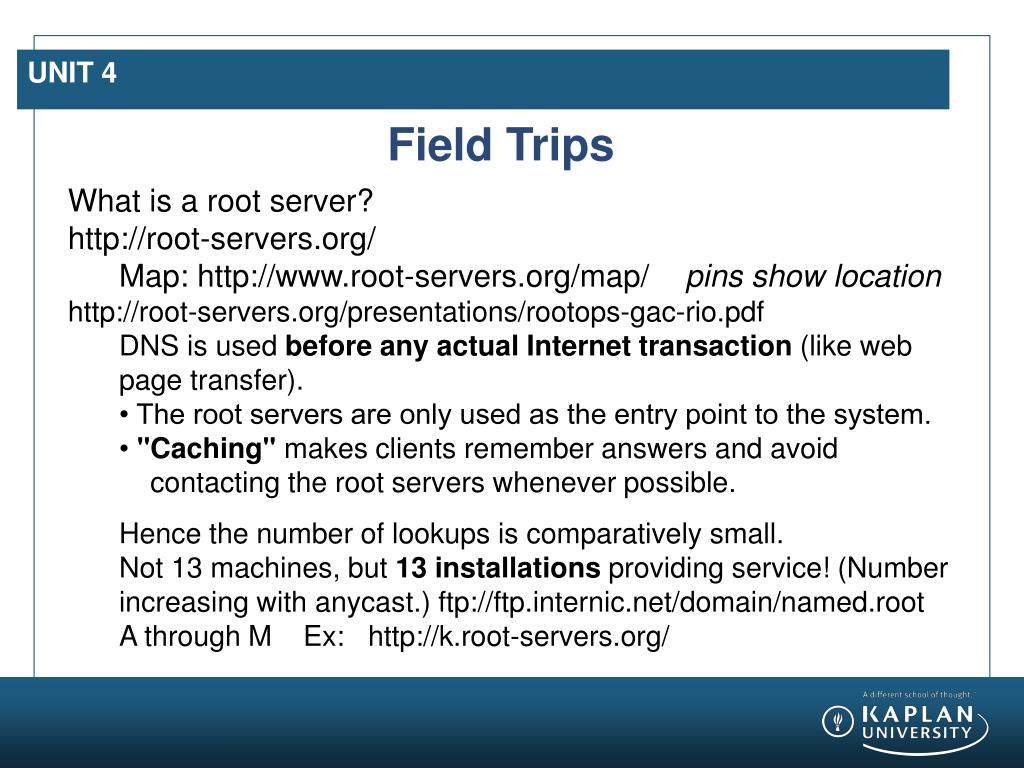

  10. UNIT 4 Field Trips • What is a root server? • http://root-servers.org/ • Map: http://www.root-servers.org/map/ pins show location • http://root-servers.org/presentations/rootops-gac-rio.pdfDNS is used before any actual Internet transaction (like web page transfer). • • The root servers are only used as the entry point to the system. • • "Caching" makes clients remember answers and avoid contacting the root servers whenever possible. • Hence the number of lookups is comparatively small. • Not 13 machines, but 13 installations providing service! (Number increasing with anycast.) ftp://ftp.internic.net/domain/named.root • A through M Ex: http://k.root-servers.org/

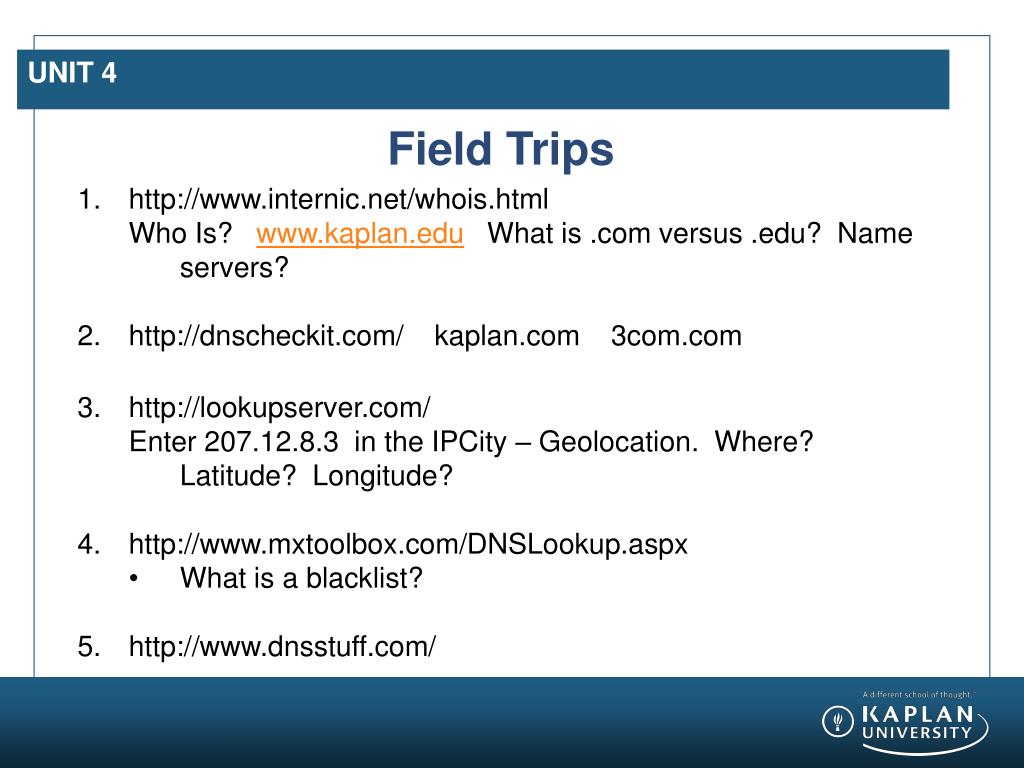

  11. UNIT 4 Field Trips • http://www.internic.net/whois.html • Who Is? www.kaplan.edu What is .com versus .edu? Name servers? • http://dnscheckit.com/ kaplan.com 3com.com • http://lookupserver.com/ • Enter 207.12.8.3 in the IPCity – Geolocation. Where? Latitude? Longitude? • http://www.mxtoolbox.com/DNSLookup.aspx • What is a blacklist? • http://www.dnsstuff.com/

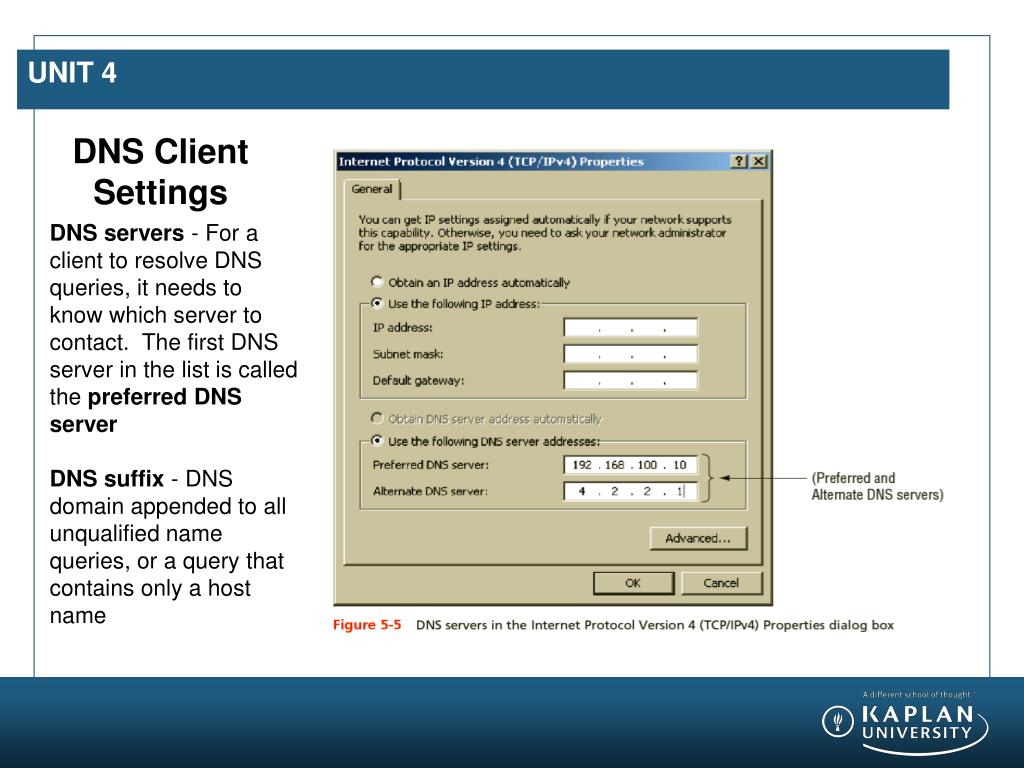

  12. UNIT 4 DNS Client Settings DNS servers - For a client to resolve DNS queries, it needs to know which server to contact. The first DNS server in the list is called the preferred DNS server DNS suffix - DNS domain appended to all unqualified name queries, or a query that contains only a host name

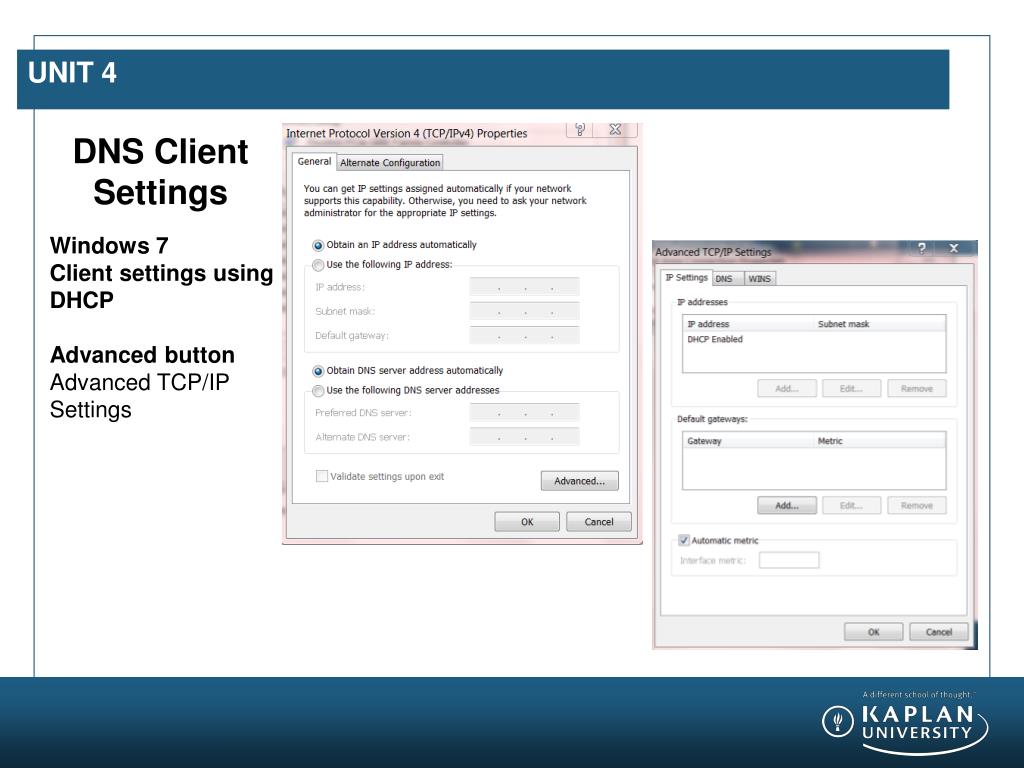

  13. UNIT 4 DNS Client Settings Windows 7 Client settings using DHCP Advanced button Advanced TCP/IP Settings

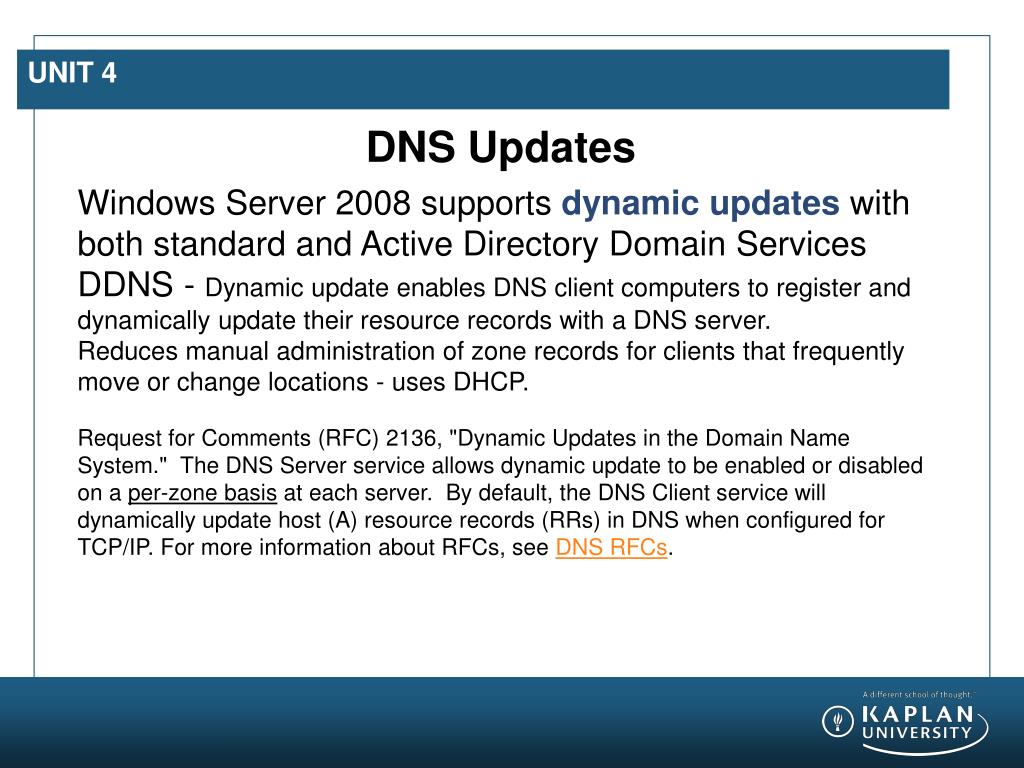

  14. UNIT 4 DNS Updates • Windows Server 2008 supports dynamic updates with both standard and Active Directory Domain Services • DDNS - Dynamic update enables DNS client computers to register and dynamically update their resource records with a DNS server. Reduces manual administration of zone records for clients that frequently move or change locations - uses DHCP. • Request for Comments (RFC) 2136, "Dynamic Updates in the Domain Name System." The DNS Server service allows dynamic update to be enabled or disabled on a per-zone basis at each server. By default, the DNS Client service will dynamically update host (A) resource records (RRs) in DNS when configured for TCP/IP. For more information about RFCs, see DNS RFCs.

  15. UNIT 4 Installing DNS • DNS - A role that can be installed on Windows Server 2008 Full and Server Core versions. Often combined with other services such as DHCP • Installing Cache-only DNS server • This server has the DNS role installed, however it does not hold a DNS zone so it is not authoritative for any DNS zones. Does not maintain DNS records • Root hints - Provide IP address pointers to top-level DNS servers • A DNS server can perform queries when it receives domain name requests for zones in which it is not authoritative • Provides referral answers to queries to resolve an unknown domain name request • Forwarders - servers used to resolve names

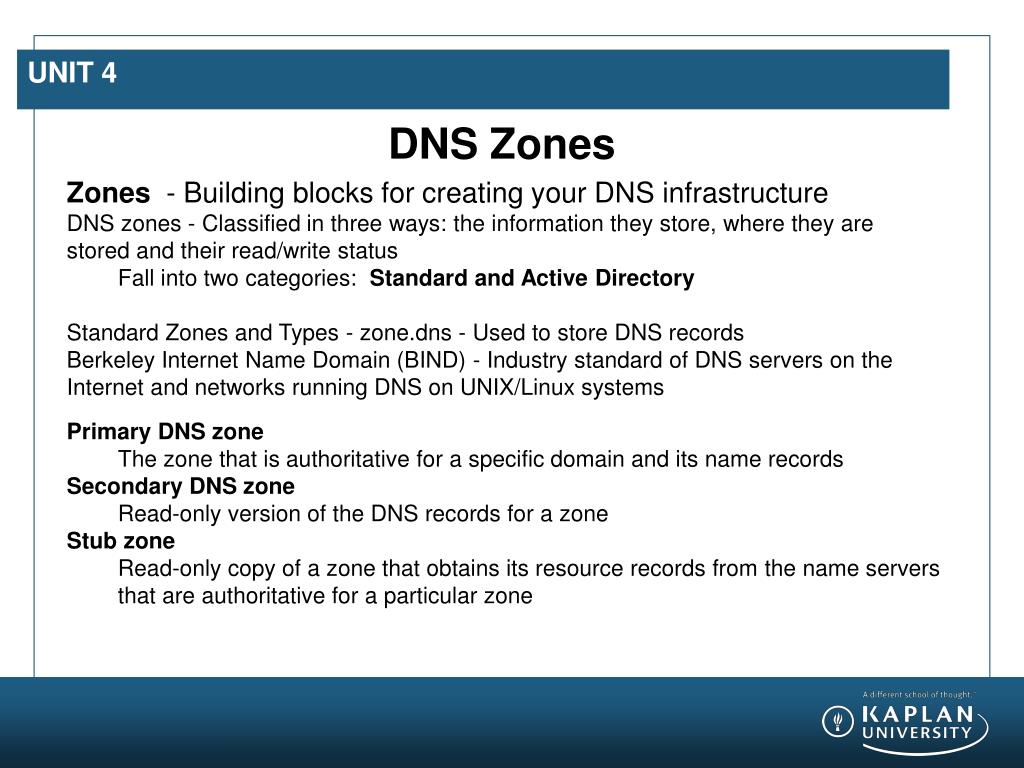

  16. UNIT 4 DNS Zones • Zones - Building blocks for creating your DNS infrastructure • DNS zones - Classified in three ways: the information they store, where they are stored and their read/write status • Fall into two categories: Standard and Active Directory • Standard Zones and Types - zone.dns - Used to store DNS records • Berkeley Internet Name Domain (BIND) - Industry standard of DNS servers on the Internet and networks running DNS on UNIX/Linux systems • Primary DNS zone • The zone that is authoritative for a specific domain and its name records • Secondary DNS zone • Read-only version of the DNS records for a zone • Stub zone • Read-only copy of a zone that obtains its resource records from the name servers that are authoritative for a particular zone

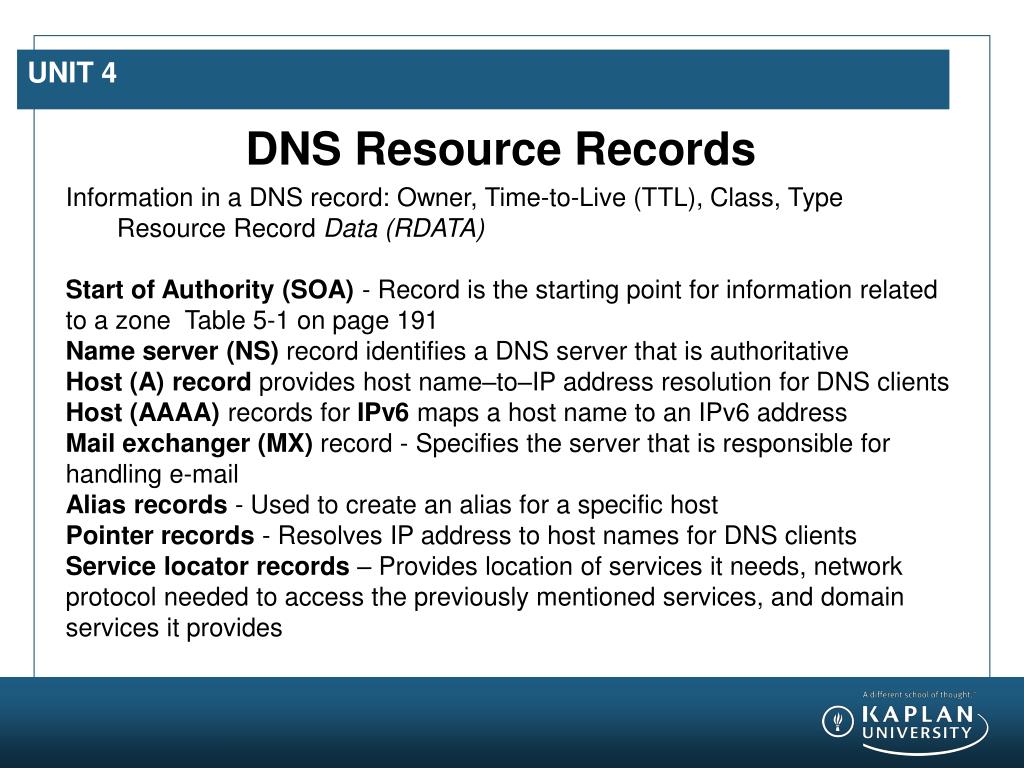

  17. UNIT 4 DNS Resource Records • Information in a DNS record: Owner, Time-to-Live (TTL), Class, Type • Resource Record Data (RDATA) • Start of Authority (SOA) - Record is the starting point for information related to a zone Table 5-1 on page 191 • Name server (NS) record identifies a DNS server that is authoritative • Host (A) record provides host name–to–IP address resolution for DNS clients • Host (AAAA) records for IPv6 maps a host name to an IPv6 address • Mail exchanger (MX) record - Specifies the server that is responsible for handling e-mail • Alias records - Used to create an alias for a specific host • Pointer records - Resolves IP address to host names for DNS clients • Service locator records – Provides location of services it needs, network protocol needed to access the previously mentioned services, and domain services it provides

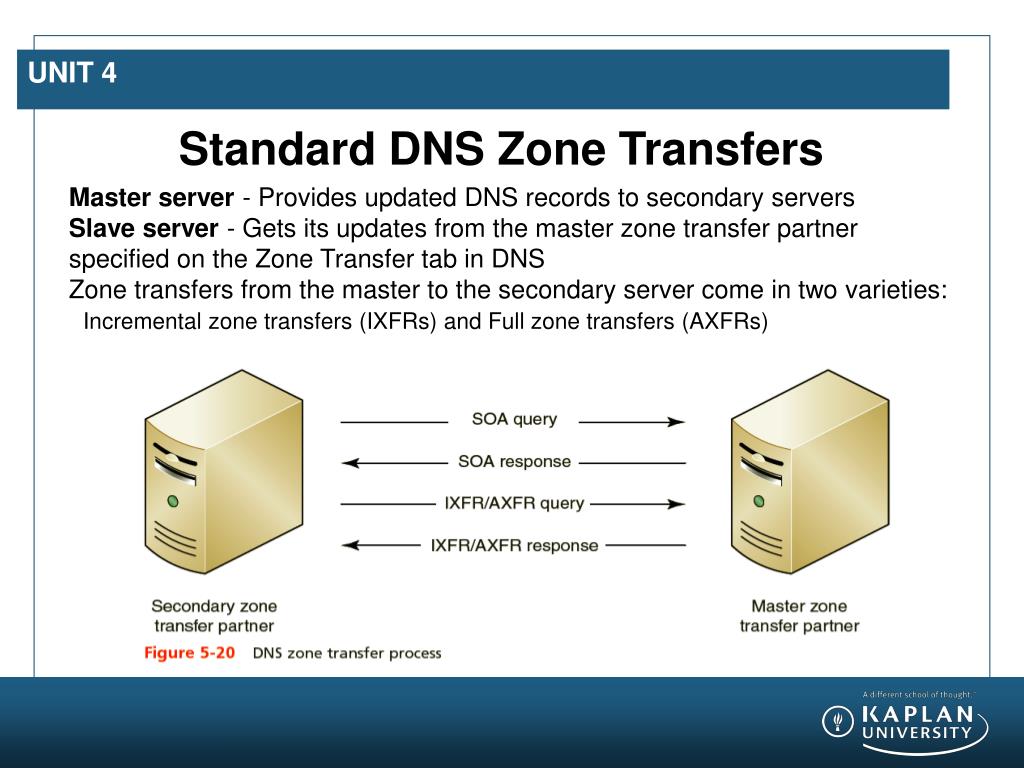

  18. UNIT 4 Standard DNS Zone Transfers Master server - Provides updated DNS records to secondary servers Slave server - Gets its updates from the master zone transfer partner specified on the Zone Transfer tab in DNS Zone transfers from the master to the secondary server come in two varieties: Incremental zone transfers (IXFRs) and Full zone transfers (AXFRs)

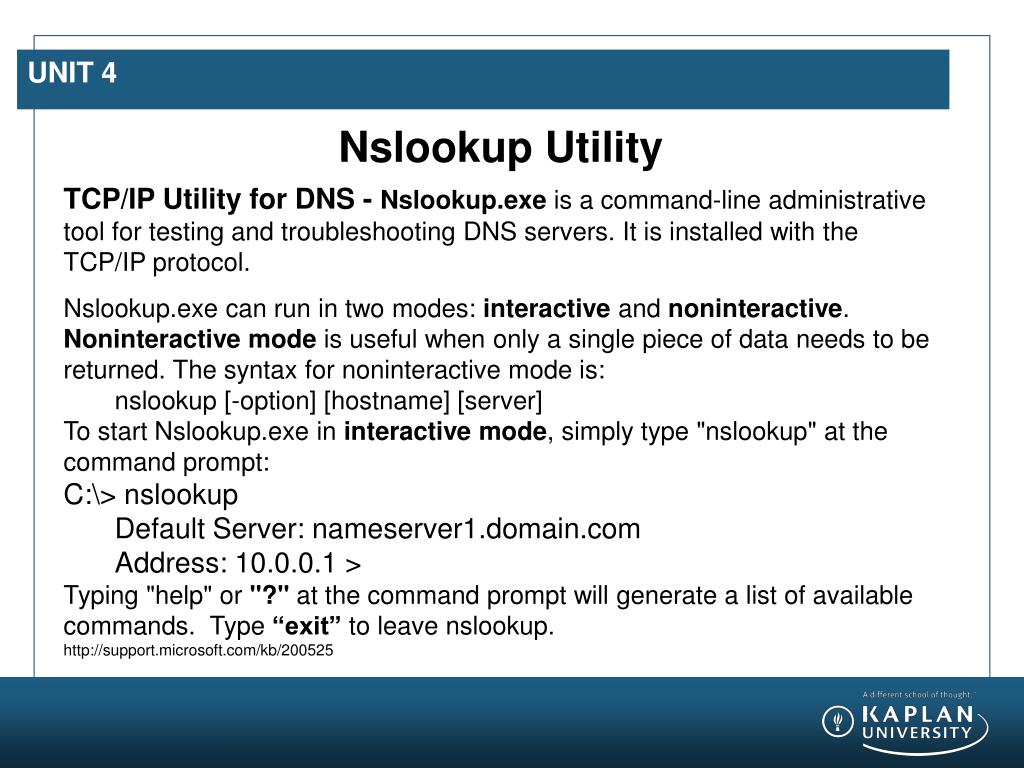

  19. UNIT 4 Nslookup Utility • TCP/IP Utility for DNS - Nslookup.exe is a command-line administrative tool for testing and troubleshooting DNS servers. It is installed with the TCP/IP protocol. • Nslookup.exe can run in two modes: interactive and noninteractive. Noninteractive mode is useful when only a single piece of data needs to be returned. The syntax for noninteractive mode is: • nslookup [-option] [hostname] [server] • To start Nslookup.exe in interactive mode, simply type "nslookup" at the command prompt:C:\> nslookup • Default Server: nameserver1.domain.com • Address: 10.0.0.1 > • Typing "help" or "?" at the command prompt will generate a list of available commands. Type “exit” to leave nslookup. • http://support.microsoft.com/kb/200525

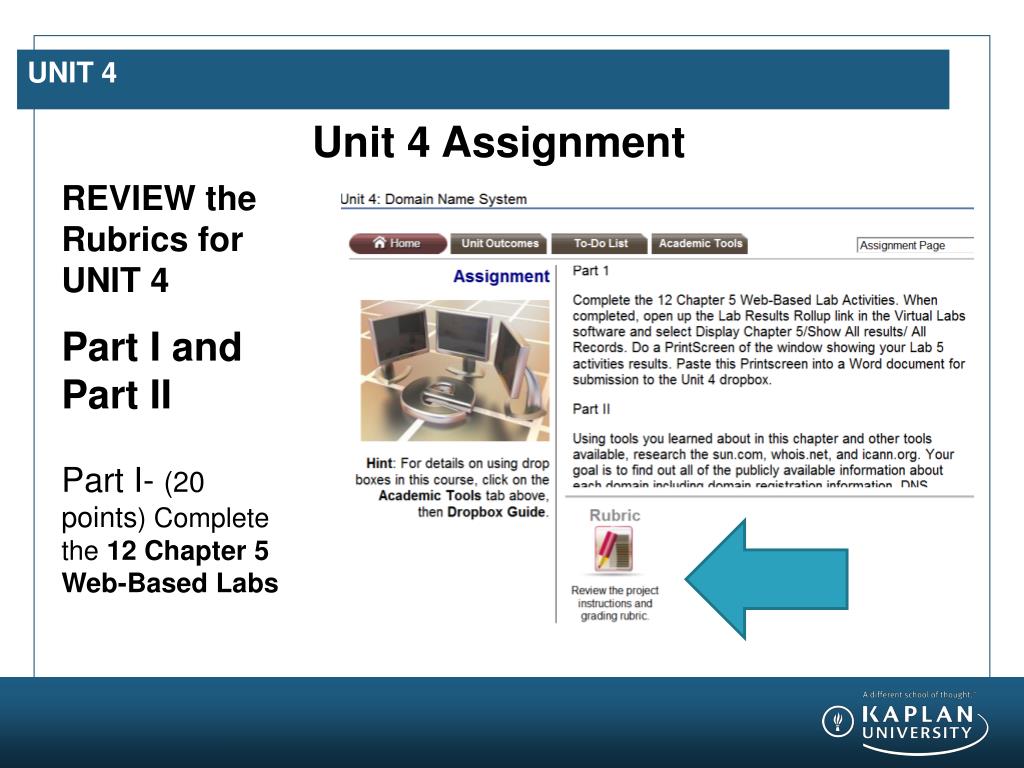

  20. UNIT 4 Unit 4 Assignment REVIEW the Rubrics for UNIT 4 Part I and Part II Part I- (20 points) Complete the 12 Chapter 5 Web-Based Labs

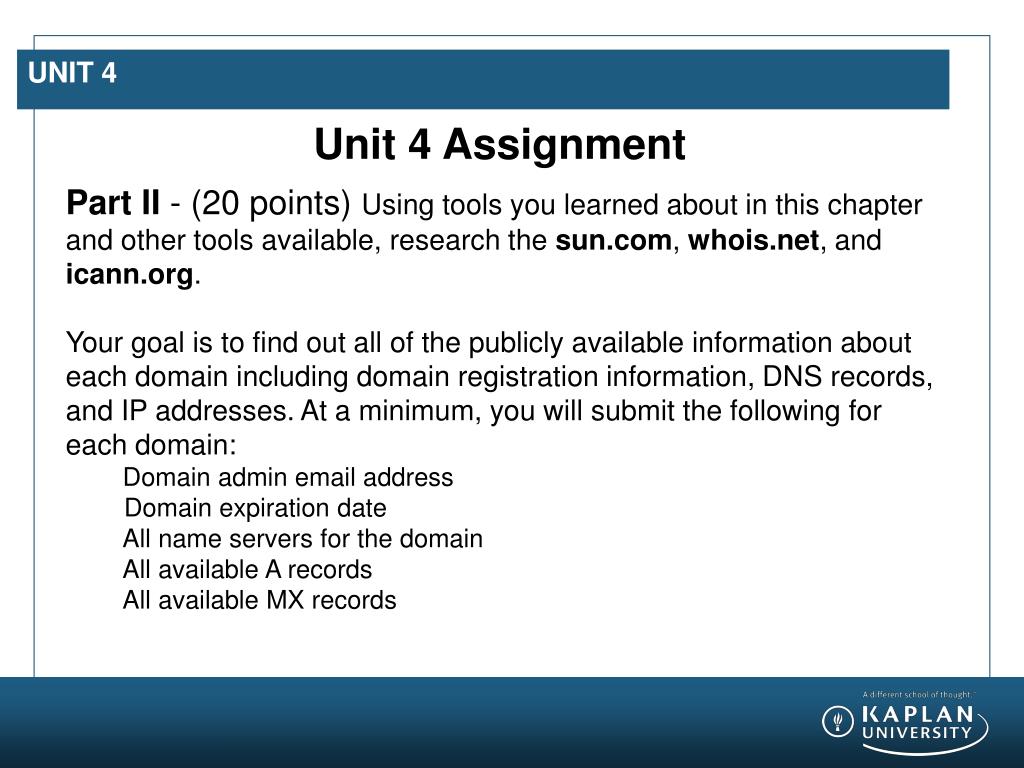

  21. UNIT 4 Unit 4 Assignment • Part II - (20 points) Using tools you learned about in this chapter and other tools available, research the sun.com, whois.net, and icann.org. • Your goal is to find out all of the publicly available information about each domain including domain registration information, DNS records, and IP addresses. At a minimum, you will submit the following for each domain: • Domain admin email address • Domain expiration date • All name servers for the domain • All available A records • All available MX records
