  1. Real-Time Relief Mapping on Arbitrary Polygonal Surfaces Fabio Policarpo Manuel M. Oliveira Joao L. D. Comba

  2. Overview • Introduction • Related Work • Review of Relief Texture Mapping • Methods • Results • Discussion

  3. Introduction Goals • Represent surface detail using textures • Apply to polygonal surfaces, allowing for deformation • Allow self-occlusions, interpenetrations, shadows and per-pixel lighting effects Introduction > Related Work > Relief Texture Mapping > Methods > Results

  4. Related Work • Bump mapping • Self-occlusions, shadows and silhouettes are not accounted for • Horizon mapping • Provides shadowing for bumped surfaces • Implemented on graphics hardware for improved performance Introduction > Related Work > Relief Texture Mapping > Methods > Results

  5. Related Work • Displacement mapping • Requires large amount of micro-polygons • Extensions added to avoid explicit rendering of micro-polygons • Ray tracing methods - too slow • 3D inverse image warping – too slow • 3D texture mapping – produces artifacts for some viewing angles Introduction > Related Work > Relief Texture Mapping > Methods > Results

  6. Related Work • View-dependent displacement maps • Pre-computes distances to a reference surface • Sampled along several view directions • Does not handle close up viewing well • Parallax Mapping • Uses per-texel depth • Texture coordinates along view direction are shifted based on depth • Only good for irregular/noisy bumps • No support for shadows Introduction > Related Work > Relief Texture Mapping > Methods > Results

  7. Relief Texture Mapping • Uses image warping techniques and per-texel depth to create the illusion of geometric detail Introduction > Related Work > Relief Texture Mapping > Methods > Results

  8. Relief Texture Mapping • Rendering of a height field requires a search for the closest polygon along the viewing ray • Overcome through a two-pass method: • Convert height field to conventional 2D texture using forward projection • Render texture as normal • Texels move horizontal and vertical in texture space based on their orthogonal displacements and the viewing direction Introduction > Related Work > Relief Texture Mapping > Methods > Results

  9. Representing 3D objects • Represent 3D geometry by relief texture mapping parallelpipeds • Cannot be extended to arbitrary surfaces Introduction > Related Work > Relief Texture Mapping > Methods > Results

  10. Relief Mapping Polygonal Surfaces • Uses modern graphics hardware • Because of fragment shaders, lighting is computed real-time • Shaded color map is replaced by normal map Introduction > Related Work > Relief Texture Mapping > Methods > Results

  11. Mapping relief data • Compute viewing direction, VD • Transform VD to tangent space of fragment • Use VD’ and texture coords (s,t) to compute the texture coords where VD’ hits depth of 1 Introduction > Related Work > Relief Texture Mapping > Methods > Results

  12. Mapping relief data • Compute the intersection between VD’ and the height-field surface using a binary search starting with A and B • Perform the shading of the fragment using the attributes associated with the texture coordinates of the computed intersection point. Introduction > Related Work > Relief Texture Mapping > Methods > Results

  13. Binary Search • Start with A-B line • At each step (8 steps): • Compute middle of the interval • Assign averaged endpoint texture coordinates and depth • Use averaged tex coords to access depth map • If stored depth value is less than computed depth value, the point is inside the surface • Proceed with one endpoint in and one out Introduction > Related Work > Relief Texture Mapping > Methods > Results

  14. Linear Search • To find first point under surface, start at A, advance ray by δAB • δ is a function of the angle between VD’ and interpolated fragment normal • No more than 32 steps are taken in their implementation • Proceed with binary search (with less iterations) Introduction > Related Work > Relief Texture Mapping > Methods > Results

  15. Shadowing • Visibility problem • Determine if light ray intersects surface • Do not need to know the exact point Introduction > Related Work > Relief Texture Mapping > Methods > Results

  16. Dual Depth Relief Textures • Represent opaque, closed surfaces with only one texture • Second “back” layer is not used for rendering, but as a constraint for ray-height-field intersection Introduction > Related Work > Relief Texture Mapping > Methods > Results

  17. Dual Depth Relief Textures Results Introduction > Related Work > Relief Texture Mapping > Methods > Results

  18. Dual Depth Relief Textures Storage • Two depthmaps and a normal map can be stored in one texture • Since normals are unit length, you can store just x and y and use the other two components for depth values • Compute z @ run-time • Rendering is the same as described, except a point is in the represented object if front_depth <= point depth <= back_depth Introduction > Related Work > Relief Texture Mapping > Methods > Results

  19. Results • Most objects rendered with 512x512 relief texture • 800x600 resolution at 85 fps • Written in Cg • 3GHz PC w/ 512 MB memory on NVIDIA GeForce 6800GT w/ 256 MB memory Introduction > Related Work > Relief Texture Mapping > Methods > Results

  20. Results Introduction > Related Work > Relief Texture Mapping > Methods > Results

  21. Results Introduction > Related Work > Relief Texture Mapping > Methods > Results

  22. Results Introduction > Related Work > Relief Texture Mapping > Methods > Results

  23. Results Introduction > Related Work > Relief Texture Mapping > Methods > Results

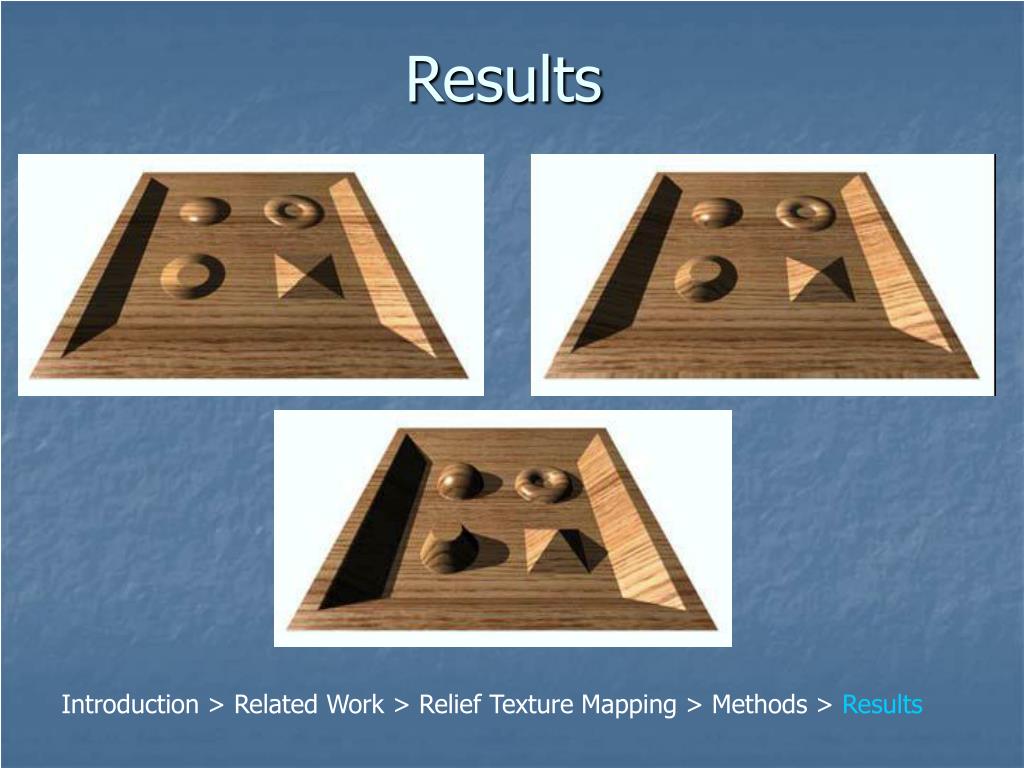

  24. Results Introduction > Related Work > Relief Texture Mapping > Methods > Results

  25. Results Introduction > Related Work > Relief Texture Mapping > Methods > Results

  26. Doom 3 Video video demonstration

  27. Conclusion • Provided method for mapping relief textures to arbitrary surfaces in texture space, allowing deformation • Provides correct shadowing, self-occlusion, and interpenetration with correct lighting • Presented an efficient ray-heightfield intersection algorithm • Extended relief maps with dual-depth textures
