  1. PMW-300 NEW XDCAM semi-shoulder camcorder 1

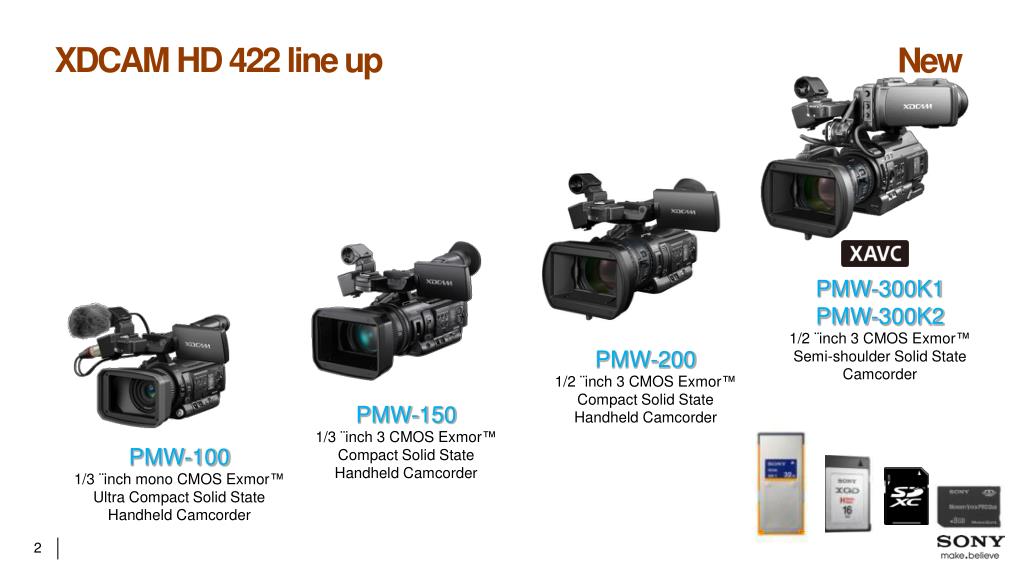

  2. XDCAM HD 422 line up New • PMW-300K1 • PMW-300K2 • 1/2 ¨inch 3 CMOS Exmor™ • Semi-shoulder Solid State • Camcorder PMW-200 1/2 ¨inch 3 CMOS Exmor™ Compact Solid State Handheld Camcorder PMW-150 1/3 ¨inch 3 CMOS Exmor™ Compact Solid State Handheld Camcorder PMW-100 1/3 ¨inch mono CMOS Exmor™ Ultra Compact Solid State Handheld Camcorder

  3. XDCAM HD 422 line up PMW-500 2/3 ¨inch 3 CCD Power HAD FX Shoulder Solid State Camcorder • PMW-400 • 2/3 ¨inch 3 CMOS Exmor • Shoulder Solid State • Camcorder

  4. Target markets PMW-300 • ENG • Videographers • Corporate • Rental houses • Regional TV • Education • Production companies

  5. Applications PMW-300 Events multi camera shooting News • Corporate Weddings Music video Short films 3D shooting Middle budget documentary

  6. Advantages PMW-300 • Mobility • Robustness • Versatility

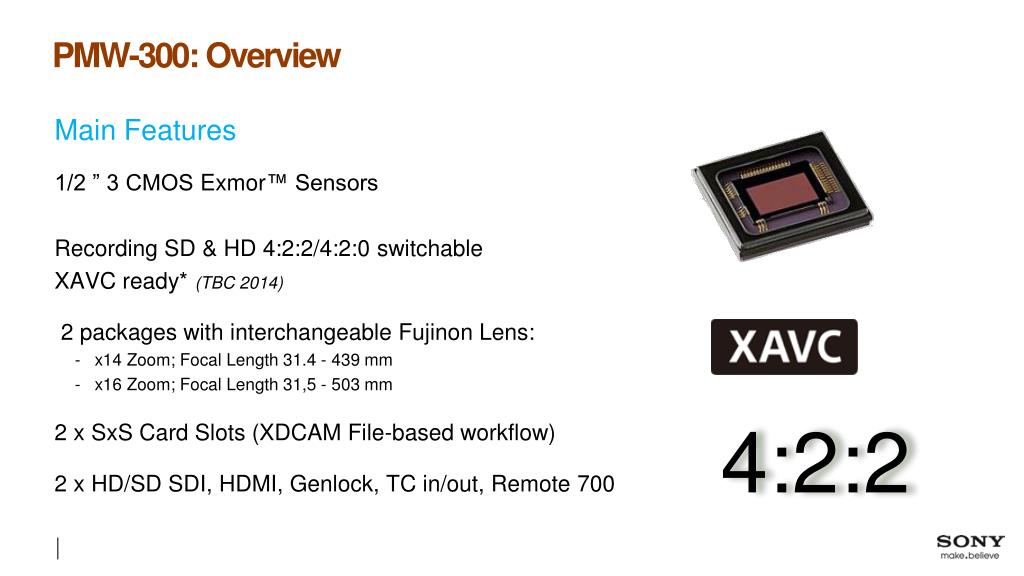

  7. PMW-300: Overview Main Features 1/2 ” 3 CMOS Exmor™ Sensors Recording SD & HD 4:2:2/4:2:0 switchable XAVC ready* (TBC 2014) 2 packages with interchangeable Fujinon Lens: • x14 Zoom; Focal Length 31.4 - 439 mm • x16 Zoom; Focal Length 31,5 - 503 mm 2 x SxS Card Slots (XDCAM File-based workflow) 2 x HD/SD SDI, HDMI, Genlock, TC in/out, Remote 700 4:2:2

  8. PMW-300: Benefits • Quality of picture • High sensitivity of 3Exmor™ CMOS 1/2 ״ sensors expands the shooting opportunities in different conditions. Better sensitivity (F11 TBC) with more information in colours, more details in low light and highlight environments, than other 1/3-type camcorders High sensitivity in different environments improves the better quality of picture Easy to shooting without additional lighting Reduce the cost of rental equipment (no need the additional lighting)

  9. PMW-300K1 vs PMW-300K2 • 2 packages with interchangeable Fujinon Lens: • 3 independent control rings all manually controlled • Optical Steady Shot activation by the shift lens mechanism ( PMW-300K2)

  10. PMW-300: Benefits of 2 packages • Large choice of compatible lens. Reduce the investment for the rental companies • FujinonACM-18 1/2-inch - B4 (standard ½”) Mount lens adapter include in standard package of PMW-300K2. • Fujinon ACM-21 adaptor 1/2-inch -2/3-inch B4 is an option. ACM-18 (standard) ACM-21 (optional Fujinon)

  11. PMW-300: Benefits of wide angle lens • Enhanced Perspective, Improved depth of field, higher precision and better resolution XS8x4AS-XB8 (optional Fujinon) VCL-EX0877 (optional Sony) • The optionalFujinon wide zoom lens compatible with PMW-300K1 & K2 • The optional wide conversion lens can be put on the x14 zoom lens (PMW-300K1) • If the wide conversion lens is attached, the mode of the Steady Shot needs to be changed in Camera Set menu (Wide Conversion On/Off)

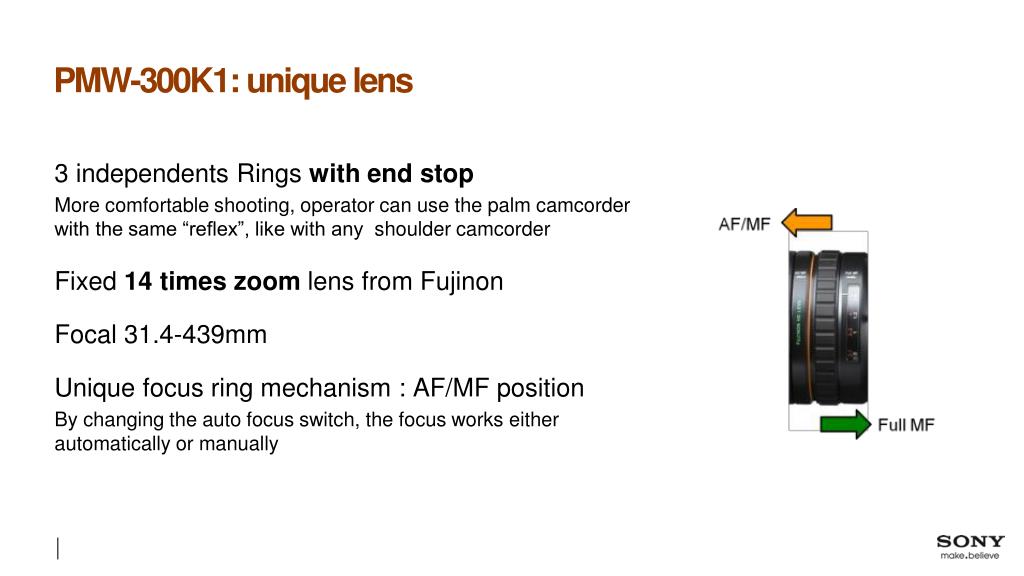

  12. PMW-300K1: unique lens 3 independents Rings with end stop More comfortable shooting, operator can use the palm camcorder with the same “reflex”, like with any  shoulder camcorder Fixed 14 times zoom lens from Fujinon Focal 31.4-439mm Unique focus ring mechanism : AF/MF position By changing the auto focus switch, the focus works either automatically or manually

  13. PMW-300: lens benefits Optical image stabilizing function. Realised by the electric lens shift mechanism If the wide conversion lens VCL-EX0877 is attached, the mode of the Steady Shot needs to be changed by Camera Set menu (Wide Conversion On/Off) Macro and AF combination allows users to achieve macro footage with auto focus activation

  14. PMW-300: Benefits • Quality of picture • NEW Sony’s 3 Dimensional Noise Reducer technology (3DNR), which reduce noise between frames and thus creates noticeably clearer images. Better Signal to Noise ratio* • *the value TBC • Comfortable monitoring • New HD-resolution 3.5-inch colour LCD viewfinder (960x540 pixels) vs(852x480) enables precision focusing for HD filming. The external switches for peaking, bright, display settings 3DNR

  15. PMW-300: Benefits • Versatility of connections for numerous applications • SDI, HDMI, TC, Genlock, Remote 8 pin – all what you need to 3D, multi-camera, studio shooting and comfortable monitoring. SDI and HDMI active in the same time. RM-B170 and RM-B150 compatibility. • N.B. The other remote controllers such as the RM-B750 and the RCP cannot be connected due to the power supply capacity of the PMW-300.

  16. PMW-300: Benefits • Wi-Fi connection for better planning and reduce the post-production time • Awireless adapter currently in development will enhance proxy recording, wireless transfers, Wi-Fi viewing and metadata input • Easy to exchange the content • I-LINK (DV only) recordableinputisavailable. Possibility to exchange the content with other journalists via i-LINK.

  17. UsefulRecording Settings • 2x HD/SD-SDI & HDMIInterface • SDI & HDMI in the same time • Robust protection of connection interfaces • SDI Down-conversion from HD to SD • The Rec Trigger signal can be sent through SDI to link an external recording device (activated in Menu)

  18. PMW-300: Benefits • Extends the life time of product • The magnesium metal body ensures the camcorder is robust and can withstand even the harshest production environments • Comfortable recording over long periods of time • The semi-shoulder design with: • rotary hand grip • extendable chest pad mechanism • accessible position of DC IN connector

  19. PMW-300: Benefits • Fast adaptation to different lighting conditions • 4 Position ND Filter (Clear, 1/4, 1/16, 1/64ND) • Quick setting and Comfortable shooting • 8 User Assignable Buttons for quick access to frequently used functions • Better comprehension of specific features • The PMW-300 has multiple language system for menu and warning messages: English, Chinese, Spanish, Brazilian Portuguese, Russian and Indonesian

  20. PMW-300 Benefits News • Picture cache function • Camcorder can use its internal memory to store the image being captured, before the recording button is pressed (15 seconds at maximum) • In VF the green point indicate the activation of function CACHE REC Capture without loss the important moment Shoot without stress Produce the quality pictures, despite the poor conditions

  21. PMW-300 Benefits Continuous Recording Activation by menu. The multiple clips can be recorded as a single clip. • The ingest to the editing system is easy and faster. The editor can work with non-linear system like with linear one. News Capture without loss the important moment Shoot without stress Produce the quality pictures, despite the poor conditions

  22. PMW-300 Benefits Auto Flange Back (back focus) Activation by general menu (not Maintenance). No need to send to Service department, the operator can proceed itself News Shoot without stress Produce the quality pictures, despite the poor conditions

  23. PMW-300: Audio Exceptional & unique feature for better audio recording: 4 channels are available (2 for Internal microphone and 2 for external inputs) Video & Audio UDF & FAT modes .MXF 50mbps HD - 24 bits, 48 kHz, 4 ch .MXF 35mbps HD - 16 bits, 48 kHz, 4 ch .MXF 25mbps SD - 16 bits, 48 kHz, 4 ch .MP4 35mbps HD - 16 bits, 48 kHz, 4 ch .MP4 25mbps HD - 16 bits, 48 kHz, 4 ch .AVI 25mbps SD - 16 bits, 48 kHz, 2ch

  24. PMW-300: Recording formats The operation point in XAVC is TBC (2014).

  25. PMW-300 - Useful Recording Settings – same as PMW-200 24bit, 48kHz, 4ch, un-compressed Audio recording S&Q motion Frame Recfunction IntervalRecfunction Cache Recfunction (15 sec) Wi-Fi Remote Control functionwith option CBK-WA01 - Zoom, Iris, Focus, White Balance, Recorder Control Picture Profile PAL & NTSC, SD & HD CBK-WA01

  26. PMW-300: Recording supports XQD Memory Card QD-S64 & QD-S32, QD-H32 & QD-H16 SxS Memory Card SBP-16/32/64 Memory Stick Adaptor MEAD-MS01 Emergency media XQD – PC express Card adaptor SD Card Adaptor MEAD-SD02 SxS Memory Card SBS-32G1/64

  27. PMW-300: Recording supports XQD Memory Card QD-S64 & QD-S32, QD-H32 & QD-H16 SxS Memory Card SBP-16/32/64 Memory Stick Adaptor MEAD-MS01 MXF 4.2.2 50 mbpsrecording XQD – PC express Card adaptor SD Card Adaptor MEAD-SD01 SxS Memory Card SBS-32G1/64

  28. PMW- 300 highlights and features PMW-EX3 Successor with PMW-200 codecs + ready ! New codec : • MPEG2 HD420 : 35Mbps full HD .MXF wrapped (NEW)e as PMW-500) • XAVC HD422 10bits Intra and Long GOP ready .MXF wrapped (Future Software Upgrade is required) New features vs PMW-200 and PMW-EX3: • 3DNR noise reduction processing (vs PMW-200, PMW-EX3) • Improved LCD viewfinder resolution (vs PMW-200, PMW-EX3) (852x480) to (960x540) • I-Link (DV only) recordable input (vs PMW-EX3) • Rotary grip (vs PMW-200) • Magnesium metal body (vs PMW-200) • Not only WiFi, but also 8-pin Remote (vs PMW-200) • Direct access to thumbnails (vs PMW-EX3)

  29. PMW- 300 highlights and features New features vs PMW-200 and PMW-EX3: • Wireless File Transfer in option (TBC) (vs PMW-200, PMW-EX3) • 8 User Assignable Buttons (vs PMW-200) • Multiple language system (vs PMW-200, PMW-EX3) • Accessible position of DC IN connector (vs PMW-200) • Extendable chest pad mechanism (vs PMW-200, PMW-EX3) • 2 SDI output & 1 HDMI (vs PMW-200, PMW-EX3)

  30. PMW- 300 vs PMW-EX3

  31. PMW- 300 vs PMW-EX3

  32. PMW- 300 Supplied Accessories Operating Instructions Lens Hood USB Cable Remote Commander • CD-ROM(E,F,D,I,S, P, R, In) w/o J and CN model • Printed Paper Basic ver.(E) w/o J and CN model • Printed Paper Full ver. (J) J model only • Printed Paper Full ver. (CN) CN model only Shoulder Strap Mounting Bracket for CBK-WA01 E: English F: French D: German I: Italian S: Spanish J: Japanese CN: Chinese P: Brazilian Portuguese R: Russian In: Indonesian Lithium battery (CR2032) BC-U1 BP-U30 The XDCAM Browser, UDF Driver, SxS Device Driver are supplied by internet download. CDROM is not supplied.

  33. PMW-300: Optional Accessories BC-U2 Battery BP-U90 Wi-Fi Adaptor CBK-WA01 Shotgun microphones ECM-673/ECM-680S Shotgun microphone ECM-MS2 Wi-Fi Adaptor CBK-WA100 BC-U1 UHF Wireless Microphone UWP-V1 Remote RM-B170 Card 16/32/64 Go Adaptor XQD card’sreader Accessories pack ACC-U60 Consumer media XQD cards Battery BP-U30 Battery BP-U60 Memory Stick Adapter MEAD-MS02 SD Card Adapter MEAD-SD01 USB Reader/Writer SBAC-US20

  34. PMW-300 warranty * • Support coverage 2 years • Multilingualtelephonehelplinestaffed by technical experts • Collect-and-deliverrepair service • Free logistics • Loan unit offered (if repairislikely to exceed 7 days) • Prime support PLUS (3 additionalyears in option) *EU, Norway and Switzerland

  35. Thankyou EOL from 12/06/2013
