Resistors. Capacitors. Inductors. Resistors slow down the electrons. I. Resistors slow down the electrons. +. -. +. -. R. In most instances, the voltage across a piece of material is proportional to the current that flows through it.

harva
Download Presentation

Resistors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Resistors Capacitors Inductors

  2. Resistors slow down the electrons I

  3. Resistors slow down the electrons + - + -

  4. R In most instances, the voltage across a piece of material is proportional to the current that flows through it The constant of proportionality is called resistance, R, and has units of Ohms (Ω) This is known as Ohm’s law and is usually written as In a circuit diagram we draw resistance like this

  5. As length increases, the electrons are blocked for a longer time, slowing them down even more. Thus, the current is smaller and the resistance is greater As area increases, more electrons pass through it. Thus, the current is greater and the resistance is smaller For many materials, the resistance is proportional to the length of the resistor and inversely proportional to the cross-sectional area The constant of proportionality is called resistivity, ρ, and is different for different materials Table 28.2 in the text gives resistivity for some materials

  6. Power is defined as the change in energy per unit time In the case of electric potential energy, we can write The power may be written in different forms using Ohm’s law

  7. +σ E Δs

  8. V=4πkσd +σ d E V=0 -σ

  9. V=4πkσd0/κ • +σ • Ed • d0 • d • E0 • V=0 • -σ

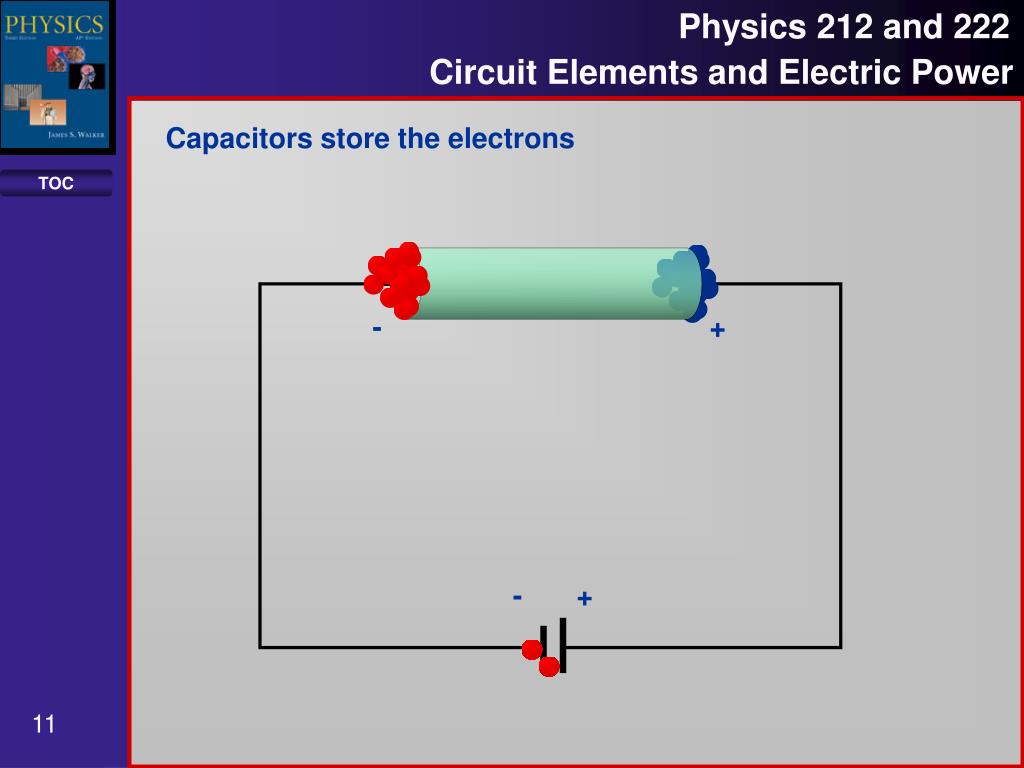

  10. Capacitors store the electrons + - + -

  11. A capacitor is two conductors of equal but opposite charge separated by a dielectric. A dielectric is a substance made up of stationary dipoles. The capacitance of a capacitor is given by the equation. Q is magnitude of the charge of one of the conductors. V is the magnitude of the difference in potential between them. The capacitance depends only on the geometry (shape and size of the capacitor, not on Q or V because they are proportional to each other.

  12. For any capacitor, the electric potential energy is given by But where is that energy found? For a parallel plate capacitor… This is the electrostatic field energy density. The energy lies in the electric field!

  13. Inductors create magnetic fields + -
