  1. Bridge Terminology Photos by J.S. O’Connor

  2. Pier Cap Beam(Hammerhead Pier)

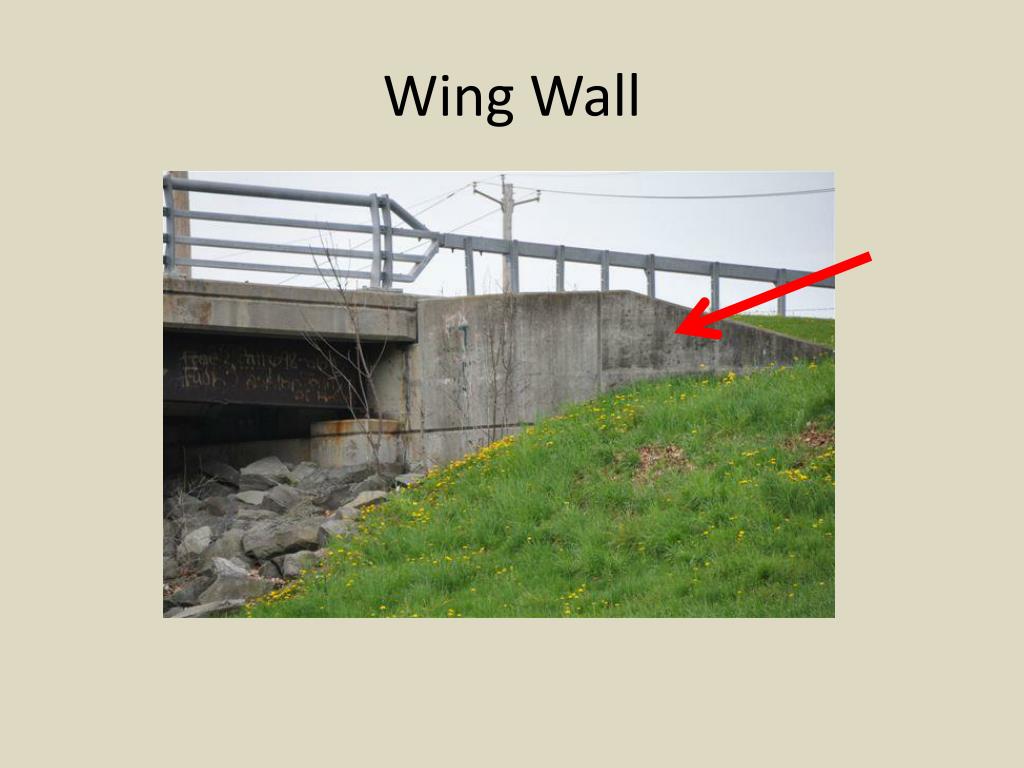

  3. Wing Wall

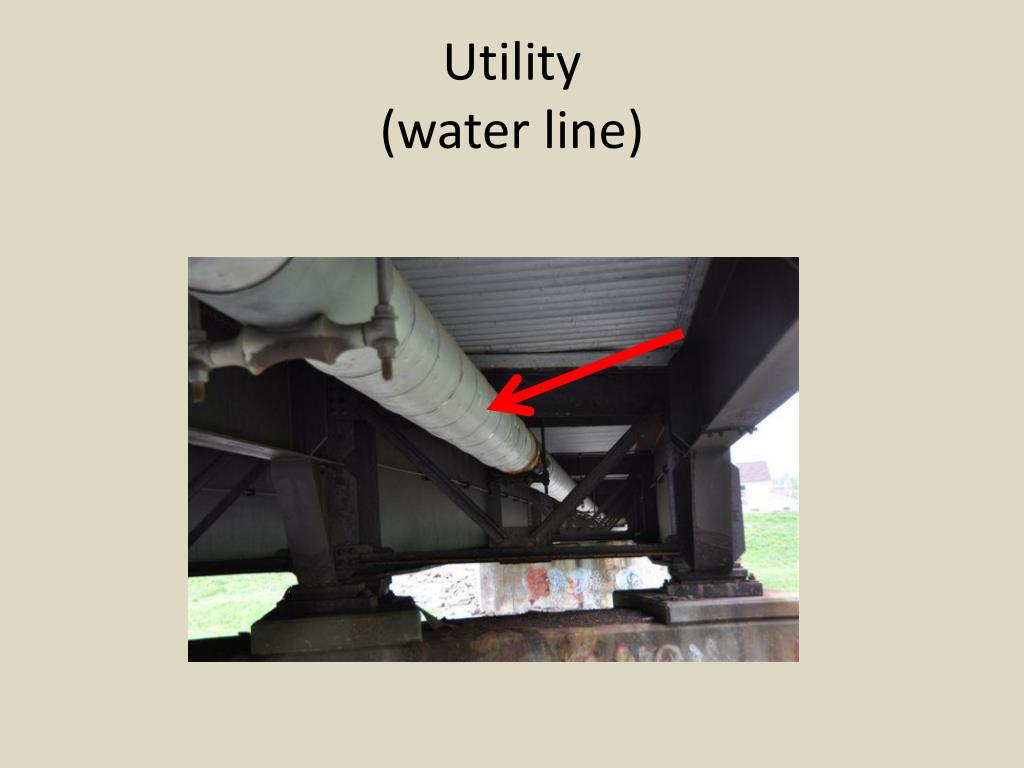

  4. Utility(water line)

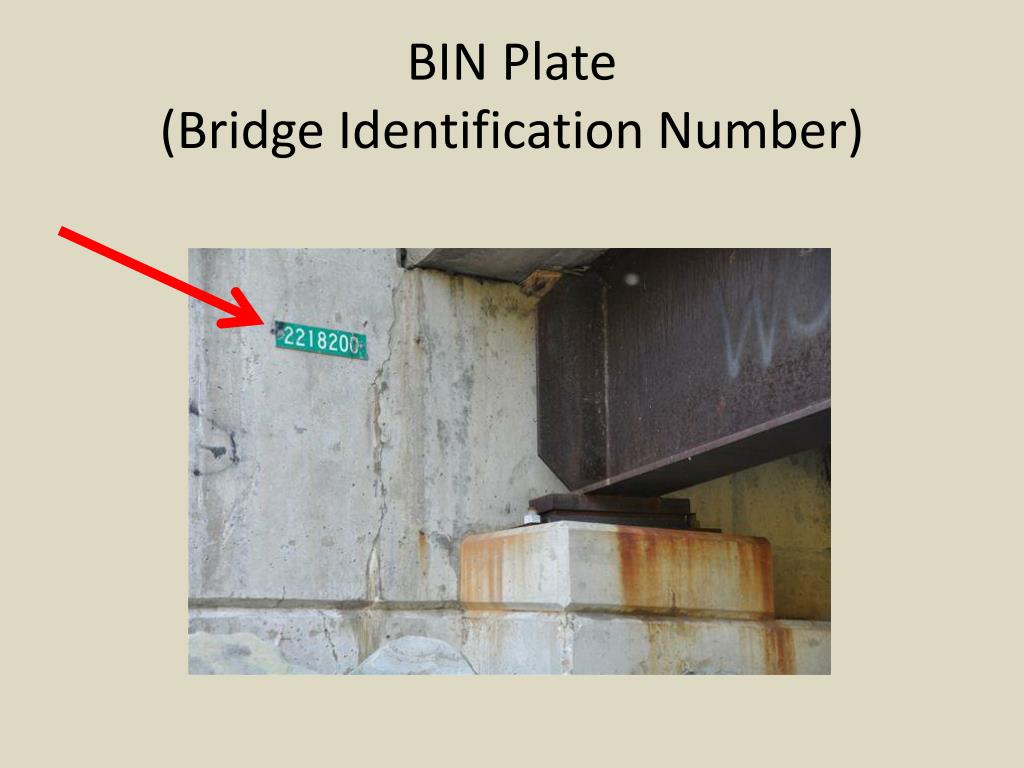

  5. BIN Plate(Bridge Identification Number)

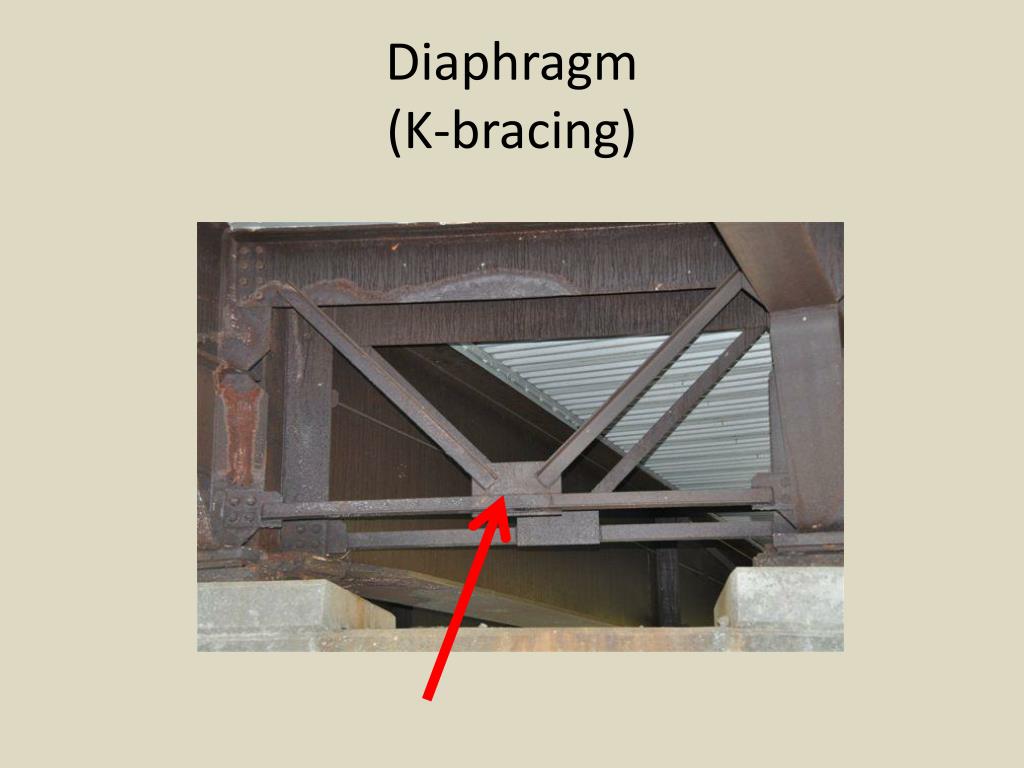

  6. Diaphragm (K-bracing)

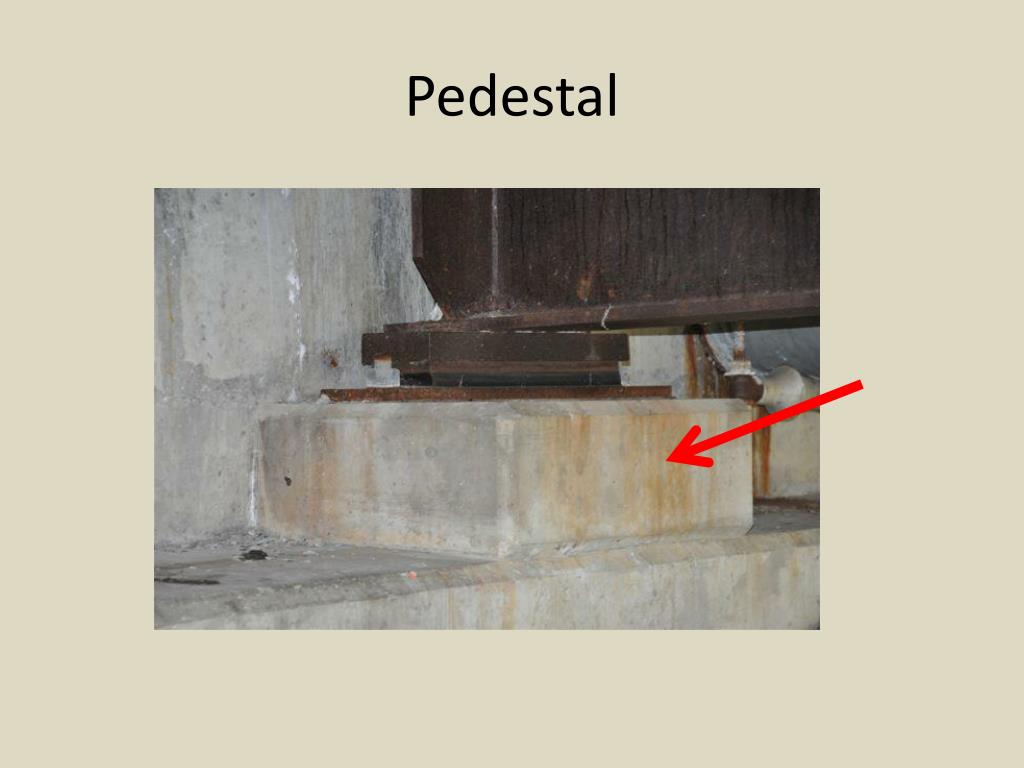

  7. Pedestal

  8. Approach Span

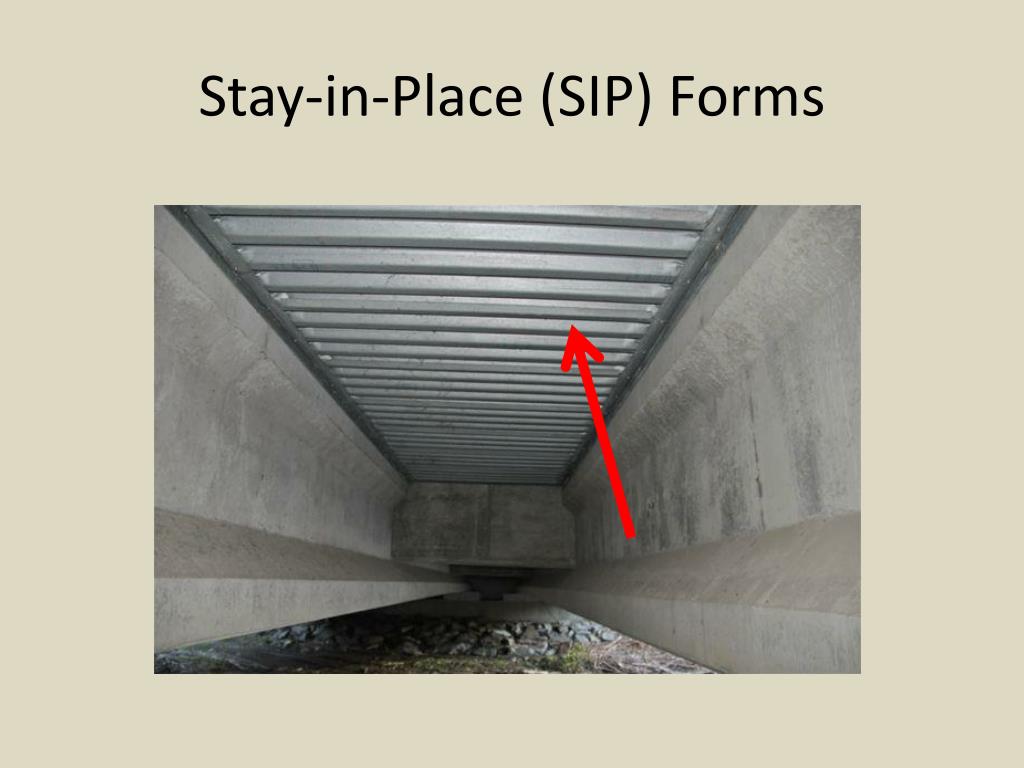

  9. Stay-in-Place (SIP) Forms

  10. Field Splice

  11. Vertical Web Stiffener

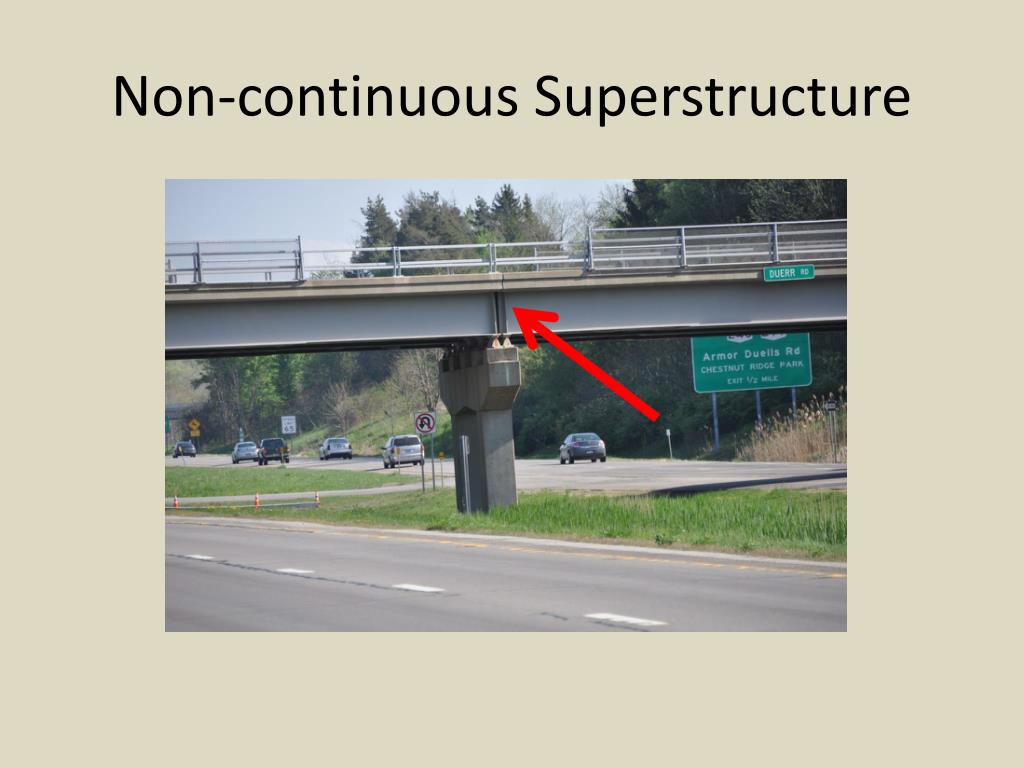

  12. Non-continuous Superstructure
