11.2: Chords and Arcs

11.2: Chords and Arcs. Objectives: Students will be able to… Use congruent chords, arcs and central angles. Recognize properties of lines through the center of a circle. Definition: CHORD. Segment whose endpoints are on a circle. THEOREM:. Within a circle or in congruent circles:

haven
Download Presentation

11.2: Chords and Arcs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 11.2: Chords and Arcs Objectives: Students will be able to… Use congruent chords, arcs and central angles. Recognize properties of lines through the center of a circle

  2. Definition: CHORD Segment whose endpoints are on a circle

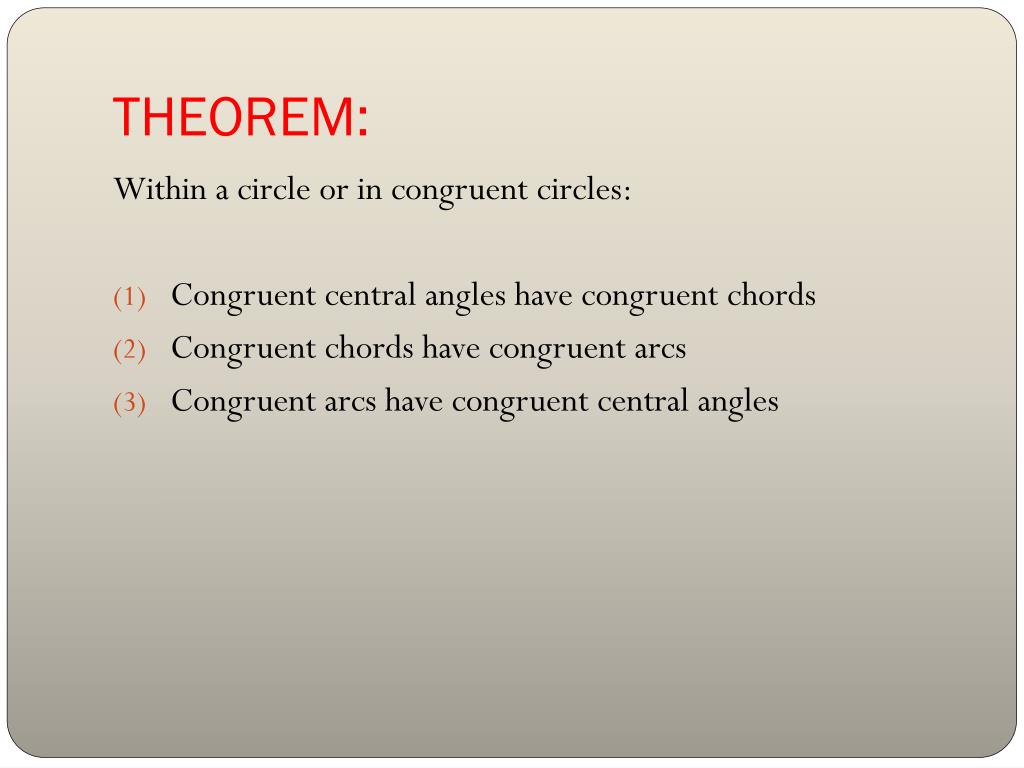

  3. THEOREM: Within a circle or in congruent circles: • Congruent central angles have congruent chords • Congruent chords have congruent arcs • Congruent arcs have congruent central angles

  4. Congruent central angles Congruent chords Congruent arcs

  5. ( B ( ( If , then If then ( A D C

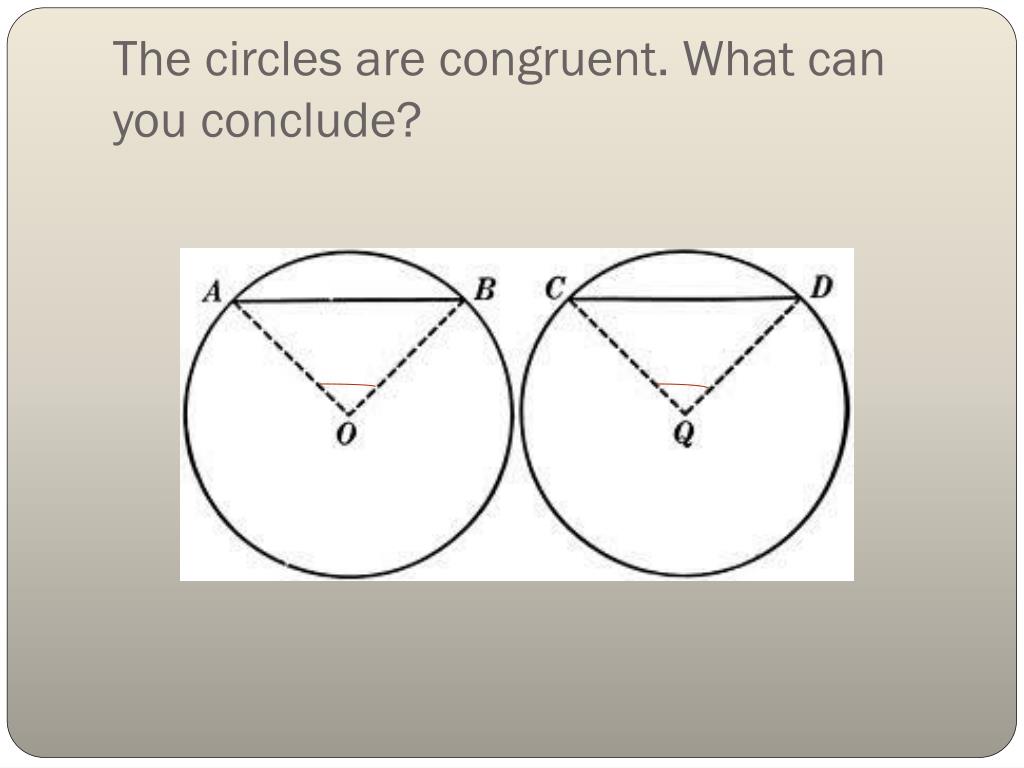

  6. The circles are congruent. What can you conclude?

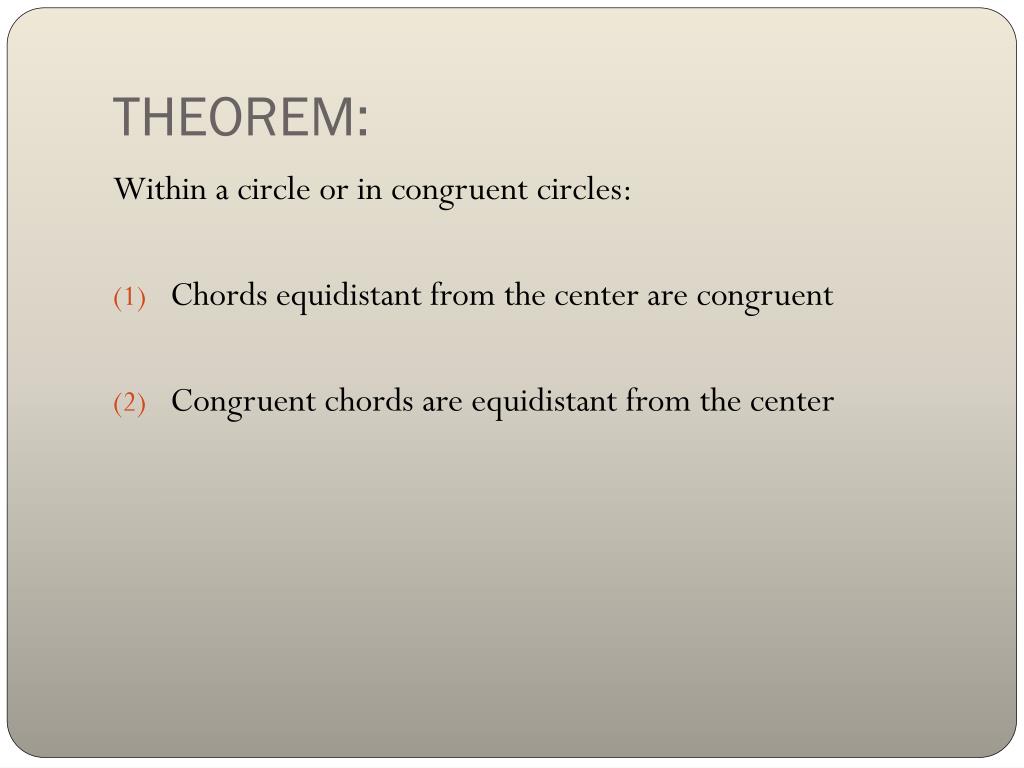

  7. THEOREM: Within a circle or in congruent circles: • Chords equidistant from the center are congruent • Congruent chords are equidistant from the center

  8. Picture pages… Each chord is the same distance to the center.

  9. Find x. x 12

  10. Find x. 24 x 8 12 12

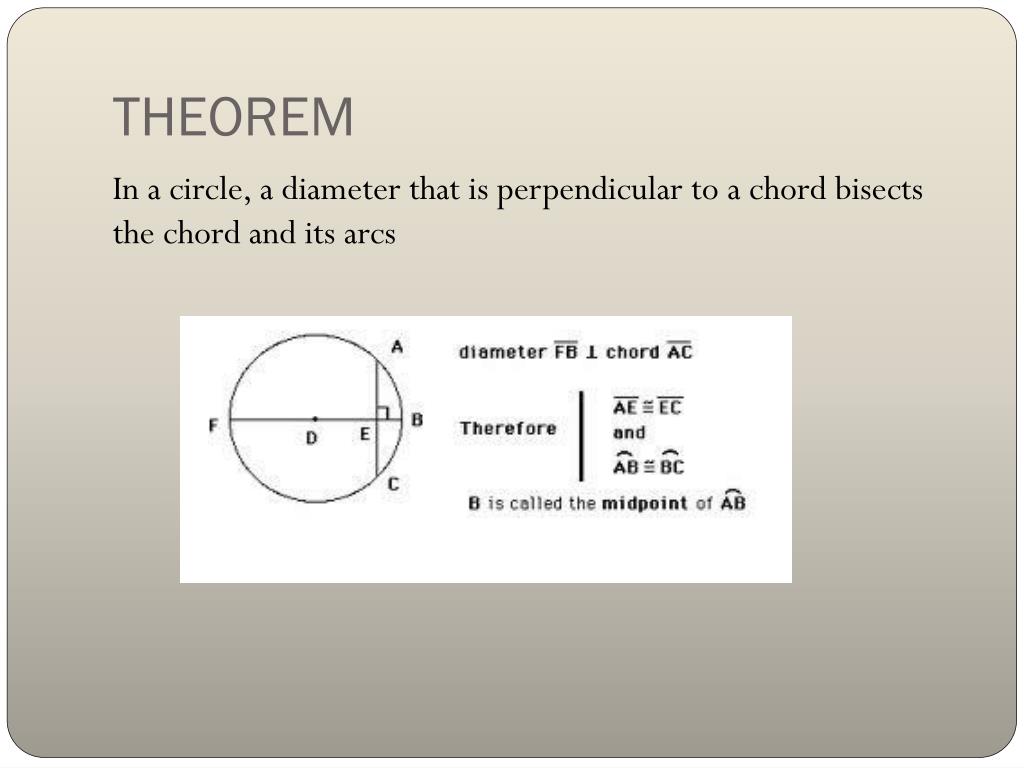

  11. THEOREM In a circle, a diameter that is perpendicular to a chord bisects the chord and its arcs

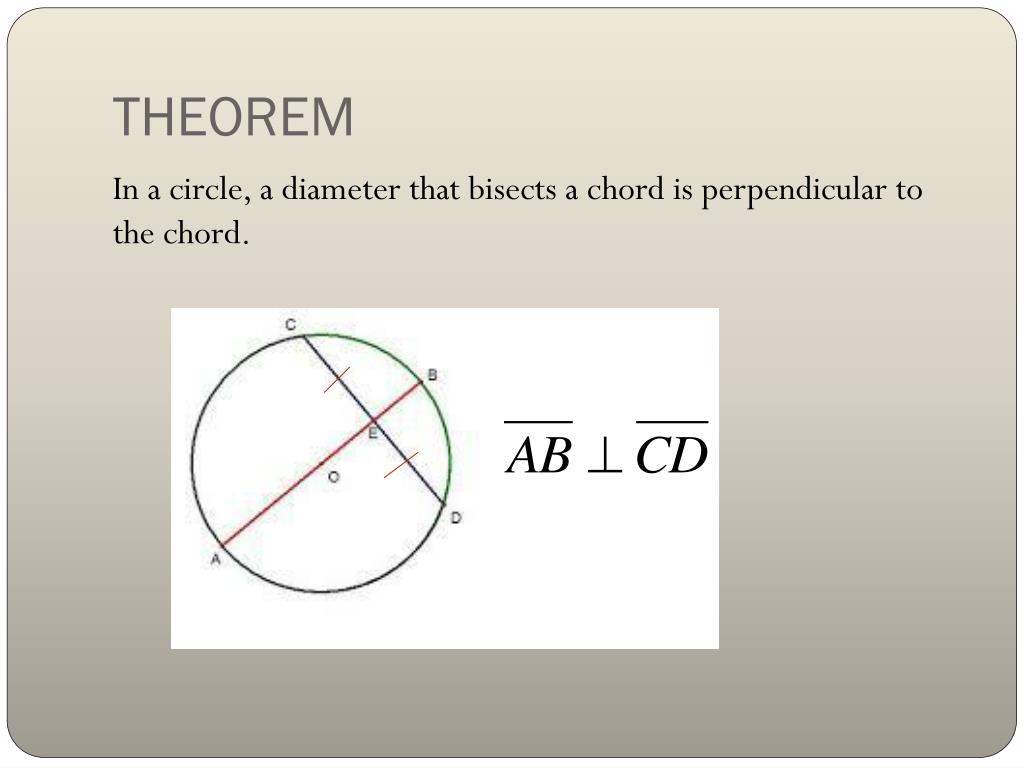

  12. THEOREM In a circle, a diameter that bisects a chord is perpendicular to the chord.

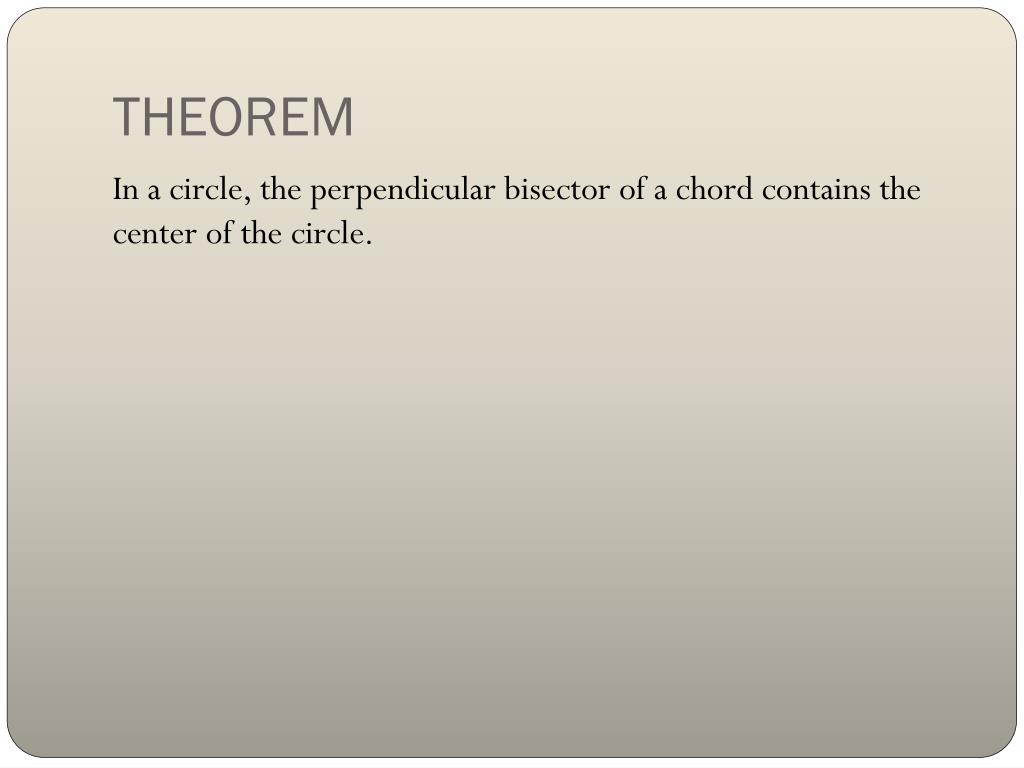

  13. THEOREM In a circle, the perpendicular bisector of a chord contains the center of the circle.

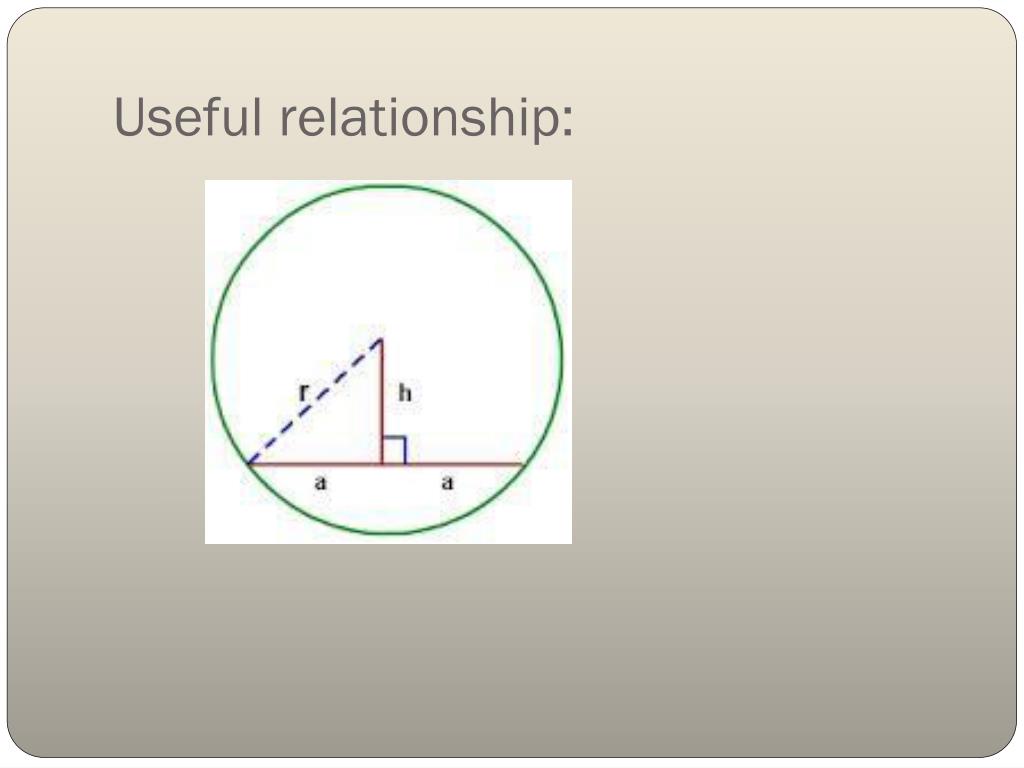

  14. Useful relationship:

  15. Example: Find x to the nearest tenth. • A diameter perpendicular to a chord bisects the chord • Since x is bisected by the segment on diameter, use pythagorean theorem to find half of x, then double answer. 6 4 x

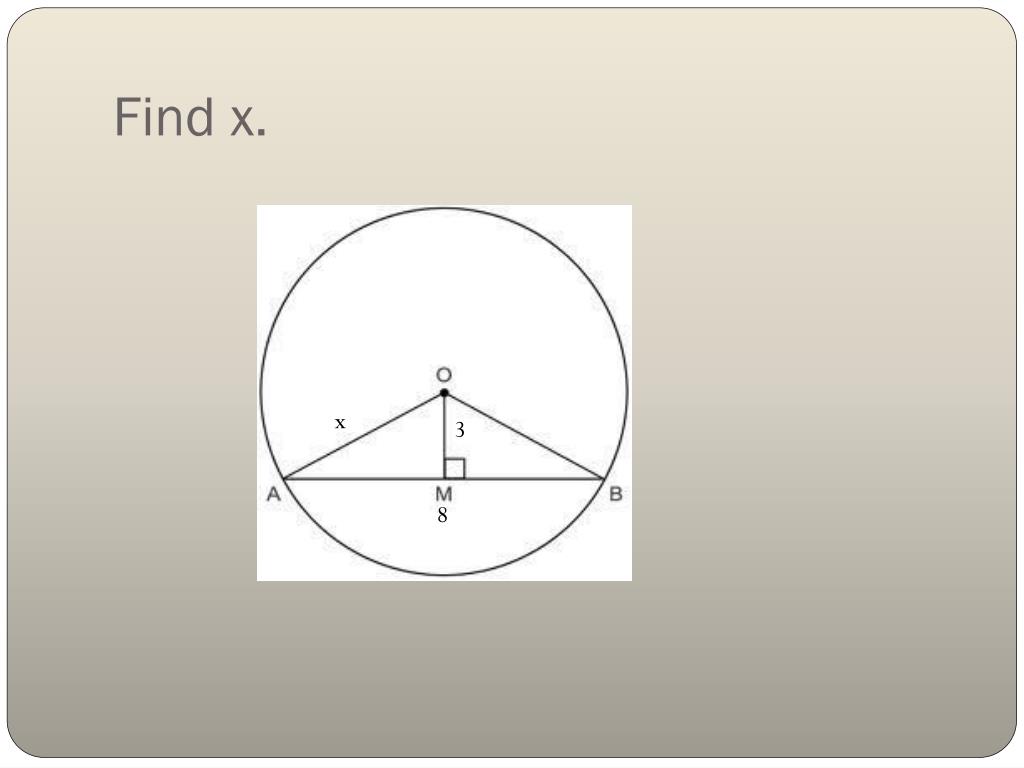

  16. Find x. x 3 8
