  1. Frascati May 2003 The QCD structure of the nucleon Universality of T-odd effects in single spin and azimuthal asymmetries, D. Boer, PJM and F. Pijlman, hep-ph/0303034 P.J. Mulders Vrije Universiteit Amsterdam mulders@nat.vu.nl

  2. Content • Introduction: From global view to quarks • Observables in (SI)DIS in field theory language  lightcone/lightfront correlations • Single-spin asymmetries in hard reactions T-odd correlations • T-odd observables in final (fragmentation) and initial state (distribution) correlations • Structure functions and parton densities • Universality of T-odd phenomena Frascati p j mulders

  3. Introducing the nucleon: from global view to quarks Frascati p j mulders

  4. Global properties of nucleons • mass • charge • spin • magnetic moment • isospin, strangeness • baryon number • Mp Mn 940 MeV • Qp = 1, Qn = 0 • s = ½ • gp 5.59, gn -3.83 • I = ½: (p,n) S = 0 • B = 1 Frascati p j mulders

  5. A real look at the proton g + N  …. Nucleon excitation spectrum E ~ 1/R ~ 200 MeV R ~ 1 fm Frascati p j mulders

  6. A virtual look at the proton _ g* + N  N g* N N Frascati p j mulders

  7. Spacelike form factor global density charge current Frascati p j mulders

  8. Nucleon e.m. form factors GEp GMp/mp  GMn/mn  Gdipole Gdipole = (1+Q2/L2)-2 L2 = 0.71 GeV2 Frascati p j mulders

  9. Nucleon form factors Present-day status (TJNAF) Frascati p j mulders

  10. Nucleon densities neutron proton • charge density  0 • u more central than d? • role of antiquarks? • n = n0 + pp- + … ? Frascati p j mulders

  11. Another (weak) look at the nucleon n  p + e- + n • = 900 s  Axial charge GA(0) = 1.26 Different weights depending on processes Frascati p j mulders

  12. Information on substructure quark number anom.mag.mom axial charge Frascati p j mulders

  13. A hard look at the proton • For hard momenta, it is improbable that system survives. One needs additional hard interactions • Best deal is hitting elementary or pointlike objects G(Q2) ~ (Q2R2)-(n-1) Frascati p j mulders

  14. A hard look at the proton • Hard virtual momenta ( q2 = Q2 ~ many GeV2) can couple to (two) soft momenta Frascati p j mulders g* + N  jet g* jet + jet

  15. DIS event ZEUS@DESY Hitting quarks in the proton Frascati p j mulders

  16. Soft physics in inclusive deep inelastic leptoproduction Frascati p j mulders

  17. (calculation of) cross sectionDIS Full calculation + + + … PARTON MODEL +

  18. Lightcone dominance in DIS

  19. Leadingorder DIS • In limit of large Q2 the result of ‘handbag diagram’ survives • … + contributions from A+ gluons A+ Ellis, Furmanski, Petronzio Efremov, Radyushkin A+ gluons  gauge link Frascati p j mulders

  20. Matrix elements <yA+y> produce the gauge link U(0,x) in leading quark lightcone correlator Color gauge link in correlator A+

  21. Distribution functions Soper Jaffe & Ji NP B 375 (1992) 527 Parametrization consistent with: Hermiticity, Parity & Time-reversal

  22. Distribution functions • M/P+ parts appear as M/Q terms in s • T-odd part vanishes for distributions but is important for fragmentation Jaffe & Ji NP B 375 (1992) 527 Jaffe & Ji PRL 71 (1993) 2547 leading part

  23. Distribution functions Selection via specific probing operators (e.g. appearing in leading order DIS, SIDIS or DY) Jaffe & Ji NP B 375 (1992) 527

  24. Lightcone correlatormomentum density y+ = ½ g-g+ y Sum over lightcone wf squared

  25. Basis for partons • ‘Good part’ of Dirac space is 2-dimensional • Interpretation of DF’s unpolarized quark distribution helicity or chirality distribution transverse spin distr. or transversity

  26. Bacchetta, Boglione, Henneman & Mulders PRL 85 (2000) 712 Matrix representation Related to the helicity formalism Anselmino et al. • Off-diagonal elements (RL or LR) are chiral-odd functions • Chiral-odd soft parts must appear with partner in e.g. SIDIS, DY

  27. Summarizing DIS • Structure functions (observables) are identified with distribution functions (lightcone quark-quark correlators) • DF’s are quark densities that are directly linked to lightcone wave functions squared • There are three DF’s f1q(x) = q(x), g1q(x) =Dq(x), h1q(x) =dq(x) • Longitudinal gluons (A+, not seen in LC gauge) are absorbed in DF’s • Transverse gluons appear at 1/Q and are contained in (higher twist) qqG-correlators • Perturbative QCD  evolution Frascati p j mulders

  28. Soft physics in semi-inclusive (1-particle incl) leptoproduction Frascati p j mulders

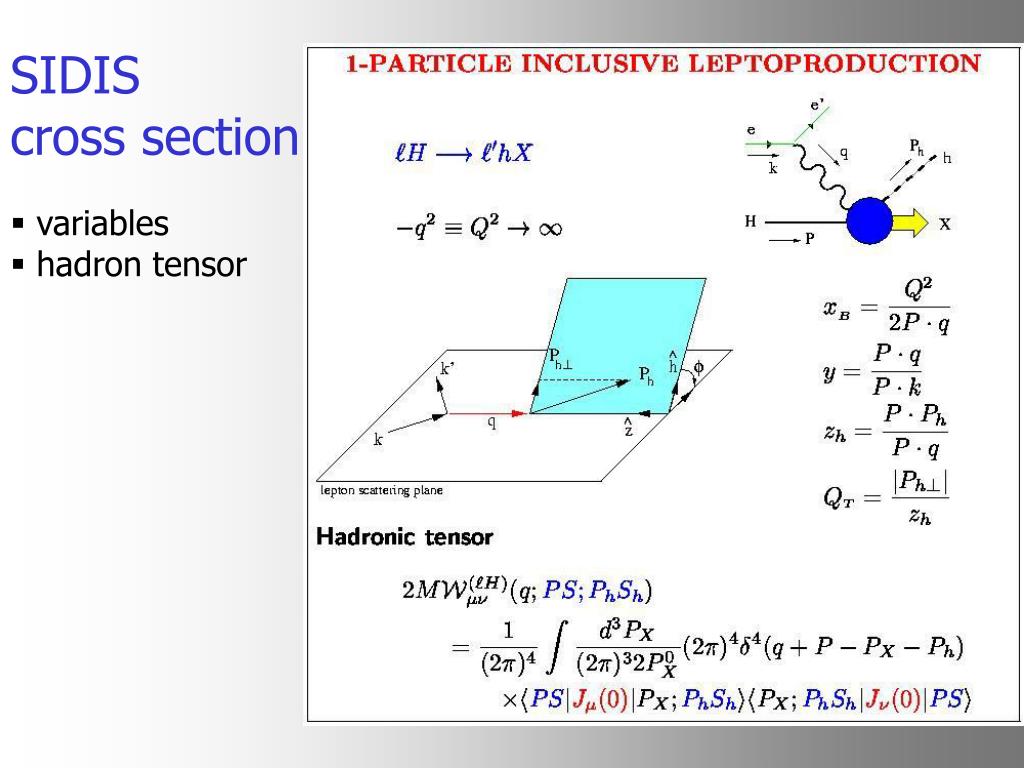

  29. SIDIS cross section • variables • hadron tensor

  30. (calculation of) cross sectionSIDIS Full calculation + + PARTON MODEL + … +

  31. Lightfront dominance in SIDIS

  32. Lightfront dominance in SIDIS Three external momenta P Ph q transverse directions relevant qT = q + xB P – Ph/zh or qT = -Ph^/zh

  33. Leading order SIDIS • In limit of large Q2 only result of ‘handbag diagram’ survives • Isolating parts encoding soft physics ? ? Frascati p j mulders

  34. Lightfront correlator(distribution) + Lightfront correlator (fragmentation) Collins & Soper NP B 194 (1982) 445 no T-constraint T|Ph,X>out =|Ph,X>in Jaffe & Ji, PRL 71 (1993) 2547; PRD 57 (1998) 3057

  35. Distribution A+ including the gauge link (in SIDIS) One needs also AT G+a = +ATa ATa(x)= ATa(J) +dh G+a Ji, Yuan, PLB 543 (2002) 66 Belitsky, Ji, Yuan, hep-ph/0208038 From <y(0)AT(J)y(x)> m.e.

  36. Distribution A+ including the gauge link (in SIDIS or DY) SIDIS A+ DY SIDIS F[-] DY F[+] hep-ph/0303034

  37. Distribution • for plane waves T|P> = |P> • But... T U[0, J]T = U[0,- J] • this does affect F[](x,pT) • it does not affect F(x) • appearance of T-odd functions in F[](x,pT) including the gauge link (in SIDIS or DY)

  38. Ralston & Soper NP B 152 (1979) 109 Parameterizations including pT Tangerman & Mulders PR D 51 (1995) 3357 Constraints from Hermiticity & Parity • Dependence on …(x, pT2) • Without T: • h1^ and f1T^ • nonzero! • T-odd functions • Fragmentation f  D g  G h  H • No T-constraint: H1^ and D1T^ nonzero!

  39. Integrated distributions T-odd functions only for fragmentation

  40. Weighted distributions Appear in azimuthal asymmetries in SIDIS or DY

  41. T-odd  single spin asymmetry example:sOTO in ep epX • example of a leading azimuthal asymmetry • T-odd fragmentation function (Collins function) • T-odd  single spin asymmetry • involves two chiral-odd functions • Best way to get transverse spin polarization h1q(x) Collins NP B 396 (1993) 161 Tangerman & Mulders PL B 352 (1995) 129

  42. Single spin asymmetriessOTO • T-odd fragmentation function (Collins function) or • T-odd distribution function (Sivers function) • Both of the above can explain SSA in pppX • Different asymmetries in leptoproduction! Collins NP B 396 (1993) 161 Sivers PRD 1990/91 Boer & Mulders PR D 57 (1998) 5780 Boglione & Mulders PR D 60 (1999) 054007

  43. Summarizing SIDIS • Beyond just extending DIS by tagging quarks … • Transverse momenta of partons become relevant, effects appearing in azimuthal asymmetries • DF’s and FF’s depend on two variables, F[](x,pT) and D[](z,kT) • Gauge link structure is process dependent ([]) • pT-dependent distribution functions and (in general) fragmentation functions are not constrained by time-reversal invariance • This allows T-odd functions h1^ and f1T^ (H1^ and D1T^) appearing in single spin asymmetries Frascati p j mulders

  44. Structure functions are parton densities Frascati p j mulders

  45. Ralston & Soper NP B 152 (1979) 109 Distribution functions with pT Tangerman & Mulders PR D 51 (1995) 3357 Selection via specific probing operators (e.g. appearing in leading order SIDIS or DY)

  46. Bacchetta, Boglione, Henneman & Mulders PRL 85 (2000) 712 Lightcone correlatormomentum density Remains valid for F(x,pT) … and also after inclusion of links forF[](x,pT) Sum over lightcone wf squared Brodsky, Hoyer, Marchal, Peigne, Sannino PR D 65 (2002) 114025

  47. Interpretation unpolarized quark distribution need pT T-odd helicity or chirality distribution need pT T-odd need pT transverse spin distr. or transversity need pT need pT

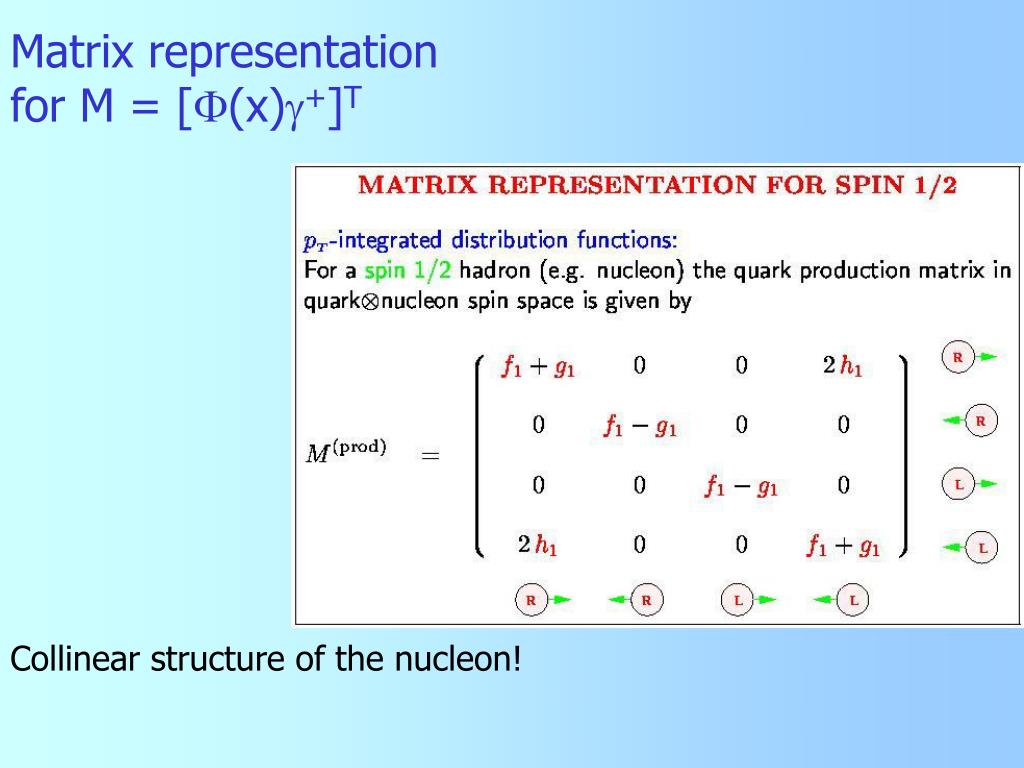

  48. Matrix representationfor M = [F(x)g+]T Collinear structure of the nucleon!

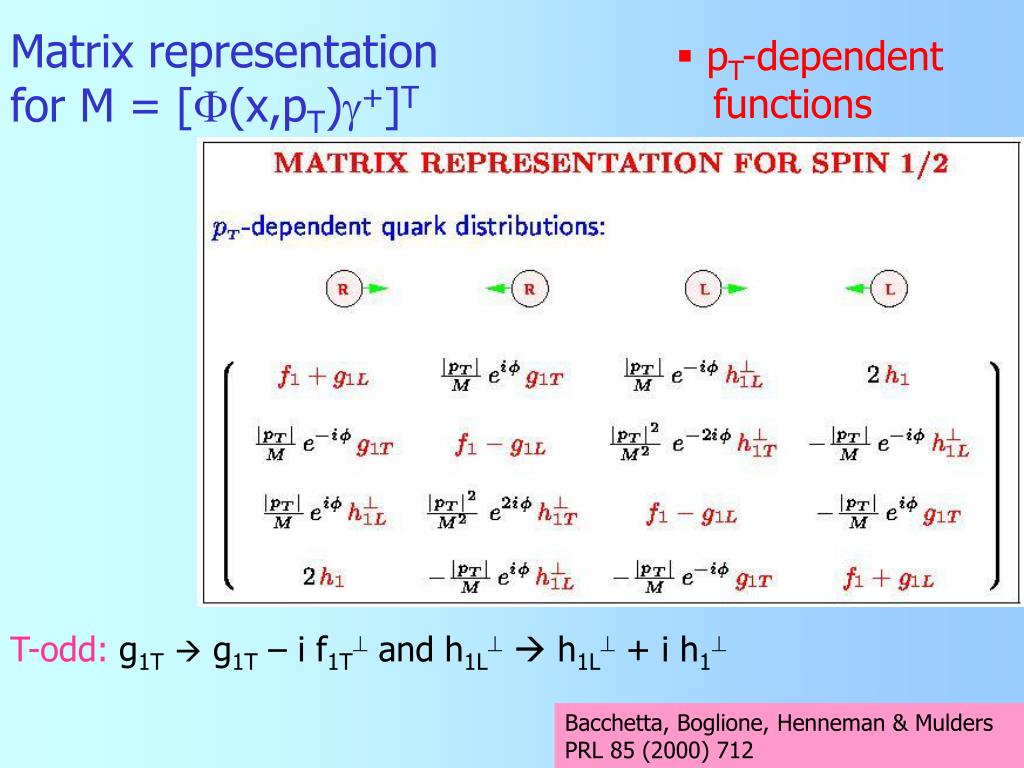

  49. pT-dependent functions Matrix representationfor M = [F(x,pT)g+]T T-odd: g1T g1T – i f1T^ and h1L^  h1L^ + i h1^ Bacchetta, Boglione, Henneman & Mulders PRL 85 (2000) 712

  50. Positivity and bounds
