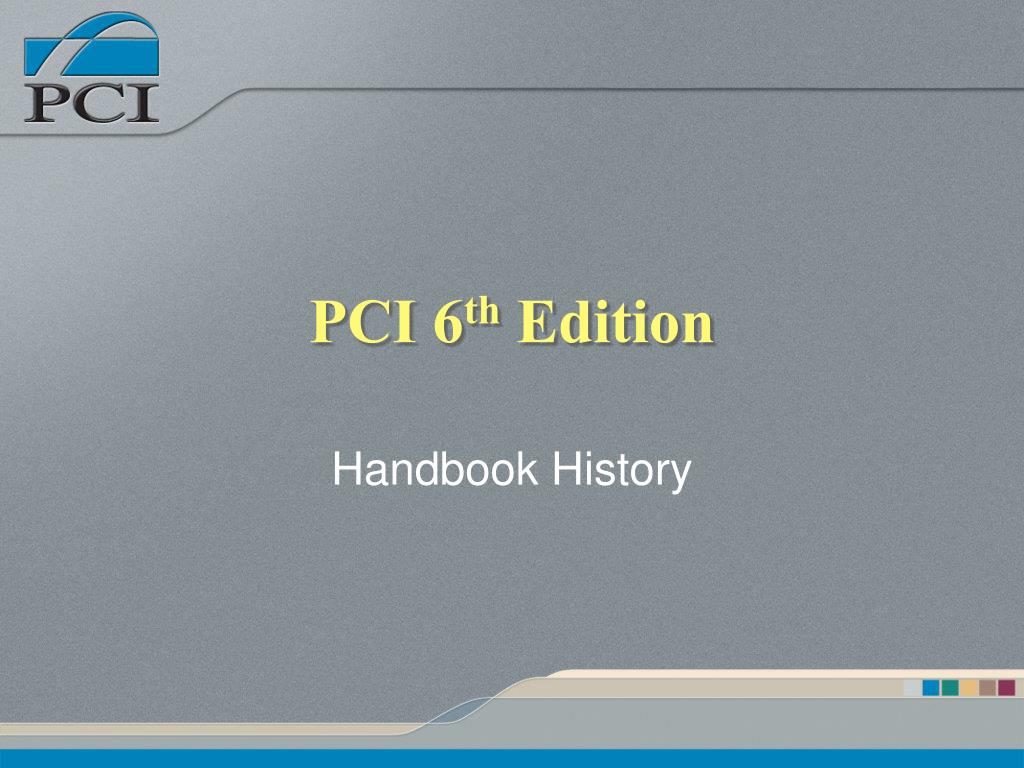

  1. PCI 6th Edition Handbook History

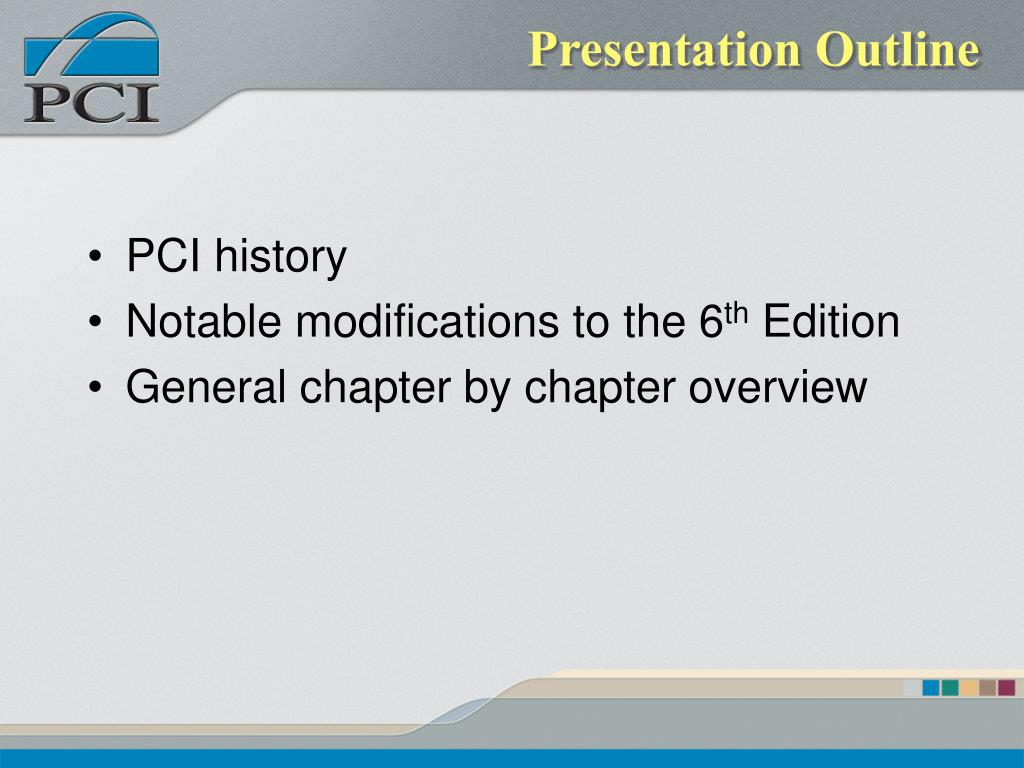

  2. Presentation Outline • PCI history • Notable modifications to the 6th Edition • General chapter by chapter overview

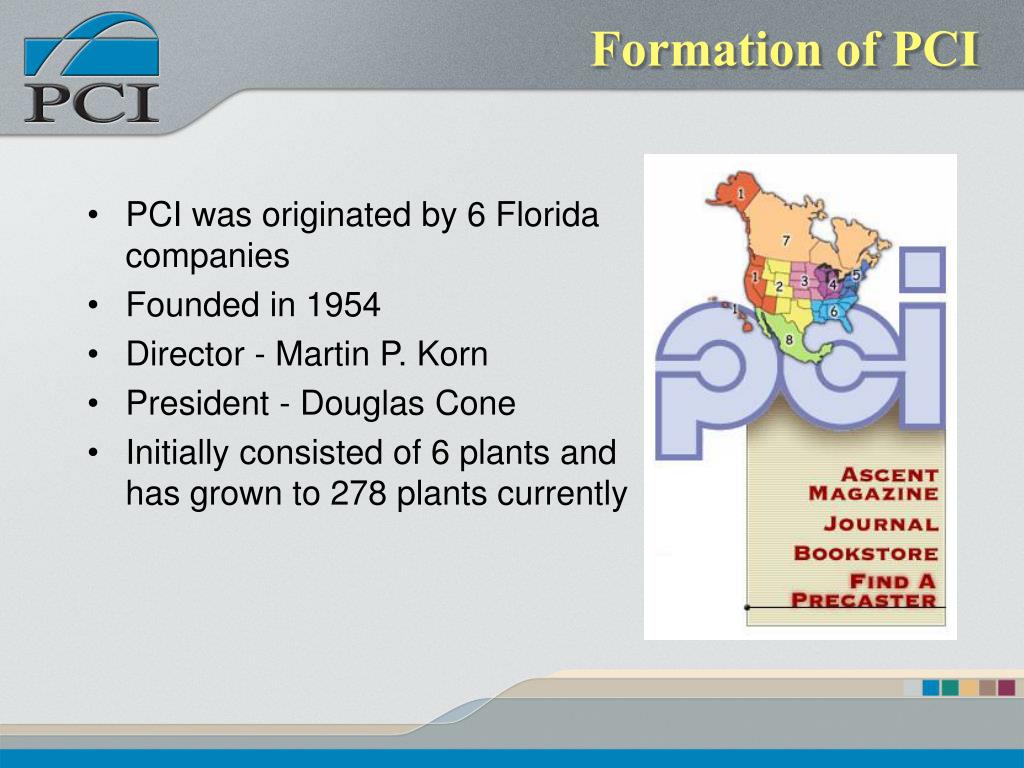

  3. Formation of PCI • PCI was originated by 6 Florida companies • Founded in 1954 • Director - Martin P. Korn • President - Douglas Cone • Initially consisted of 6 plants and has grown to 278 plants currently

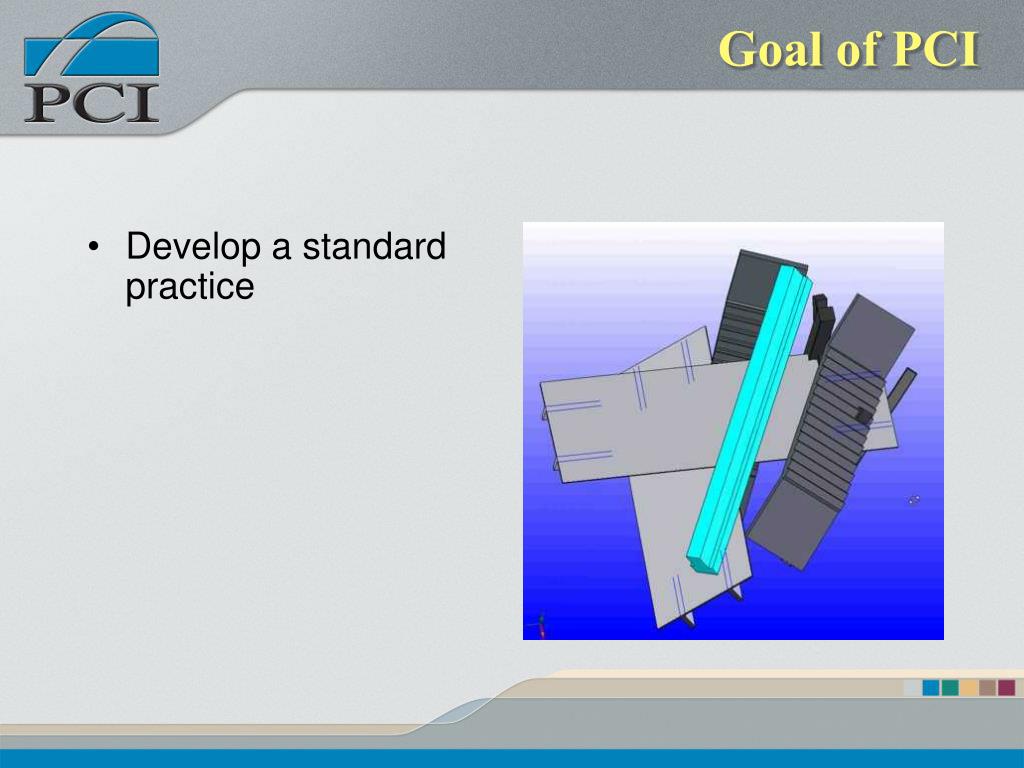

  4. Goal of PCI • Develop a standard practice

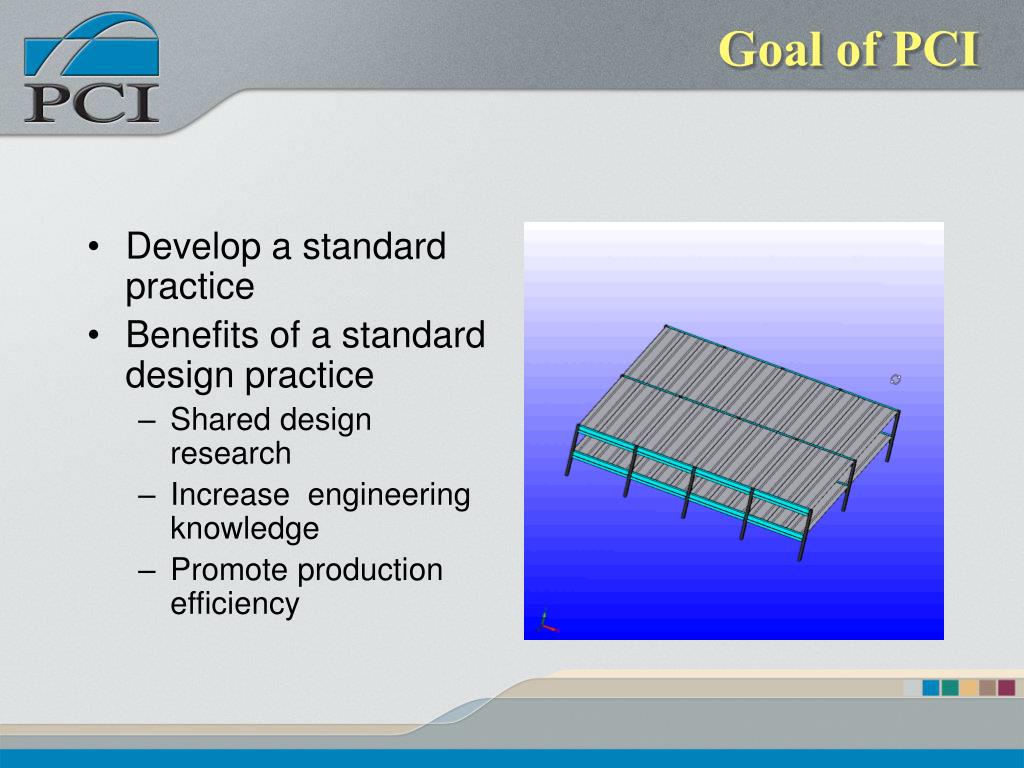

  5. Goal of PCI • Develop a standard practice • Benefits of a standard design practice • Shared design research • Increase engineering knowledge • Promote production efficiency

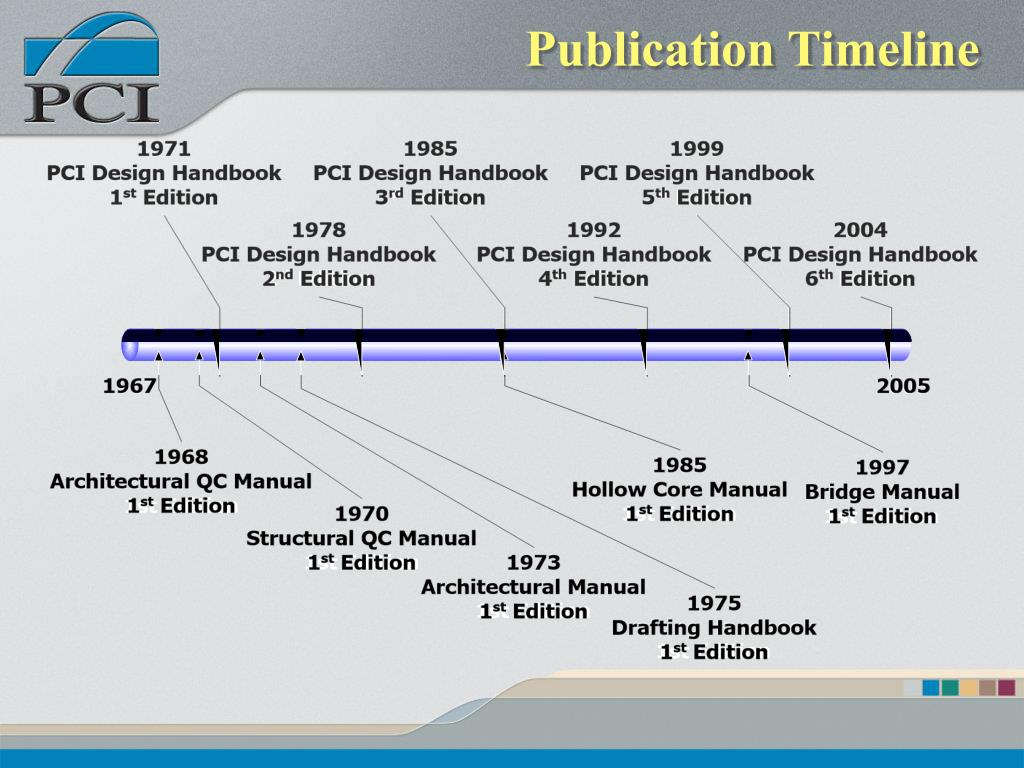

  6. Publication Timeline

  7. PCI Design Handbook – 1st Edition • Motivation • Standard approach to design • Illustrate application of product • Assist design practices • Disseminate consistent product specifications

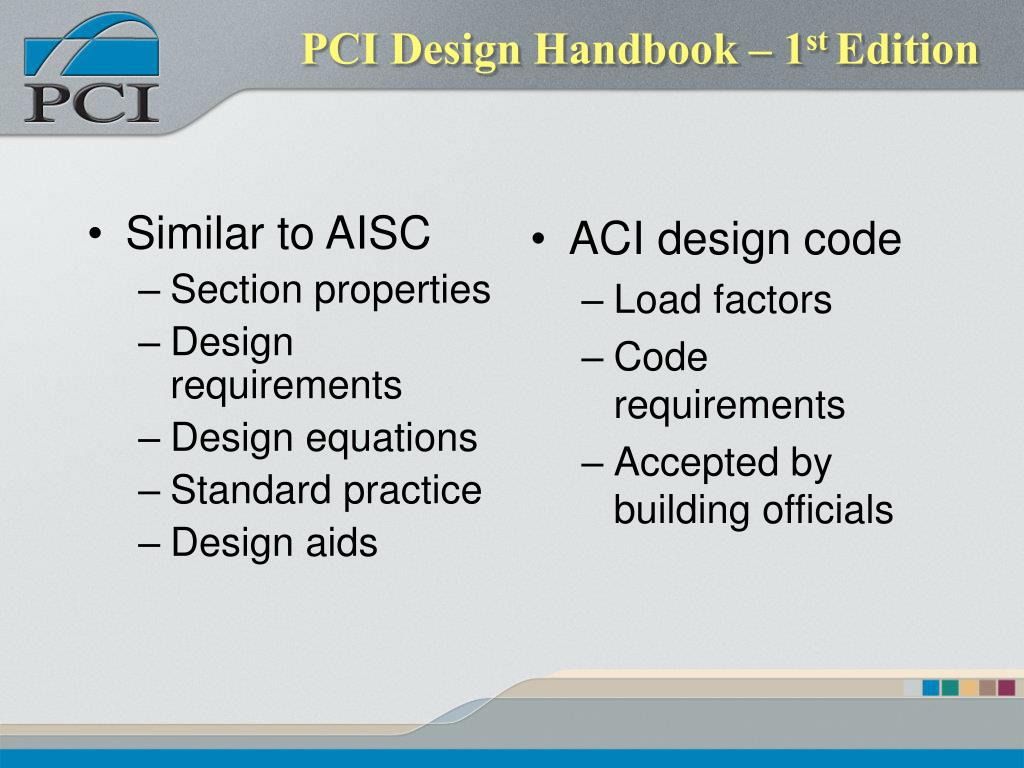

  8. Similar to AISC Section properties Design requirements Design equations Standard practice Design aids ACI design code Load factors Code requirements Accepted by building officials PCI Design Handbook – 1st Edition

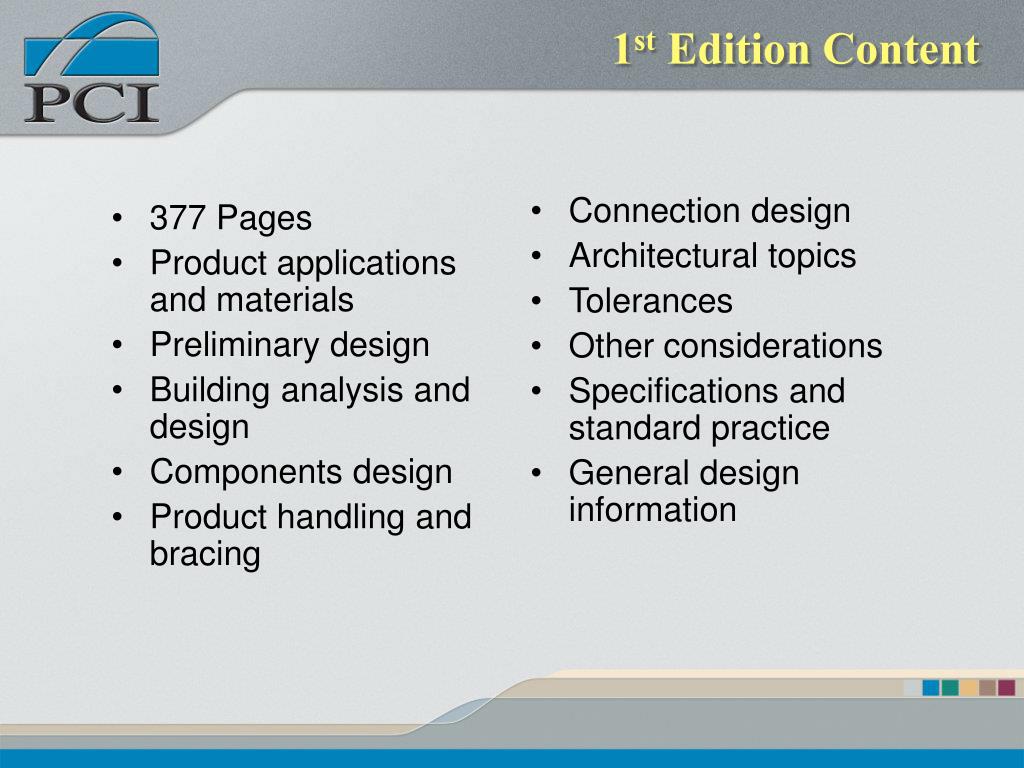

  9. 377 Pages Product applications and materials Preliminary design Building analysis and design Components design Product handling and bracing Connection design Architectural topics Tolerances Other considerations Specifications and standard practice General design information 1st Edition Content

  10. PCI Design Handbook – 6th Edition • Motivation • ACI 318-02 • IBC 2003 • ASCE 7 - 2002 • Reflect the most recent research • 736 pages, 111 more than the 5th

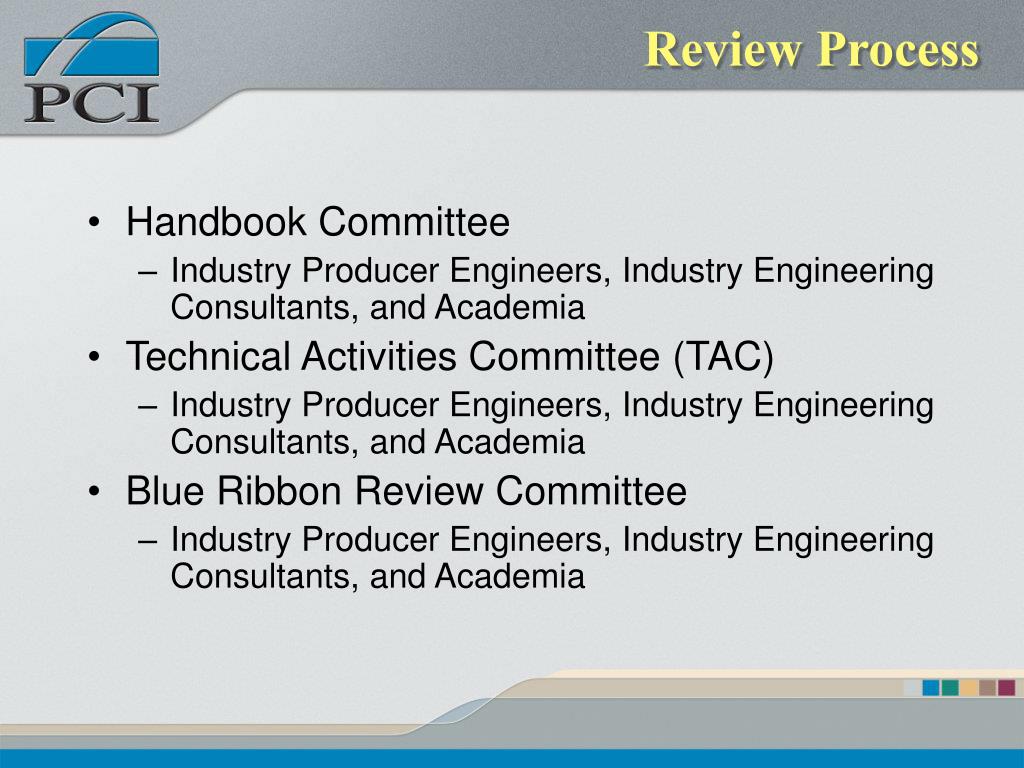

  11. Review Process • Handbook Committee • Industry Producer Engineers, Industry Engineering Consultants, and Academia • Technical Activities Committee (TAC) • Industry Producer Engineers, Industry Engineering Consultants, and Academia • Blue Ribbon Review Committee • Industry Producer Engineers, Industry Engineering Consultants, and Academia

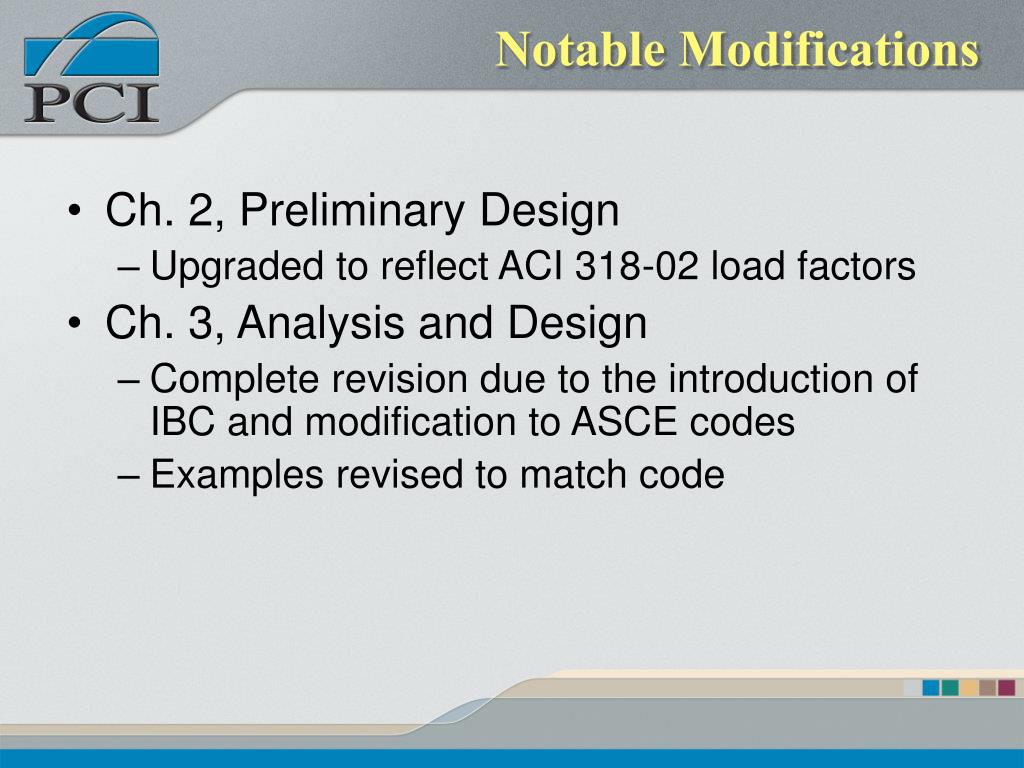

  12. Notable Modifications • Ch. 2, Preliminary Design • Upgraded to reflect ACI 318-02 load factors • Ch. 3, Analysis and Design • Complete revision due to the introduction of IBC and modification to ASCE codes • Examples revised to match code

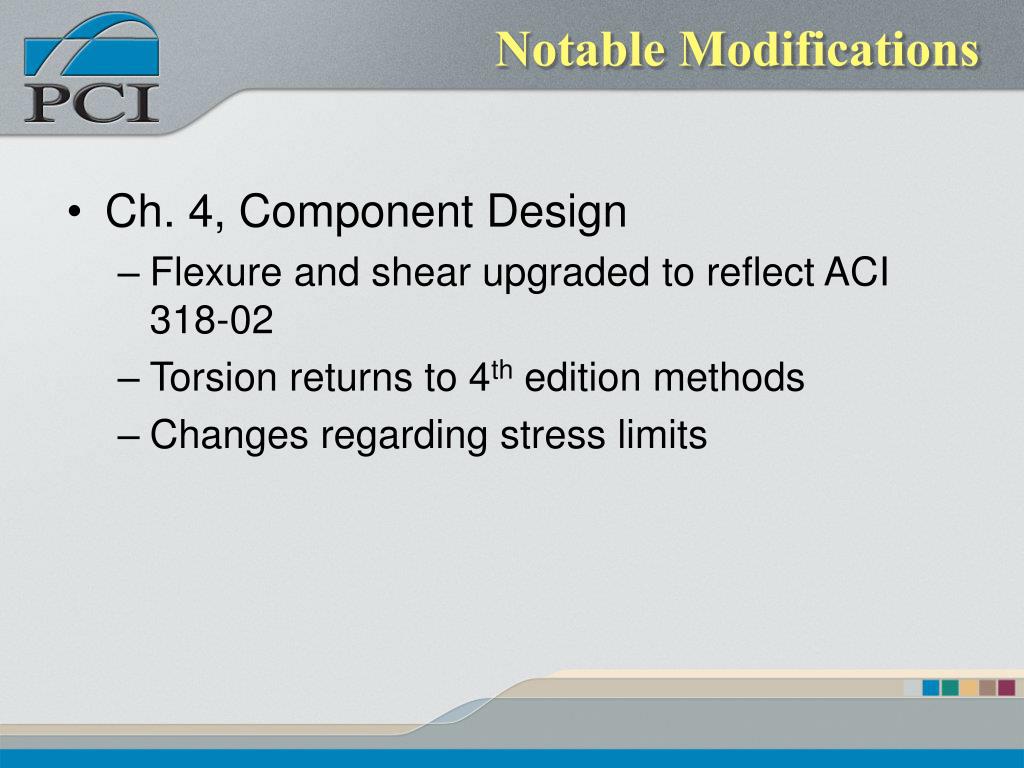

  13. Ch. 4, Component Design Flexure and shear upgraded to reflect ACI 318-02 Torsion returns to 4th edition methods Changes regarding stress limits Notable Modifications

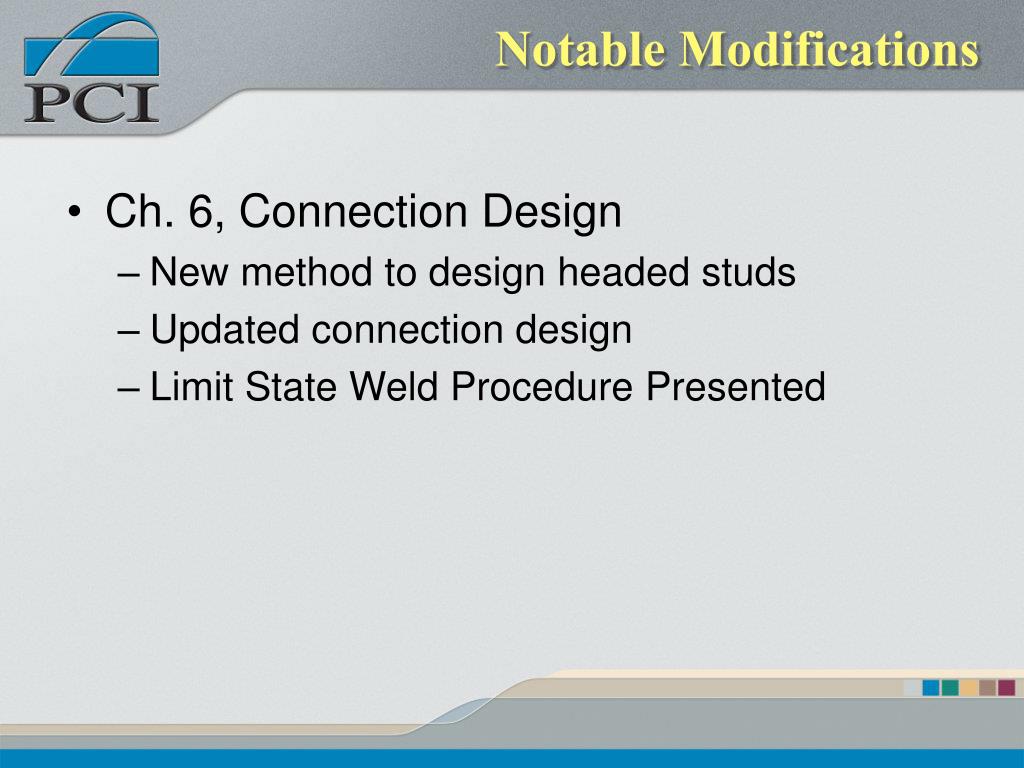

  14. Ch. 6, Connection Design New method to design headed studs Updated connection design Limit State Weld Procedure Presented Notable Modifications

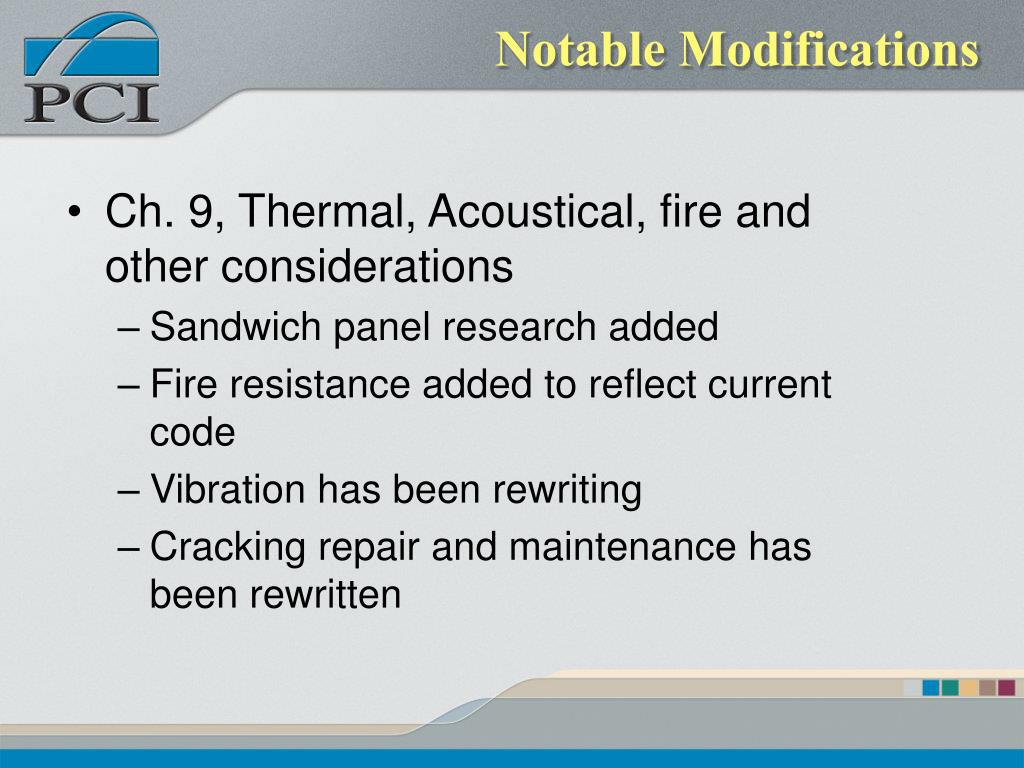

  15. Ch. 9, Thermal, Acoustical, fire and other considerations Sandwich panel research added Fire resistance added to reflect current code Vibration has been rewriting Cracking repair and maintenance has been rewritten Notable Modifications

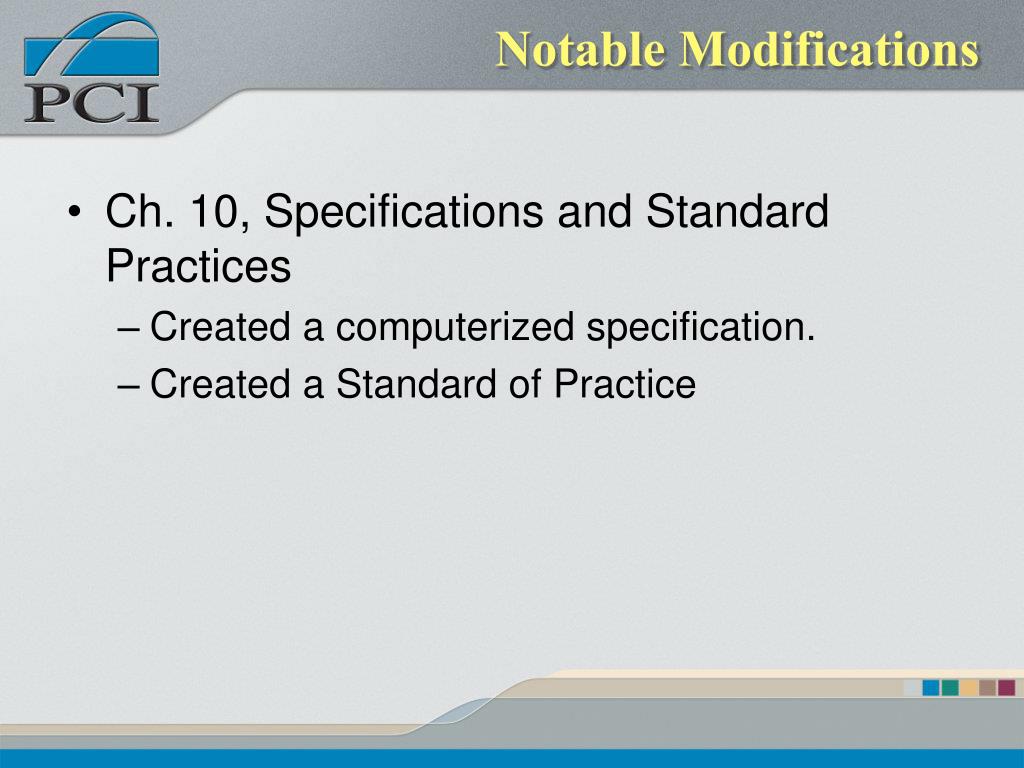

  16. Ch. 10, Specifications and Standard Practices Created a computerized specification. Created a Standard of Practice Notable Modifications

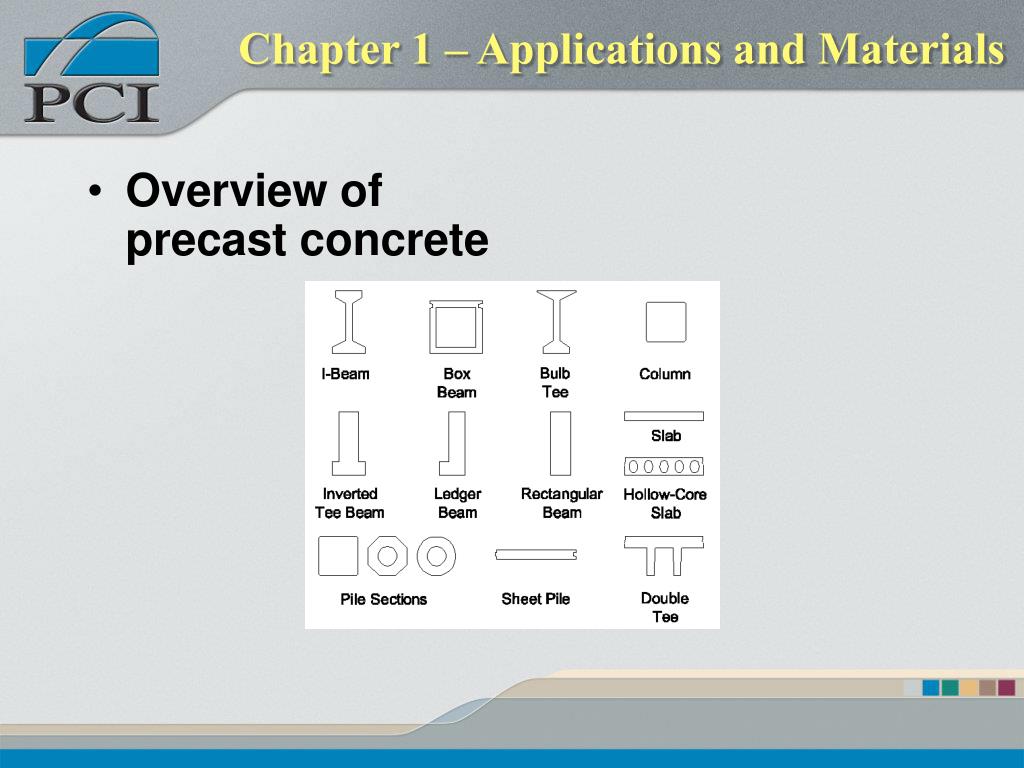

  17. Chapter 1 – Applications and Materials • Overview of precast concrete

  18. Applications and Materials • Overview of precast concrete • Applications • Shows many uses of precast concrete

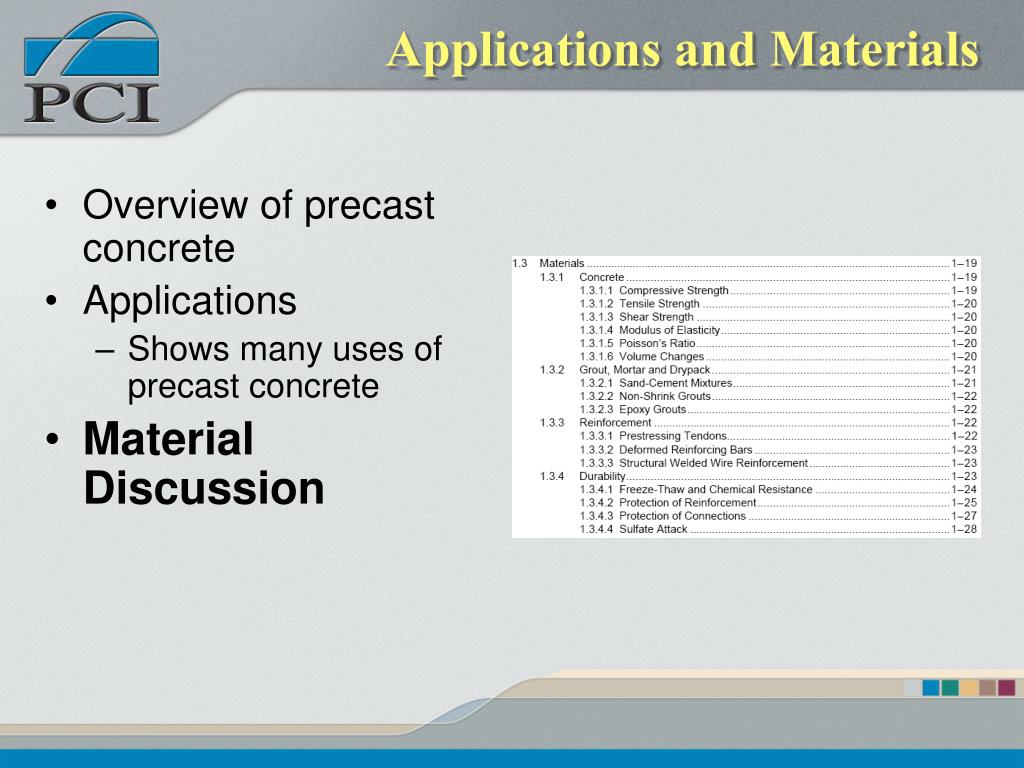

  19. Applications and Materials • Overview of precast concrete • Applications • Shows many uses of precast concrete • Material Discussion

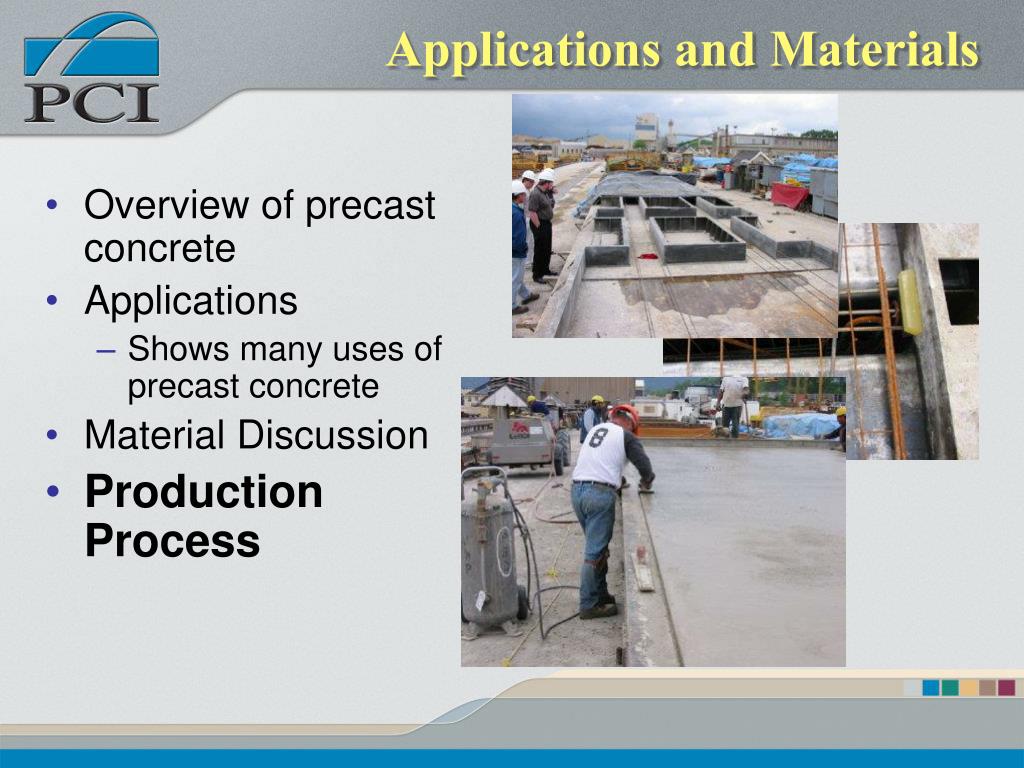

  20. Applications and Materials • Overview of precast concrete • Applications • Shows many uses of precast concrete • Material Discussion • Production Process

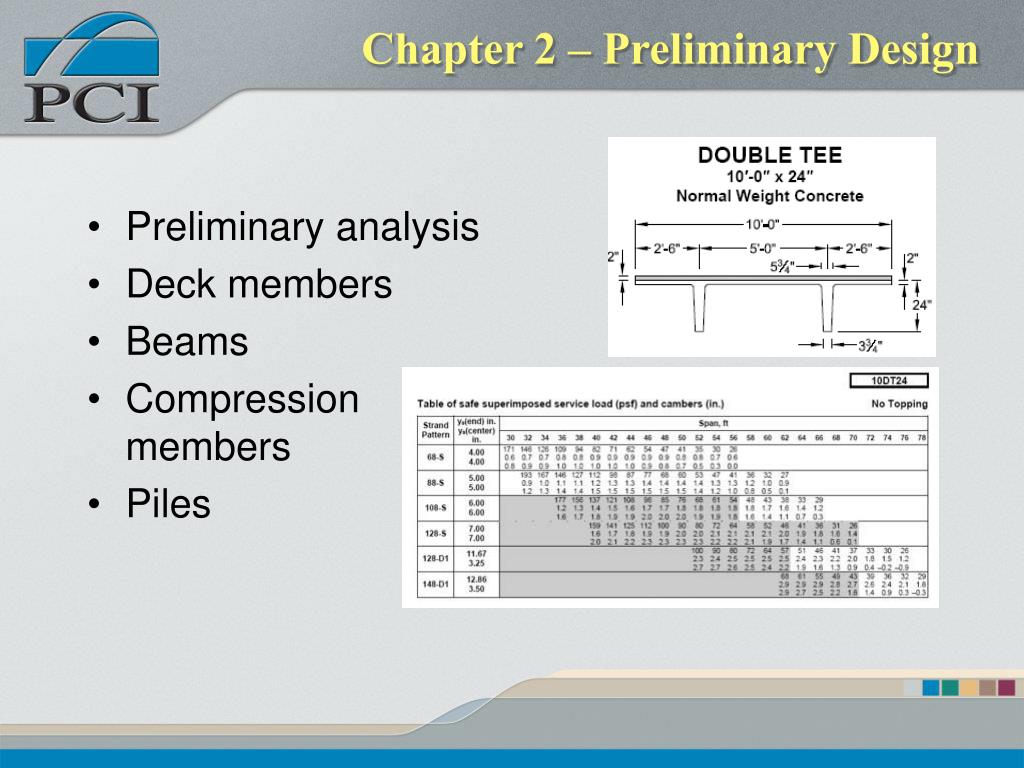

  21. Chapter 2 – Preliminary Design • Preliminary analysis • Deck members • Beams • Compression members • Piles

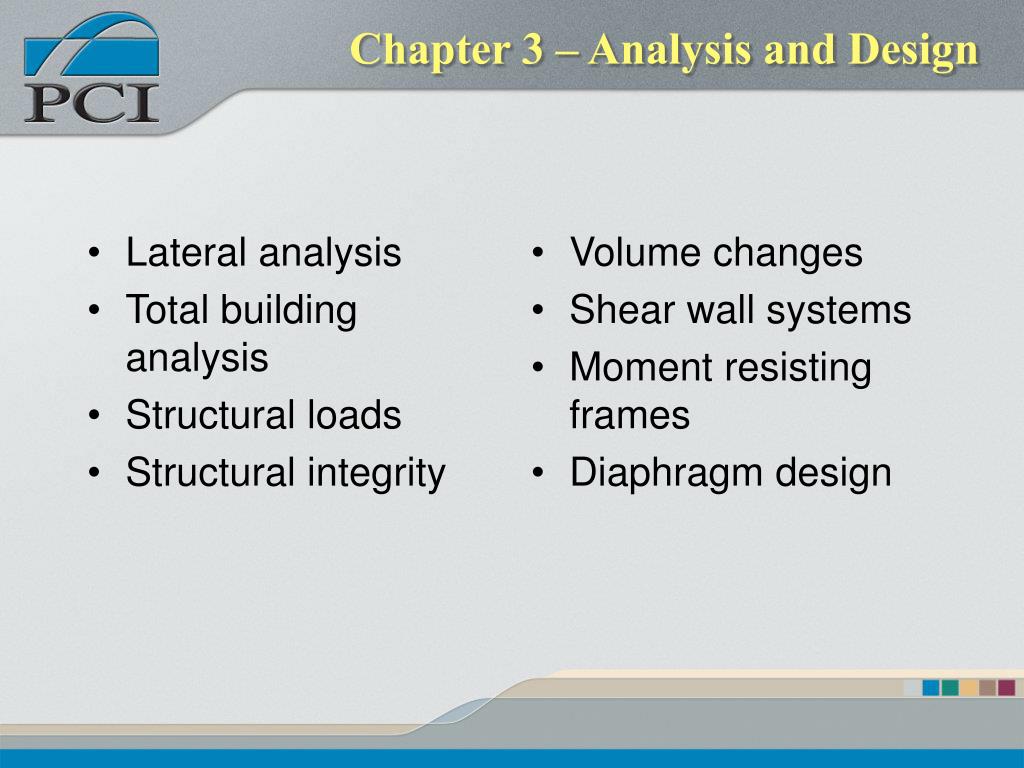

  22. Lateral analysis Total building analysis Structural loads Structural integrity Volume changes Shear wall systems Moment resisting frames Diaphragm design Chapter 3 – Analysis and Design

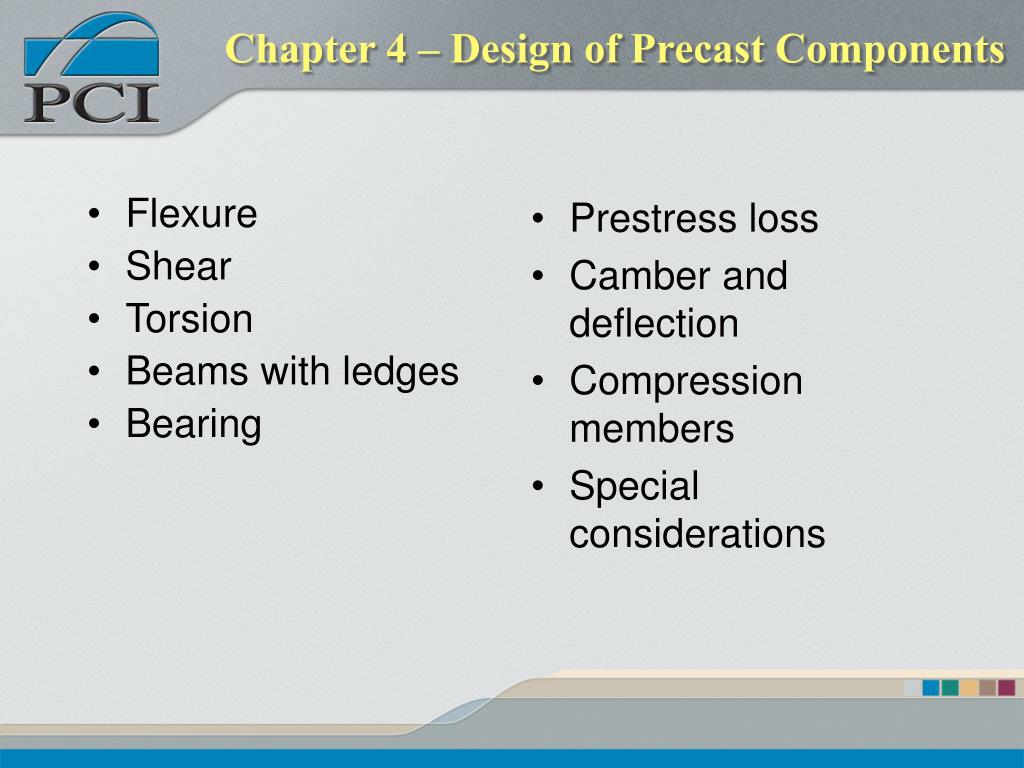

  23. Flexure Shear Torsion Beams with ledges Bearing Prestress loss Camber and deflection Compression members Special considerations Chapter 4 – Design of Precast Components

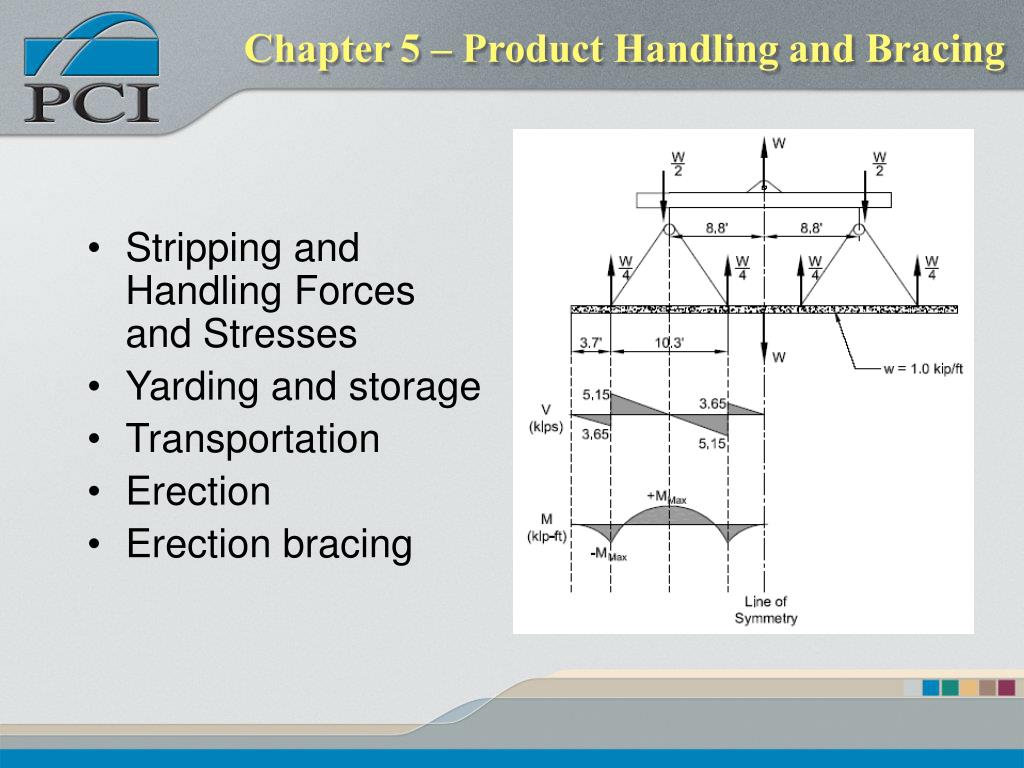

  24. Stripping and Handling Forces and Stresses Yarding and storage Transportation Erection Erection bracing Chapter 5 – Product Handling and Bracing

  25. Loads and load factors Connection design criteria Connection hardware and load transfer devices Headed concrete anchor design Structural steel design Welding Concrete brackets or corbels Structural steel corbels Hanger connections Bearing pads Column bases Moment connections Typical connections for lateral load resisting system Chapter 6 – Design of Connections

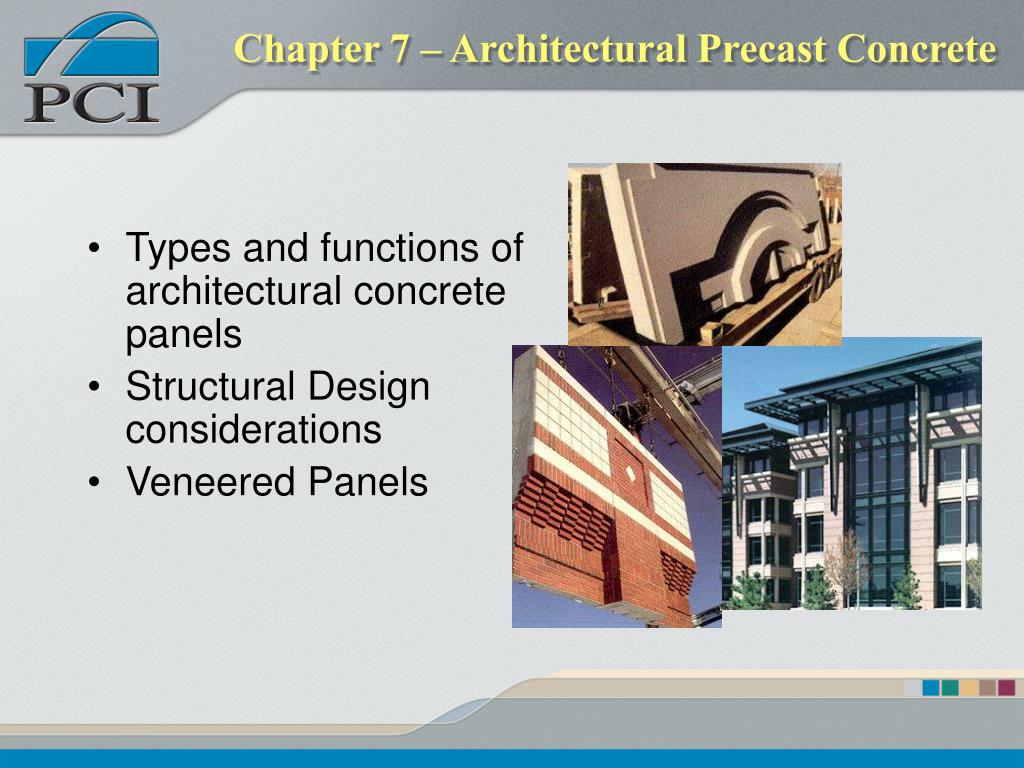

  26. Chapter 7 – Architectural Precast Concrete • Types and functions of architectural concrete panels • Structural Design considerations • Veneered Panels

  27. Product tolerances Erection tolerances Clearances Interfacing tolerances Volume changes Chapter 8 – Tolerances for Precast concrete

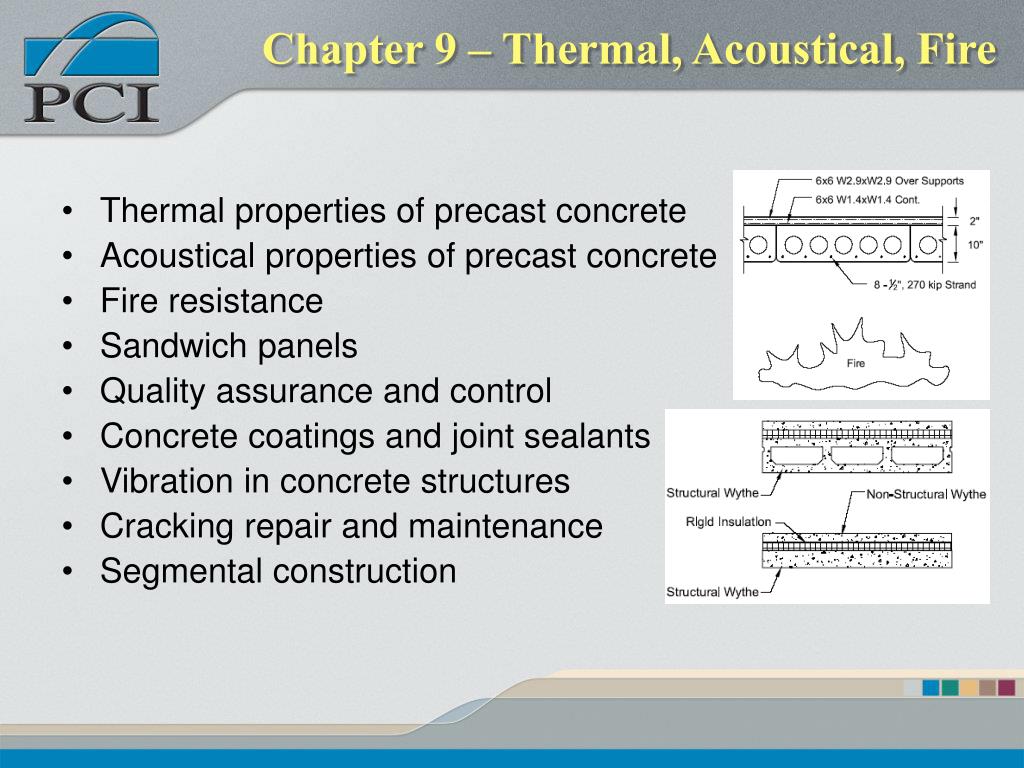

  28. Chapter 9 – Thermal, Acoustical, Fire • Thermal properties of precast concrete • Acoustical properties of precast concrete • Fire resistance • Sandwich panels • Quality assurance and control • Concrete coatings and joint sealants • Vibration in concrete structures • Cracking repair and maintenance • Segmental construction

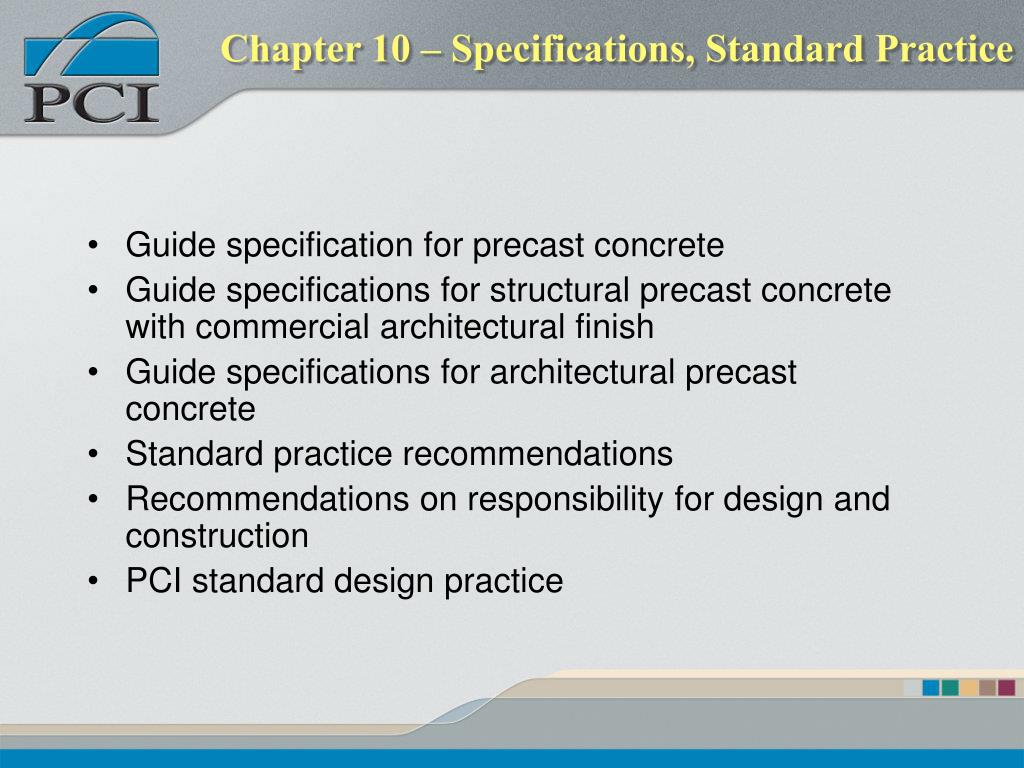

  29. Chapter 10 – Specifications, Standard Practice • Guide specification for precast concrete • Guide specifications for structural precast concrete with commercial architectural finish • Guide specifications for architectural precast concrete • Standard practice recommendations • Recommendations on responsibility for design and construction • PCI standard design practice

  30. Chapter 11 – General Design Information • Beam Tables

  31. General Design Information • Beam Tables • Material properties

  32. General Design Information • Beam Tables • Material properties • Bolts, Nuts, and Washers

  33. General Design Information • Beam Tables • Material properties • Bolts, Nuts, and Washers • Rebar Detailing

  34. General Design Information • Beam Tables • Material properties • Bolts, Nuts, and Washers • Rebar Detailing • Welding Information

  35. General Design Information • Beam Tables • Material properties • Bolts, Nuts, and Washers • Rebar Detailing • Welding Information • Design information

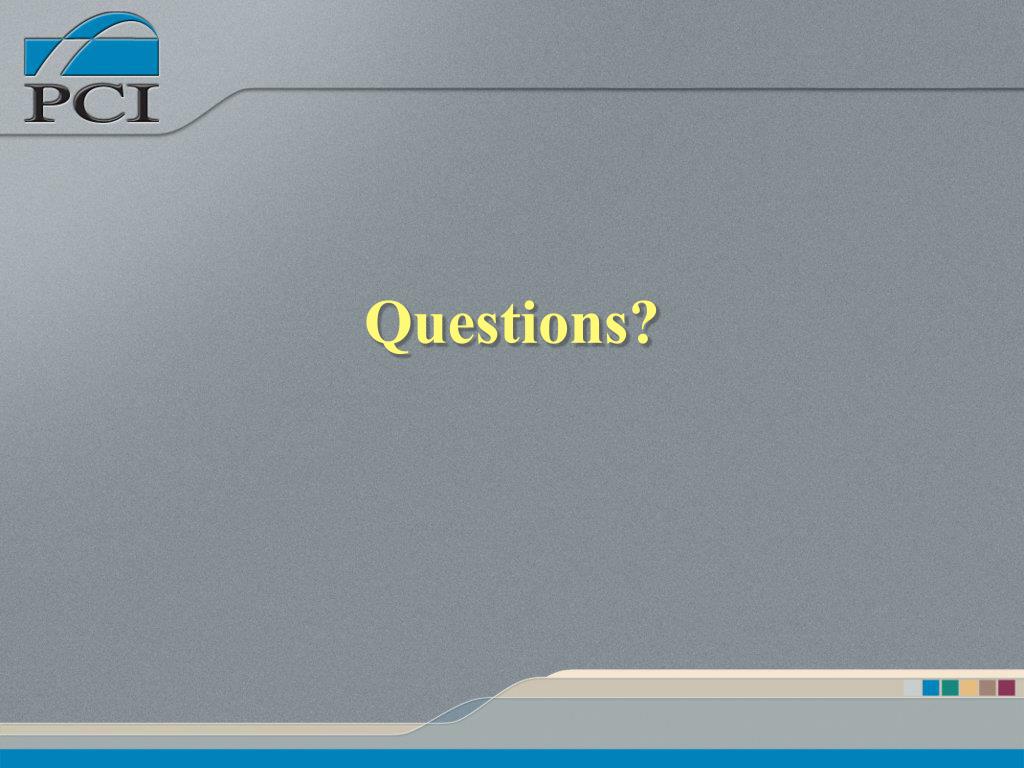

  36. Questions?
