  1. Reflection of Light Waves Refleted wave momentum i r Incident wave momentum What direction will the reflected wave be? • No sideways force acts on the light beam • Parallel momentum will be conserved • Total energy is conserved • Perpendicular momentum must be equal and opposite

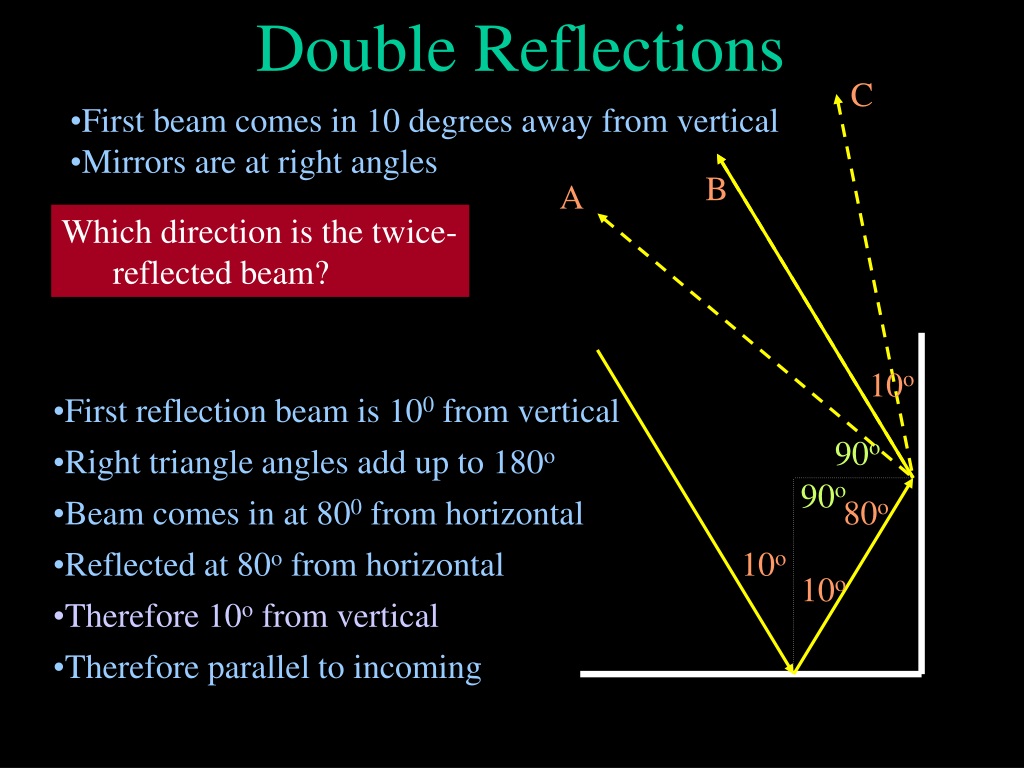

  2. Double Reflections 10o • First reflection beam is 100 from vertical 90o • Right triangle angles add up to 180o 90o • Beam comes in at 800 from horizontal 80o • Reflected at 80o from horizontal 10o • Therefore 10o from vertical C • First beam comes in 10 degrees away from vertical • Mirrors are at right angles B A Which direction is the twice-reflected beam? 10o • Therefore parallel to incoming

  3. Refraction and Reflection 1 • If light moves from one region to the another with a different index of refraction, it will be bent – refracted • Some of the light will normally also be reflected 2 1 • We can “see” glass mostly because it partly reflects light • If you match the index of refraction, all the light is transmitted

  4. Light inside a medium • Light interacts with particles inside materials • This slows down the light • The speed of light inside a medium is less than c • n is called the index of refraction • It is always bigger than 1 Materialn Air 1.000 Water 1.333 Glass 1.6 Diamond 2.419

  5. d 2 1 d Snell’s Law Snell’s Law What happens to an EM wave that comes in at an angle? • Consider where the wave crests are impacting the glass

  6. 2 1 Snell’s Law index n2 index n1 • When light goes from low index medium to high index medium, the angle gets smaller • When light goes from high index medium to low index medium, the angle gets bigger

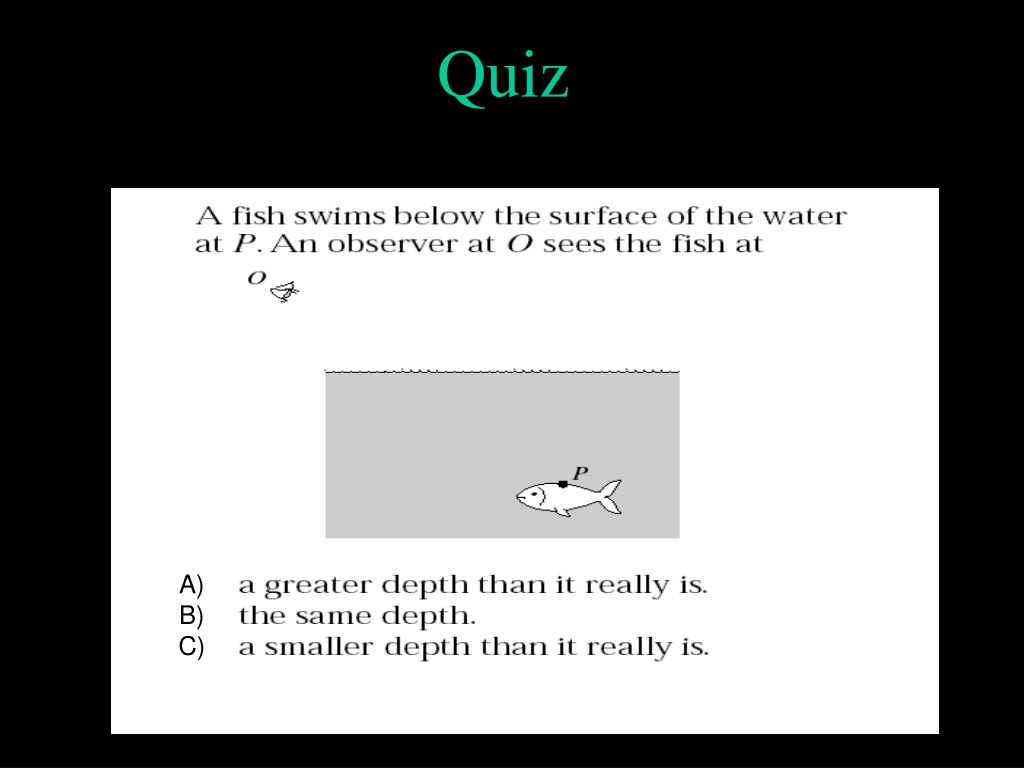

  7. Quiz A) B) C)

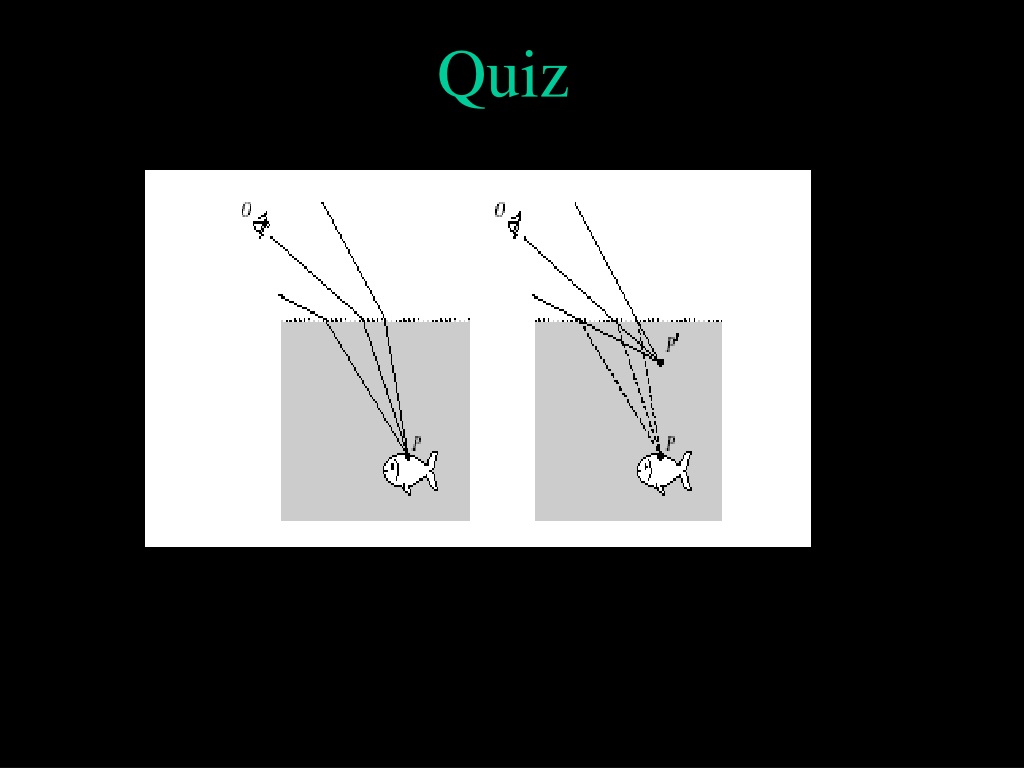

  8. Quiz

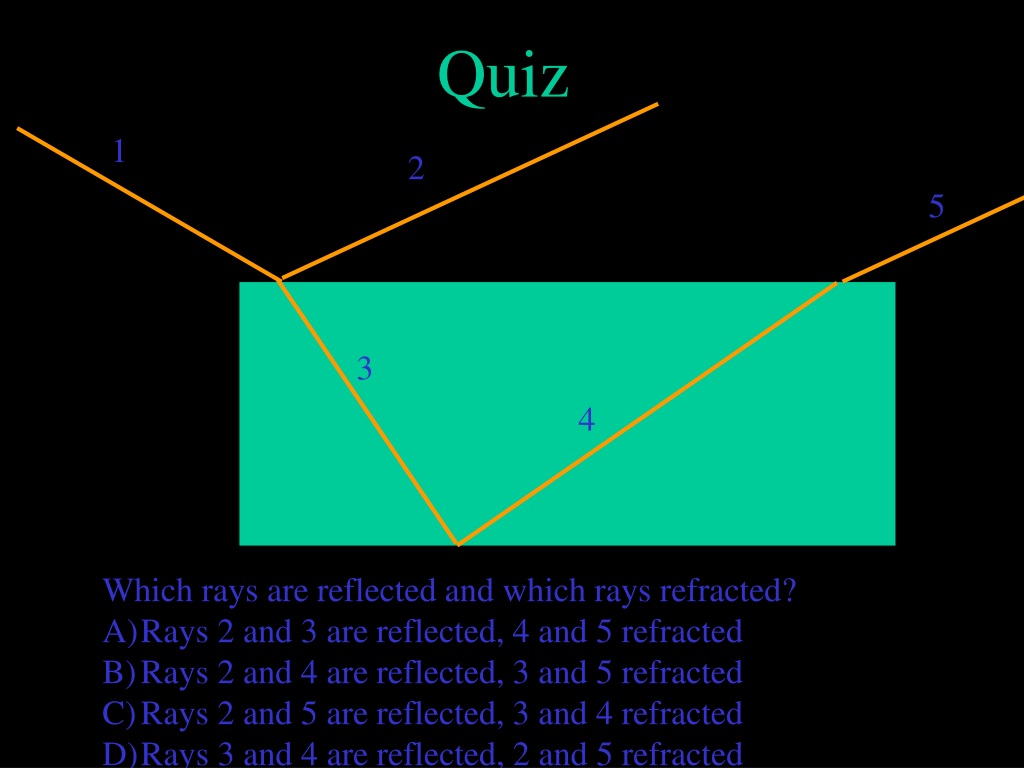

  9. 1 2 5 3 4 Quiz • Which rays are reflected and which rays refracted? • Rays 2 and 3 are reflected, 4 and 5 refracted • Rays 2 and 4 are reflected, 3 and 5 refracted • Rays 2 and 5 are reflected, 3 and 4 refracted • Rays 3 and 4 are reflected, 2 and 5 refracted

  10. Multiple Refractions Materialn Air 1.000 Water 1.333 Glass 1.6 Diamond 2.419 F g g d d w w 370 • A light beam starting in air enters a series of parallel sheets, passing through water, diamond, and then glass. If the initial angle is 37o, what is the final angle F ? • 37o B) Less than 37o C) More than 37o
