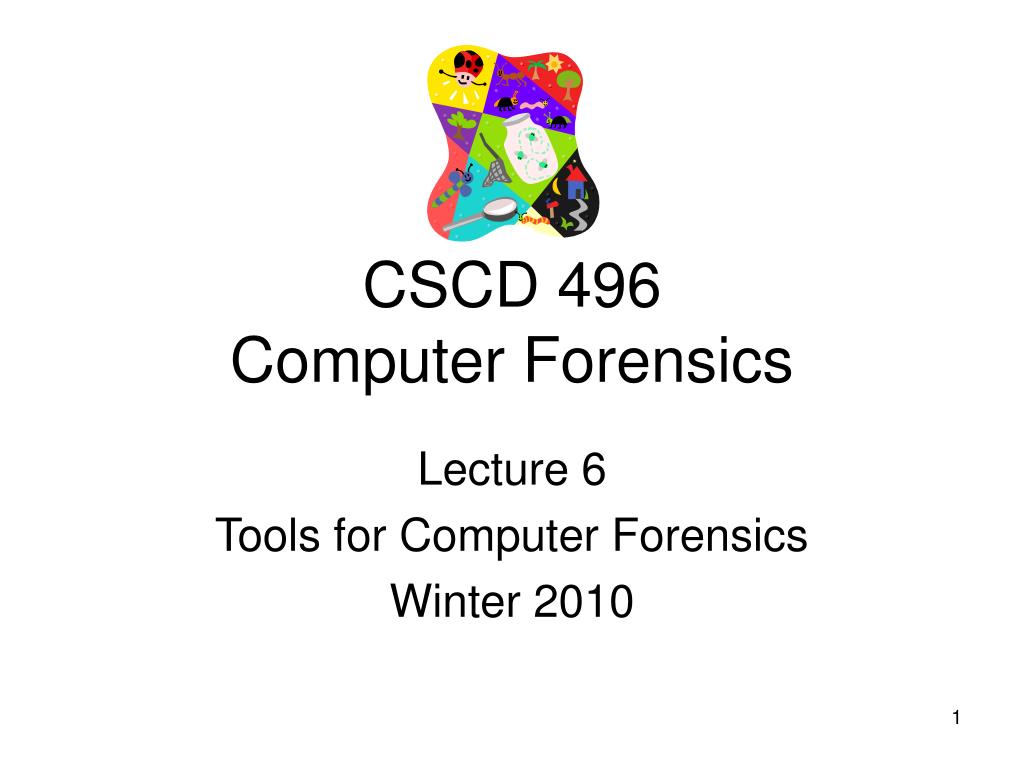

  1. Lecture 6 Tools for Computer Forensics Winter 2010 CSCD 496Computer Forensics

  2. Introduction • A successful Computer Forensics investigator • Must have a lot of tools! • Think of tools like Batman Utility Belt • James Bond special devices • While you won't be sticking to walls ...

  3. Introduction • Computer Security similar to Digital Forensics • Need knowledge of OS's, networks, software vulnerabilities, defense types of software • Firewalls, virus software, Intrusion detection • Digital Forensics differs • Evidence is the focus, not preventing compromise • Specialized tools become critical to collecting and preserving evidence

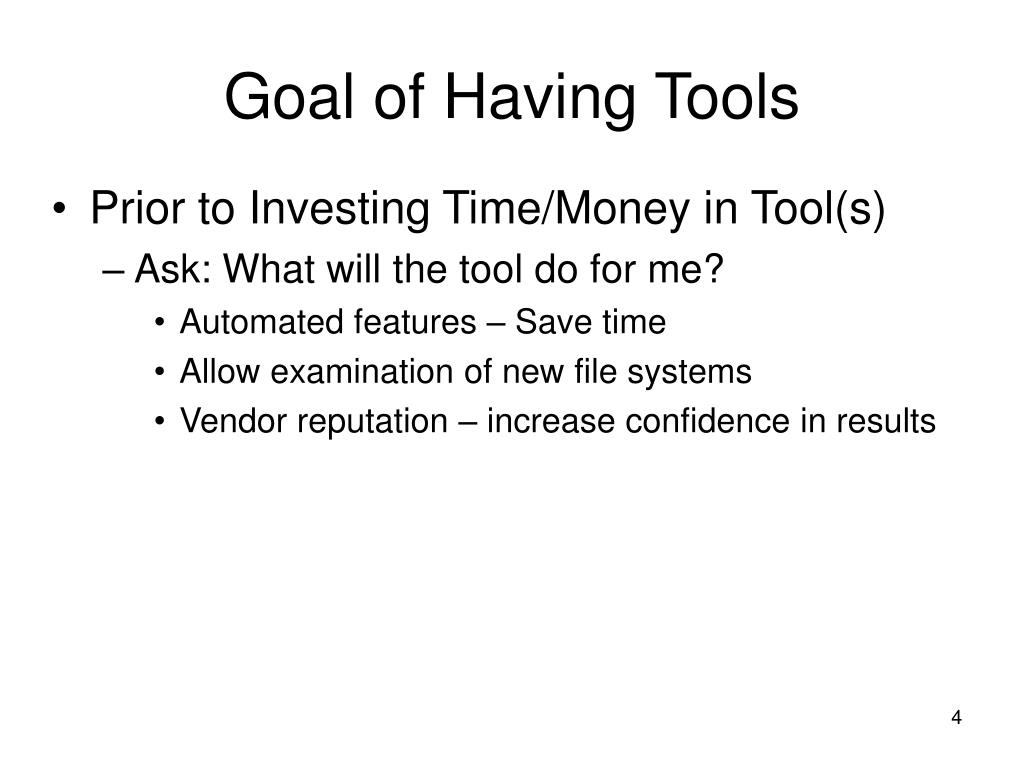

  4. Goal of Having Tools • Prior to Investing Time/Money in Tool(s)‏ • Ask: What will the tool do for me? • Automated features – Save time • Allow examination of new file systems • Vendor reputation – increase confidence in results

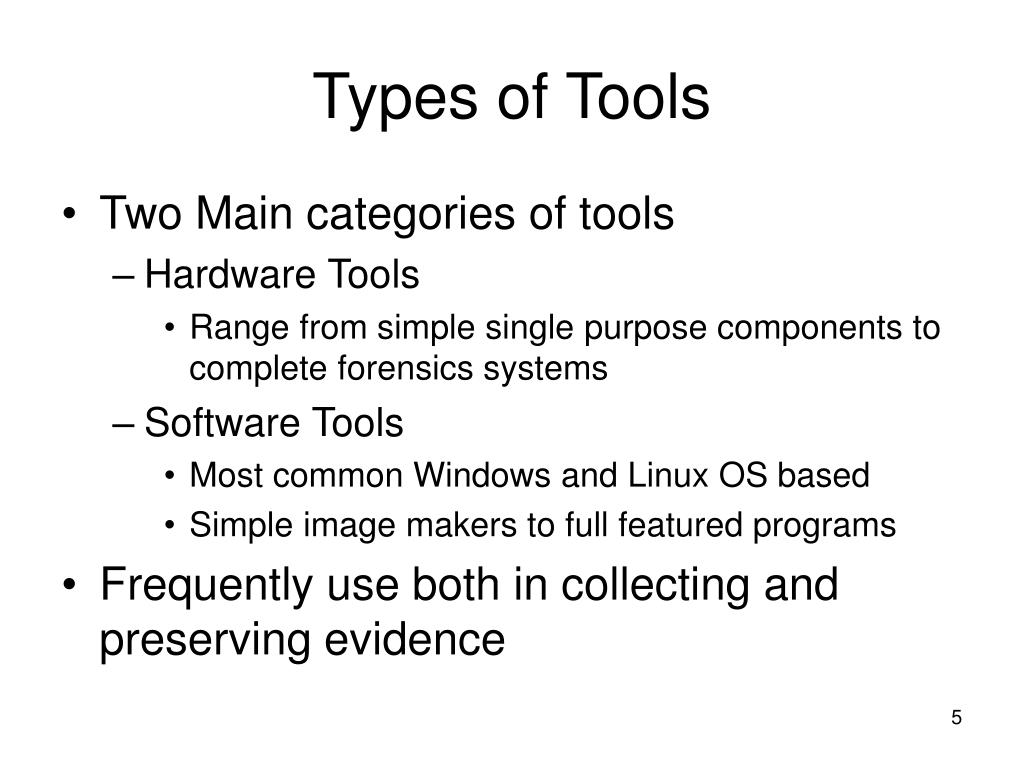

  5. Types of Tools • Two Main categories of tools • Hardware Tools • Range from simple single purpose components to complete forensics systems • Software Tools • Most common Windows and Linux OS based • Simple image makers to full featured programs • Frequently use both in collecting and preserving evidence

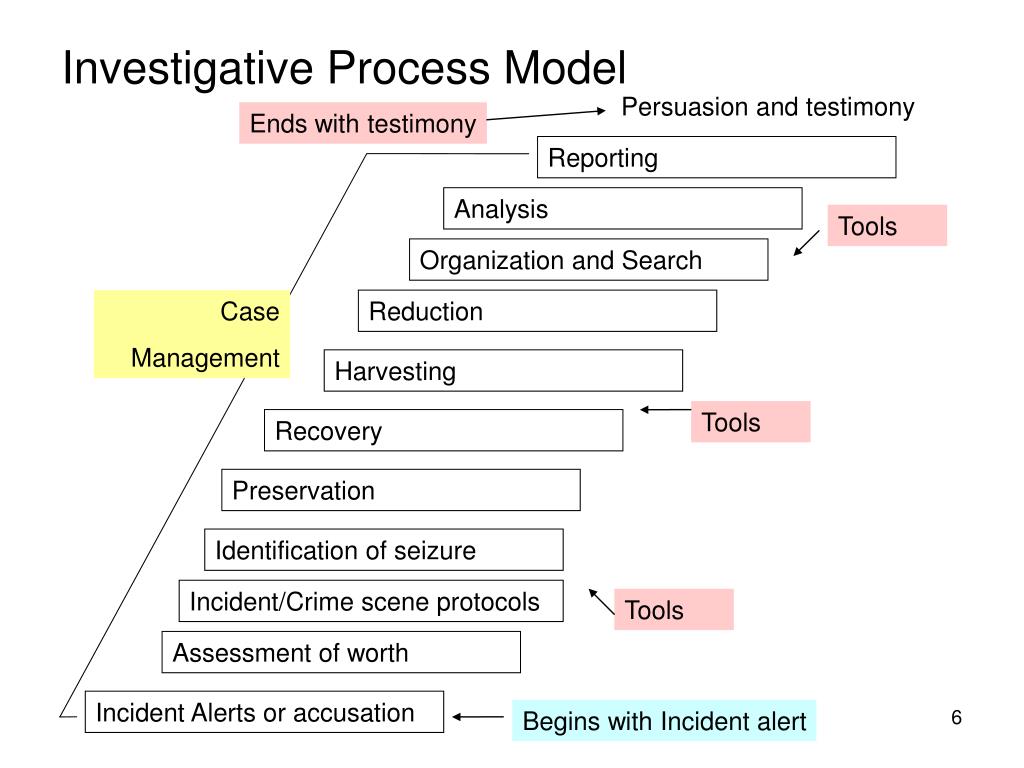

  6. Investigative Process Model Persuasion and testimony Ends with testimony Reporting Analysis Tools Organization and Search Case Management Reduction Harvesting Tools Recovery Preservation Identification of seizure Incident/Crime scene protocols Tools Assessment of worth Incident Alerts or accusation Begins with Incident alert

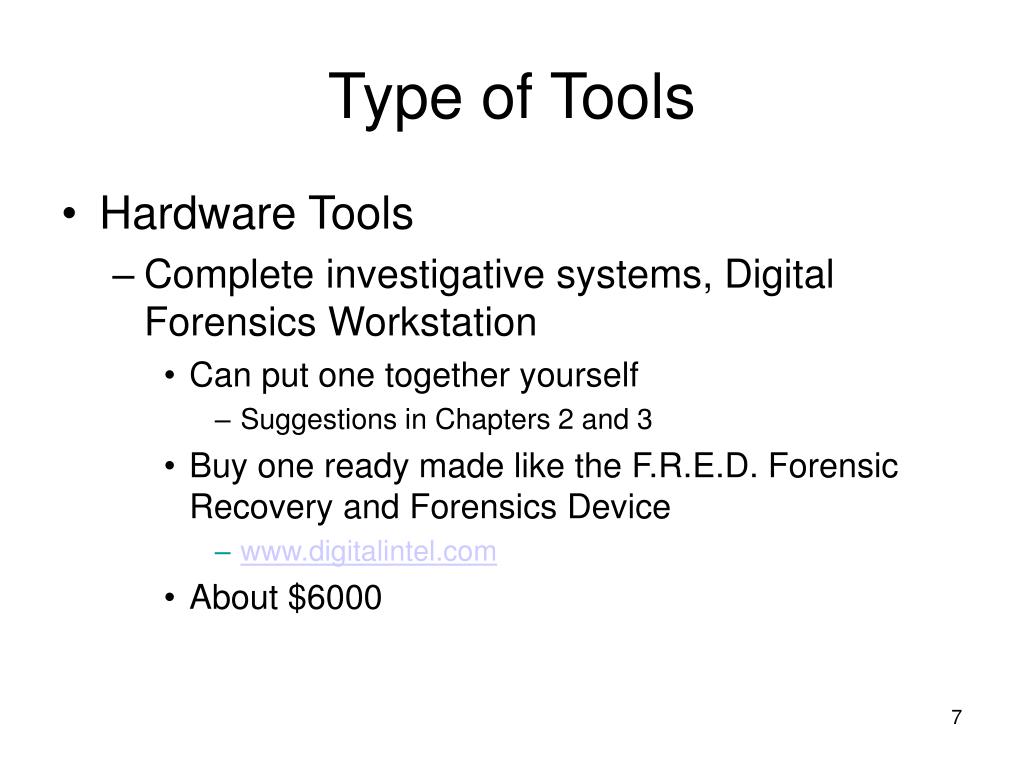

  7. Type of Tools • Hardware Tools • Complete investigative systems, Digital Forensics Workstation • Can put one together yourself • Suggestions in Chapters 2 and 3 • Buy one ready made like the F.R.E.D. Forensic Recovery and Forensics Device • www.digitalintel.com • About $6000

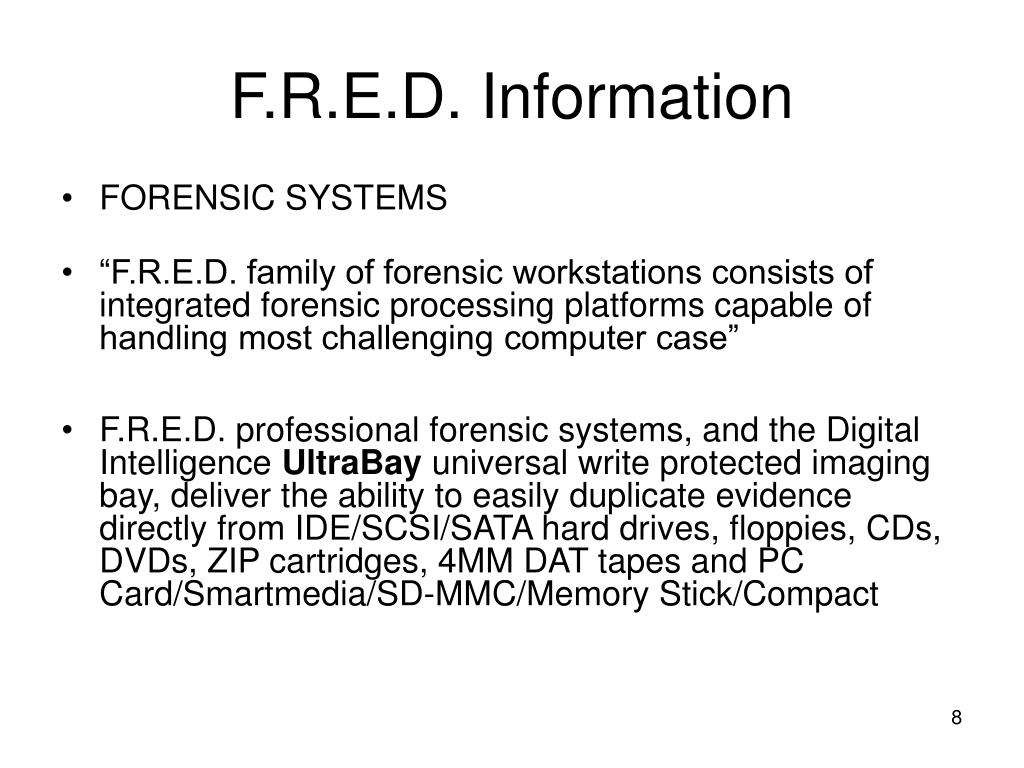

  8. F.R.E.D. Information • FORENSIC SYSTEMS • “F.R.E.D. family of forensic workstations consists of integrated forensic processing platforms capable of handling most challenging computer case” • F.R.E.D. professional forensic systems, and the Digital Intelligence UltraBay universal write protected imaging bay, deliver the ability to easily duplicate evidence directly from IDE/SCSI/SATA hard drives, floppies, CDs, DVDs, ZIP cartridges, 4MM DAT tapes and PC Card/Smartmedia/SD-MMC/Memory Stick/Compact

  9. Hardware Forensic Devices • Write Blockers • Hardware • Device that intercepts data intended for the disk • Prevents writing that could alter data • Many types • IDE, SCSCI and SATA interfaces • Connect your evidence disk drive to your workstation and start OS as usual • Acts as a bridge between disk drive and forensic workstation

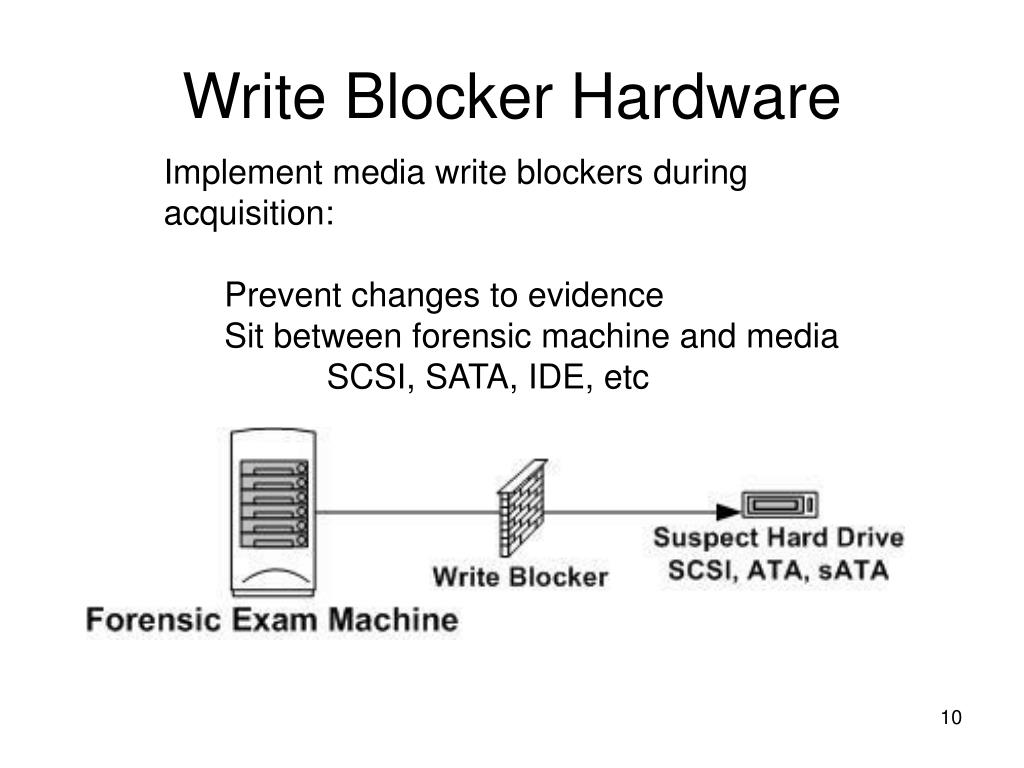

  10. Write Blocker Hardware • Implement media write blockers during acquisition: • Prevent changes to evidence • Sit between forensic machine and media • SCSI, SATA, IDE, etc

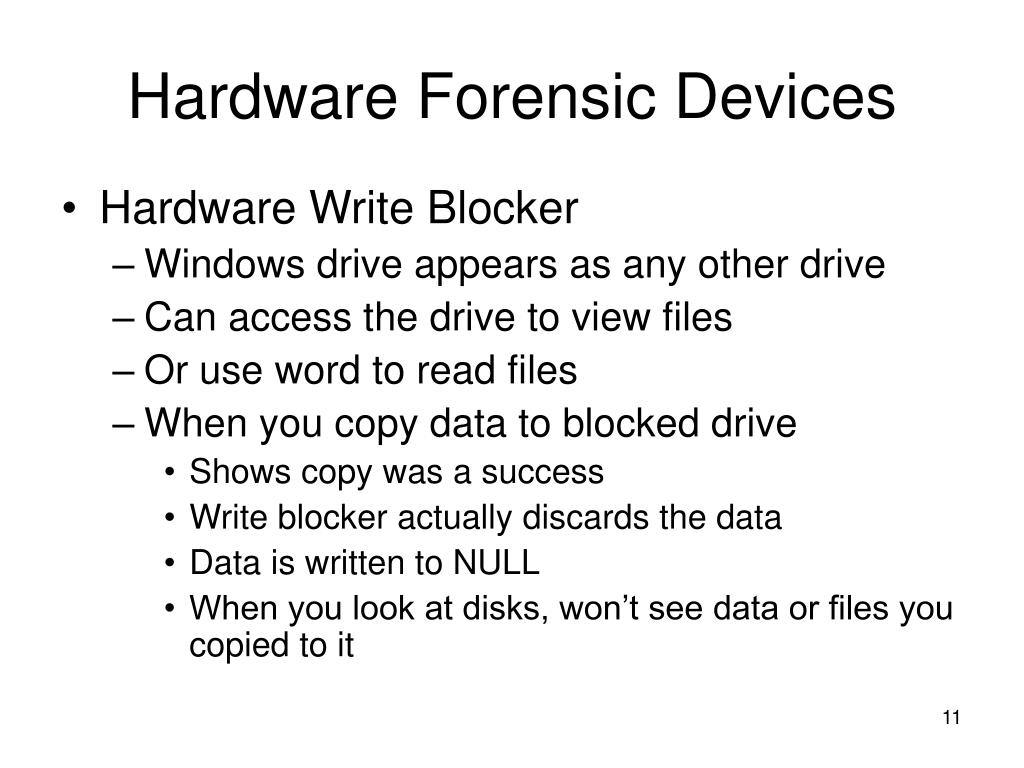

  11. Hardware Forensic Devices • Hardware Write Blocker • Windows drive appears as any other drive • Can access the drive to view files • Or use word to read files • When you copy data to blocked drive • Shows copy was a success • Write blocker actually discards the data • Data is written to NULL • When you look at disks, won’t see data or files you copied to it

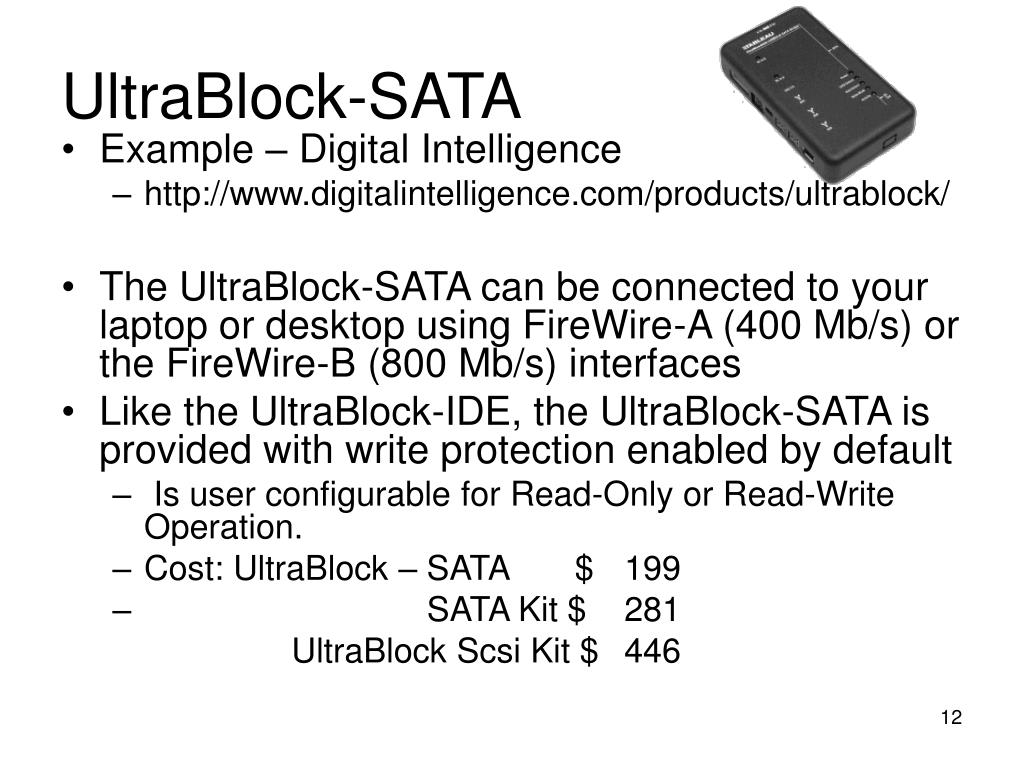

  12. UltraBlock-SATA • Example – Digital Intelligence • http://www.digitalintelligence.com/products/ultrablock/ • The UltraBlock-SATA can be connected to your laptop or desktop using FireWire-A (400 Mb/s) or the FireWire-B (800 Mb/s) interfaces • Like the UltraBlock-IDE, the UltraBlock-SATA is provided with write protection enabled by default • Is user configurable for Read-Only or Read-Write Operation. • Cost: UltraBlock – SATA $ 199 • SATA Kit $ 281 UltraBlock Scsi Kit $ 446

  13. Type of Tools • Software Tools • Most common and numerous compared to hardware • Command line tools, GUI tools, Windows, Unix/Linux, OS specific tools • Today, look mostly at Windows tools • Later, cover Linux/Unix OS tools, mostly open source • One way to group tools is by investigative function • Can be grouped into five categories which map to tasks used in a computer investigation • Some of these tools specific to a single task • Others, full featured programs used across all tasks

  14. Tools by Investigative Tasks • Tasks include 1. Acquisition 2. Validation and Discrimination 3. Extraction 4. Reconstruction 5. Reporting

  15. Acquisition • What is the goal of acquisition? • Is obtaining the data from a crime scene • First step in an investigation, typically • Make copy of the original disk drive • Preserve digital evidence • Two types of software acquisition • Physical copying of a disk – entire disk • Logical copying of a disk partition

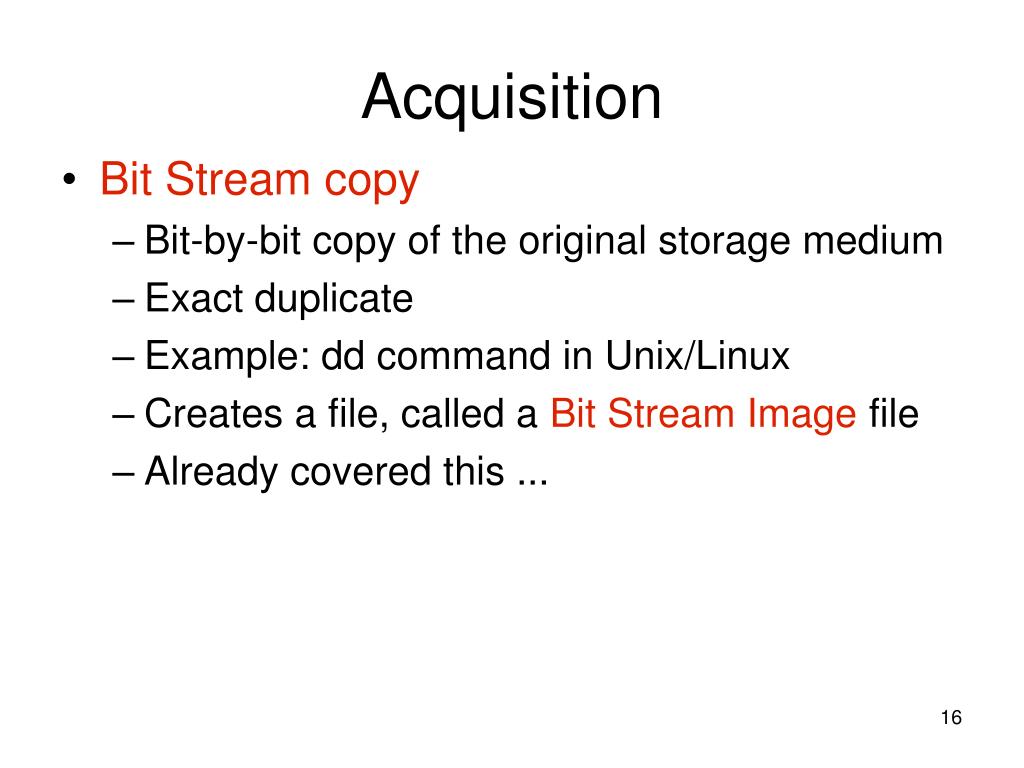

  16. Acquisition • Bit Stream copy • Bit-by-bit copy of the original storage medium • Exact duplicate • Example: dd command in Unix/Linux • Creates a file, called a Bit Stream Image file • Already covered this ...

  17. Acquisition - Image File X-Ways Forensics

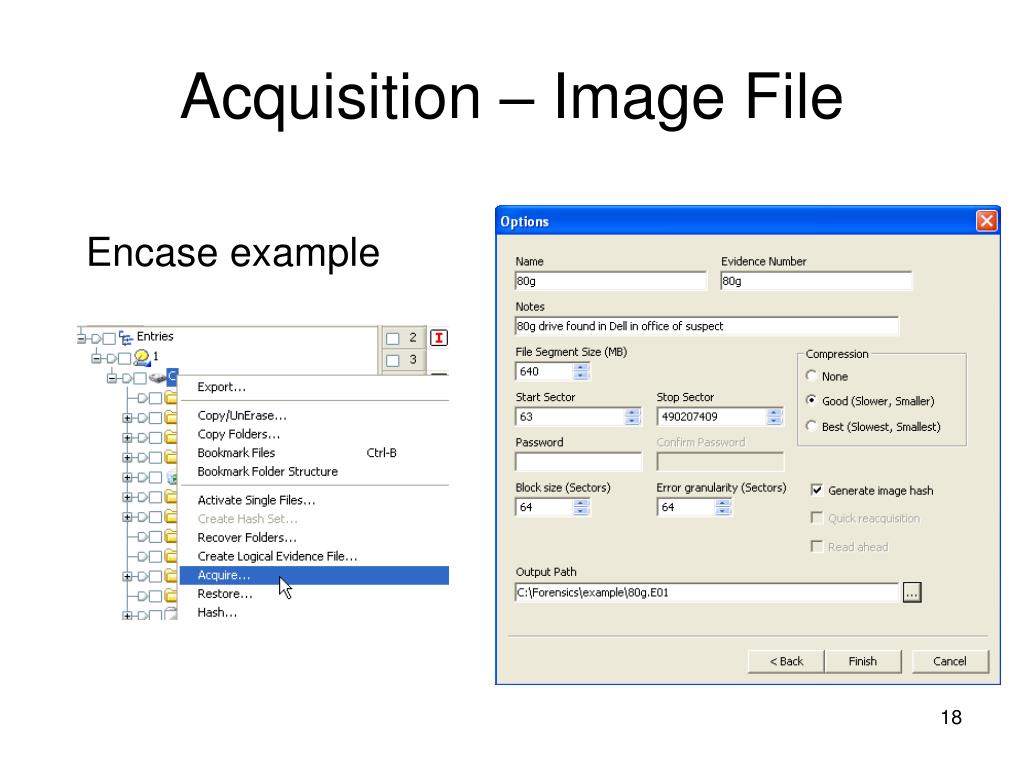

  18. Acquisition – Image File Encase example

  19. Validation and Discrimination • Validation of Data • Why do we do this? • Ensures integrity of data • Need this to prove guilt or innocence to legal system • Where we use hashes of original data and compare to copies of acquired data • Do this each time we access the copy • Most integrated forensics tools do this automatically for you

  20. Validation and Discrimination • Discrimination of Data • Sorting and Searching of Data • Purpose: • Separate “good” data from “suspicious” data • Subfunctions of Validation and Discrimination • Hashing • Filtering • Analysis of File Headers

  21. Validation and Discrimination • Hash Values of Known Files • Discriminate between known files and unknown files • Known list of good file hash values • Maintained by NIST at National Software Reference Library (NSRL)‏ http://www.nsrl.nist.gov/Downloads.htm • Forensics Tools - import known good file hashes • Compare them to files on suspect drive

  22. Validation and Discrimination • Analyze Header Values • Many programs include list of common file header values • Known file types have distinctive headers • Allow OS to determine file type • See whether file extension matches header value • Common to hide files by changing extension • jpg or gif becomes .txt • Header will disagree – shows up in tool

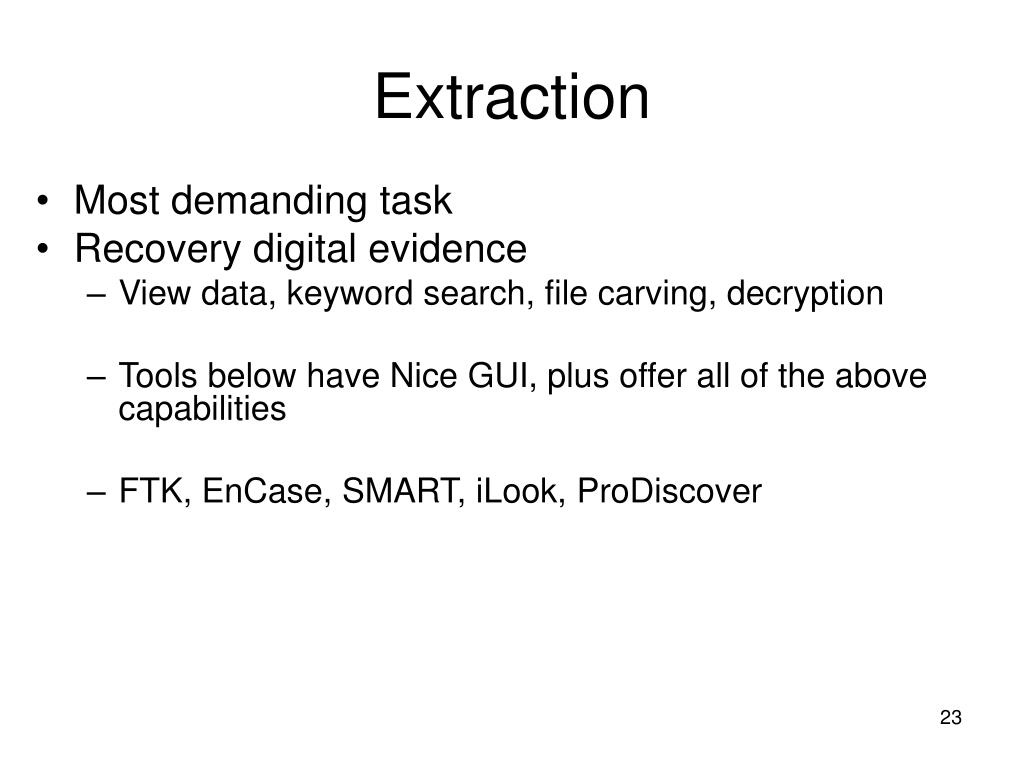

  23. Extraction • Most demanding task • Recovery digital evidence • View data, keyword search, file carving, decryption • Tools below have Nice GUI, plus offer all of the above capabilities • FTK, EnCase, SMART, iLook, ProDiscover

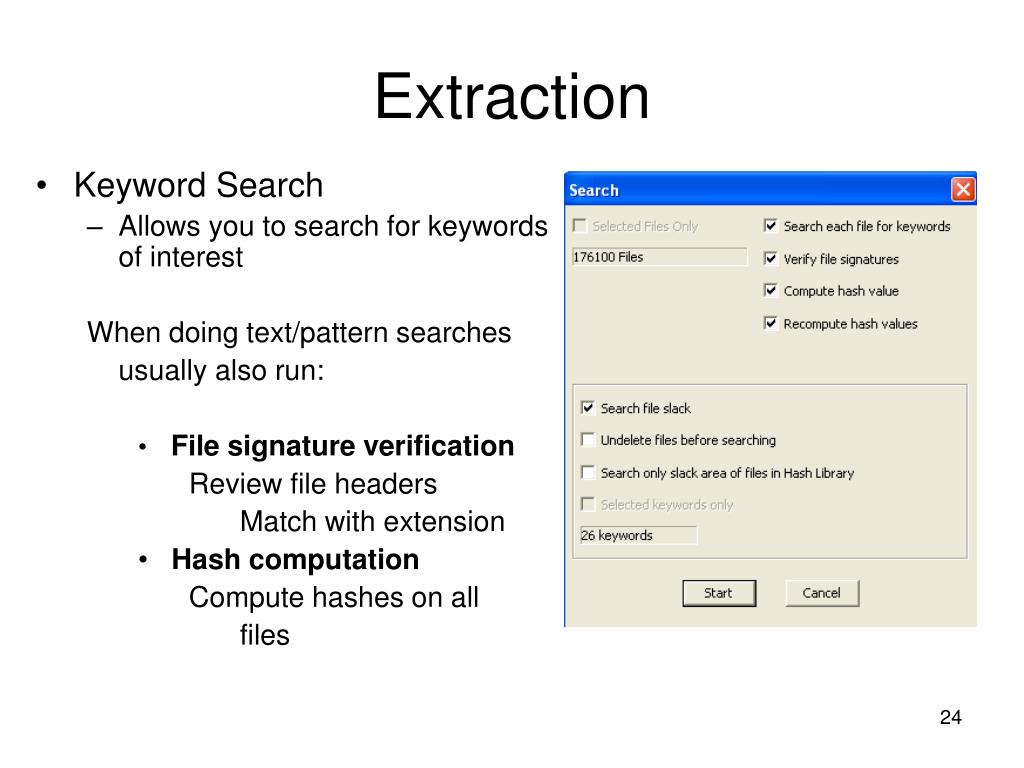

  24. Extraction • Keyword Search • Allows you to search for keywords of interest When doing text/pattern searches usually also run: • File signature verification Review file headers Match with extension • Hash computation Compute hashes on all files

  25. Extraction • File Signature verification Encase can compare each file header to library of over 220 unique known signatures to determine file type, eg .doc, .jpg, etc

  26. Extraction Case one: A file header matches a known value but the extension does not match Can assist in finding files with changed extensions For example renaming a .jpg file with a .txt extension: Can do for every file and quick sort to search for inconsistencies

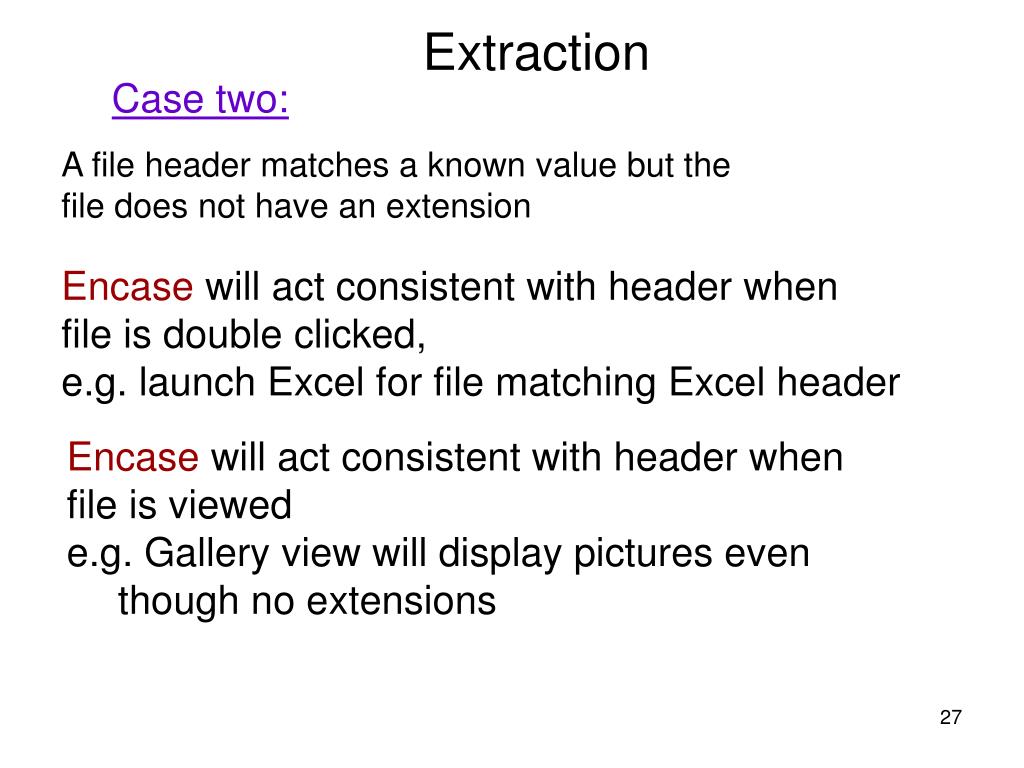

  27. Extraction Case two: A file header matches a known value but the file does not have an extension Encase will act consistent with header when file is double clicked, e.g. launch Excel for file matching Excel header Encase will act consistent with header when file is viewed e.g. Gallery view will display pictures even though no extensions

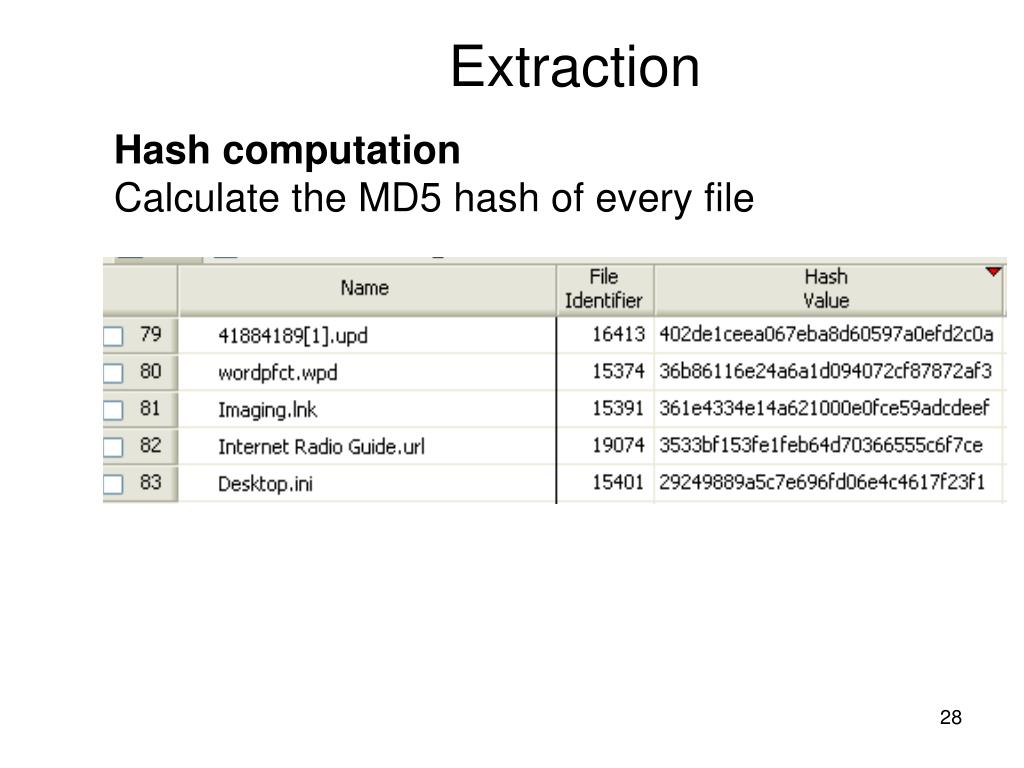

  28. Extraction Hash computation Calculate the MD5 hash of every file

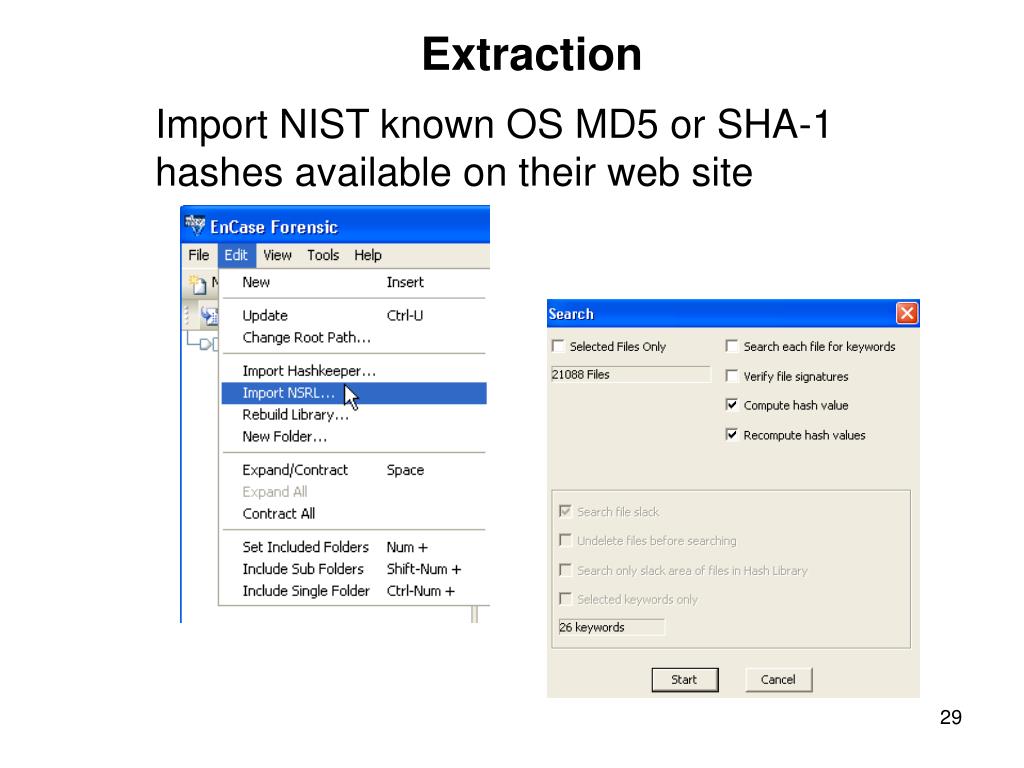

  29. Extraction Import NIST known OS MD5 or SHA-1 hashes available on their web site

  30. Evidence Analysis Encase now indicates “*known” files (* used for sorting purposes)‏

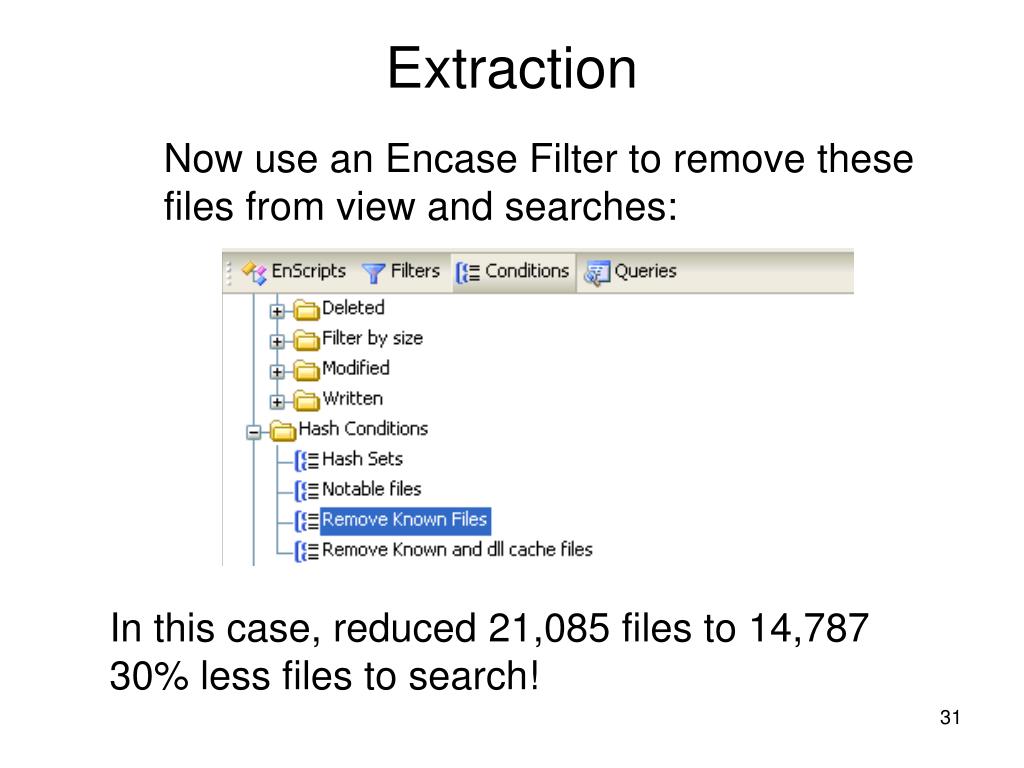

  31. Extraction Now use an Encase Filter to remove these files from view and searches: In this case, reduced 21,085 files to 14,787 30% less files to search!

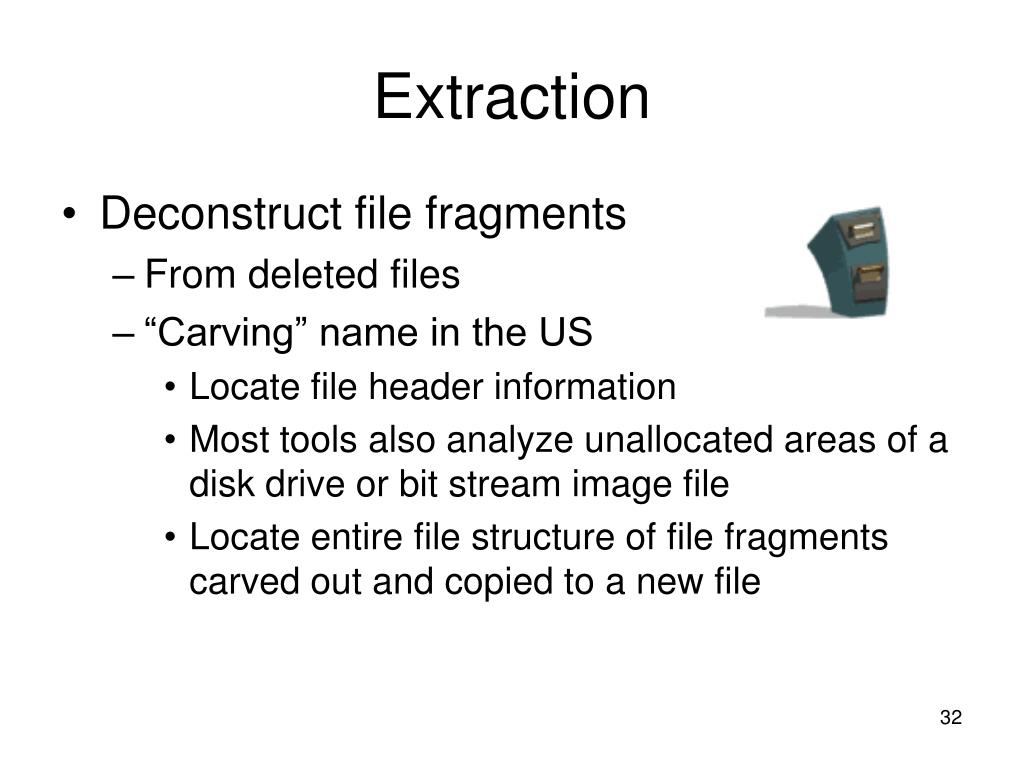

  32. Extraction • Deconstruct file fragments • From deleted files • “Carving” name in the US • Locate file header information • Most tools also analyze unallocated areas of a disk drive or bit stream image file • Locate entire file structure of file fragments carved out and copied to a new file

  33. Extraction • Decryption • Encrypted data is a problem for forensics investigations • Files can be encrypted, entire disk or partition • Some tools produce list of words for password guessing of an encrypted area • Could possibly locate password in a temporary file on disk, if you are lucky!! • Can also run a brute force attack against the file

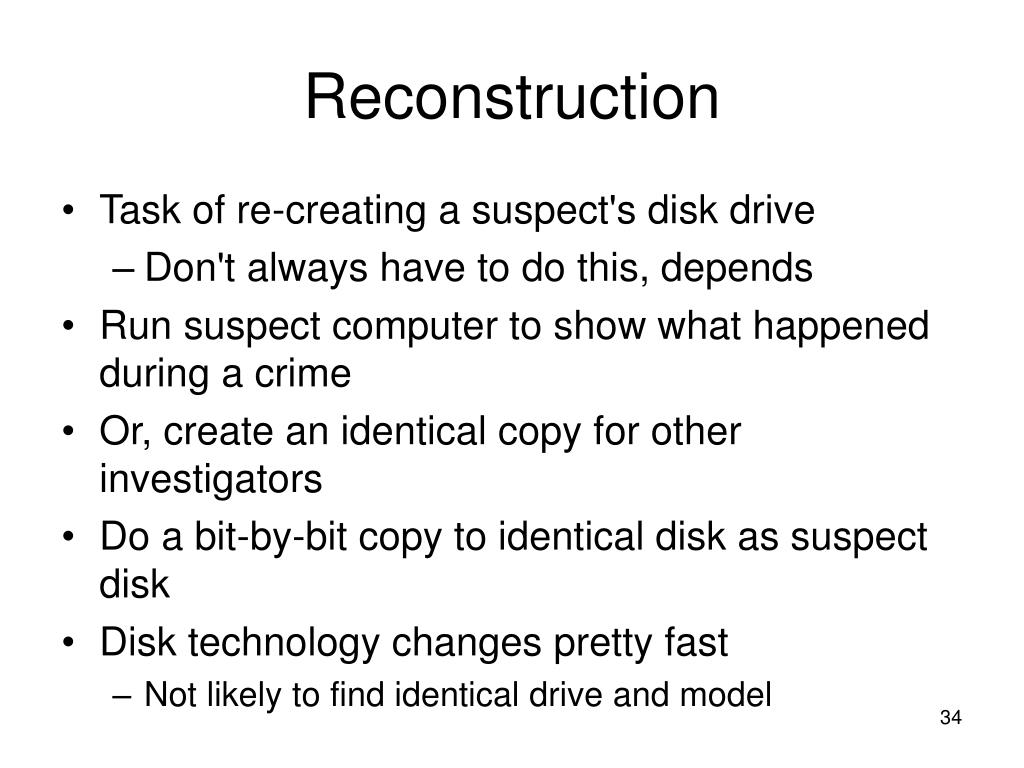

  34. Reconstruction • Task of re-creating a suspect's disk drive • Don't always have to do this, depends • Run suspect computer to show what happened during a crime • Or, create an identical copy for other investigators • Do a bit-by-bit copy to identical disk as suspect disk • Disk technology changes pretty fast • Not likely to find identical drive and model

  35. Reconstruction • Several ways to do this • Disk-to-disk copy • Image-to-disk copy • Partition-to-partition copy • Image-to-partition copy • Hardware and Software tools • All of these tools adjust target disk geometry • Means if target disk differs from original suspect disk will map cylinders, sectors and tracks of original to target • Target Disk must be equal or larger in size

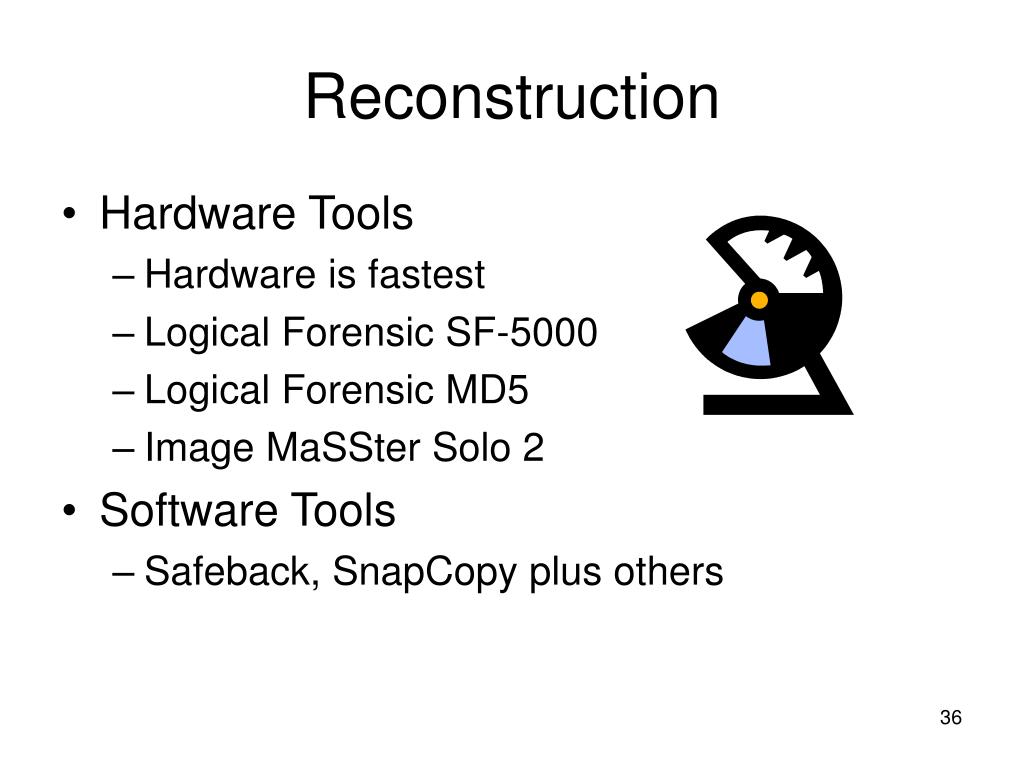

  36. Reconstruction • Hardware Tools • Hardware is fastest • Logical Forensic SF-5000 • Logical Forensic MD5 • Image MaSSter Solo 2 • Software Tools • Safeback, SnapCopy plus others

  37. Reporting • Many forensics tools also do reporting • Log Report • Produce a report of steps taken in an investigation • Good if need to repeat an investigation • Or, review steps taken • Peer review of the case • FTK, iLook, X-Ways Forensic, Encase, ProDiscover • Plus most others

  38. Validating and Testing Forensic Software • NIST - National Institute of Standards and Technology • NIST sponsored a project called “Computer Forensics Tool Testing” (CFTT)‏ • Why might you want to test these tools?

  39. Validating and Testing Forensic Software • NIST - National Institute of Standards and Technology • Publishes articles, tools and procedures for testing and validating computer forensics software • Software should be verified so that there is greater confidence in digital evidence used in court http://www.cftt.nist.gov • Created a general approach for testing computer forensics tools • Criteria for testing is at the same site • MD5 and SHA-1Hashes of Known files http://www.nsrl.nist.gov/Library_Contents.htm

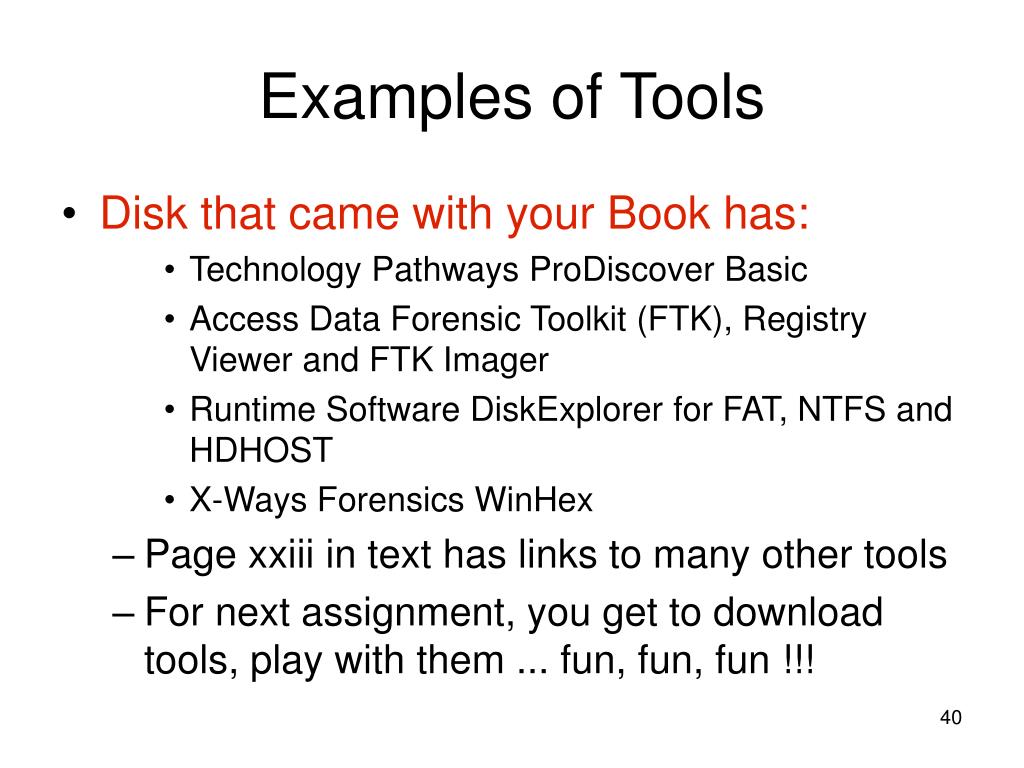

  40. Examples of Tools • Disk that came with your Book has: • Technology Pathways ProDiscover Basic • Access Data Forensic Toolkit (FTK), Registry Viewer and FTK Imager • Runtime Software DiskExplorer for FAT, NTFS and HDHOST • X-Ways Forensics WinHex • Page xxiii in text has links to many other tools • For next assignment, you get to download tools, play with them ... fun, fun, fun !!!

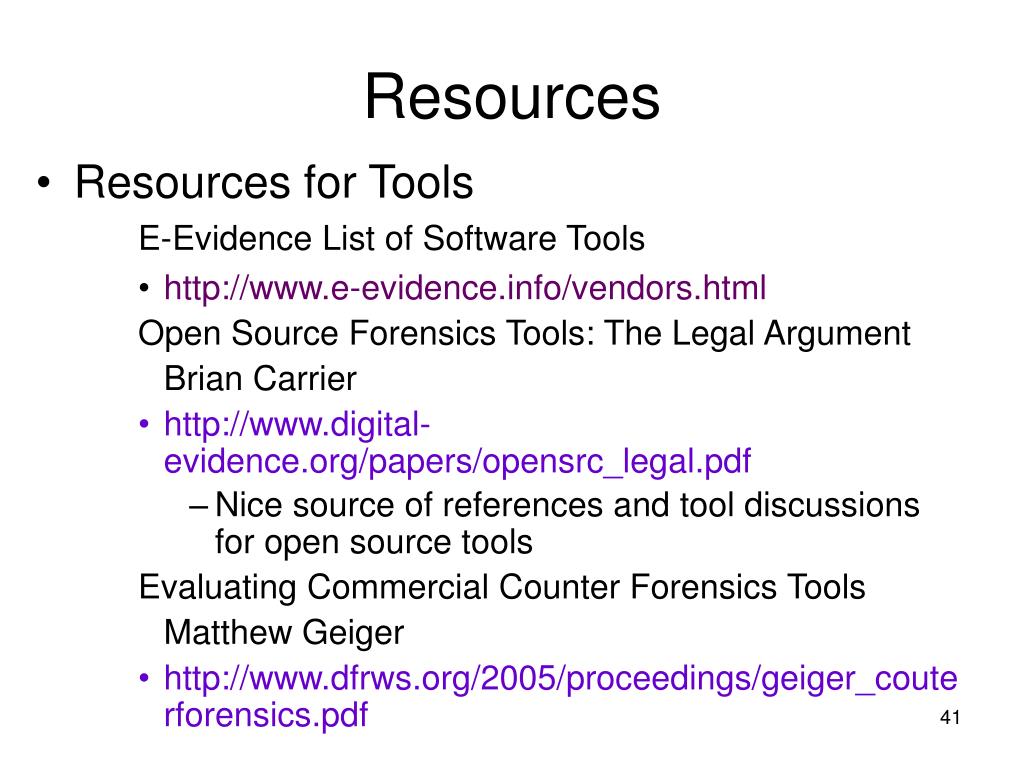

  41. Resources • Resources for Tools E-Evidence List of Software Tools • http://www.e-evidence.info/vendors.html Open Source Forensics Tools: The Legal Argument Brian Carrier • http://www.digital-evidence.org/papers/opensrc_legal.pdf • Nice source of references and tool discussions for open source tools Evaluating Commercial Counter Forensics Tools Matthew Geiger • http://www.dfrws.org/2005/proceedings/geiger_couterforensics.pdf

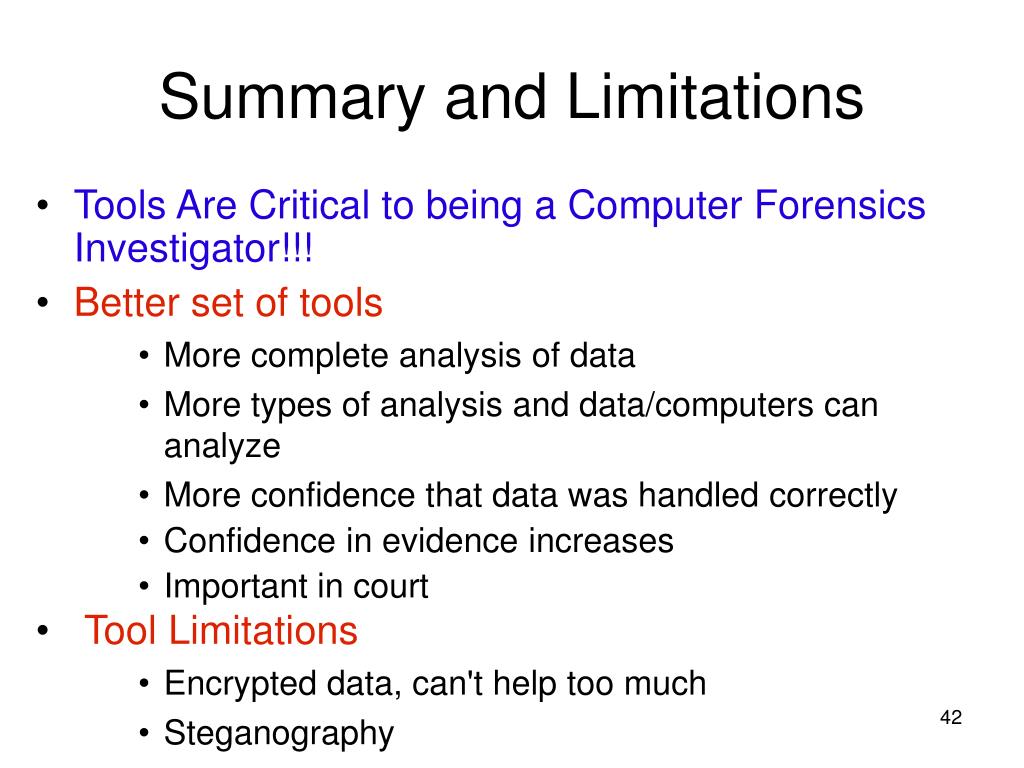

  42. Summary and Limitations • Tools Are Critical to being a Computer Forensics Investigator!!! • Better set of tools • More complete analysis of data • More types of analysis and data/computers can analyze • More confidence that data was handled correctly • Confidence in evidence increases • Important in court • Tool Limitations • Encrypted data, can't help too much • Steganography

  43. References • Nelson, Bill et al. “Guide to Computer Forensics Investigations” • Chapter 7

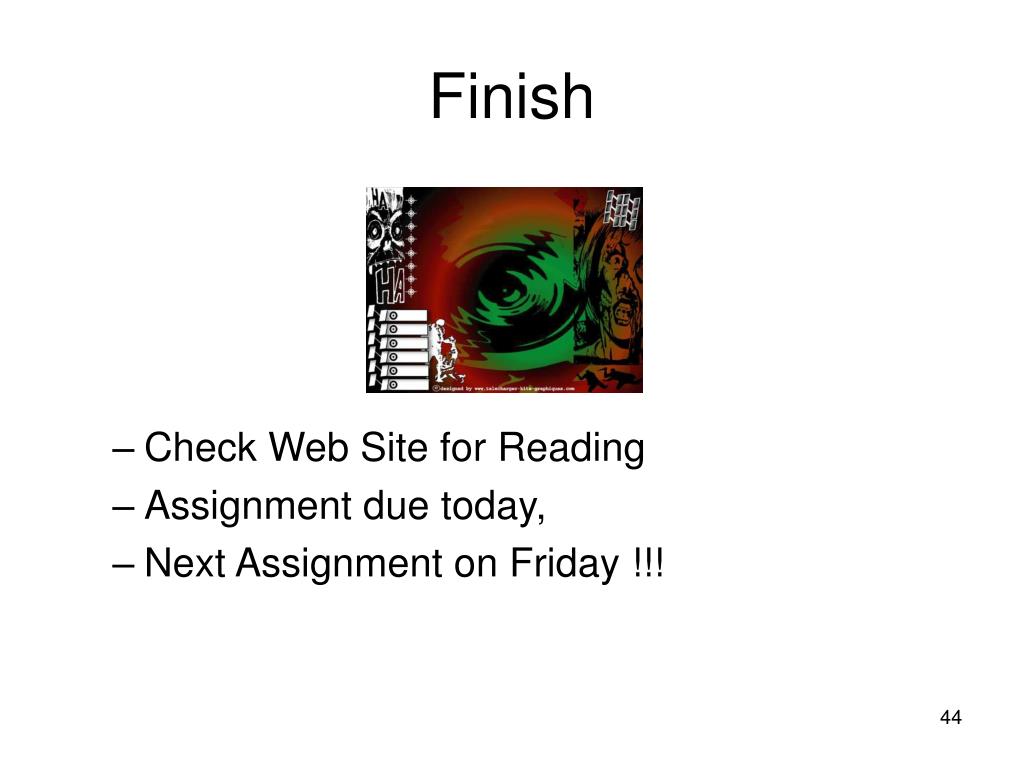

  44. Finish • Check Web Site for Reading • Assignment due today, • Next Assignment on Friday !!!
