  1. Computer Graphics 3Lecture 5:OpenGL Shading Language(GLSL) Dr. Benjamin Mora University of Wales Swansea 1 Benjamin Mora

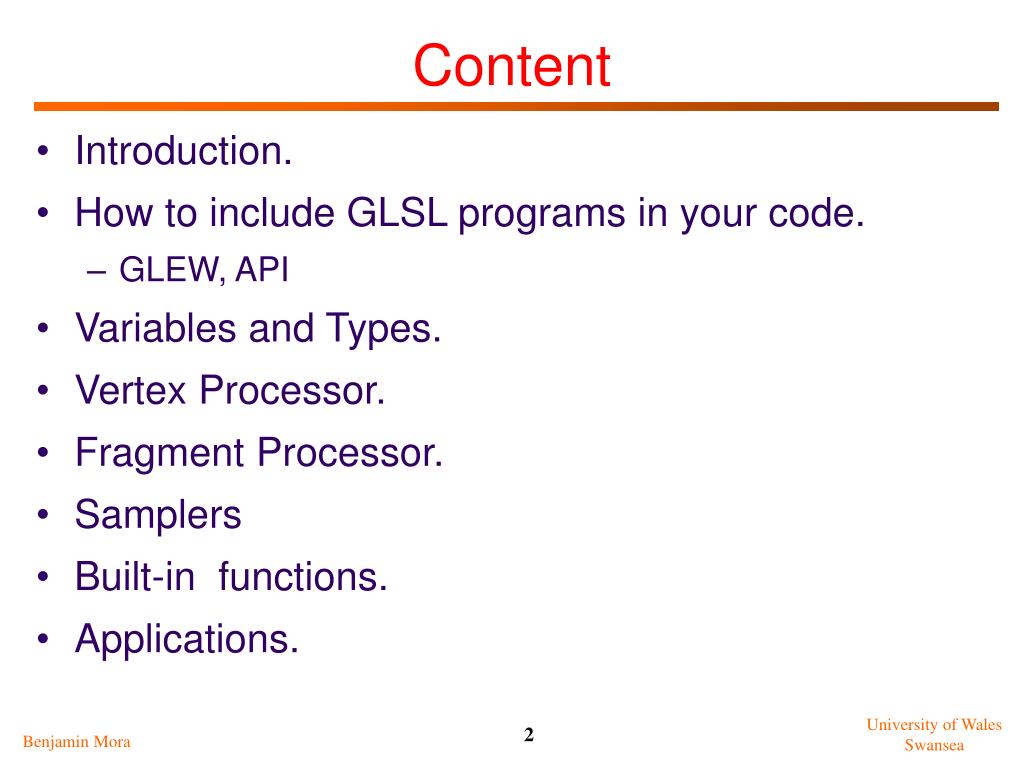

  2. Content • Introduction. • How to include GLSL programs in your code. • GLEW, API • Variables and Types. • Vertex Processor. • Fragment Processor. • Samplers • Built-in functions. • Applications. University of Wales Swansea 2 Benjamin Mora

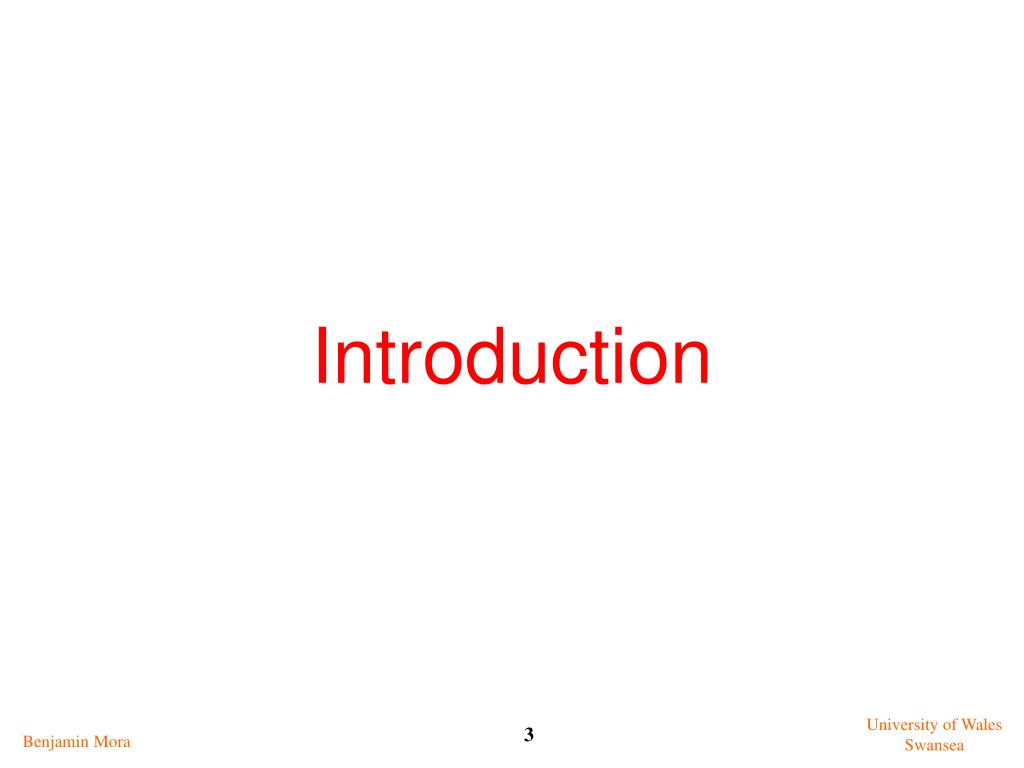

  3. Introduction University of Wales Swansea 3 Benjamin Mora

  4. Vertex Programs: User-Defined Vertex Processing Transform And Lighting Setup Rasterization Texture Fetch, Fragment Shading Fragment Programs: User-Defined Per-Pixel Processing Frame Buffer Blending Vertex and Fragment Programs Vertices Tests (z, stencil…) University of Wales Swansea 4 Benjamin Mora

  5. Introduction • Introduced with OpenGL 2.0. • High Level Language. • Real shaders implementation hidden inside drivers. • C/C++ like coding. • Some differences. • Stronger typing. • Language still heavily influenced by current hardware design. • Still somehow messy… • Compatible with future pipelines. • Replaces fixed vertex and pixel pipelines. • Geometry shader available as an extension. • OpenGL 3.0 adds some functionalities. University of Wales Swansea 5 Benjamin Mora

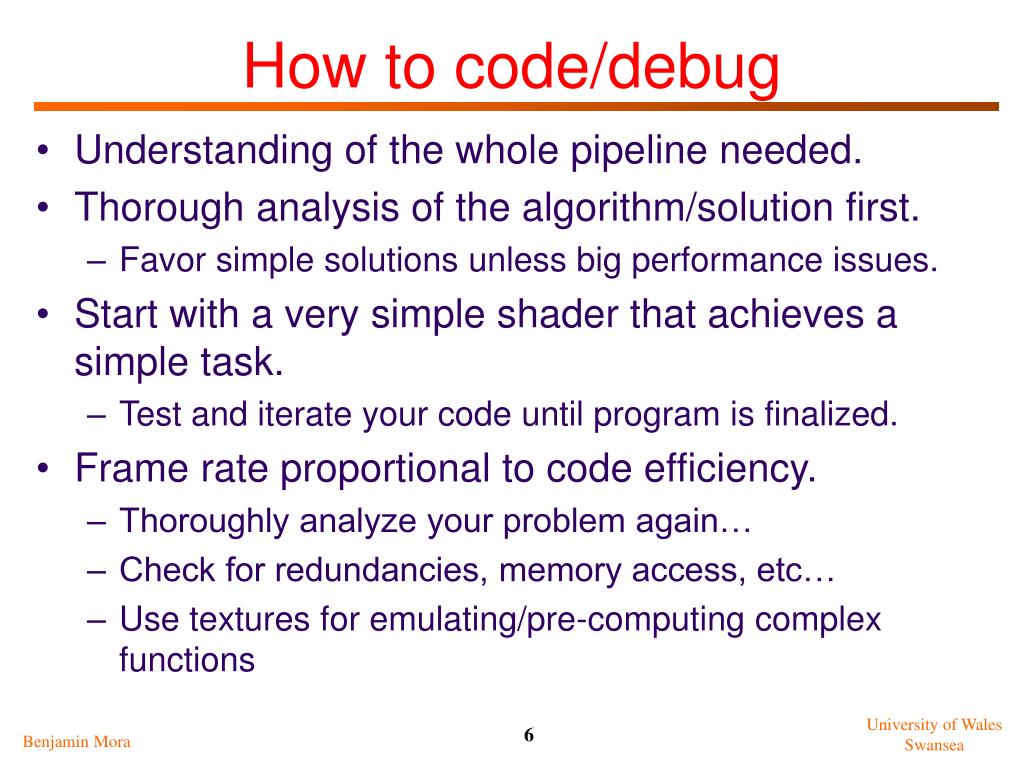

  6. How to code/debug • Understanding of the whole pipeline needed. • Thorough analysis of the algorithm/solution first. • Favor simple solutions unless big performance issues. • Start with a very simple shader that achieves a simple task. • Test and iterate your code until program is finalized. • Frame rate proportional to code efficiency. • Thoroughly analyze your problem again… • Check for redundancies, memory access, etc… • Use textures for emulating/pre-computing complex functions University of Wales Swansea 6 Benjamin Mora

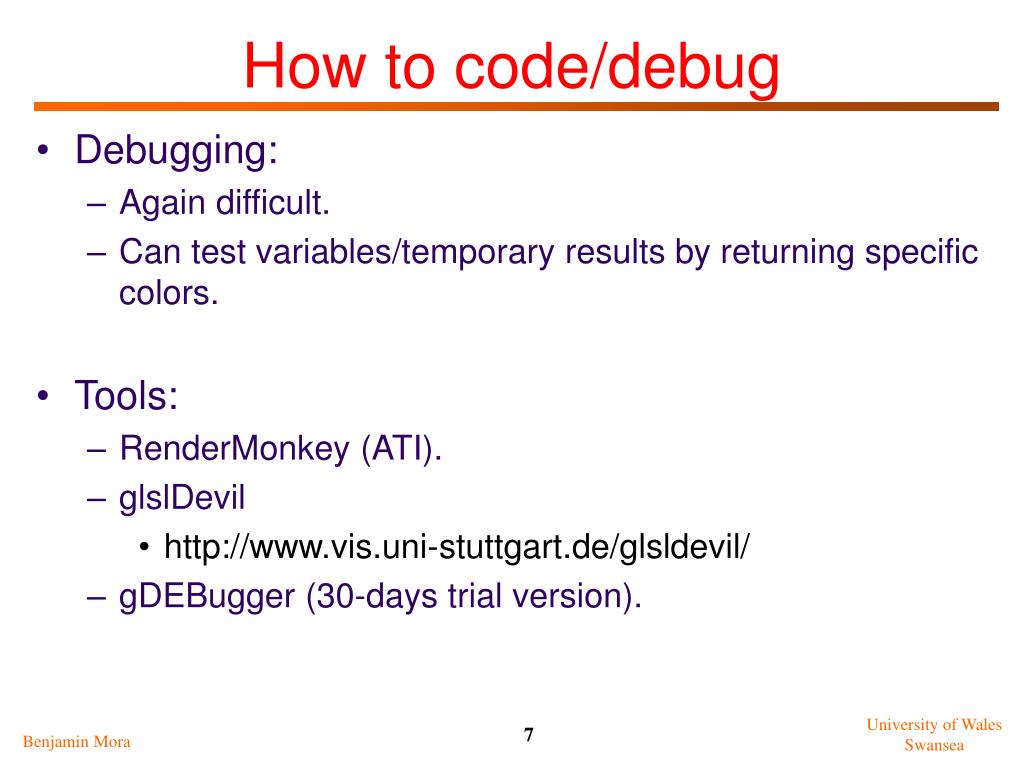

  7. How to code/debug • Debugging: • Again difficult. • Can test variables/temporary results by returning specific colors. • Tools: • RenderMonkey (ATI). • glslDevil • http://www.vis.uni-stuttgart.de/glsldevil/ • gDEBugger (30-days trial version). University of Wales Swansea 7 Benjamin Mora

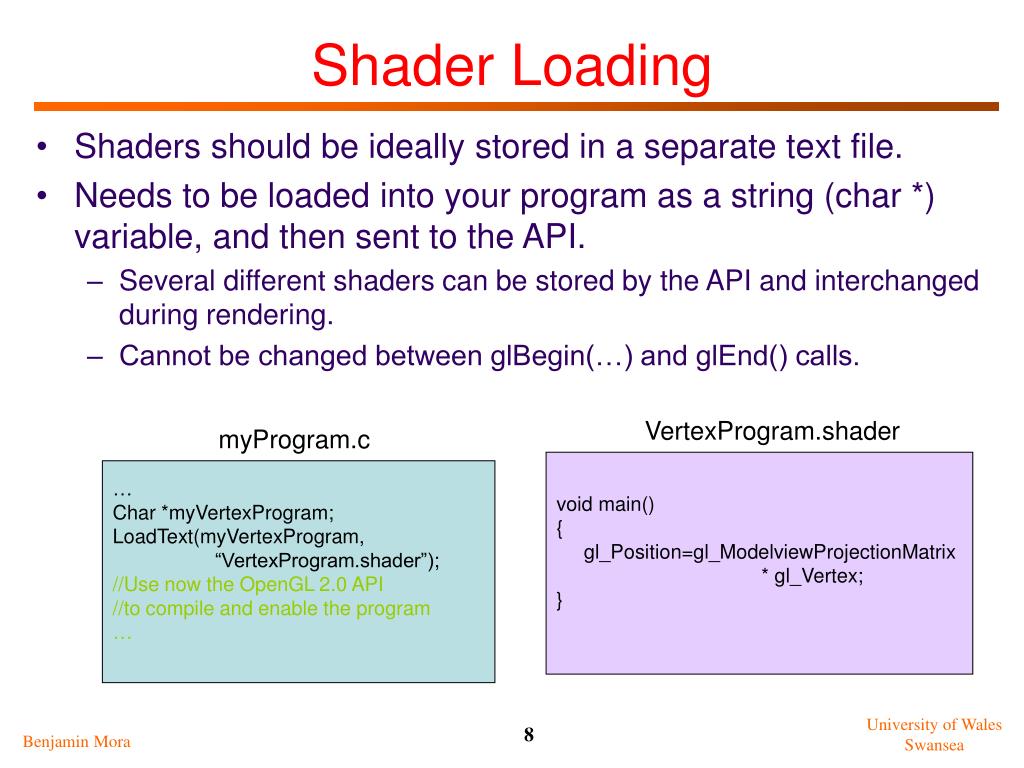

  8. Shader Loading • Shaders should be ideally stored in a separate text file. • Needs to be loaded into your program as a string (char *) variable, and then sent to the API. • Several different shaders can be stored by the API and interchanged during rendering. • Cannot be changed between glBegin(…) and glEnd() calls. VertexProgram.shader myProgram.c void main() { gl_Position=gl_ModelviewProjectionMatrix * gl_Vertex; } … Char *myVertexProgram; LoadText(myVertexProgram, “VertexProgram.shader”); //Use now the OpenGL 2.0 API //to compile and enable the program … University of Wales Swansea 8 Benjamin Mora

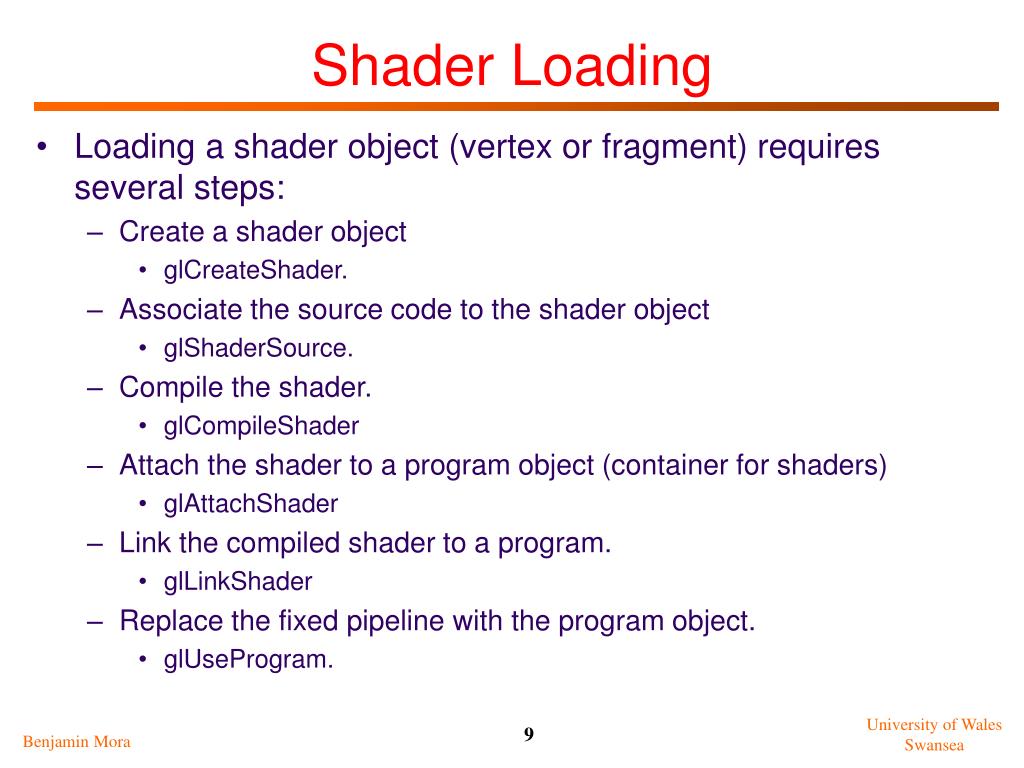

  9. Shader Loading • Loading a shader object (vertex or fragment) requires several steps: • Create a shader object • glCreateShader. • Associate the source code to the shader object • glShaderSource. • Compile the shader. • glCompileShader • Attach the shader to a program object (container for shaders) • glAttachShader • Link the compiled shader to a program. • glLinkShader • Replace the fixed pipeline with the program object. • glUseProgram. University of Wales Swansea 9 Benjamin Mora

  10. Shader Loading:Example char *myVertexProgram; char *myFragmentProgram; GLuint vShader, fShader, program; … vShader=glCreateShader(GL_VERTEX_SHADER); fShader=glCreateShader(GL_FRAGMENT_SHADER); glShaderSource(vShader, 1, & myVertexProgram, NULL); glShaderSource(fShader, 1, & myFragmentProgram, NULL); glCompileShader(vShader); glCompileShader(fShader); //Source strings can now be deleted University of Wales Swansea 10 Benjamin Mora

  11. Shader Loading:Example program=glCreateProgram(); //Creates a program object glAttachShader(program, vShader); glAttachShader(program, fShader); glLinkProgram(program); glUseProgram(program); //can come back to a fixed pipeline by passing NULL instead … //Don’t forget : //Objects must be deleted when not needed anymore University of Wales Swansea 11 Benjamin Mora

  12. Variables and Types University of Wales Swansea 12 Benjamin Mora

  13. Types • Simple types. • Structures (struct keyword) and arrays possible. • No Pointer! • Implicit conversion generally not possible. • Scalar types: • float, bool, int • int at least in the range [-65535, 65535] • Declaration: • float f,g=1.0; University of Wales Swansea 13 Benjamin Mora

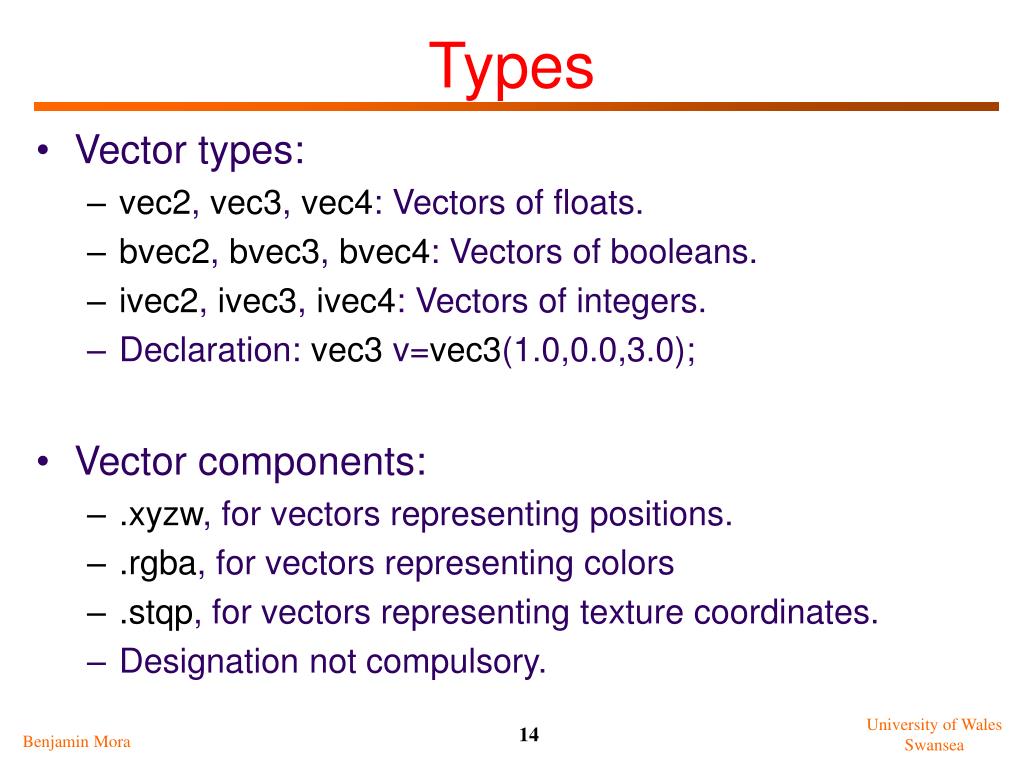

  14. Types • Vector types: • vec2, vec3, vec4: Vectors of floats. • bvec2, bvec3, bvec4: Vectors of booleans. • ivec2, ivec3, ivec4: Vectors of integers. • Declaration: vec3 v=vec3(1.0,0.0,3.0); • Vector components: • .xyzw, for vectors representing positions. • .rgba, for vectors representing colors • .stqp, for vectors representing texture coordinates. • Designation not compulsory. University of Wales Swansea 14 Benjamin Mora

  15. Types • Swizzling examples: • float f; vec4 v; vec2 v2=v.ww; vec3 v3=v.xzy; v2=vec2(3.0,-1.0); v2=texture1D(sampler,coordinate).xy; v=v+f; //f is added to the 4 components of v! v+=v; //Component-wise addition University of Wales Swansea 15 Benjamin Mora

  16. Types • Matrices (of floats, square): • mat2, mat3, mat4; • mat4 m; vec4 v=m[2]; float f=m[2][2]; • Row and columns inverted in OpenGL conventions! • m[2] is the third column of the matrix. • Don’t use oversized vector and matrices if not required. University of Wales Swansea 16 Benjamin Mora

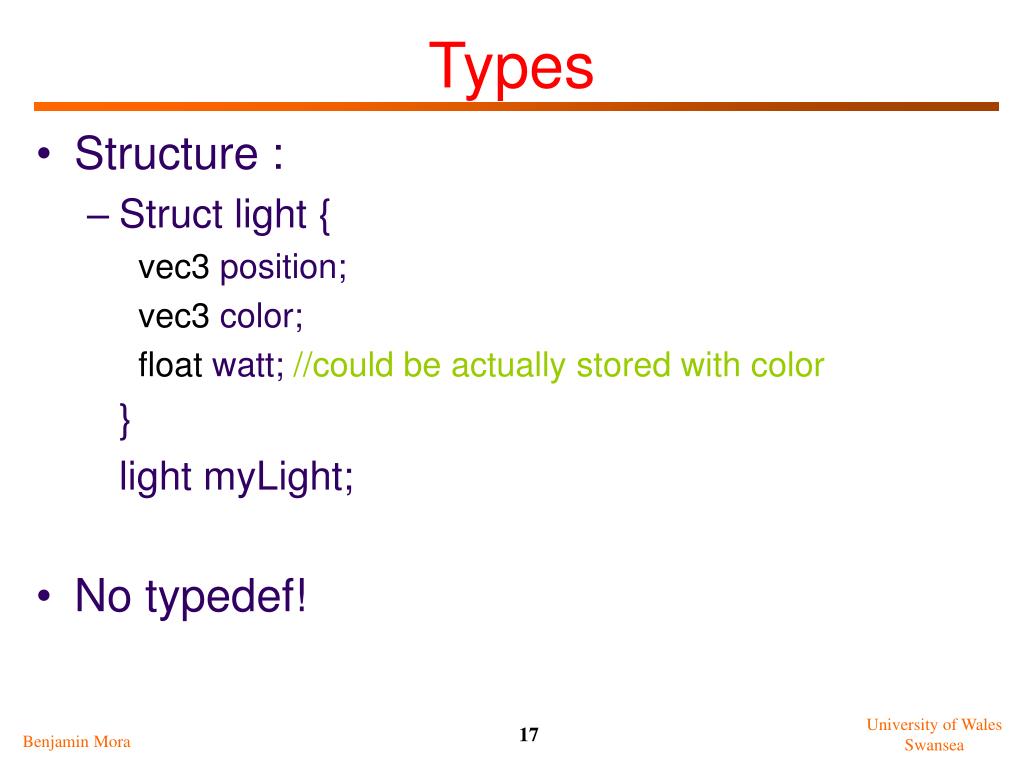

  17. Types • Structure : • Struct light { vec3 position; vec3 color; float watt; //could be actually stored with color } light myLight; • No typedef! University of Wales Swansea 17 Benjamin Mora

  18. Types • Arrays: • vec3 vertices[20]; • vec3 vertices2[]; //Also possible. Size must be determinable at compilation //time. See manual & specs. • Special case: texture coordinate array. • Internally declared as: • varyingvec4 gl_TexCoord[]; University of Wales Swansea 18 Benjamin Mora

  19. Types • Samplers • Texture variables. • sampler1D • sampler2D • sampler3D • samplerCube • sampler1DShadow • sampler2DShadow • Declaration: • Uniformsampler2D brick; vec4 col=texture2D(brick, texCoordinate); University of Wales Swansea 19 Benjamin Mora

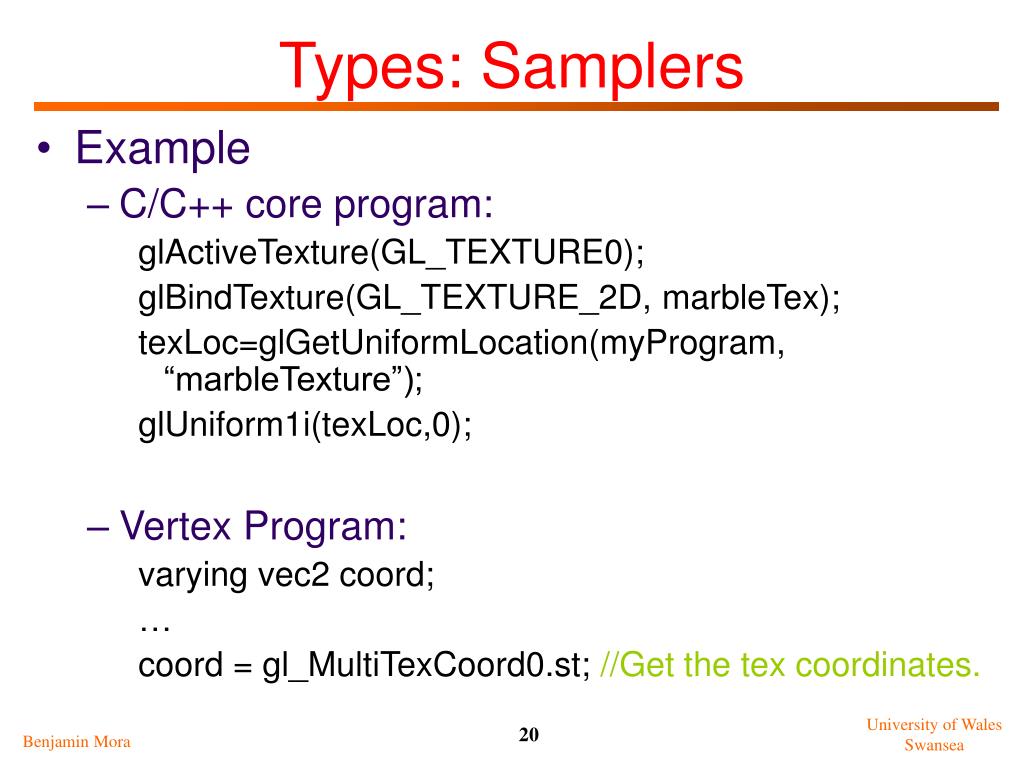

  20. Types: Samplers • Example • C/C++ core program: glActiveTexture(GL_TEXTURE0); glBindTexture(GL_TEXTURE_2D, marbleTex); texLoc=glGetUniformLocation(myProgram, “marbleTexture”); glUniform1i(texLoc,0); • Vertex Program: varying vec2 coord; … coord = gl_MultiTexCoord0.st;//Get the tex coordinates. University of Wales Swansea 20 Benjamin Mora

  21. Types: Samplers • Example • Fragment Program: varying vec2 coord; uniform sampler2D marbleTexture; //texture object. … gl_FragColor = texture2D(marbleTexture, coord); University of Wales Swansea 21 Benjamin Mora

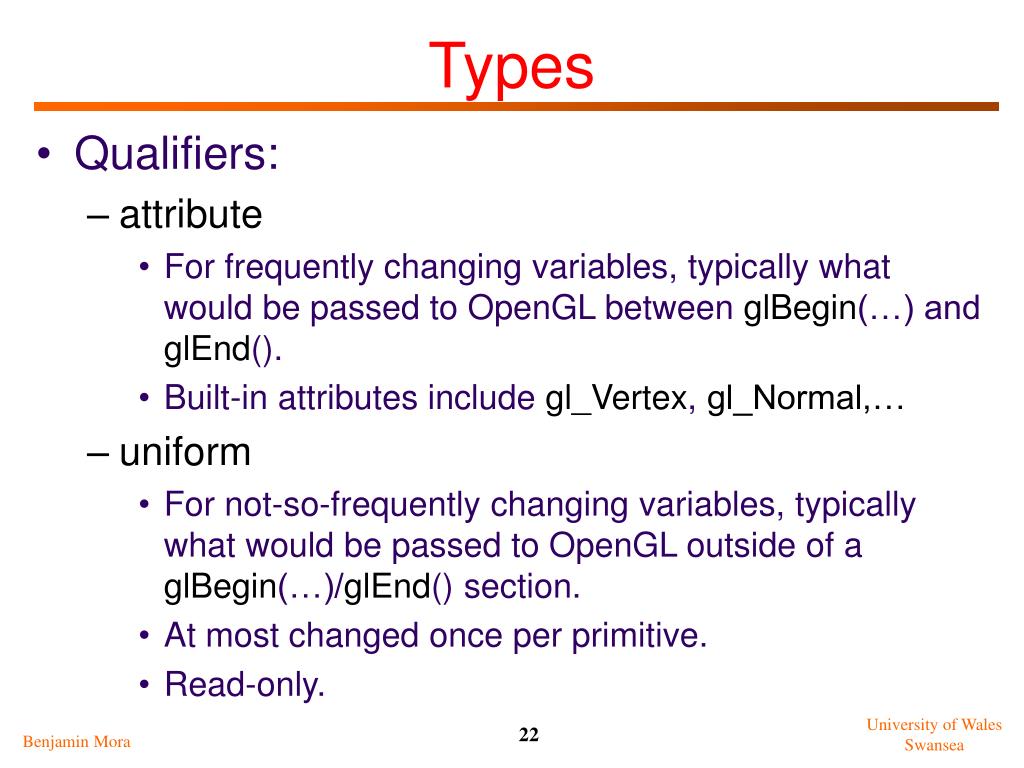

  22. Types • Qualifiers: • attribute • For frequently changing variables, typically what would be passed to OpenGL between glBegin(…) and glEnd(). • Built-in attributes include gl_Vertex, gl_Normal,… • uniform • For not-so-frequently changing variables, typically what would be passed to OpenGL outside of a glBegin(…)/glEnd() section. • At most changed once per primitive. • Read-only. University of Wales Swansea 22 Benjamin Mora

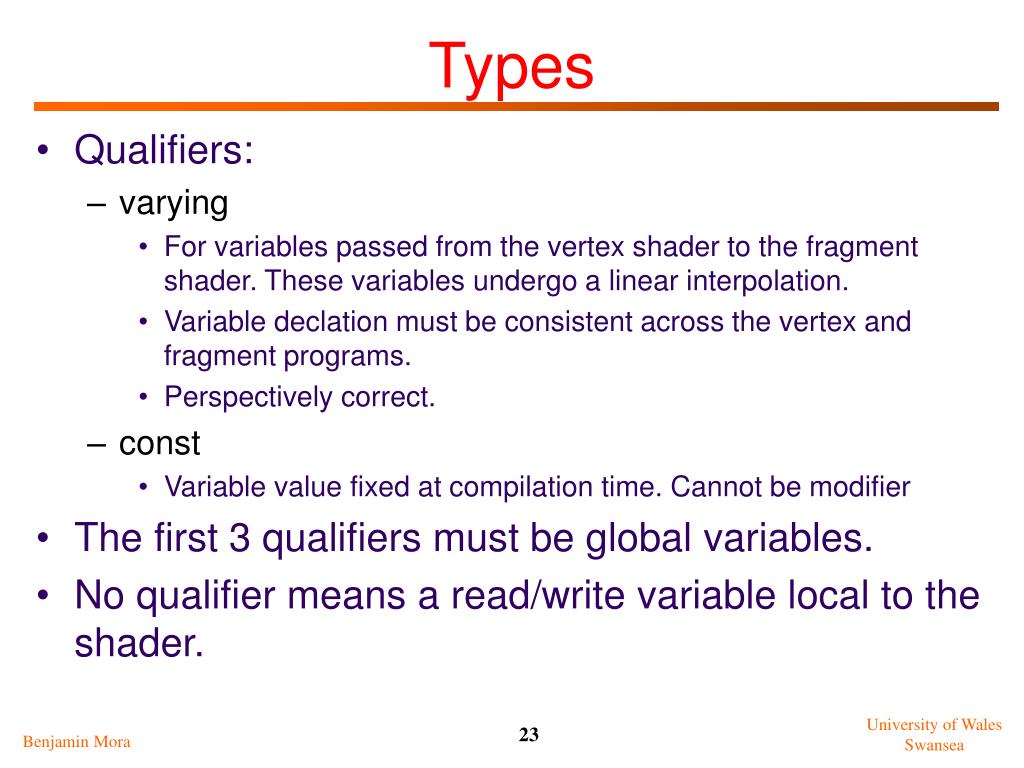

  23. Types • Qualifiers: • varying • For variables passed from the vertex shader to the fragment shader. These variables undergo a linear interpolation. • Variable declation must be consistent across the vertex and fragment programs. • Perspectively correct. • const • Variable value fixed at compilation time. Cannot be modifier • The first 3 qualifiers must be global variables. • No qualifier means a read/write variable local to the shader. University of Wales Swansea 23 Benjamin Mora

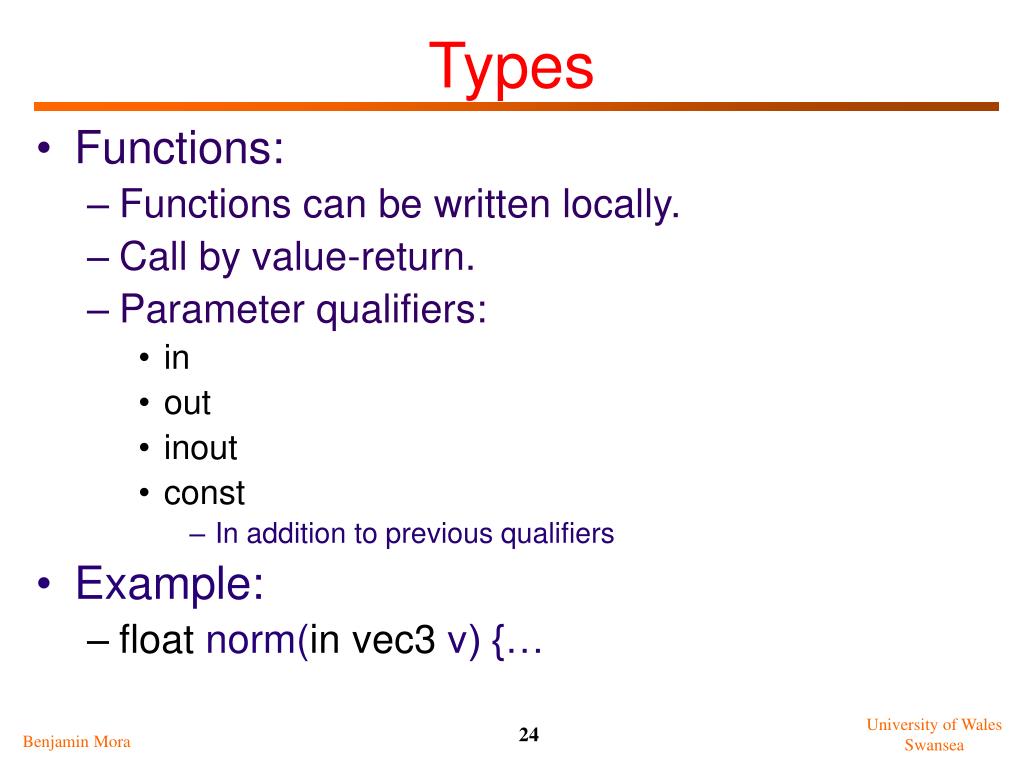

  24. Types • Functions: • Functions can be written locally. • Call by value-return. • Parameter qualifiers: • in • out • inout • const • In addition to previous qualifiers • Example: • float norm(invec3 v) {… University of Wales Swansea 24 Benjamin Mora

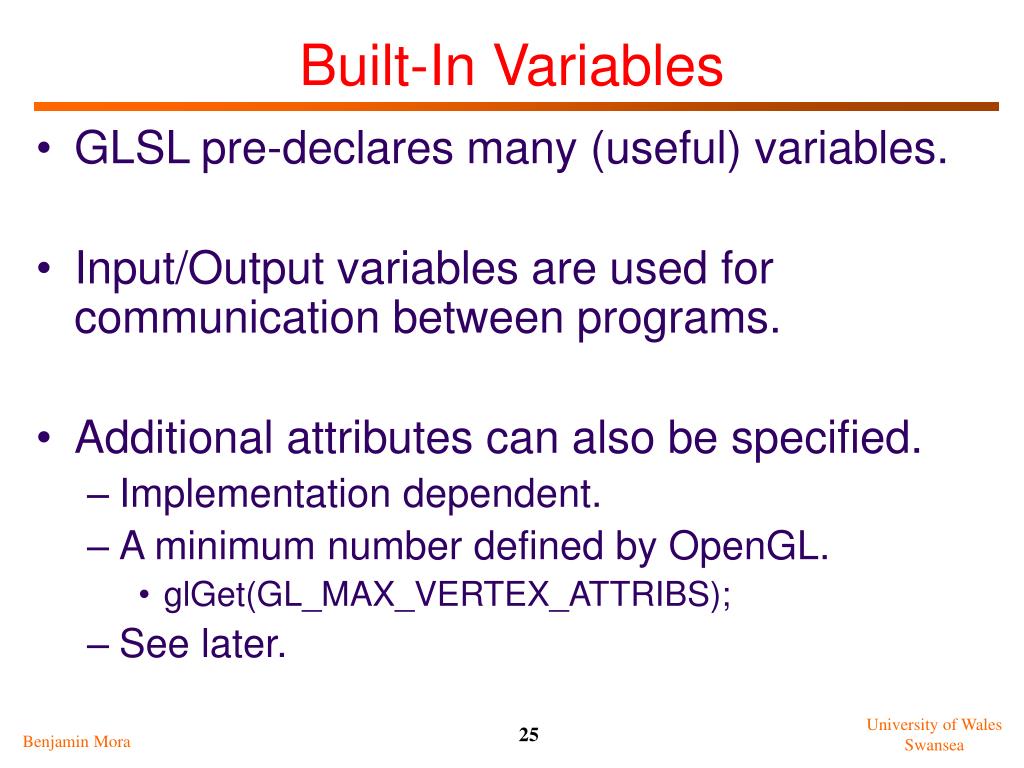

  25. Built-In Variables • GLSL pre-declares many (useful) variables. • Input/Output variables are used for communication between programs. • Additional attributes can also be specified. • Implementation dependent. • A minimum number defined by OpenGL. • glGet(GL_MAX_VERTEX_ATTRIBS); • See later. University of Wales Swansea 25 Benjamin Mora

  26. Predefined Vertex Variables • attributevec4 gl_Color; • attributevec4 gl_SecondaryColor; • attributevec3 gl_Normal; • attributevec4 gl_MultiTexCoord0; • attributevec4 gl_MultiTexCoord1; • const int gl_MaxTextureCoords; • … • attributevec4 gl_FogCoord; University of Wales Swansea 26 Benjamin Mora

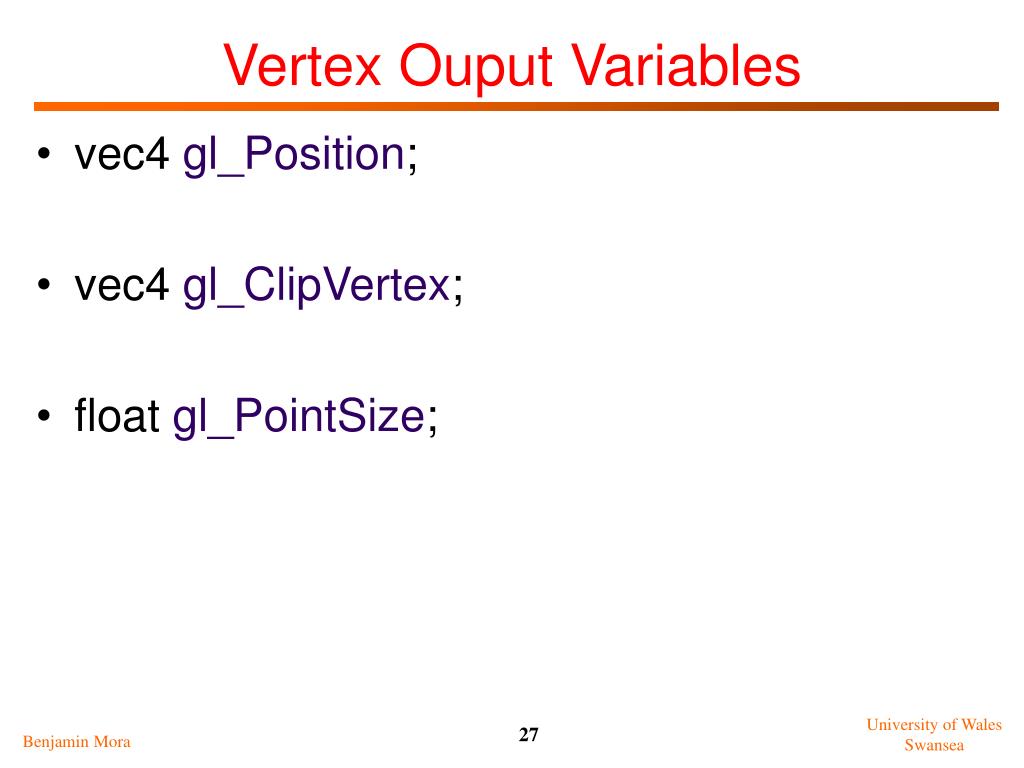

  27. Vertex Ouput Variables • vec4 gl_Position; • vec4 gl_ClipVertex; • float gl_PointSize; University of Wales Swansea 27 Benjamin Mora

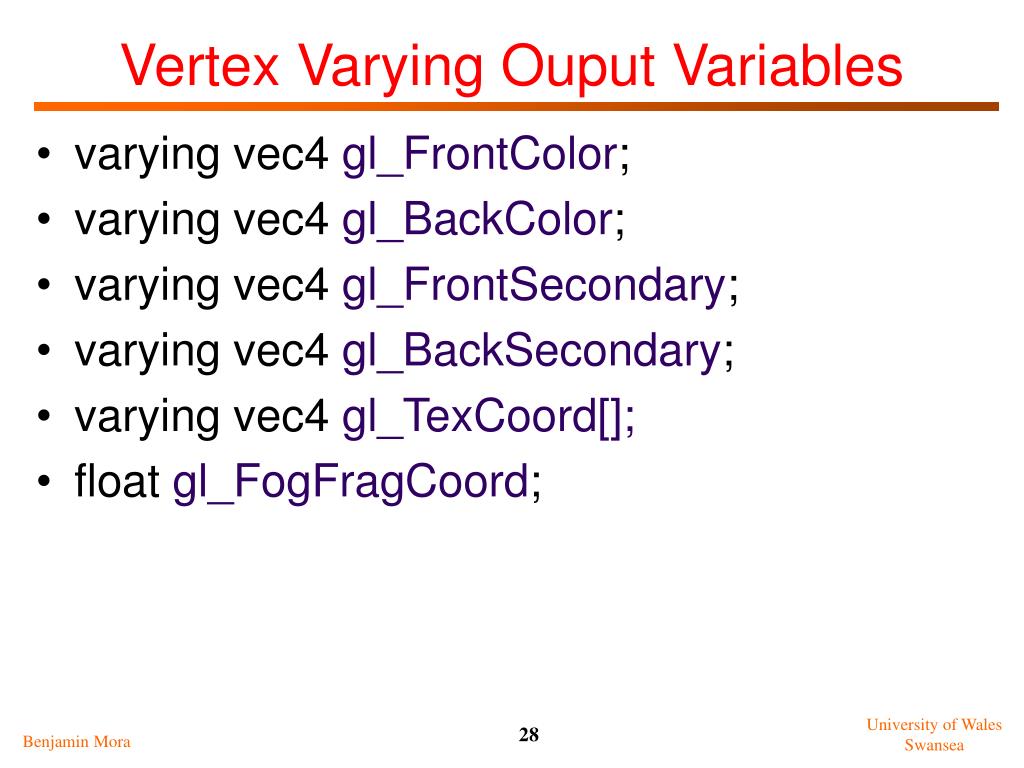

  28. Vertex Varying Ouput Variables • varying vec4 gl_FrontColor; • varying vec4 gl_BackColor; • varying vec4 gl_FrontSecondary; • varying vec4 gl_BackSecondary; • varying vec4 gl_TexCoord[]; • float gl_FogFragCoord; University of Wales Swansea 28 Benjamin Mora

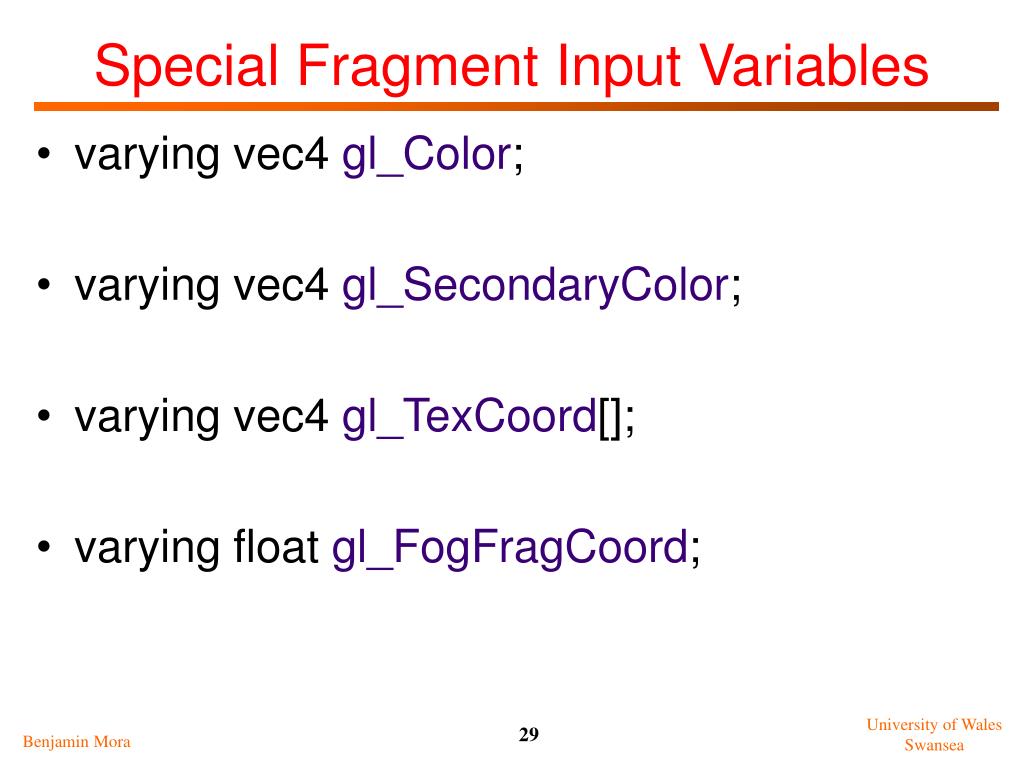

  29. Special Fragment Input Variables • varying vec4 gl_Color; • varying vec4 gl_SecondaryColor; • varying vec4 gl_TexCoord[]; • varying float gl_FogFragCoord; University of Wales Swansea 29 Benjamin Mora

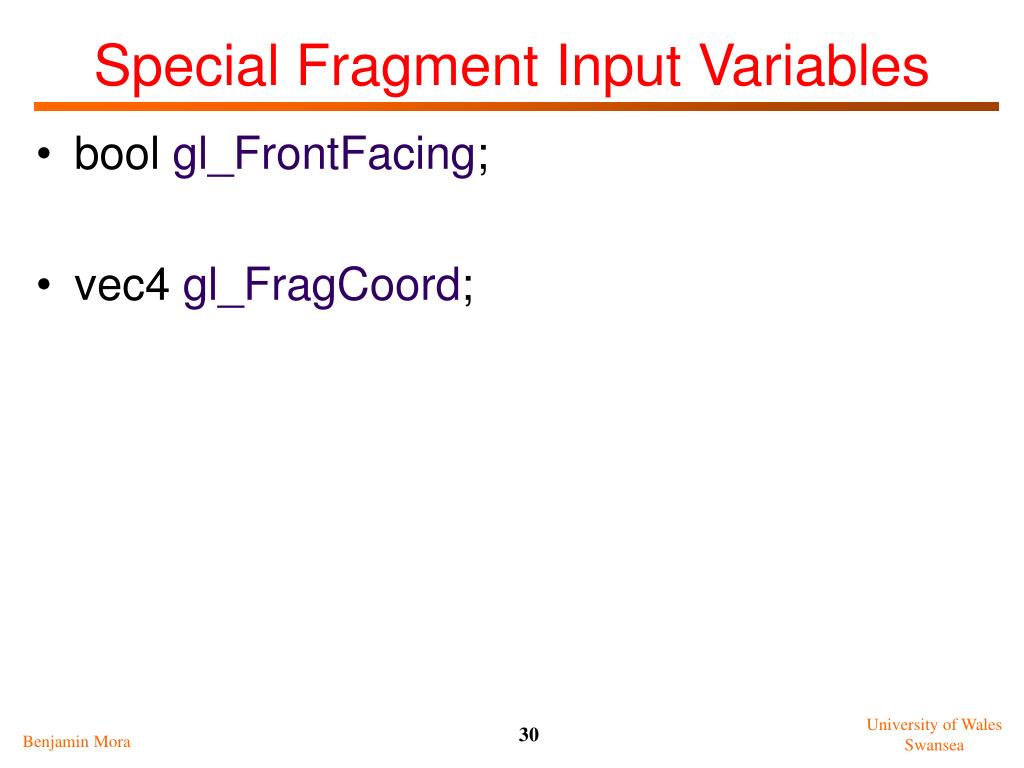

  30. Special Fragment Input Variables • bool gl_FrontFacing; • vec4 gl_FragCoord; University of Wales Swansea 30 Benjamin Mora

  31. Fragment Output Variables • vec4 gl_FragColor; • vec4 gl_FragData; • float gl_FragDepth; • //gl_FragCoord.z by default • These variables have a global scope. University of Wales Swansea 31 Benjamin Mora

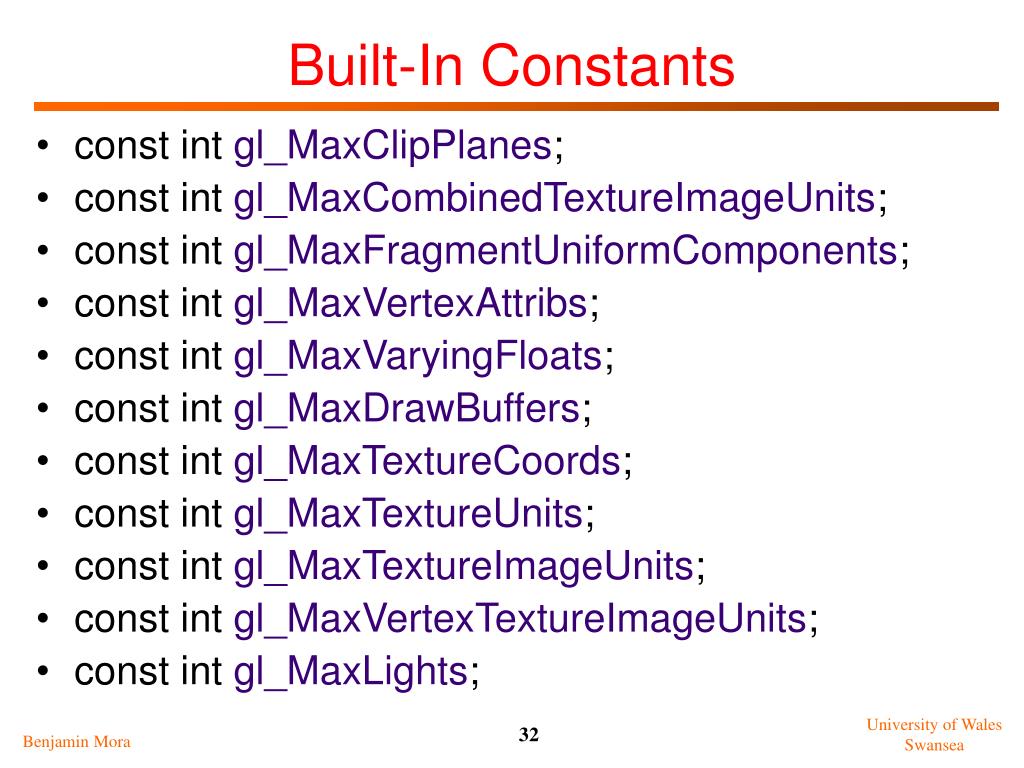

  32. Built-In Constants • const intgl_MaxClipPlanes; • const intgl_MaxCombinedTextureImageUnits; • const intgl_MaxFragmentUniformComponents; • const int gl_MaxVertexAttribs; • const int gl_MaxVaryingFloats; • const int gl_MaxDrawBuffers; • const int gl_MaxTextureCoords; • const int gl_MaxTextureUnits; • const int gl_MaxTextureImageUnits; • const int gl_MaxVertexTextureImageUnits; • const int gl_MaxLights; University of Wales Swansea 32 Benjamin Mora

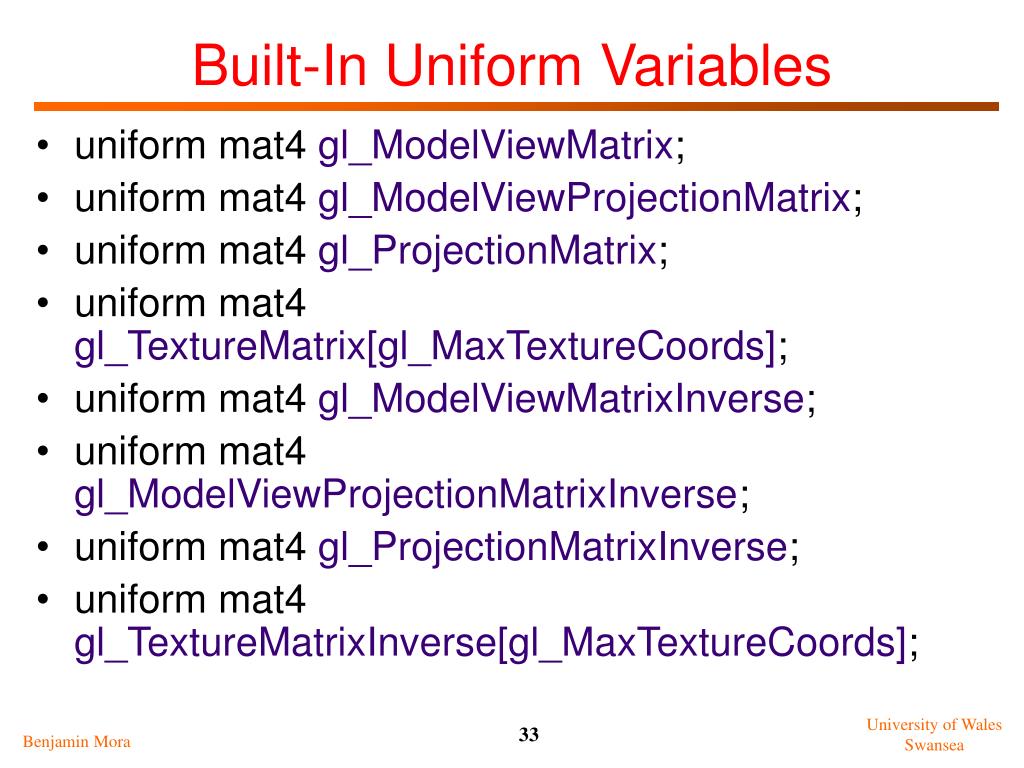

  33. Built-In Uniform Variables • uniform mat4 gl_ModelViewMatrix; • uniform mat4 gl_ModelViewProjectionMatrix; • uniform mat4 gl_ProjectionMatrix; • uniform mat4 gl_TextureMatrix[gl_MaxTextureCoords]; • uniform mat4 gl_ModelViewMatrixInverse; • uniform mat4 gl_ModelViewProjectionMatrixInverse; • uniform mat4 gl_ProjectionMatrixInverse; • uniform mat4 gl_TextureMatrixInverse[gl_MaxTextureCoords]; University of Wales Swansea 33 Benjamin Mora

  34. Built-In Uniform Variables • uniform mat4 gl_ModelViewMatrixTranspose; • uniform mat4 gl_ModelViewProjectionMatrixTranspose; • uniform mat4 gl_ProjectionMatrixTranspose; • uniform mat4 gl_TextureMatrixTranspose[gl_MaxTextureCoords]; • uniform mat4 gl_ModelViewMatrixInverseTranspose; • uniform mat4 gl_ModelViewProjectionMatrixInverseTranspose; • uniform mat4 gl_ProjectionMatrixInverseTranspose; • uniform mat4 gl_TextureMatrixInverseTranspose[gl_MaxTextureCoords]; • uniform mat3 gl_NormalMatrix; • uniform float gl_NormalScale; University of Wales Swansea 34 Benjamin Mora

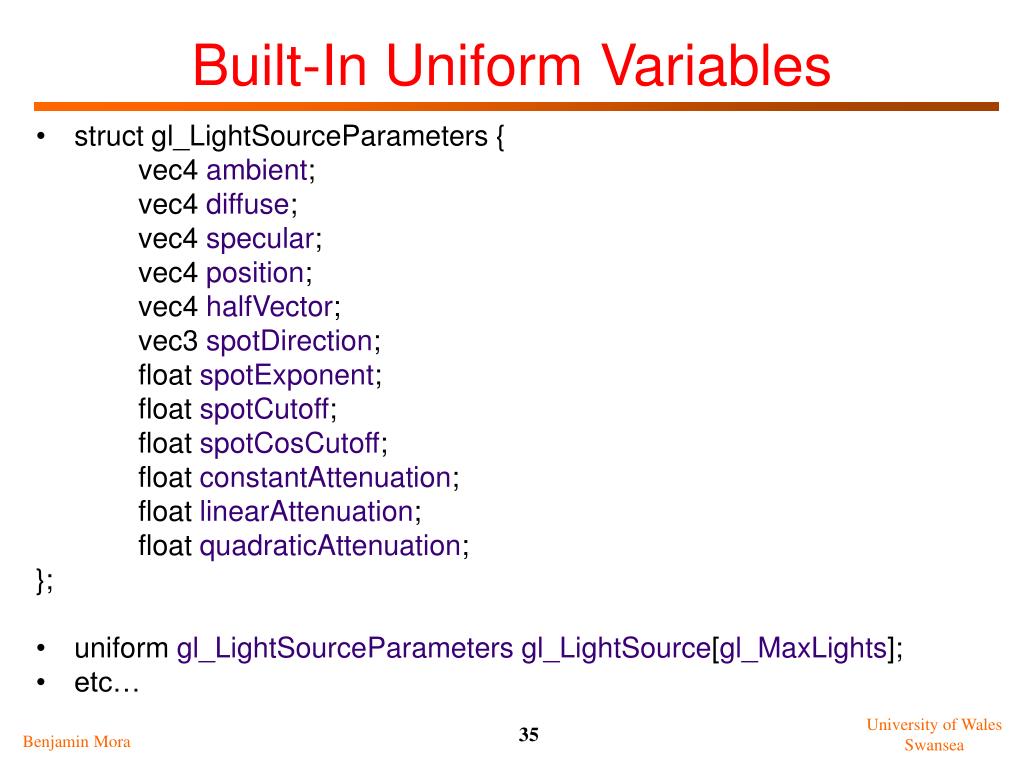

  35. Built-In Uniform Variables • struct gl_LightSourceParameters { vec4 ambient; vec4 diffuse; vec4 specular; vec4 position; vec4 halfVector; vec3 spotDirection; float spotExponent; float spotCutoff; float spotCosCutoff; float constantAttenuation; float linearAttenuation; float quadraticAttenuation; }; • uniform gl_LightSourceParametersgl_LightSource[gl_MaxLights]; • etc… University of Wales Swansea 35 Benjamin Mora

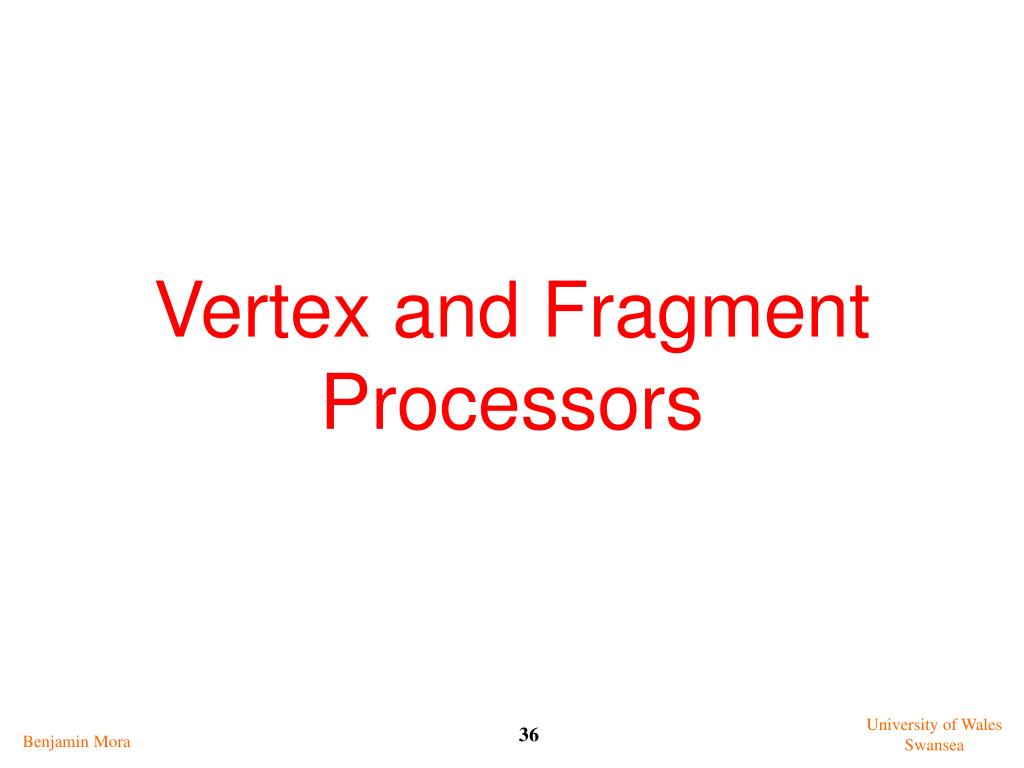

  36. Vertex and FragmentProcessors University of Wales Swansea 36 Benjamin Mora

  37. Vertex and Fragment Processors • Replaces the fixed pipeline. • Input/Ouput Data: Attribute or Uniform variables. • Built-In or User defined. • Uses “Varying Data” for the communication of Linearly interpolated Values between the vertex and the fragment program. University of Wales Swansea 37 Benjamin Mora

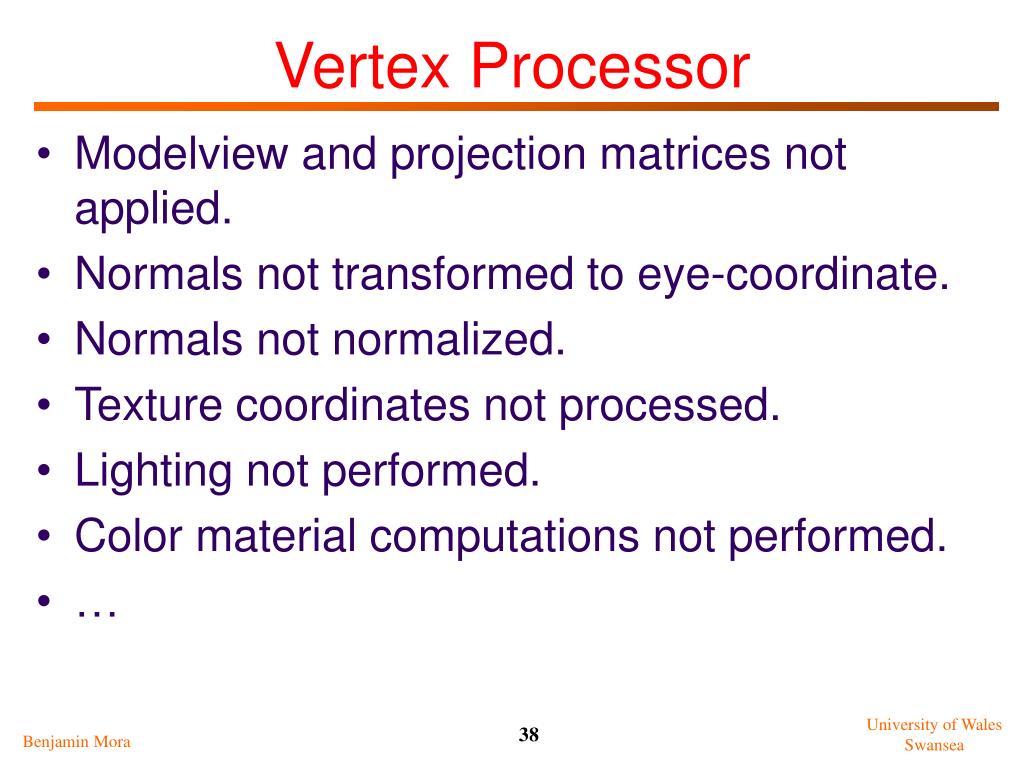

  38. Vertex Processor • Modelview and projection matrices not applied. • Normals not transformed to eye-coordinate. • Normals not normalized. • Texture coordinates not processed. • Lighting not performed. • Color material computations not performed. • … University of Wales Swansea 38 Benjamin Mora

  39. Vertex Processor • After the vertex program, the following fixed functionalities are still applied: • Color clamping. • Perspective division. • Viewport mapping. • Depth range scaling. • Additional Vertex Attributes can be send from the main program. • Additional colors, tangents, curvatures… University of Wales Swansea 39 Benjamin Mora

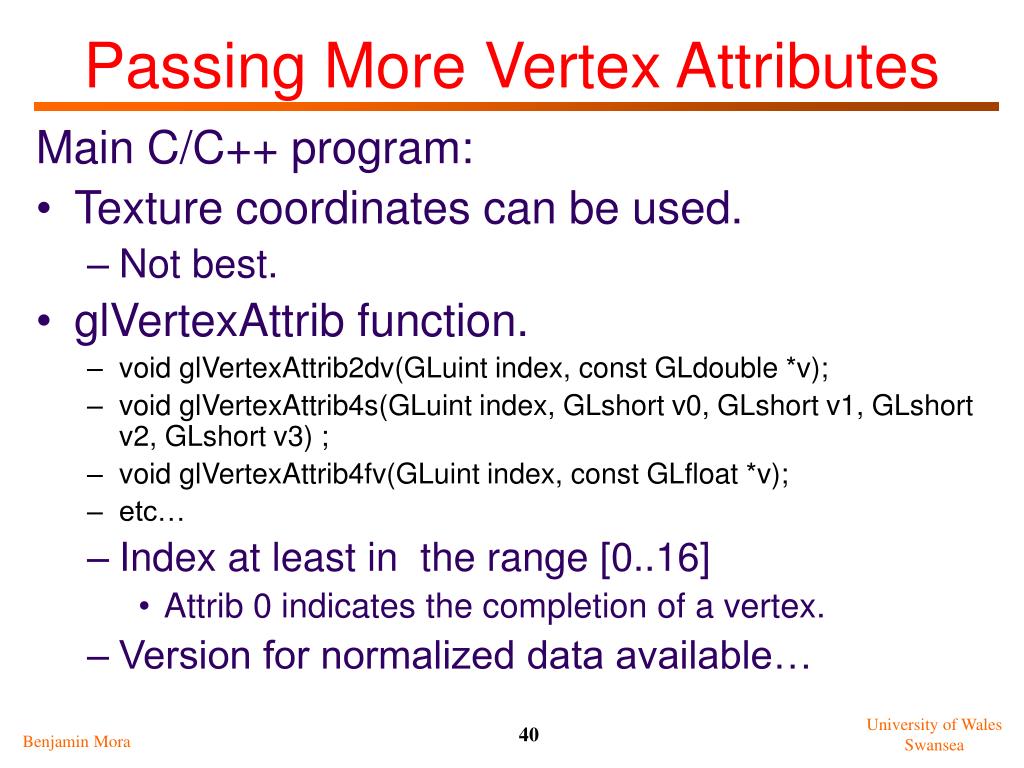

  40. Passing More Vertex Attributes Main C/C++ program: • Texture coordinates can be used. • Not best. • glVertexAttrib function. • void glVertexAttrib2dv(GLuint index, const GLdouble *v); • void glVertexAttrib4s(GLuint index, GLshort v0, GLshort v1, GLshort v2, GLshort v3) ; • void glVertexAttrib4fv(GLuint index, const GLfloat *v); • etc… • Index at least in the range [0..16] • Attrib 0 indicates the completion of a vertex. • Version for normalized data available… University of Wales Swansea 40 Benjamin Mora

  41. Passing More Vertex Attributes • How to associate a fragment program variable with an attribute index in the C/C++ program? • Use glBindAttribLocation function. • void glBindAttribLocation(GLuint program, GLuint index, const GLchar *name); • glBindAttribLocation(myProgram, 1, “objectTangent”); • Must be done before calling the linker. University of Wales Swansea 41 Benjamin Mora

  42. Passing More Vertex Attributes Main C/C++ program: • glVertexAttribPointer. • void glVertexAttribPointer(GLuint index, GLint size, GLenum type, GLboolean normalized, GLsizei stride, const GLvoid *pointer); • Similar to vertex arrays. Arrays can now be stored in video memory and processed optimally. • Vertex attrib arrays possible. • Enabling/Disabling Attrib arrays: • void glEnableVertexAttribArray(GLuint index); • void glDisableVertexAttribArray(GLuint index); • Arrays used when making a call to glDrawArrays, glDrawElements, etc… University of Wales Swansea 42 Benjamin Mora

  43. Passing More Vertex Attributes Uniform variables: • Setup in a different way than attribute variables. • After linking the program, the main application (C/C++) must query the location of the uniform variable, and then set its value. • GLint glGetUniformLocation (GLuint program, const GLchar *name) : • Look for a specific variable. • Returns the location. • void glUniform{1|2|3|4}{f|i} (Glint location, TYPE v); • Set the uniform value. Should not happen between glBegin/glEnd. University of Wales Swansea 43 Benjamin Mora

  44. Fragment Processor • The fragment program mainly processes interpolated information generated from the vertex program. • e.g. gl_Color. • The fragment program must replace/code: • Texture mapping environments & functions. • Texture application. • Color application/generation. • Shading. • Fog application. University of Wales Swansea 44 Benjamin Mora

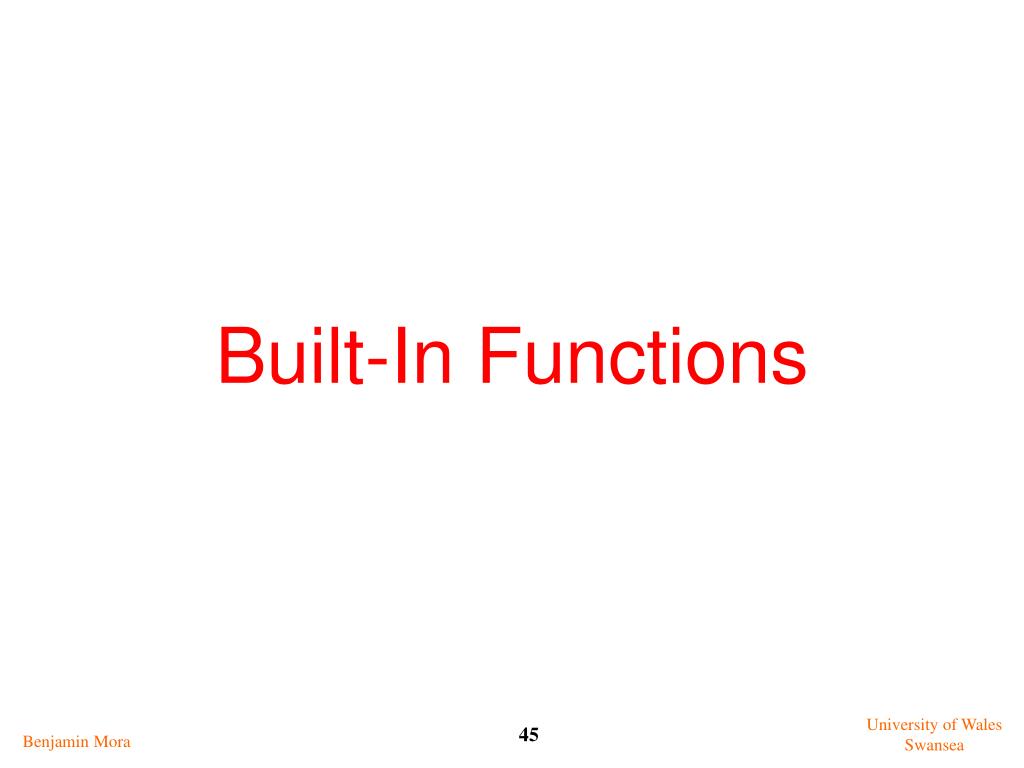

  45. Built-In Functions University of Wales Swansea 45 Benjamin Mora

  46. Built-In Functions • Easy Shader Development. • Readability. • Simplicity. • Common functions needed for graphics. • Mask the actual hardware implementation. • The compiler has to be efficient/clever. • No warranty that a function is hardware accelerated. • Non-accelerated functions could be slower. • Most of them available from both programs. University of Wales Swansea 46 Benjamin Mora

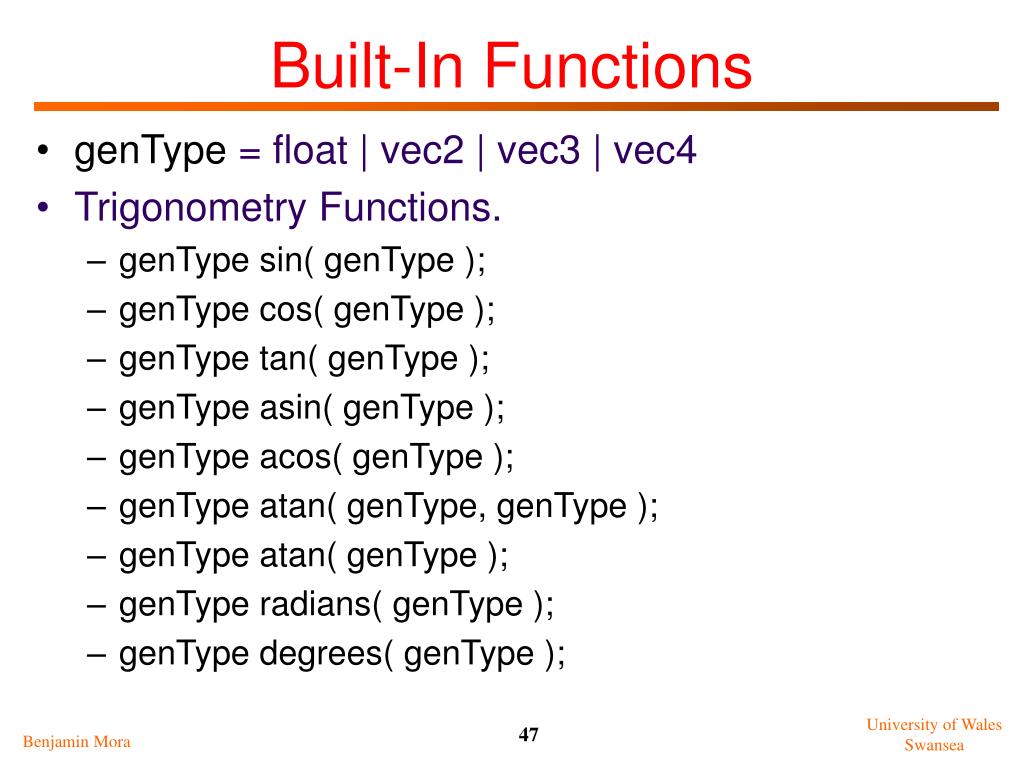

  47. Built-In Functions • genType = float | vec2 | vec3 | vec4 • Trigonometry Functions. • genType sin( genType ); • genType cos( genType ); • genType tan( genType ); • genType asin( genType ); • genType acos( genType ); • genType atan( genType, genType ); • genType atan( genType ); • genType radians( genType ); • genType degrees( genType ); University of Wales Swansea 47 Benjamin Mora

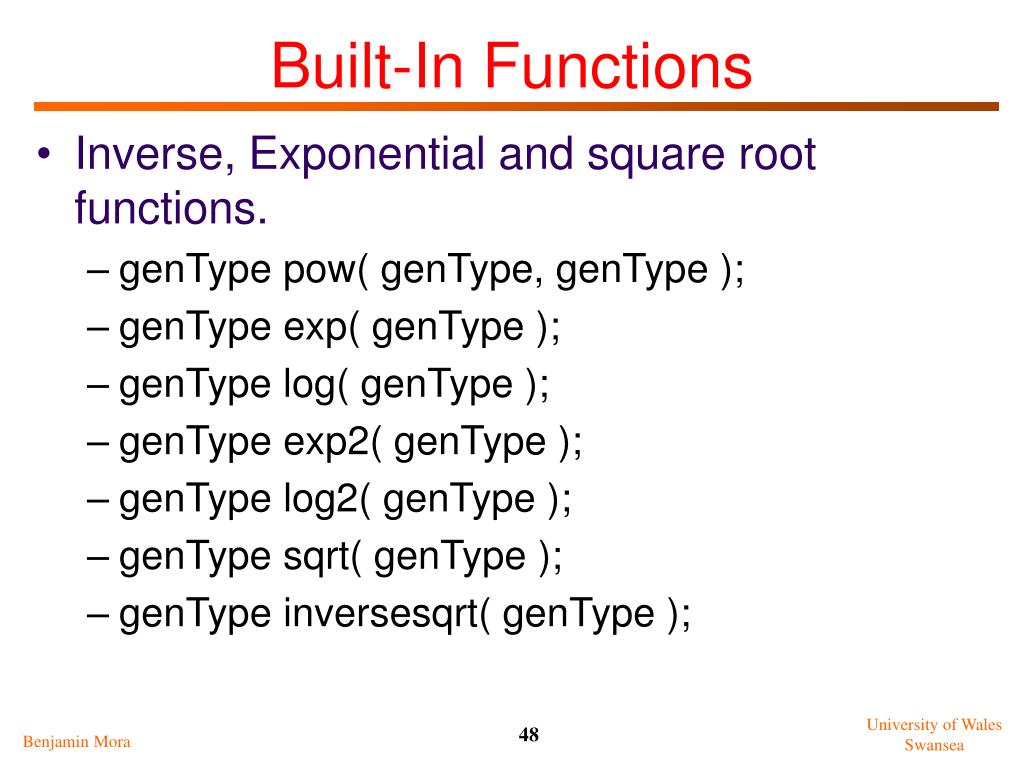

  48. Built-In Functions • Inverse, Exponential and square root functions. • genType pow( genType, genType ); • genType exp( genType ); • genType log( genType ); • genType exp2( genType ); • genType log2( genType ); • genType sqrt( genType ); • genType inversesqrt( genType ); University of Wales Swansea 48 Benjamin Mora

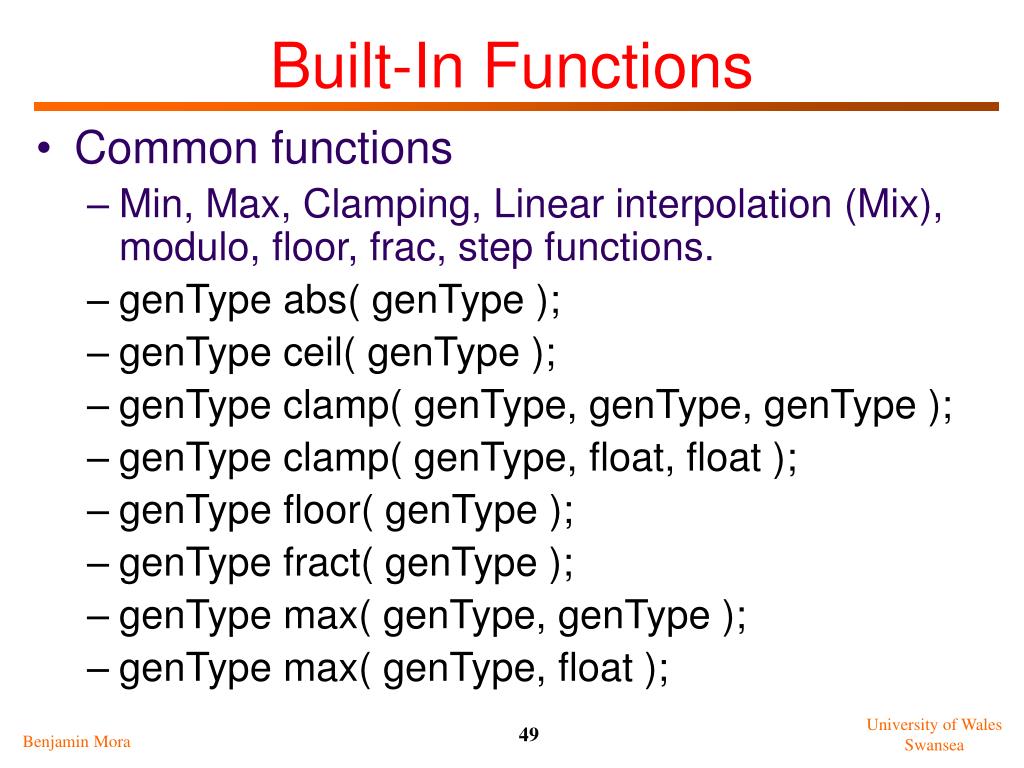

  49. Built-In Functions • Common functions • Min, Max, Clamping, Linear interpolation (Mix), modulo, floor, frac, step functions. • genType abs( genType ); • genType ceil( genType ); • genType clamp( genType, genType, genType ); • genType clamp( genType, float, float ); • genType floor( genType ); • genType fract( genType ); • genType max( genType, genType ); • genType max( genType, float ); University of Wales Swansea 49 Benjamin Mora

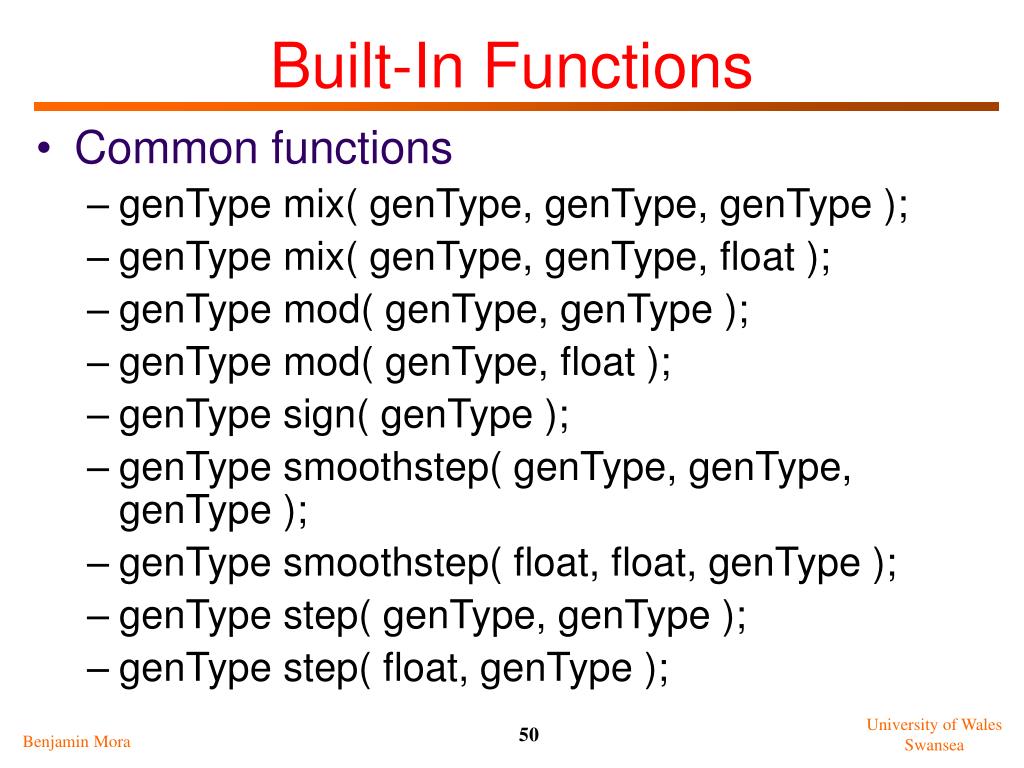

  50. Built-In Functions • Common functions • genType mix( genType, genType, genType ); • genType mix( genType, genType, float ); • genType mod( genType, genType ); • genType mod( genType, float ); • genType sign( genType ); • genType smoothstep( genType, genType, genType ); • genType smoothstep( float, float, genType ); • genType step( genType, genType ); • genType step( float, genType ); University of Wales Swansea 50 Benjamin Mora
