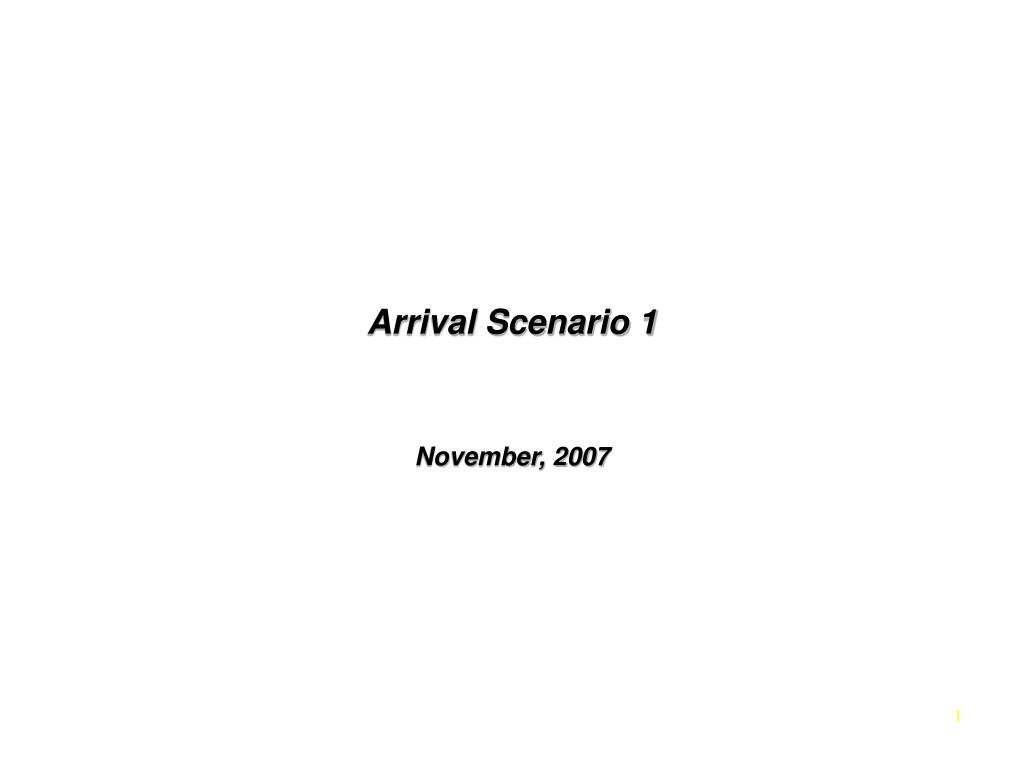

  1. Arrival Scenario 1 November, 2007

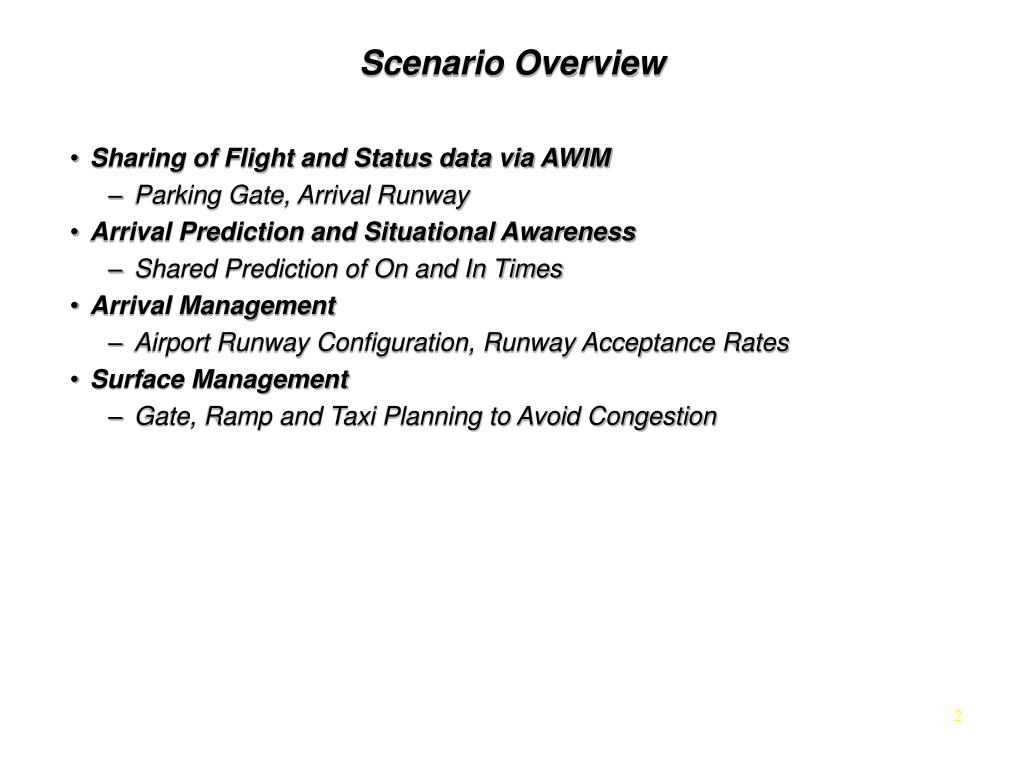

  2. Scenario Overview • Sharing of Flight and Status data via AWIM • Parking Gate, Arrival Runway • Arrival Prediction and Situational Awareness • Shared Prediction of On and In Times • Arrival Management • Airport Runway Configuration, Runway Acceptance Rates • Surface Management • Gate, Ramp and Taxi Planning to Avoid Congestion

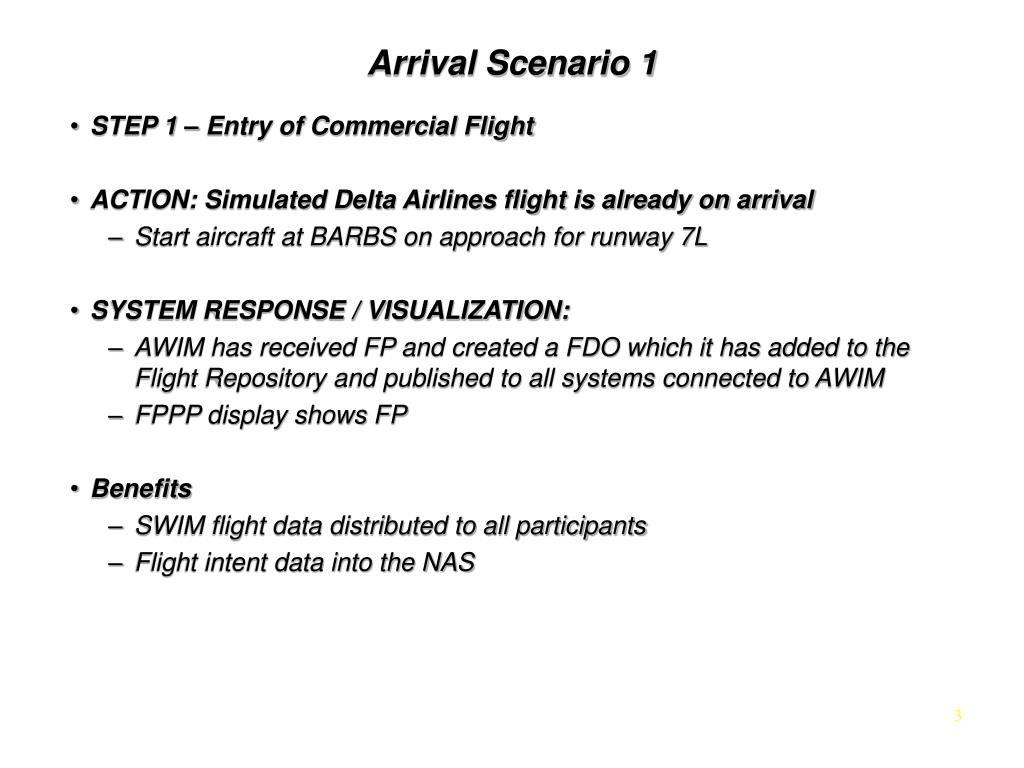

  3. Arrival Scenario 1 • STEP 1 – Entry of Commercial Flight • ACTION: Simulated Delta Airlines flight is already on arrival • Start aircraft at BARBS on approach for runway 7L • SYSTEM RESPONSE / VISUALIZATION: • AWIM has received FP and created a FDO which it has added to the Flight Repository and published to all systems connected to AWIM • FPPP display shows FP • Benefits • SWIM flight data distributed to all participants • Flight intent data into the NAS

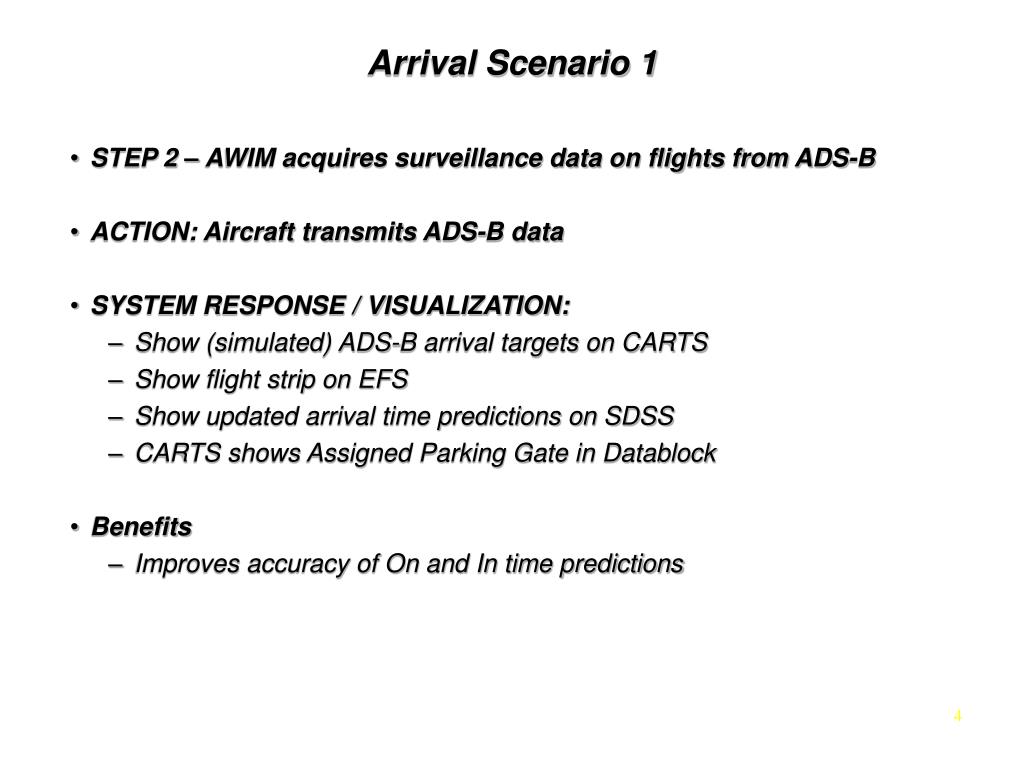

  4. Arrival Scenario 1 • STEP 2 – AWIM acquires surveillance data on flights from ADS-B • ACTION: Aircraft transmits ADS-B data • SYSTEM RESPONSE / VISUALIZATION: • Show (simulated) ADS-B arrival targets on CARTS • Show flight strip on EFS • Show updated arrival time predictions on SDSS • CARTS shows Assigned Parking Gate in Datablock • Benefits • Improves accuracy of On and In time predictions

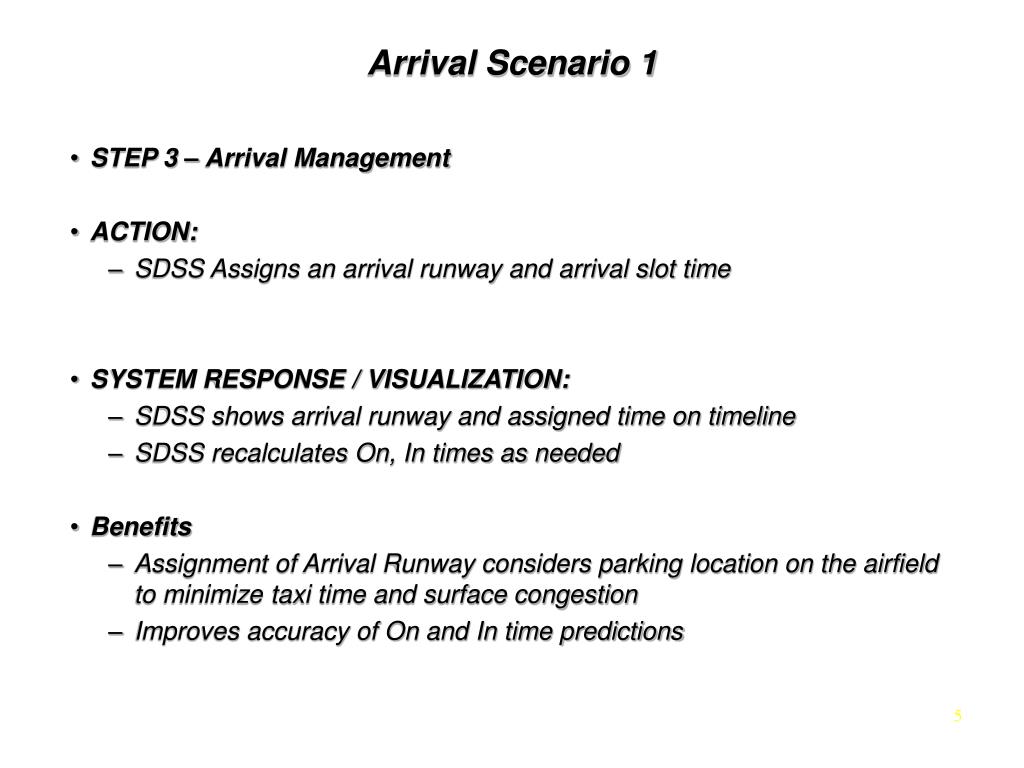

  5. Arrival Scenario 1 • STEP 3 – Arrival Management • ACTION: • SDSS Assigns an arrival runway and arrival slot time • SYSTEM RESPONSE / VISUALIZATION: • SDSS shows arrival runway and assigned time on timeline • SDSS recalculates On, In times as needed • Benefits • Assignment of Arrival Runway considers parking location on the airfield to minimize taxi time and surface congestion • Improves accuracy of On and In time predictions

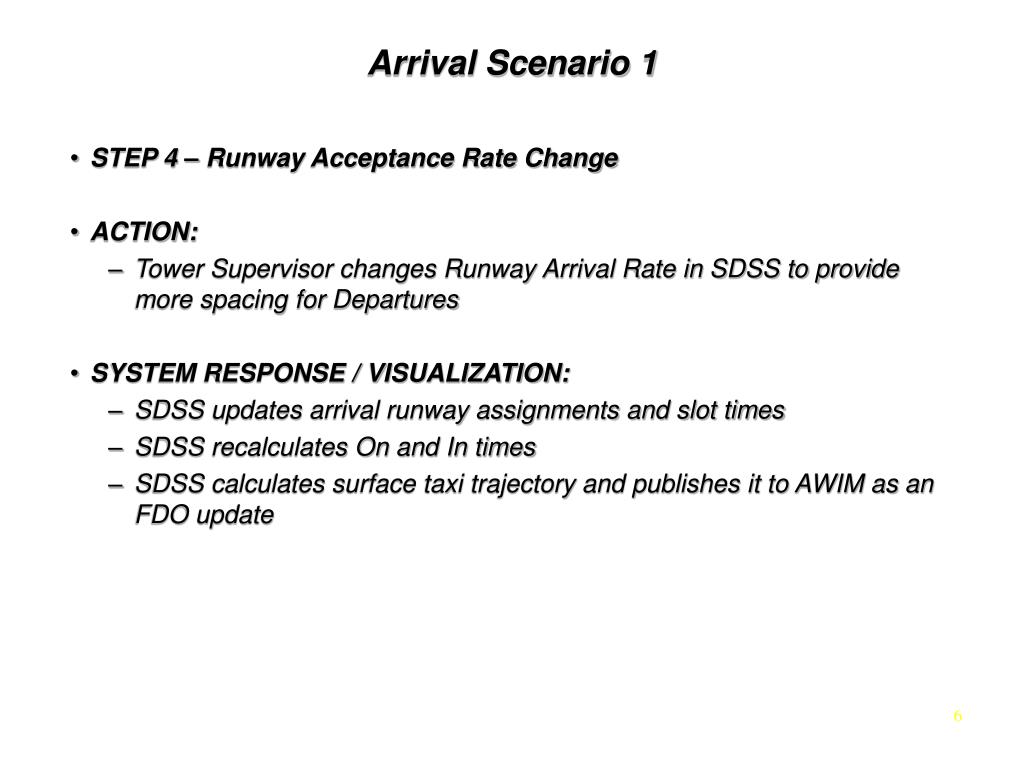

  6. Arrival Scenario 1 • STEP 4 – Runway Acceptance Rate Change • ACTION: • Tower Supervisor changes Runway Arrival Rate in SDSS to provide more spacing for Departures • SYSTEM RESPONSE / VISUALIZATION: • SDSS updates arrival runway assignments and slot times • SDSS recalculates On and In times • SDSS calculates surface taxi trajectory and publishes it to AWIM as an FDO update

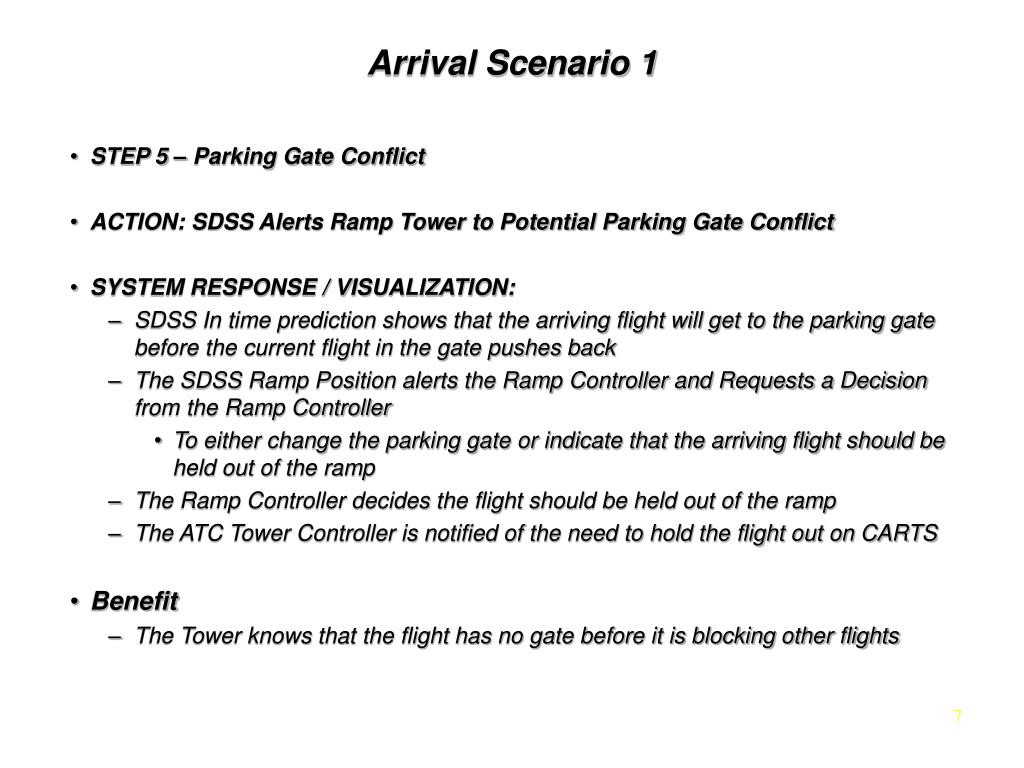

  7. Arrival Scenario 1 • STEP 5 – Parking Gate Conflict • ACTION: SDSS Alerts Ramp Tower to Potential Parking Gate Conflict • SYSTEM RESPONSE / VISUALIZATION: • SDSS In time prediction shows that the arriving flight will get to the parking gate before the current flight in the gate pushes back • The SDSS Ramp Position alerts the Ramp Controller and Requests a Decision from the Ramp Controller • To either change the parking gate or indicate that the arriving flight should be held out of the ramp • The Ramp Controller decides the flight should be held out of the ramp • The ATC Tower Controller is notified of the need to hold the flight out on CARTS • Benefit • The Tower knows that the flight has no gate before it is blocking other flights

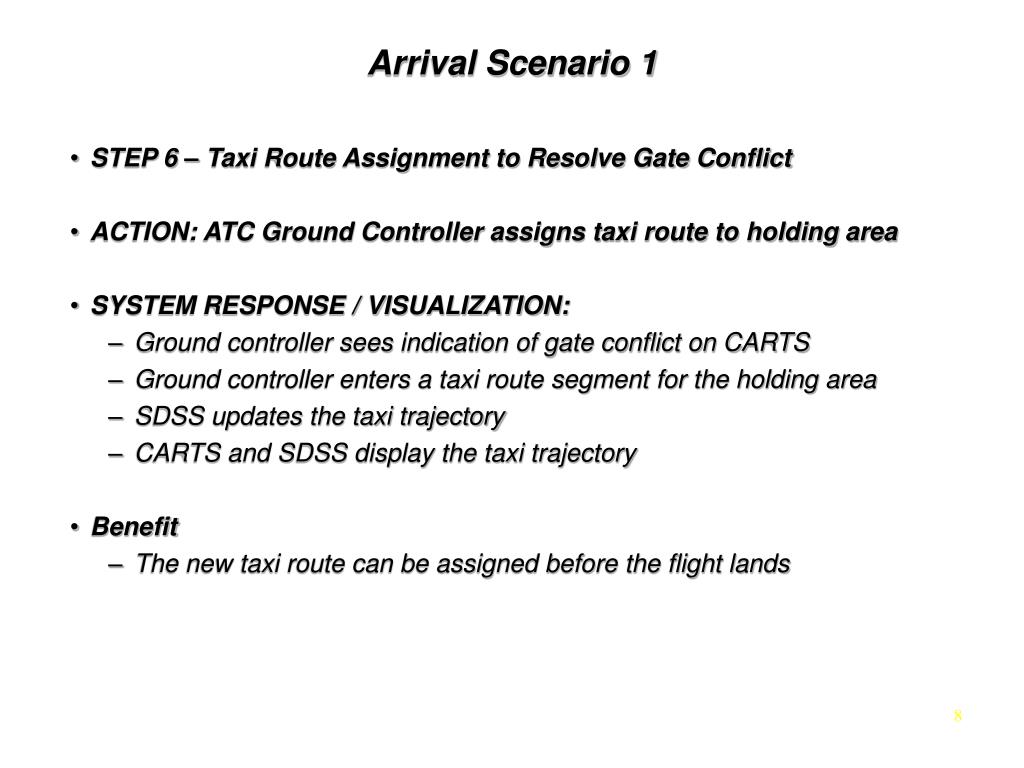

  8. Arrival Scenario 1 • STEP 6 – Taxi Route Assignment to Resolve Gate Conflict • ACTION: ATC Ground Controller assigns taxi route to holding area • SYSTEM RESPONSE / VISUALIZATION: • Ground controller sees indication of gate conflict on CARTS • Ground controller enters a taxi route segment for the holding area • SDSS updates the taxi trajectory • CARTS and SDSS display the taxi trajectory • Benefit • The new taxi route can be assigned before the flight lands

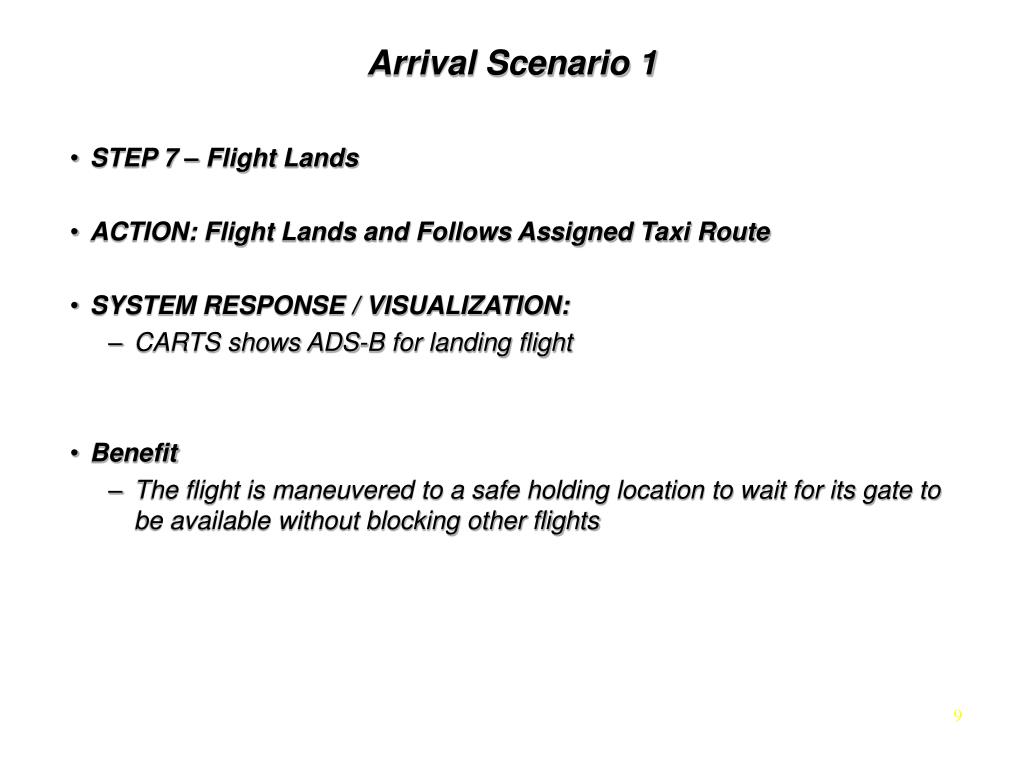

  9. Arrival Scenario 1 • STEP 7 – Flight Lands • ACTION: Flight Lands and Follows Assigned Taxi Route • SYSTEM RESPONSE / VISUALIZATION: • CARTS shows ADS-B for landing flight • Benefit • The flight is maneuvered to a safe holding location to wait for its gate to be available without blocking other flights

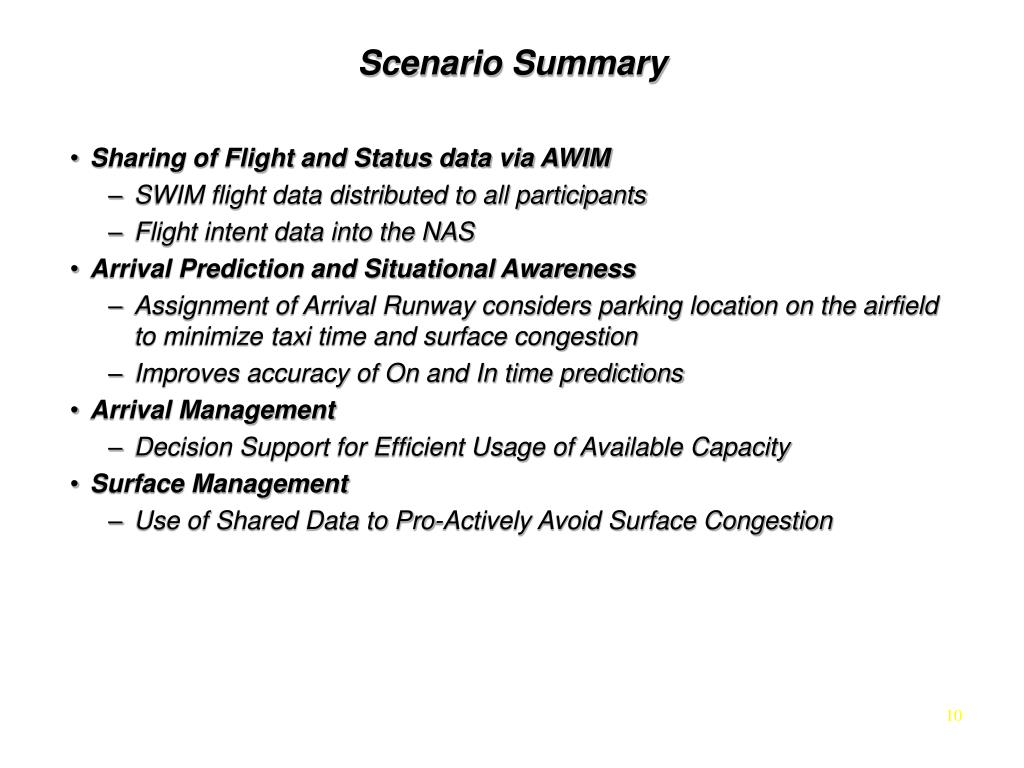

  10. Scenario Summary • Sharing of Flight and Status data via AWIM • SWIM flight data distributed to all participants • Flight intent data into the NAS • Arrival Prediction and Situational Awareness • Assignment of Arrival Runway considers parking location on the airfield to minimize taxi time and surface congestion • Improves accuracy of On and In time predictions • Arrival Management • Decision Support for Efficient Usage of Available Capacity • Surface Management • Use of Shared Data to Pro-Actively Avoid Surface Congestion
