  1. JSP – Java Server PagesPart 2 Representation and Management of Data on the Internet

  2. Interacting with other Resources

  3. JSP Cooperation • We will consider several ways in which JSP and other resources cooperate • Forwarding the request handling to other resources • Including the content of other sources • Including the code of other JSP files • Forwarding exception handling to other JSPs

  4. Actions • JSP actionsuse constructs in XML syntax to control the behavior of the Servlet engine • Using actions, you can • forward the request to another resource in the application • dynamically include a resource content in the response

  5. The forward Action • jsp:forward - Forwards the requester to a new resource <jsp:forward page="{relativeURL|<%= expression %>}"> <jsp:param name="parameterName" value="{parameterValue| <%= expression %>}" /> * </jsp:forward> • This action is translated to an invocation of the RequestDispatcher

  6. The include Action • jsp:include- Include a resource content at run time <jsp:include page="{relativeURL|<%= expression %>}">     <jsp:param name="parameterName" value="{parameterValue| <%= expression %>}" />* </jsp:include> • This action is also translated to an invocation of the RequestDispatcher

  7. The include Directive • This directive lets you include files at the time the JSP page is translated into a Servlet • The directive looks like this: <%@ include file="url" %> • JSP content can affect main page • In Tomcat 5.x, generated Servlet is updated when included files change (unlike old versions...)

  8. HTML content Servlet1 Servlet2 HTML content HTML content Include - Action File1.jsp File2.jsp

  9. Servlet HTML content Include Directive File1.jsp File2.jsp

  10. include Action vs. Directive • When a resourceis included using the includeaction, the generated Servlet uses the dispatcher to include its content at runtime • When a file is included using the includedirective, the file itself is included verbatim into the JSP code, prior to the Servlet generation • Question:in which of the above options can the included element change the HTTP headers or status?

  11. BlaBla.jsp <html> <head><title>Including JSP</title></head><body> <h2>Here is an interesting page.</h2> <p>Bla, Bla, Bla, Bla.</p> <%@ include file="/AccessCount.jsp"%> <jsp:include page="/dbimail.jsp"/> </body></html> AccessCount.jsp <%! privateint accessCount = 0; %> <hr><p>Accesses to page since Servlet init: <%= ++accessCount %></p> dbimail.jsp <hr><p> Page Created for Dbi Course at <%= new java.util.Date() %>. Email us <a href="mailto:dbi@cs.huji.ac.il">here</a>. </p>

  12. BlaBla_jsp.java out.write("<html>\r\n"); out.write(" <head><title>Including JSP</title></head>\r\n"); out.write(" <body>\r\n"); out.write(" <h2>Here is an interesting page.</h2>\r\n"); out.write(" <p>Bla, Bla, Bla, Bla.</p>\r\n"); out.write("<hr>\r\n"); out.write("<p> \r\n"); out.write(" Accesses to page since Servlet init: \r\n"); out.print( ++accessCount ); out.write("</p>\r\n"); org.apache.jasper.runtime.JspRuntimeLibrary. include(request, response, "/dbimail.jsp", out, false); out.write(" </body>\r\n"); out.write("</html>\r\n");

  13. Included Counter • Suppose that the file BlaBla2.jsp is similar the BlaBla.jsp • How will the counter ofBlaBla2.jspact? • What if we used a JSP action instead of a JSP directive for the counter?

  14. Error Pages • We can set one JSP page to be the handler of uncaught exceptions of another JSP page, using JSP directives • <%@ pageerrorPage="url " %> • Defines a JSP page that handles uncaught exceptions • The page in url must have true in the page-directive: • <%@ isErrorPage="true|false" %> • The variable exceptionholds the exception thrown by the calling JSP

  15. connect.jsp <html> <head><title>Reading From Database </title></head> <body> <%@ page import="java.sql.*"%> <%@ page errorPage="errorPage.jsp"%> <% Class.forName("oracle.jdbc.driver.OracleDriver"); Connection con = DriverManager.getConnection ("jdbc:oracle:thin:" + "snoopy/snoopy@sol4:1521:stud"); %> <h2>Connection Established!!</h2> </body> </html>

  16. errorPage.jsp <html> <head><title>Connection Error</title></head> <body> <%@ page import="java.io.*"%> <%@ page isErrorPage="true"%> <h1>Oops. There was an error when you accessed the database.</h1> <h2>Here is the stack trace:</h2> <pre style="color:red"> <% exception.printStackTrace(newPrintWriter(out)); %> </pre> </body> </html>

  17. Custom JSP Tags

  18. Custom JSP Tags • JSP code may use custom tags - tags that are defined and implemented by the programmer • The programmer defines how each of the custom tags is translated into Java code • There are two methods to define custom tags: • Tag libraries - used in old versions of JSP • Tag files - much simpler, introduced in JSP 2.0

  19. Tag Libraries • A tag library consists of: • Tag handlers - Java classes that define how each of the new tags is translated into Java code • A TLD (Tag Library Descriptor) file, which is an XML file that defines the structure and the implementing class of each tag

  20. A Simple TagLib Example DateTag.java package dbi; import javax.servlet.jsp.JspException; import javax.servlet.jsp.tagext.SimpleTagSupport; import java.io.IOException; publicclass DateTag extends SimpleTagSupport { publicvoid doTag() throws JspException, IOException { getJspContext().getOut().print(new java.util.Date()); } }

  21. <taglib> <tlib-version>1.0</tlib-version><jsp-version>2.0</jsp-version> <tag> <name>date</name> <tagclass>dbi.DateTag</tagclass> <body-content>empty</body-content> </tag> </taglib> dbi-taglib.tld <%@ taglib prefix="dbitag" uri="/WEB-INF/tags/dbi-taglib.tld" %> <html><body> <h1>Hello. The time is: <dbitag:date/></h1> </body></html> taglibuse.jsp

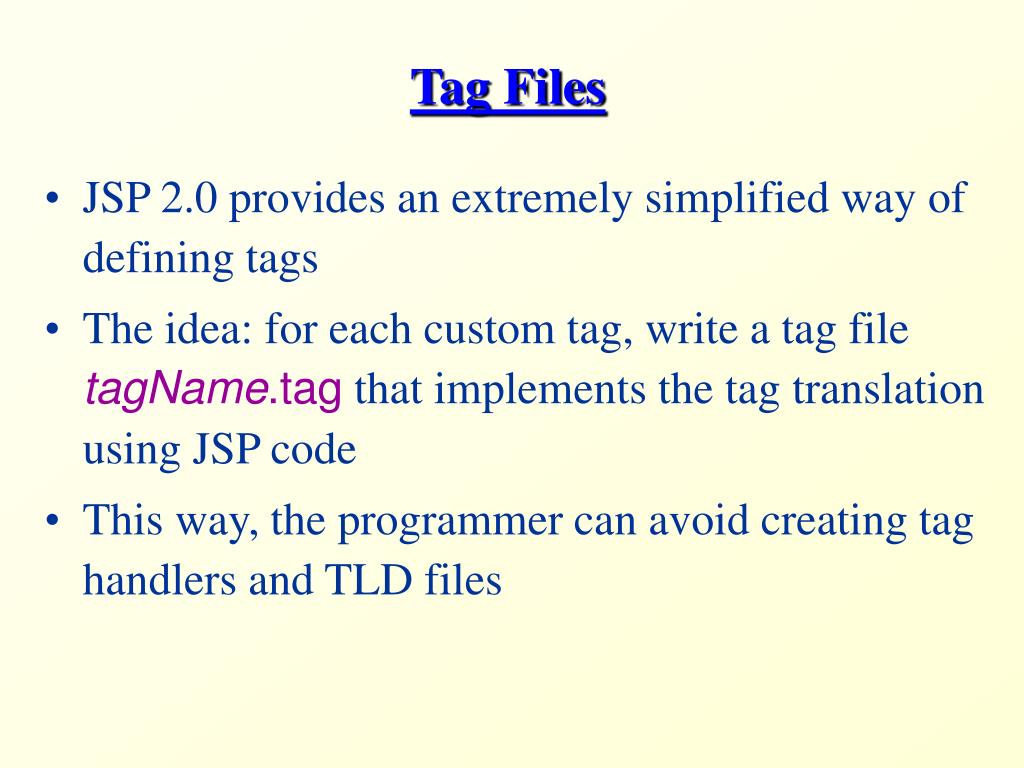

  22. Tag Files • JSP 2.0 provides an extremely simplified way of defining tags • The idea: for each custom tag, write a tag file tagName.tag that implements the tag translation using JSP code • This way, the programmer can avoid creating tag handlers and TLD files

  23. The Simplified Example date.tag <%= new java.util.Date() %> <%@ taglib prefix="dbitag"tagdir="/WEB-INF/tags/" %> <html> <body> <h1>Hello. The time is: <dbitag:date/></h1> </body> </html> taguse.jsp

  24. Other Capabilities of Custom Tags • Attributes • You can define the possible attributes of the Tags • These can be accessed during the Tag translation • Tag Body • Tag translation may choose to ignore, include or change the tag body

  25. Java Beans in JSP

  26. Motivation • Software components (e.g. objects, data structures, primitives) are extensively used in Web applications • For example: • Service local variables • Attributes forwarded in requests • Session attributes, like users information • Application attributes, like access counters

  27. Motivation • Standard actions are used to manipulate components: declaration, reading from the suitable context, setting of new values (according to input parameters), storing inside the suitable context, etc. • Java Beans provide a specification for automatic handling and manipulation of software components in JSP (and other technologies...)

  28. Java Beans: The Idea • Java Beans are simply objects of classes that follow some (natural) coding convention: • An empty constructor • A readable property has a matching getter • A writable property has a matching setter • Use JSP actions to access and manipulate the bean, and special action attributes to specify the properties of the bean, like its scope

  29. Example 1: Access Counter In the following example, we use a Bean to maintain an access counter for requests to the pages

  30. Counter Bean Bean must reside in a package packagedbi; publicclass CounterBean { privateint counter; publicCounterBean() { counter = 0; } publicintgetCounter() { return counter; } publicvoidsetCounter(int i) { counter = i; } publicvoid increment() { ++counter; } } Bean is created by an empty constructor counter is readable and writable other methods can be used CounterBean.java

  31. <html> <head><title>Bean Example</title></head><body> <jsp:useBean id="accessCounter" class="dbi.CounterBean" scope="application"/> <% accessCounter.increment(); %> <h1> Welcome to Page A</h1> <h2>Accesses to this application: <jsp:getProperty name="accessCounter" property="counter"/> </h2> <a href="pageB.jsp">Page B</a></body> </html> • pageA.jsp invokes getCounter()

  32. <html> <head><title>Bean Example</title></head><body> <jsp:useBean id="accessCounter" class="dbi.CounterBean" scope="application"/> <% accessCounter.increment(); %> <h1> Welcome to Page B</h1> <h2>Accesses to this application: <jsp:getProperty name="accessCounter" property="counter"/> </h2> <a href="pageA.jsp">Page A</a></body> </html> • pageB.jsp

  33. From the Generated Servlet dbi.CounterBeanaccessCounter = null; synchronized (application) { accessCounter = (dbi.CounterBean) _jspx_page_context.getAttribute("accessCounter", PageContext.APPLICATION_SCOPE); if (accessCounter == null) { accessCounter = new dbi.CounterBean(); _jspx_page_context.setAttribute("accessCounter", accessCounter, PageContext.APPLICATION_SCOPE); } }

  34. Example 2: Session Data In the following example, we use a Bean in order to keep a user's details throughout the session

  35. package dbi; public class UserInfoBean { private String firstName; private String lastName; public UserInfoBean() { firstName = lastName = null;} public String getFirstName() {return firstName;} public String getLastName() { return lastName;} public void setFirstName(String string) {firstName = string;} public void setLastName(String string) {lastName = string;} } • UserInfoBean.java

  36. <html> <head><title>Information Form</title></head> <body> <h1>Fill in your details:</h1> <form action="infoA.jsp" method="get"><p> Your First Name: <input type="text" name="firstName" /> <br/> Your Last Name: <input type="text" name="lastName" /><br/> <input type="submit" /></p> </form> </body></html> • infoForm.html

  37. <jsp:useBean id="userInfo" class="dbi.UserInfoBean" scope="session"/> <jsp:setProperty name="userInfo" property="*"/> <html> <head><title>Page A</title></head><body> <h1>Hello <jsp:getProperty name="userInfo" property="firstName"/> <jsp:getProperty name="userInfo" property="lastName"/>, </h1> <h1>Have a nice session!</h1> <h2><a href="infoB.jsp">User Info B</a></h2> </body></html> Match parameters to corresponding properties • infoA.jsp

  38. <jsp:useBean id="userInfo" class="dbi.UserInfoBean" scope="session"/> <jsp:setProperty name="userInfo" property="*"/> <html> <head><title>Page B</title></head><body> <h1>Hello <jsp:getProperty name="userInfo" property="firstName"/> <jsp:getProperty name="userInfo" property="lastName"/>, </h1> <h1>Have a nice session!</h1> <h2><a href="infoA.jsp">User Info A</a></h2> </body></html> • infoB.jsp

  39. Advantages of Java Beans • Easy and standard management of data • Automatic management of bean sharing and lots more • Good programming style • Allow standard but not direct access to members • You can add code to the setters and getters (e.g. constraint checks) without changing the client code • You can change the internal representation of the data without changing the client code • Increase of separation between business logic (written by programmers) and HTML (written by GUI artists)

  40. JSP Expression Language

  41. JSP Expression Language • JSP expression language is a comfortable tool to access useful objects in JSP • This language provides shortcuts in JavaScript-like syntax • An expression in EL is written as ${expr} • For example: Hi, ${user}. <em style="${style}">Welcome</em>

  42. EL Variables • JSP EL does not recognize JSP's implicit objects, but rather has its own set: param, paramValues, header ,headerValues, cookie, initParam, pageScope, requestScope, sessionScope, applicationScope • Each of these objects maps names to values • For example, use param["x"] or param.x to get the value of the parameter x

  43. EL Variables (cont) • A variable that is not an EL implicit object is looked up at the page, request, session (if valid) and application scopes • That is, x is evaluated as the first non null element obtained by executing pageContext.getAttribute("x"), request.getAttribute("x"), etc.

  44. Object Properties • In JSP EL, Property p of Object o is referred to as o[p] • Property p of Object o is evaluated as follows: • If o is a Map object, then o.get(p) is returned • If o is a List or an array, then p is converted into an integer and o.get(p) or o[p] is returned • Otherwise, treat o as a bean, convert p to a string, and return apply the corresponding getter of o • The term o.p is equivalent to o["p"]

  45. An Example <% response.addCookie(new Cookie("course","dbi")); session.setAttribute("dbiurl",new java.net.URL("http://www.cs.huji.ac.il/~dbi/index.html")); String[] strs = {"str1","str2"}; session.setAttribute("arr", strs); %> <html><head><title>JSP Expressions</title></head><body> <form method="get" action="el.jsp"> <h2>Write the parameter x: <input name="x" type="text"/> <input type="submit" value="send"/></h2> </form> </body></html> • elcall.jsp

  46. <%@ page isELIgnored="false"%> <html> <head><title>EL Examples</title></head> <h1>Expression-Language Examples</h1> <h2>Parameter <code>x</code>: ${param["x"]} </h2> <h2>Cookie <code>course</code>: ${cookie.course.value}</h2> <h2>Header <code>Connection</code>: ${header.Connection} </h2> <h2>Path of session attr. <code>dbiurl</code>: ${sessionScope.dbiurl.path}</h2> <h2>Element <code>arr[${param.x}]</code>: ${arr[param.x]} </h2> </body></html> • el.jsp
