  1. Infrastructure Gina Dickson – Product Manager Kevin Jackson – Sales Manager

  2. Evolution of IT Equipment • Movement towards high density • Enclosure power consumption increasing • From 2 kW to 35+ kW • Impact on IT infrastructure • IT enclosures • Power distribution units (PDUs) • Remote monitoring • Security Company Confidential

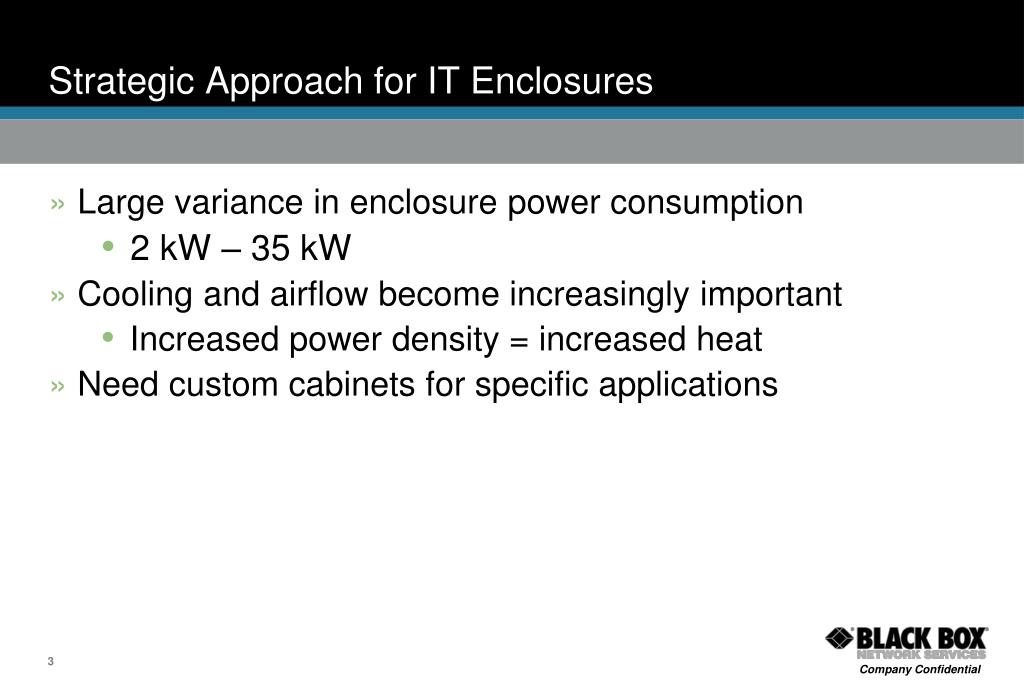

  3. Strategic Approach for IT Enclosures • Large variance in enclosure power consumption • 2 kW – 35 kW • Cooling and airflow become increasingly important • Increased power density = increased heat • Need custom cabinets for specific applications Company Confidential

  4. Data Center Design Standard Hot Aisle / Cold Aisle Design Cold air through vented tiles – hot air back to CRAC unit Company Confidential

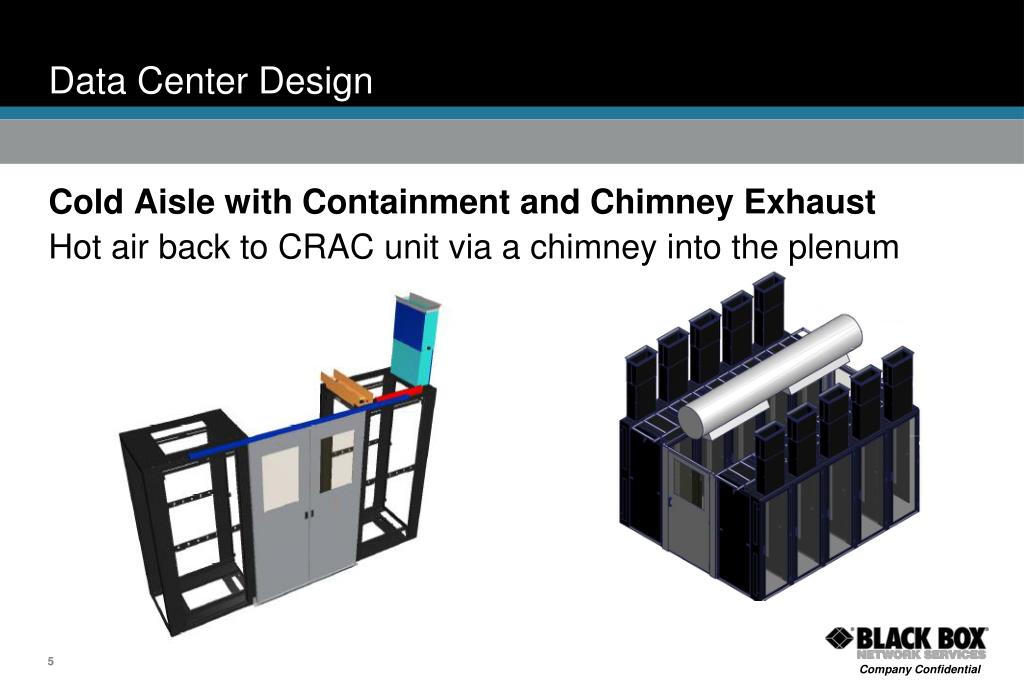

  5. Data Center Design Cold Aisle with Containment and Chimney Exhaust Hot air back to CRAC unit via a chimney into the plenum Company Confidential

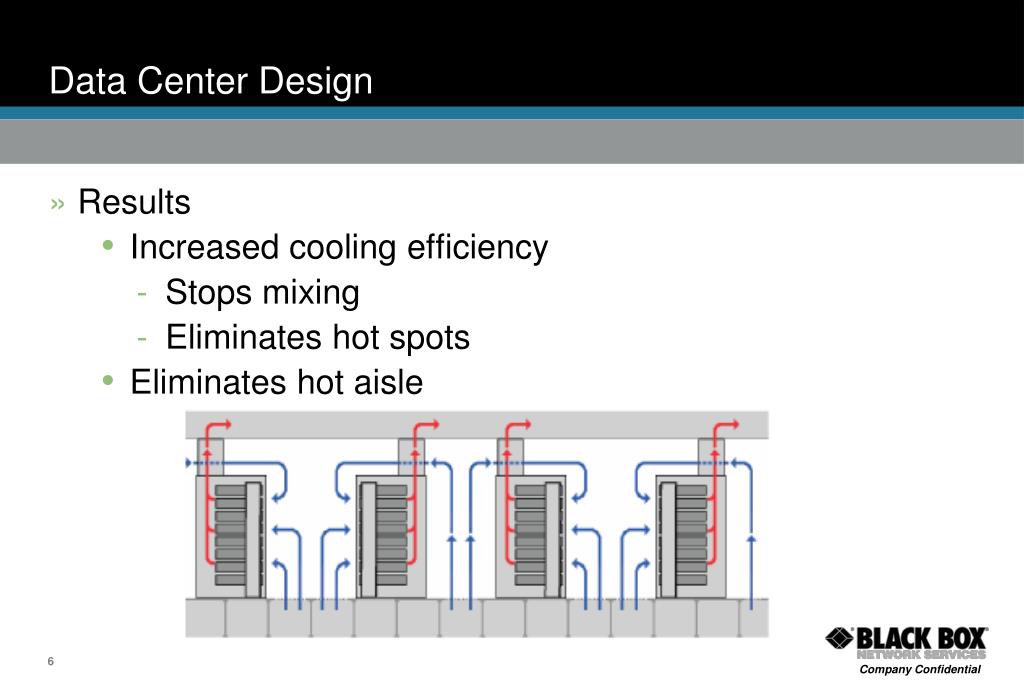

  6. Data Center Design • Results • Increased cooling efficiency • Stops mixing • Eliminates hot spots • Eliminates hot aisle Company Confidential

  7. Data Center Design • Direct cold air with chimney exhaust • Cold air forced into cabinet • Hot air directly back to CRAC unit • Results • Increased cooling efficiency • Eliminates hot and cold aisle Company Confidential

  8. Data Center Design • Directs air to the front of the cabinet Company Confidential

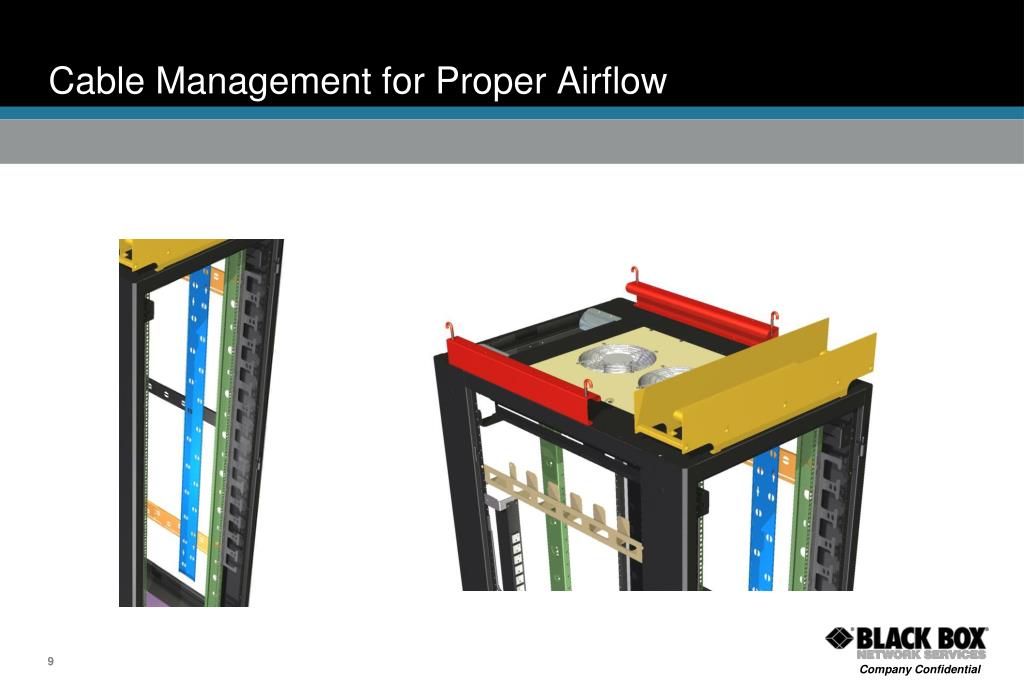

  9. Cable Management for Proper Airflow Company Confidential

  10. ClimateCab • Cabinet level cooling • Inadequate cooling in equipment rooms • No raised floor environment • Remote locations • NEMA 12 enclosures • Closed loop cooling Company Confidential

  11. Intelligent Power Management • Challenges • Higher power density requirements • Rising energy costs • Increased pressure to reduce budgets Company Confidential

  12. Intelligent Power Management • Increase data center efficiency and reduce costs • Web-based user interface • Monitor and understand power consumption • Analyze data to better improve operations • Report generation and graphing • Reduce risk of downtime • Customizable alarms and notifications • E-mail, SNMP, Syslog, audible alarms • Automatic load shedding • Remote re-booting Company Confidential

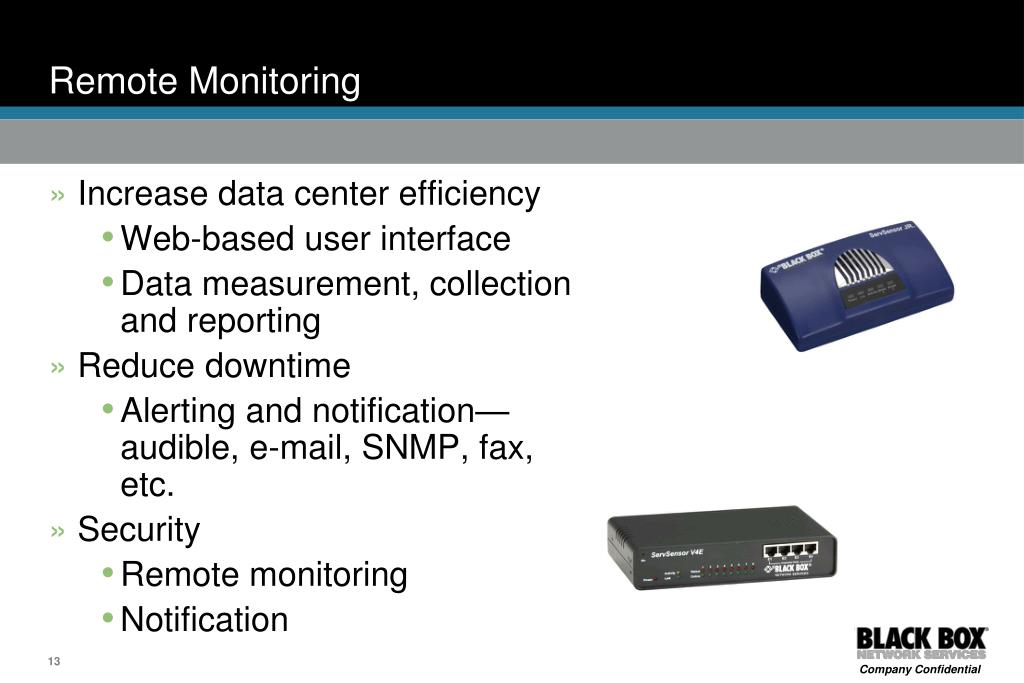

  13. Remote Monitoring • Increase data center efficiency • Web-based user interface • Data measurement, collection and reporting • Reduce downtime • Alerting and notification—audible, e-mail, SNMP, fax, etc. • Security • Remote monitoring • Notification Company Confidential

  14. Plug-and-Play Sensors • Environmental • Temperature • Humidity • Airflow • Security • Motion detection • Camera • Other • Dry contact • Smoke detector Company Confidential

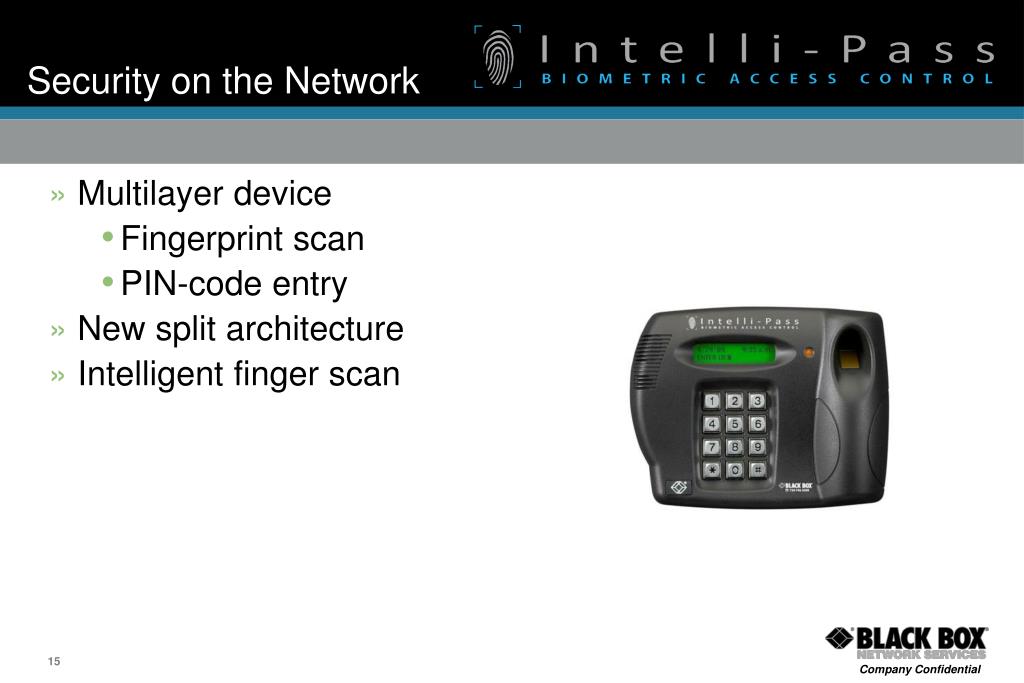

  15. Security on the Network • Multilayer device • Fingerprint scan • PIN-code entry • New split architecture • Intelligent finger scan Company Confidential

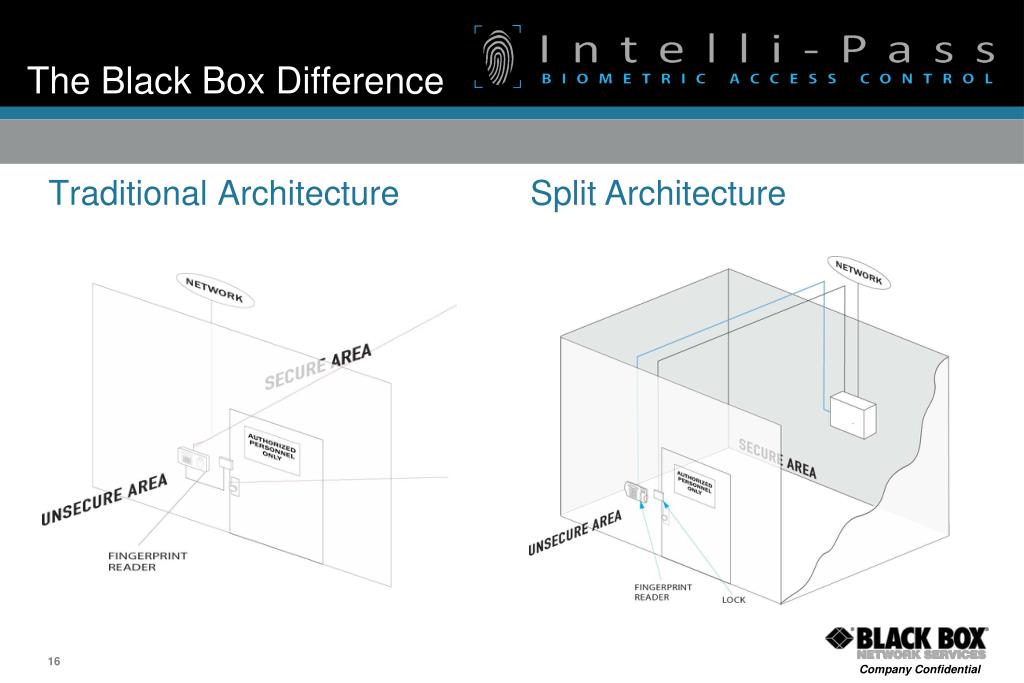

  16. The Black Box Difference Traditional Architecture Split Architecture Company Confidential

  17. Cabinet Access • Biometric cabinet access control • Monitor real-time status information • Audit trail of cabinet access • Managed via a single software interface • Doors • Cabinets Company Confidential

  18. Q&A
