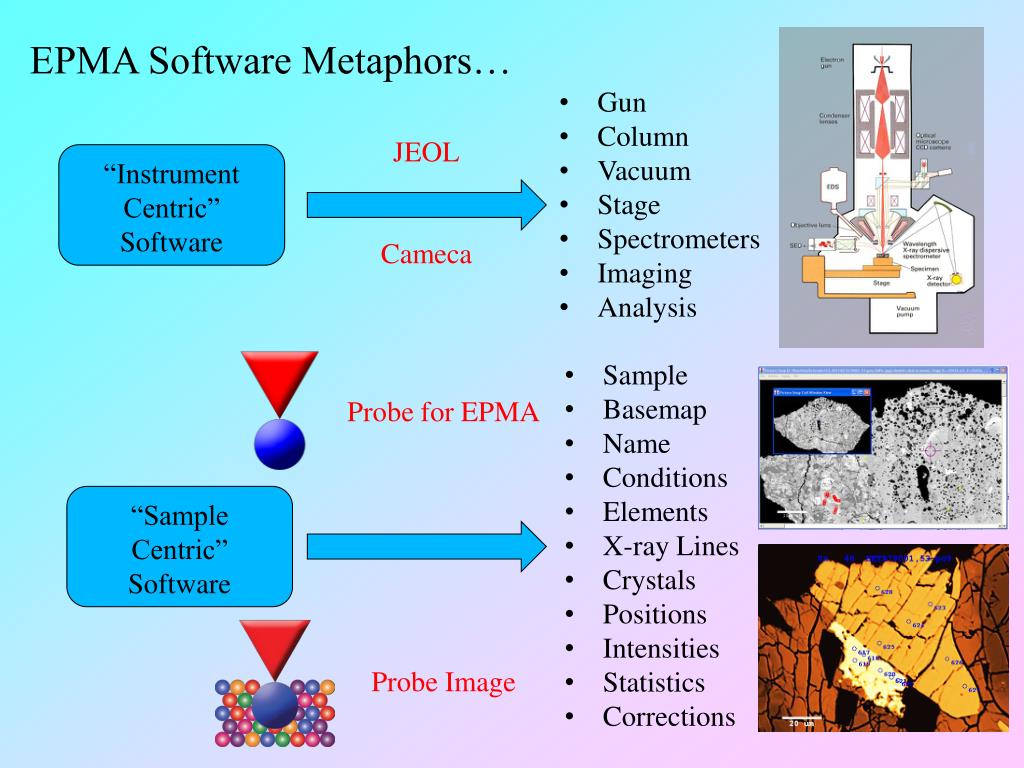

  1. EPMA Software Metaphors… • Gun • Column • Vacuum • Stage • Spectrometers • Imaging • Analysis JEOL “Instrument Centric” Software Cameca • Sample • Basemap • Name • Conditions • Elements • X-ray Lines • Crystals • Positions • Intensities • Statistics • Corrections Probe for EPMA “Sample Centric” Software Probe Image

  2. Native TCP/IP Support for CamecaSX100, SXFiveand JEOL 8900/8200/8500 and JEOL 8230/8530 No instrument hardware or network configuration changes are required to run Probe for EPMA or Probe Image. Add PC, install the software and connect a network cable to your existing network switch. Uses the same TCP/IP calls as your JEOL or Cameca software! 2
