  1. NEWNAN, GA USAManufacturers of Spring Making Machinery for Leaf and Coil Springs,Industrial Gas Fired Furnaces, and Associated Handling Equipment

  2. TNI SPRING TECHNOLOGIES, LLC. NEWNAN, GA. USA. Mail: PO Box 73439 Newnan, GA. 30271 Ship: 87 Amlajack Way, Newnan, GA 30265 Tel: 770-502-0687 Fax: 770-502-9074 Email: info@tnispring.com Web Site: www.tnispring.com

  3. RAPID END HEATING FURNACE – MODEL No. LRE 17-5 Throughput: 2,400 Ends per Hour - ⅞” dia x 4” Heated Length @ 2,000° F

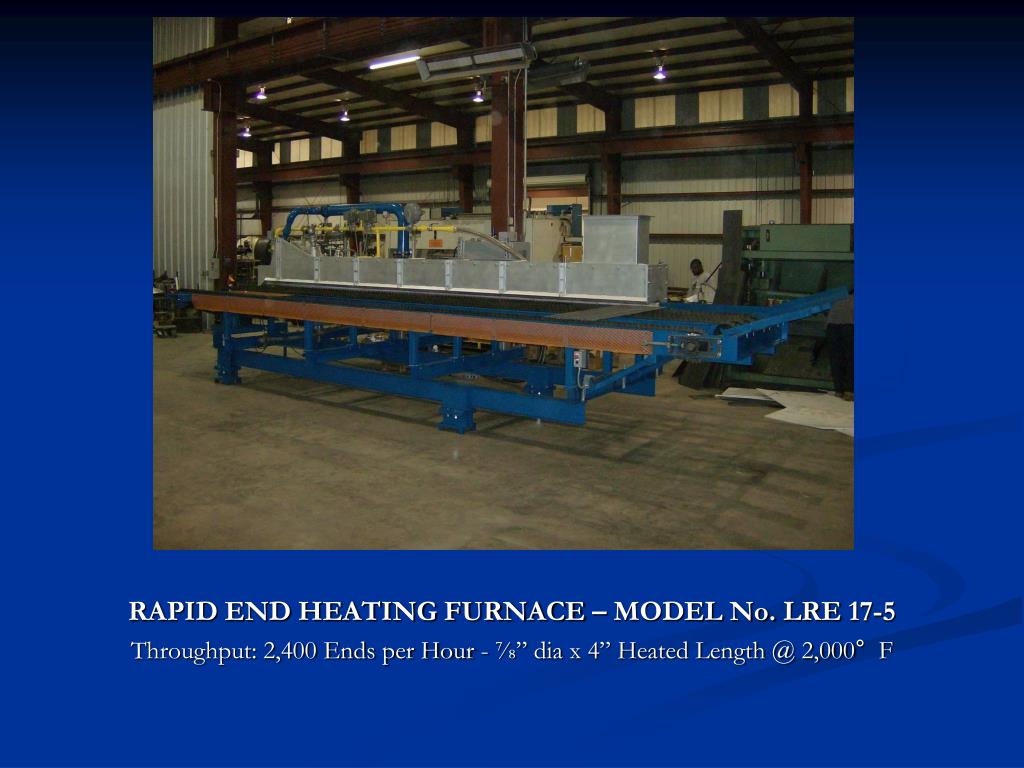

  4. RAPID END HEATING FURNACE – MODEL No. LRE 17-5 Throughput: 2,400 Ends per Hour - ⅞” dia x 4” Heated Length @ 2,000° F

  5. RAPID END HEATING FURNACE – MODEL No. E8.5-10-10 Throughput: 100 Ends per Hour - 1½” dia x 8” Heated Length @ 2,100° F

  6. RAPID END HEATING FURNACE – MODEL No. E8.5-10-10 Throughput: 100 Ends per Hour - 1½” dia x 8” Heated Length @ 2,100° F

  7. RAPID END HEATING FURNACE – MODEL No. E8.5-10-10 Throughput: 100 Ends per Hour - 1½” dia x 8” Heated Length @ 2,100° F

  8. COIL SPRING MANUFACTURING LINE(Supplied by TNI Spring Technologies – 2008)

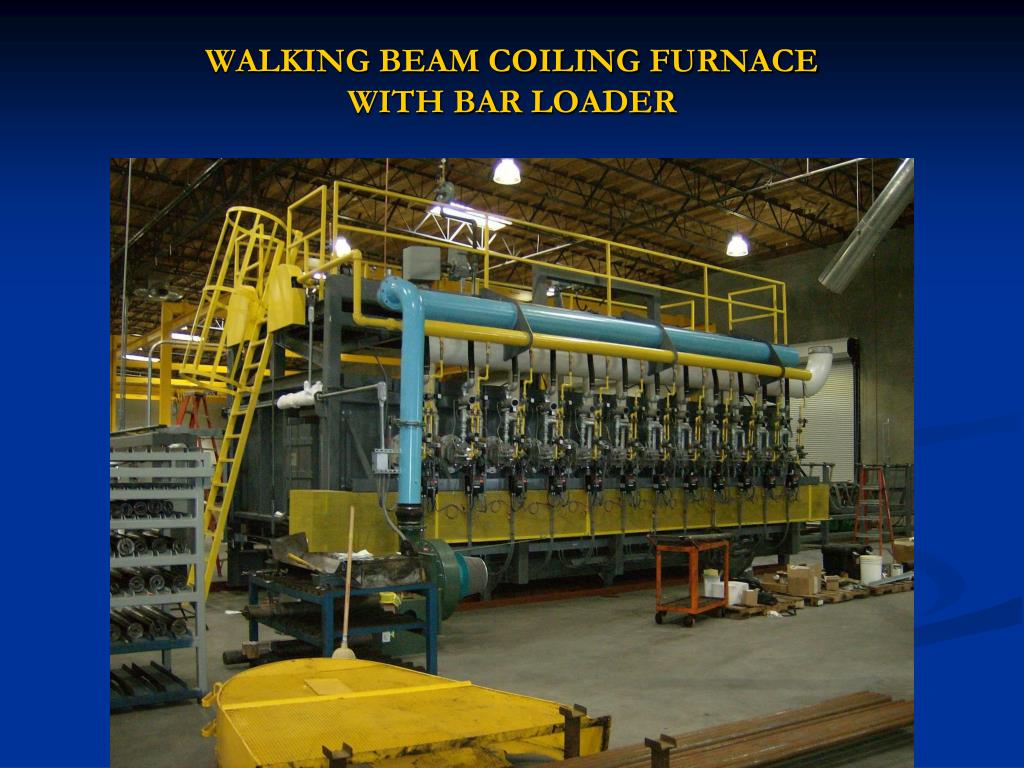

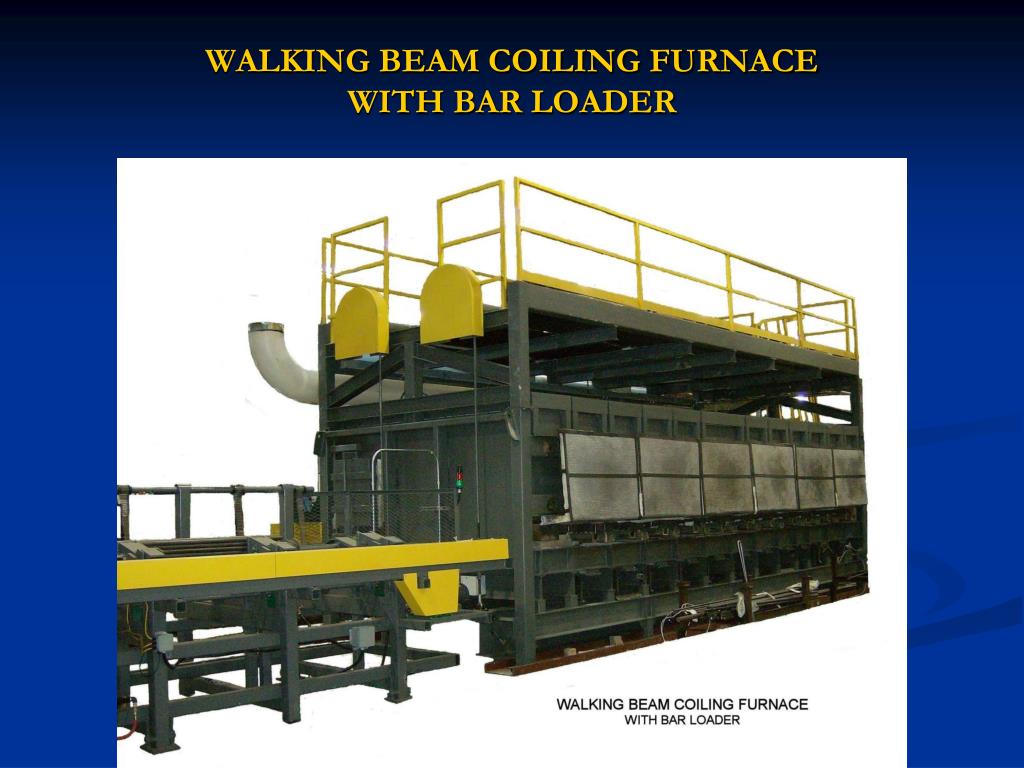

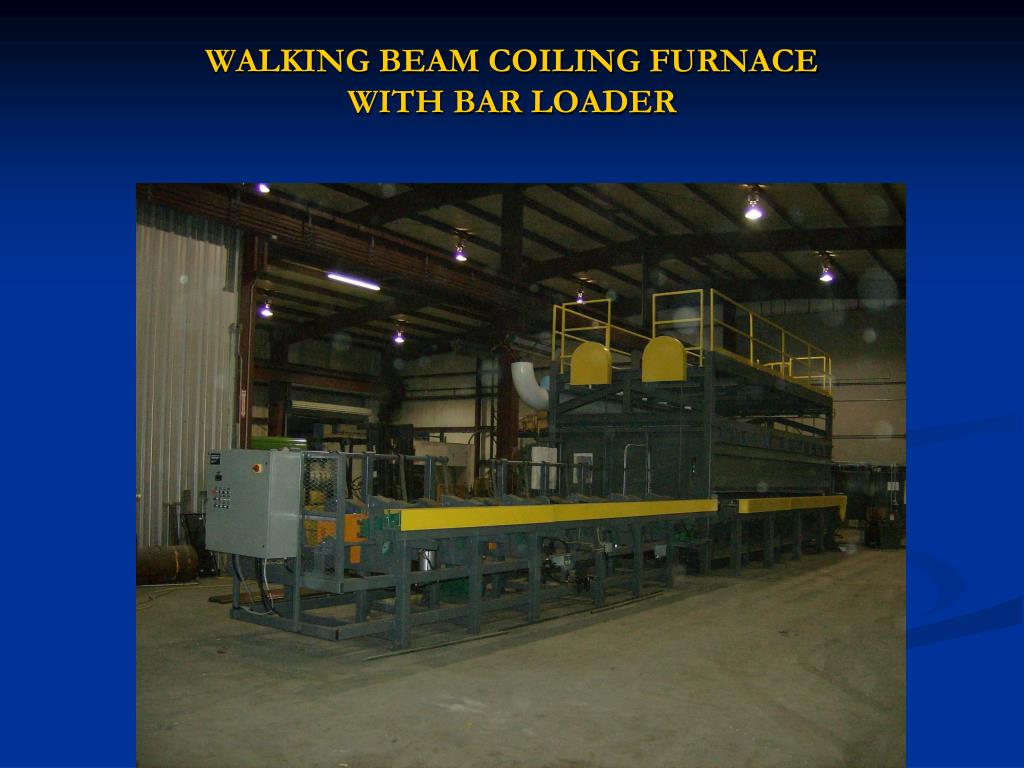

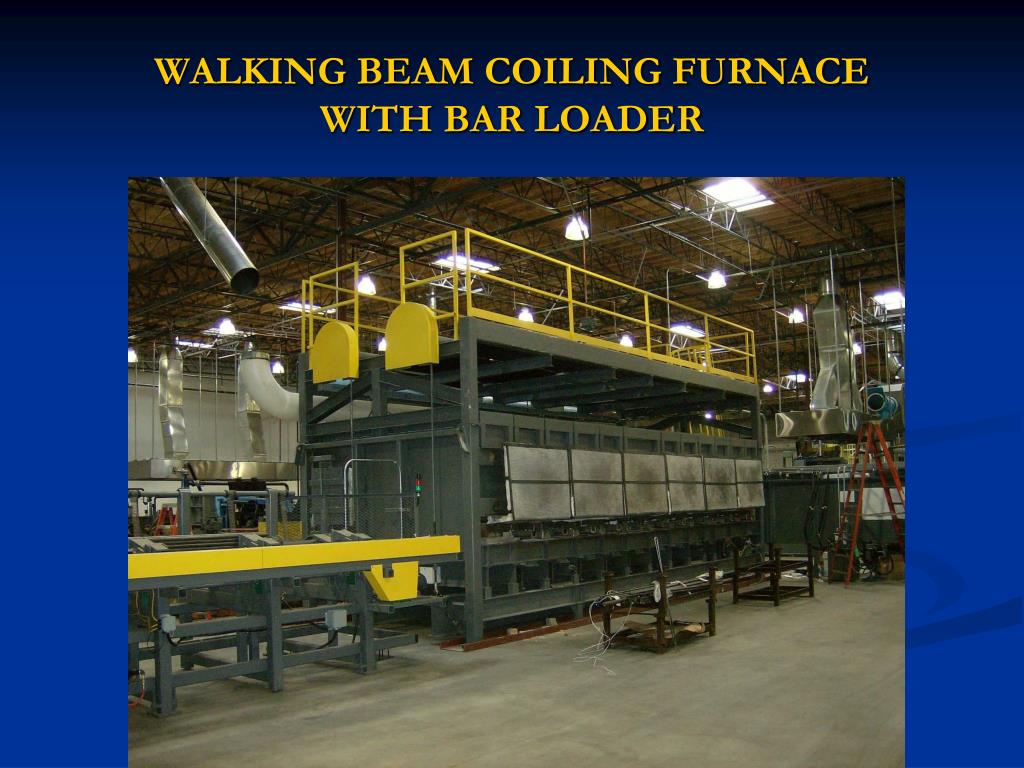

  9. WALKING BEAM COILING FURNACE WITH BAR LOADER

  10. WALKING BEAM COILING FURNACE WITH BAR LOADER

  11. WALKING BEAM COILING FURNACE WITH BAR LOADER

  12. WALKING BEAM COILING FURNACE WITH BAR LOADER

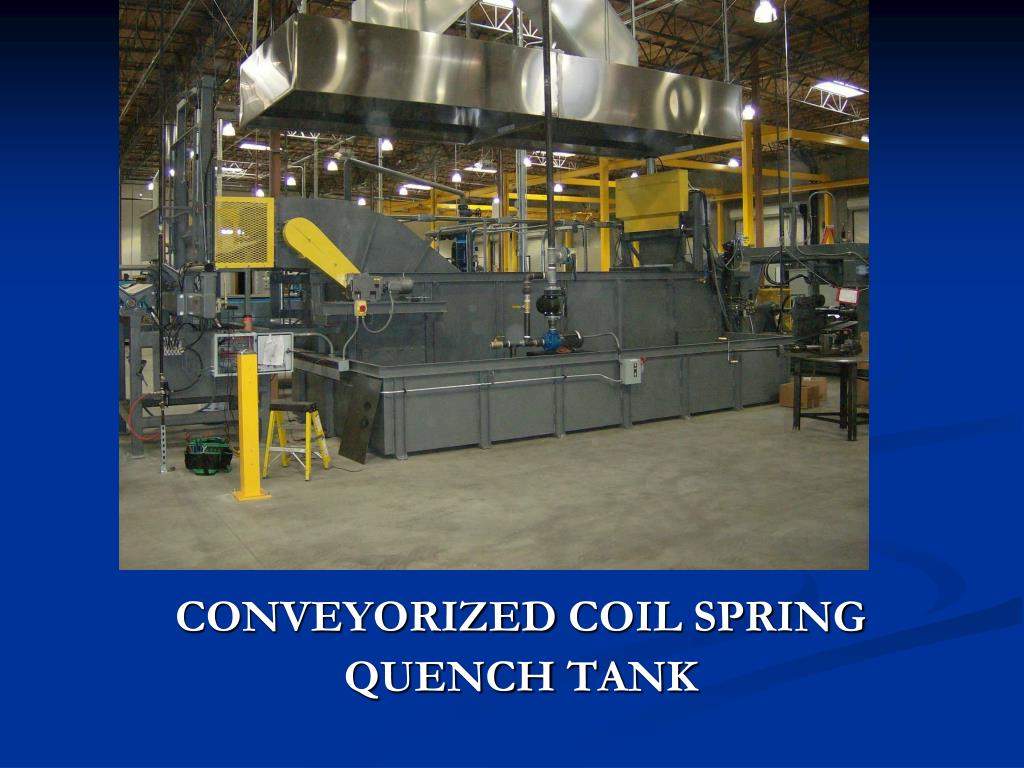

  13. CONVEYORIZED COIL SPRING QUENCH TANK

  14. COIL SPRING TRANSFER UNIT QUENCH TO DRAW

  15. GOGAN MODEL 2330 CNC COILING MACHINE

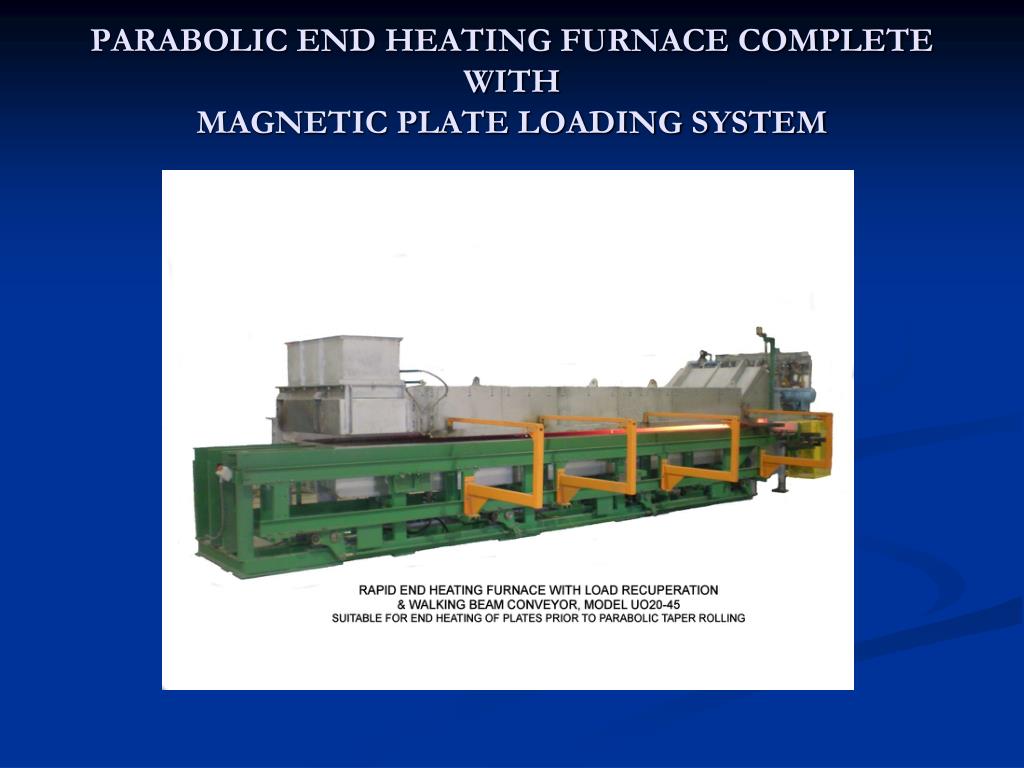

  16. PARABOLIC END HEATING FURNACE COMPLETE WITH MAGNETIC PLATE LOADING SYSTEM

  17. PARABOLIC END HEATING FURNACE COMPLETE WITH MAGNETIC PLATE LOADING SYSTEM(Supplied in 2009)

  18. PARABOLIC END HEATING FURNACE COMPLETE WITH MAGNETIC PLATE LOADING SYSTEM

  19. PARABOLIC END HEATING FURNACE COMPLETE WITH MAGNETIC PLATE LOADING SYSTEM

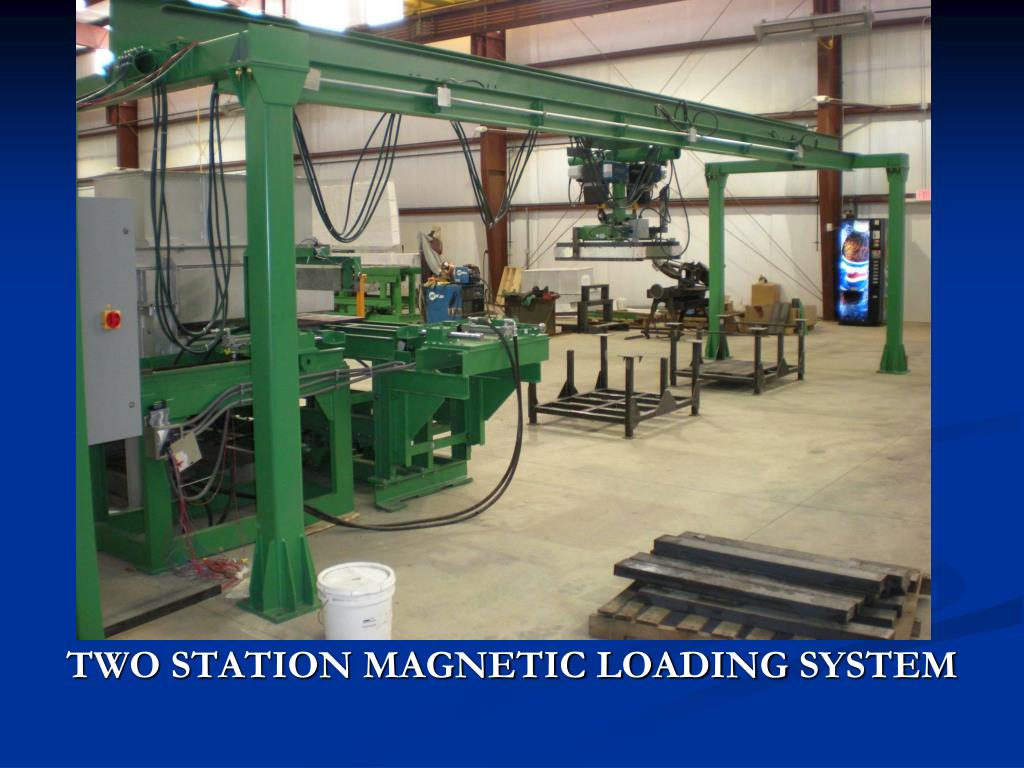

  20. TWO STATION MAGNETIC LOADING SYSTEM

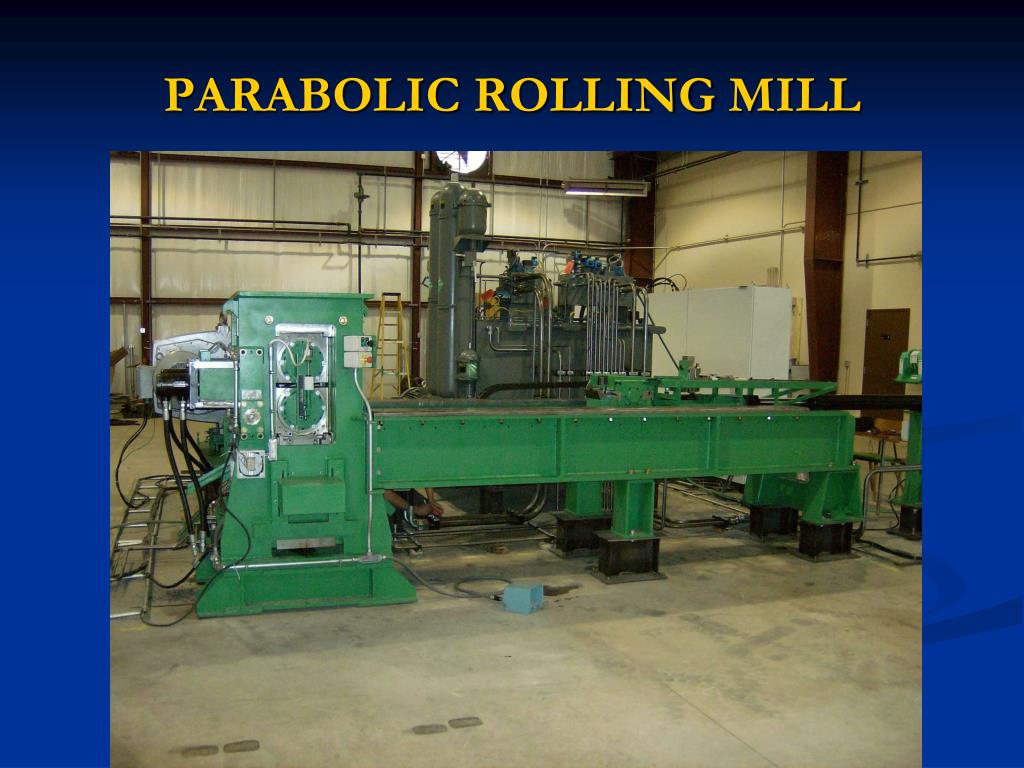

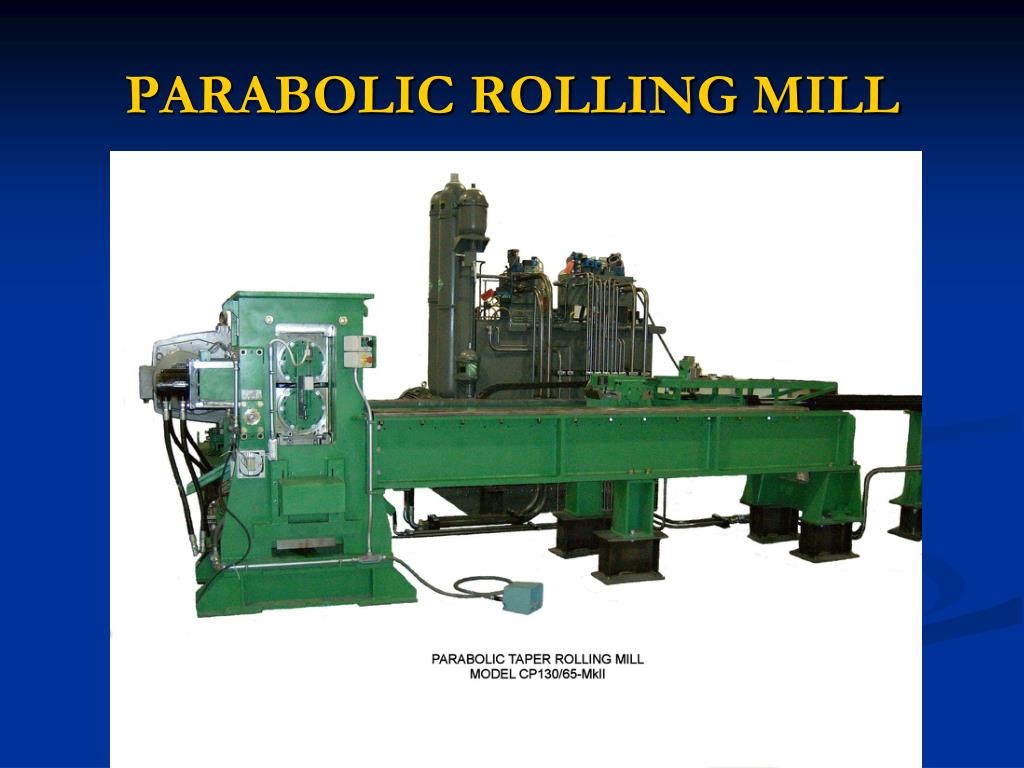

  21. PARABOLIC ROLLING MILL

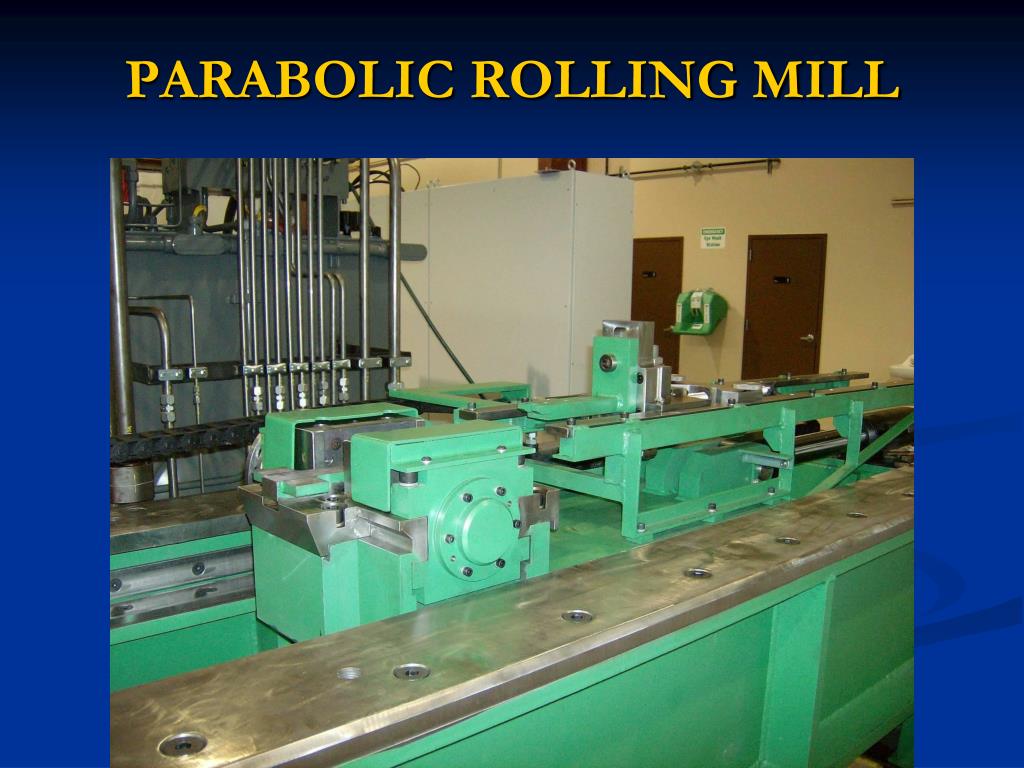

  22. PARABOLIC ROLLING MILL

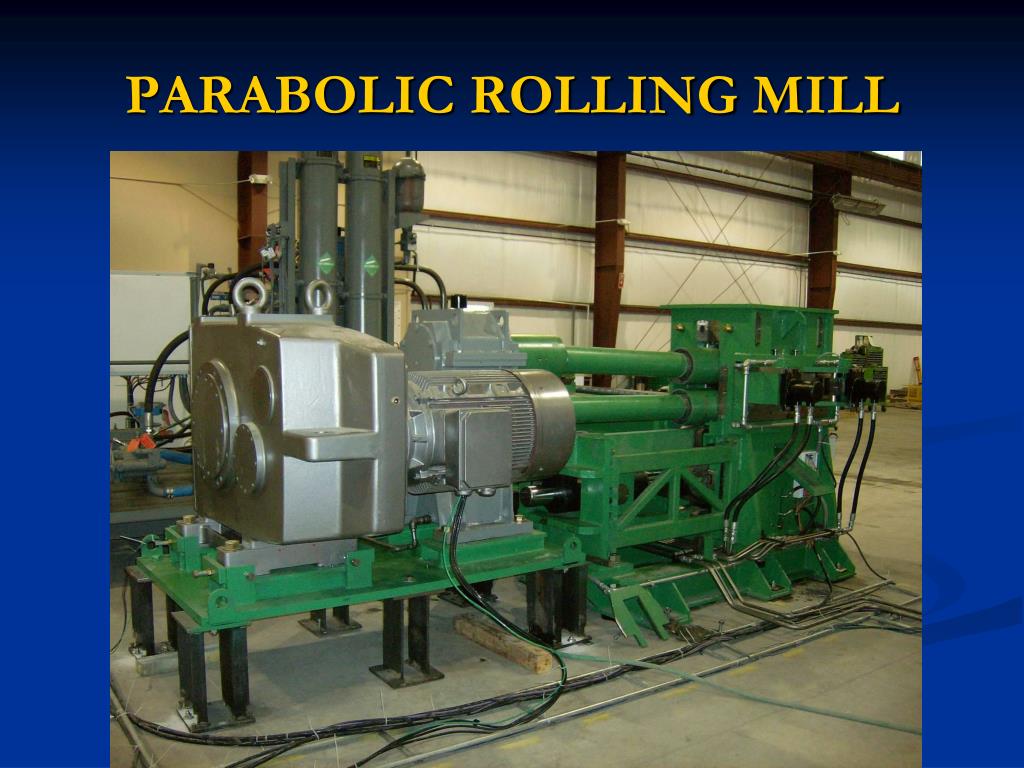

  23. PARABOLIC ROLLING MILL

  24. PARABOLIC ROLLING MILL

  25. PARABOLIC ROLLING MILL

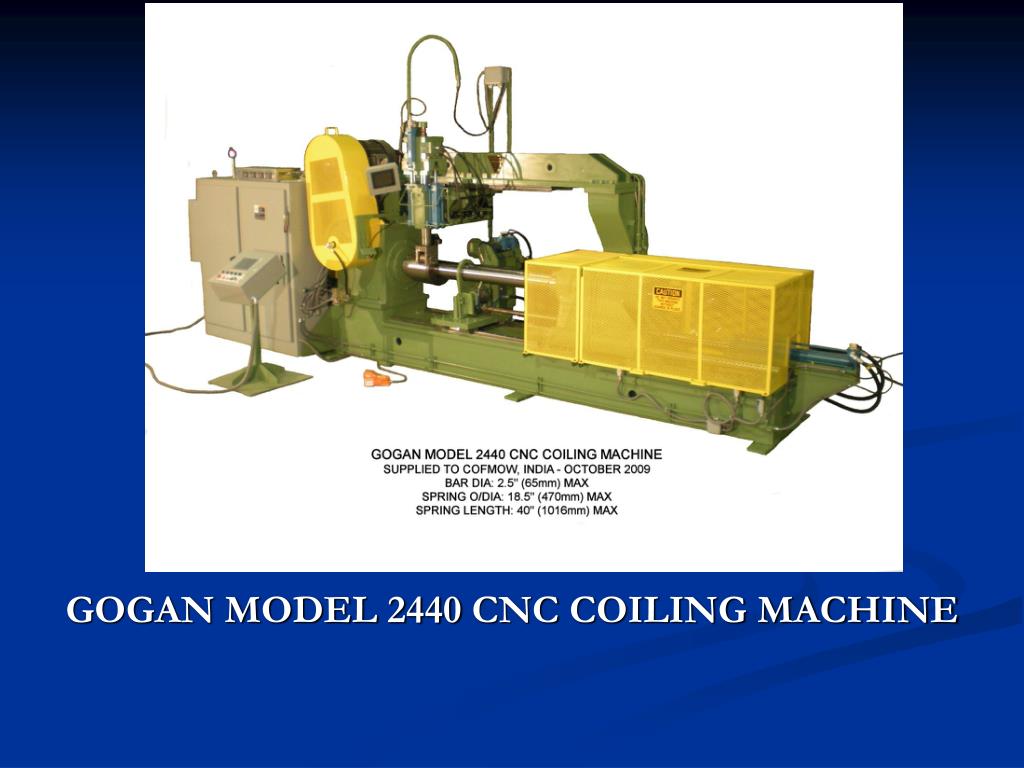

  26. GOGAN MODEL 2440 CNC COILING MACHINE

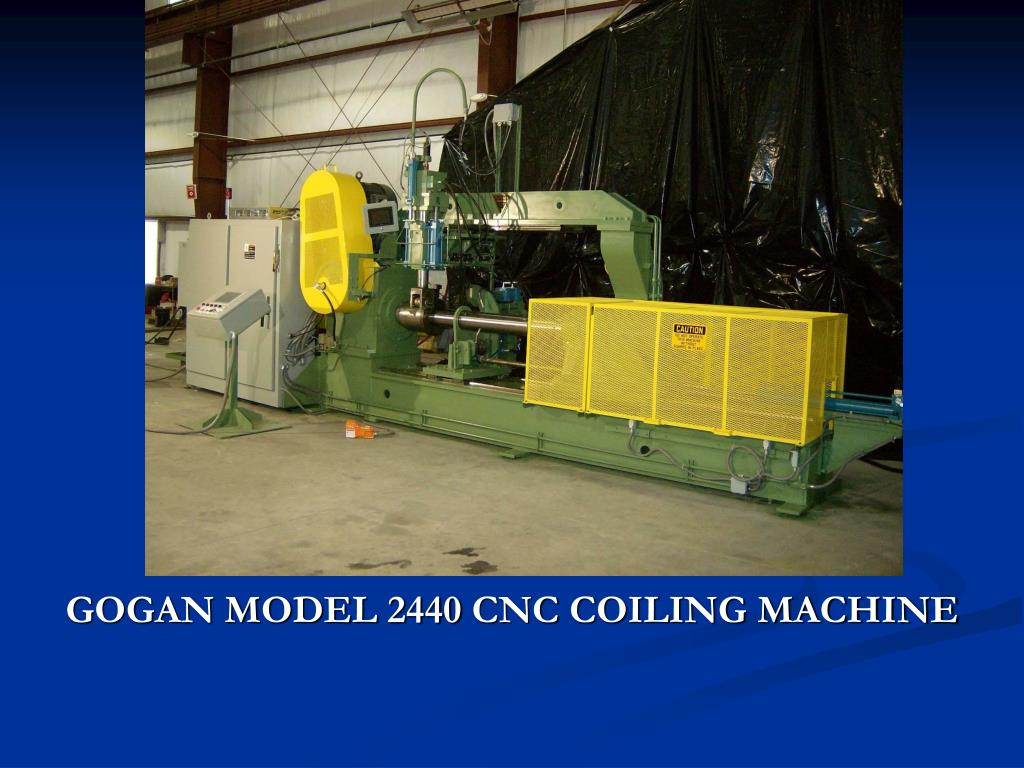

  27. GOGAN MODEL 2440 CNC COILING MACHINE

  28. RANGE OF MANDRELS Suitable forGOGAN MODEL 2440 CNC COILING MACHINE

  29. Gogan Eight Station Cambering Wheel Model H84HB-8Twith Quench Tank and Discharge Conveyor

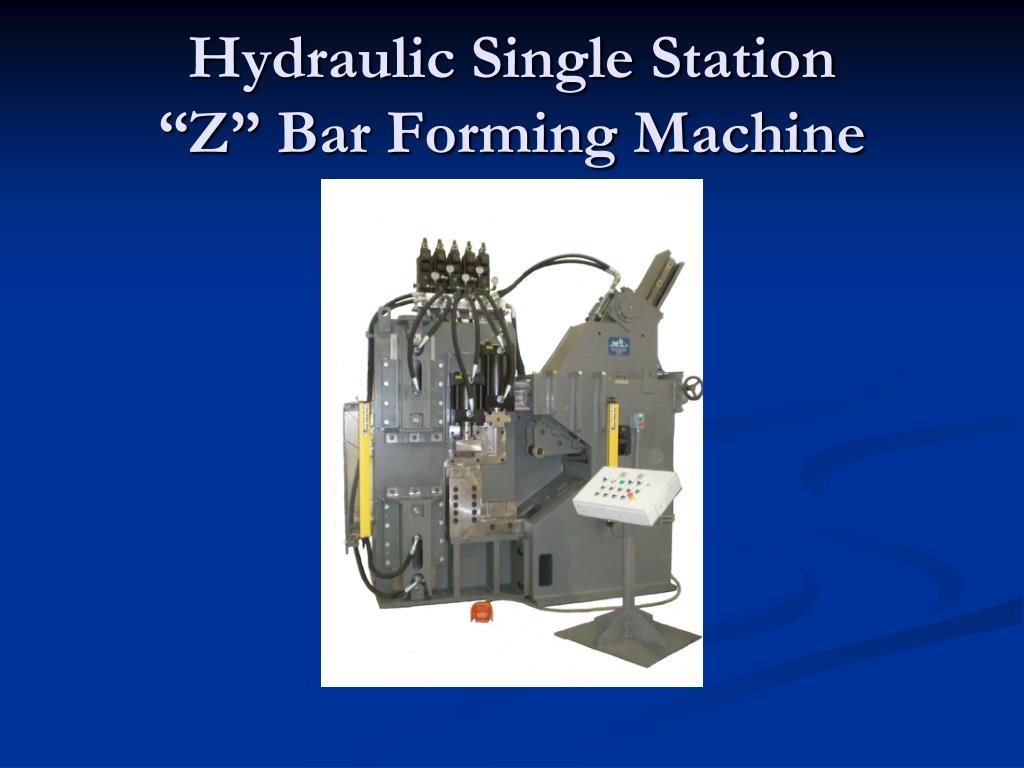

  30. Hydraulic Single Station “Z” Bar Forming Machine

  31. Gogan 911-EF

  32. NEWNAN, GA USAwww.tnispring.comFor more information please contact:In the USA Steve Dixon + 770-502-0687In the UK Alan Wall + 44-1535-664231info@tnispring.com
