  1. Programming Structures andDynamic Allocation

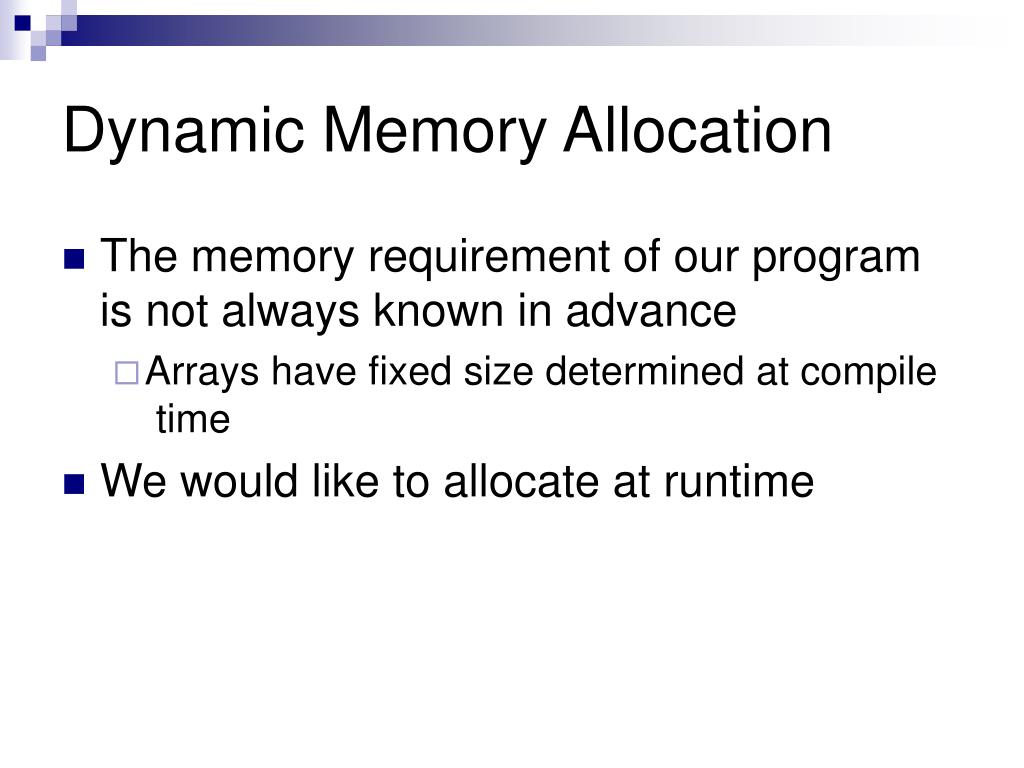

  2. Dynamic Memory Allocation • The memory requirement of our program is not always known in advance • Arrays have fixed size determined at compile time • We would like to allocate at runtime

  3. The Memory • Two Parts: • Stack • Memory is allocated when entering a function • Deallocation when the function terminates • Heap • Programmer control allocation and deallocation

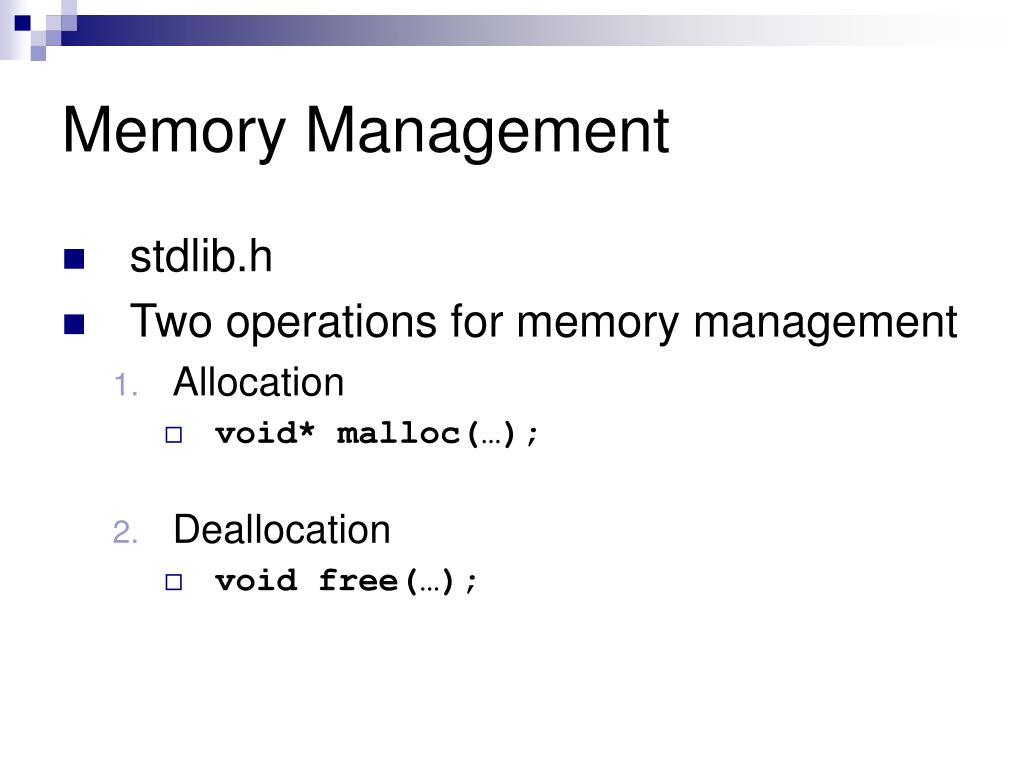

  4. Memory Management • stdlib.h • Two operations for memory management • Allocation • void* malloc(…); • Deallocation • void free(…);

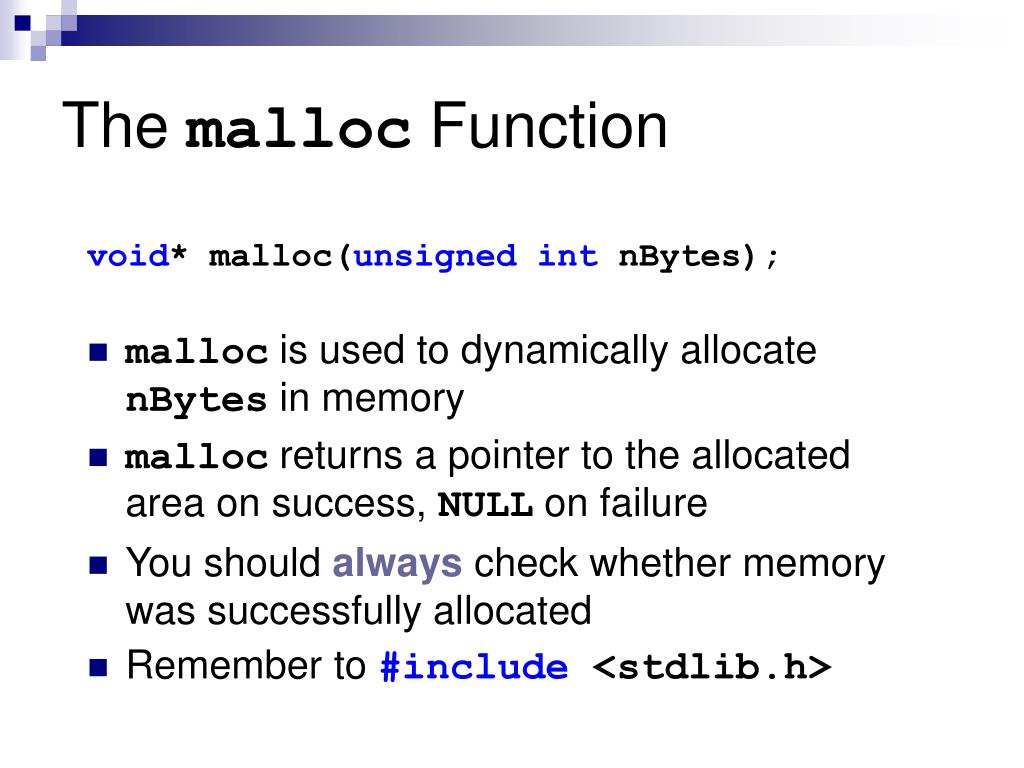

  5. The malloc Function void* malloc(unsignedint nBytes); • malloc is used to dynamically allocate nBytes in memory • malloc returns a pointer to the allocated area on success, NULL on failure • You should always check whether memory was successfully allocated • Remember to #include <stdlib.h>

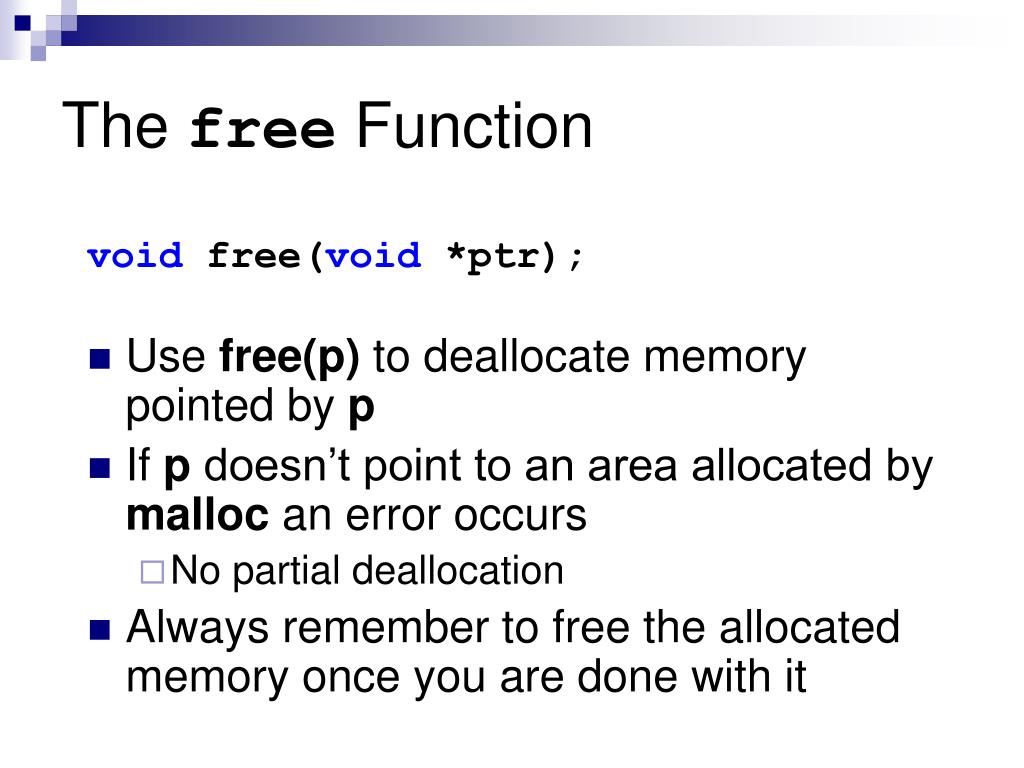

  6. The free Function void free(void *ptr); • Use free(p) to deallocate memory pointed by p • If p doesn’t point to an area allocated by malloc an error occurs • No partial deallocation • Always remember to free the allocated memory once you are done with it

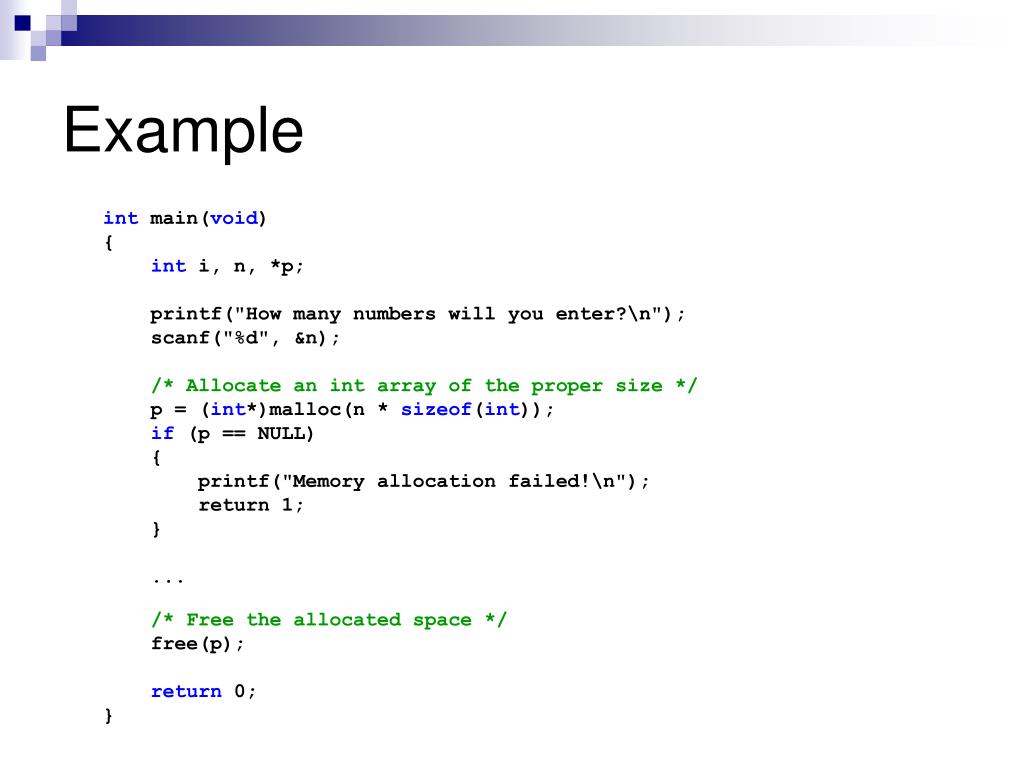

  7. Example int main(void) { int i, n, *p; printf("How many numbers will you enter?\n"); scanf("%d", &n); /* Allocate an int array of the proper size */ p = (int*)malloc(n * sizeof(int)); if (p == NULL) { printf("Memory allocation failed!\n"); return 1; } ... /* Free the allocated space */ free(p); return 0; }

  8. Why Casting? The casting in p = (int *)malloc(n*sizeof(int)); is needed becausemallocreturnsvoid* : void* malloc(unsigned int nbytes); The type (void*) specifies a general pointer, which can be cast to any pointer type.

  9. What is ‘sizeof’ ? • The sizeof operator gets a variable or a type as an input and return its size in bytes • sizeofalways calculates the size of the type double x; s1 = sizeof(x); /* s1 is 8 */ s2 = sizeof(int) /* s2 is 4 */

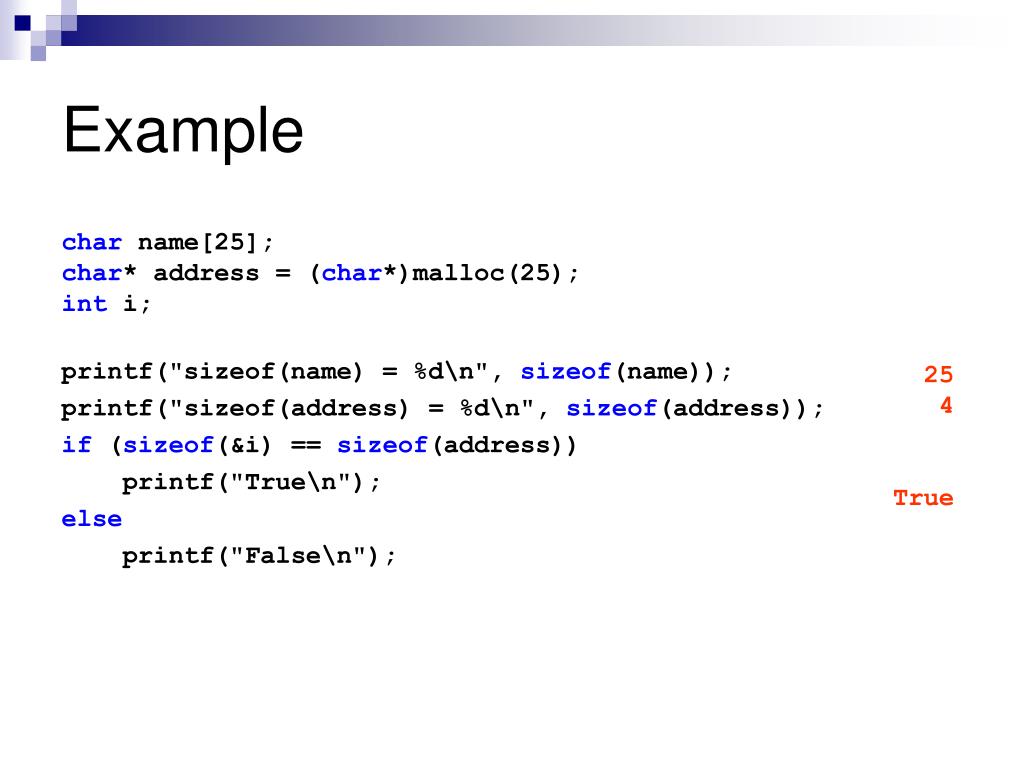

  10. Example char name[25];char* address = (char*)malloc(25);int i; printf("sizeof(name) = %d\n", sizeof(name)); printf("sizeof(address) = %d\n", sizeof(address)); if (sizeof(&i) == sizeof(address)) printf("True\n"); else printf("False\n"); 254True

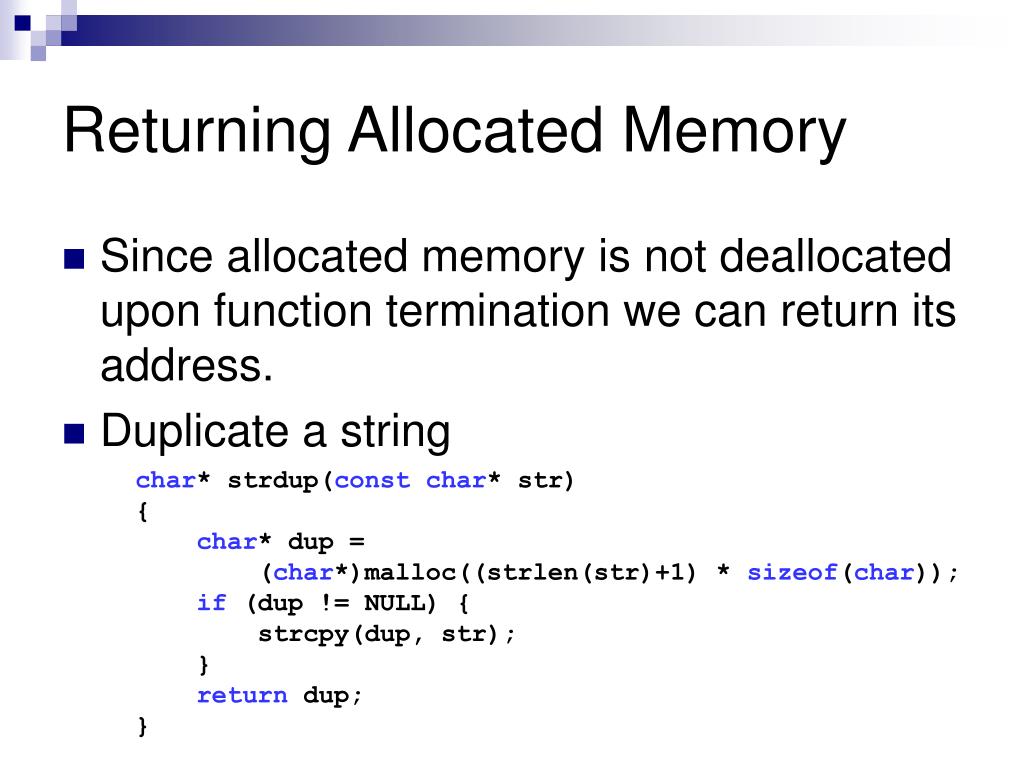

  11. Returning Allocated Memory • Since allocated memory is not deallocated upon function termination we can return its address. • Duplicate a string char* strdup(const char* str){char* dup = (char*)malloc((strlen(str)+1) * sizeof(char));if (dup != NULL) { strcpy(dup, str); }return dup;}

  12. Exercise • Implement the functionchar* my_strcat(const char *s1,const char *s2); • Output – a pointer to a dynamically allocated concatenation of s1 and s2 • For example: The concatenation of “hello_” and “world!” is the string “hello_world!” • Test your function

  13. Solution char* my_strcat(const char *s1, const char *s2) { int len;char *result = NULL; len = strlen(s1) + strlen(s2) + 1; result = (char*)malloc(len * sizeof(char)); if (result == NULL) { printf(“Memory allocation failed!\n"); return NULL; } strcpy(result, s1); strcat(result, s2); return result; }

  14. What’s Wrong Here? char* my_strcat(const char *s1, const char *s2) { int len; char result[500]; /* assume this is enough */ strcpy(result, s1); strcpy(result + strlen(s1), s2); return result; }

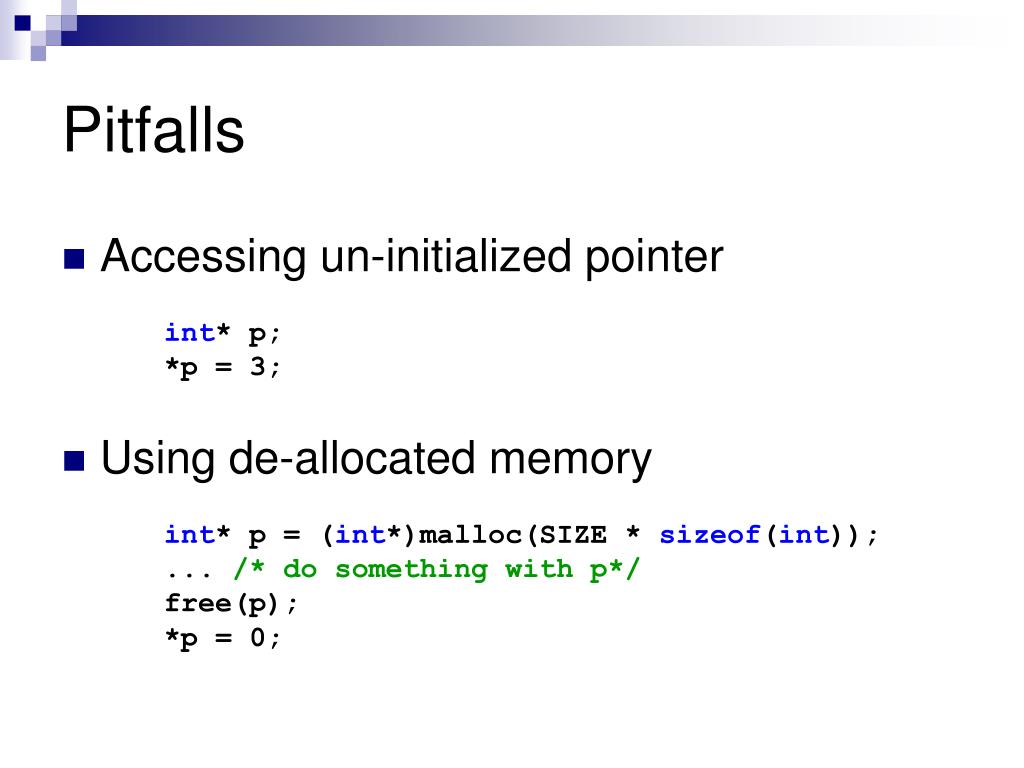

  15. Pitfalls • Accessing un-initialized pointerint* p; *p = 3; • Using de-allocated memoryint* p = (int*)malloc(SIZE * sizeof(int)); ... /* do something with p*/free(p); *p = 0;

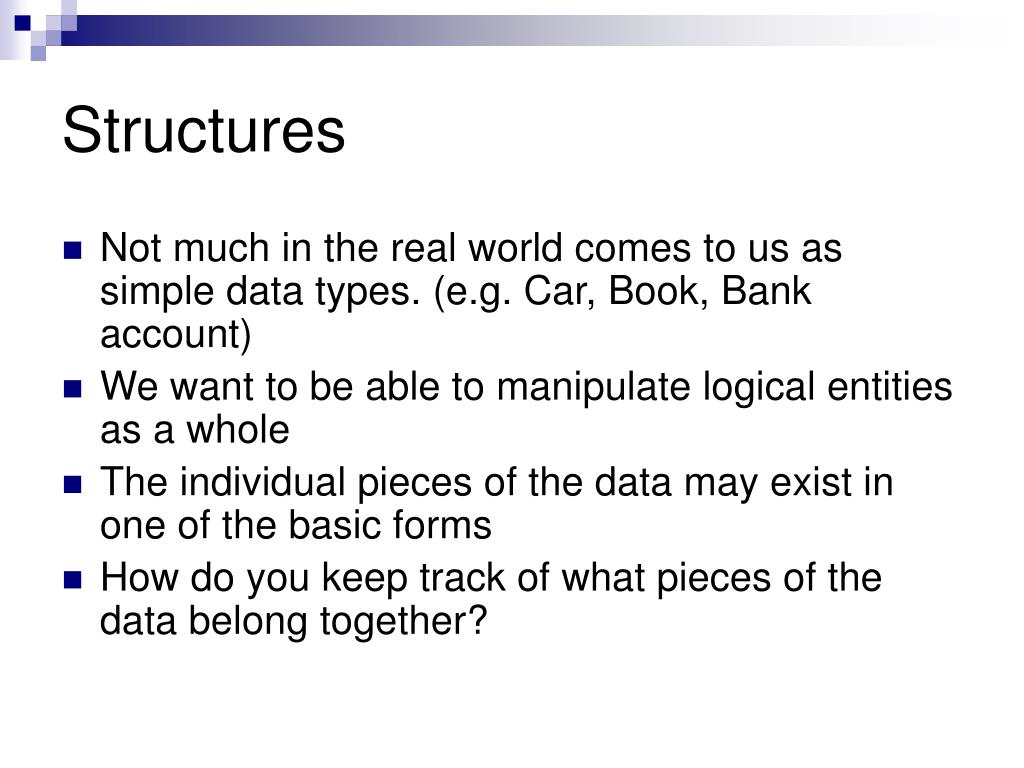

  16. Structures • Not much in the real world comes to us as simple data types. (e.g. Car, Book, Bank account) • We want to be able to manipulate logical entities as a whole • The individual pieces of the data may exist in one of the basic forms • How do you keep track of what pieces of the data belong together?

  17. Examples • Book • Title, Authors, ISBN, Publisher • Bank Account • Owners, Balance, Credit • Car • Make, Model, Year

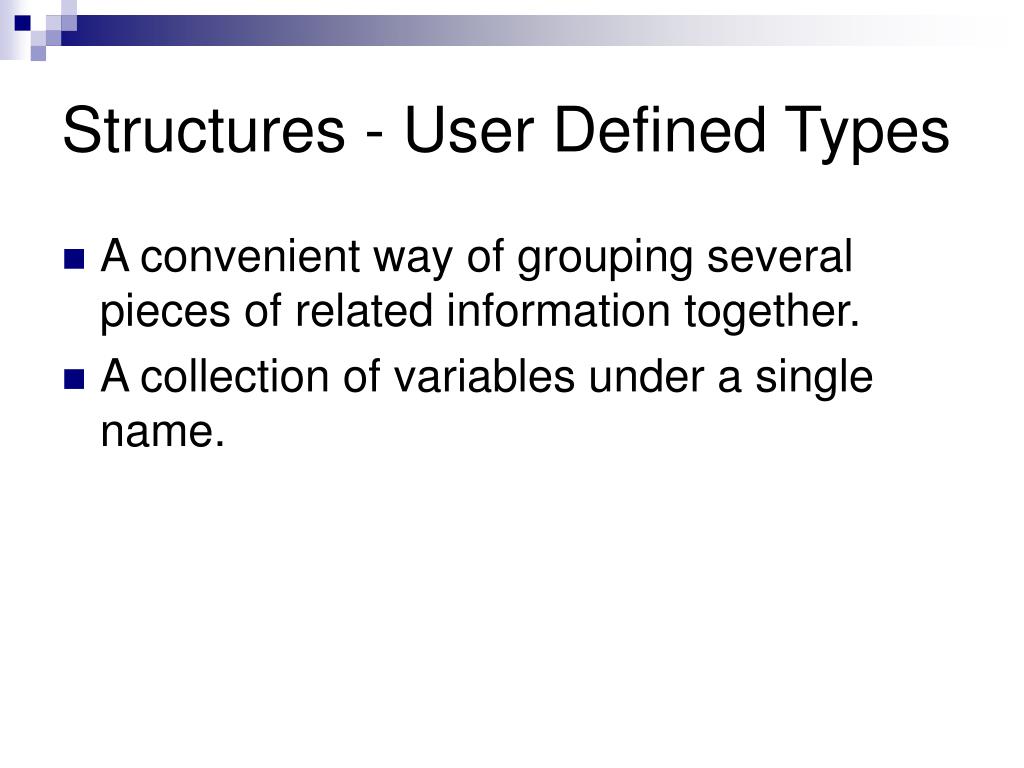

  18. Structures - User Defined Types • A convenient way of grouping several pieces of related information together. • A collection of variables under a single name.

  19. Structures - Example struct point{double x;double y;}; struct rectangle{ struct point low_left; struct point up_right;}; struct student{ char id[10]; char* name; int avg_grade; }; struct point{double x, y;};

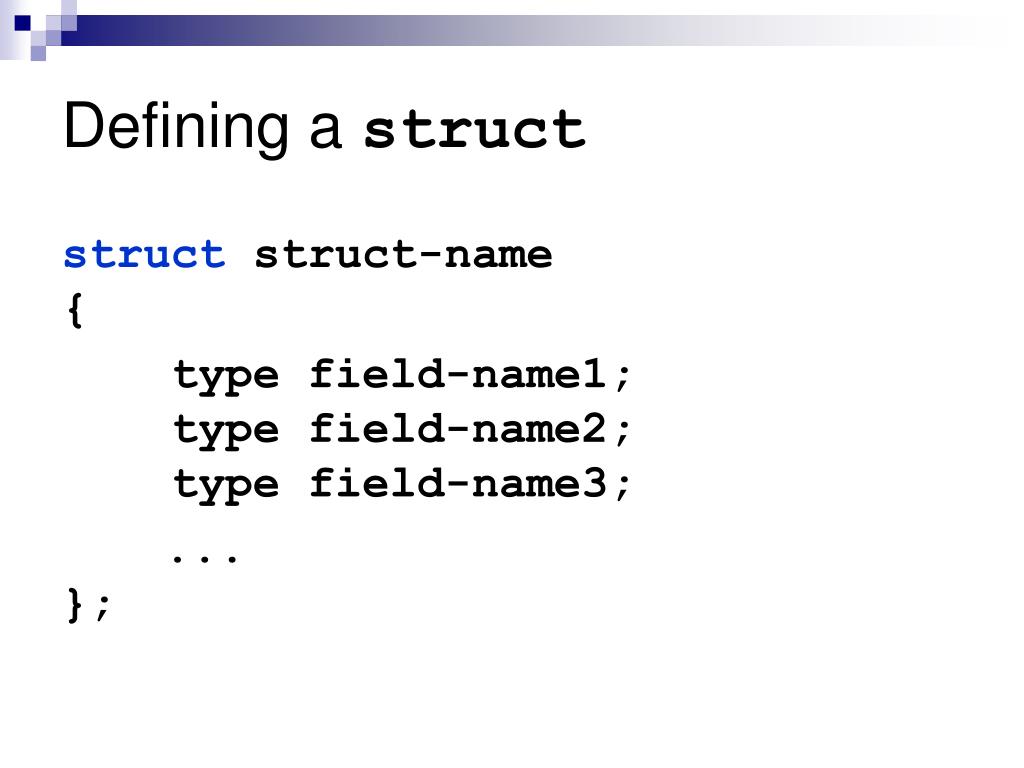

  20. Defining a struct struct struct-name{ type field-name1; type field-name2; type field-name3; ...};

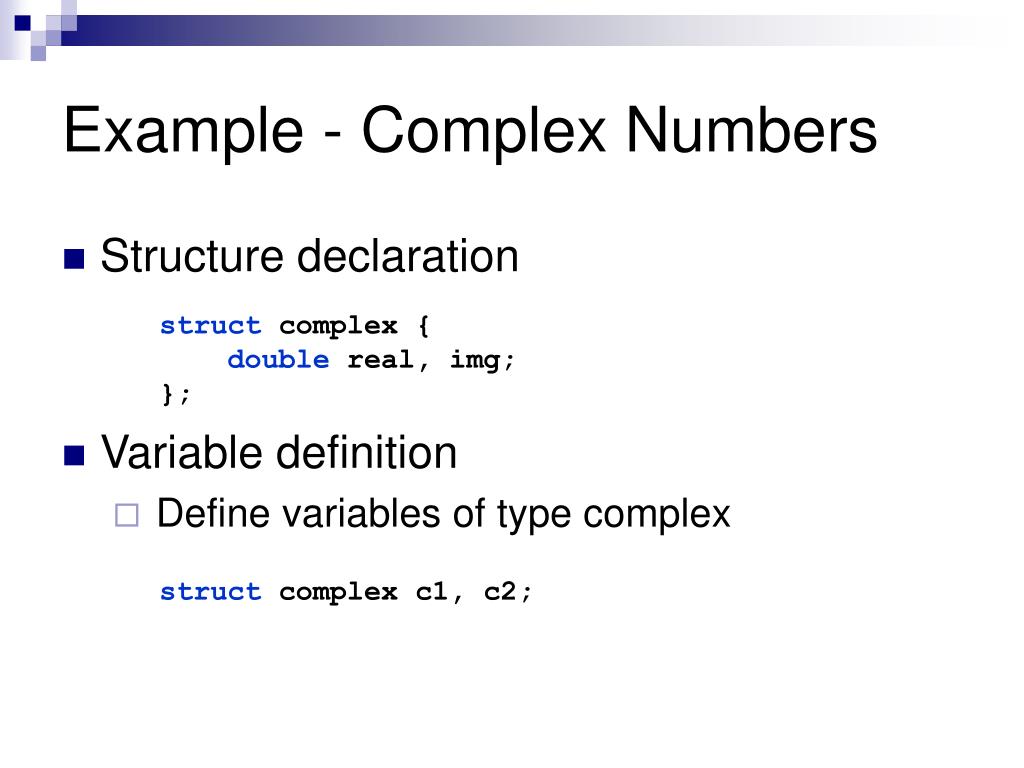

  21. Example - Complex Numbers • Structure declaration • Variable definition • Define variables of type complex struct complex {double real, img;}; struct complex c1, c2;

  22. Field Access • Use the . (dot) operator to access a field in a structure<variable name>.<field name> • If comp is of type complex then to access the real part we writecomp.realand to access the imaginary part we write comp.img

  23. Example • Printing a complex number printf("%g + %gi", comp.real, comp.img); • Input from the user scanf("%lf", &comp.real);

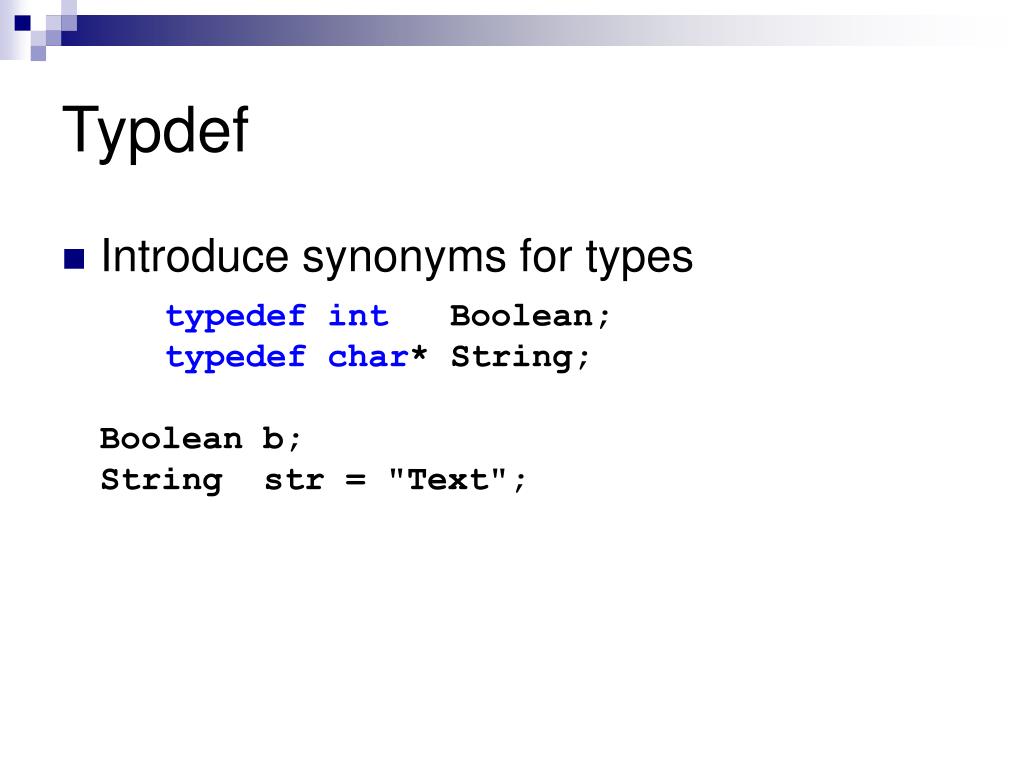

  24. Typdef • Introduce synonyms for typestypedefint Boolean;typedefchar* String;Boolean b;String str = "Text";

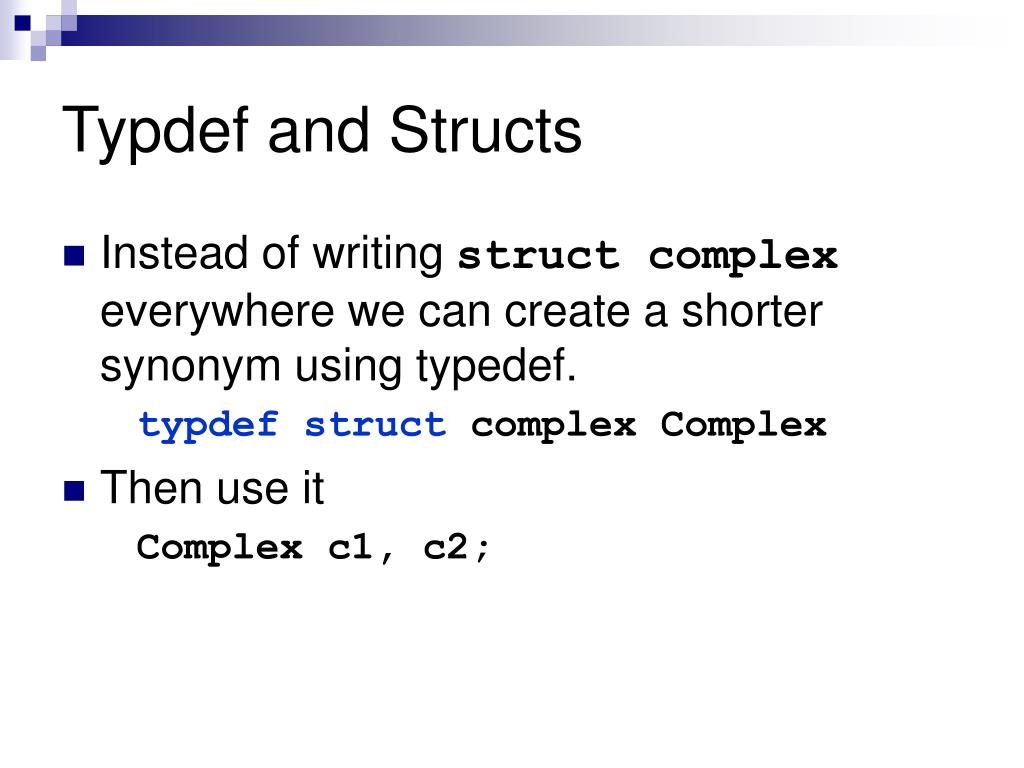

  25. Typdef and Structs • Instead of writing struct complexeverywhere we can create a shorter synonym using typedef. typdef struct complex Complex • Then use it Complex c1, c2;

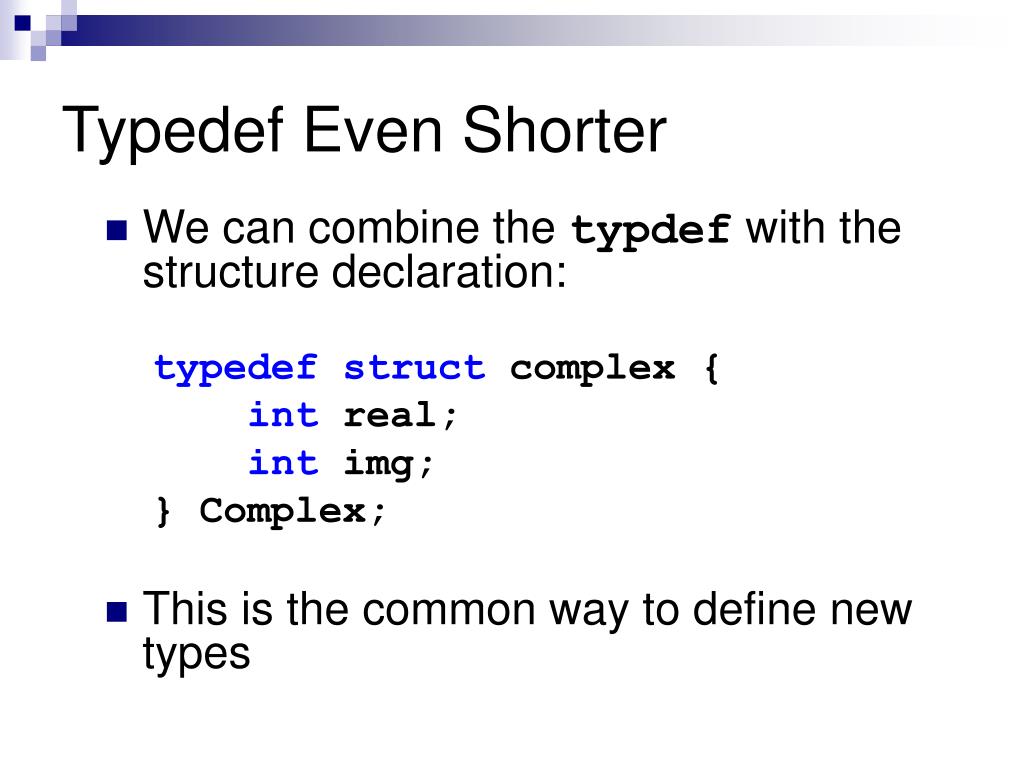

  26. TypedefEven Shorter • We can combine the typdef with the structure declaration: typedef structcomplex { int real; int img; } Complex; • This is the common way to define new types

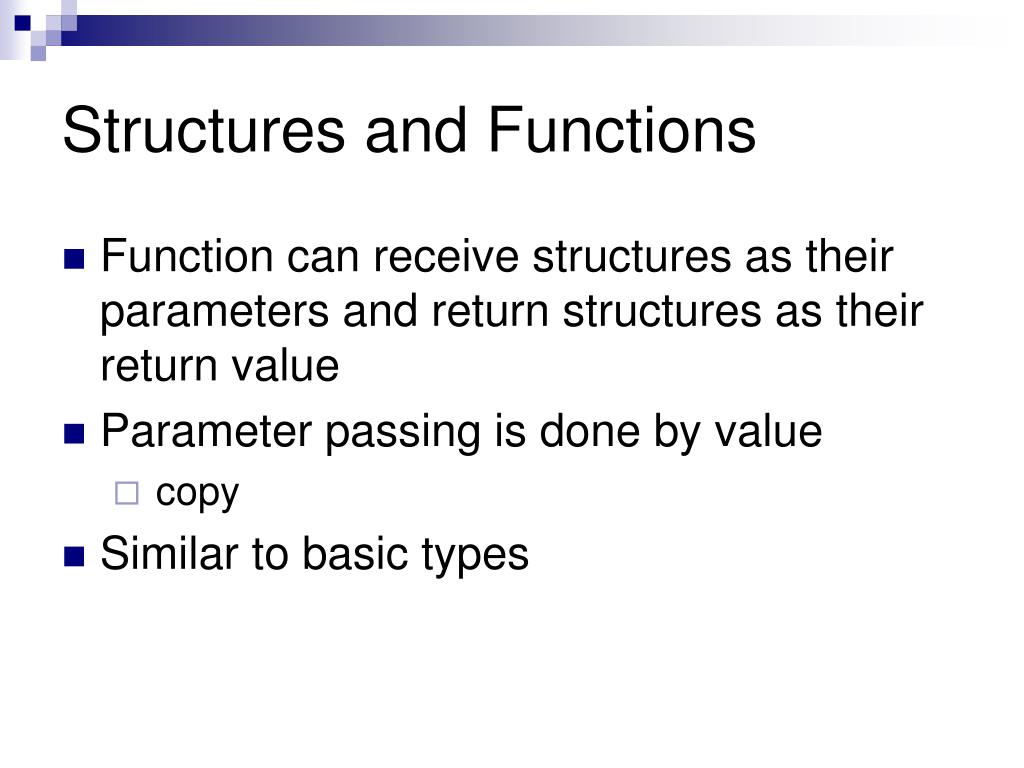

  27. Structures and Functions • Function can receive structures as their parameters and return structures as their return value • Parameter passing is done by value • copy • Similar to basic types

  28. Structures and Functions - Example Complex make_complex(double real, double img){ Complex temp; temp.real = real; temp.img = img; return temp; } Complex add_complex(Complex c1, Complex c2) { return make_comlex(c1.real + c2.real, c1.img + c2.img); }

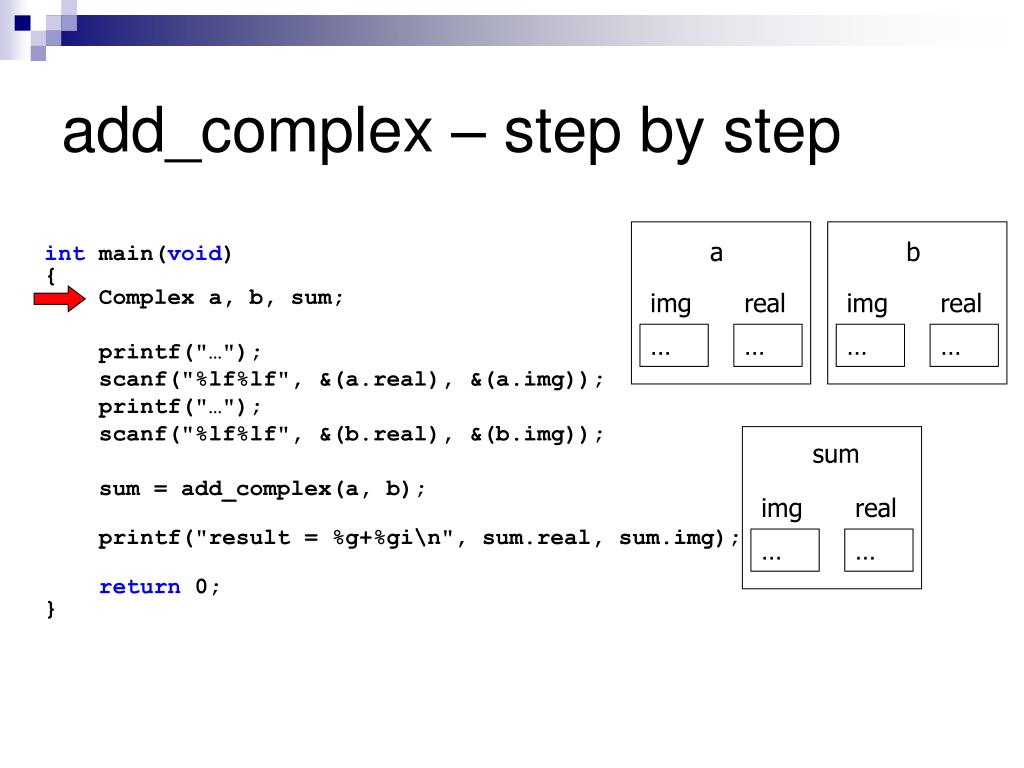

  29. b a img img real real … … … … add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf("result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real … …

  30. b a img img real real … … … … add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf("result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real … …

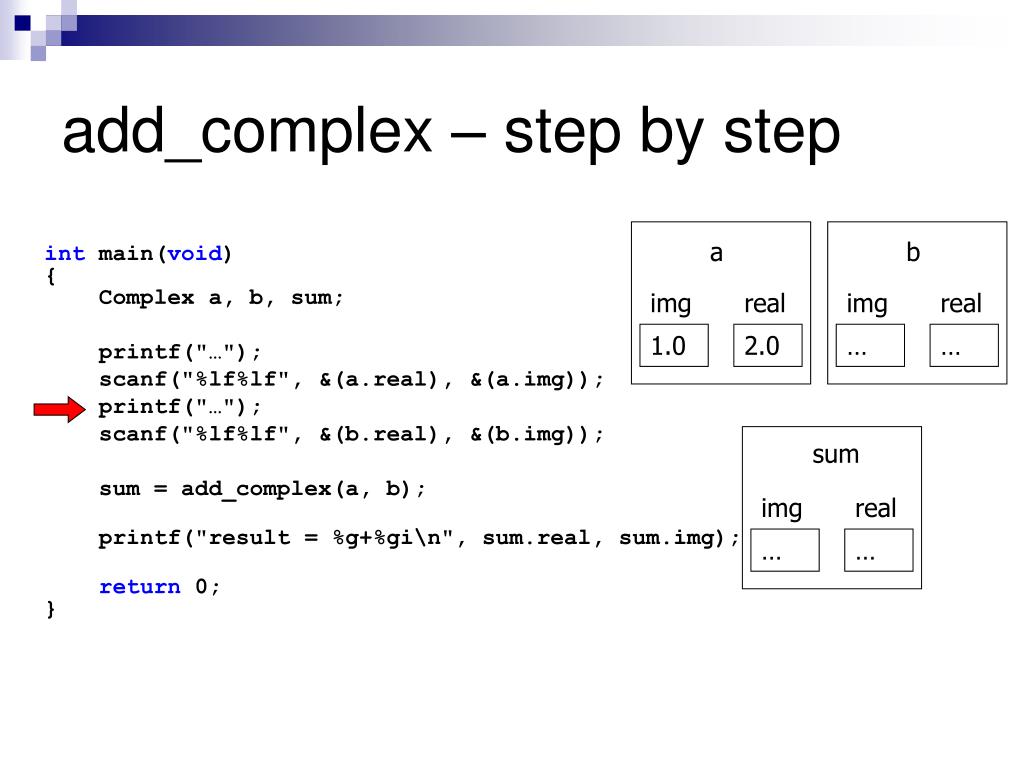

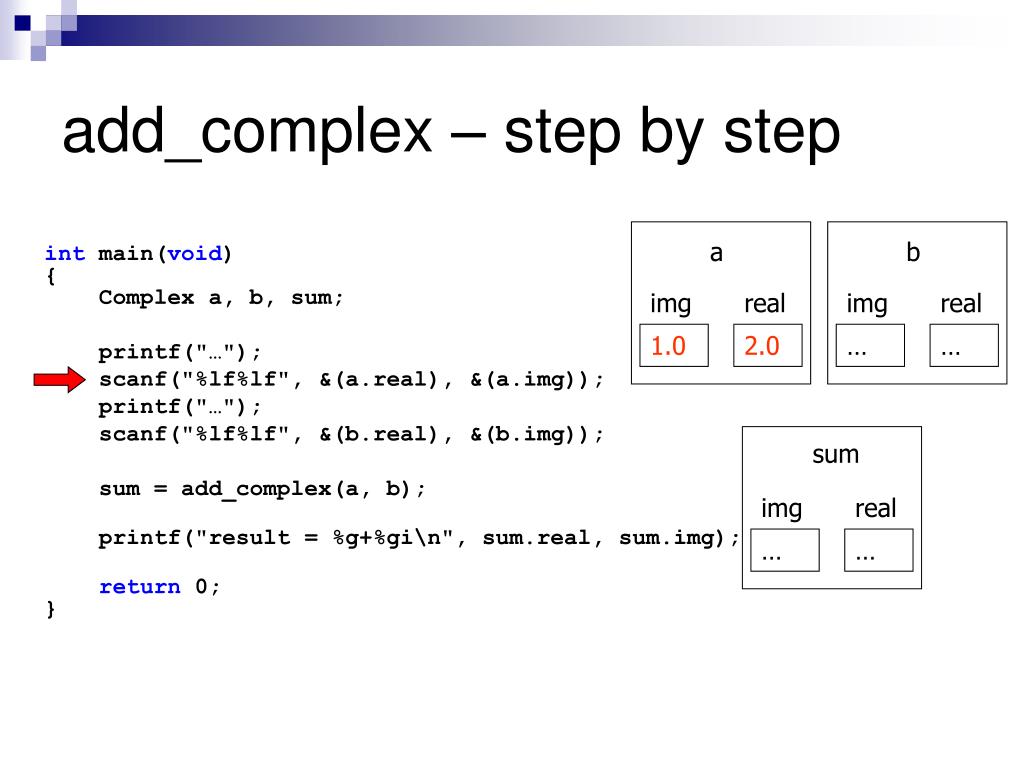

  31. b a img img real real 1.0 … 2.0 … add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf("result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real … …

  32. b a img img real real 1.0 … 2.0 … add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf("result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real … …

  33. b a img img real real 1.0 3.2 2.0 4.5 add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf("result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real … …

  34. b a img img real real 1.0 3.2 2.0 4.5 add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf("result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real … …

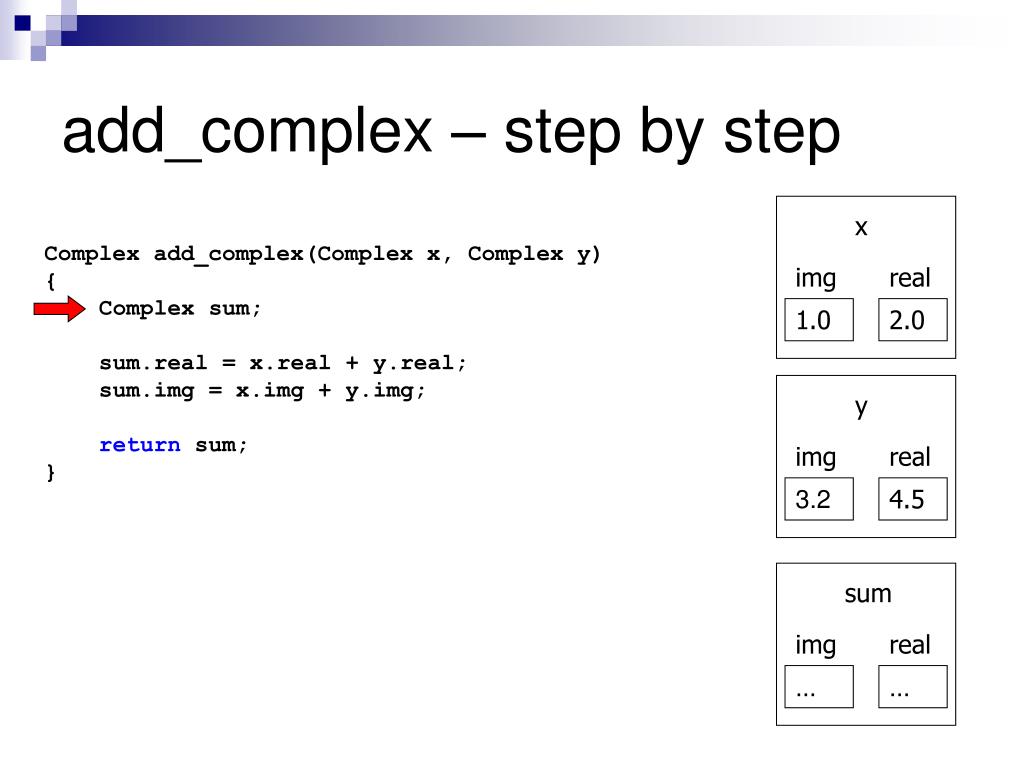

  35. y x img img real real 1.0 3.2 2.0 4.5 add_complex – step by step Complex add_complex(Complex x, Complex y) { Complex sum; sum.real = x.real + y.real; sum.img = x.img + y.img; return sum; } sum img real … …

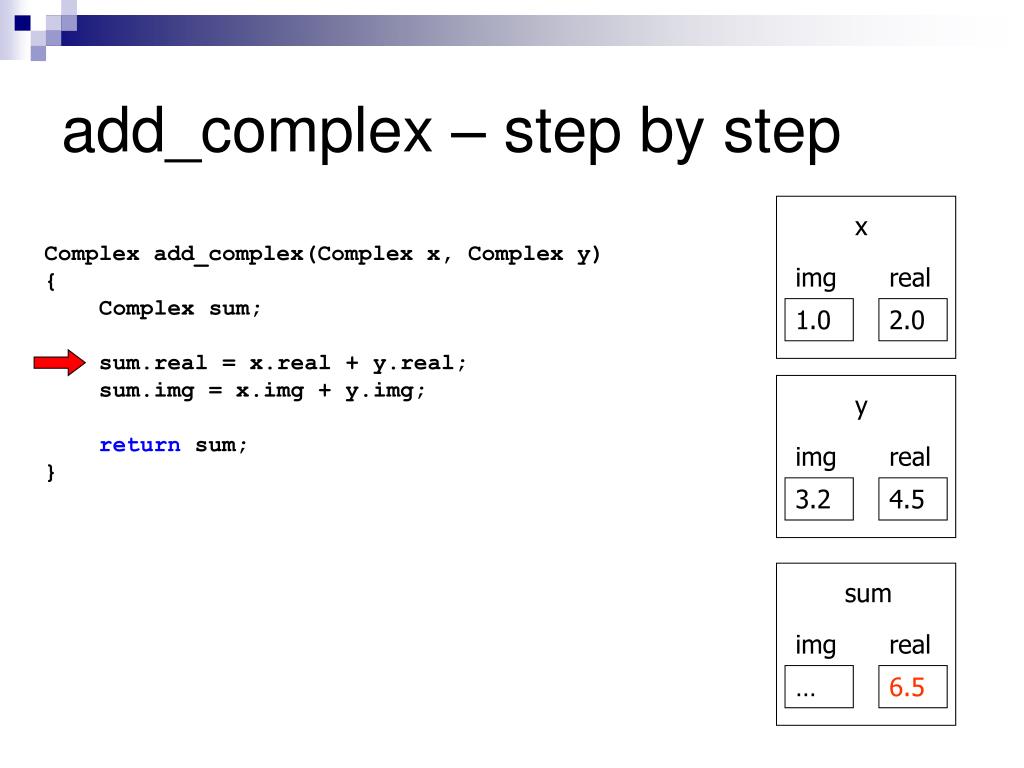

  36. y x img img real real 1.0 3.2 2.0 4.5 add_complex – step by step Complex add_complex(Complex x, Complex y) { Complex sum; sum.real = x.real + y.real; sum.img = x.img + y.img; return sum; } sum img real … 6.5

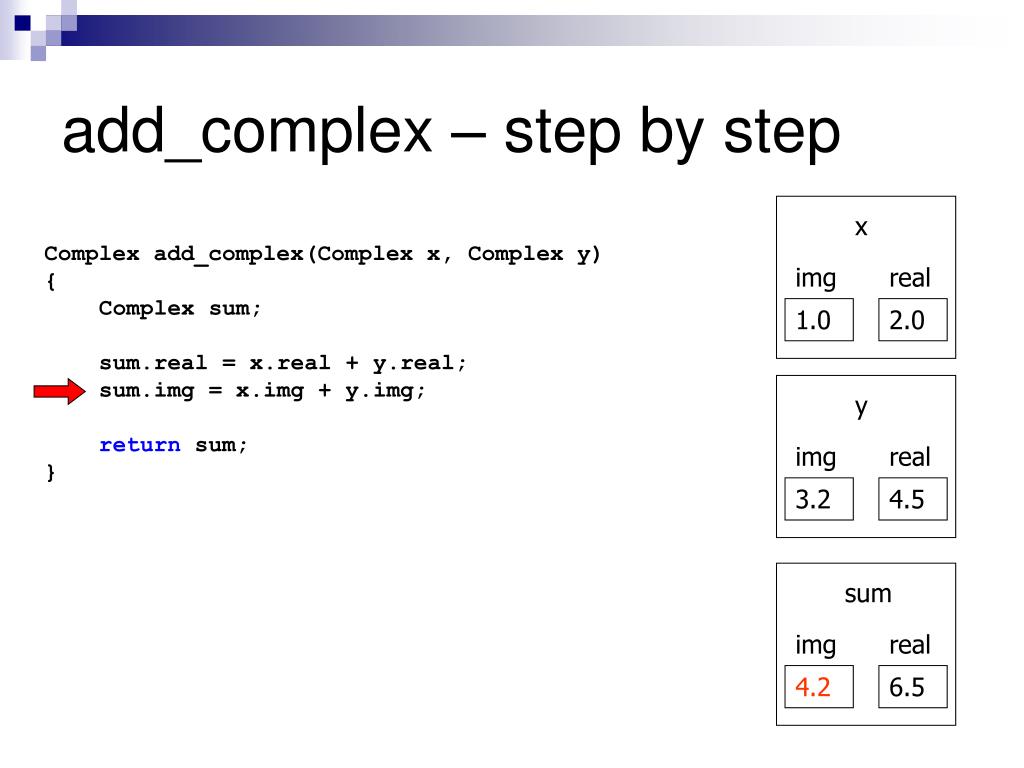

  37. y x img img real real 1.0 3.2 2.0 4.5 add_complex – step by step Complex add_complex(Complex x, Complex y) { Complex sum; sum.real = x.real + y.real; sum.img = x.img + y.img; return sum; } sum img real 4.2 6.5

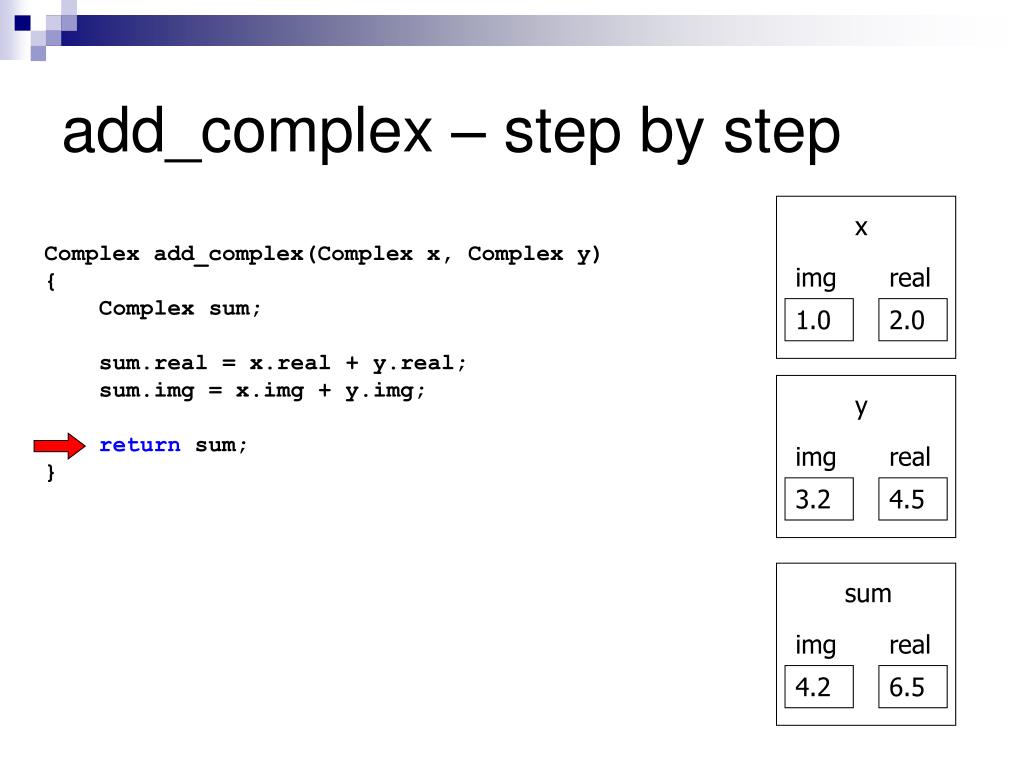

  38. y x img img real real 1.0 3.2 2.0 4.5 add_complex – step by step Complex add_complex(Complex x, Complex y) { Complex sum; sum.real = x.real + y.real; sum.img = x.img + y.img; return sum; } sum img real 4.2 6.5

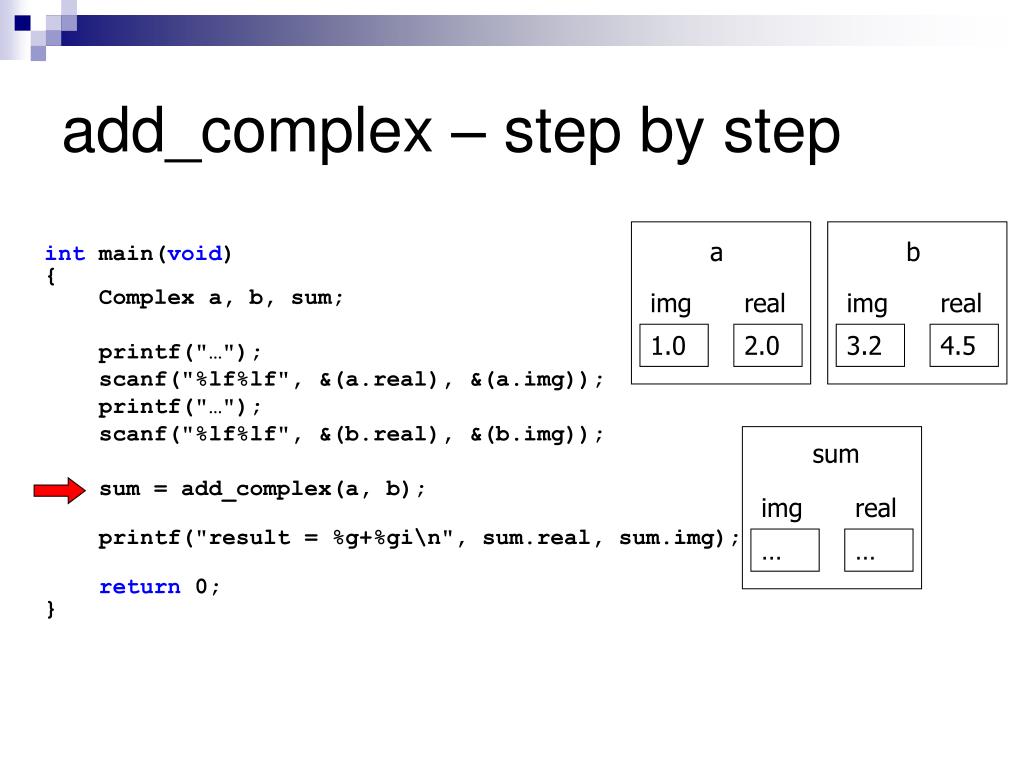

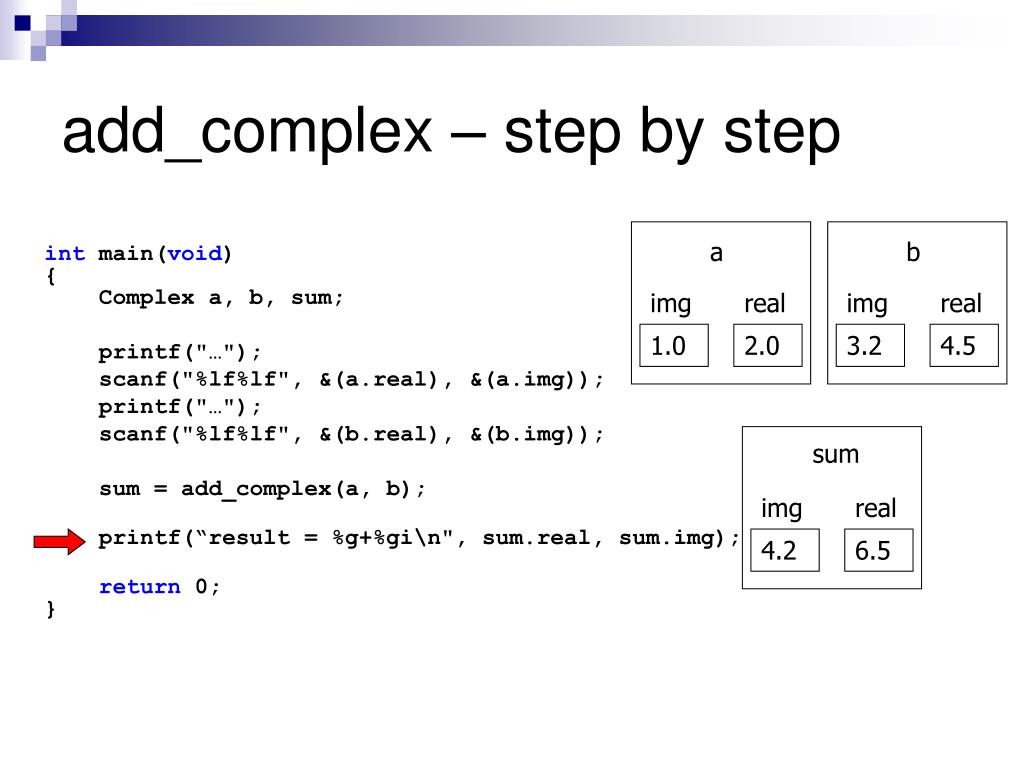

  39. b a img img real real 1.0 3.2 2.0 4.5 add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf(“result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real 4.2 6.5

  40. b a img img real real 1.0 3.2 2.0 4.5 add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf(“result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real 4.2 6.5

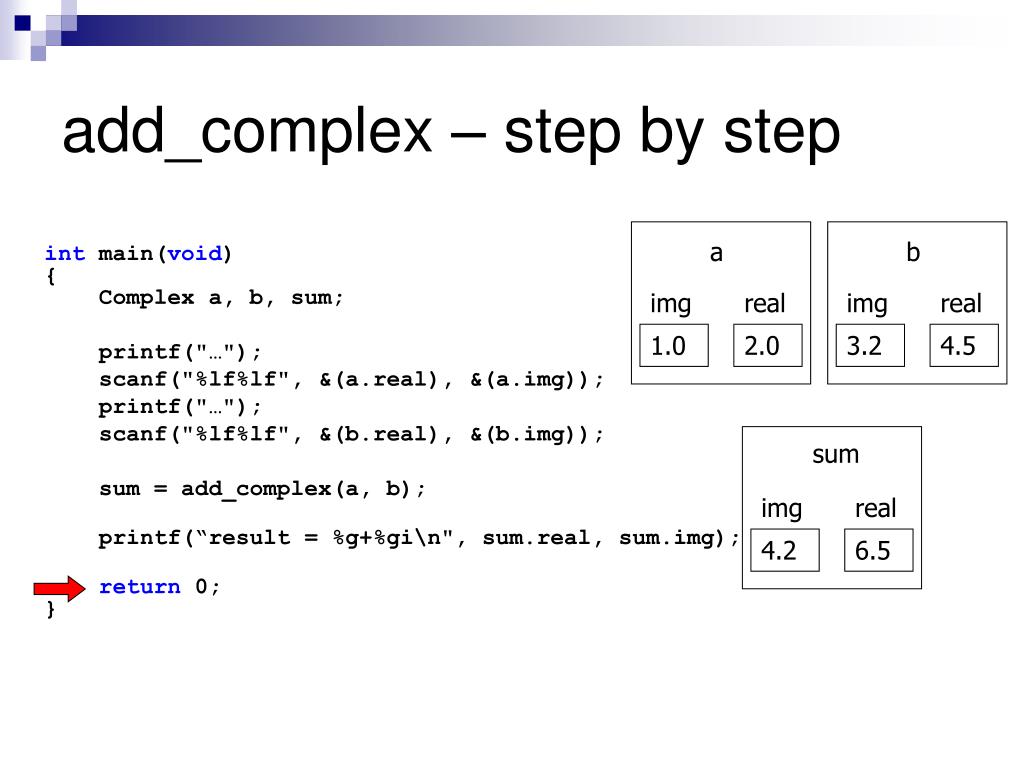

  41. b a img img real real 1.0 3.2 2.0 4.5 add_complex – step by step int main(void){ Complex a, b, sum; printf("…"); scanf("%lf%lf", &(a.real), &(a.img)); printf("…"); scanf("%lf%lf", &(b.real), &(b.img)); sum = add_complex(a, b); printf(“result = %g+%gi\n", sum.real, sum.img); return 0;} sum img real 4.2 6.5

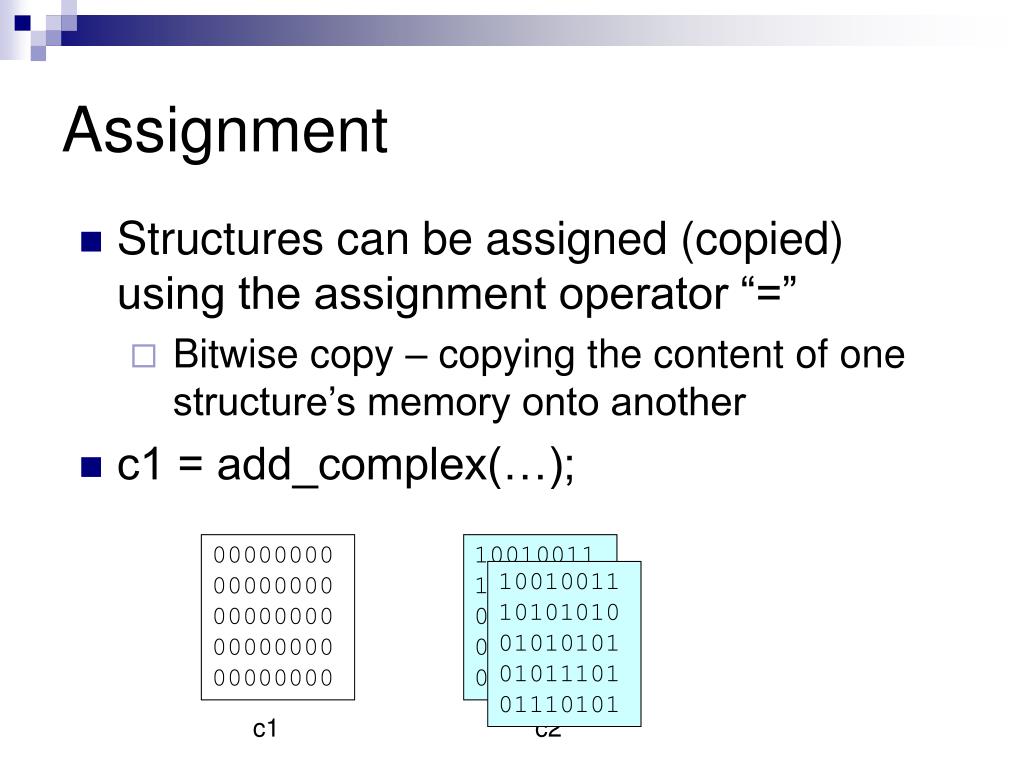

  42. Assignment • Structures can be assigned (copied) using the assignment operator “=” • Bitwise copy – copying the content of one structure’s memory onto another • c1 = add_complex(…); 0000000000000000000000000000000000000000 1001001110101010010101010101110101110101 1001001110101010010101010101110101110101 c1 c2

  43. Arrays in Structs • The entire array is part of the structure • When passing the struct to a function (by value) • Changing the array field won’t change the original array

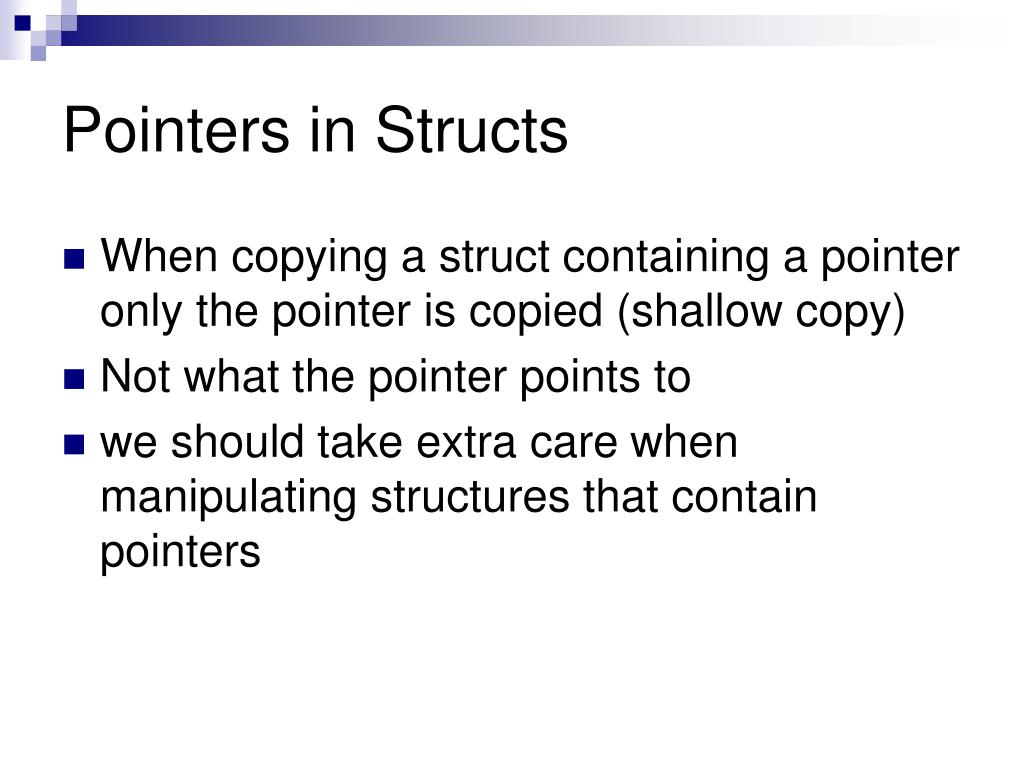

  44. Pointers in Structs • When copying a struct containing a pointer only the pointer is copied (shallow copy) • Not what the pointer points to • we should take extra carewhen manipulating structures that contain pointers

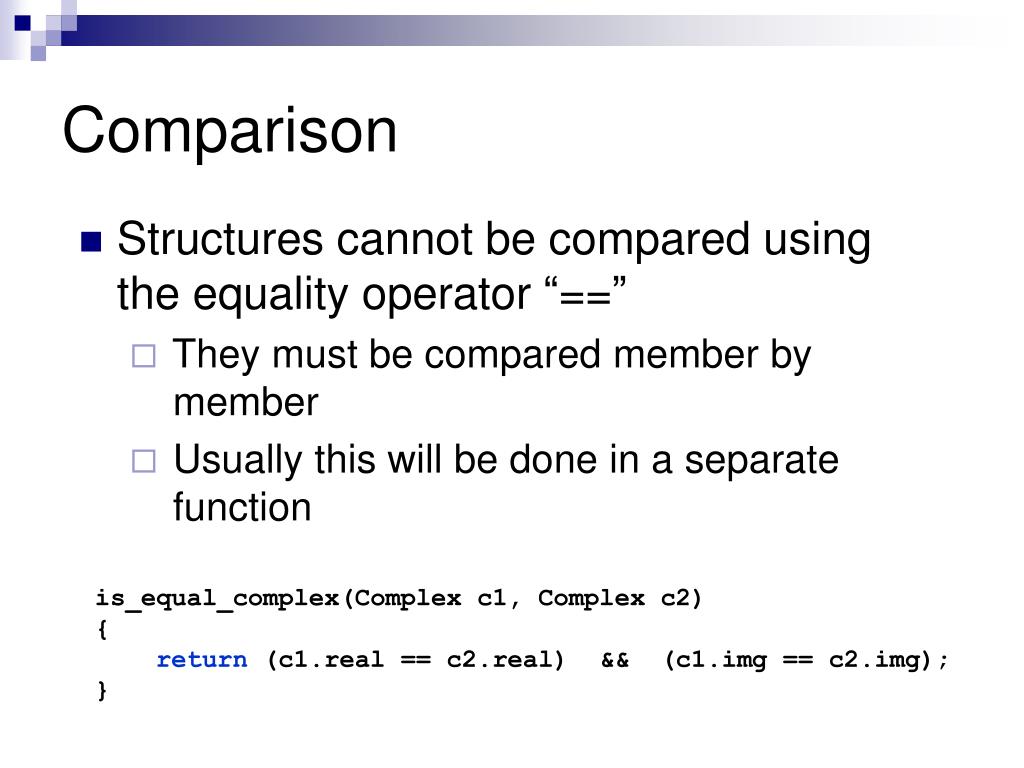

  45. Comparison • Structures cannot be compared using the equality operator “==” • They must be compared member by member • Usually this will be done in a separate function is_equal_complex(Complex c1, Complex c2){return (c1.real == c2.real) && (c1.img == c2.img);}

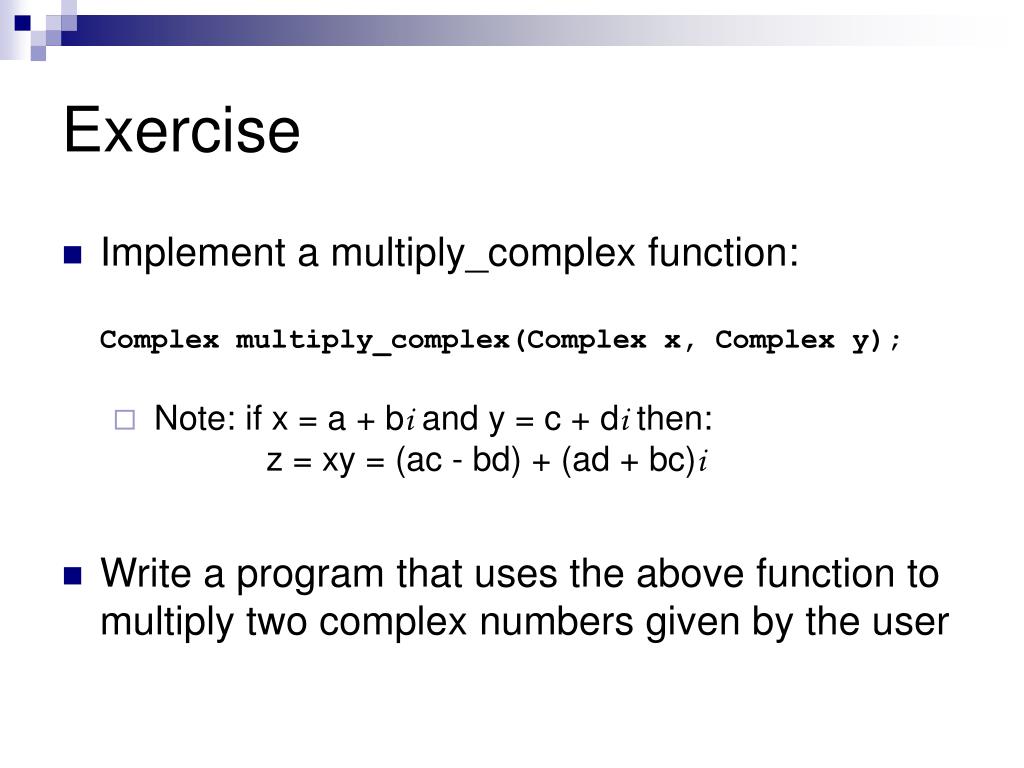

  46. Exercise • Implement a multiply_complex function:Complex multiply_complex(Complex x, Complex y); • Note: if x = a + bi and y = c + di then: z = xy = (ac - bd) + (ad + bc)i • Write a program that uses the above function to multiply two complex numbers given by the user

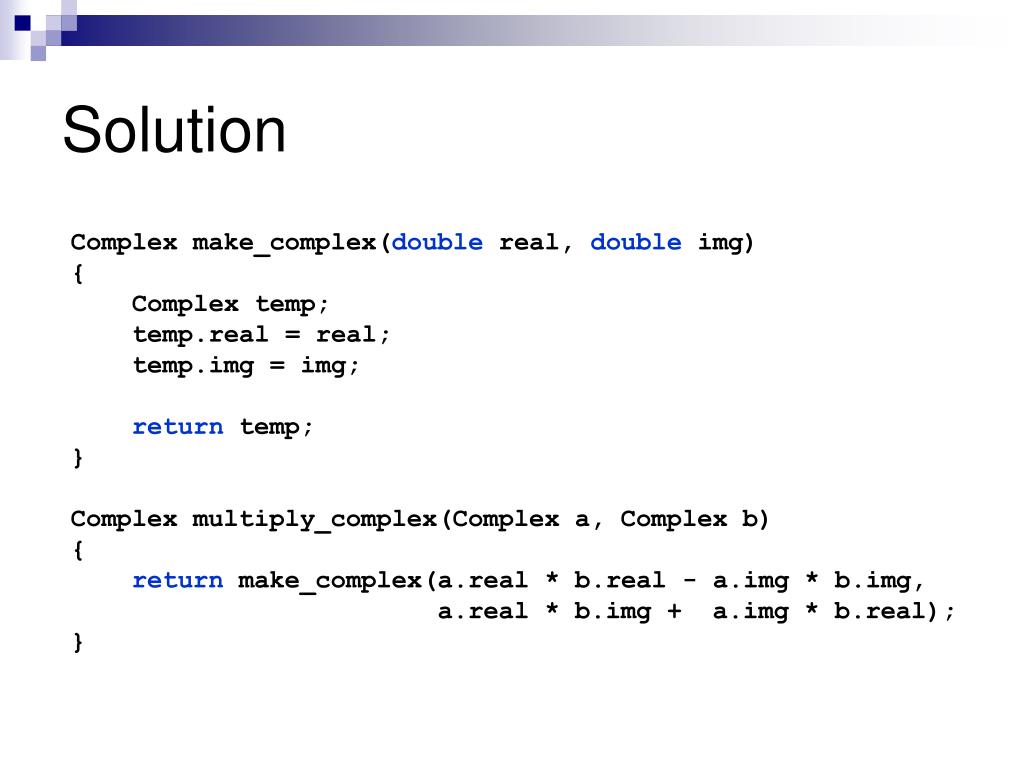

  47. Solution Complex make_complex(double real, double img){ Complex temp; temp.real = real; temp.img = img;return temp;}Complex multiply_complex(Complex a, Complex b){return make_complex(a.real * b.real - a.img * b.img, a.real * b.img + a.img * b.real);}

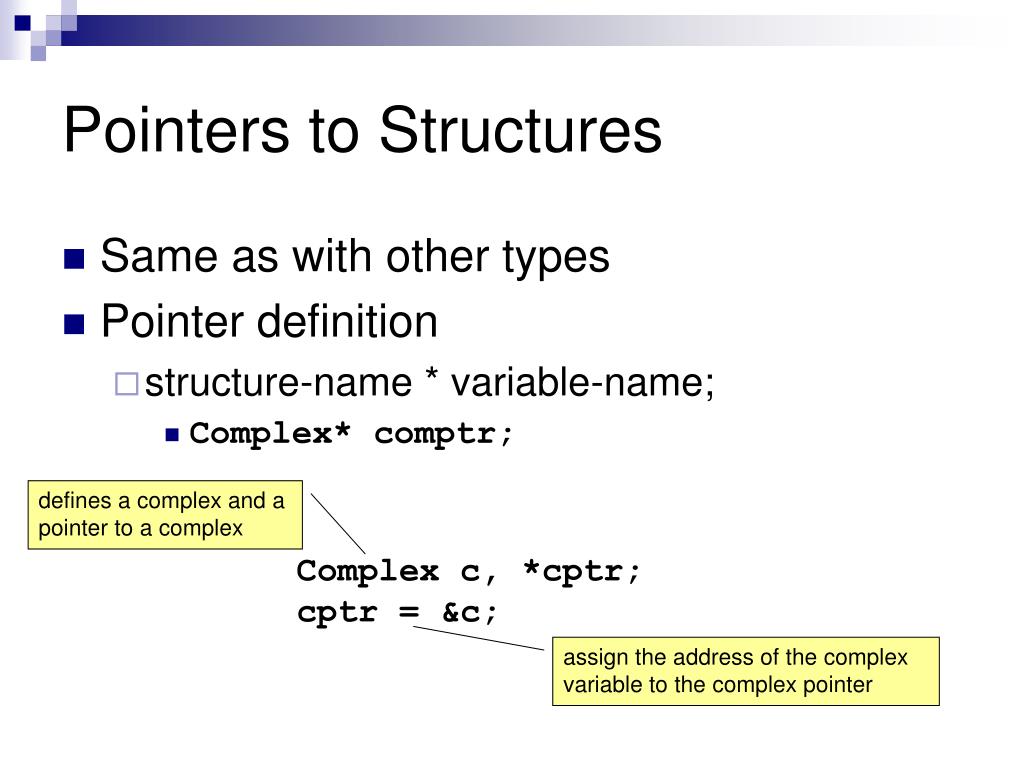

  48. Pointers to Structures • Same as with other types • Pointer definition • structure-name * variable-name; • Complex* comptr; defines a complex and a pointer to a complex Complex c, *cptr;cptr = &c; assign the address of the complex variable to the complex pointer

  49. Accessing Fields Using Pointers Complex comp;Complex *pcomp = &comp; • To access the fields we can write:(*pcomp).real(*pcomp).img

  50. Alternative Syntax • Pointer to structures are extremely common • Alternative notation as a shorthand • p→member-of-structure • → is minus sign followed by > • Example • pcomp→real • pcomp→img
