Measures of Central Tendency and Dispersion

2. Measures of Central Tendencyand Dispersion

3. Preferred measures of central location & dispersion

4. NORMAL DISTRIBUTION

5. Bell-shaped: specific shape that can be defined as an equation Symmetrical around the mid point, where the greatest frequency if scores occur Asymptotes of the perfect curve never quite meet the horizontal axis Normal distribution is an assumption of parametric testing Frequency Distribution: the Normal Distribution

6. Frequency Distribution: Different Distribution shapes

7. Measure of Central Tendency • Mean • Median • Mode

8. Mean • It is computed by summing up all the observations in the variable & dividing the sum by the number of observations. • Mean (Average) = Sum of the Observation values Number of observations • The mean is the most commonly used measure since it takes into account each observation • It is problems: • It considers all observation and it is affected by all observations not preferred in the presence of dispersed values like salaries.

9. Mean (Average) Mean (Average) = Sum of the Observation values Number of observations In this observation set (5, 3, 9, 7, 1, 3, 6, 8, 2, 6, 6) Sum = 56 Number of observations = 11 Mean = 5.1

10. Weighted Mean VillageNo. of ChildrenMean age (month) 1 54 58.6 2 52 59.5 3 49 61.2 4 48 62.5 5 4864.5 251 61.2 (n1 X x1) + (n2 X x2) + ..... Weighted Mean = -------------------------------------- N

11. Geometric Mean • Mean of a set of data measured on a logarithmic scale. • Logarithmic scale is used when data are not normally distributed & follow an exponential pattern (1,2,4,8,16) or logarithmic pattern (1/2,1/4,1/8…) • Geometric mean equals: • Anti Log for average of sum log of the values • Or: Anti Log (1/n ∑ Log Xi) • So to calculate the Geometric mean • 1-calculate sum of the logarithm of each value • 2-calculate average by dividing sum of Log values by number of these values • 3-calculating of the anti log will give the geometric mean

12. Geometric Mean

13. Geometric Mean • Calculate the geometric mean: 1-Sum of Log (4, 256, 2, 16, 64, 32, 512) = 10.536 2. Average = 10.536 / 7 = 1.505 3- Anti Log average =32 • Accordingly geometric mean =32 • Geometric mean is important in statistical analysis of data following the previous described distribution such as sero survey where titer is calculated for different samples.

14. Median • Median: Value that divides a distribution into two equal parts. • Arrange the observation by order 1,2,3,3,5,6,6,6,7,8,9. • When the number is odd • Median = No. + 1 = 11+1 = 6 2 2 • So, median is the 6th observations = 6 • The median is the best measure when the data is skewed or there are some extreme values

15. Median • When number is even 1,2,3,3,5,6,6,6,7,8. • Number of observations = 10 • Median= • 5th observation + 6th observation • 2 • 5+6 = 11 = 5.5 • 2 2

16. Mode Mode: The most frequent value. (5, 3, 9, 7, 1, 6, 8, 2, 6, 6) " 6" is the most frequent value. Bimodal distribution is referred to presence of two most frequent values. If all values are different there is no mode. Not useful when there are several values that occur equally often in a set

17. Central Tendencies & Distribution Shape • The mean is < median when the curve is positively skewed to right • The mean is > media when the curve is negatively skewed to left • The mean, median and mode are equal when distribution is symmetrical. • The mean is equal to median when it is symmetrical

18. Measures of Dispersion (Variation)(Indicate spread of value) The observations whether homogenous or heterogeneous, the variability of the observations • Range • Variance • Standard deviation • Coefficient of variation • Standard error • Percentiles & quartiles

19. Describing Variability: the Range Simplest & most obvious way of describing variability Range = Highest - Lowest Therange only takes into account the two extreme scores and ignores any values in between. To counter this there the distribution is divided into quarters (quartiles). Q1 = 25%, Q2 =50%, Q3 =75% The Interquartile range: the distance of the middle two quartiles (Q3 – Q1) The Semi-Interquartile range: is one half of the Interquartile range

20. Measures of Dispersion (Variation)(Indicate spread of value) • The observations whether homogenous or heterogeneous, the variability of the observations • Range • The range is the difference between the largest and the smallest observations. • Range = maximum – minimum • Disadvantage: it depends only on two values & doesn’t take into account other observations

21. Measures of Dispersion (Variation)(Indicate spread of value) • Variance • It measures the spread of the observations around the mean. • If the observations are close to their mean, the variance is small, otherwise the variance is large. • Variance = S2 =

22. Describing Variability: Deviation A more sophisticated measure of variability is one that shows how scores cluster around the mean Deviation is the distance of a score from the mean X - , e.g. 11 - 6.35 = 3.65, 3 – 6.35 = -3.35 A measure representative of the variability of all the scores would be the mean of the deviation scores (X - ) Add all the deviations and divide by n n However the deviation scores add up to zero (as mean serves as balance point for scores)

23. Describing Variability: Variance To remove the +/- signs we simply square each deviation before finding the average. This is called the Variance: (X - )² = 106.55 = 5.33 n 20 The numerator is referred to as the Sum of Squares (SS): as it refers to the sum of the squared deviations around the mean value

24. Describing Variability: Population Variance Population variance is designated by ² ² = (X - )² = SS N N Sample Variance is designated by s² Samples are less variable than populations: they therefore give biased estimates of population variability Degrees of Freedom (df): the number of independent (free to vary) scores. In a sample, the sample mean must be known before the variance can be calculated, therefore the final score is dependent on earlier scores: df = n -1 s² = (X - M)² = SS = 106.55 = 5.61 n - 1 n -1 20 -1

25. Describing Variability: the Standard Deviation Variance is a measure based on squared distances In order to get around this, we can take the square root of the variance, which gives us the standard deviation Population () & Sample (s) standard deviation  = (X - )² N s = (X - M)² n - 1 So for our memory score example we simple take the square root of the variance: = 5.61 = 2.37

26. Measures of Dispersion (Variation) • Standard deviation (SD) • It is the square root of the variance S = Both variance & SD are measures of variation in a set of data. The larger they are the more heterogeneous the distribution. SD is more preferred than other measures of variation. • Usually about 70% of the observations lie within one SD of their mean and about 95% lie within two SD of the mean • If we add or subtract a constant from all observations, the changed by the same constant, but the SD does not change • If we multiply or divide all the observation by the same constant, both mean & SD changed by the same amount • Small SD, the bell is tall & narrow • Large SD, the bell is short & broad

27. Standard Deviation (SD)Example: Calculate SD for this observation set: (7,3,4,6) Mean (X) = 20 = 5 Mean of (Dev.)2 = 10 = 2.5 4 4 SD = = 1.6

28. Measures of Dispersion (Variation) • Coefficient of variation • C.V expresses the SD as a percentage of the sample mean • C.V = * 100 • C.V = It is used to compare the relative variation of uncorrelated quantities (blood glucose & cholesterol level)

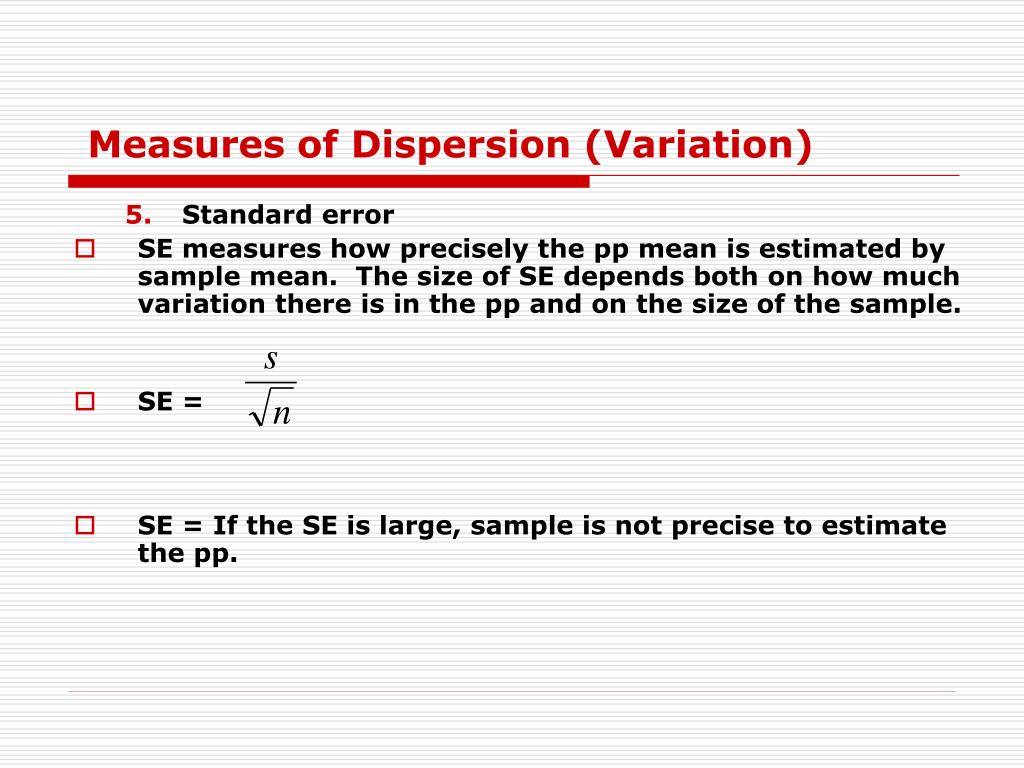

29. Measures of Dispersion (Variation) • Standard error • SE measures how precisely the pp mean is estimated by sample mean. The size of SE depends both on how much variation there is in the pp and on the size of the sample. • SE = • SE = If the SE is large, sample is not precise to estimate the pp.

30. Describing Variability Describes in an exact quantitative measure, how spread out/clustered together the scores are Variability is usually defined in terms of distance How far apart scores are from each other How far apart scores are from the mean How representative a score is of the data set as a whole

31. Quartiles & Interquartiles • The age range of this group of 18 students is 55 – 25 = 30 years • If the older student was not present, the range would have been 45 – 25 = 20 years • This means that a single value could give non-real wide range of the groups age • Since we can not ignore a single value and we do not want to give wrong impression, we estimate the interquartile range

32. Quartiles & Interquartiles • The values are arranged in ascending manner • The groups then divided into 4 equal parts, each part contain one • quarter of observations • In the below example, 18/4 = 4.5 individuals • The value of the fifth individual is the minimum value of the • interquartile range • As a general rule, when the product of division contains a fraction then • take the following individual’s value (4.5, take the value of the fifth) • Interquartile range = 42 – 32 = 10 years Interquartile range

33. Percentiles • Used when the number of observations is large • The values are arranged in ascending manner • When the individuals are hundred, the lowest value will be 1st percentile and the highest will be the 100th percentiles.
