CS444/CS544 Operating Systems

1. CS444/CS544Operating Systems Classic Synchronization Problems 2/28/2007 Prof. Searleman jets@clarkson.edu

2. Outline • Classic Synchronization Problems • Dining Philosophers • Deadlock, revisited • Synchronization with Message Passing • Events & Condition Variables NOTE: • Read: Chapter 7 • Exam#2 – Tues. 3/13, 7:00 pm, SC160 • K-12 TA interest meeting: 3/7, 4:00, Barben A • both undergrad & graduate TA’s available

3. Classical Synchronization Problems • Bounded-Buffer Problem (also called Producer-Consumer) one-way communication with limited resources • Dining-Philosophers Problem shared resources • Readers and Writers Problemshared database

4. Dining-Philosophers Problem #define N NUM_PHILOSOPHERS #define RIGHT i #define LEFT (i+1)%N semaphore_t chopstick[N]; void init(){ for (i=0; i<N; i++) chopstick[i].value = 1; }

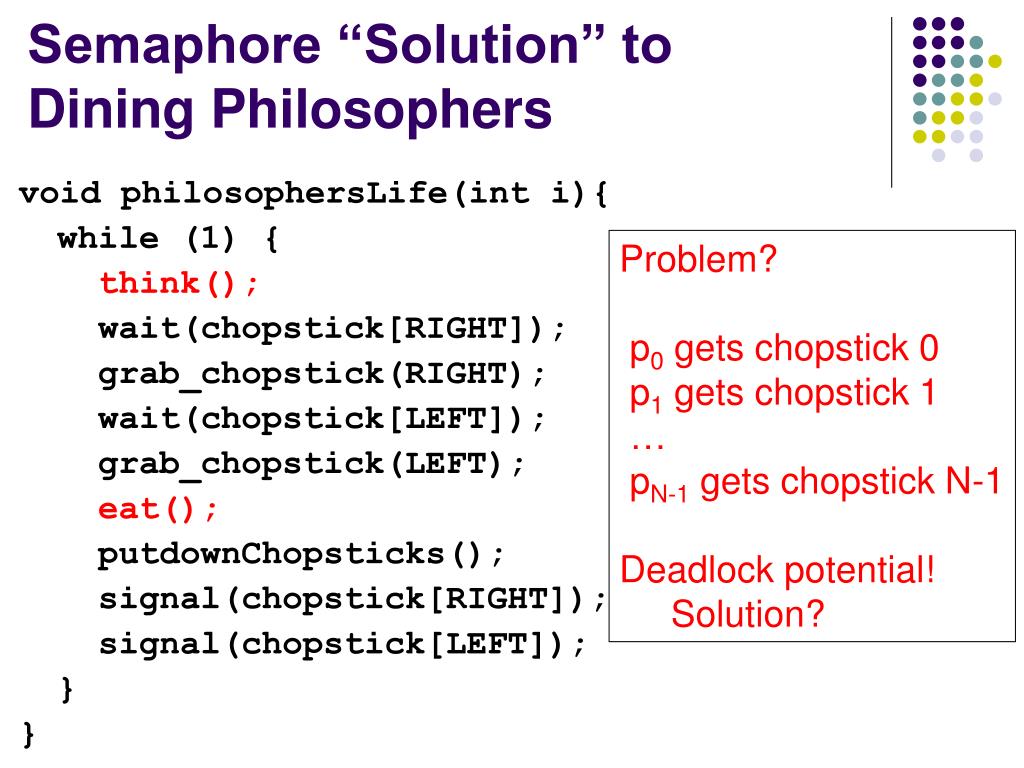

5. Semaphore “Solution” to Dining Philosophers void philosophersLife(int i){ while (1) { think(); wait(chopstick[RIGHT]); grab_chopstick(RIGHT); wait(chopstick[LEFT]); grab_chopstick(LEFT); eat(); putdownChopsticks(); signal(chopstick[RIGHT]); signal(chopstick[LEFT]); } } Problem? p0 gets chopstick 0 p1 gets chopstick 1 … pN-1 gets chopstick N-1 Deadlock potential! Solution?

6. Deadlock • Deadlock exists in a set of processes/threads when all processes/threads in the set are waiting for an event that can only be caused by another process in the set (which is also waiting!). • Dining Philosophers is a perfect example. Each holds one chopstick and will wait forever for the other.

7. Resource Allocation Graph • Deadlock can be described through a resource allocation graph • Each node in graph represents a process/thread or a resource • An edge from node P to R indicates that process P had requested resource R • An edge from node R to node P indicates that process P holds resource R • If graph has cycle, deadlock may exist. If graph has no cycle, deadlock cannot exist.

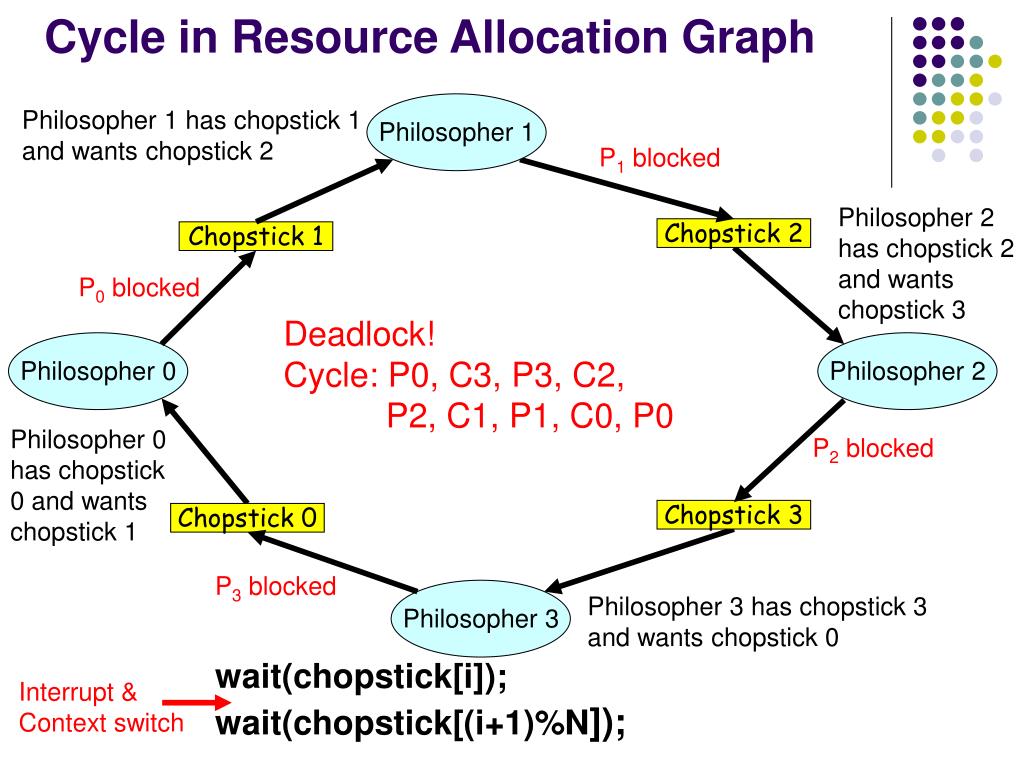

8. Philosopher 1 has chopstick 1 and wants chopstick 2 Philosopher 1 P1 blocked Philosopher 2 has chopstick 2 and wants chopstick 3 Chopstick 2 Chopstick 1 P0 blocked Philosopher 2 Philosopher 0 Philosopher 0 has chopstick 0 and wants chopstick 1 Chopstick 3 Chopstick 0 Philosopher 3 P3 blocked Philosopher 3 has chopstick 3 and wants chopstick 0 Cycle in Resource Allocation Graph wait(chopstick[i]); wait(chopstick[(i+1)%N]); Deadlock! Cycle: P0, C3, P3, C2, P2, C1, P1, C0, P0 P2 blocked Interrupt & Context switch

9. Fixing Dining Philosophers • Make philosophers grab both chopsticks they need atomically • Maybe pass around a token (lock) saying who can grab chopsticks • Make a philosopher give up a chopstick • Others?

10. Better Semaphore Solution to Dining Philosophers void philosophersLife(int i){ while (1) { think(); if ( i < ((i-1) % NUM_PHILOSOPHERS))}{ wait(chopstick[i]); wait(chopstick[(i-1) % NUM_PHILOSOPHERS]); } else { wait(chopstick[(i-1) % NUM_PHILOSOPHERS]); wait(chopstick[i]); } eat(); signal(chopstick[i]); signal(chopstick[(i-1) % NUM_PHILOSOPHERS]); } } Always wait for low chopstick first Why better? philosopher 0 gets chopstick 0 philosopher 1 gets chopstick 1 …. philosopher N waits for chopstick 0 No circular wait! No deadlock!!

11. P1 blocked Chopstick 2 P0 blocked Philosopher 2 Philosopher 0 Chopstick 3 Chopstick 0 P2 can still run, request & get chopstick 3, eat, release chopsticks 2 & 3 Philosopher 3 P3 blocked No Cycle in Resource Allocation Graph Philosopher 1 Chopstick 1 if ( i < ((i+1)%N))}{ wait(chopstick[i]); wait(chopstick[(i+1)%N]); } else { wait(chopstick[(i+1)%N]); wait(chopstick[i]); } No cycle! No deadlock! Philosopher 0 will eat, then 3, then 2, then 1

12. Recall: Conditions for Deadlock • Deadlock can exist if and only if the following four conditions are met; • Mutual Exclusion – some resource must be held exclusively • Hold and Wait – some process must be holding one resource and waiting for another • No preemption – resources cannot be preempted • Circular wait – there must exist a set of processes (p1,p2, …pn) such that p1 is waiting for p2, p2 is waiting for p3, … pn is waiting for p1 • All these held in the Dining Philosopher’s first “solution” we proposed • Can’t really do anything about preventing mutual exclusion; so what are the other options?

13. Preventing Hold and Wait(partial allocation) • Do not allow processes to hold a resource when requesting others • Make philosophers get both chopsticks at once • Window’s WaitForMultipleObjects • Make processes ask for all resources they need at the beginning • Disadvantage: May not need all resources the whole time • Can release them early but must hold until used • Make processes release any held resources before requesting more • Hard to program!

14. Preventing No Preemption • Preemption (have to love those double negative  ) • Allow system to take back resources once granted • Make some philosopher give back a chopstick • Disadvantage: Hard to program • System figures out how to take away CPU and memory without breaking programmer’s illusion • How do you take away access to an open file or a lock once granted?? Would need API to notify program and then code to deal with the removal of the resource at arbitrary points in the code • Checkpoint and Rollback?

15. Preventing Circular wait • Impose an ordering on the possible resources and require that processes request them in a specific order • How did we prevent deadlock in dining philosophers? • Numbered the chopsticks • Made philosophers ask for lowest number chopstick first • Disadvantage: • Hard to think of all types of resources in system and number them consistently for all cooperating processes • I use a resource X and Y , you use resource Y and Z and W, someone else uses W, T, R – which is resource 1? (shared files, databases, chopsticks, locks, events, …) • For threads in the same process or closely related processes often isn’t that bad

16. Deadlock Avoidance • Avoidance vs Prevention? Both actually prevent deadlock • Deadlock Prevention does so by breaking one of the four necessary conditions • Deadlock Avoidance allows processes to make any request they want (not constrained in ways so as to break one of the four conditions) *as long as* they declare their maximum possible resource requests at the outset • Deadlock avoidance usually results in higher resource allocation by allowing more combinations of resource requests to proceed than deadlock prevention • Still deadlock avoidance can deny resource requests that would not actually lead to deadlock in practice • More on this later...

17. Dining Philosophers Monitor monitor DP { /* diningPhilosophers */ enum Moods{thinking, hungry, eating}; Moods state[N]; /* N is Num_Philosophers */ condition self[N]; void pickup(int i); void putdown(int i) ; void test(int i) ; void init() { for (int i=0; i < N; i++) state[i] = thinking; } }

18. Dining Philosophers Monitor /********************************************** * Consider philosopher i (pi): * state[i] is * thinking (don’t need resources), * hungry (want resources), * eating (have all needed resources) * self[i] is a condition variable for pi * used when i has to wait for resources * state[(i+N-1) % N] is * the state of the philosopher to pi’s right * state[(i+1) % N] is * the state of the philosopher to pi’s left *********************************************/

19. Dining Philosophers Monitor void pickupChopsticks(int i) { state[i] = hungry; test[i]; if (state[i] != eating) self[i].wait(); } void putdownChopsticks(int i) { state[i] = thinking; // test left and right neighbors test((i+(N-1)) % N); test((i+1) % N); }

20. Dining Philosophers Monitor void test(int i) { if ((state[(i+N-1) % N] != eating) && (state[i] == hungry) && (state[(i+1) % N] != eating)) { state[i] = eating; self[i].signal(); } } } /* end DP monitor */

21. Dining Philosophers Each “philosopher” thread executes: void philosophersLife(int i) { while(1){ think(); DP.pickupChopsticks(); eat(); DP.putdownChopsticks(); } }

22. Generalize to Messaging • Synchronization based on data transfer (atomic) across a channel • In general, messages can be used to express ordering/scheduling constraints • Wait for message before do X • Send message = signal • Direct extension to distributed systems

23. Window’s Events & UNIX Signals • Window’s Events • Synchronization objects used somewhat like semaphores when they are used for ordering/scheduling constraints • One process/thread can wait for an event to be signaled by another process/thread • Recall: UNIX signals • Kill = send signal; Signal = catch signal • Many system defined but also signals left to user definition • Can be used for synchronization • Signal handler sets a flag • Main thread polls on the value of the flag • Busy wait though

24. Window’s Events • Create/destroy HANDLE CreateEvent(   LPSECURITY_ATTRIBUTES lpsa, // security privileges (default = NULL)   BOOL bManualReset,          // TRUE if event must be reset manually   BOOL bInitialState,         // TRUE to create event in signaled state   LPTSTR lpszEventName );     // name of event (may be NULL) BOOL CloseHandle( hObject ); • Wait DWORD WaitForSingleObject( HANDLE hObject,         // object to wait for                           DWORD dwMilliseconds ); • Signal (all threads that wait on it receive) BOOL SetEvent( HANDLE hEvent ); //signal on BOOL ResetEvent( HANDLE hEvent ); //signal off

25. Pthread’s Condition Variables • Create/destroy int pthread_cond_init (pthread_cond_t *cond, pthread_condattr_t *attr); int pthread_cond_destroy (pthread_cond_t *cond); • Wait int pthread_cond_wait (pthread_cond_t *cond, pthread_mutex_t *mut); • Timed Wait int pthread_cond_timedwait (pthread_cond_t *cond, pthread_mutex_t *mut, const struct timespec *abstime); • Signal int pthread_cond_signal (pthread_cond_t *cond); • Broadcast int pthread_cond_broadcast (pthread_cond_t *cond);
