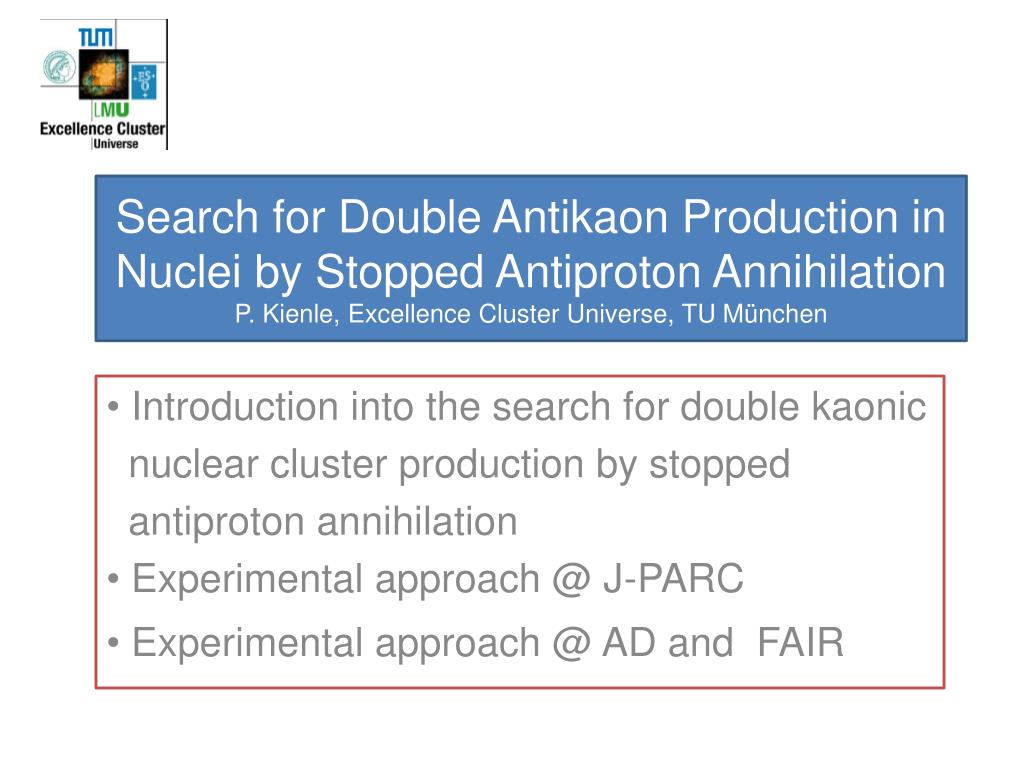

  1. Searchfor Double Antikaon Productionin Nuclei byStopped Antiproton AnnihilationP. Kienle, Excellence Cluster Universe, TU München Introduction into the search for double kaonic nuclear cluster production by stopped antiproton annihilation Experimental approach @ J-PARC Experimental approach @ AD and FAIR

  2. A Proposal forthe CERN AD

  3. Letter ofIntentfor J-PARC

  4. Possibility of “Double-Kaonic Nuclear Cluster” Production by Stopped-pbarAnnihilation Preludeto „Double-Strange Nuclei“ @ LEAP W. Weise, arXiv: 0507.058 (nucl-th) 2005 P. Kienle, J. Mod. Phys., A22 (2007) 365 P. Kienle, J. Mod. Phys., E16 (2007) 905 J. Zmeskal et al. EXA/LEAP 08, Hyper, Int J. Zmeskal et al. „Double-Strangeness Pro- ductionby Antiprotons, May 2009, CERN

  5. DeeplyBound Di-Baryon Resonance with Strangness S =-1 • Properties • p+p -> K+ +X @ highmomentumtransfer • MX = 2.265 (2) GeV/c² -> BX = 105(2) MeV • ΓX = 118(8) MeV/c² • Assignedtodeeplybound, denseK-ppclusterwithBxabouttwicethevaluepredictedby AY • High observedproductionprobabilityispredictedbythe AY reaction model forthecaseof a highdensitycluster X • Consequencesfor Double Strange Cluster • Higher bindingenergyandhigherdensityexpectedcomparedwithsinglestrangecluster • T. Yamazaki et al.Hyp. Inter.DO: 10.1007/ s 10751-0099997-5

  6. Double-Kaonic Nuclear Cluster • Double-kaonic nuclear clusters have been predicted theoretically. • Double-kaonic clusters are expected to have a stronger binding • energy and a higher density than single ones. PL,B587,167 (2004). & NP, A754, 391c (2005). • How to produce the double-kaonic nuclear cluster? • heavy ion collision • (K-,K+) reaction • pbarA annihilation We use pbarA annihilation

  7. Double-Strangeness Production with pbar The elementary pbar-p annihilation reaction: -98MeV is forbidden for stopped pbar, because of a negative Q-value of 98MeV However, if deeply bound multi kaonic nuclear clusters exist, production by pbarannihilation reactions will be possible! theoretical prediction B.E.=117MeV G=35MeV B.E.=221MeV G=37MeV

  8. Double-Strangeness Production Observations of the double-strangeness production in stopped pbar annihilation have been reported by 2 groups only, DIANA@ ITEP and OBELIX@ CERN/LEAR. Although the observed statistics is very low, their results have indicated a high yield of ~10-4

  9. A double-strangeness production yield of ~10-4would make it possible to explore the exotic systems with a dedicated experiment Experimental Approach for J-PARC

  10. Searchforthe Most Elementary K-K-pp System In the following discussion, we focus on the reaction: (although K-K-pp decay modes are not known,) we assume the most energetic favored decay mode: final state = K+K0LL • We can detect the K-K-pp signal with: • exclusive measurement • all charged particles, K+K0LL, using K0p+p- mode • K0LL, and K+ ID using K0LL missing mass • (semi-)exclusive measurement • K+K0 missing mass with L-tag • LL invariant mass We need wide-acceptance detectors.

  11. Expected Kinematics • assumptions: • widths of K-K-pp/H = 0 • many-body decay = isotropic decay K+ K0 X momentum spectra B.E=109MeV B.E=150MeV B.E=200MeV (threshold) In the K-K-pp production channel, the kaons have very small momentum of up to 300MeV/c, even if B.E.=200MeV. We have to construct low mass material detectors.

  12. Beam-Line We would like to perform the proposed experiment at K1.1 or K1.8BR beam line pbar stopping-rate evaluation by GEANT4 • Incident Beam • momentum bite : +/-2.5% (flat) • incident beam distribution : ideal • Detectors • Carbon Degrader : 1.99*g/cm3 • Plastic Scintillator : l=1cm, 1.032*g/cm3 • Liquid He3 target : f7cm, l=12cm, 0.080*g/cm3 1.3x103 stopped pbar/spill @ 0.65GeV/c, ldegrader~14cm • 30GeV-9mA, • 6.0degrees • Ni-target pbar production yield with a Sanford-Wang pbar stopping-rate

  13. Expected Double-Strangeness Yield • pbar beam momentum : 0.65GeV/c • beam intensity : 3.4x104/spill/3.5s • pbar stopping rate : 3.9% • stopped-pbar yield : 1.3x103/spill/3.5s • Double-strangeness production : 1x10-4/stopped-pbar  9.6x104 double-strangeness/month a mere assumption! • branching ratio to K+K0LL final state : 0.1  9.6x103 K+K0LL/month

  14. Detector Design I • design concept • low material detector system • wide acceptance with PID • useful for other experiments We are considering 2-types of detector E15 setup @ K1.8BR • B = 0.5T • CDC resolution : srf = 0.2mm • sz’s depend on the tilt angles (~3mm) • ZTPC resolution : sz = 1mm • srf is not used for present setup

  15. Detector Design II New dipole setup @ K1.1 • The design goal is to become the common setup for the f-nuclei experiment with in-flight pbar-beam • B = 0.5T • Double Cylindrical-Drift-Chamber setup • pID is performed with dE/dx measurement by the INC • INC resolution : srf = 0.2mm , sz = 2mm (UV) • CDC resolution : srf = 0.2mm, sz = 2mm (UV) • CDC is NOT used for the stopped-pbar experiment

  16. Expected Signals LL inv-mass with NEW setup LL inv-mass with E15 setup 53 K-K-pp events/month 42 K-K-pp events/month sK-K-pp = 27MeV sH = 0.7MeV sK-K-pp = 34MeV sH = 14MeV Backgrounds from S0gL have to be taken into account K+K0 miss-mass with NEW setup K+K0 miss-mass with E15 setup sK-K-pp = 8MeV sH = 25MeV sK-K-pp = 12MeV sH = 45MeV 17 K-K-pp events/month 24 K-K-pp events/month

  17. Summary • We propose to search for double strangeness production by pbar annihilation on helium nuclei at rest. • The proposed experiment will provide significant information on double strangeness production and double strangeness cluster states, like K-K-pp. Outlook • We are investigating further realistic estimation of the K+K0LL yield and the backgrounds for (semi-)inclusive measurements. • We are now preparing the proposal for J-PARC based on the LoI.

  18. Experimental Approach for AD of CERN and FAIR

  19. ThanksforYour Attention

  20. Interpretation of the Experimental Results • Although observed statistics are very small, the results have indicated a high yield of ~10-4, which is naively estimated to be ~10-5. • Possible candidates of the double-strangeness production mechanism are: • rescattering cascades, • exotic B>0 annihilation (multi-nucleon annihilation) • formation of a cold QGP, deeply-bound kaonic nuclei, • H-particle, and so on the mechanism is NOT known well because of low statistics of the experimental results! single-nucleon annihilation rescattering cascades multi-nucleon annihilation B=0 B>0 B>0

  21. DIANA RESULTS • DIANA[Phys.Lett., B464, 323 (1999).] • pbarXe annihilation • p=<1GeV/c pbar-beam @ ITEP 10GeV-PS • 700-liter Xenon bubble chamber, w/o B-field • 106 pictures7.8x105pbarXe inelastic  2.8x105pbarXe @ 0-0.4GeV/c

  22. OBELIX RESULTS • OBELIX(’86~’96) [Nucl. Phys., A797, 109 (2007).] • pbar4He annihilation • stopped pbar @ CERN/LEAR • gas target (4He@NTP, H2@3atm) • cylindrical spectrometer w/ B-field • spiral projection chamber, • scintillator barrels, jet-drift chambers • 2.4x105/4.7x104 events of 4/5-prong in 4He • pmin = 100/150/300MeV/c for p/K/p they discuss the possibility of formation and decay of K-K-nn and K-K-pnn bound system

  23. Expected Kinematics II MH= 2ML LL spectra L-L opening-angle L momentum LL inv. mass strong correlation of LL opening-angle in K-K-pp/H productions

  24. Trigger Scheme pbar3He charged particle multiplicity at rest CERN LEAR, streamer chamber exp. NPA518,683 91990). & expected stopped-pbar yield = 1.3x103/spill All events with a scintillator hit will be accumulated

  25. Expected Signals I • pbar+3HeK+K0S+ X (X=KKpp/H/LL) events are generated isotropically at the center of the detector system • # of generated events is 200k for each case • obtained yields are scaled by the estimated K+K0LL yield • chamber resolution, multiple scattering and energy losses are fully took into account using GEANT4 toolkit • charged particles are traced with spiral fit • assumptions: • widths of K-K0pp/H = 0 • B.E. of K-K-pp = 200MeV • MH = 2xML • branching ratio to K+K0LL final state = 0.1 • DAQ & analysis efficiency = 0.7  6.7x103 K+K0LL/month • Generated ratio  K-K-pp:H:LL = 0.1:0.1:0.8 • KKppLL and HLL decay branches are assumed to be 100% • S0gL contribution is NOT considered for the inclusive measurements LL invariant mass : inclusive events K+K0 missing mass : semi-inclusive events (w/ one more L)

  26. K+K0ΛΛFinal State & Background This exclusive channel study is equivalent to the unbound (excited) H-dibaryon search! Possible background channels • direct K+K0LL production channels, like: be distinguished by inv.-mass only  major background source • S0gL contaminations, like: be eliminated by the kinematical constraint
