  1. Root Kits and Windows Hardening Team BAM!Scott AmackEverett BlochMaxine Major

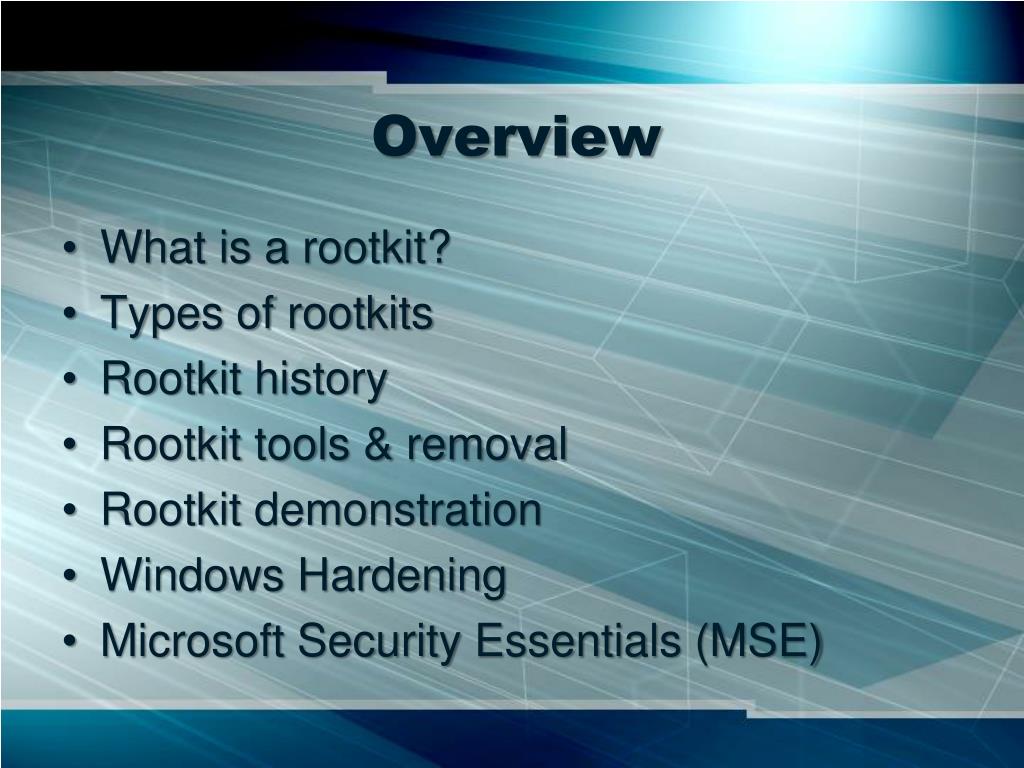

  2. Overview • What is a rootkit? • Types of rootkits • Rootkit history • Rootkit tools & removal • Rootkit demonstration • Windows Hardening • Microsoft Security Essentials (MSE)

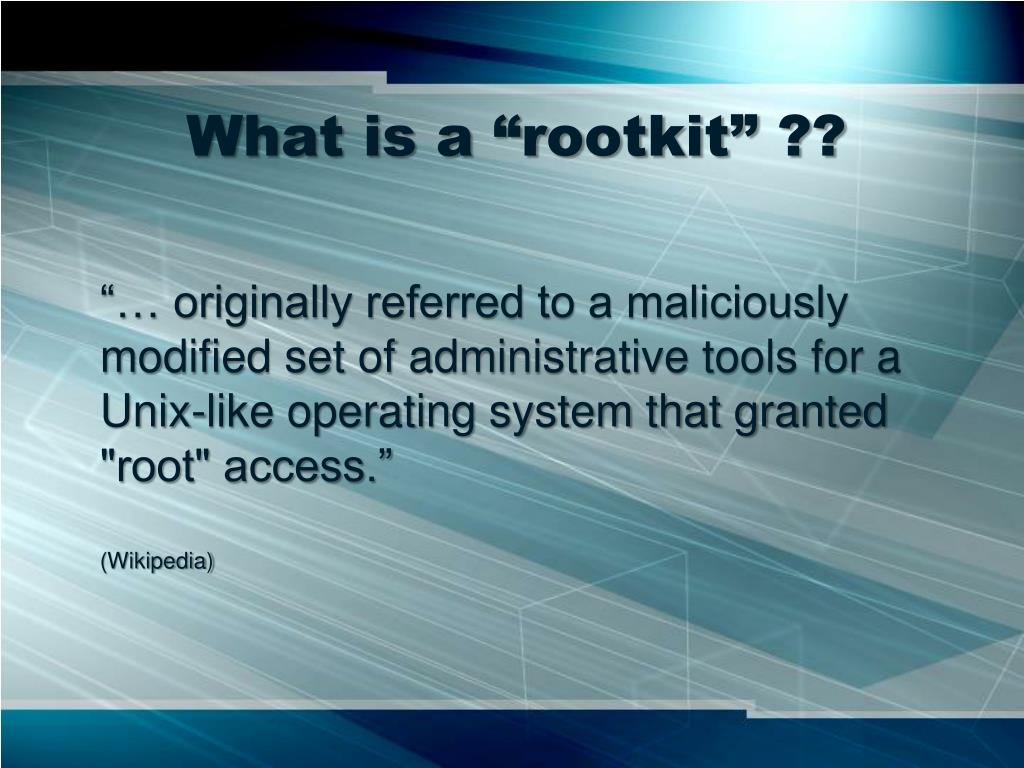

  3. What is a “rootkit” ?? “… originally referred to a maliciously modified set of administrative tools for a Unix-like operating system that granted "root" access.”(Wikipedia)

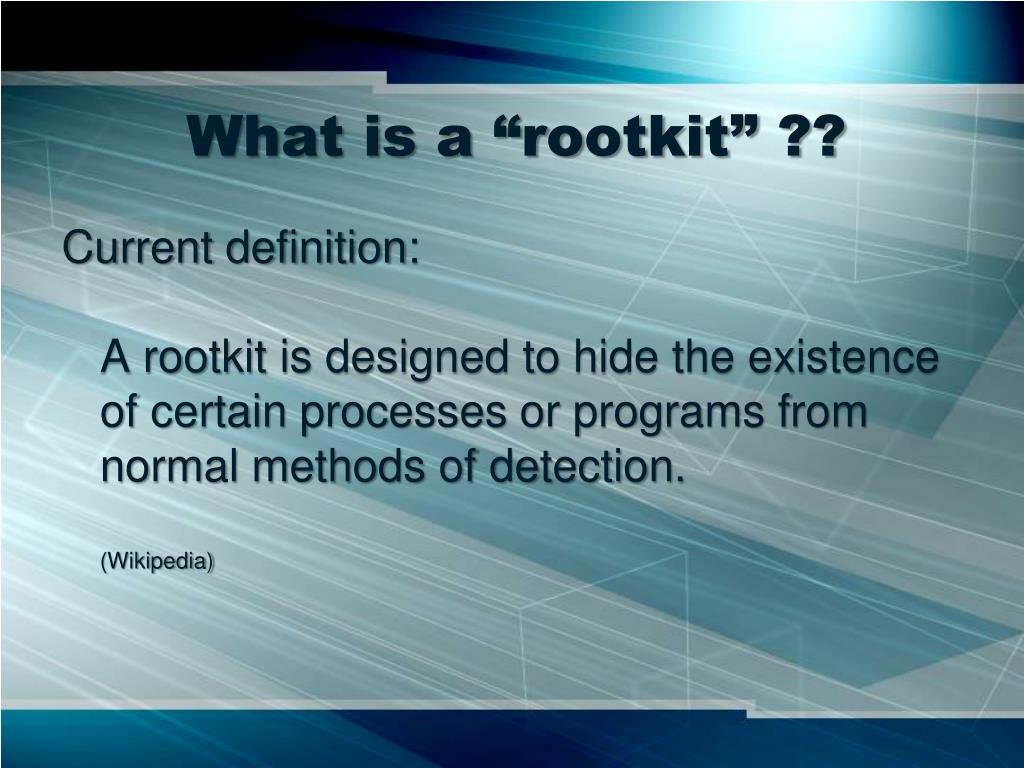

  4. What is a “rootkit” ?? Current definition:A rootkit is designed to hide the existence of certain processes or programs from normal methods of detection.(Wikipedia)

  5. History of Rootkits Brain Virus (1968) • First documented computer virus • Used cloaking techniques to hide itself • Intercepted attempts to read the boot sector and redirected to disk where copies of the original boot sector were kept.

  6. History of Rootkits C compiler exploit (1983) • Discovered by Ken Thompson of Bell Labs (one of the creators of Unix) • Subverted the C compiler by recompiling with two Trojan Horses

  7. History of Rootkits C compiler exploit (1983) • First, detected attempts to compile “login” command • Login would accept users correct password and one that the attacker specified • Allowed attacker to log into any account on the system

  8. History of Rootkits C compiler exploit (1983) • Second, detected attempts to recompile • Inserted same exploits into the new compiler • Inspection of source would not reveal any malicious code These exploits are equivalent to a rootkit

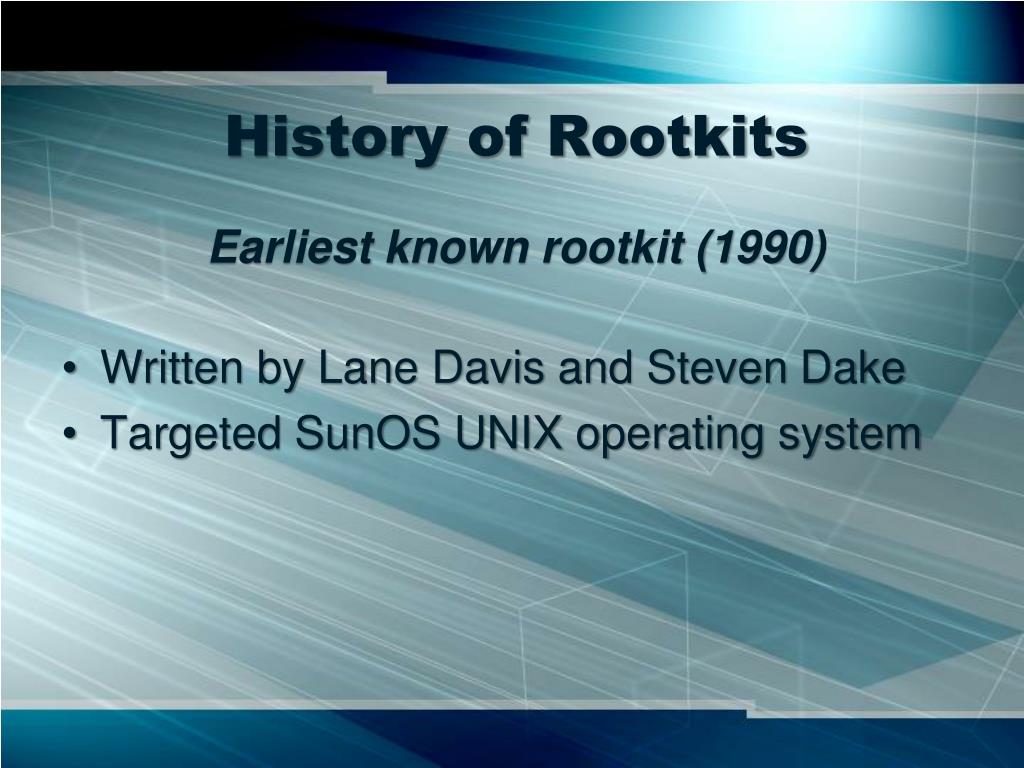

  9. History of Rootkits Earliest known rootkit (1990) • Written by Lane Davis and Steven Dake • Targeted SunOS UNIX operating system

  10. History of Rootkits NTRootkit(1999) • First malicious rootkit for Windows NT • Created by Greg Hoglund • Implemented as a Trojan • Used OS hooks to conceal presence (McAfee)

  11. History of Rootkits HackerDefender (2003) • First rootkit targeting Mac OS X • Used OS hooks to conceal presence (McAfee)

  12. History of Rootkits Greek wiretapping (2004-2005)AKA “Greek Watergate” • Targeted mobile phones of important Greek government members and civil servants • Rootkit targeted the telephone exchange • Patched memory of exchange, audit log, active processes, and active data blocks

  13. History of Rootkits Greek wiretapping (2004-2005)AKA “Greek Watergate” • Modified the data block checksum verification command • Backdoor allowed operator with sysadmin status to access surveillance information and allow rootkit updates • Rootkit discovered after an update prevented SMS messages from being delivered • Identity of perpetrators is still unknown

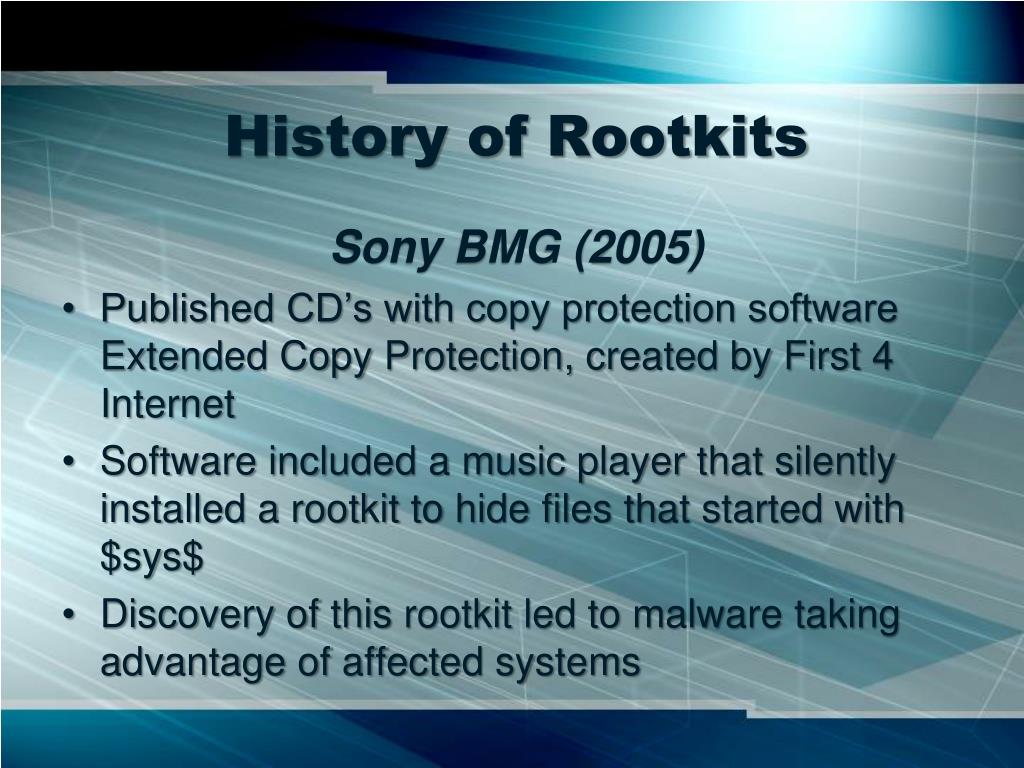

  14. History of Rootkits Sony BMG (2005) • Published CD’s with copy protection software Extended Copy Protection, created by First 4 Internet • Software included a music player that silently installed a rootkit to hide files that started with $sys$ • Discovery of this rootkit led to malware taking advantage of affected systems ()

  15. History of Rootkits RootkitRevealer (2006) • Created by Mark Russinovich • Windows rootkit discovery software • Identifies Windows Registry and file system API discrepancies, which may indicate the presence of a rootkit

  16. History of Rootkits Stuxnet (2010) • First to target programmable logic controllers (PLC) (Wikipedia)

  17. History of Rootkits Ubisoft DRM (2012) • Ubisoft’s game DRM used internet connection to ensure any game played was legal • Created a backdoor allowing continued privileged access to user’s machine. • Ubisoft: “…not a rootkit.” Just a “coding error” Hanlon’s Razor - “Never attribute to malice that which is adequately explained by stupidity.” (Geek, lazygamer) (Geek)

  18. Types of Rootkits • Persistent Rootkits • Memory-Based Rootkits • User-mode Rootkits • Kernel-mode Rootkits (Windows Sysinternals)

  19. Types of Rootkits Persistent Rootkits • Malware activates each time the system boots • Store code in a persistent store, such as the Registry or file system • Configure a method by which the code executes without user intervention

  20. Types of Rootkits Memory-Based Rootkits • Has no persistent code • Does not survive a reboot

  21. Types of Rootkits User-mode Rootkits • Attempts to evade detection: • Windows native API is interface between user-mode clients and kernel-mode services • Sophisticated user-mode rootkits intercept file system, Registry, and process enumeration functions of the Native API • This prevents detection by scanners that compare the results of a Windows API enumeration with that returned by a native API enumeration

  22. Types of Rootkits Kernel-mode Rootkits • Can intercept native API and directly manipulate kernel-mode data structures • Hides the presence of malware processes by removing the process from the kernel's list of active processes. • Malware process will not display in process management tools like Task Manager or Process Explorer.

  23. Rootkit Removal • OS Reinstall • May require boot sector repair • Rootkit Detection/Removal Tools • Some tools are specific to one type of rootkit • We will demo two of these tools today. • Manual Removal • Complicated. • It is advised that you do this in conjunction with rootkit detection tools. (e.g.: Blacklight)

  24. Rootkit Tools • The tools we will be using for our demo: • RootkitRevealer • Blacklight • FU Rootkit

  25. Rootkit Tools • RootkitRevealer • Displays Registry and File System API discrepancies • Works on user-mode and kernel-mode rootkits • Runs on Windows XP and Windows Server 2003

  26. Rootkit Tools • Blacklight • Detects hidden processes, files, and directories • Helps remove hidden files and directories • Runs on Windows

  27. Rootkit Tools • FU Rootkit • Kernel-mode rootkit • Hides running processes and Kernel-mode modules • Directly modifies certain kernel data structures used by the operating system • Does not actively try to hide itself

  28. Rootkit Demonstration

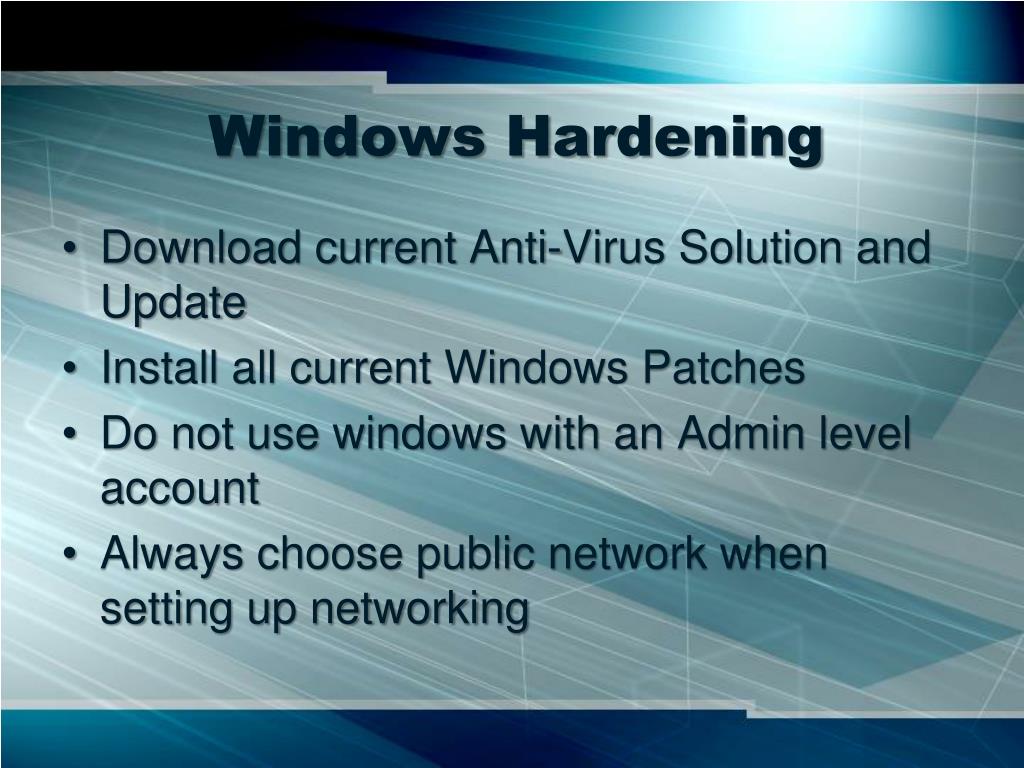

  29. Windows Hardening • Download current Anti-Virus Solution and Update • Install all current Windows Patches • Do not use windows with an Admin level account • Always choose public network when setting up networking

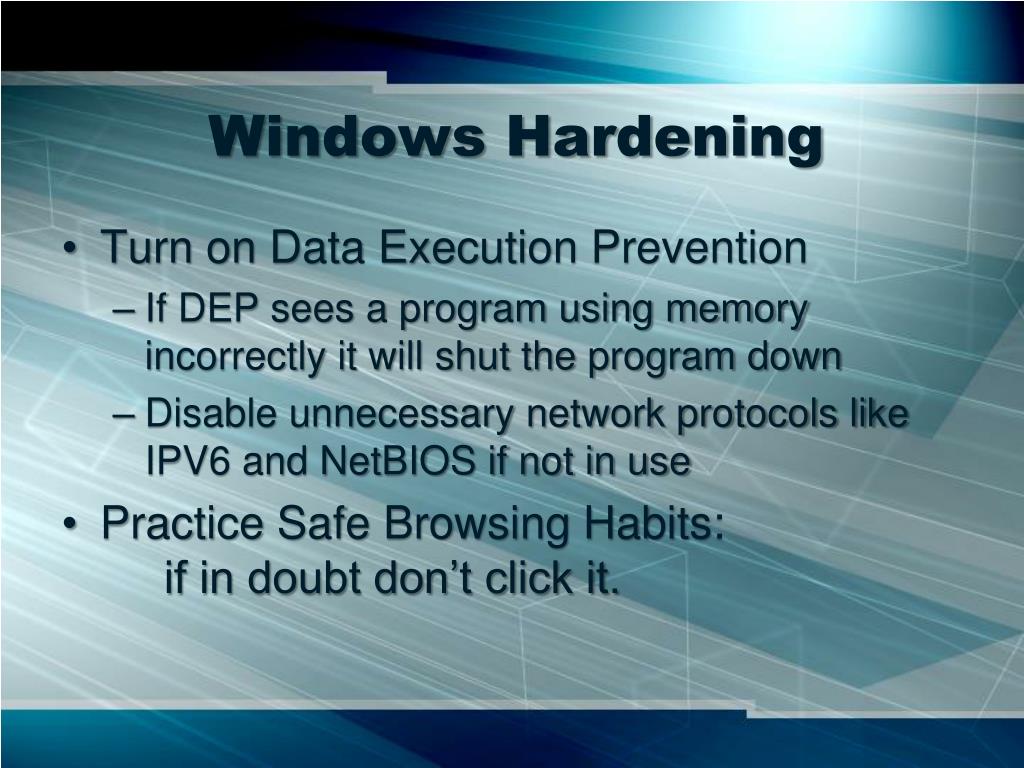

  30. Windows Hardening • Turn on Data Execution Prevention • If DEP sees a program using memory incorrectly it will shut the program down • Disable unnecessary network protocols like IPV6 and NetBIOS if not in use • Practice Safe Browsing Habits: if in doubt don’t click it.

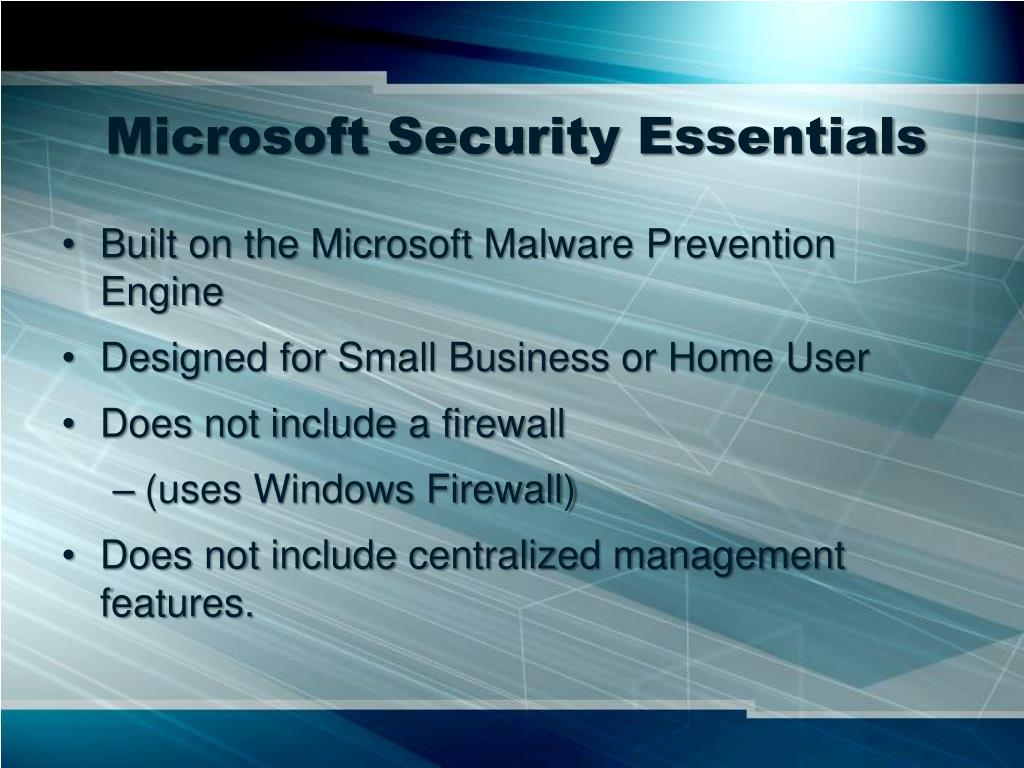

  31. Microsoft Security Essentials • Built on the Microsoft Malware Prevention Engine • Designed for Small Business or Home User • Does not include a firewall • (uses Windows Firewall) • Does not include centralized management features.

  32. Microsoft Security Essentials • Initial Public Beta – June 23 2009 • Final Build of Version 1.0 Released Sept 29 2009 • Version 2.0 released Dec 16 2010 • 2.0 Included a Network Inspection System • Network intrusion detection for Windows Vista & 7 • 2.0 Included new engine employing heuristics in malware detection. • Suspicious files are executed in a virtual machine that looks for suspect activity

  33. Microsoft Security Essentials • Version 4.0 released April 24 2012 • Improved memory overhead • Improved Scanning Engine • September 2012 • MSE loses AV-Test Certification with poor protection score

  34. Microsoft Security Essentials • October 2012 Windows 8 is released • does not have MSE • It is speculated that Microsoft switched their focus to windows defender for Windows 8 • For a Free Solution MSE is still a very good product

  35. Conclusions • Rootkits evade detection by intercepting the native system calls and disguising its activities. • Rootkit detection software can identify potential rootkits (but may not remove them) • Windows hardening starts with basics: updates and a security software solution!

  36. Summary • Definition of a Rootkit • RootkitHistory • Types of Rootkits • Rootkit Removal • Rootkit Tools & Demonstration • Windows Hardening • Microsoft Security Essentials

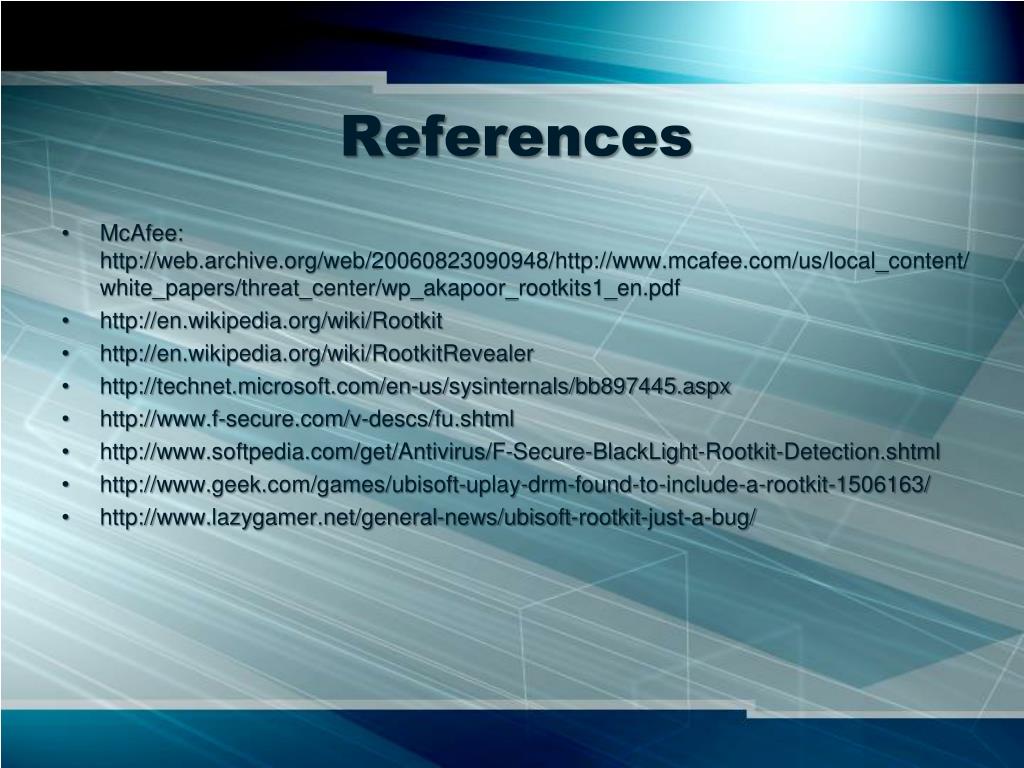

  37. References • McAfee:http://web.archive.org/web/20060823090948/http://www.mcafee.com/us/local_content/white_papers/threat_center/wp_akapoor_rootkits1_en.pdf • http://en.wikipedia.org/wiki/Rootkit • http://en.wikipedia.org/wiki/RootkitRevealer • http://technet.microsoft.com/en-us/sysinternals/bb897445.aspx • http://www.f-secure.com/v-descs/fu.shtml • http://www.softpedia.com/get/Antivirus/F-Secure-BlackLight-Rootkit-Detection.shtml • http://www.geek.com/games/ubisoft-uplay-drm-found-to-include-a-rootkit-1506163/ • http://www.lazygamer.net/general-news/ubisoft-rootkit-just-a-bug/
