Chapter 2 Review Questions

Chapter 2 Review Questions. 1. Which Virtualization technologies support USB? (Choose 3) A. VMware Workstation C. VMware ESX 4.x with USB passthru B. VMware Server D. Microsoft Virtual Server 2. Which VMware product is used to create desktop security or secure Virtual Machines?

igor-guerra
Download Presentation

Chapter 2 Review Questions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 2 Review Questions 1. Which Virtualization technologies support USB? (Choose 3) A. VMware Workstation C. VMware ESX 4.x with USB passthru B. VMware Server D. Microsoft Virtual Server 2. Which VMware product is used to create desktop security or secure Virtual Machines? A. VMware Server C. VMware Player B. VMware ACE D. VMware Virtual Desktop Infrastructure  3. How much RAM is supported by Microsoft Virtual Server 2005 R2 SP1 per Virtual Machine? A. 2 GB C. 3.6 GB B. 1.4 GB D. 8 GB   4. VMware Server is supported for production environments? TRUE FALSE

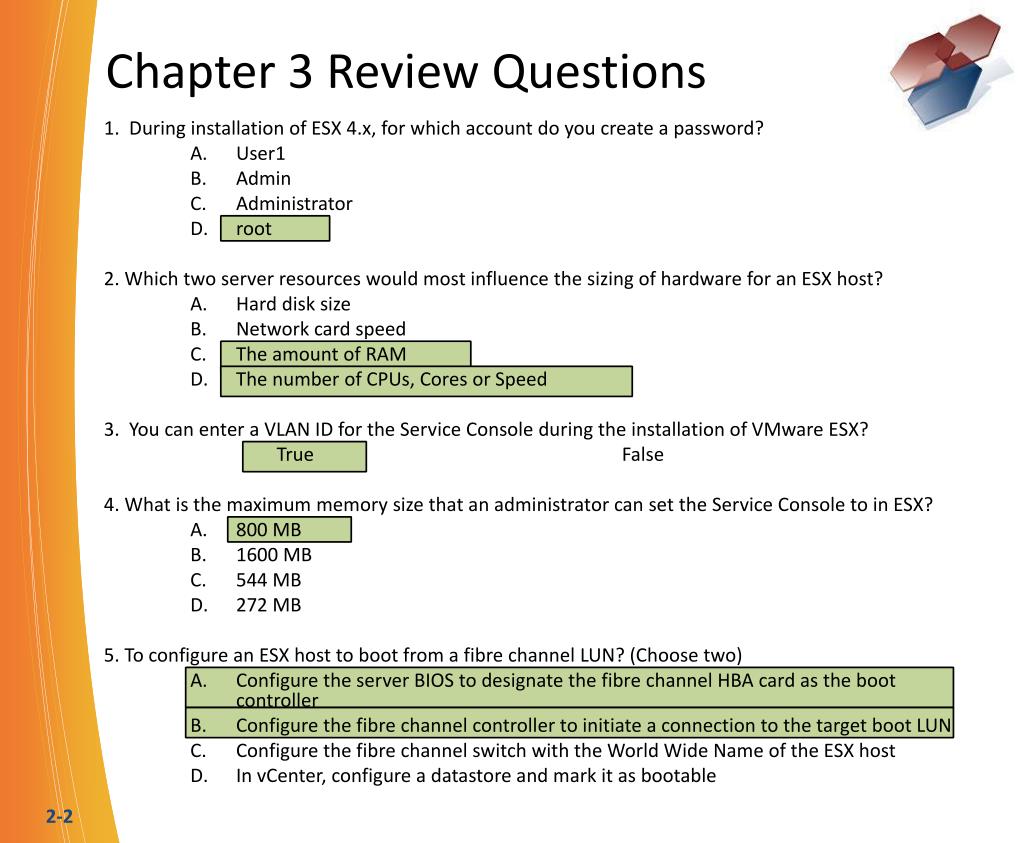

  2. Chapter 3 Review Questions 1. During installation of ESX 4.x, for which account do you create a password? • User1 • Admin • Administrator • root 2. Which two server resources would most influence the sizing of hardware for an ESX host? • Hard disk size • Network card speed • The amount of RAM • The number of CPUs, Cores or Speed 3. You can enter a VLAN ID for the Service Console during the installation of VMware ESX? True False 4. What is the maximum memory size that an administrator can set the Service Console to in ESX? • 800 MB • 1600 MB • 544 MB • 272 MB 5. To configure an ESX host to boot from a fibre channel LUN? (Choose two) • Configure the server BIOS to designate the fibre channel HBA card as the boot controller • Configure the fibre channel controller to initiate a connection to the target boot LUN • Configure the fibre channel switch with the World Wide Name of the ESX host • In vCenter, configure a datastore and mark it as bootable

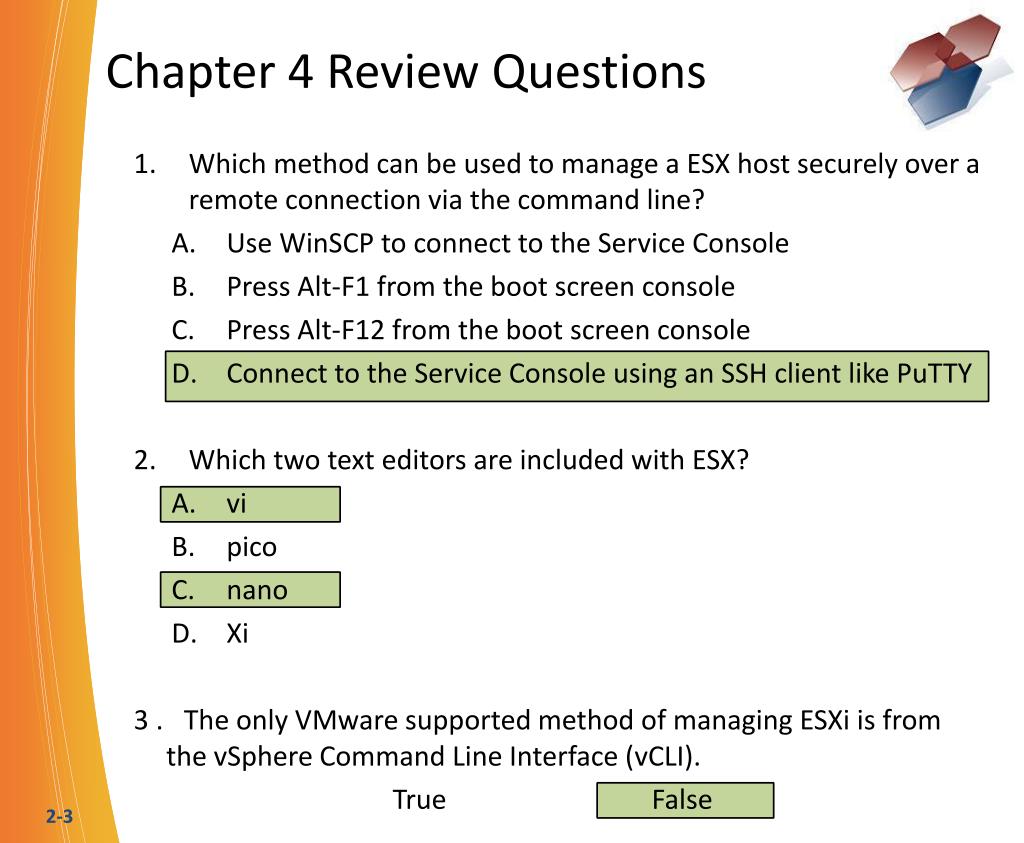

  3. Chapter 4 Review Questions • Which method can be used to manage a ESX host securely over a remote connection via the command line? • Use WinSCP to connect to the Service Console • Press Alt-F1 from the boot screen console • Press Alt-F12 from the boot screen console • Connect to the Service Console using an SSH client like PuTTY • Which two text editors are included with ESX? • vi • pico • nano • Xi 3 . The only VMware supported method of managing ESXi is from the vSphere Command Line Interface (vCLI). True False

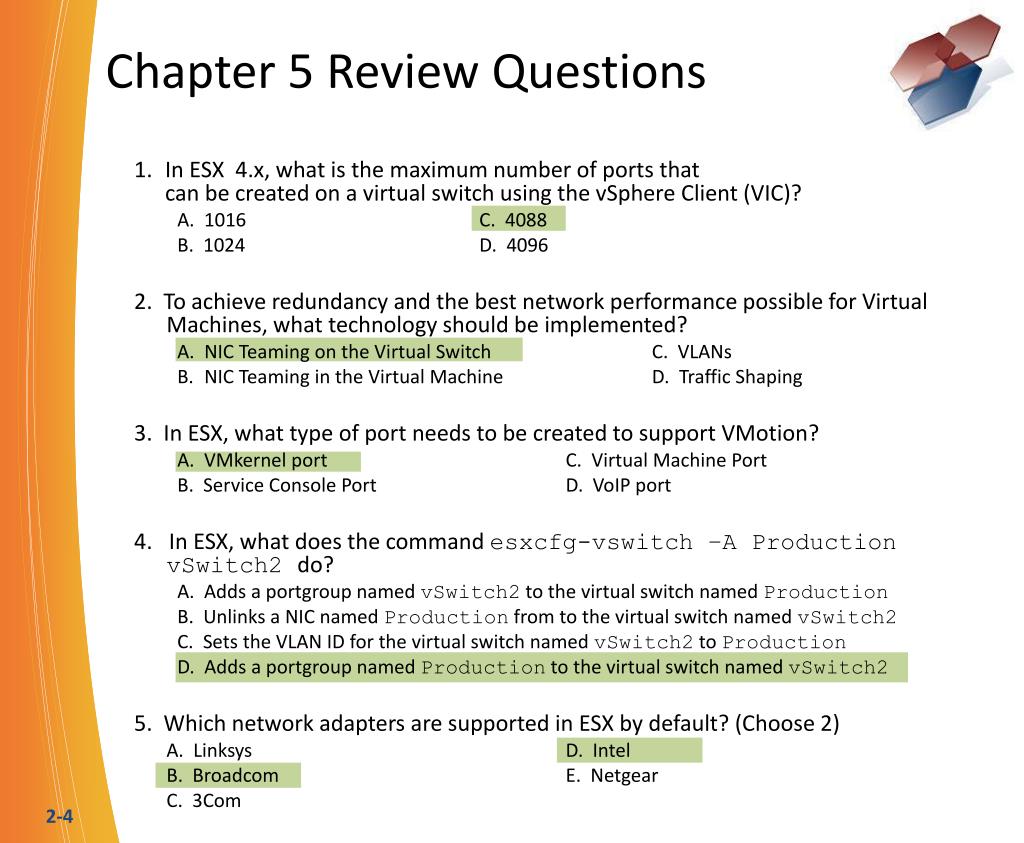

  4. Chapter 5 Review Questions • In ESX 4.x, what is the maximum number of ports that can be created on a virtual switch using the vSphere Client (VIC)? A. 1016 C. 4088 B. 1024 D. 4096 2. To achieve redundancy and the best network performance possible for Virtual Machines, what technology should be implemented? A. NIC Teaming on the Virtual Switch C. VLANs B. NIC Teaming in the Virtual Machine D. Traffic Shaping 3. In ESX, what type of port needs to be created to support VMotion? A. VMkernel port C. Virtual Machine Port B. Service Console Port D. VoIP port 4. In ESX, what does the command esxcfg-vswitch –A Production vSwitch2 do? A. Adds a portgroup named vSwitch2 to the virtual switch named Production B. Unlinks a NIC named Production from to the virtual switch named vSwitch2 C. Sets the VLAN ID for the virtual switch named vSwitch2 to Production D. Adds a portgroup named Production to the virtual switch named vSwitch2 5.Which network adapters are supported in ESX by default? (Choose 2) A. Linksys D. Intel B. Broadcom E. Netgear C. 3Com

  5. Chapter 6 Review Questions 1. In ESX, if no NFS Server is available, where are Virtual Machine files stored? A. NTFS C. Ext3 B. FAT32 D. VMFS 2. What port does iSCSI use by default? A. 3260 C. 5002 B. 3389 D. 902 3. A VMware ESX host can boot from a Fibre Channel SAN, an iSCSI SAN or an NFS share. True False 4. All iSCSI connections over the SAN network must be as secure as possible. What type of security can you implement with iSCSI SAN and the ESX hosts? A. 802.11x authentication B. MS-CHAP2 authentication C. RSA token authentication D. CHAP authentication

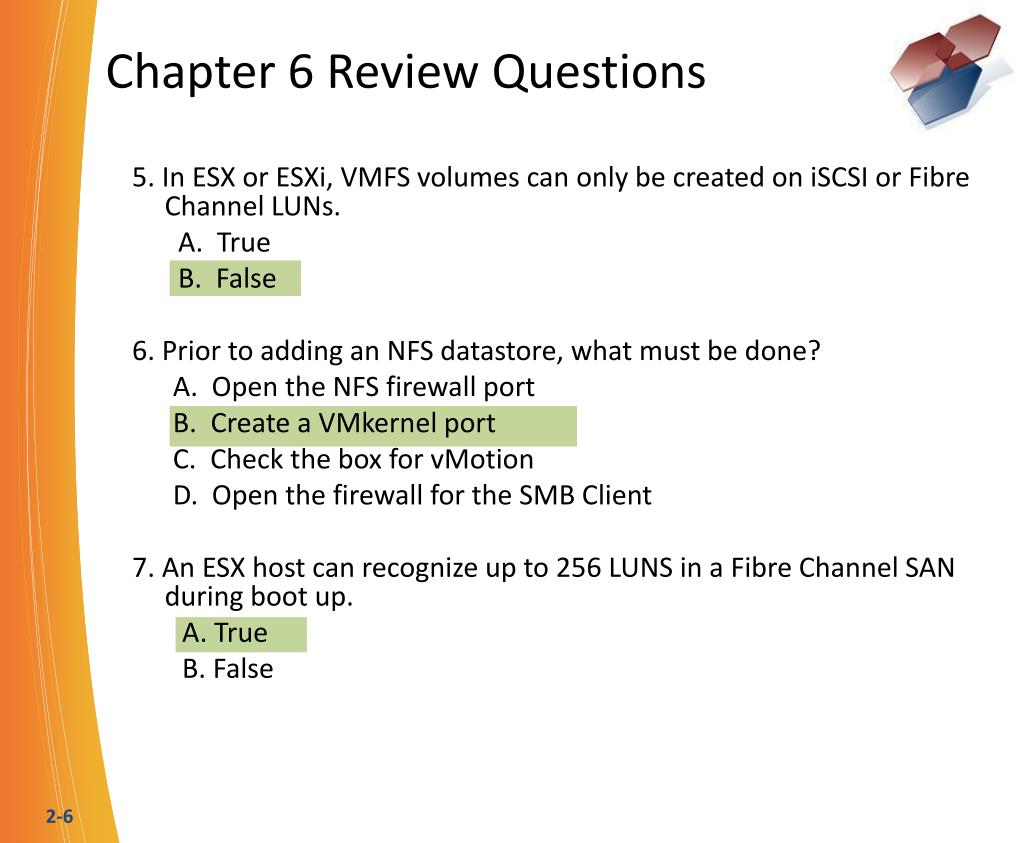

  6. Chapter 6 Review Questions 5. In ESX or ESXi, VMFS volumes can only be created on iSCSI or Fibre Channel LUNs. A. True B. False 6. Prior to adding an NFS datastore, what must be done? A. Open the NFS firewall port B. Create a VMkernel port C. Check the box for vMotion D. Open the firewall for the SMB Client 7. An ESX host can recognize up to 256 LUNS in a Fibre Channel SAN during boot up. A. True B. False

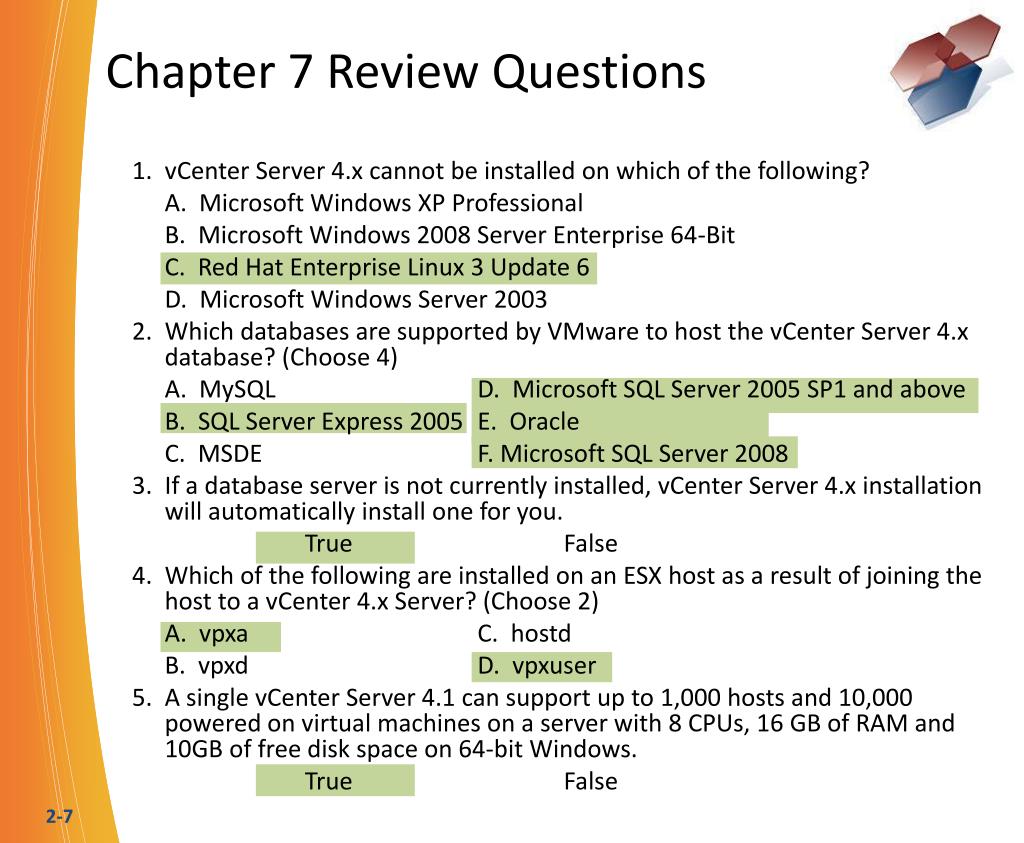

  7. Chapter 7 Review Questions 1. vCenter Server 4.x cannot be installed on which of the following? A. Microsoft Windows XP Professional B. Microsoft Windows 2008 Server Enterprise 64-Bit C. Red Hat Enterprise Linux 3 Update 6 D. Microsoft Windows Server 2003 2. Which databases are supported by VMware to host the vCenter Server 4.x database? (Choose 4) A. MySQL D. Microsoft SQL Server 2005 SP1 and above B. SQL Server Express 2005 E. Oracle C. MSDE F. Microsoft SQL Server 2008 3. If a database server is not currently installed, vCenter Server 4.x installation will automatically install one for you. True False 4. Which of the following are installed on an ESX host as a result of joining the host to a vCenter 4.x Server? (Choose 2) A. vpxa C. hostd B. vpxd D. vpxuser 5. A single vCenter Server 4.1 can support up to 1,000 hosts and 10,000 powered on virtual machines on a server with 8 CPUs, 16 GB of RAM and 10GB of free disk space on 64-bit Windows. True False

  8. Chapter 8 Review Questions 1. In ESX 4.x, which file contains the data that is created by the Virtual Machine OS or applications? A. VM_name.vmsd C. VM_name.vmdk B. VM_name.vmx D. VM_name-flat.vmdk 2. What is the maximum RAM supported in a Virtual Machine running on ESX 4.x? A. 16 GB C. 128 GB E. 256 GB B. 64 GB D. 255 GB  3. In ESX 4.x, the CD-ROM for a Virtual Machine can be connected to the client machine’s CD-ROM, the ESX server’s CD-ROM or an ISO file in a datastore. True False  4. In vCenter 4.x, what is the best way to create a unique Virtual Machine VM? A. Clone from another virtual machine B. Clone from template C. Add to inventory from an existing virtual machine D. Deploy VM from Template using customization  5. VMware vCenter Converter Standalone Edition Version 4.x can perform multiple simultaneous conversions. True False

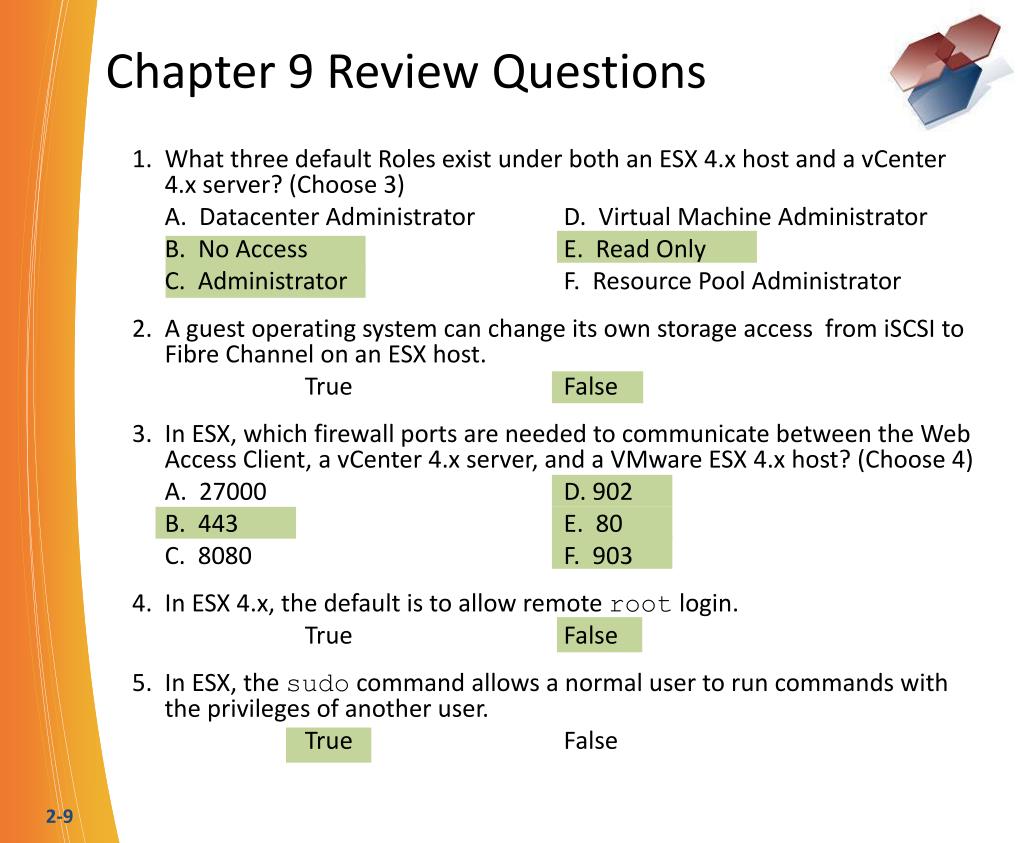

  9. Chapter 9 Review Questions 1. What three default Roles exist under both an ESX 4.x host and a vCenter 4.x server? (Choose 3) A. Datacenter Administrator D. Virtual Machine Administrator B. No Access E. Read Only C. Administrator F. Resource Pool Administrator 2. A guest operating system can change its own storage access from iSCSI to Fibre Channel on an ESX host. True False 3. In ESX, which firewall ports are needed to communicate between the Web Access Client, a vCenter 4.x server, and a VMware ESX 4.x host? (Choose 4) A. 27000 D. 902 B. 443 E. 80 C. 8080 F. 903 4. In ESX 4.x, the default is to allow remote root login. True False 5. In ESX, the sudo command allows a normal user to run commands with the privileges of another user. True False

  10. Chapter 10 Review Questions 1. A host running ESX 4.x has 2 Intel Quad Core Xeon processors. Which core does the Service Console use by default? A. Any core on the first CPU socket B. Core 0 C. The core with the least amount of usage D. The core scheduled by the VMkernel 2. The best practice is to create your virtual machines with a lower number of vCPUs than the number of cores in the host ESX host. True False 3. In ESX 4.x, the VMkernel swap file is equal to which of the following? A. total number of shares allocated to the Virtual Machine for RAM B. the size of the balloon driver minus the reservation C. the available memory defined for the Virtual Machine minus the reservation D. the memory limit minus the reservation 4. In ESX, different alarm triggers are available depending on which object in the inventory the alarm is set. True False 5. In ESX, which of the following is not an Action that can be performed as a result of a Virtual Machine alarm being triggered? A. send an email notification B. shutdown the virtual machine C. send an SNMP notification D. shutdown the ESX host E. run a script

  11. Chapter 11 Review Questions 1. Which technology moves running Virtual Machines from one ESX/ESXi host to another? A. HA C. Cold Migration B. VMotion D. Update Manager 2. What defines the guaranteed minimum RAM for a Virtual Machine? A. Expandable Reservation C. Memory Limit B. Memory Reservation D. Shares 3. In vCenter 4.x, which of the following settings for DRS will most likely move a Virtual Machine? A. Moderately Conservative (1-2) D. Moderately Aggressive (1-4) B. Aggressive (1-5) E. Midpoint (1-3) C. Most Conservative (1 only)

  12. Chapter 11 Review Questions 4. The only VMware supported method of using Storage VMotion in vSphere 4.x is from the vSphere Command Line Interface (vCLI). True False 5. Storage VMotion in vCenter 4.x functions with a Virtual Machine that is either powered on or powered off. True False

  13. Chapter 12 Review Questions 1. Which method do you use when you want to perform an upgrade from ESX 3.0.2 to ESX 4.0? A. single user mode C. Boot to DVD and choose Upgrade B. vCenter Update Manager D. vSphere Host Update Utility 2. The command esxupdate supports rolling back an update? True False 3. What are the VMware supported options to perform an upgrade from ESX 3.5 to ESX 4.0? (Choose Two) A. using the upgrade tar file B. using the vSphere Host Update Utility C. by performing a scripted install D. from a bootable VMware ESX 4 CD-ROM E. using vCenter Update Manager

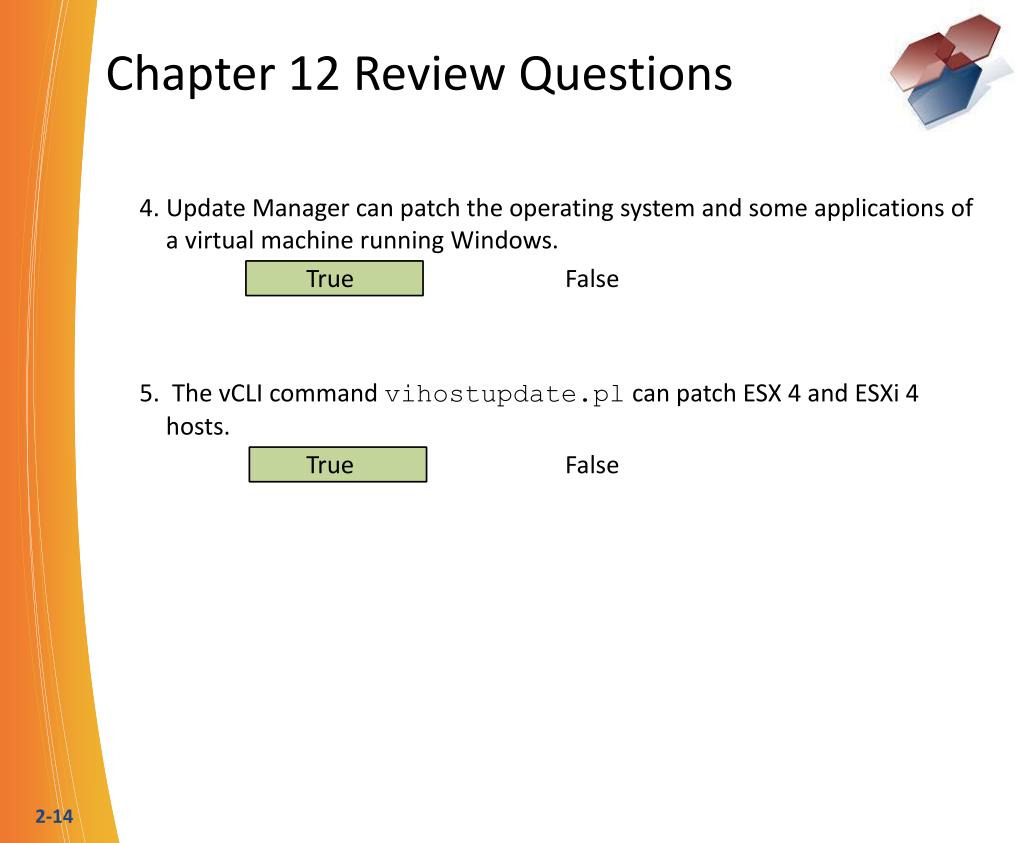

  14. Chapter 12 Review Questions  4. Update Manager can patch the operating system and some applications of a virtual machine running Windows. True False  5. The vCLI command vihostupdate.pl can patch ESX 4 and ESXi 4 hosts. True False

  15. Chapter 13 Review Questions 1. In vCenter 4.x, HA requires which to function properly. A. VMotion between ESX hosts B. VMkernel port configured for VMotion C. Exactly matching CPUs D. VMware Tools E. A valid license file supporting HA 2. In vSphere 4.x, for VMware Consolidated backup (VCB) to function properly and be supported, VMware requires that it be installed on a separate physical server running Windows Server 2003 or 2008. True False 3. Using VMware Consolidated backup (VCB) which of the following types of backups can be performed? (Choose 3) A. Windows Full Virtual Machine backups B. Linux Full Virtual Machine backup C. Windows File backups D. Linux File backups 4. In vSphere 4.x, VMware Consolidated backup (VCB) has a graphical interface that integrates with vCenter 4 and simplifies all your backup tasks. True False
