  1. 5 pen pc technology Presented by : k. ramya krishna

  2. 5 pen pc technology

  3. Table of contents • History • Introduction • 5 functions • Block Diagram • Merits • Demerits • Conclusion

  4. History • "Pen-style Personal Networking Gadget“- created in 2003 by Japanese technology company NEC. • Its designer Tour Ichihash. • P-ISM -First featured at the 2003 ITU Telecom world Exhibition held in Geneva, Switzerland.

  5. Look closely and guess what they could be... • Components of P-ISM (“Pen-style Personal Networking Gadget Package”).

  6. Connected With A • Wireless Technology. Produces both the monitor as well as the keyboard Whole Set Is Connected To Internet Through Cellular Phone Function.

  7. “Pen-style P ersonal Networking Gadget P ackage” P-ISM is a gadget package including five functions: • CPU Pen • CAMERA • VIRTUAL KEYBOARD • VISUAL OUTPUT • APHONE

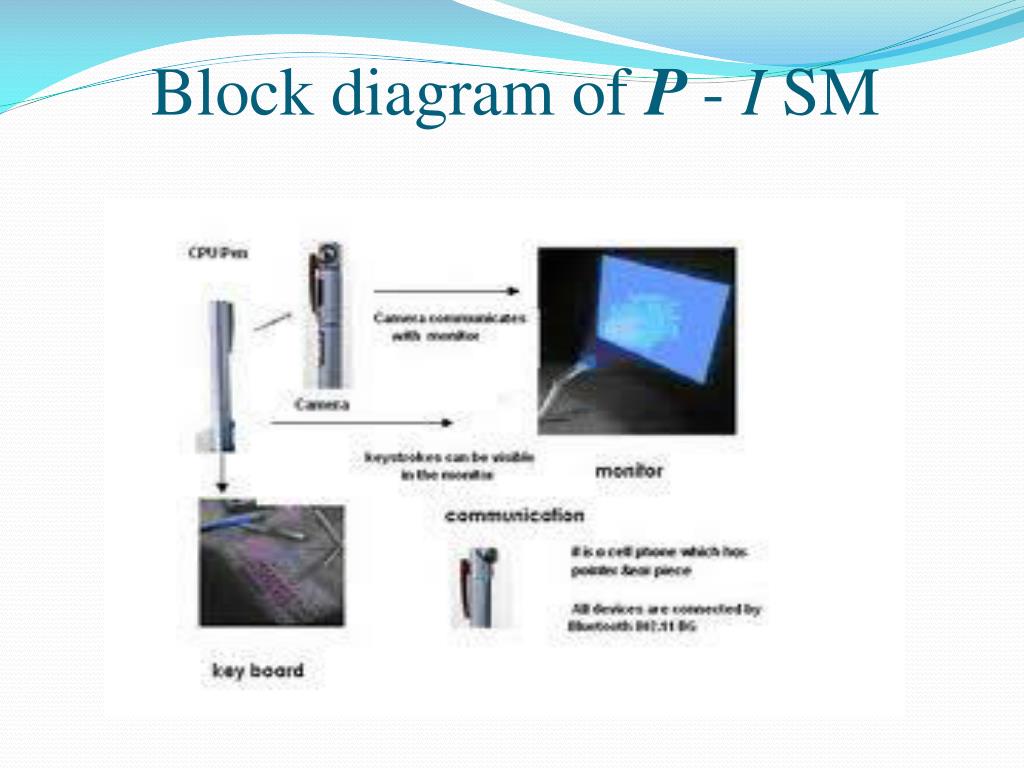

  8. Block diagram of P - I SM

  9. CPU Pen  • Also known as computing engine. • Uses Dual Core processor • Works with windows operating system.

  10. Continued…. • Directs the entire computer system. • Operation of a CPU include 4 steps : • Fetch • Decode • Execute • Write back • The performance or speed depends on • Clock rate • IPC • IPS

  11. Communication Pen • Components of P-ISMs -connected with one another through short-range wireless technology. • Connected through Tri-wireless modes like • Blue tooth • 802.11B/G • Cellular phone function.

  12. Continued…. • Bluetooth -A secure way to connect and exchange information. • Connected to internet through cellular phone function. • Uses Wi -Fi technology. • Exchange information with wireless connection

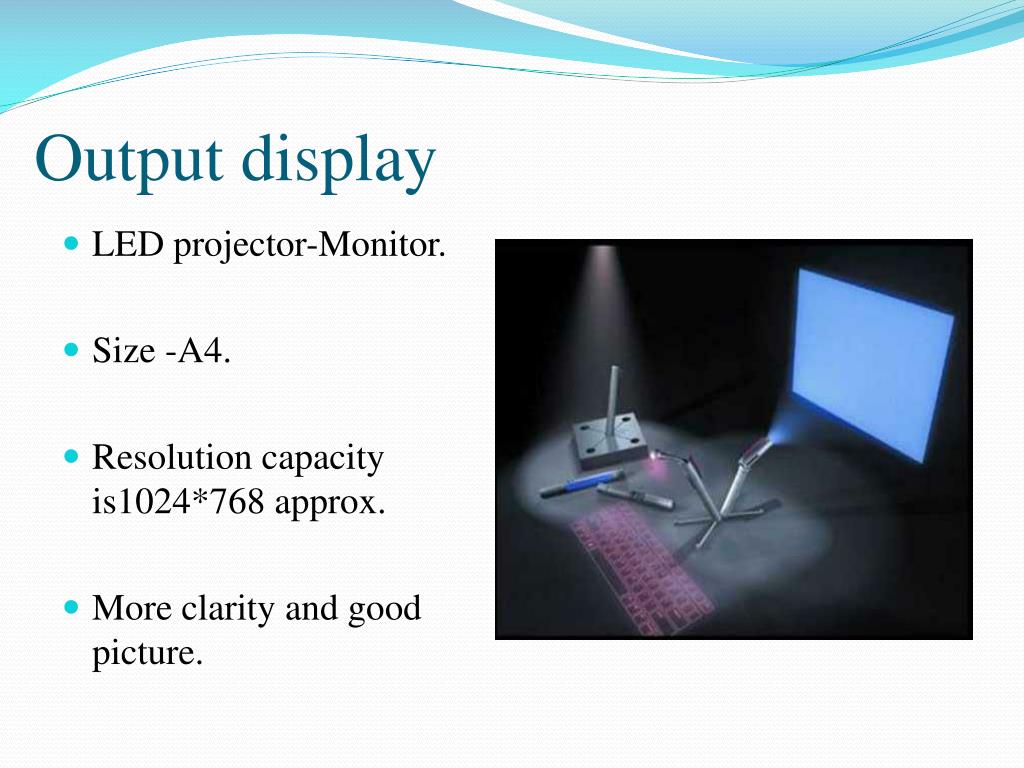

  13. Output display • LED projector-Monitor. • Size -A4. • Resolution capacity is1024*768 approx. • More clarity and good picture.

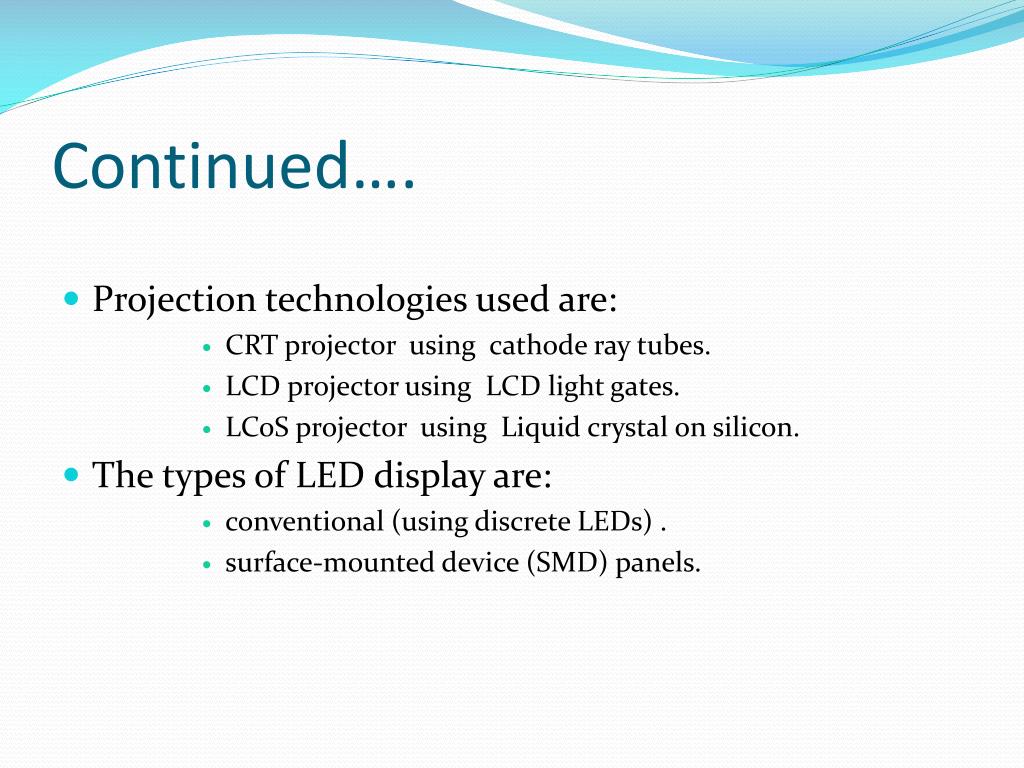

  14. Continued…. • Projection technologies used are: • CRT projector using cathode ray tubes. • LCD projector using LCD light gates. • LCoS projector using Liquid crystal on silicon. • The types of LED display are: • conventional (using discrete LEDs) . • surface-mounted device (SMD) panels.

  15. Virtual Keyboard • Virtual laser keyboard is a new gadget. • It emits laser on desk. • Uses laser beam to generate full_size perfect keyboard.

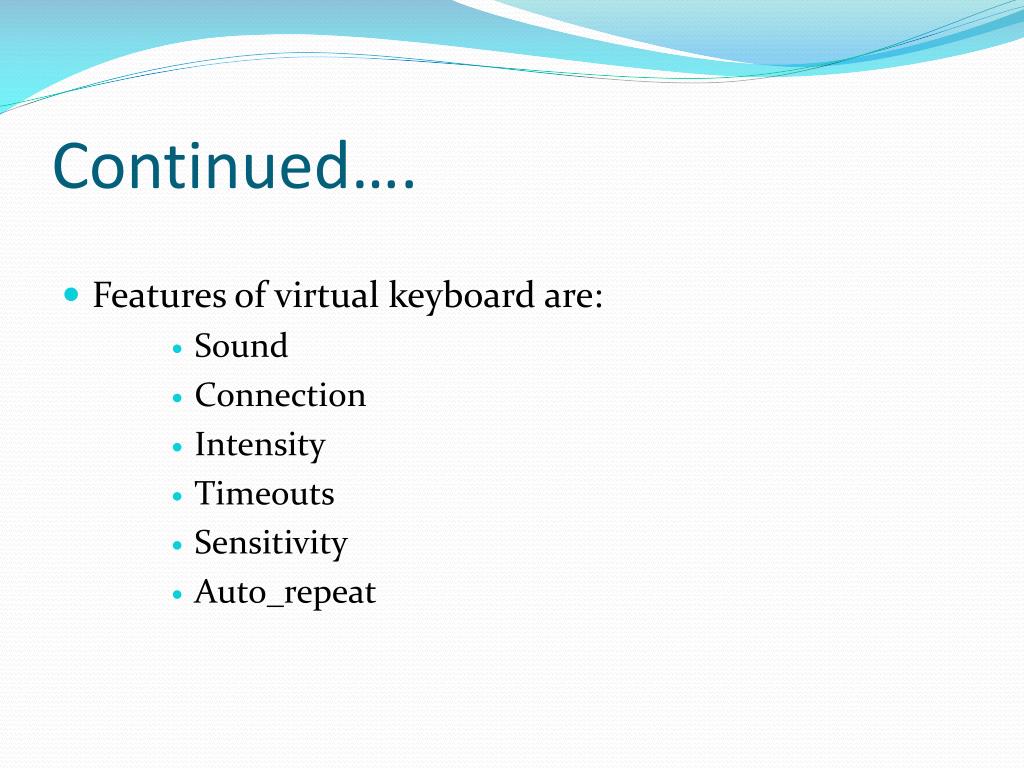

  16. Continued…. • Features of virtual keyboard are: • Sound • Connection • Intensity • Timeouts • Sensitivity • Auto_repeat

  17. Digital Camera • Useful in video recording , video conferencing simply as a webcam. • Connected with other devices. • Portable. • 360 degree visual communication device.

  18. Continued…. • Types of digital cameras • Compacts digital camera • Bridge camera • Mirrorless interchangeable lens camera • Resolution is limited by a image sensor

  19. Battery • Usually batteries are small in size and work for a long time. • Battery life-6+. • Normal use-2 weeks.

  20. Merits • Portable • Feasible • Ubiquitous computing is done • Wi_Fi technology

  21. Demerits Currently un clear Cost Battery Keyboard concept is not new Positioning is main

  22. Demerits Currently un clear Cost Battery Keyboard concept is not new Positioning is main

  23. Conclusion • This is only an example for the start of this new technology. We can expect more such developments in the future.

  24. THANK YOU
