7.4B- Gauss Elim . & Back Sub.

7.4B- Gauss Elim . & Back Sub. Elementary Row Operations for solving systems written as augmented matrices 1.) Interchange 2 rows 2.) Multiply (or divide) a row by a non-zero # 3.) Add a multiple of a row to another Multiply a row by a number Add to another row

illias
Download Presentation

7.4B- Gauss Elim . & Back Sub.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

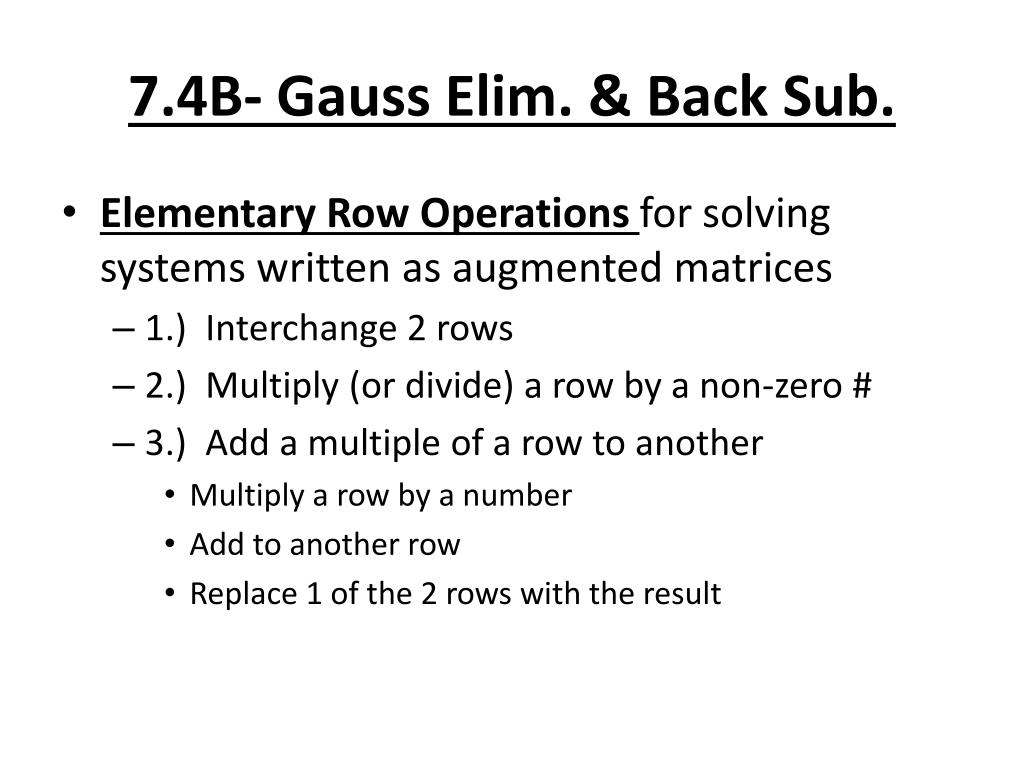

  1. 7.4B- Gauss Elim. & Back Sub. • Elementary Row Operations for solving systems written as augmented matrices • 1.) Interchange 2 rows • 2.) Multiply (or divide) a row by a non-zero # • 3.) Add a multiple of a row to another • Multiply a row by a number • Add to another row • Replace 1 of the 2 rows with the result

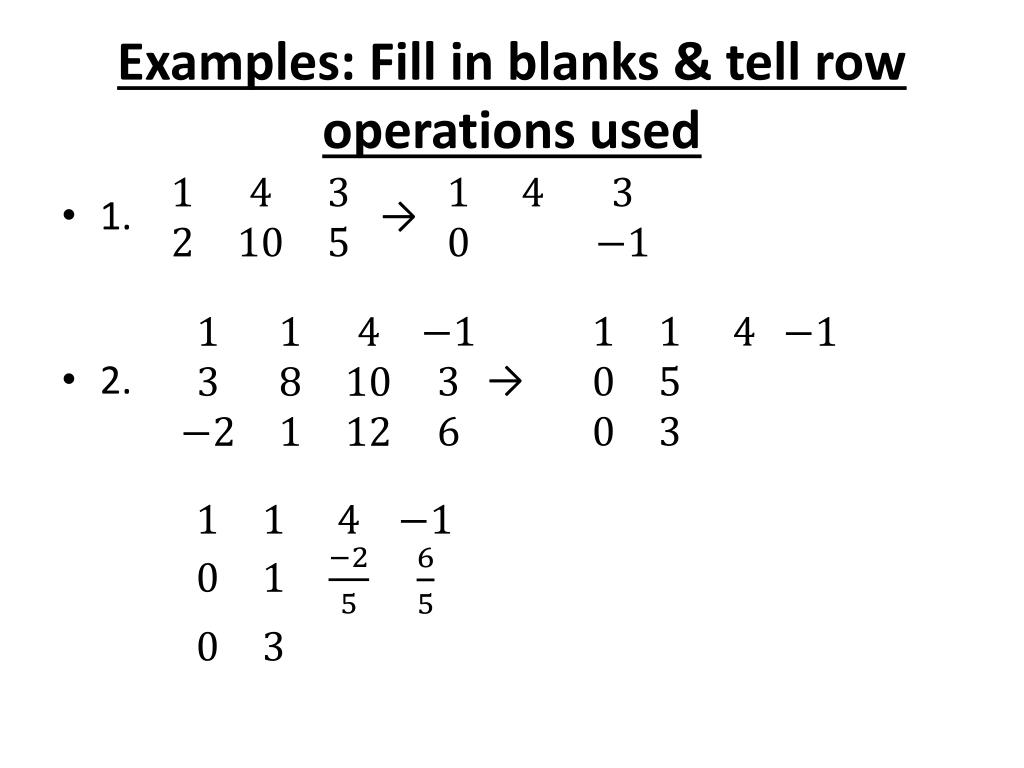

  2. Examples: Fill in blanks & tell row operations used • 1. → • 2. →

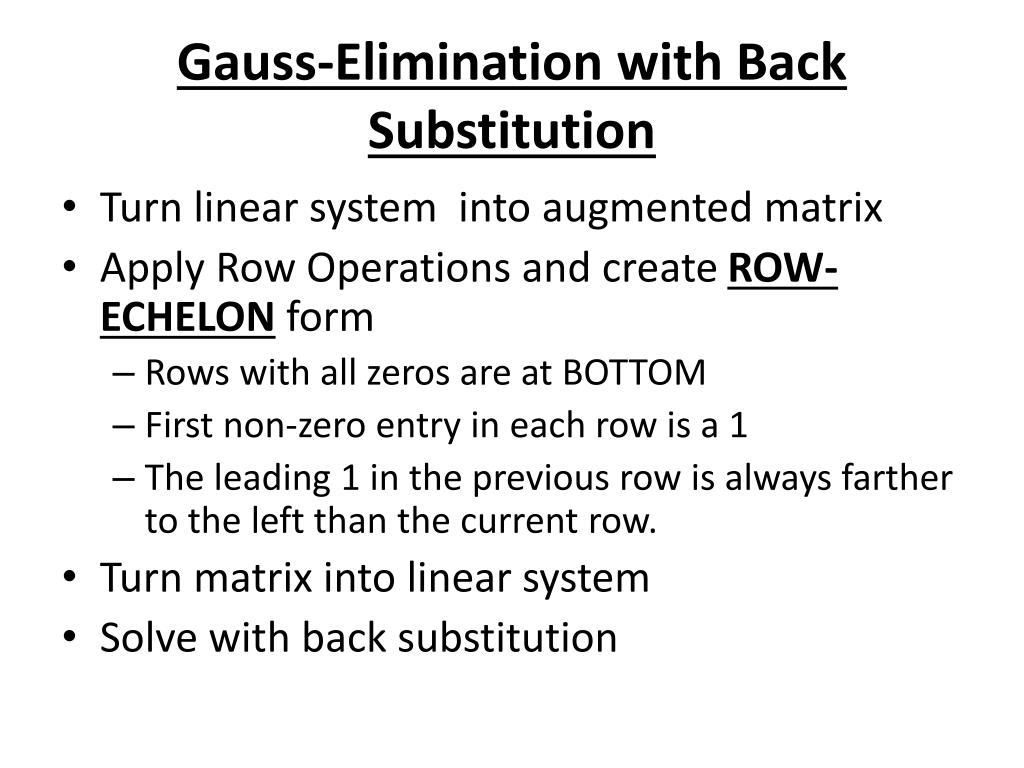

  3. Gauss-Elimination with Back Substitution • Turn linear system into augmented matrix • Apply Row Operations and create ROW-ECHELON form • Rows with all zeros are at BOTTOM • First non-zero entry in each row is a 1 • The leading 1 in the previous row is always farther to the left than the current row. • Turn matrix into linear system • Solve with back substitution

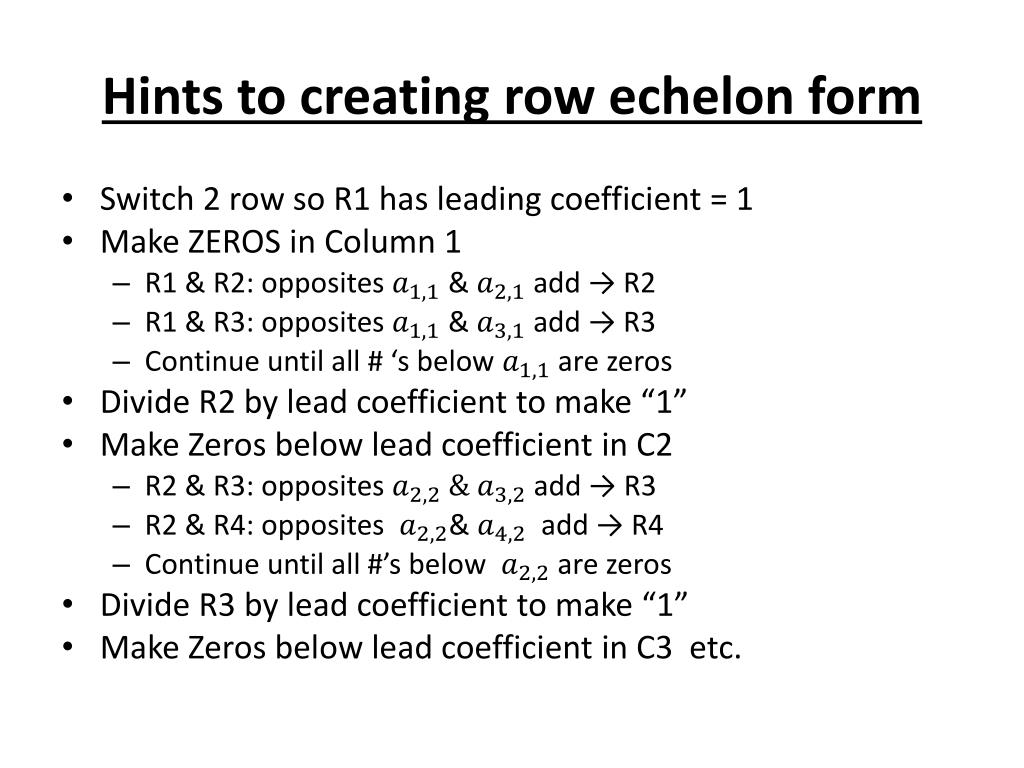

  4. Hints to creating row echelon form • Switch 2 row so R1 has leading coefficient = 1 • Make ZEROS in Column 1 • R1 & R2: opposites & add → R2 • R1 & R3: opposites & add → R3 • Continue until all # ‘s below are zeros • Divide R2 by lead coefficient to make “1” • Make Zeros below lead coefficient in C2 • R2 & R3: opposites add → R3 • R2 & R4: opposites & add → R4 • Continue until all #’s below are zeros • Divide R3 by lead coefficient to make “1” • Make Zeros below lead coefficient in C3 etc.

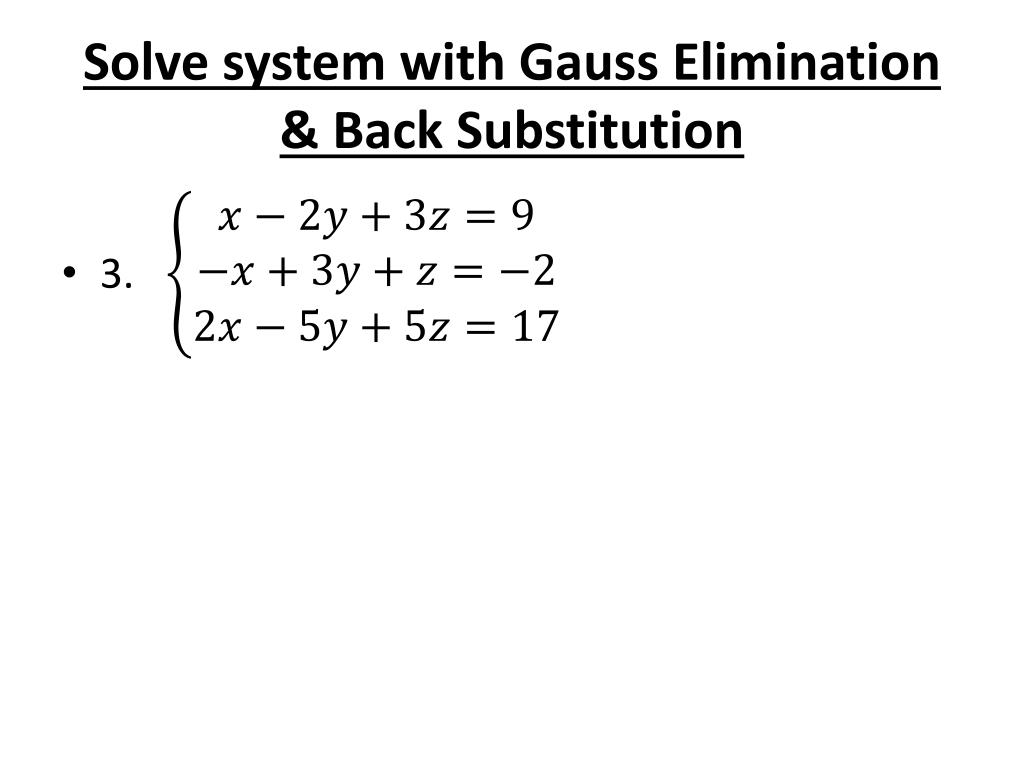

  5. Solve system with Gauss Elimination & Back Substitution • 3.
