Process Control Charts

Process Control Charts. Any process has a certain amount of natural variability. But how can we tell if the process’s variability has gone “out of control”? Example: An automated process whose intent is to fill a bag with 200 pounds of cement.

ilori
Download Presentation

Process Control Charts

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Process Control Charts Any process has a certain amount of natural variability. But how can we tell if the process’s variability has gone “out of control”? Example: An automated process whose intent is to fill a bag with 200 pounds of cement. Process Control is a technique for inferring that an unplanned change has taken place in a process measured by a process variable X. Example: X is the exact weight of a bag of cement intended to weigh 200 pounds.

  2. Alternative Meanings forthe Process Variable X • The salt content, thickness, or crispness of a bag of potato chips. • The number of chocolate chips in a container of chocolate-chip ice cream. • The diameter of a bearing, or the center of a gear. • The waiting time at a fast-food restaurant or at an airport check-in counter. • The internal temperature of a “rare” steak when it leaves a restaurant’s kitchen.

  3. Sampling Over some period of time, take N samples with each sample having n observations. Example: During each of N=10 consecutive hours, remove n=4 bags of cements from the filling process and weigh them.

  4. Two Ways a Process Can be Out-of-Control Both of the processes below are out-of-control. But in different ways! Can you see the difference?

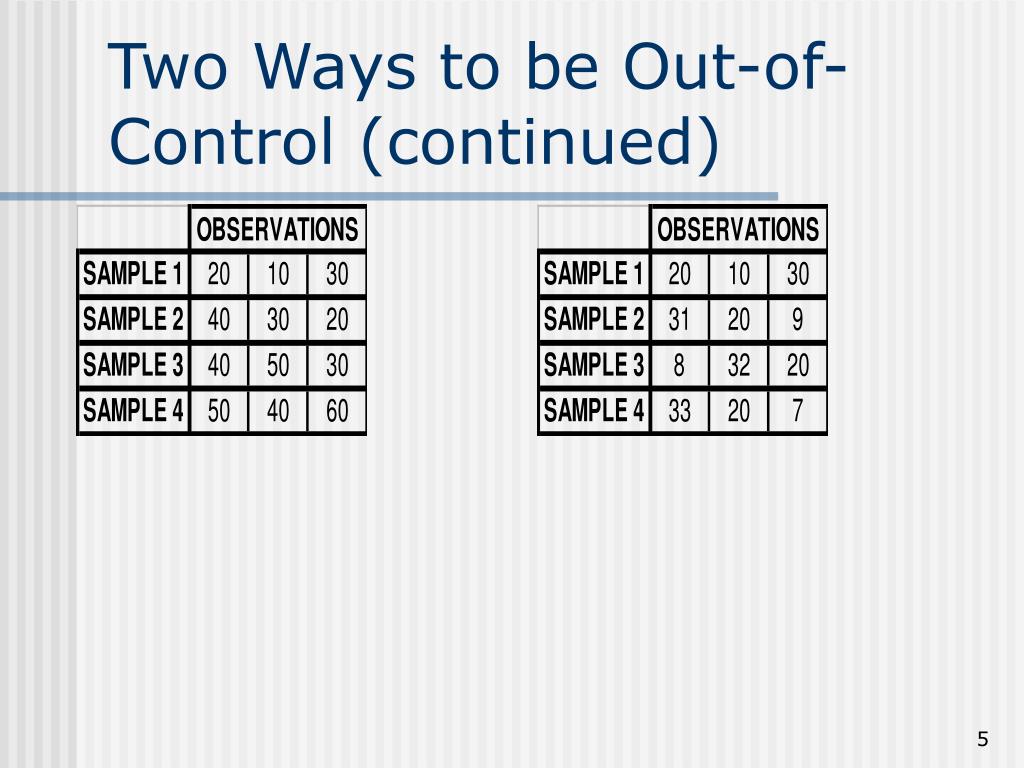

  5. Two Ways to be Out-of-Control (continued)

  6. Establishing theControl Chart’s UCL & LCL Go to Excel Workbook

  7. Establishing theControl Chart’s UCL & LCL (continued)

  8. The Mean is out-of-control! Out-of-control

  9. The Range is out-of-control! Out-of-control

  10. Patterns to InvestigateCase #1 Why might this process be out-of-control?

  11. Patterns to InvestigateCase #2 Why might this process be out-of-control?

  12. Patterns to InvestigateCase #3 Why might this process be out-of-control?

  13. Patterns to InvestigateCase #4 Why might this process be out-of-control?

  14. The Process Control “Cycle” Initialization. Take an initial set of N samples with n observations, and use these to compute the initial lower and upper control limits. Step 1. Continue with periodic samples until the process goes out-of-control. Look for an assignable cause. Step 2. If possible, improve the process in a manner that decreases the chance that the same assignable cause will reoccur. Step 3. After a process improvement, recalibrate the lower and upper control limits by taking another set of N samples with n observations.Return to Step 1.

  15. Another Type of Control Chart • We have discussed control charts in the context of a process whose performance is measured by a continuous variable X. • For some processes, performance is measured by an binary attribute – an attribute that is either present or not present. • Examples: • A product is either defective or non-defective. • A invoice either contains an error or is error-free. • A customer is either satisfied or unsatisfied. • To control a process measured by an binary attribute, you need to use another type of control chart known as a p-chart.
