Threshold of measures of active regions and solar activities

Threshold of measures of active regions and solar activities. Yang Liu – Stanford University yliu@solar.stanford.edu. Results for the entire solar cycle 23 / SoHO MDI. X-flaring ARs. |(dH m / dt)| > 6 x 10 36 Mx 2 s -1. LaBonte et al. (2006). 08/13. Durham, 06/27/06.

ina
Download Presentation

Threshold of measures of active regions and solar activities

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Threshold of measures of active regions and solar activities Yang Liu – Stanford University yliu@solar.stanford.edu

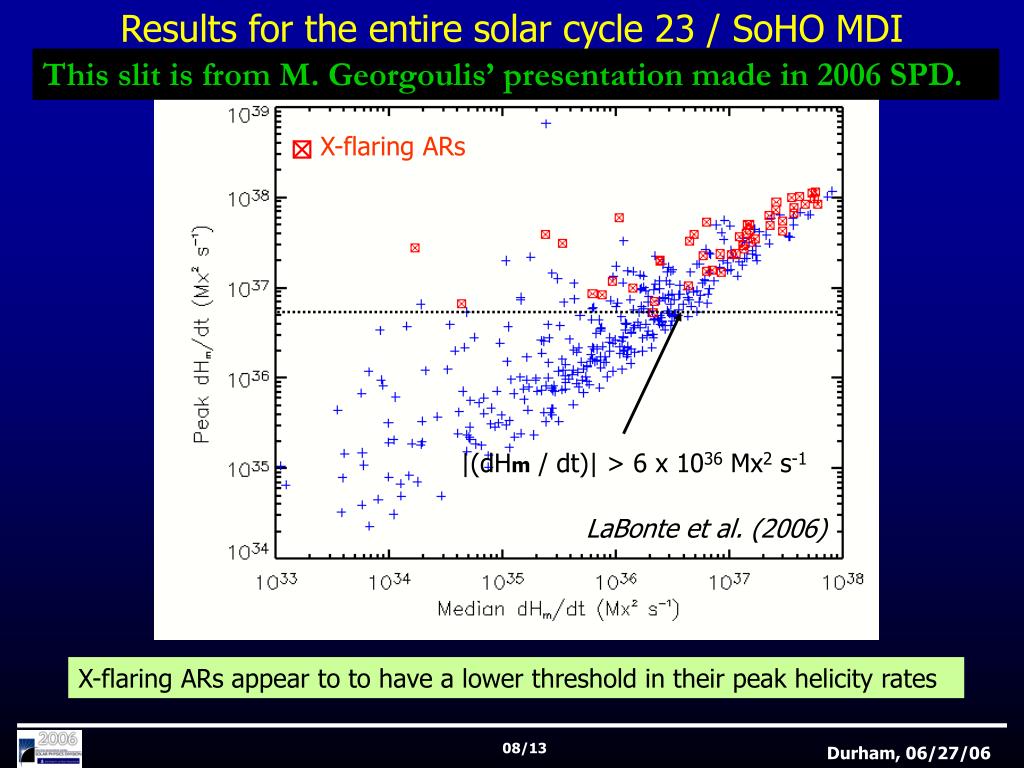

  2. Results for the entire solar cycle 23 / SoHO MDI X-flaring ARs |(dHm / dt)| > 6 x 1036 Mx2 s-1 LaBonte et al. (2006) 08/13 Durham, 06/27/06 This slit is from M. Georgoulis’ presentation made in 2006 SPD. X-flaring ARs appear to to have a lower threshold in their peak helicity rates

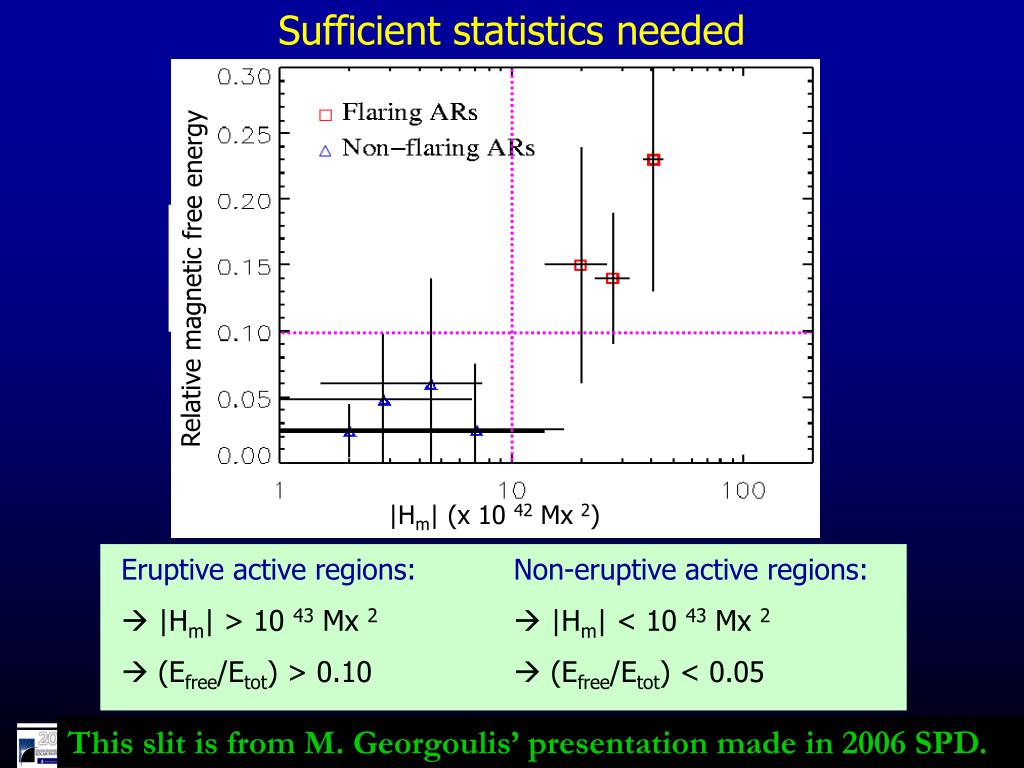

  3. Sufficient statistics needed Relative magnetic free energy |Hm| (x 10 42 Mx 2) • Eruptive active regions: • |Hm| > 10 43 Mx 2 • (Efree/Etot) > 0.10 • Non-eruptive active regions: • |Hm| < 10 43 Mx 2 • (Efree/Etot) < 0.05 12/13 Durham, 06/27/06 This slit is from M. Georgoulis’ presentation made in 2006 SPD.

  4. Flare productivity index is defined as: p(x)=s(x)/t(x), where s is the number of active regions with a measure greater than x, while t is total number. Flare productivity vs magnetic gradient Flare productivity vs length of neutral line Flare productivity vs number of singular points From Cui et al (2006)
