  1. ECE 477 Design Review Team 6  Spring 2011 Left to right: Kirk Iler, Brian Bentz, Stephen Wolf, FuheXu

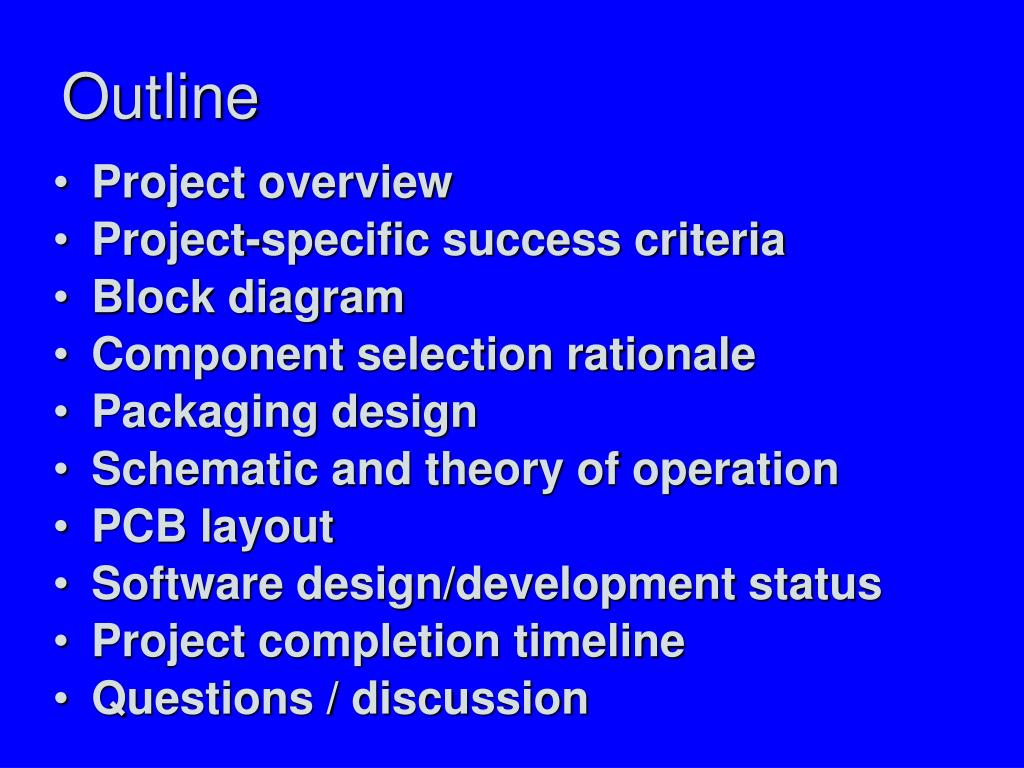

  2. Outline • Project overview • Project-specific success criteria • Block diagram • Component selection rationale • Packaging design • Schematic and theory of operation • PCB layout • Software design/development status • Project completion timeline • Questions / discussion

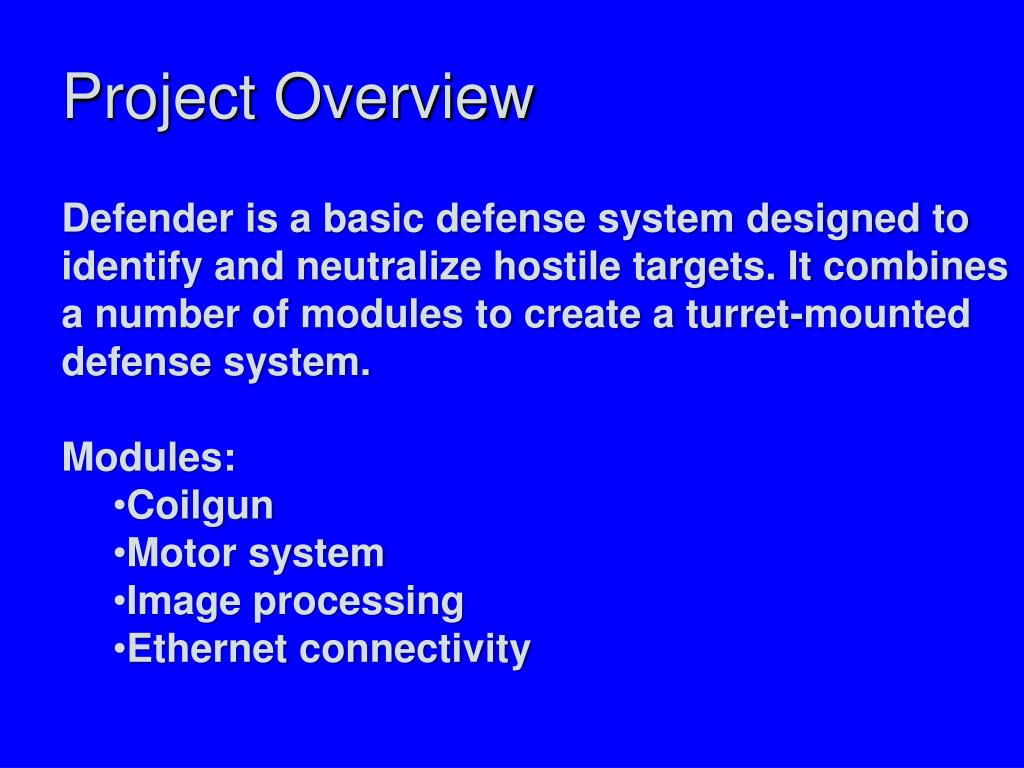

  3. Project Overview • Defender is a basic defense system designed to identify and neutralize hostile targets. It combines a number of modules to create a turret-mounted defense system. • Modules: • Coilgun • Motor system • Image processing • Ethernet connectivity

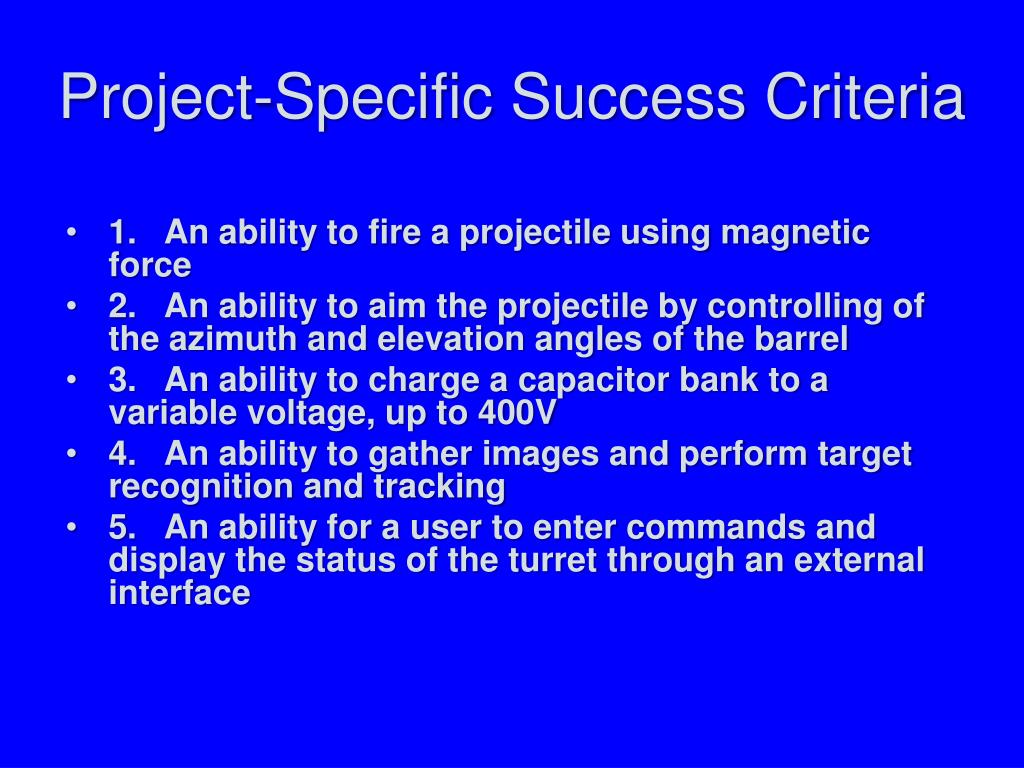

  4. Project-Specific Success Criteria 1. An ability to fire a projectile using magnetic force 2. An ability to aim the projectile by controlling of the azimuth and elevation angles of the barrel 3. An ability to charge a capacitor bank to a variable voltage, up to 400V 4. An ability to gather images and perform target recognition and tracking 5. An ability for a user to enter commands and display the status of the turret through an external interface

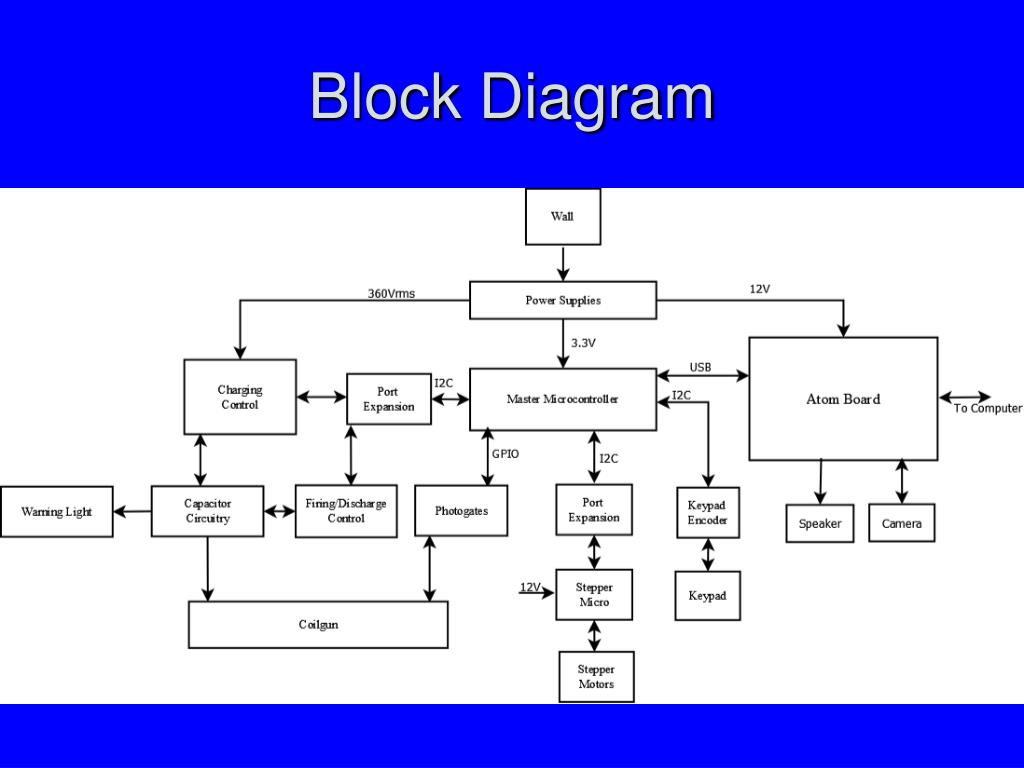

  5. Block Diagram

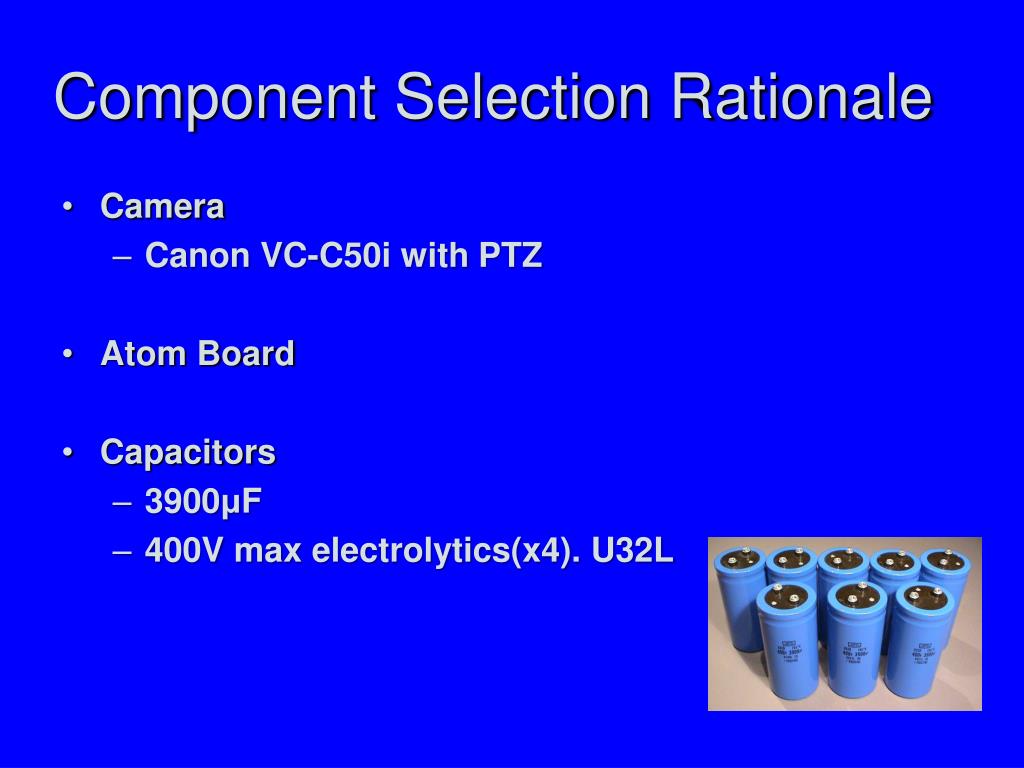

  6. Component Selection Rationale • Camera • Canon VC-C50i with PTZ • Atom Board • Capacitors • 3900μF • 400V max electrolytics(x4). U32L

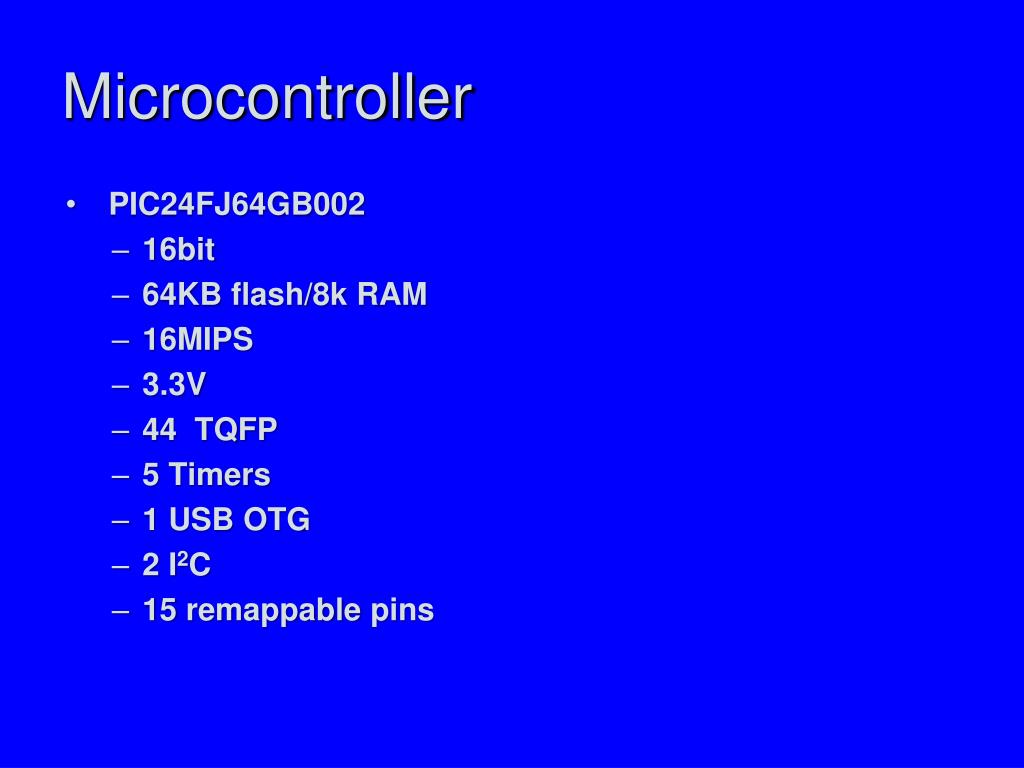

  7. Microcontroller • PIC24FJ64GB002 • 16bit • 64KB flash/8k RAM • 16MIPS • 3.3V • 44 TQFP • 5 Timers • 1 USB OTG • 2 I2C • 15 remappable pins

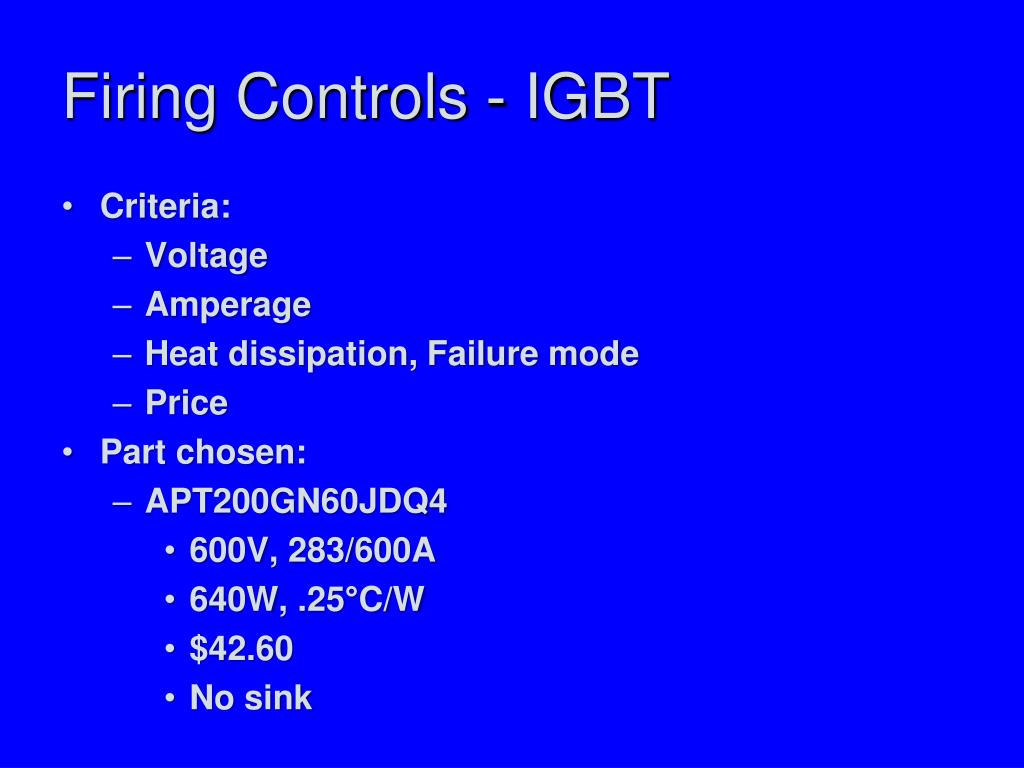

  8. Firing Controls - IGBT • Criteria: • Voltage • Amperage • Heat dissipation, Failure mode • Price • Part chosen: • APT200GN60JDQ4 • 600V, 283/600A • 640W, .25°C/W • $42.60 • No sink

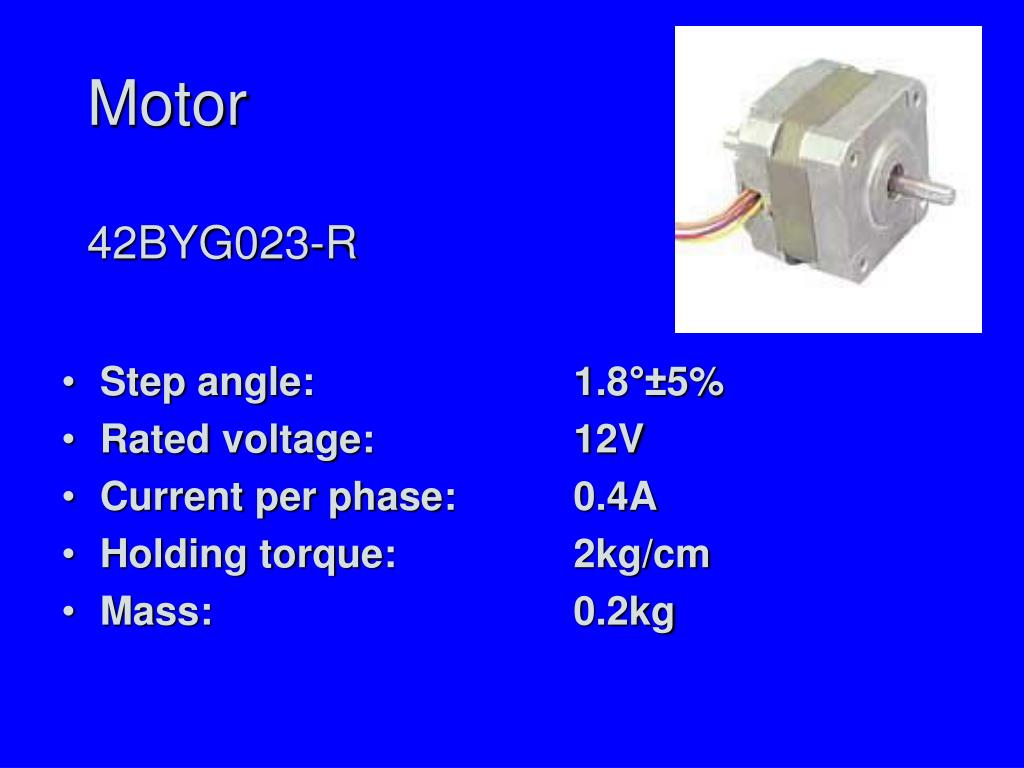

  9. Motor42BYG023-R • Step angle: 1.8°±5% • Rated voltage: 12V • Current per phase: 0.4A • Holding torque: 2kg/cm • Mass: 0.2kg

  10. Stepper Motor Controllers DRV8821 from Texas Instruments Controls 2 stepper motors up to 1.5A each 8-40V stepper motors Microstepping modes Edge triggered digital stepping via PWM from Micro

  11. Packaging Constraints Portability – Defender should be easily moved and installed. Weight – lightweight to allow for small motors EMI resistant – To protect circuitry from strong fields present in coil gun. Firing range – Target over a broad area. Keypad – Interface must be easily accessible.

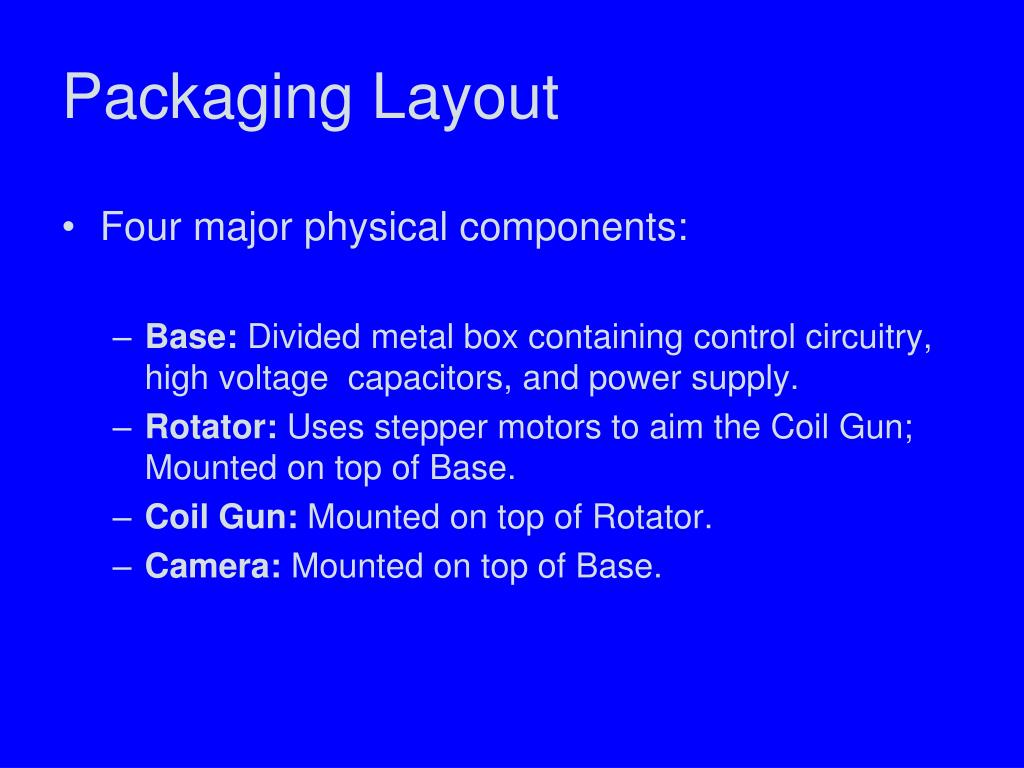

  12. Packaging Layout Four major physical components: Base: Divided metal box containing control circuitry, high voltage capacitors, and power supply. Rotator: Uses stepper motors to aim the Coil Gun; Mounted on top of Base. Coil Gun: Mounted on top of Rotator. Camera: Mounted on top of Base.

  13. Subsections: High voltage Control microcontroller Capacitor bank Atom processor Motors Schematic/Theory of Operation

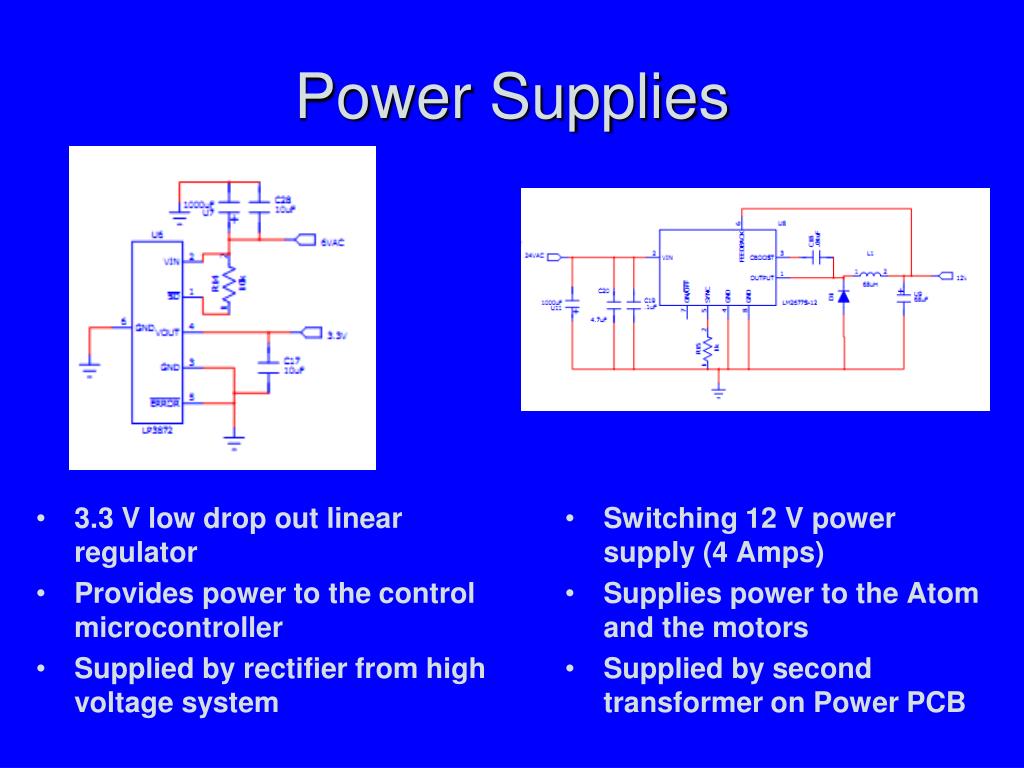

  14. 3.3 V low drop out linear regulator Provides power to the control microcontroller Supplied by rectifier from high voltage system Switching 12 V power supply (4 Amps) Supplies power to the Atom and the motors Supplied by second transformer on Power PCB Power Supplies

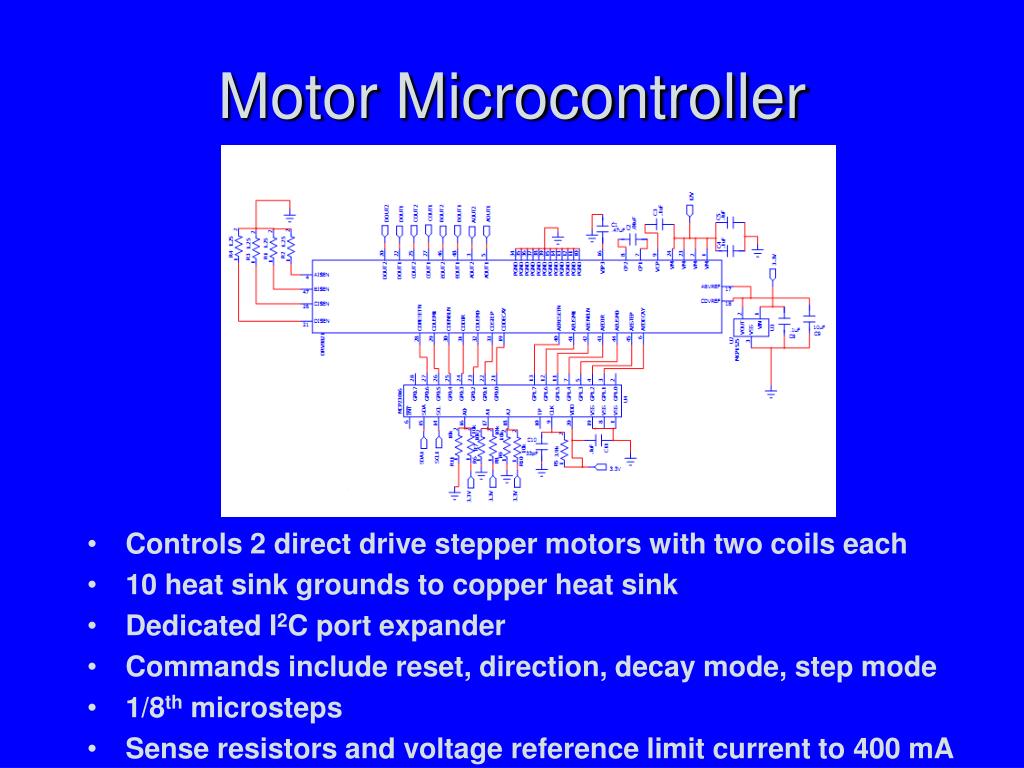

  15. Controls 2 direct drive stepper motors with two coils each 10 heat sink grounds to copper heat sink Dedicated I2C port expander Commands include reset, direction, decay mode, step mode 1/8th microsteps Sense resistors and voltage reference limit current to 400 mA Motor Microcontroller

  16. Receives commands from Atom Communicates information to and from circuitry I2C communication bus (400 kHz) USB connection to atom Bypass capacitors Reset circuit Control Microcontroller

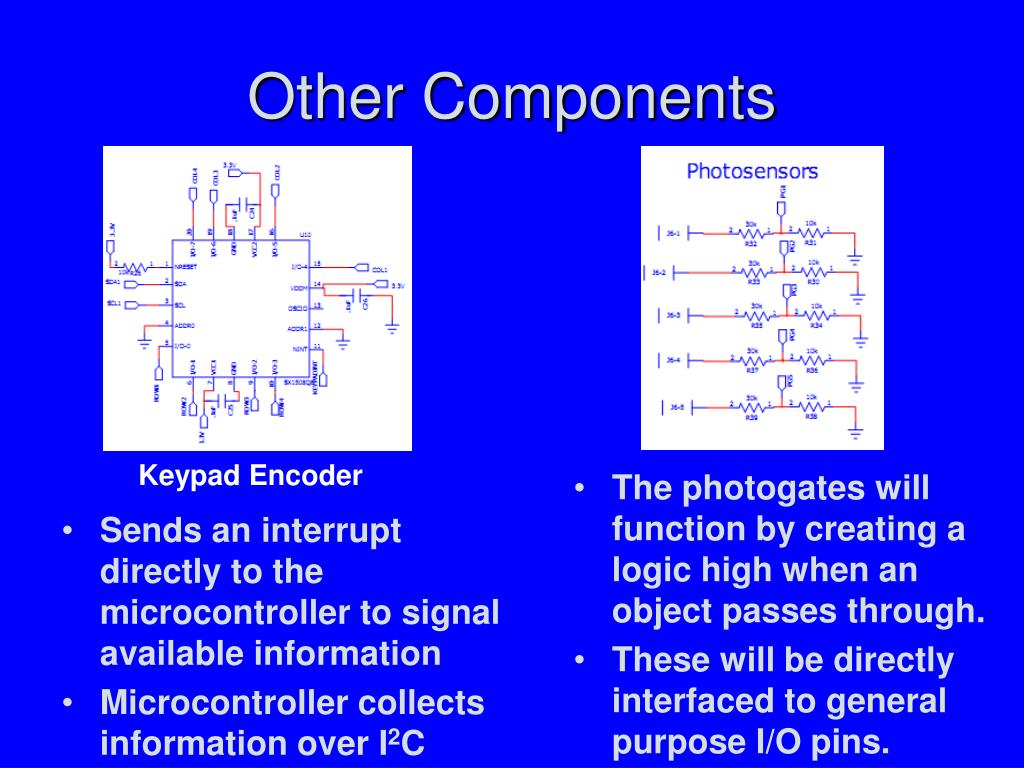

  17. The photogates will function by creating a logic high when an object passes through. These will be directly interfaced to general purpose I/O pins. Sends an interrupt directly to the microcontroller to signal available information Microcontroller collects information over I2C Keypad Encoder Other Components

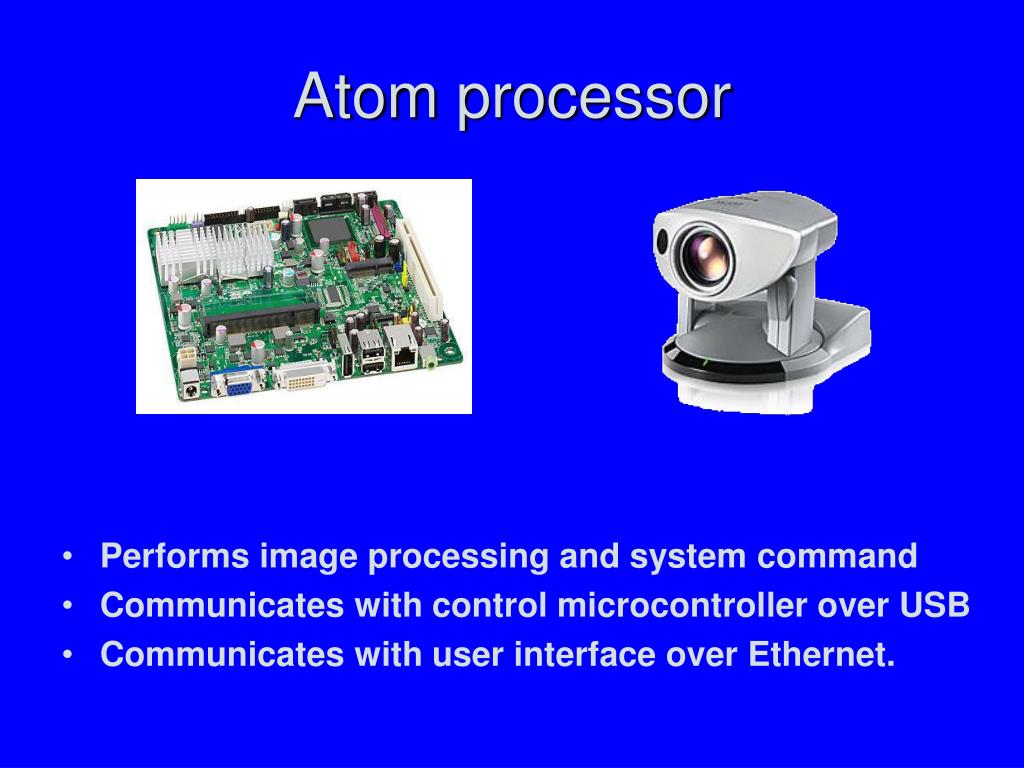

  18. Atom processor • Performs image processing and system command • Communicates with control microcontroller over USB • Communicates with user interface over Ethernet.

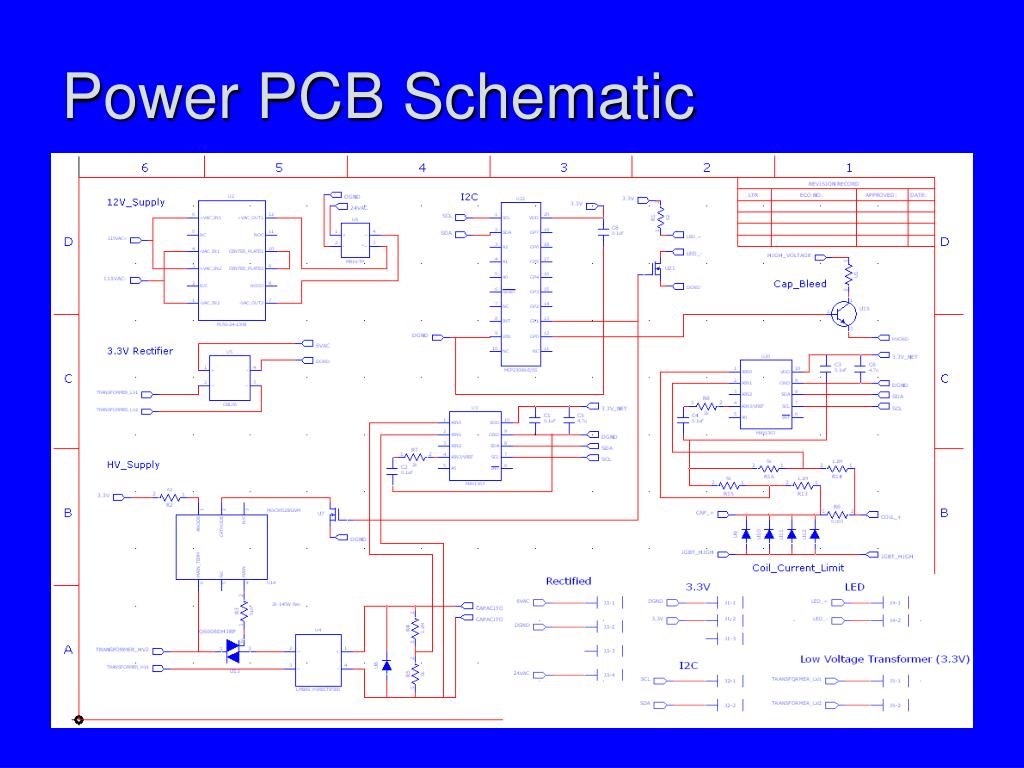

  19. Power PCB Schematic

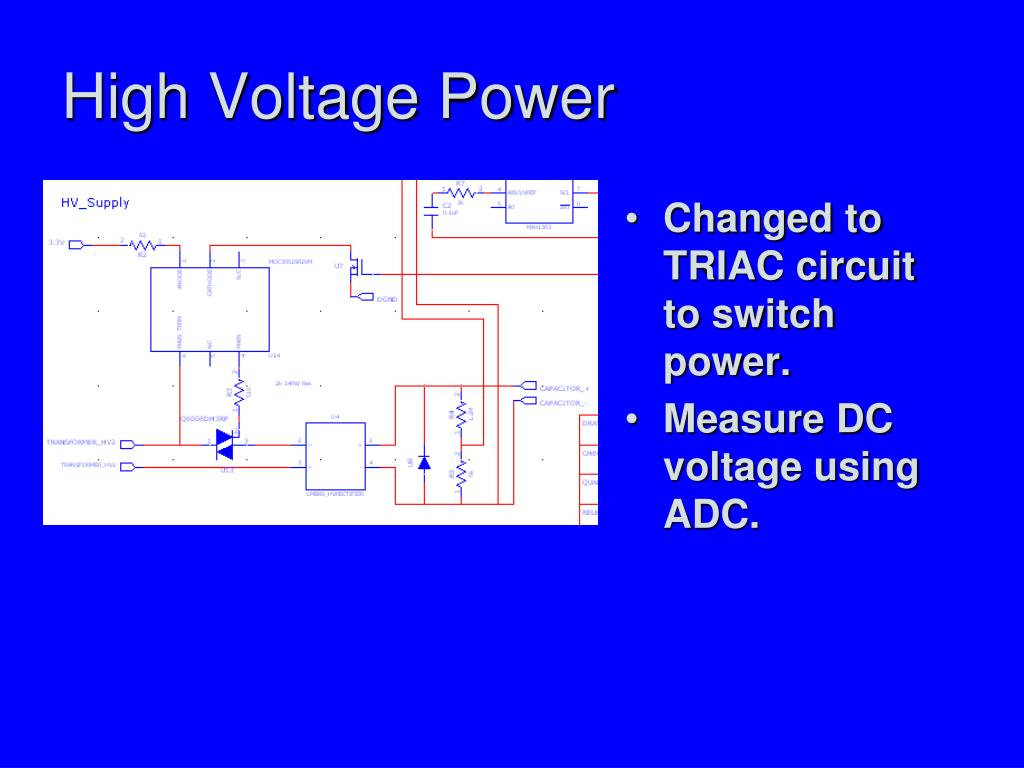

  20. High Voltage Power • Changed to TRIAC circuit to switch power. • Measure DC voltage using ADC.

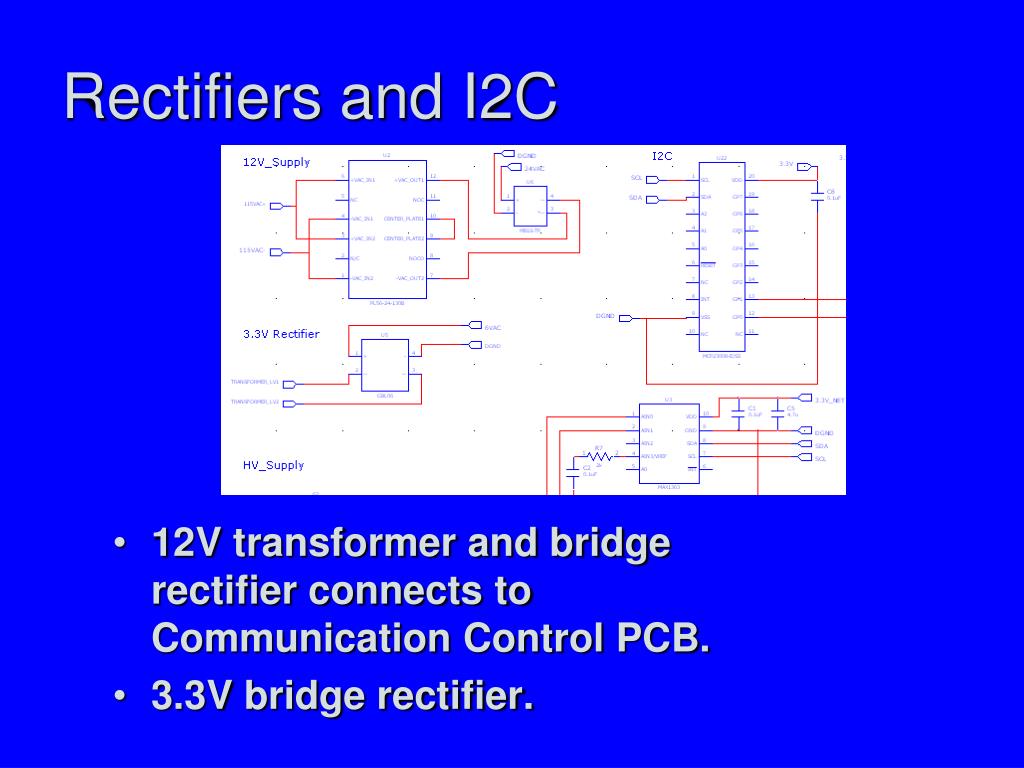

  21. Rectifiers and I2C • 12V transformer and bridge rectifier connects to Communication Control PCB. • 3.3V bridge rectifier.

  22. ADC, LED switch, Coil Protection Diodes • Capacitor bleed circuit connects to capacitor bank. • ADC measures current through a voltage divider. • Protection diodes anti-parallel to coil.

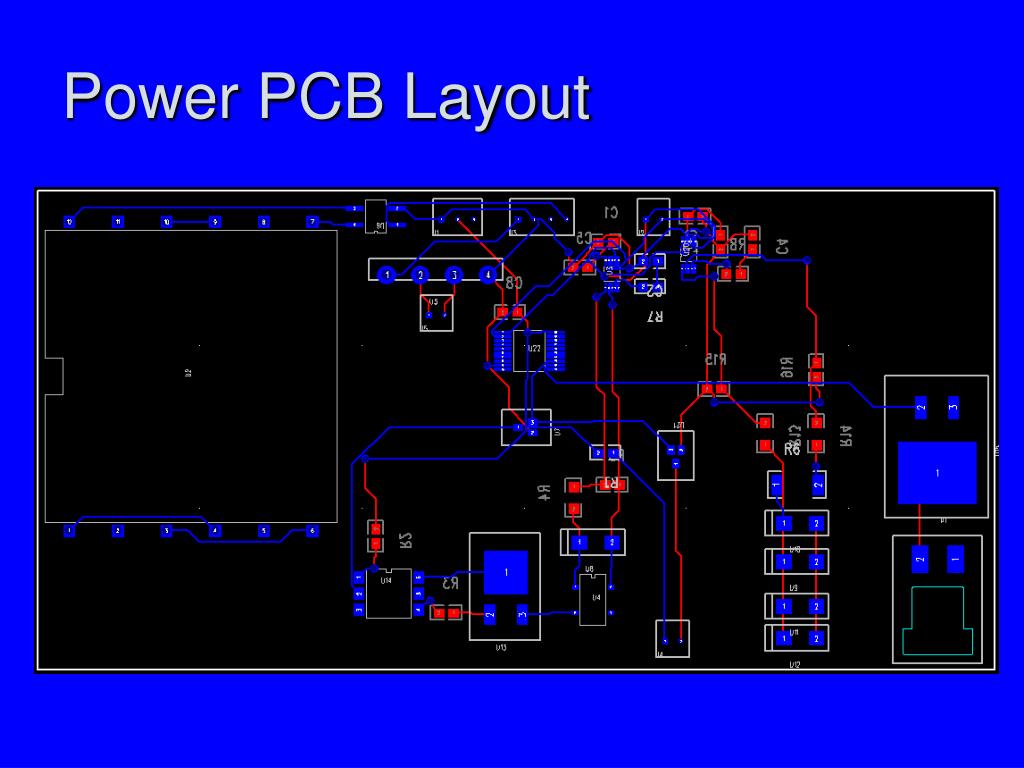

  23. Power PCB Layout

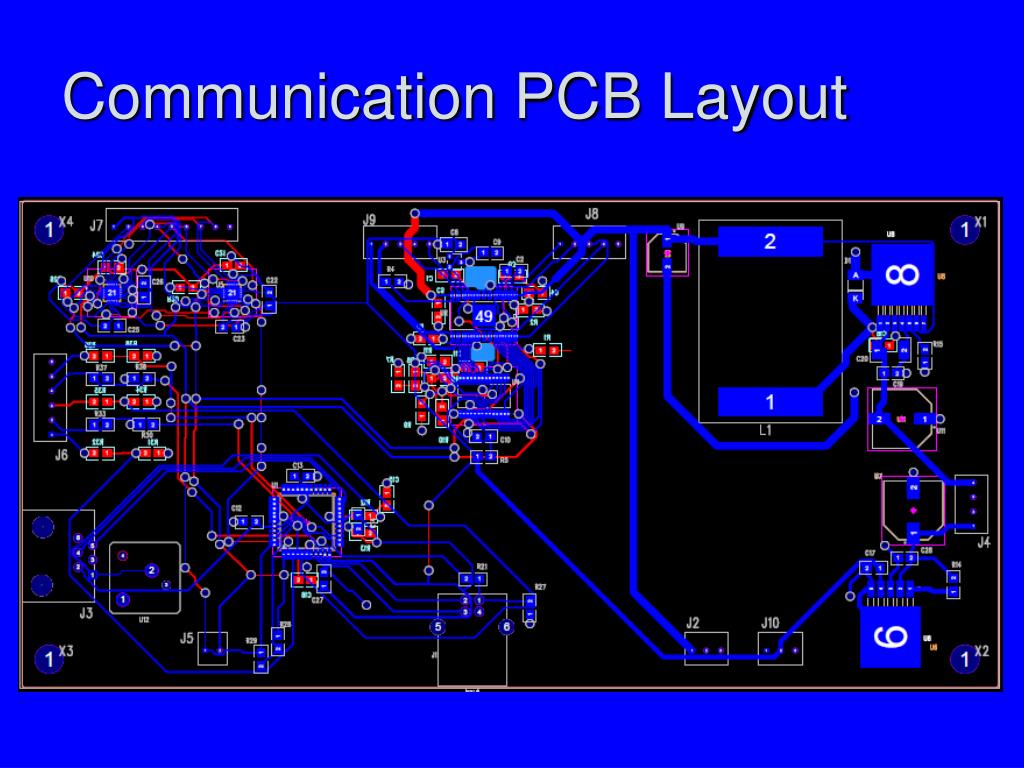

  24. Communication PCB Layout

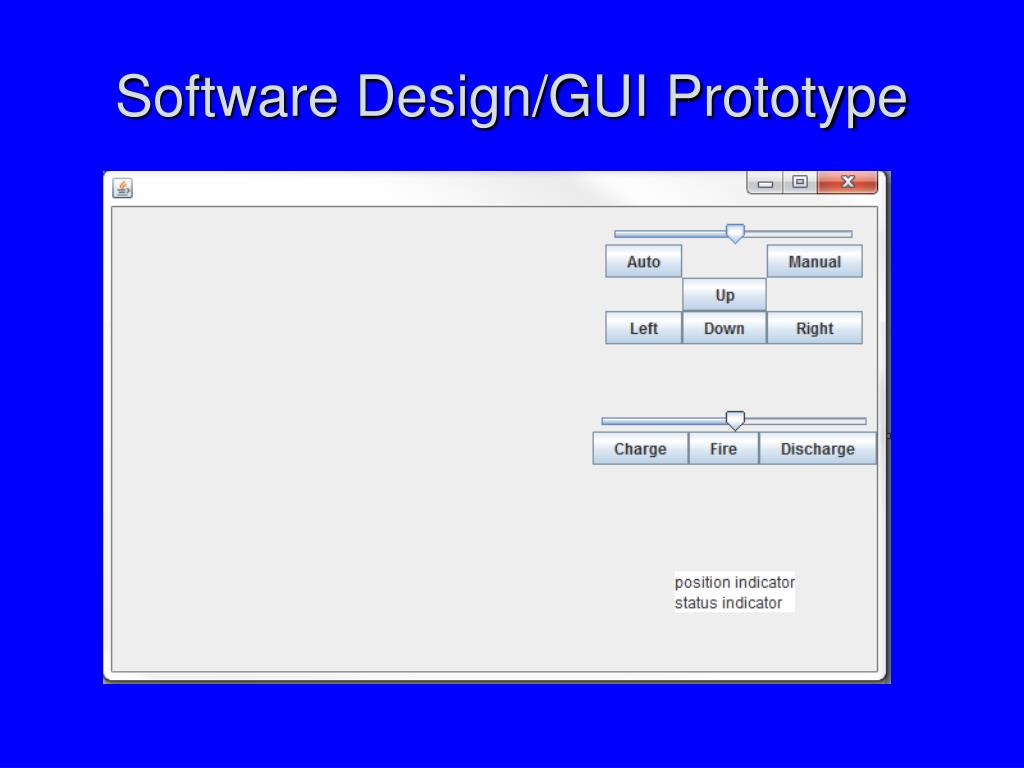

  25. Software Design/Development Status • Computer • Single Executable: • GUI - implemented • Java.swing components • Ethernet - testing • Wrapped in to GUI components • Jnetpcap library

  26. Software Design/GUI Prototype

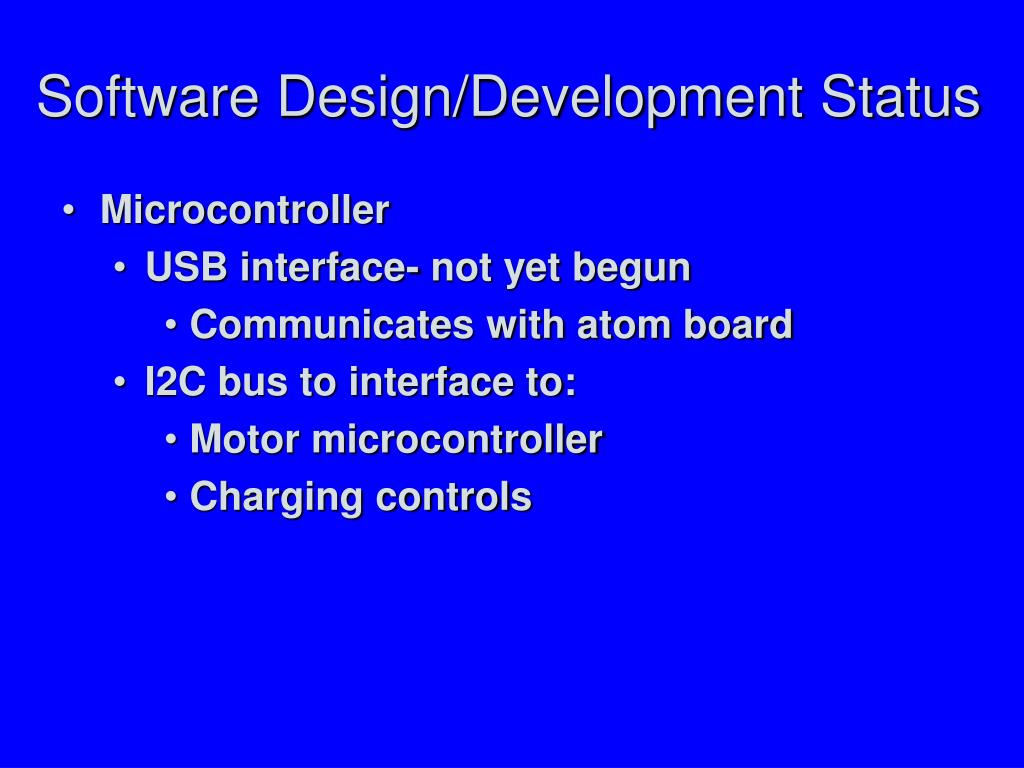

  27. Software Design/Development Status • Microcontroller • USB interface- not yet begun • Communicates with atom board • I2C bus to interface to: • Motor microcontroller • Charging controls

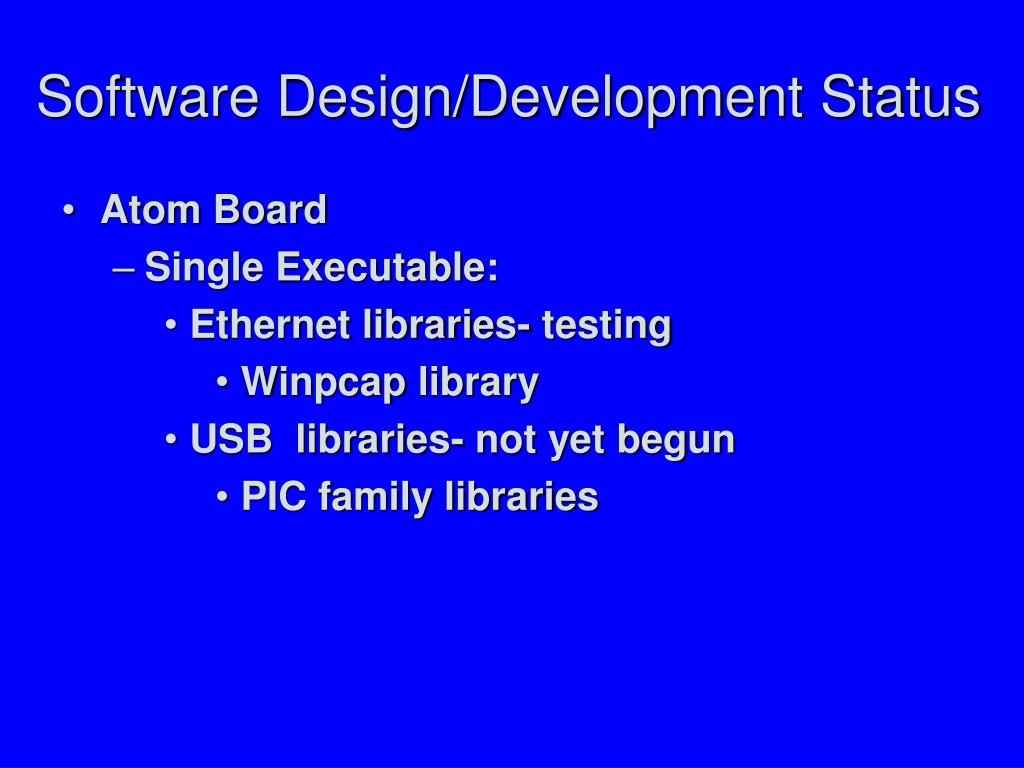

  28. Software Design/Development Status • Atom Board • Single Executable: • Ethernet libraries- testing • Winpcap library • USB libraries- not yet begun • PIC family libraries

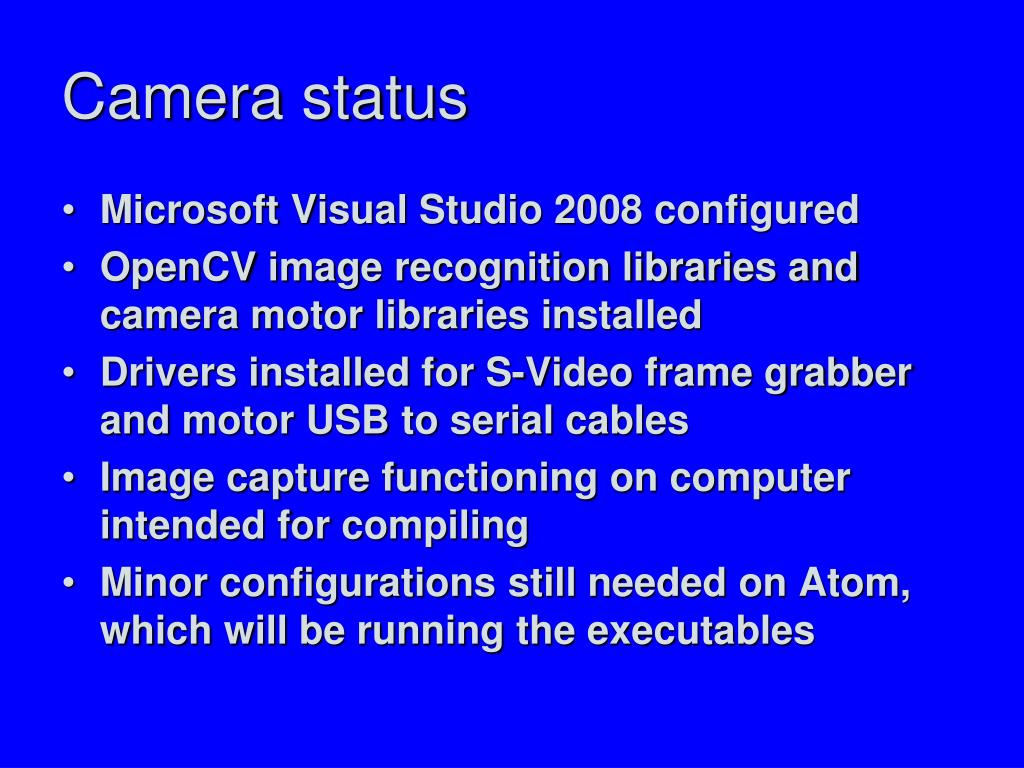

  29. Camera status • Microsoft Visual Studio 2008 configured • OpenCV image recognition libraries and camera motor libraries installed • Drivers installed for S-Video frame grabber and motor USB to serial cables • Image capture functioning on computer intended for compiling • Minor configurations still needed on Atom, which will be running the executables

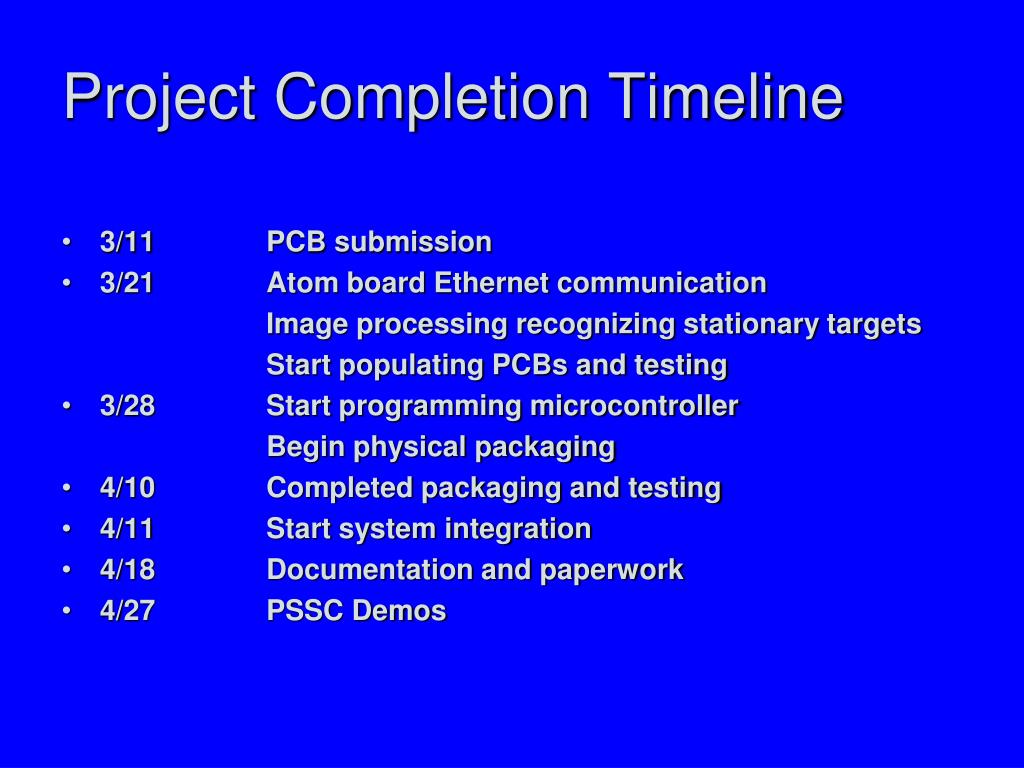

  30. Project Completion Timeline • 3/11 PCB submission • 3/21 Atom board Ethernet communication Image processing recognizing stationary targets Start populating PCBs and testing • 3/28 Start programming microcontroller Begin physical packaging • 4/10 Completed packaging and testing • 4/11 Start system integration • 4/18 Documentation and paperwork • 4/27 PSSC Demos

  31. Questions / Discussion
