  1. Time Frequency Analysis Application - Radar 電機四 B99901084 林晉毅 2013.12.12

  2. Outline • Introduction • Radar Signal • Range Profile • Time-Frequency Analysis of Radar Range Profiles • Time-Frequency Representation of Range Profiles • Time-Frequency-Based Radar Image Formation • Fourier-Based Radar Image Formation • Time-Frequency-Based Radar Image Formation

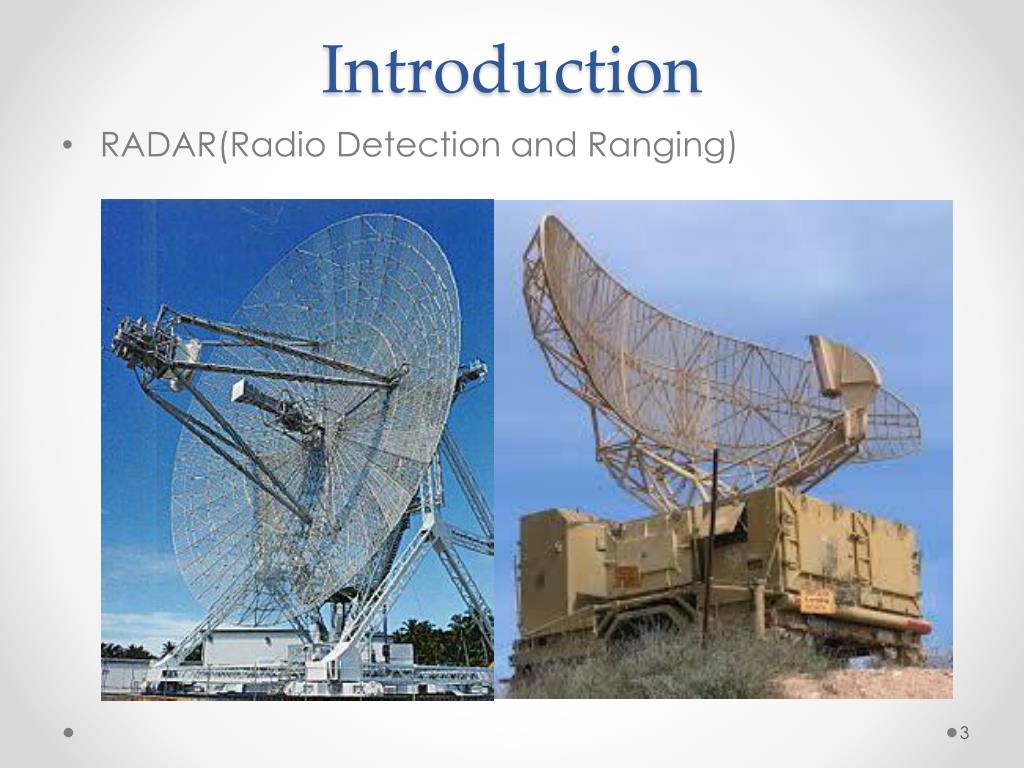

  3. Introduction • RADAR(Radio Detection and Ranging)

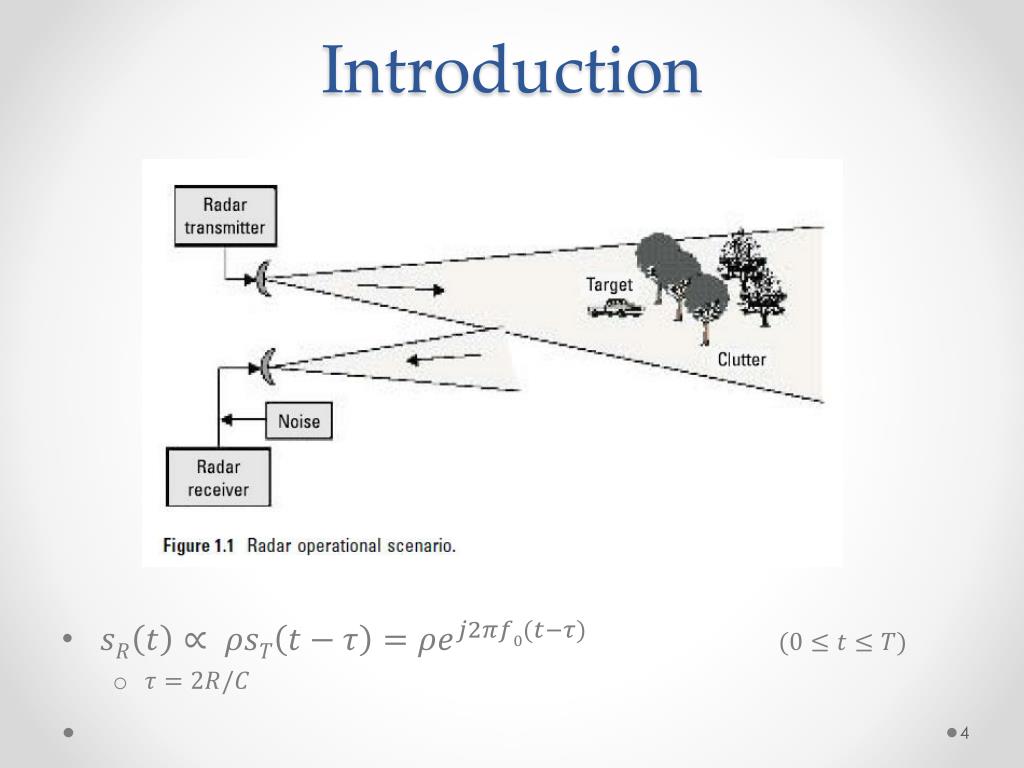

  4. Introduction

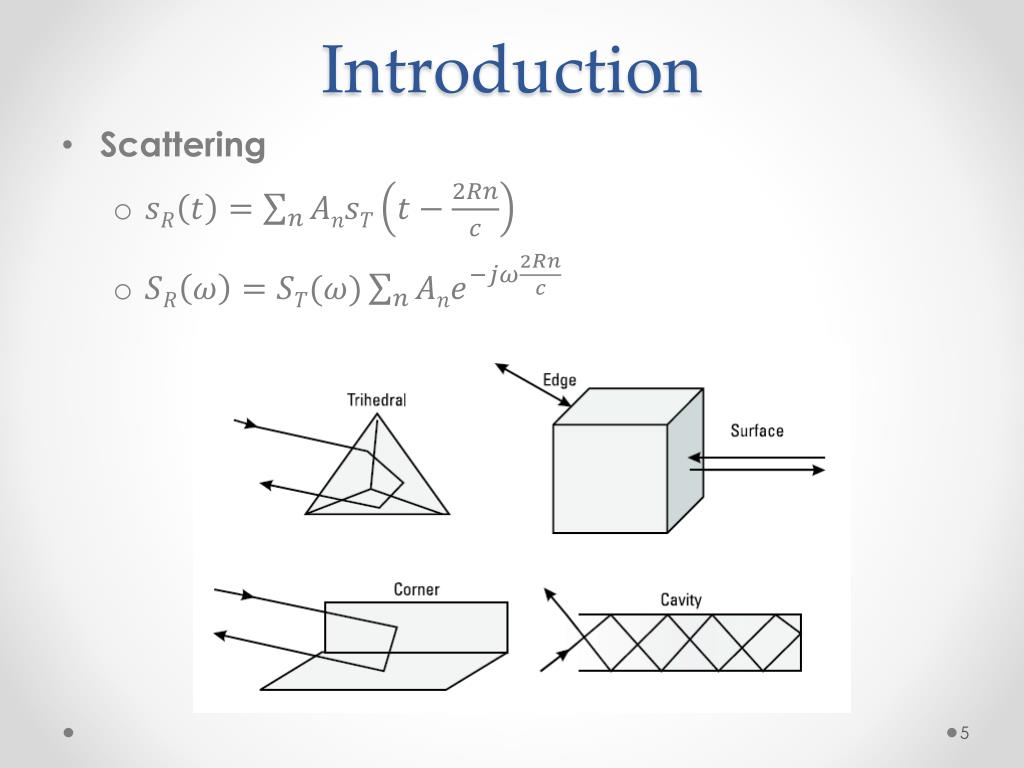

  5. Introduction • Scattering

  6. Radar Signal • Linear Frequency Modulated Signal(LFM) • f0:carrier frequency • :frequency-changing rate or chirprate • α :determines the width of the Gaussian envelope

  7. Radar Signal

  8. Radar Signal • Stepped Frequency Signal(SF) • TPRI:Pulse Repetition Intreval

  9. Radar Signal

  10. Range Profile • Range Profile: a range-compressed back-scattered signal - the distribution of target reflectivity along the radar line of sight (LOS) to the target, provided target information about target length and position of strong scatterers.

  11. Cross Range Profile • Cross Range:the dimension transverse to the radar LOS • Doppler Profile  Cross Range Profile • 2D:Range-Doppler Profile  Range-Cross Range Profile(knowing scaling factor:rotation rate & λof transmitted signal)

  12. Doppler Profile

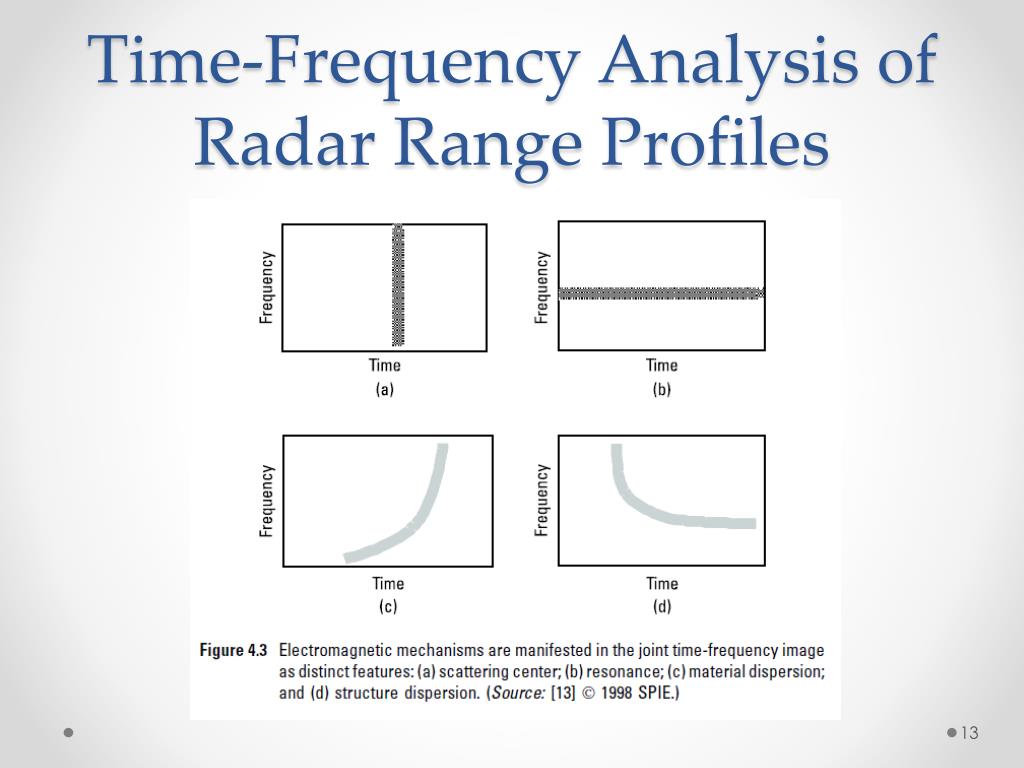

  13. Time-Frequency Analysis of Radar Range Profiles

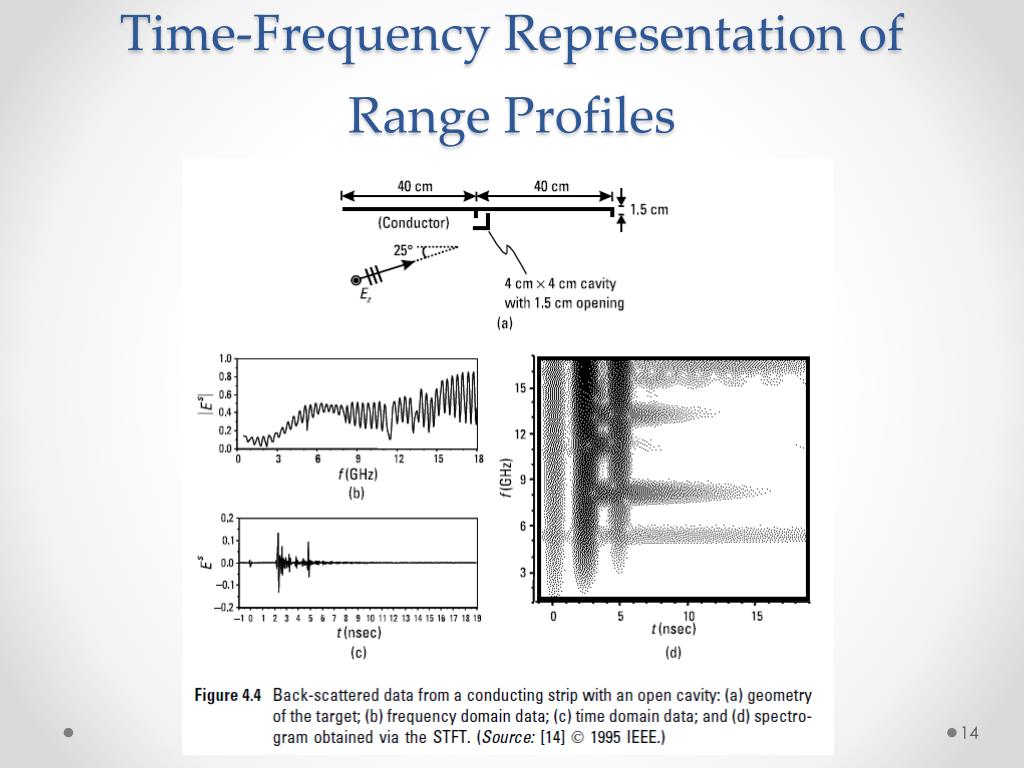

  14. Time-Frequency Representation of Range Profiles

  15. Time-Frequency Representation of Range Profiles

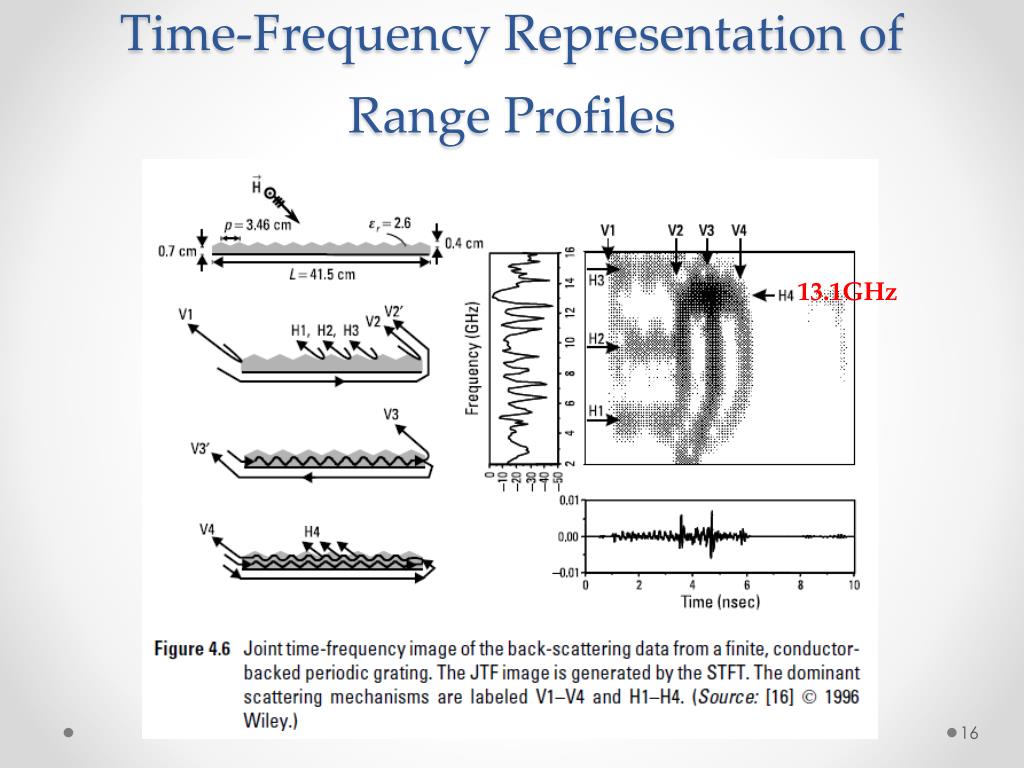

  16. Time-Frequency Representation of Range Profiles 13.1GHz

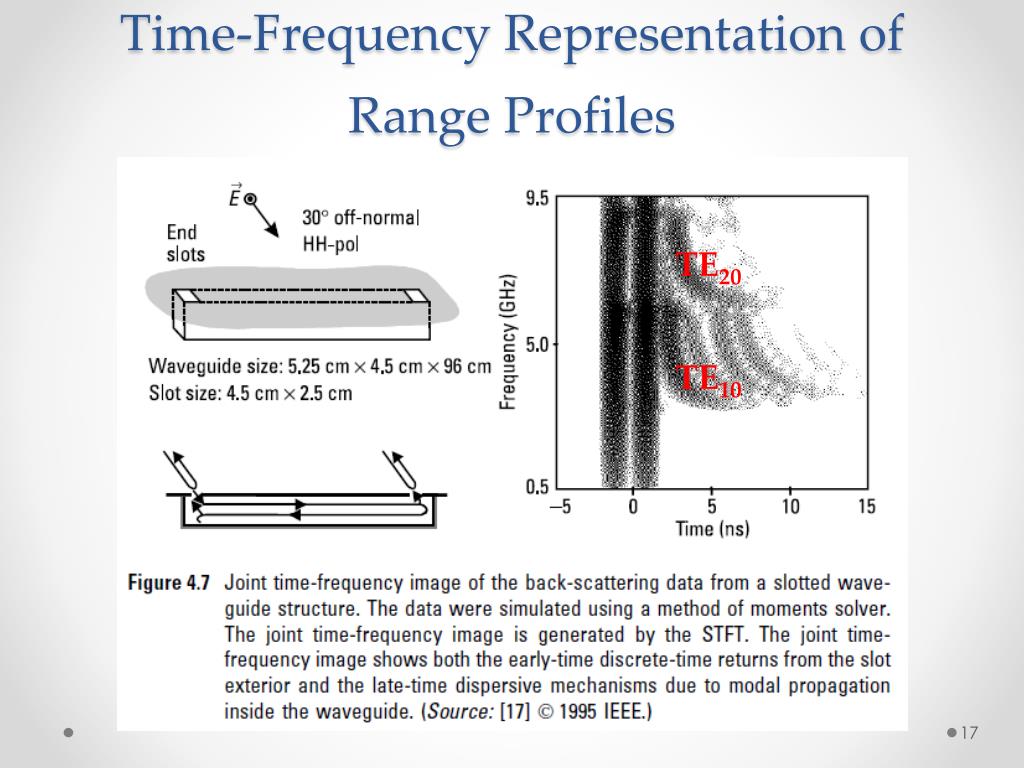

  17. Time-Frequency Representation of Range Profiles TE20 TE10

  18. Time-Frequency-Based Radar Image Formation

  19. Fourier-Based Radar Image Formation

  20. Time-Frequency-Based Radar Image Formation

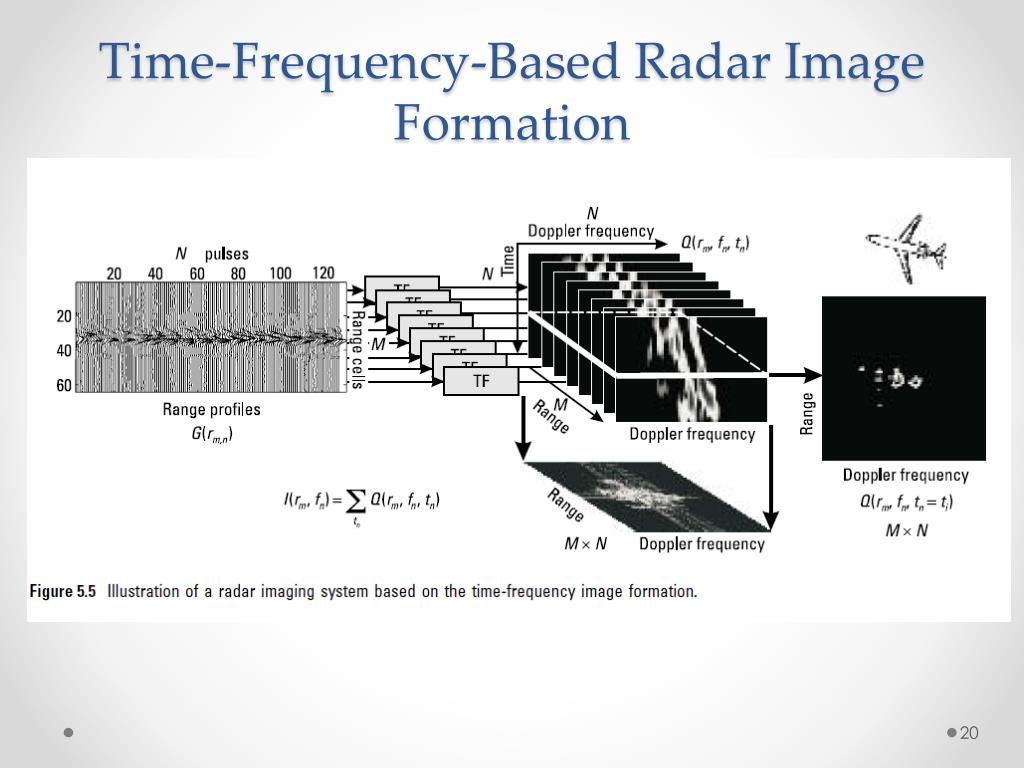

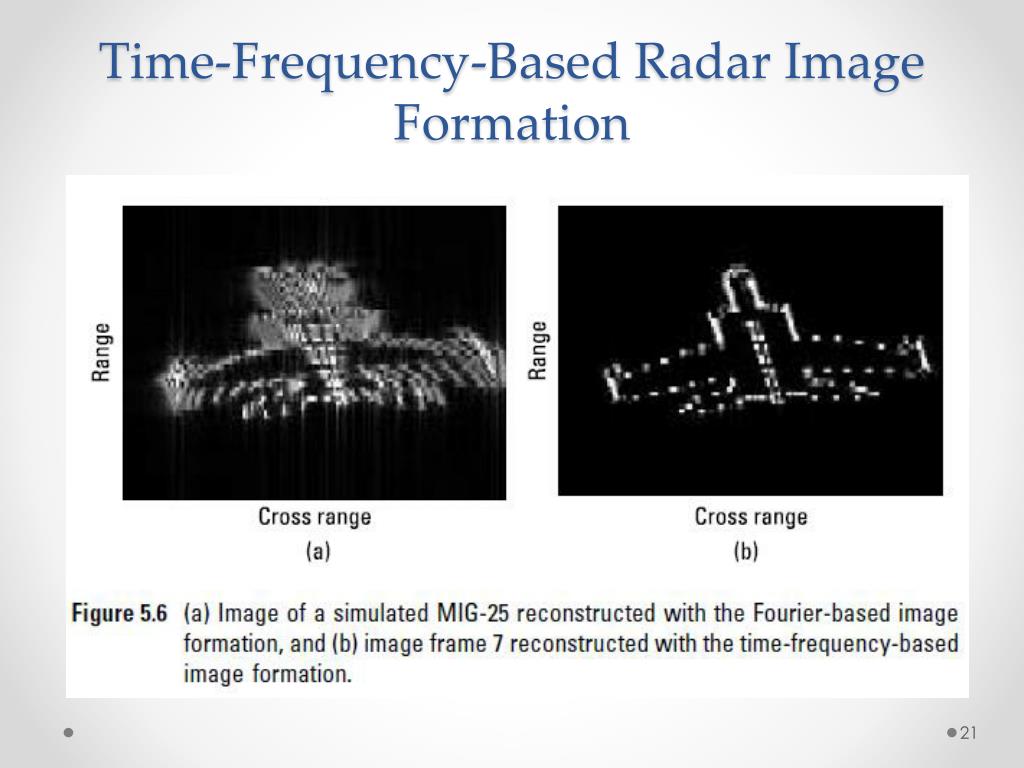

  21. Time-Frequency-Based Radar Image Formation

  22. Thank You For Your Attention
