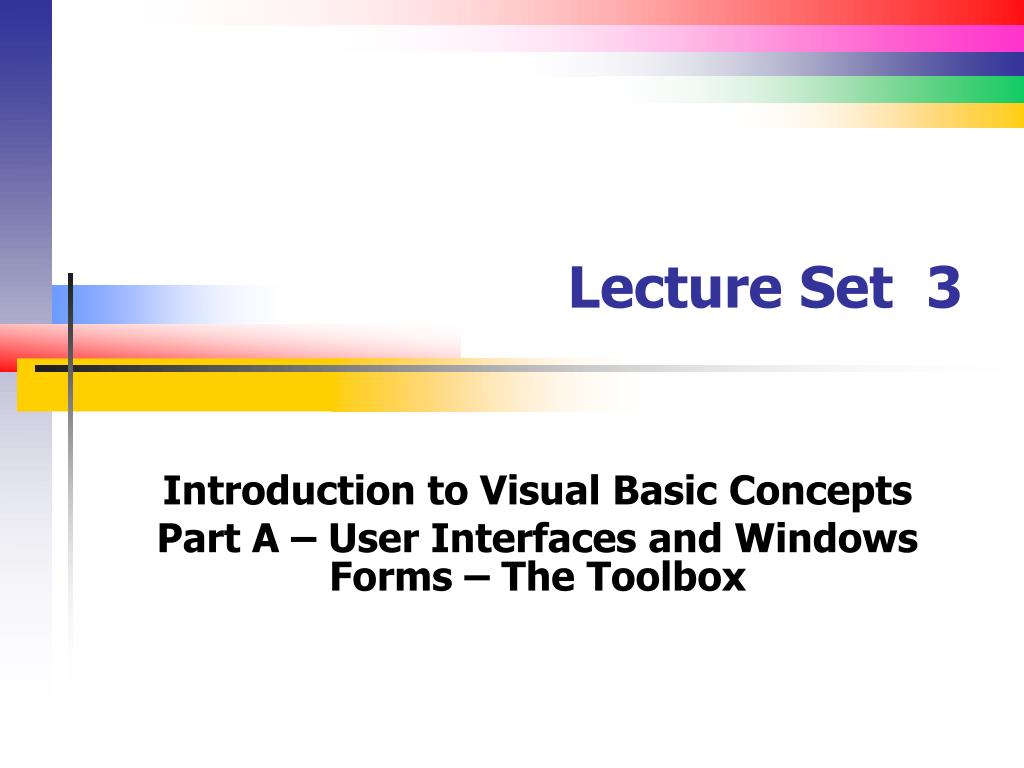

  1. Lecture Set 3 Introduction to Visual Basic Concepts Part A – User Interfaces and Windows Forms – The Toolbox

  2. Objectives • Compare command-line interfaces and forms-based interfaces – basics of forms-based interfaces • Design user interface for a Windows application • Create Windows Application project using the Visual Studio IDE • Use controls to create the user interface for a Windows Application project • Create code for a Windows Application project

  3. Comparing Command-line and Form-based Interfaces • User interfaces can be roughly categorized into two types • Command-line interfaces use textual input and output • The end user interacts with an application by typing commands • You just did this • Most Windows user interfaces are form-based visual interfaces • The end user interacts with an application through its visual elements

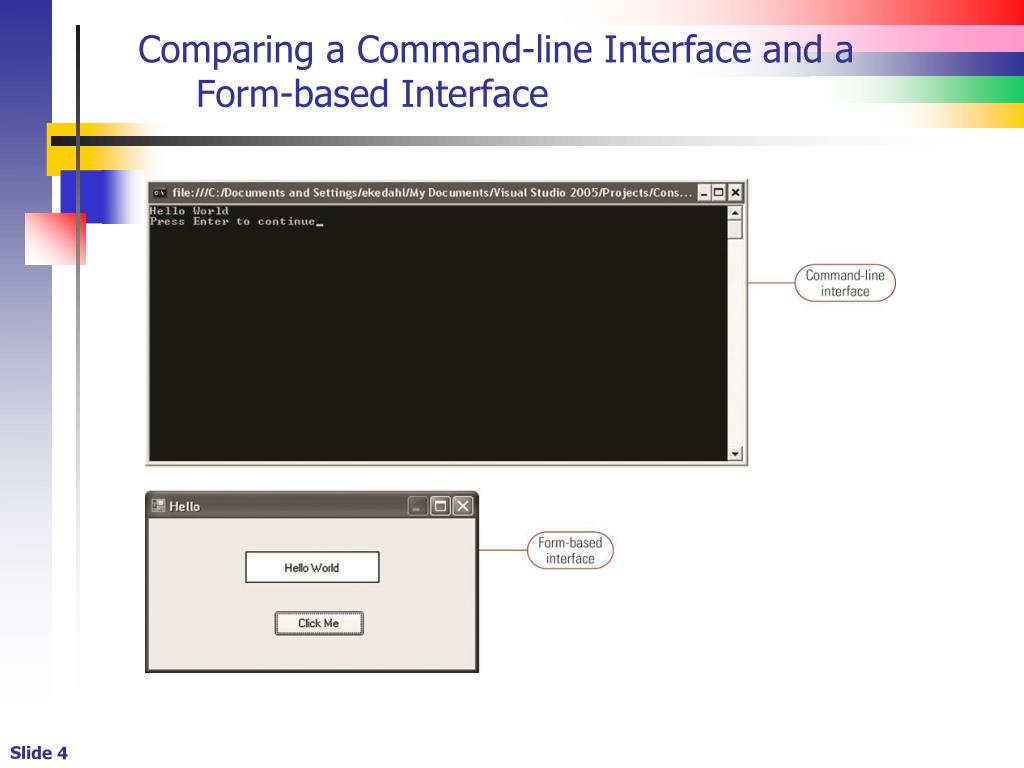

  4. Comparing a Command-line Interface and a Form-based Interface

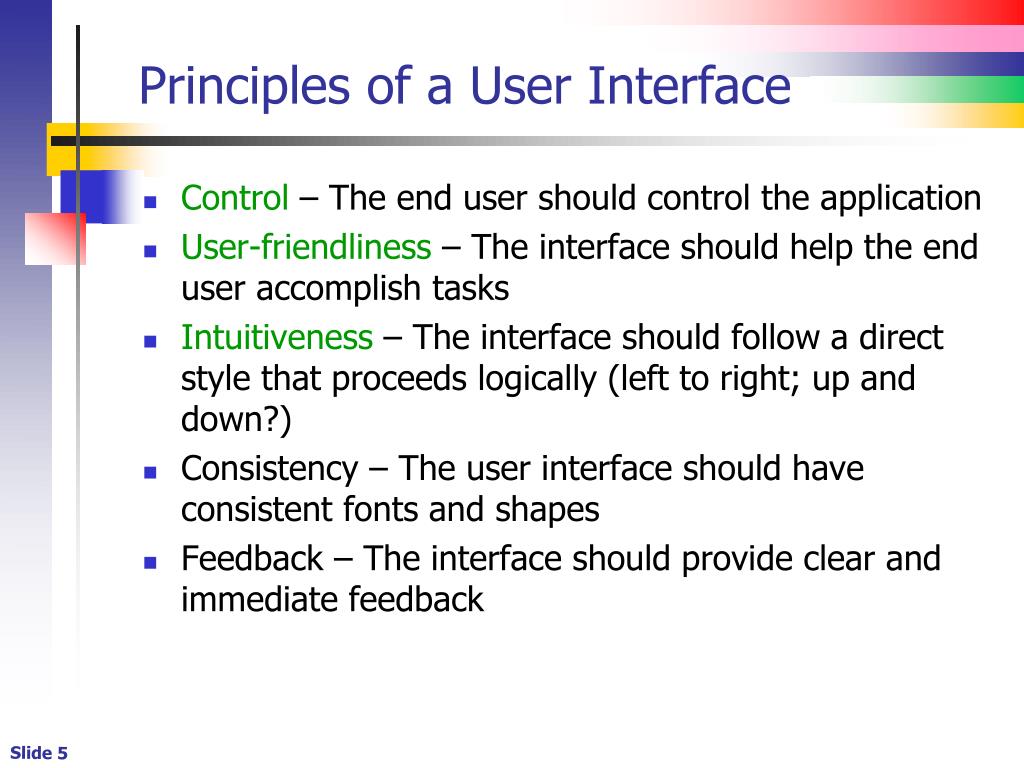

  5. Principles of a User Interface • Control – The end user should control the application • User-friendliness – The interface should help the end user accomplish tasks • Intuitiveness – The interface should follow a direct style that proceeds logically (left to right; up and down?) • Consistency – The user interface should have consistent fonts and shapes • Feedback – The interface should provide clear and immediate feedback

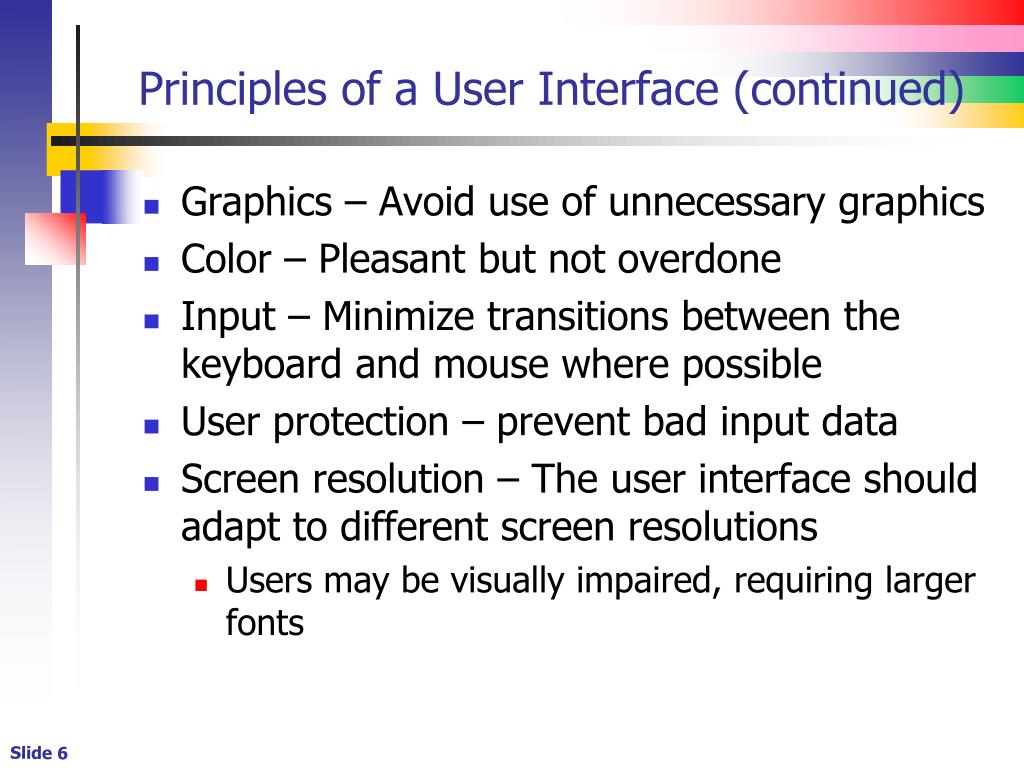

  6. Principles of a User Interface (continued) • Graphics – Avoid use of unnecessary graphics • Color – Pleasant but not overdone • Input – Minimize transitions between the keyboard and mouse where possible • User protection – prevent bad input data • Screen resolution – The user interface should adapt to different screen resolutions • Users may be visually impaired, requiring larger fonts

  7. Designing a User Interface • A user interface should be designed before it is implemented • Design user interface using a tool such as Visio • Pencil and paper works fine too • A simple pencil and paper sketch will often do • Name your controls so that you know that you have at all times • Be consistent with user names – see suggestions used in the text

  8. Designing a User Interface

  9. Principles of Control Design • Alignment – Align control instances vertically or horizontally • Balance – Distribute control instances evenly about the form • Color – Use soft colors with adequate contrast between foreground and background colors • Users may be colorblind • Function grouping – Group control instances based on their function • Consistent sizing – Control instances should have the same size

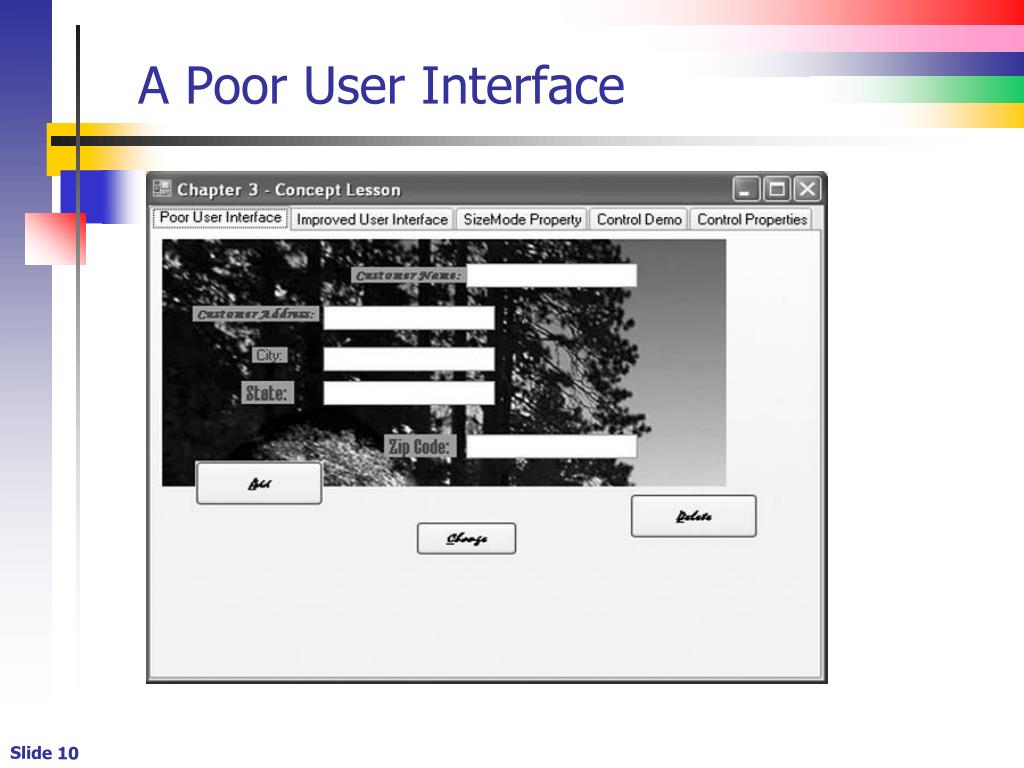

  10. A Poor User Interface

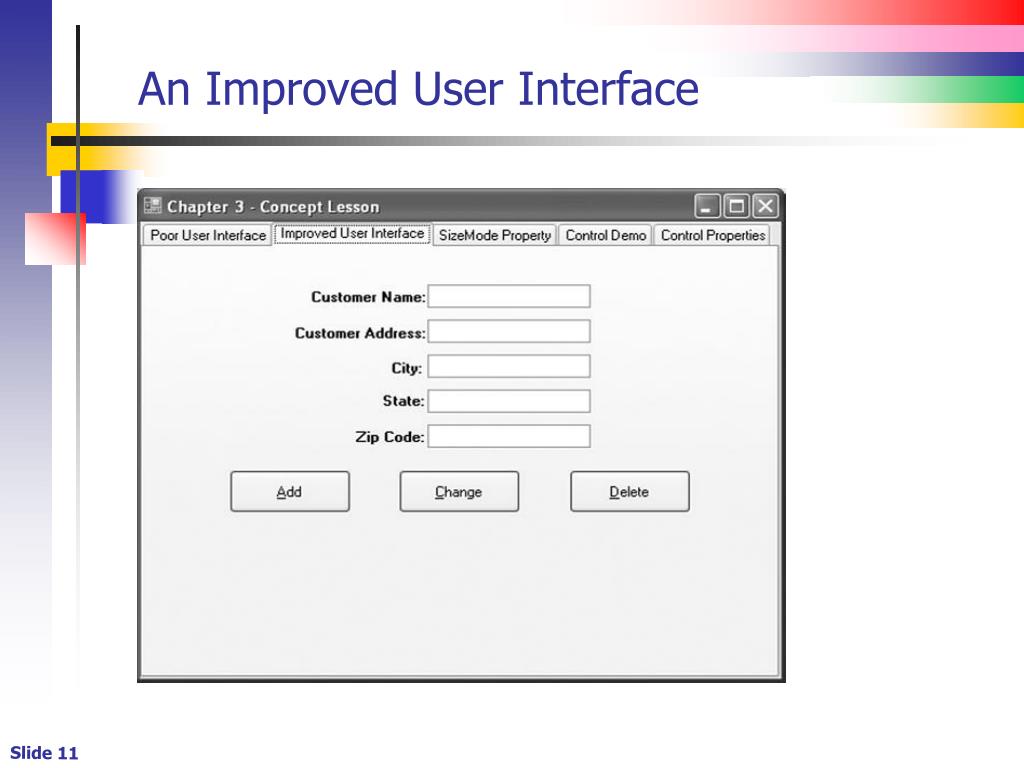

  11. An Improved User Interface

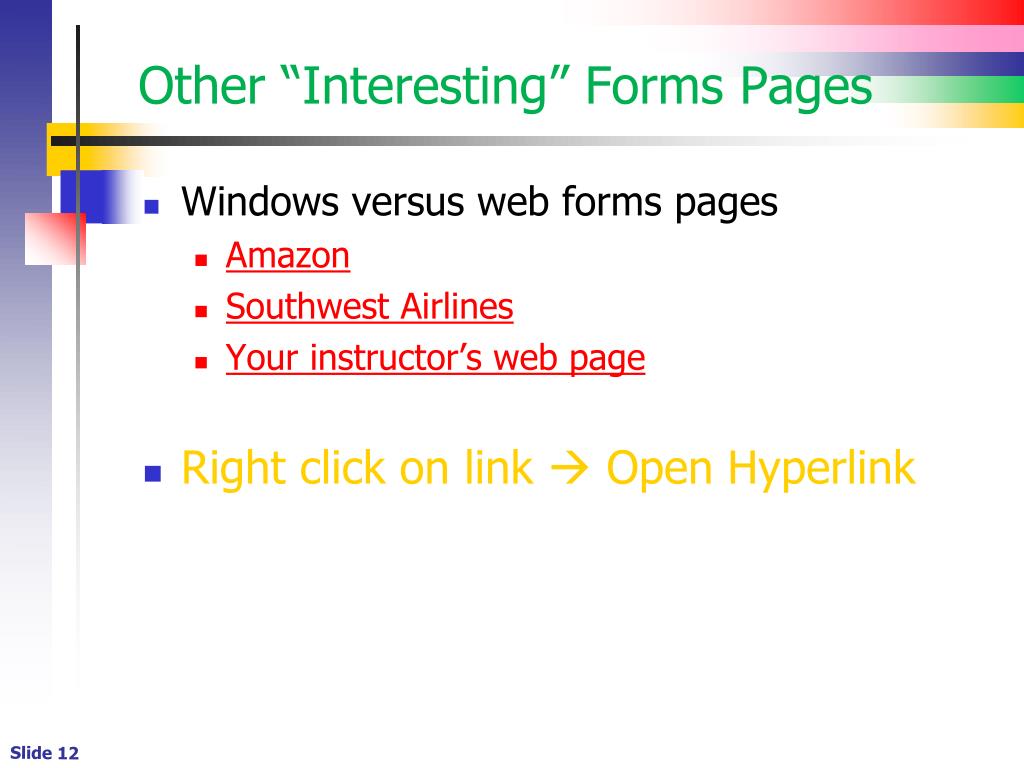

  12. Other “Interesting” Forms Pages • Windows versus web forms pages • Amazon • Southwest Airlines • Your instructor’s web page • Right click on link  Open Hyperlink

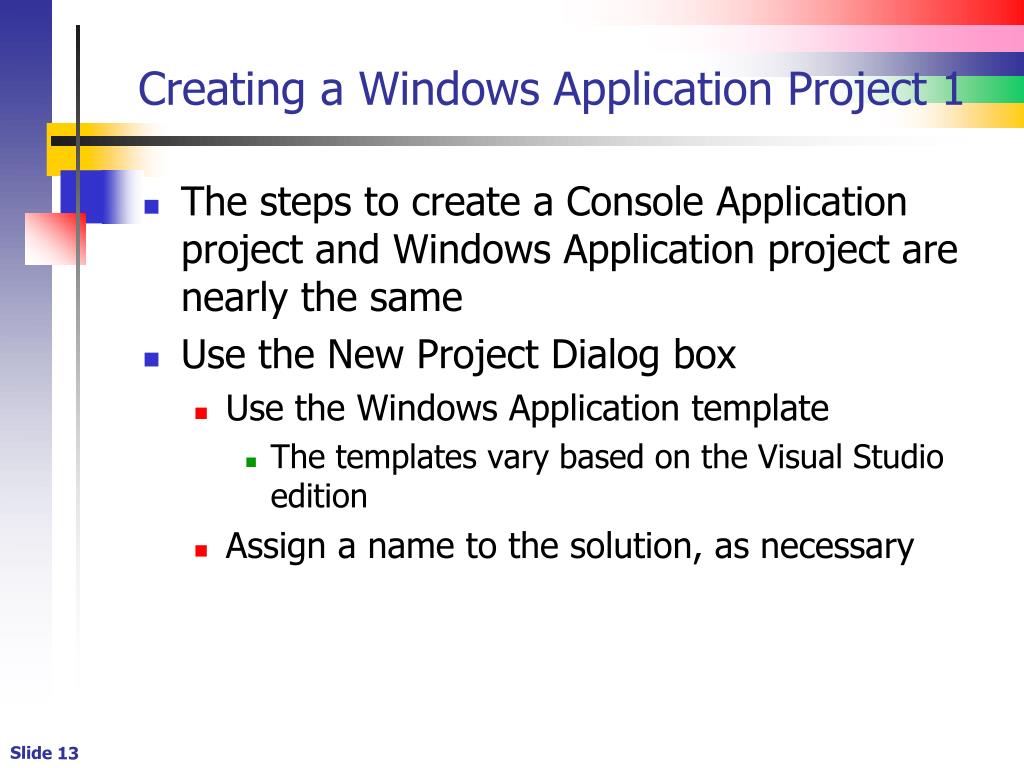

  13. Creating a Windows Application Project 1 • The steps to create a Console Application project and Windows Application project are nearly the same • Use the New Project Dialog box • Use the Windows Application template • The templates vary based on the Visual Studio edition • Assign a name to the solution, as necessary

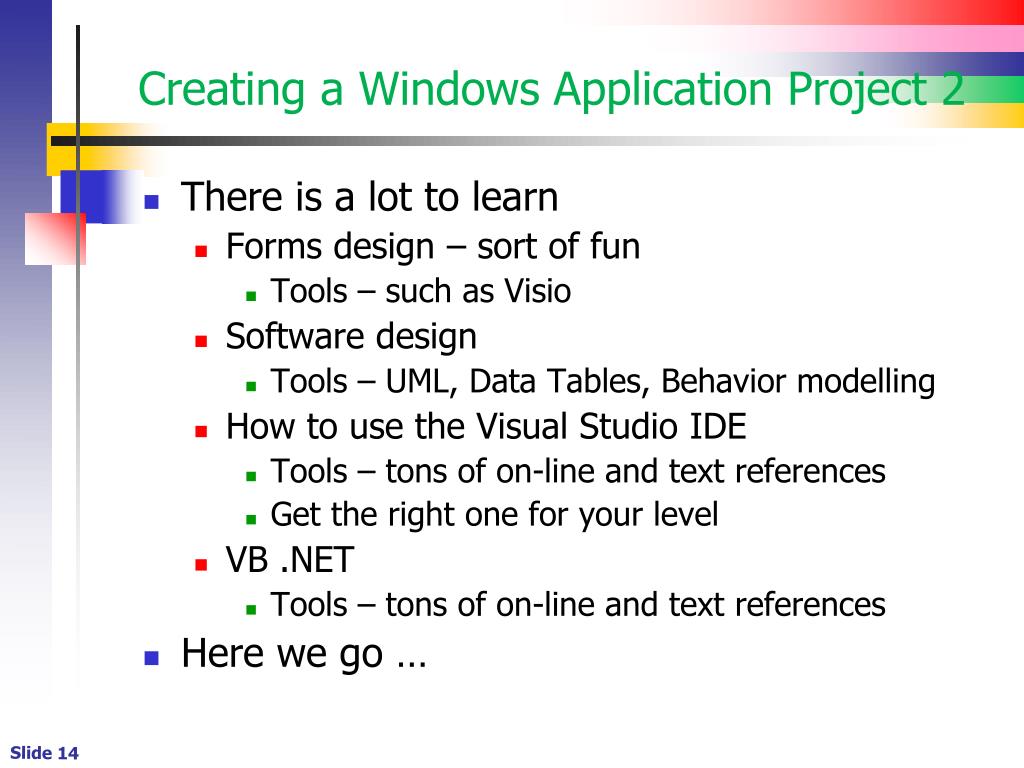

  14. Creating a Windows Application Project 2 • There is a lot to learn • Forms design – sort of fun • Tools – such as Visio • Software design • Tools – UML, Data Tables, Behavior modelling • How to use the Visual Studio IDE • Tools – tons of on-line and text references • Get the right one for your level • VB .NET • Tools – tons of on-line and text references • Here we go …

  15. Differences Between Console and Windows Application Projects • Console projects are procedural • Console projects have a textual (character-based) user interface • Windows Application projects are event driven • Windows Application projects have a visual user interface consisting of controls - buttons and boxes of varying purposes, shapes, and sizes

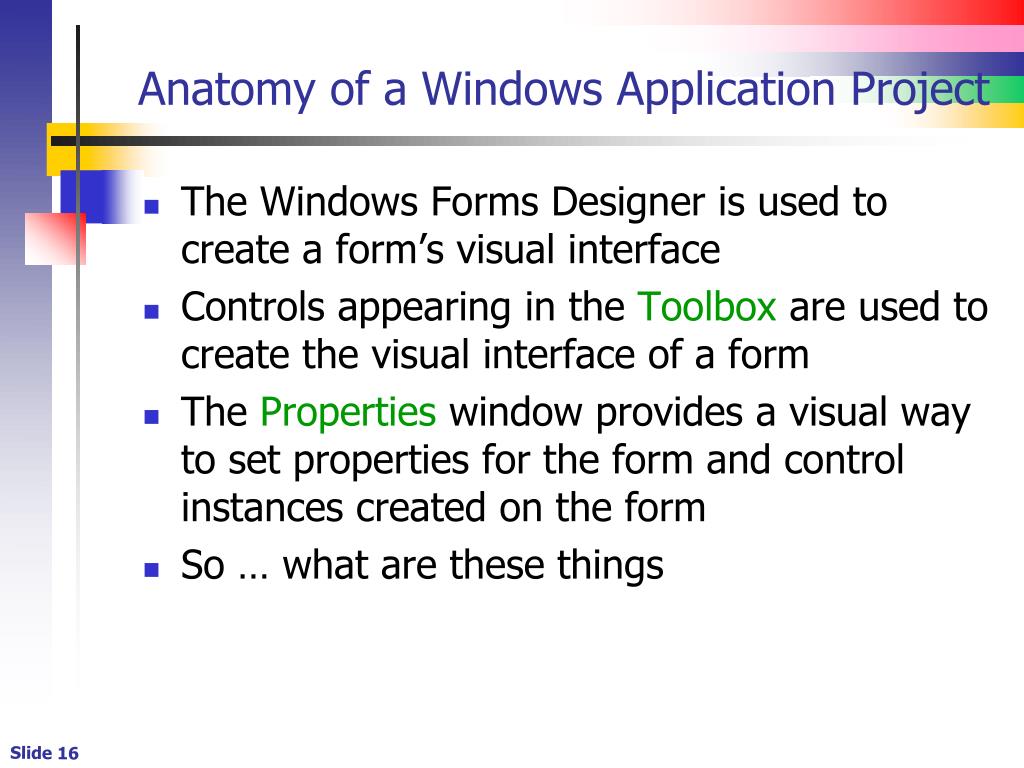

  16. Anatomy of a Windows Application Project • The Windows Forms Designer is used to create a form’s visual interface • Controls appearing in the Toolbox are used to create the visual interface of a form • The Properties window provides a visual way to set properties for the form and control instances created on the form • So … what are these things

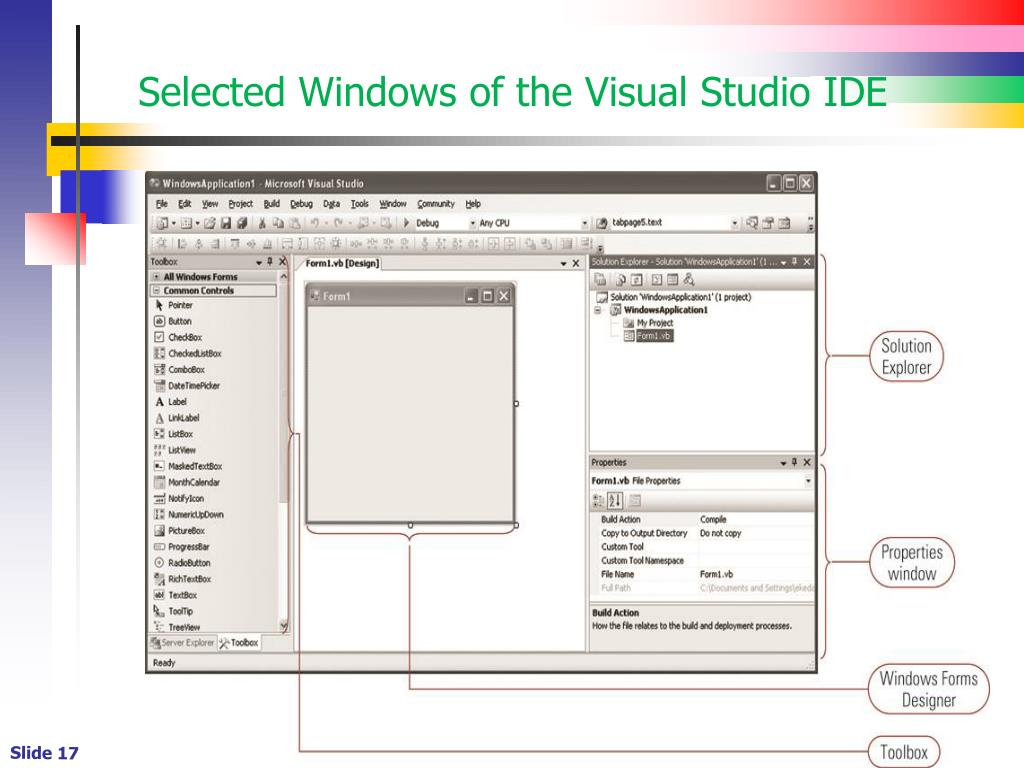

  17. Selected Windows of the Visual Studio IDE

  18. The Solution Explorer • The role of the Solution Explorer is the same for Console and Windows Application projects • It organizes the various parts of a solution • The project and support files are the same • The role of project references is the same • However, Windows Application projects reference different assemblies and namespaces  • In other words, the FCL elements you get “for free” are not the same • Form files appear instead of module files (although you can develop module files as well). • What’s in a Form File? We shall see soon.

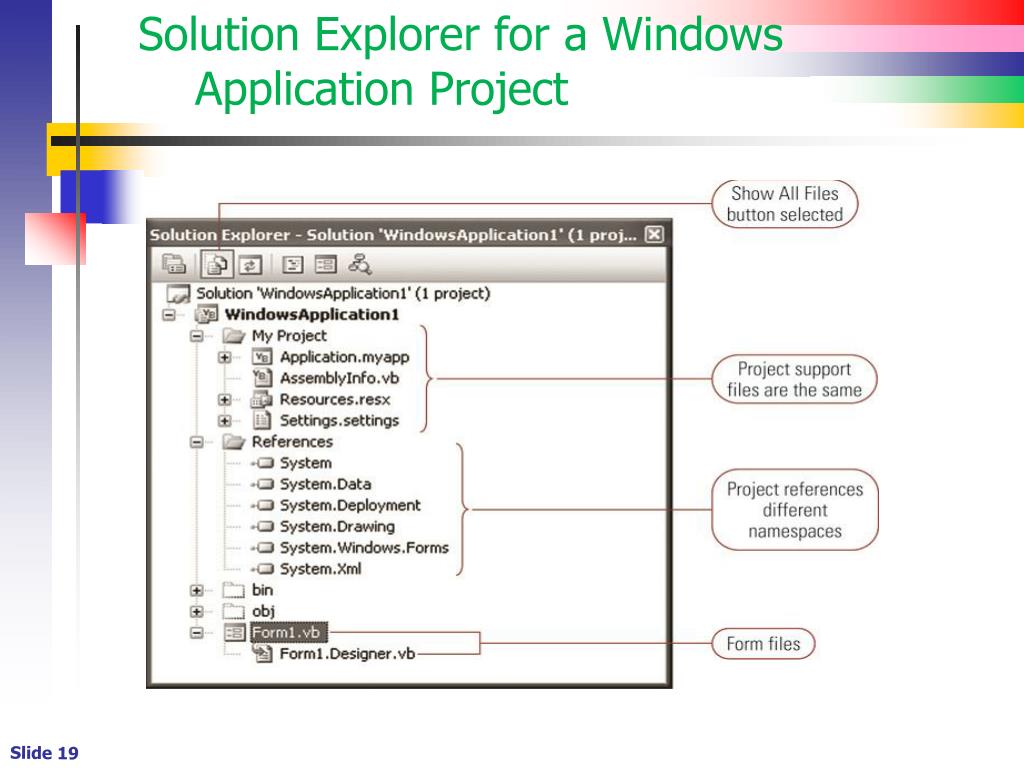

  19. Solution Explorer for a WindowsApplication Project

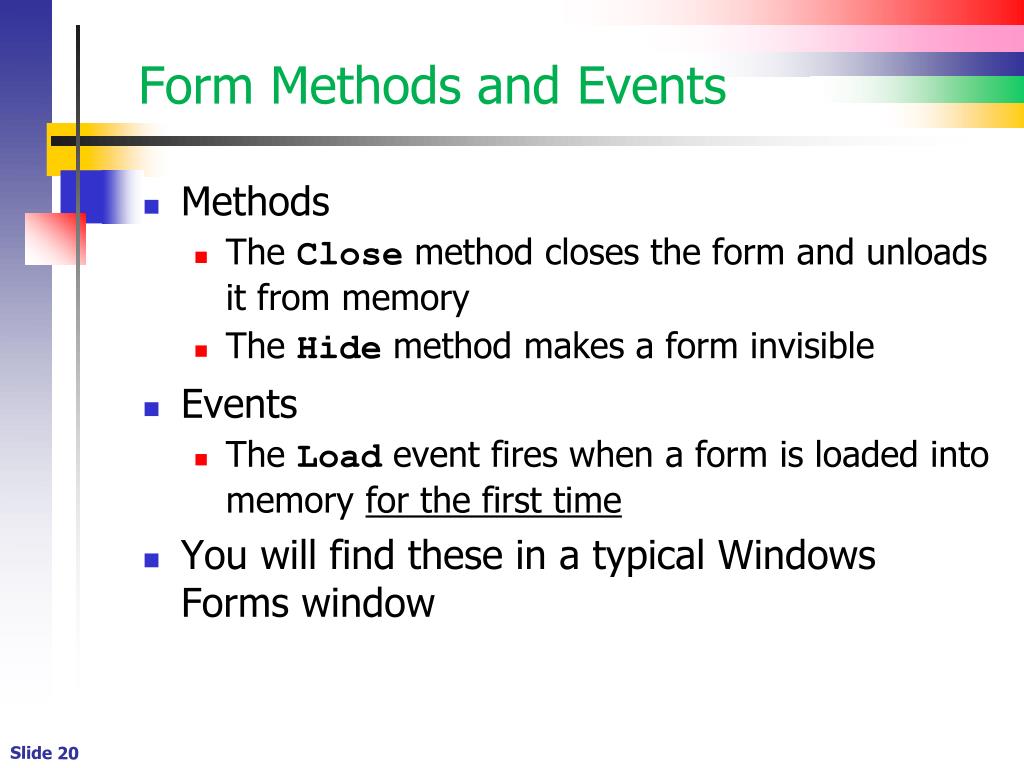

  20. Form Methods and Events • Methods • The Close method closes the form and unloads it from memory • The Hide method makes a form invisible • Events • The Load event fires when a form is loaded into memory for the first time • You will find these in a typical Windows Forms window

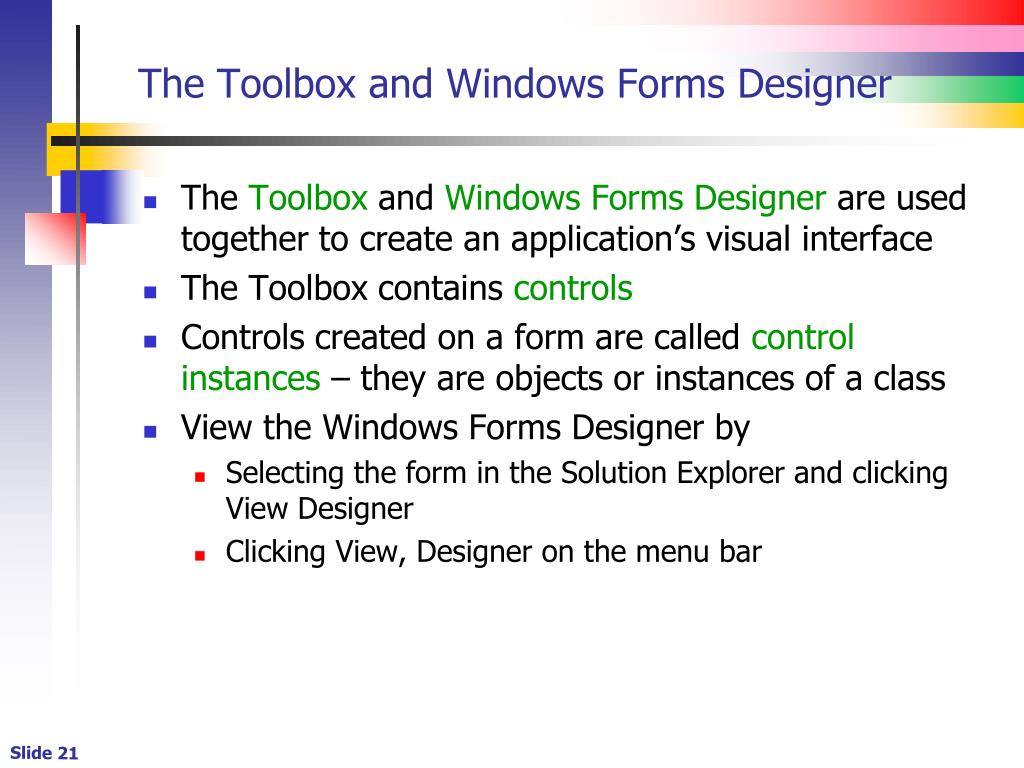

  21. The Toolbox and Windows Forms Designer • The Toolbox and Windows Forms Designer are used together to create an application’s visual interface • The Toolbox contains controls • Controls created on a form are called control instances – they are objects or instances of a class • View the Windows Forms Designer by • Selecting the form in the Solution Explorer and clicking View Designer • Clicking View, Designer on the menu bar

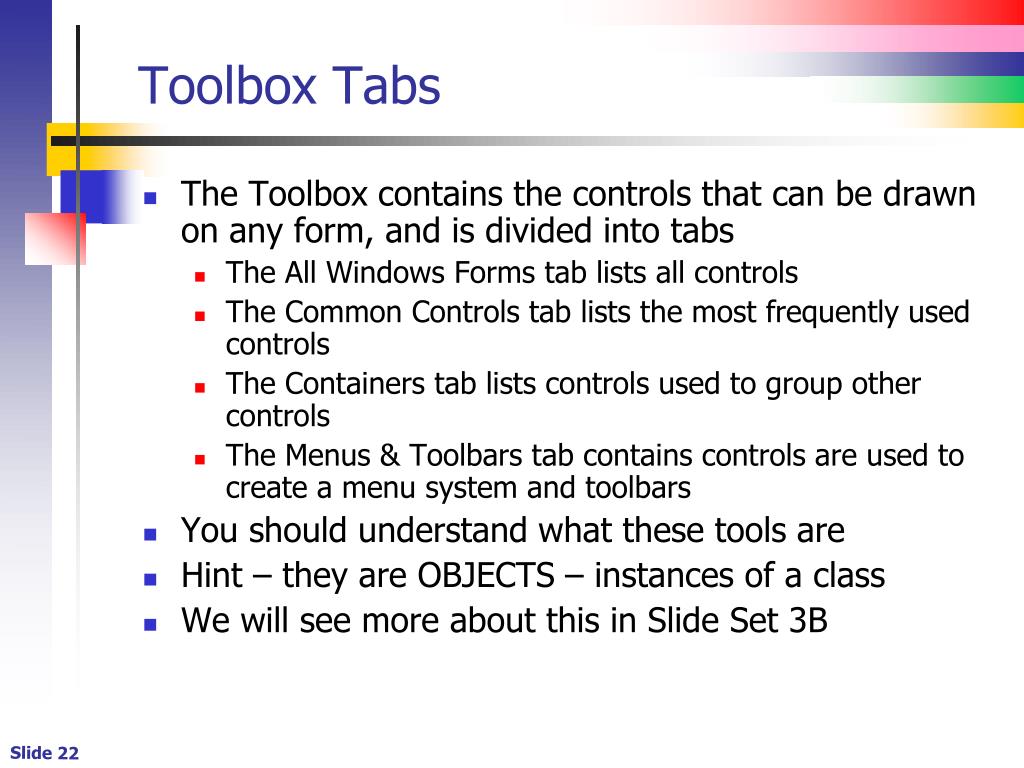

  22. Toolbox Tabs • The Toolbox contains the controls that can be drawn on any form, and is divided into tabs • The All Windows Forms tab lists all controls • The Common Controls tab lists the most frequently used controls • The Containers tab lists controls used to group other controls • The Menus & Toolbars tab contains controls are used to create a menu system and toolbars • You should understand what these tools are • Hint – they are OBJECTS – instances of a class • We will see more about this in Slide Set 3B

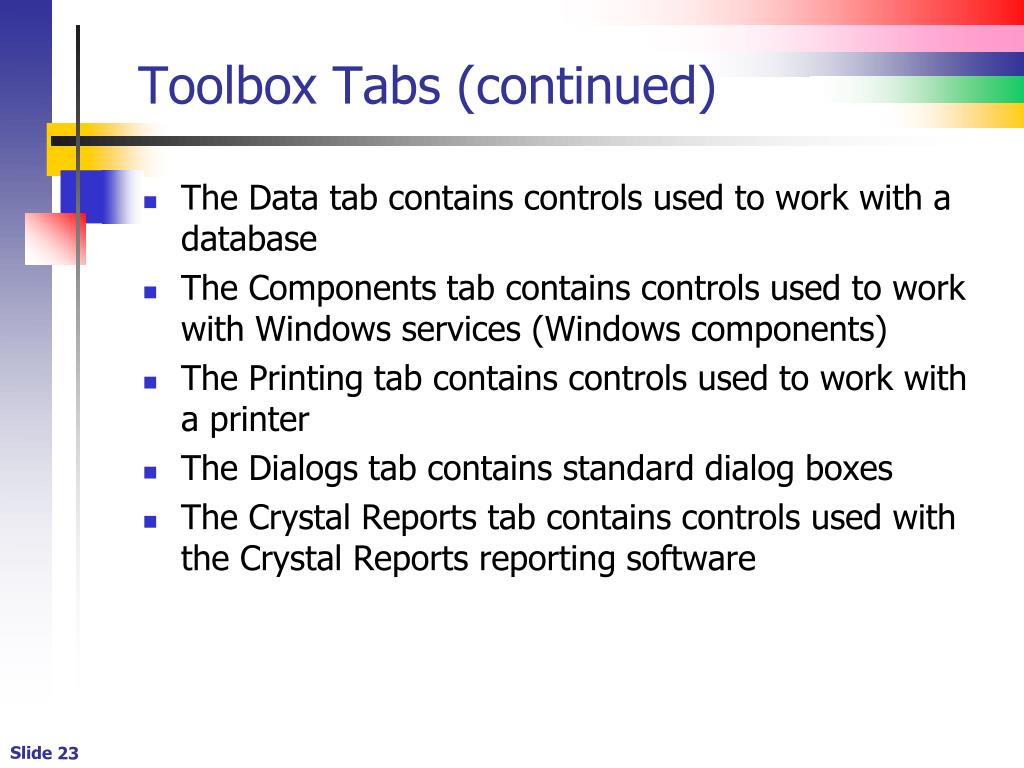

  23. Toolbox Tabs (continued) • The Data tab contains controls used to work with a database • The Components tab contains controls used to work with Windows services (Windows components) • The Printing tab contains controls used to work with a printer • The Dialogs tab contains standard dialog boxes • The Crystal Reports tab contains controls used with the Crystal Reports reporting software

  24. The Organization of Controls in the Toolbox

  25. Introduction to Forms • A title bar appears along the top of a form  • An optional control box appears in the title bar • The control box contains Minimize, Maximize, Restore, and Close buttons • The buttons on the control box may be disabled or hidden • An icon appears on the left side of the title bar • Below the title bar appears an optional menu • The region inside a form's border is called the clientarea

  26. Characteristics of a Form 2 • What you see when you open a Form – Code Mode • Pull down View – see Object Browser, Design mode, and other elements
